Foreign key column in Angular Grid component

11 Jan 202424 minutes to read

The Foreign key column in the Syncfusion Grid component allows you to display related data from a foreign key data source in a column within the grid. This feature is particularly useful when you have a column in the grid that represents a foreign key relationship with another data source.

To enable and integrate the foreign key column in the Angular Grid component, follow these steps:

1.Inject the ForeignKeyService in the provider section of the AppModule.

import { ForeignKeyService } from '@syncfusion/ej2-angular-grids';

@NgModule({
  providers: [ForeignKeyService]
})
export class AppModule { }

2.Define the foreign key column in the grid using the following properties:

  • dataSource: Specifies the foreign data source that contains the related data.

  • foreignKeyField: Maps the column name in the grid to the field in the foreign data source that represents the foreign key relationship.

  • foreignKeyValue: Specifies the field from the foreign data source that should be displayed in the grid as the related data.

    <e-column field='EmployeeID' headerText='Employee ID' foreignKeyValue='FirstName' foreignKeyField='EmployeeID' [dataSource]='employeesData'></e-column>

The foreignKeyField property should match the name of the field in the foreign data source that represents the foreign key relationship, and the foreignKeyValue property should specify the field from the foreign data source that should be displayed in the grid as the related data.

Binding local data

The Syncfusion Grid component provides a convenient way to bind local data to a foreign key column. This allows you to display related data from a local data source within the grid. Here’s an example of how to bind local data to a Foreign Key column in Syncfusion Grid:

In this example, data is the local data source for the Grid, and employeeData is the local data source for the foreign key column. The field property of the e-column component is set to EmployeeID which represents the foreign key value in the data. The foreignKeyValue property is set to FirstName which represents the field name in the employeeData that you want to display in the foreign key column.

import { Component, OnInit } from '@angular/core';
import { ForeignKeyService } from '@syncfusion/ej2-angular-grids';
import { data, employeeData } from './datasource';

@Component({
    selector: 'app-root',
    template: `<ejs-grid #grid [dataSource]='data' [height]='315'>
                    <e-columns>
                        <e-column field='OrderID' headerText='Order ID' textAlign='Right' width=100></e-column>
                        <e-column field='EmployeeID' headerText='Employee Name' width=120
                        foreignKeyValue='FirstName' [dataSource]='employeeData'></e-column>
                        <e-column field='Freight' headerText='Freight' textAlign='Right' width=80></e-column>
                        <e-column field='ShipCity' headerText='Ship City' width=130  ></e-column>
                    </e-columns>
                </ejs-grid>`,
    providers: [ForeignKeyService]
})
export class AppComponent implements OnInit {

    public data?: object[];
    public employeeData?: object[];

    ngOnInit(): void {
        this.data = data;
        this.employeeData = employeeData;
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { GridModule } from '@syncfusion/ej2-angular-grids';
import { AppComponent } from './app.component';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        GridModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

import 'zone.js';
enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Binding remote data

The Foreign key column in Syncfusion Grid allows you to bind remote data for a foreign key column. You can assign the service data as an instance of DataManager to the dataSource property, and provide the endpoint URL as the data source URL.

This example demonstrates how to use the foreign key column with remote data binding using the ODataV4Adaptor in the grid:

import { Component, OnInit } from '@angular/core';
import { ForeignKeyService } from '@syncfusion/ej2-angular-grids';
import { DataManager, ODataV4Adaptor } from '@syncfusion/ej2-data'

@Component({
    selector: 'app-root',
    template: `<ejs-grid #grid [dataSource]='data' [height]='315'>
                    <e-columns>
                        <e-column field='OrderID' headerText='Order ID' textAlign='Right' width=100></e-column>
                        <e-column field='EmployeeID' headerText='Employee Name' width=120
                        foreignKeyValue='FirstName' foreignKeyField='EmployeeID' [dataSource]='employeeData'></e-column>
                        <e-column field='Freight' headerText='Freight' textAlign='Right' width=80></e-column>
                        <e-column field='ShipCity' headerText='Ship City' width=130  ></e-column>
                    </e-columns>
                </ejs-grid>`,
    providers: [ForeignKeyService]
})
export class AppComponent implements OnInit {

    public data?: DataManager;
    public employeeData?: DataManager;


    ngOnInit(): void {
        this.data = new DataManager({
            url: 'https://services.odata.org/V4/Northwind/Northwind.svc/Orders/',
            adaptor: new ODataV4Adaptor(),
            crossDomain: true,
        });
        this.employeeData = new DataManager({
            url: 'https://services.odata.org/V4/Northwind/Northwind.svc/Employees/',
            adaptor: new ODataV4Adaptor(),
            crossDomain: true,
        });
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { GridModule } from '@syncfusion/ej2-angular-grids';
import { AppComponent } from './app.component';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        GridModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

import 'zone.js';
enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

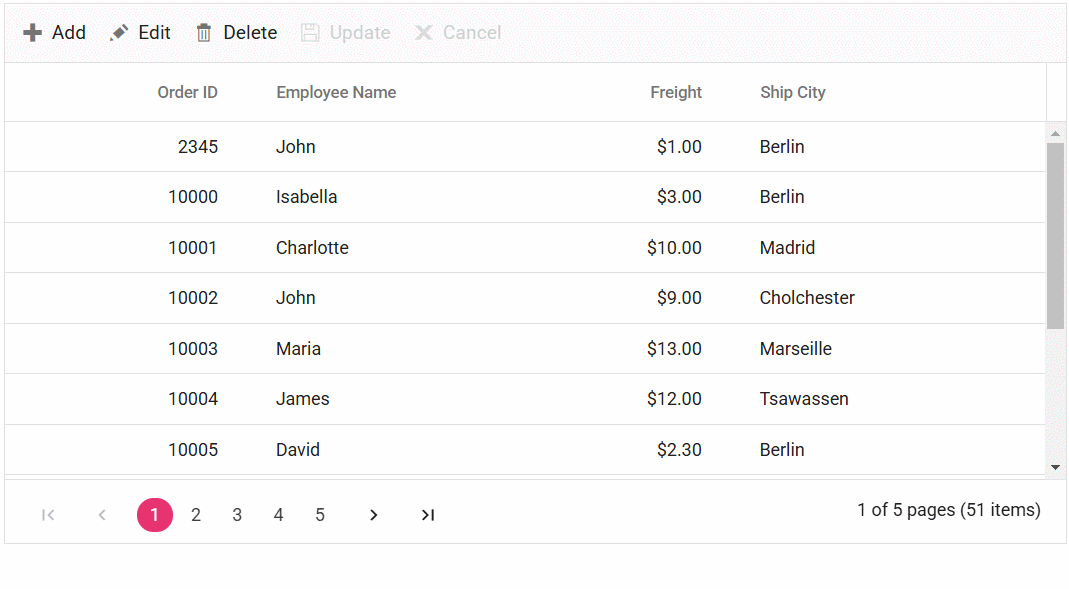

Use edit template in foreign key column

The Syncfusion Grid provides support for using an edit template in a foreign key column. By default, a dropdown component is used for editing foreign key column. However, you can render a different component for editing by using the column.edit property. Here’s an example that demonstrates how to use an edit template in a foreign key column:

In this example, an AutoComplete component is rendered as the edit template for the “EmployeeID” foreign key column. The dataSource property of the AutoComplete component is set to the employees data, and the fields property is configured to display the “FirstName” field as the value.

import { Component, OnInit } from '@angular/core';
import { createElement } from '@syncfusion/ej2-base';
import { ForeignKeyService, EditService, IEditCell, EditSettingsModel, ToolbarService, Column } from '@syncfusion/ej2-angular-grids';
import { DataManager, Query } from '@syncfusion/ej2-data';
import { AutoComplete } from '@syncfusion/ej2-angular-dropdowns';
import { data, employeeData } from './datasource';


@Component({
    selector: 'app-root',
    template: `<ejs-grid #grid [dataSource]='data' [height]='270' [editSettings]='editoption' [toolbar]='toolbar'>
                    <e-columns>
                        <e-column field='OrderID' headerText='Order ID' isPrimaryKey='true' textAlign='Right' width=100></e-column>
                        <e-column field='EmployeeID' headerText='Employee Name' width=120
                        foreignKeyValue='FirstName' [dataSource]='employeeData' [edit]='edit'></e-column>
                        <e-column field='Freight' headerText='Freight' textAlign='Right' width=80></e-column>
                        <e-column field='ShipCity' headerText='Ship City' width=130></e-column>
                    </e-columns>
                </ejs-grid>`,
    providers: [ForeignKeyService, EditService, ToolbarService]
})
export class AppComponent implements OnInit {

    public data?: object[];
    public employeeData?: object[];
    public editoption: EditSettingsModel = { allowEditing: true };
    public autoComplete?: AutoComplete;
    toolbar = ['Add', 'Edit', 'Delete', 'Update', 'Cancel'];
    public edit: IEditCell = {
        create: () => { // to create input element
            return createElement('input');
        },
        read: () => { // return edited value to update data source

            const EmployeeID = 'EmployeeID';
            const value = new DataManager(employeeData).executeLocal(new Query().where('FirstName', 'equal', (this.autoComplete as AutoComplete).value));
            console.log(value[0]);
            return value.length && (value[0] as ForeignKeyDataType)[EmployeeID]; // to convert foreign key value to local value.
        },
        destroy: () => { // to destroy the custom component.
            (this.autoComplete as AutoComplete).destroy();
        },
        write: (args: {
            rowData: object, column: Column, foreignKeyData: ForeignKeyDataType[],
            element: HTMLTableCellElement
        }) => {
            this.autoComplete = new AutoComplete({
                dataSource: employeeData as string[],
                fields: { value: args.column.foreignKeyValue },
                value: args.foreignKeyData[0].FirstName
            });
            this.autoComplete.appendTo(args.element as HTMLTableCellElement);
        }
    }

    ngOnInit(): void {
        this.data = data;
        this.employeeData = employeeData;
    }
}
interface ForeignKeyDataType{
    EmployeeID:number,
    FirstName:string,
    LastName:string
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { GridModule, ForeignKeyService } from '@syncfusion/ej2-angular-grids';
import { AppComponent } from './app.component';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        GridModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ForeignKeyService]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

import 'zone.js';
enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Customize filter UI of foreign key column

The Syncfusion Grid allows you to customize the filtering user interface (UI) for foreign key columns by using the column.filter property. By default, a dropdown component is used for filtering foreign key columns. However, you can create your own custom filtering UI by specifying a template function for the column.filter property. Here’s an example that demonstrates how to create a custom filtering UI in a foreign key column:

In this example, a DropDownList component is rendered as the filter UI for the “EmployeeID” foreign key column. The dataSource property of the DropDownList component is set to the employees data, and the fields property is configured to display the FirstName field as the text and EmployeeID field as the value. The value property is set to the current filter value of the column.

import { Component, OnInit, ViewChild } from '@angular/core';
import { createElement } from '@syncfusion/ej2-base';
import { GridComponent, ForeignKeyService, FilterService, IFilter, FilterSettingsModel, Filter, Column } from '@syncfusion/ej2-angular-grids';
import { DataManager } from '@syncfusion/ej2-data';
import { DropDownList } from '@syncfusion/ej2-angular-dropdowns';
import { data, fEmployeeData } from './datasource';

@Component({
    selector: 'app-root',
    template: `<ejs-grid #grid [dataSource]='data' [height]='315' [allowFiltering]='true'
        [filterSettings]='filteroption'>
                    <e-columns>
                        <e-column field='OrderID' headerText='Order ID' textAlign='Right' width=100></e-column>
                        <e-column field='EmployeeID' headerText='Employee Name' width=120
                        foreignKeyValue='FirstName' [dataSource]='employeeData' [filter]='filter'></e-column>
                        <e-column field='Freight' headerText='Freight' textAlign='Right' width=80></e-column>
                        <e-column field='ShipCity' headerText='Ship City' width=130  ></e-column>
                    </e-columns>
                </ejs-grid>`,
    providers: [ForeignKeyService, FilterService]
})
export class AppComponent implements OnInit {

    public data?: object[];
    @ViewChild('grid')
    public grid?: GridComponent;
    public employeeData?: object[];
    public dropInstance?: DropDownList;
    public filteroption: FilterSettingsModel = { type: 'Menu'};
    public filter: IFilter = {
        ui: {
            create: (args: { target: Element, column: object }) => {
                const flValInput: HTMLElement = createElement('input', { className: 'flm-input' });
                args.target.appendChild(flValInput);
                this.dropInstance = new DropDownList({
                    dataSource: new DataManager(fEmployeeData),
                    fields: { text: 'FirstName', value: 'EmployeeID' },
                    placeholder: 'Select a value',
                    popupHeight: '200px'
                });
                this.dropInstance.appendTo(flValInput);
            },
            write: (args: {
                column: object, target: Element,
                filteredValue: number | string
            }) => {
                (this.dropInstance as DropDownList).text = args.filteredValue as string || '';
            },
            read: (args: { target: Element, column: Column, operator: string, fltrObj: Filter }) => {
               (this.grid as GridComponent).filterByColumn(args.column.field, args.operator, (this.dropInstance as DropDownList).text);
            }
        }
    };
    ngOnInit(): void {
        this.data = data;
        this.employeeData = fEmployeeData;
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { GridModule, ForeignKeyService } from '@syncfusion/ej2-angular-grids';
import { AppComponent } from './app.component';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        GridModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ForeignKeyService]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

import 'zone.js';
enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Use filter bar template in foreign key column

You can use the filter bar template in a foreign key column in Grid by defining the column.filterBarTemplate property. This allows you to customize the filter bar for the foreign key column with a custom component or HTML template. Here’s an example that demonstrates how to use a filter bar template in a foreign key column:

In this example, the “EmployeeID” column is a foreign key column, and the filter function is used as the filter bar template for this column. The filter function can be defined in your component code and should return the desired component or HTML template for the filter bar. The column header shows the custom filter bar template and you can select filter value by using the DropDown options.

import { Component, OnInit, ViewChild } from '@angular/core';
import { createElement } from '@syncfusion/ej2-base';
import { GridComponent, ForeignKeyService, FilterService, IFilterUI, Column } from '@syncfusion/ej2-angular-grids';
import { DataManager } from '@syncfusion/ej2-data';
import { DropDownList, ChangeEventArgs } from '@syncfusion/ej2-angular-dropdowns';
import { data, fEmployeeData } from './datasource';

@Component({
    selector: 'app-root',
    template: `<ejs-grid #grid [dataSource]='data' [height]='260' [allowFiltering]='true'>
                    <e-columns>
                        <e-column field='OrderID' headerText='Order ID' textAlign='Right' width=100></e-column>
                        <e-column field='EmployeeID' headerText='Employee Name' width=120
                        foreignKeyValue='FirstName' [dataSource]='employeeData' [filterBarTemplate]='filter'></e-column>
                        <e-column field='ShipCity' headerText='Ship City' width=130  ></e-column>
                    </e-columns>
                </ejs-grid>`,
    providers: [ForeignKeyService, FilterService]
})
export class AppComponent implements OnInit {

    public data?: object[];
    @ViewChild('grid')
    public grid?: GridComponent;
    public employeeData?: object[];
    public filter: IFilterUI = {
        create: (args: { element: Element, column: Column }) => {
            return createElement('input', { className: 'flm-input' });
        },
        write: (args: { element: Element, column: Column }) => {
            fEmployeeData.splice(0, 0, { FirstName: 'All' }); // for clear filtering
            const dropInstance: DropDownList = new DropDownList({
                dataSource: new DataManager(fEmployeeData),
                fields: { text: 'FirstName' },
                placeholder: 'Select a value',
                popupHeight: '200px',
                index: 0,
                change: (e: ChangeEventArgs) => {
                    if (e.value !== 'All') {
                        (this.grid as GridComponent).filterByColumn('EmployeeID', 'equal', e.value);
                    } else {
                        (this.grid as GridComponent).removeFilteredColsByField('EmployeeID');
                    }
                }
            });
            dropInstance.appendTo(args.element as HTMLTableCellElement);
        }
    };
    ngOnInit(): void {
        this.data = data;
        this.employeeData = fEmployeeData;
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { GridModule, ForeignKeyService } from '@syncfusion/ej2-angular-grids';
import { AppComponent } from './app.component';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        GridModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ForeignKeyService]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

import 'zone.js';
enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Perform aggregation in foreign key column

By default, aggregations are not supported in a foreign key column in the Syncfusion Grid. However, you can achieve aggregation for a foreign key column by using customAggregate.

To perform aggregation in a foreign key column, follow these steps:

1.Define a foreign key column in the Grid.
2.Implement a custom aggregate function to calculate the aggregation for the foreign key column.
3.Set the customAggregate property of the column to the custom aggregate function.

Here’s an example that demonstrates how to perform aggregation in a foreign key column:

In the provided example, the customAggregateFn function is used to filter the data based on the FirstName field of the foreign key column, using the getForeignData internal function. The function then counts the occurrences of Margaret. The result is displayed in the grid’s footer template using the ng-template with the #footerTemplate reference.

import { Component, OnInit, ViewChild } from '@angular/core';
import { ForeignKeyService, AggregateService, getForeignData, CustomSummaryType, AggregateColumnModel, GridComponent, Column } from '@syncfusion/ej2-angular-grids';
import { data, employeeData } from './datasource';
import { getValue } from '@syncfusion/ej2-base';

@Component({
    selector: 'app-root',
    template: `<ejs-grid #grid [dataSource]='data' [height]='280'>
                    <e-columns>
                        <e-column field='OrderID' headerText='Order ID' textAlign='Right' width=100></e-column>
                        <e-column field='EmployeeID' headerText='Employee Name' width=120
                         foreignKeyValue='FirstName' [dataSource]='employeeData'></e-column>
                        <e-column field='Freight' headerText='Freight' textAlign='Right' width=80></e-column>
                        <e-column field='ShipCity' headerText='Ship City' width=130  ></e-column>
                    </e-columns>
                    <e-aggregates>
                        <e-aggregate>
                            <e-columns>
                                <e-column field="EmployeeID" type="Custom" [customAggregate]= 'customAggregateFn'>
                                    <ng-template #footerTemplate let-data>
                                        Count of Margaret:
                                    </ng-template>
                                </e-column>
                            </e-columns>
                        </e-aggregate>
                    </e-aggregates>
                </ejs-grid>`,
    providers: [ForeignKeyService, AggregateService]
})
export class AppComponent implements OnInit {

    public data?: object[];
    @ViewChild('grid')
    public grid?: GridComponent;
    public employeeData?: object[];

    // Custom Aggregate function for foreign column
    public customAggregateFn: CustomSummaryType = (customData: object, column: AggregateColumnModel) => {
        var count = 0;
        data.forEach((dObj) => {
            count = getValue('FirstName', getForeignData((this.grid as GridComponent).getColumnByField((column as Column).field), dObj)[0]) === 'Margaret' ? count + 1 : count;
        })
        return count;
    }

    ngOnInit(): void {
        this.data = data;
        this.employeeData = employeeData;
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { GridModule, ForeignKeyService } from '@syncfusion/ej2-angular-grids';
import { AppComponent } from './app.component';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        GridModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ForeignKeyService]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

import 'zone.js';
enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Enable multiple foreign key columns

The Syncfusion Grid component supports the feature of enabling multiple foreign key columns with editing options. This allows users to display columns from foreign data sources in the Grid component.

In the following example, Customer Name and Ship City are foreign key columns that display the ContactName and City columns from foreign data.

import { Component, OnInit } from '@angular/core';
import { ForeignKeyService, EditService, EditSettingsModel, ToolbarService } from '@syncfusion/ej2-angular-grids';
import { orderDetails, customerData, employeeData } from './datasource';

@Component({
    selector: 'app-root',
    template: `<ejs-grid #grid [dataSource]='orderDetails' [height]='270' [editSettings]='editoption' [toolbar]='toolbar'>
                    <e-columns>
                        <e-column field='OrderID' headerText='Order ID' isPrimaryKey='true' textAlign='Right' width=100></e-column>
                        <e-column field='CustomerID' headerText='Customer Name' width=170
                        foreignKeyValue='ContactName' [dataSource]='customerData'></e-column>
                        <e-column field='Freight' headerText='Freight' editType= 'numericedit' textAlign='Right' width=130 format= 'C2'></e-column>
                        <e-column field='EmployeeID' headerText='Ship City' width=150
                        foreignKeyValue='City' [dataSource]='employeeData'></e-column>
                        <e-column field='ShipCountry' headerText='Ship Country' width='150'></e-column>
                    </e-columns>
                </ejs-grid>`,
    providers: [ForeignKeyService, EditService, ToolbarService]
})
export class AppComponent implements OnInit {

    public orderDetails?: object[];
    public customerData?: object[];
    public employeeData?: object[];
    public editoption: EditSettingsModel = { allowEditing: true, allowAdding: true, allowDeleting: true };
    toolbar = ['Add', 'Edit', 'Delete', 'Update', 'Cancel'];

    ngOnInit(): void {
        this.orderDetails = orderDetails;
        this.customerData = customerData;
        this.employeeData = employeeData;
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { GridModule, ForeignKeyService } from '@syncfusion/ej2-angular-grids';
import { AppComponent } from './app.component';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        GridModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ForeignKeyService]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

import 'zone.js';
enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);
