Legend in ASP.NET MVC TreeMap control

21 Oct 2021 / 4 minutes to read

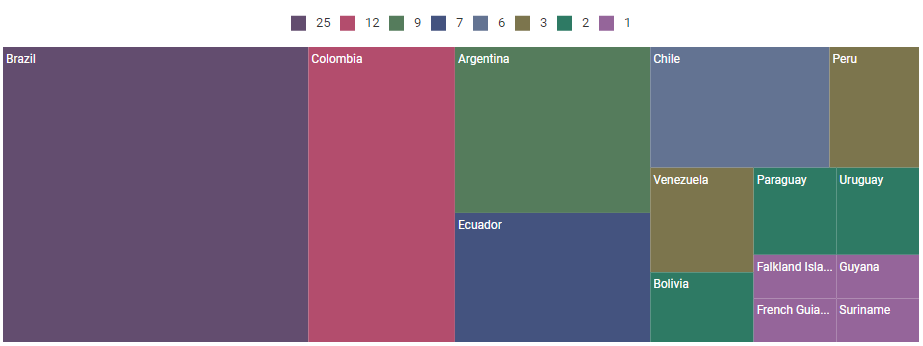

Legend is used to provide valuable information for interpreting what the TreeMap displays. The legends can be represented in various colors, shapes or other identifiers based on the data.

Position and alignment

Legend position is used to place legend in various positions. Based on the legend position, the legend item will be aligned. For example, if the position is top or bottom, the legend items are placed by rows. If the position is left or right, the legend items are placed by columns.

The following options are available to customize the legend position:

  • Top
  • Bottom
  • Left
  • Right
  • Float
razor
position.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
    @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").RangeColorValuePath("count").LegendSettings(legend => legend.Visible(true).Position(Syncfusion.EJ2.TreeMap.LegendPosition.Top)).LeafItemSettings(leaf => leaf.LabelPath("fruit")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { fruit: 'Apple', count: 5000 },
            { fruit: 'Mango', count: 3000 },
            { fruit: 'Orange', count: 2300 },
            { fruit: 'Banana', count: 500 },
            { fruit: 'Grape', count: 4300 },
            { fruit: 'Papaya', count: 1200 },
            { fruit: 'Melon', count: 4500 }
        ];
        args.treemap.dataSource = data;
        var color = [
            {
                from: 500,
                to: 3000,
                color: 'orange'
            },
            {
               from: 3000,
               to: 5000,
               color: 'green'
            }
        ];
        args.treemap.leafItemSettings.colorMapping = color;
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

TreeMap with legend on top

Legend Alignment is used to align the legend items in specific location. The following options are available to customize the legend alignment:

  • Near
  • Center
  • Far
razor
align.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
    @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").RangeColorValuePath("count").LegendSettings(legend => legend.Visible(true).Alignment(Syncfusion.EJ2.TreeMap.Alignment.Far)).LeafItemSettings(leaf => leaf.LabelPath("fruit")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { fruit: 'Apple', count: 5000 },
            { fruit: 'Mango', count: 3000 },
            { fruit: 'Orange', count: 2300 },
            { fruit: 'Banana', count: 500 },
            { fruit: 'Grape', count: 4300 },
            { fruit: 'Papaya', count: 1200 },
            { fruit: 'Melon', count: 4500 }
        ];
        args.treemap.dataSource = data;
        var color = [
            {
                from: 500,
                to: 3000,
                color: 'orange'
            },
            {
               from: 3000,
               to: 5000,
               color: 'green'
            }
        ];
        args.treemap.leafItemSettings.colorMapping = color;
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

TreeMap with legend alignment

Legend mode

The TreeMap control supports two different types of legend rendering modes such as Default and Interactive.

Default mode

In default mode, the legends have symbols with legend labels that are used to identify the items in the TreeMap.

razor
default.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
            @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").EqualColorValuePath("Brand").LegendSettings(legend => legend.Visible(true).Position(Syncfusion.EJ2.TreeMap.LegendPosition.Top)).LeafItemSettings(leaf => leaf.LabelPath("Car")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { Car: 'Mustang', Brand: 'Ford', count: 232 },
            { Car: 'EcoSport', Brand: 'Ford', count: 121 },
            { Car: 'Swift', Brand: 'Maruti', count: 143 },
            { Car: 'Baleno', Brand: 'Maruti', count: 454 },
            { Car: 'Vitara Brezza', Brand: 'Maruti', count: 545 },
            { Car: 'A3 Cabriolet', Brand: 'Audi', count: 123 },
            { car: 'RS7 Sportback', Brand: 'Audi', count: 523 }
        ];
        args.treemap.dataSource = data;
        var color = [
            {
                value: 'Ford',
                color: 'green'
            },
            {
                value: 'Audi',
                color: 'red'
            },
            {
                value: 'Maruti',
                color: 'orange'
            }
        ];
        args.treemap.leafItemSettings.colorMapping = color;
        var legend = { color: "black", width: 2 };
        args.treemap.legendSettings.border = legend;
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

TreeMap with default legend mode

Interactive mode

The legends can be made interactive with an arrow mark that indicates exact range color in the legend when the mouse hovers on the TreeMap item. Enable this option by setting the mode property in the legendSettings to Interactive.

razor
interactive.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
            @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").EqualColorValuePath("Brand").LegendSettings(legend => legend.Visible(true).Mode(Syncfusion.EJ2.TreeMap.LegendMode.Interactive).Position(Syncfusion.EJ2.TreeMap.LegendPosition.Top)).LeafItemSettings(leaf => leaf.LabelPath("Car")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { Car: 'Mustang', Brand: 'Ford', count: 232 },
            { Car: 'EcoSport', Brand: 'Ford', count: 121 },
            { Car: 'Swift', Brand: 'Maruti', count: 143 },
            { Car: 'Baleno', Brand: 'Maruti', count: 454 },
            { Car: 'Vitara Brezza', Brand: 'Maruti', count: 545 },
            { Car: 'A3 Cabriolet', Brand: 'Audi', count: 123 },
            { car: 'RS7 Sportback', Brand: 'Audi', count: 523 }
        ];
        args.treemap.dataSource = data;
        var color = [
            {
                value: 'Ford',
                color: 'green'
            },
            {
                value: 'Audi',
                color: 'red'
            },
            {
                value: 'Maruti',
                color: 'orange'
            }
        ];
        args.treemap.leafItemSettings.colorMapping = color;
        var legend = { color: "black", width: 2 };
        args.treemap.legendSettings.border = legend;
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

TreeMap with interactive legend

Legend size

Customize the legend size by modifying the height and width properties in the legendSettings. It accepts values in both percentage and pixel.

razor
size.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
            @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").EqualColorValuePath("Brand").LegendSettings(legend => legend.Visible(true).Height("50px").Width("200px").Position(Syncfusion.EJ2.TreeMap.LegendPosition.Top)).LeafItemSettings(leaf => leaf.LabelPath("Car")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { Car:'Mustang', Brand:'Ford', count:232 },
            { Car:'EcoSport', Brand:'Ford', count:121 },
            { Car:'Swift', Brand:'Maruti', count:143 },
            { Car:'Baleno', Brand:'Maruti', count:454 },
            { Car:'Vitara Brezza', Brand:'Maruti', count:545 },
            { Car:'A3 Cabriolet', Brand:'Audi',count:123 },
            { car:'RS7 Sportback', Brand:'Audi', count:523 }
        ];
        args.treemap.dataSource = data;
        var color = [
            {
                value: 'Ford',
                color: 'green'
            },
            {
                value: 'Audi',
                color: 'red'
            },
            {
                value: 'Maruti',
                color: 'orange'
            }
        ];
        args.treemap.leafItemSettings.colorMapping = color;
        var legend = { color: "black", width: 2 };
        args.treemap.legendSettings.border = legend;
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

TreeMap with custom legend size

Paging support

TreeMap support legend paging, if the legend items cannot be placed within the provided height and width of the legend.

razor
paging.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
            @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").EqualColorValuePath("Brand").LegendSettings(legend => legend.Visible(true).Height("50px").Width("100px")).LeafItemSettings(leaf => leaf.LabelPath("Car")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { Car:'Mustang', Brand:'Ford', count:232 },
            { Car:'EcoSport', Brand:'Ford', count:121 },
            { Car:'Swift', Brand:'Maruti', count:143 },
            { Car:'Baleno', Brand:'Maruti', count:454 },
            { Car:'Vitara Brezza', Brand:'Maruti', count:545 },
            { Car:'A3 Cabriolet', Brand:'Audi',count:123 },
            { car:'RS7 Sportback', Brand:'Audi', count:523 }
        ];
        args.treemap.dataSource = data;
        var color = [
            {
                value: 'Ford',
                color: 'green'
            },
            {
                value: 'Audi',
                color: 'red'
            },
            {
                value: 'Maruti',
                color: 'orange'
            }
        ];
        args.treemap.leafItemSettings.colorMapping = color;
        var legend = { color: "black", width: 2 };
        args.treemap.legendSettings.border = legend;
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

TreeMap legend with paging

Legend for items excluded from color mapping

Based on the mapping ranges in the data source, get the excluded ranges from the color mapping, and show the legend with the excluded range values that are bound to the specific legend.

razor
excludelegend.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
    @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").RangeColorValuePath("count").LegendSettings(legend => legend.Visible(true).Position(Syncfusion.EJ2.TreeMap.LegendPosition.Top)).LeafItemSettings(leaf => leaf.LabelPath("fruit")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { fruit: 'Apple', count: 5000 },
            { fruit: 'Mango', count: 3000 },
            { fruit: 'Orange', count: 2300 },
            { fruit: 'Banana', count: 500 },
            { fruit: 'Grape', count: 4300 },
            { fruit: 'Papaya', count: 1200 },
            { fruit: 'Melon', count: 4500 }
        ];
        args.treemap.dataSource = data;
        var color = [
            {
                from: 500,
                to: 2500,
                color: 'orange'
            },
            {
               from: 3000,
               to: 4000,
               color: 'green'
            },
            {
                color: 'violet'
            }
        ];
        args.treemap.leafItemSettings.colorMapping = color;
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

TreeMap legend for excluded items

Hide desired legend items

To enable or disable the desired legend item for each color mapping, set the showLegend property to true in the colorMapping.

razor
hidelegend.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
    @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").RangeColorValuePath("count").LegendSettings(legend => legend.Visible(true).Position(Syncfusion.EJ2.TreeMap.LegendPosition.Top)).LeafItemSettings(leaf => leaf.LabelPath("fruit")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { fruit: 'Apple', count: 5000 },
            { fruit: 'Mango', count: 3000 },
            { fruit: 'Orange', count: 2300 },
            { fruit: 'Banana', count: 500 },
            { fruit: 'Grape', count: 4300 },
            { fruit: 'Papaya', count: 1200 },
            { fruit: 'Melon', count: 4500 }
        ];
        args.treemap.dataSource = data;
        var color = [
            {
                from: 500,
                to: 3000,
                color: 'orange',
                showLegend: true,
            },
            {
               from: 3000,
               to: 5000,
               color: 'green',
               showLegend: false,
            }
        ];
        args.treemap.leafItemSettings.colorMapping = color;
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

Hide specific legend item in TreeMap

Hide legend items based data source value

To enable or disable the legend visibility for each item through the data source, bind the appropriate data source field name to showLegendPath property in the legendSettings.

razor
hidelegendbasedDS.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
    @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").RangeColorValuePath("count").LegendSettings(legend => legend.Visible(true).Position(Syncfusion.EJ2.TreeMap.LegendPosition.Top)).LeafItemSettings(leaf => leaf.LabelPath("fruit")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
           { fruit: 'Apple', count: 5000 , color: 'red', visibility: true },
            { fruit: 'Mango', count: 3000, color: 'blue' , visibility: true},
            { fruit: 'Orange', count: 2300,color: 'green' , visibility: false},
            { fruit: 'Mango', count: 500, color: 'pink' , visibility: true },
            { fruit: 'Apple', count: 4300, color: 'yellow' , visibility: false },
            { fruit: 'Papaya', count: 1200 color: 'orange', visibility: true},
            { fruit: 'Melon', count: 4500, color: 'violet', visibility: false }
        ];
        args.treemap.dataSource = data;
        args.treemap.colorValuePath = color;
        args.treemap.LegendSettings.visible = true;
        args.treemap.LegendSettings.showLegendPath = visibility;
        args.treemap.palette = [];
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

Hide TreeMap legend based on datasource

Bind legend item text from data source

To show the legend item text from the data source, bind the property name from data source to the valuePath property in the legendSettings.

razor
bindlegendtext.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
    @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").RangeColorValuePath("count").LegendSettings(legend => legend.Visible(true).Position(Syncfusion.EJ2.TreeMap.LegendPosition.Top)).LeafItemSettings(leaf => leaf.LabelPath("fruit")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { fruit: 'Apple', count: 5000 , color: 'red' },
            { fruit: 'Mango', count: 3000, color: 'blue' },
            { fruit: 'Orange', count: 2300,color: 'green'},
            { fruit: 'Banana', count: 500, color: 'pink' },
            { fruit: 'Grape', count: 4300, color: 'yellow' },
            { fruit: 'Papaya', count: 1200 color: 'orange'},
            { fruit: 'Melon', count: 4500, color: 'violet' }
        ];
        args.treemap.dataSource = data;
        args.treemap.colorValuePath = color;
        args.treemap.LegendSettings.visible = true;
        args.treemap.LegendSettings.valuePath = fruit;
        args.treemap.palette = [];

    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

TreeMap legend text from datasource

Hide duplicate legend items

To enable or disable the duplicate legend items, set the removeDuplicateLegend property to true in the legendSettings.

razor
duplicatelegend.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
    @Html.EJS().TreeMap("container").Load("load").WeightValuePath("count").RangeColorValuePath("count").LegendSettings(legend => legend.Visible(true).Position(Syncfusion.EJ2.TreeMap.LegendPosition.Top)).LeafItemSettings(leaf => leaf.LabelPath("fruit")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { fruit: 'Apple', count: 5000 , color: 'red' },
            { fruit: 'Mango', count: 3000, color: 'blue' },
            { fruit: 'Orange', count: 2300,color: 'green'},
            { fruit: 'Mango', count: 500, color: 'pink' },
            { fruit: 'Apple', count: 4300, color: 'yellow' },
            { fruit: 'Papaya', count: 1200 color: 'orange'},
            { fruit: 'Melon', count: 4500, color: 'violet' }
        ];
        args.treemap.dataSource = data;
        args.treemap.colorValuePath = color;
        args.treemap.LegendSettings.visible = true;
        args.treemap.LegendSettings.valuePath = fruit;
        args.treemap.LegendSettings.removeDuplicateLegend = true;
        args.treemap.palette = [];
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

Remove duplicate legend item

Legend Responsiveness

Use a responsive legend that switches positions between the right and the bottom based on the available height and width. To enable the responsive legend, set the position property to Auto in the legendSettings and the legend position is changed based on the available height and width.

razor
legend-responsive.cs
Copied to clipboard
@using Syncfusion.EJ2;
<div id="container">
            @Html.EJS().TreeMap("container").Load("load")..WeightValuePath("count").LegendSettings(legend => legend.Visible(true).position('Top')).LeafItemSettings(leaf => leaf.LabelPath("fruit")).Render()
</div>
<script>
    function load(args)
    {
        var data = [
            { fruit:'Apple', count:5000 },
                       { fruit:'Grape', count:3000 },
                       { fruit:'Apple', count:2300 },
                       { fruit:'Banana', count:500 },
                       { fruit:'Grape', count:4300 },
                       { fruit:'Papaya', count:1200 }
        ];
        args.treemap.dataSource = data;

        args.treemap.leafItemSettings.colorMapping = color;
        var size = {  width: 700, height: 500 };
        args.treemap.legendSettings.size = size;
    }
</script>
Copied to clipboard
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using EJ2_Core_Application.Models;
using Newtonsoft.Json;

namespace EJ2_Core_Application.Controllers
{
    public class HomeController : Controller
    {
        public IActionResult Index()
        {
            return View();
        }
    }
}

TreeMap legend with responsive
