Getting started with Angular TreeGrid component

11 Jul 202424 minutes to read

This section explains the steps required to create a simple Essential JS 2 TreeGrid and demonstrates the basic usage of the Angular Tree Grid control in a Angular CLI application.

To get start quickly with Angular TreeGrid using CLI and Schematics, you can check on this video:

Setup Angular Environment

You can use the Angular CLI to setup your Angular applications.
To install Angular CLI use the following command.

npm install -g @angular/cli

Create an Angular Application

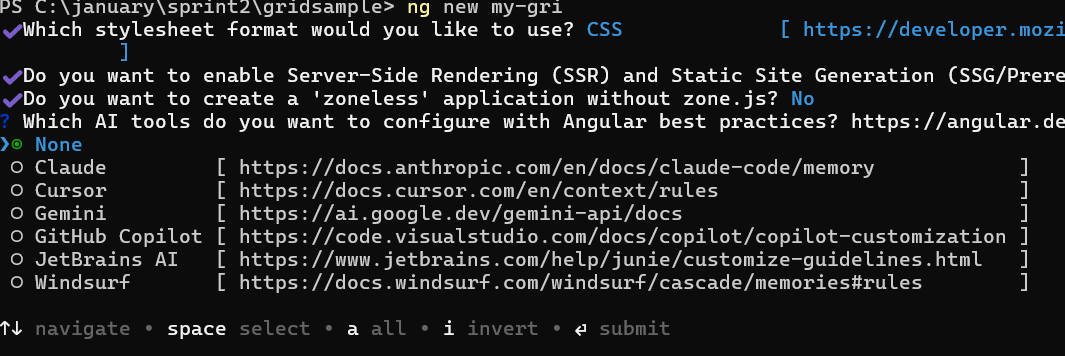

Start a new Angular application using the Angular CLI command as follows.

ng new my-app
cd my-app

Installing Syncfusion TreeGrid package

Syncfusion packages are distributed in npm as @syncfusion scoped packages. You can get all the Angular Syncfusion package from npm link.

Currently, Syncfusion provides two types of package structures for Angular components,

  1. Ivy library distribution package format
  2. Angular compatibility compiler(Angular’s legacy compilation and rendering pipeline) package.

Ivy library distribution package

Syncfusion Angular packages(>=20.2.36) has been moved to the Ivy distribution to support the Angular Ivy rendering engine and the package are compatible with Angular version 12 and above. To download the package use the below command.

Add @syncfusion/ej2-angular-treegrid package to the application.

npm install @syncfusion/ej2-angular-treegrid --save

Angular compatibility compiled package(ngcc)

For Angular version below 12, you can use the legacy (ngcc) package of the Syncfusion Angular components. To download the ngcc package use the below.

Add @syncfusion/ej2-angular-treegrid@ngcc package to the application.

npm install @syncfusion/ej2-angular-treegrid@ngcc --save

To mention the ngcc package in the package.json file, add the suffix -ngcc with the package version as below.

@syncfusion/ej2-angular-treegrid:"20.2.38-ngcc"

Note: If the ngcc tag is not specified while installing the package, the Ivy Library Package will be installed and this package will throw a warning.

Registering TreeGrid Module

Import TreeGrid module into the Angular application(app.component.ts) from the package @syncfusion/ej2-angular-treegrid [src/app/app.component.ts].

import { Component } from '@angular/core';
// import the TreeGridModule for the TreeGrid component
import { TreeGridModule } from '@syncfusion/ej2-angular-treegrid';

@Component({
  selector: 'app-root',
  standalone: true,
  //declaration of ej2-angular-treegrid module
  imports:      [ TreeGridModule ],
 templateUrl: './app.component.html',
  styleUrl: './app.component.css'
})
export class AppComponent { }

Adding CSS reference

The following CSS files are available in ../node_modules/@syncfusion package folder.
This can be referenced in [src/styles.css] using the following code.

@import '../node_modules/@syncfusion/ej2-base/styles/material.css';
@import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';
@import '../node_modules/@syncfusion/ej2-calendars/styles/material.css';
@import '../node_modules/@syncfusion/ej2-dropdowns/styles/material.css';
@import '../node_modules/@syncfusion/ej2-inputs/styles/material.css';
@import '../node_modules/@syncfusion/ej2-navigations/styles/material.css';
@import '../node_modules/@syncfusion/ej2-popups/styles/material.css';
@import '../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css';
@import '../node_modules/@syncfusion/ej2-grids/styles/material.css';
@import '../node_modules/@syncfusion/ej2-treegrid/styles/material.css';

Add TreeGrid component

Modify the template in [src/app/app.component.ts] file to render the TreeGrid component.
Add the Angular TreeGrid by using <ejs-treegrid> selector in template section of the app.component.ts file.

import { TreeGridModule } from '@syncfusion/ej2-angular-treegrid'
import { Component, OnInit } from '@angular/core';

@Component({
    imports: [ TreeGridModule],
    standalone: true,
    selector: 'app-root',
    // specifies the template string for the TreeGrid component
    template: `<ejs-treegrid> </ejs-treegrid>`
})
export class AppComponent implements OnInit {

    ngOnInit(): void {
    }
}

Defining Row Data

Bind data for the TreeGrid component by using dataSource property.
It accepts either an array of JavaScript object or DataManager instance.

import { TreeGridModule } from '@syncfusion/ej2-angular-treegrid'
import { Component, OnInit } from '@angular/core';
import { sampleData } from './datasource';

@Component({
    imports: [ TreeGridModule],
    standalone: true,
    selector: 'app-root',
    template: `<ejs-treegrid [dataSource]='data'> </ejs-treegrid>`
})
export class AppComponent implements OnInit {

    public data!: Object[];

    ngOnInit(): void {
        this.data = sampleData;
    }
}

Defining Columns

The TreeGrid has an option to define the columns as an array. In these columns, the following properties are used to customize the columns.

  • The field has been added to map with a property name in an array of JavaScript objects.
  • The headerText has been added to change the title of columns.
  • The textAlign has been used to change the alignment of columns. By default, columns will be left aligned. To change the columns to right align, define the textAlign to Right.
  • Also, the another useful property, format has been used. Using this, you can format number and date values to standard or custom formats. Here it is defined for the conversion of date objects to formatted strings.

Tree Column is used to expand or collapse child rows is defined by using the treeColumnIndex property.

import { NgModule} from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { TreeGridModule } from '@syncfusion/ej2-angular-treegrid'
import { PageService, SortService, FilterService } from '@syncfusion/ej2-angular-treegrid'
import { Component, OnInit } from '@angular/core';
import { sampleData } from './datasource';

@Component({
    imports: [ TreeGridModule],

    providers: [PageService, SortService, FilterService],
    standalone: true,
    selector: 'app-container',
    template: `<ejs-treegrid [dataSource]='data' [treeColumnIndex]='1' childMapping='subtasks'>
                <e-columns>
                    <e-column field='taskID' headerText='Task ID' textAlign='Right' width=70></e-column>
                    <e-column field='taskName' headerText='Task Name' textAlign='Left' width=200></e-column>
                    <e-column field='startDate' headerText='Start Date' textAlign='Right' format='yMd' width=90></e-column>
                    <e-column field='duration' headerText='Duration' textAlign='Right' width=80></e-column>
                </e-columns>
                </ejs-treegrid>`
})
export class AppComponent implements OnInit {

    public data?: Object[];

    ngOnInit(): void {
        this.data = sampleData;
    }
}
/**
 * Test cases data source
 */
export let sampleData: Object[] = [
    {
        taskID: 1,
        taskName: 'Planning',
        startDate: new Date('02/03/2017'),
        endDate: new Date('02/07/2017'),
        progress: 100,
        duration: 5,
        priority: 'Normal',
        approved: false,
        isInExpandState: true,
        subtasks: [
            { taskID: 2, taskName: 'Plan timeline', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Normal', approved: false },
            { taskID: 3, taskName: 'Plan budget', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, approved: true },
            { taskID: 4, taskName: 'Allocate resources', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Critical', approved: false },
            { taskID: 5, taskName: 'Planning complete', startDate: new Date('02/07/2017'), endDate: new Date('02/07/2017'), duration: 0, progress: 0, priority: 'Low', approved: true }
        ]
    },
    {
        taskID: 6,
        taskName: 'Design',
        startDate: new Date('02/10/2017'),
        endDate: new Date('02/14/2017'),
        duration: 3,
        progress: 86,
        priority: 'High',
        isInExpandState: false,
        approved: false,
        subtasks: [
            { taskID: 7, taskName: 'Software Specification', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 60, priority: 'Normal', approved: false },
            { taskID: 8, taskName: 'Develop prototype', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 100, priority: 'Critical', approved: false },
            { taskID: 9, taskName: 'Get approval from customer', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
            { taskID: 10, taskName: 'Design Documentation', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
            { taskID: 11, taskName: 'Design complete', startDate: new Date('02/14/2017'), endDate: new Date('02/14/2017'), duration: 0, progress: 0, priority: 'Normal', approved: true }
        ]
    },
    {
        taskID: 12,
        taskName: 'Implementation Phase',
        startDate: new Date('02/17/2017'),
        endDate: new Date('02/27/2017'),
        priority: 'Normal',
        approved: false,
        duration: 11,
        subtasks: [
            {
                taskID: 13,
                taskName: 'Phase 1',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'High',
                approved: false,
                duration: 11,
                subtasks: [{
                    taskID: 14,
                    taskName: 'Implementation Module 1',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'Normal',
                    duration: 11,
                    approved: false,
                    subtasks: [
                        { taskID: 15, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'High', approved: false },
                        { taskID: 16, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 17, taskName: 'Testing', startDate: new Date('02/20/2017'), endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 18, taskName: 'Bug fix', startDate: new Date('02/24/2017'), endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'Critical', approved: false },
                        { taskID: 19, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'), endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 20, taskName: 'Phase 1 complete', startDate: new Date('02/27/2017'), endDate: new Date('02/27/2017'), duration: 0, priority: 'Low', approved: true }

                    ]
                }]
            },
            {
                taskID: 21,
                taskName: 'Phase 2',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/28/2017'),
                priority: 'High',
                approved: false,
                duration: 12,
                subtasks: [{
                    taskID: 22,
                    taskName: 'Implementation Module 2',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/28/2017'),
                    priority: 'Critical',
                    approved: false,
                    duration: 12,
                    subtasks: [
                        { taskID: 23, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Normal', approved: true },
                        { taskID: 24, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Critical', approved: true },
                        { taskID: 25, taskName: 'Testing', startDate: new Date('02/21/2017'), endDate: new Date('02/24/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 26, taskName: 'Bug fix', startDate: new Date('02/25/2017'), endDate: new Date('02/26/2017'), duration: 2, progress: '0', priority: 'Low', approved: false },
                        { taskID: 27, taskName: 'Customer review meeting', startDate: new Date('02/27/2017'), endDate: new Date('02/28/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 28, taskName: 'Phase 2 complete', startDate: new Date('02/28/2017'), endDate: new Date('02/28/2017'), duration: 0, priority: 'Normal', approved: false }

                    ]
                }]
            },

            {
                taskID: 29,
                taskName: 'Phase 3',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'Normal',
                approved: false,
                duration: 11,
                subtasks: [{
                    taskID: 30,
                    taskName: 'Implementation Module 3',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'High',
                    approved: false,
                    duration: 11,
                    subtasks: [
                        { taskID: 31, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 32, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Normal', approved: false },
                        { taskID: 33, taskName: 'Testing', startDate: new Date('02/20/2017'), endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 34, taskName: 'Bug fix', startDate: new Date('02/24/2017'), endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 35, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'), endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 36, taskName: 'Phase 3 complete', startDate: new Date('02/27/2017'), endDate: new Date('02/27/2017'), duration: 0, priority: 'Critical', approved: false },
                    ]
                }]
            }
        ]
    }
];
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

In the above code example, the hierarchical data binding is represented in which the childMapping property denotes the hierarchy relationship; whereas in self-referencing data binding idMapping and parentIdMapping denotes the hierarchy relationship.

Module injection

To create TreeGrid with additional features, inject the required modules. The following modules are used to extend TreeGrid’s basic functionality.

  • PageService- Inject this module to use paging feature.
  • SortService - Inject this module to use sorting feature.
  • FilterService - Inject this module to use filtering feature.
  • ExcelExportService - Inject this module to use Excel export feature.
  • PdfExportService - Inject this module to use PDF export feature.

These modules should be injected into the providers section of root NgModule or component class.

Additional feature modules are available here

Enable Paging

The paging feature enables users to view the TreeGrid record in a paged view. It can be enabled by setting the allowPaging property to true. Also, need to inject the PageService module in the providers section as follows. If the PageService module is not injected, the pager will not be rendered in the TreeGrid. The pager can be customized using the pageSettings property.

In root-level paging mode, paging is based on the root-level rows only i.e., it ignores the child rows count and it can be enabled by using the pageSettings.pageSizeMode property.

import { NgModule} from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { TreeGridModule } from '@syncfusion/ej2-angular-treegrid'
import { PageService, SortService, FilterService } from '@syncfusion/ej2-angular-treegrid'
import { Component, OnInit } from '@angular/core';
import { sampleData } from './datasource';
import {PageSettingsModel } from '@syncfusion/ej2-angular-grids';

@Component({
    imports: [ TreeGridModule ],

    providers: [PageService, SortService, FilterService],
    standalone: true,
    selector: 'app-container',
    template: `<ejs-treegrid [dataSource]='data' [treeColumnIndex]='1' childMapping='subtasks'
                [allowPaging]="true" [pageSettings]='pageSettings'>
                <e-columns>
                    <e-column field='taskID' headerText='Task ID' textAlign='Right' width=90></e-column>
                    <e-column field='taskName' headerText='Task Name' textAlign='Left' width=180></e-column>
                    <e-column field='startDate' headerText='Start Date' textAlign='Right' format='yMd' width=90></e-column>
                    <e-column field='duration' headerText='Duration' textAlign='Right' width=80></e-column>
                </e-columns>
                </ejs-treegrid>`
})
export class AppComponent implements OnInit {

    public data?: Object[];
    public pageSettings?: PageSettingsModel;

    ngOnInit(): void {
        this.data = sampleData;
        this.pageSettings = { pageSize: 6 };
    }
}
/**
 * Test cases data source
 */
export let sampleData: Object[] = [
    {
        taskID: 1,
        taskName: 'Planning',
        startDate: new Date('02/03/2017'),
        endDate: new Date('02/07/2017'),
        progress: 100,
        duration: 5,
        priority: 'Normal',
        approved: false,
        isInExpandState: true,
        subtasks: [
            { taskID: 2, taskName: 'Plan timeline', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Normal', approved: false },
            { taskID: 3, taskName: 'Plan budget', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, approved: true },
            { taskID: 4, taskName: 'Allocate resources', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Critical', approved: false },
            { taskID: 5, taskName: 'Planning complete', startDate: new Date('02/07/2017'), endDate: new Date('02/07/2017'), duration: 0, progress: 0, priority: 'Low', approved: true }
        ]
    },
    {
        taskID: 6,
        taskName: 'Design',
        startDate: new Date('02/10/2017'),
        endDate: new Date('02/14/2017'),
        duration: 3,
        progress: 86,
        priority: 'High',
        isInExpandState: false,
        approved: false,
        subtasks: [
            { taskID: 7, taskName: 'Software Specification', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 60, priority: 'Normal', approved: false },
            { taskID: 8, taskName: 'Develop prototype', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 100, priority: 'Critical', approved: false },
            { taskID: 9, taskName: 'Get approval from customer', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
            { taskID: 10, taskName: 'Design Documentation', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
            { taskID: 11, taskName: 'Design complete', startDate: new Date('02/14/2017'), endDate: new Date('02/14/2017'), duration: 0, progress: 0, priority: 'Normal', approved: true }
        ]
    },
    {
        taskID: 12,
        taskName: 'Implementation Phase',
        startDate: new Date('02/17/2017'),
        endDate: new Date('02/27/2017'),
        priority: 'Normal',
        approved: false,
        duration: 11,
        subtasks: [
            {
                taskID: 13,
                taskName: 'Phase 1',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'High',
                approved: false,
                duration: 11,
                subtasks: [{
                    taskID: 14,
                    taskName: 'Implementation Module 1',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'Normal',
                    duration: 11,
                    approved: false,
                    subtasks: [
                        { taskID: 15, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'High', approved: false },
                        { taskID: 16, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 17, taskName: 'Testing', startDate: new Date('02/20/2017'), endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 18, taskName: 'Bug fix', startDate: new Date('02/24/2017'), endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'Critical', approved: false },
                        { taskID: 19, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'), endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 20, taskName: 'Phase 1 complete', startDate: new Date('02/27/2017'), endDate: new Date('02/27/2017'), duration: 0, priority: 'Low', approved: true }

                    ]
                }]
            },
            {
                taskID: 21,
                taskName: 'Phase 2',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/28/2017'),
                priority: 'High',
                approved: false,
                duration: 12,
                subtasks: [{
                    taskID: 22,
                    taskName: 'Implementation Module 2',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/28/2017'),
                    priority: 'Critical',
                    approved: false,
                    duration: 12,
                    subtasks: [
                        { taskID: 23, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Normal', approved: true },
                        { taskID: 24, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Critical', approved: true },
                        { taskID: 25, taskName: 'Testing', startDate: new Date('02/21/2017'), endDate: new Date('02/24/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 26, taskName: 'Bug fix', startDate: new Date('02/25/2017'), endDate: new Date('02/26/2017'), duration: 2, progress: '0', priority: 'Low', approved: false },
                        { taskID: 27, taskName: 'Customer review meeting', startDate: new Date('02/27/2017'), endDate: new Date('02/28/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 28, taskName: 'Phase 2 complete', startDate: new Date('02/28/2017'), endDate: new Date('02/28/2017'), duration: 0, priority: 'Normal', approved: false }

                    ]
                }]
            },

            {
                taskID: 29,
                taskName: 'Phase 3',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'Normal',
                approved: false,
                duration: 11,
                subtasks: [{
                    taskID: 30,
                    taskName: 'Implementation Module 3',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'High',
                    approved: false,
                    duration: 11,
                    subtasks: [
                        { taskID: 31, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 32, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Normal', approved: false },
                        { taskID: 33, taskName: 'Testing', startDate: new Date('02/20/2017'), endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 34, taskName: 'Bug fix', startDate: new Date('02/24/2017'), endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 35, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'), endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 36, taskName: 'Phase 3 complete', startDate: new Date('02/27/2017'), endDate: new Date('02/27/2017'), duration: 0, priority: 'Critical', approved: false },
                    ]
                }]
            }
        ]
    }
];
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Enable Sorting

The sorting feature enables the user to order the records. It can be enabled by setting allowSorting property to true.

Also, need to inject the SortService module in the provider section as follow. If we didn’t inject the SortService module, then user not able to sort when click on headers.

Sorting feature can be customized using sortSettings property.

import { NgModule} from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { TreeGridModule } from '@syncfusion/ej2-angular-treegrid'
import { PageService, SortService, FilterService } from '@syncfusion/ej2-angular-treegrid'
import { Component, OnInit } from '@angular/core';
import { sampleData } from './datasource';
import { PageSettingsModel, SortSettingsModel } from '@syncfusion/ej2-angular-treegrid';

@Component({
    imports: [ TreeGridModule ],

    providers: [PageService, SortService, FilterService],
    standalone: true,
    selector: 'app-container',
    template: `<ejs-treegrid [dataSource]='data' [treeColumnIndex]='1' [sortSettings]="sortSettings"
                [allowSorting]="true" childMapping='subtasks' [allowPaging]="true" [pageSettings]='pageSettings'>
                <e-columns>
                    <e-column field='taskID' headerText='Task ID' textAlign='Right' width=90></e-column>
                    <e-column field='taskName' headerText='Task Name' textAlign='Left' width=180></e-column>
                    <e-column field='startDate' headerText='Start Date' textAlign='Right' format='yMd' width=90></e-column>
                    <e-column field='duration' headerText='Duration' textAlign='Right' width=80></e-column>
                </e-columns>
                </ejs-treegrid>`
})
export class AppComponent implements OnInit {

    public data?: Object[];
    public sortSettings?: SortSettingsModel;
    public pageSettings?: PageSettingsModel;

    ngOnInit(): void {
        this.data = sampleData;
        this.sortSettings = { columns: [{ field: 'taskName', direction: 'Ascending' }, { field: 'taskID', direction: 'Descending' }]  };
        this.pageSettings = { pageSize: 6 };
    }
}
/**
 * Test cases data source
 */
export let sampleData: Object[] = [
    {
        taskID: 1,
        taskName: 'Planning',
        startDate: new Date('02/03/2017'),
        endDate: new Date('02/07/2017'),
        progress: 100,
        duration: 5,
        priority: 'Normal',
        approved: false,
        isInExpandState: true,
        subtasks: [
            { taskID: 2, taskName: 'Plan timeline', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Normal', approved: false },
            { taskID: 3, taskName: 'Plan budget', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, approved: true },
            { taskID: 4, taskName: 'Allocate resources', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Critical', approved: false },
            { taskID: 5, taskName: 'Planning complete', startDate: new Date('02/07/2017'), endDate: new Date('02/07/2017'), duration: 0, progress: 0, priority: 'Low', approved: true }
        ]
    },
    {
        taskID: 6,
        taskName: 'Design',
        startDate: new Date('02/10/2017'),
        endDate: new Date('02/14/2017'),
        duration: 3,
        progress: 86,
        priority: 'High',
        isInExpandState: false,
        approved: false,
        subtasks: [
            { taskID: 7, taskName: 'Software Specification', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 60, priority: 'Normal', approved: false },
            { taskID: 8, taskName: 'Develop prototype', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 100, priority: 'Critical', approved: false },
            { taskID: 9, taskName: 'Get approval from customer', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
            { taskID: 10, taskName: 'Design Documentation', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
            { taskID: 11, taskName: 'Design complete', startDate: new Date('02/14/2017'), endDate: new Date('02/14/2017'), duration: 0, progress: 0, priority: 'Normal', approved: true }
        ]
    },
    {
        taskID: 12,
        taskName: 'Implementation Phase',
        startDate: new Date('02/17/2017'),
        endDate: new Date('02/27/2017'),
        priority: 'Normal',
        approved: false,
        duration: 11,
        subtasks: [
            {
                taskID: 13,
                taskName: 'Phase 1',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'High',
                approved: false,
                duration: 11,
                subtasks: [{
                    taskID: 14,
                    taskName: 'Implementation Module 1',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'Normal',
                    duration: 11,
                    approved: false,
                    subtasks: [
                        { taskID: 15, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'High', approved: false },
                        { taskID: 16, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 17, taskName: 'Testing', startDate: new Date('02/20/2017'), endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 18, taskName: 'Bug fix', startDate: new Date('02/24/2017'), endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'Critical', approved: false },
                        { taskID: 19, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'), endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 20, taskName: 'Phase 1 complete', startDate: new Date('02/27/2017'), endDate: new Date('02/27/2017'), duration: 0, priority: 'Low', approved: true }

                    ]
                }]
            },
            {
                taskID: 21,
                taskName: 'Phase 2',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/28/2017'),
                priority: 'High',
                approved: false,
                duration: 12,
                subtasks: [{
                    taskID: 22,
                    taskName: 'Implementation Module 2',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/28/2017'),
                    priority: 'Critical',
                    approved: false,
                    duration: 12,
                    subtasks: [
                        { taskID: 23, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Normal', approved: true },
                        { taskID: 24, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Critical', approved: true },
                        { taskID: 25, taskName: 'Testing', startDate: new Date('02/21/2017'), endDate: new Date('02/24/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 26, taskName: 'Bug fix', startDate: new Date('02/25/2017'), endDate: new Date('02/26/2017'), duration: 2, progress: '0', priority: 'Low', approved: false },
                        { taskID: 27, taskName: 'Customer review meeting', startDate: new Date('02/27/2017'), endDate: new Date('02/28/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 28, taskName: 'Phase 2 complete', startDate: new Date('02/28/2017'), endDate: new Date('02/28/2017'), duration: 0, priority: 'Normal', approved: false }

                    ]
                }]
            },

            {
                taskID: 29,
                taskName: 'Phase 3',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'Normal',
                approved: false,
                duration: 11,
                subtasks: [{
                    taskID: 30,
                    taskName: 'Implementation Module 3',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'High',
                    approved: false,
                    duration: 11,
                    subtasks: [
                        { taskID: 31, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 32, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Normal', approved: false },
                        { taskID: 33, taskName: 'Testing', startDate: new Date('02/20/2017'), endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 34, taskName: 'Bug fix', startDate: new Date('02/24/2017'), endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 35, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'), endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 36, taskName: 'Phase 3 complete', startDate: new Date('02/27/2017'), endDate: new Date('02/27/2017'), duration: 0, priority: 'Critical', approved: false },
                    ]
                }]
            }
        ]
    }
];
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Enable Filtering

The filtering feature enables you to view the reduced amount of records based on the filter criteria. It can be enabled by setting the allowFiltering property to true. Also, need to inject the FilterService module in the provider section as follow. If FilterService module is not injected, filter bar will not be rendered in TreeGrid. Filtering feature can be customized using the filterSettings property.

By default, filtered records are shown along with its parent records. This behavior can be changed by using the filterSettings-hierarchyMode property.

import { NgModule} from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { TreeGridModule } from '@syncfusion/ej2-angular-treegrid'
import { PageService, SortService, FilterService } from '@syncfusion/ej2-angular-treegrid'
import { Component, OnInit } from '@angular/core';
import { sampleData } from './datasource';
import {PageSettingsModel, SortSettingsModel } from '@syncfusion/ej2-angular-treegrid';

@Component({
    imports: [TreeGridModule  ],

    providers: [PageService, SortService, FilterService],
    standalone: true,
    selector: 'app-container',
    template: `<ejs-treegrid [dataSource]='data' [treeColumnIndex]='1' [allowFiltering]="true" [sortSettings]="sortSettings"
                [allowSorting]="true" childMapping='subtasks' [allowPaging]="true" [pageSettings]='pageSettings'>
                    <e-columns>
                        <e-column field='taskID' headerText='Task ID' textAlign='Right' width=90></e-column>
                        <e-column field='taskName' headerText='Task Name' textAlign='Left' width=180></e-column>
                        <e-column field='startDate' headerText='Start Date' textAlign='Right' format='yMd' width=90></e-column>
                        <e-column field='duration' headerText='Duration' textAlign='Right' width=80></e-column>
                    </e-columns>
                </ejs-treegrid>`
})
export class AppComponent implements OnInit {

    public data?: Object[];
    public sortSettings?: SortSettingsModel;
    public pageSettings?: PageSettingsModel;

    ngOnInit(): void {
        this.data = sampleData;
        this.sortSettings = { columns: [{ field: 'taskName', direction: 'Ascending' }, { field: 'taskID', direction: 'Descending' }]  };
        this.pageSettings = { pageSize: 6 };
    }
}
/**
 * Test cases data source
 */
export let sampleData: Object[] = [
    {
        taskID: 1,
        taskName: 'Planning',
        startDate: new Date('02/03/2017'),
        endDate: new Date('02/07/2017'),
        progress: 100,
        duration: 5,
        priority: 'Normal',
        approved: false,
        isInExpandState: true,
        subtasks: [
            { taskID: 2, taskName: 'Plan timeline', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Normal', approved: false },
            { taskID: 3, taskName: 'Plan budget', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, approved: true },
            { taskID: 4, taskName: 'Allocate resources', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Critical', approved: false },
            { taskID: 5, taskName: 'Planning complete', startDate: new Date('02/07/2017'), endDate: new Date('02/07/2017'), duration: 0, progress: 0, priority: 'Low', approved: true }
        ]
    },
    {
        taskID: 6,
        taskName: 'Design',
        startDate: new Date('02/10/2017'),
        endDate: new Date('02/14/2017'),
        duration: 3,
        progress: 86,
        priority: 'High',
        isInExpandState: false,
        approved: false,
        subtasks: [
            { taskID: 7, taskName: 'Software Specification', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 60, priority: 'Normal', approved: false },
            { taskID: 8, taskName: 'Develop prototype', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 100, priority: 'Critical', approved: false },
            { taskID: 9, taskName: 'Get approval from customer', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
            { taskID: 10, taskName: 'Design Documentation', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
            { taskID: 11, taskName: 'Design complete', startDate: new Date('02/14/2017'), endDate: new Date('02/14/2017'), duration: 0, progress: 0, priority: 'Normal', approved: true }
        ]
    },
    {
        taskID: 12,
        taskName: 'Implementation Phase',
        startDate: new Date('02/17/2017'),
        endDate: new Date('02/27/2017'),
        priority: 'Normal',
        approved: false,
        duration: 11,
        subtasks: [
            {
                taskID: 13,
                taskName: 'Phase 1',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'High',
                approved: false,
                duration: 11,
                subtasks: [{
                    taskID: 14,
                    taskName: 'Implementation Module 1',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'Normal',
                    duration: 11,
                    approved: false,
                    subtasks: [
                        { taskID: 15, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'High', approved: false },
                        { taskID: 16, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 17, taskName: 'Testing', startDate: new Date('02/20/2017'), endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 18, taskName: 'Bug fix', startDate: new Date('02/24/2017'), endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'Critical', approved: false },
                        { taskID: 19, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'), endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 20, taskName: 'Phase 1 complete', startDate: new Date('02/27/2017'), endDate: new Date('02/27/2017'), duration: 0, priority: 'Low', approved: true }

                    ]
                }]
            },
            {
                taskID: 21,
                taskName: 'Phase 2',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/28/2017'),
                priority: 'High',
                approved: false,
                duration: 12,
                subtasks: [{
                    taskID: 22,
                    taskName: 'Implementation Module 2',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/28/2017'),
                    priority: 'Critical',
                    approved: false,
                    duration: 12,
                    subtasks: [
                        { taskID: 23, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Normal', approved: true },
                        { taskID: 24, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Critical', approved: true },
                        { taskID: 25, taskName: 'Testing', startDate: new Date('02/21/2017'), endDate: new Date('02/24/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 26, taskName: 'Bug fix', startDate: new Date('02/25/2017'), endDate: new Date('02/26/2017'), duration: 2, progress: '0', priority: 'Low', approved: false },
                        { taskID: 27, taskName: 'Customer review meeting', startDate: new Date('02/27/2017'), endDate: new Date('02/28/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 28, taskName: 'Phase 2 complete', startDate: new Date('02/28/2017'), endDate: new Date('02/28/2017'), duration: 0, priority: 'Normal', approved: false }

                    ]
                }]
            },

            {
                taskID: 29,
                taskName: 'Phase 3',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'Normal',
                approved: false,
                duration: 11,
                subtasks: [{
                    taskID: 30,
                    taskName: 'Implementation Module 3',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'High',
                    approved: false,
                    duration: 11,
                    subtasks: [
                        { taskID: 31, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 32, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Normal', approved: false },
                        { taskID: 33, taskName: 'Testing', startDate: new Date('02/20/2017'), endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 34, taskName: 'Bug fix', startDate: new Date('02/24/2017'), endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 35, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'), endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 36, taskName: 'Phase 3 complete', startDate: new Date('02/27/2017'), endDate: new Date('02/27/2017'), duration: 0, priority: 'Critical', approved: false },
                    ]
                }]
            }
        ]
    }
];
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

You can render the records in a collapsed state in the initial render of the tree grid by enabling the enableCollapseAll property.

Run the application

Use the following command to run the application in browser.

ng serve --open

The output will appear as follows.

import { NgModule} from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { TreeGridModule } from '@syncfusion/ej2-angular-treegrid'
import { PageService, SortService, FilterService } from '@syncfusion/ej2-angular-treegrid'
import { Component, OnInit } from '@angular/core';
import { sampleData } from './datasource';
import { PageSettingsModel, SortSettingsModel } from '@syncfusion/ej2-angular-treegrid';

@Component({
  imports: [TreeGridModule ],

    providers: [PageService, SortService, FilterService],
    standalone: true,
    selector: 'app-container',
    template: `<ejs-treegrid [dataSource]='data' [treeColumnIndex]='1' [sortSettings]="sortSettings"
                [allowFiltering]="true" [allowSorting]="true"
                childMapping='subtasks' [allowPaging]="true" [pageSettings]='pageSettings'>
                    <e-columns>
                        <e-column field='taskID' headerText='Task ID' textAlign='Right' width=90></e-column>
                        <e-column field='taskName' headerText='Task Name' textAlign='Left' width=180></e-column>
                        <e-column field='startDate' headerText='Start Date' textAlign='Right' format='yMd' width=90></e-column>
                        <e-column field='duration' headerText='Duration' textAlign='Right' width=80></e-column>
                    </e-columns>
               </ejs-treegrid>`
})
export class AppComponent implements OnInit {

    public data?: Object[];
    public sortSettings?: SortSettingsModel;
    public pageSettings?: PageSettingsModel;

    ngOnInit(): void {
        this.data = sampleData;
        this.sortSettings = { columns: [{ field: 'taskName', direction: 'Ascending' }, { field: 'taskID', direction: 'Descending' }]  };
        this.pageSettings = { pageSize: 6 };
    }
}
/**
 * Test cases data source
 */
export let sampleData: Object[] = [
    {
        taskID: 1,
        taskName: 'Planning',
        startDate: new Date('02/03/2017'),
        endDate: new Date('02/07/2017'),
        progress: 100,
        duration: 5,
        priority: 'Normal',
        approved: false,
        isInExpandState: true,
        subtasks: [
            { taskID: 2, taskName: 'Plan timeline', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Normal', approved: false },
            { taskID: 3, taskName: 'Plan budget', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, approved: true },
            { taskID: 4, taskName: 'Allocate resources', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Critical', approved: false },
            { taskID: 5, taskName: 'Planning complete', startDate: new Date('02/07/2017'), endDate: new Date('02/07/2017'), duration: 0, progress: 0, priority: 'Low', approved: true }
        ]
    },
    {
        taskID: 6,
        taskName: 'Design',
        startDate: new Date('02/10/2017'),
        endDate: new Date('02/14/2017'),
        duration: 3,
        progress: 86,
        priority: 'High',
        isInExpandState: false,
        approved: false,
        subtasks: [
            { taskID: 7, taskName: 'Software Specification', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 60, priority: 'Normal', approved: false },
            { taskID: 8, taskName: 'Develop prototype', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 100, priority: 'Critical', approved: false },
            { taskID: 9, taskName: 'Get approval from customer', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
            { taskID: 10, taskName: 'Design Documentation', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
            { taskID: 11, taskName: 'Design complete', startDate: new Date('02/14/2017'), endDate: new Date('02/14/2017'), duration: 0, progress: 0, priority: 'Normal', approved: true }
        ]
    },
    {
        taskID: 12,
        taskName: 'Implementation Phase',
        startDate: new Date('02/17/2017'),
        endDate: new Date('02/27/2017'),
        priority: 'Normal',
        approved: false,
        duration: 11,
        subtasks: [
            {
                taskID: 13,
                taskName: 'Phase 1',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'High',
                approved: false,
                duration: 11,
                subtasks: [{
                    taskID: 14,
                    taskName: 'Implementation Module 1',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'Normal',
                    duration: 11,
                    approved: false,
                    subtasks: [
                        { taskID: 15, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'High', approved: false },
                        { taskID: 16, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 17, taskName: 'Testing', startDate: new Date('02/20/2017'), endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 18, taskName: 'Bug fix', startDate: new Date('02/24/2017'), endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'Critical', approved: false },
                        { taskID: 19, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'), endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 20, taskName: 'Phase 1 complete', startDate: new Date('02/27/2017'), endDate: new Date('02/27/2017'), duration: 0, priority: 'Low', approved: true }

                    ]
                }]
            },
            {
                taskID: 21,
                taskName: 'Phase 2',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/28/2017'),
                priority: 'High',
                approved: false,
                duration: 12,
                subtasks: [{
                    taskID: 22,
                    taskName: 'Implementation Module 2',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/28/2017'),
                    priority: 'Critical',
                    approved: false,
                    duration: 12,
                    subtasks: [
                        { taskID: 23, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Normal', approved: true },
                        { taskID: 24, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Critical', approved: true },
                        { taskID: 25, taskName: 'Testing', startDate: new Date('02/21/2017'), endDate: new Date('02/24/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 26, taskName: 'Bug fix', startDate: new Date('02/25/2017'), endDate: new Date('02/26/2017'), duration: 2, progress: '0', priority: 'Low', approved: false },
                        { taskID: 27, taskName: 'Customer review meeting', startDate: new Date('02/27/2017'), endDate: new Date('02/28/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 28, taskName: 'Phase 2 complete', startDate: new Date('02/28/2017'), endDate: new Date('02/28/2017'), duration: 0, priority: 'Normal', approved: false }

                    ]
                }]
            },

            {
                taskID: 29,
                taskName: 'Phase 3',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'Normal',
                approved: false,
                duration: 11,
                subtasks: [{
                    taskID: 30,
                    taskName: 'Implementation Module 3',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'High',
                    approved: false,
                    duration: 11,
                    subtasks: [
                        { taskID: 31, taskName: 'Development Task 1', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 32, taskName: 'Development Task 2', startDate: new Date('02/17/2017'), endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Normal', approved: false },
                        { taskID: 33, taskName: 'Testing', startDate: new Date('02/20/2017'), endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 34, taskName: 'Bug fix', startDate: new Date('02/24/2017'), endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 35, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'), endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 36, taskName: 'Phase 3 complete', startDate: new Date('02/27/2017'), endDate: new Date('02/27/2017'), duration: 0, priority: 'Critical', approved: false },
                    ]
                }]
            }
        ]
    }
];
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

You can refer to our Angular Tree Grid feature tour page for its groundbreaking feature representations. You can also explore our Angular Tree Grid example to knows how to present and manipulate data.

Handling errors

Error handling in Tree Grid identifies exceptions and notifies them through the actionFailure event. When configuring the Tree Grid or enabling specific features through its API, mistakes can occur. The actionFailure event can be used to manage these errors. This event triggers when such mistakes happen. The actionFailure event handles various scenarios, including:

  • For CRUD operations, row drag and drop, and persisiting the selection, ensure the isPrimaryKey property is mapped to a unique data column. Failure to do so will cause an error.
  • Paging is not supported with virtualization. Enabling paging with virtualization will result in an error.
  • To render the Tree Grid, map either the dataSource or columns property. Failure to do so will result in an error.
  • Freeze columns by mapping either isFrozen or frozenColumns. Enabling both properties simultaneously will result in an error.
  • The detailTemplate is not supported with virtualization and stacked header. Enabling them with these features will result in an error.
  • The frozenRows and frozenColumns are not supported with rowtemplate, detailTemplate, and cell editing. Enabling them with these features will result in an error.
  • In stacked header, the freeze direction is incompatible with column reordering.
  • Selection functionality is not supported when using rowTemplate. Enabling both properties simultaneously will result in an error.
  • Set the treeColumnIndex value to display the tree structure. Make sure the value does not exceed the total column count, or it will result in an error.
  • For virtualization do not specify height and width in percentages. Using percentages will result in an error.
  • When using the default filter (filterbar) type, do not apply the other filterType to columns within the same tree grid, as this will result in an error.
  • In Tree Grid, avoid enabling idMapping and childMapping simultaneously. Enabling both properties at the same time will result in an error.
  • The showCheckbox column should only be defined in the tree column. Defining it elsewhere will result in an error.
  • The textAlign right is not applicable for tree columns in the Tree Grid. Enabling right alignment for tree columns will result in an error.

The following code example shows how to use the actionFailure event in the Tree Grid control to display an exception when isPrimaryKeyare not configured properly in the Tree Grid.

import { TreeGridAllModule, TreeGridComponent } from '@syncfusion/ej2-angular-treegrid';
import { Component, OnInit ,ViewChild} from '@angular/core';
import { sampleData } from './datasource';
import { EditSettingsModel,EditService} from '@syncfusion/ej2-angular-treegrid';

@Component({
    imports: [TreeGridAllModule],
    providers: [EditService],
    standalone: true,
    selector: 'app-container',
    template: `<ejs-treegrid #treegrid [dataSource]='data' [treeColumnIndex]='1' height='270' [editSettings]='editSettings' childMapping='subtasks'  (actionFailure)="onActionFailure($event)" >
                    <e-columns>
                        <e-column field='taskID' headerText='Task ID' textAlign='Right' width=90></e-column>
                        <e-column field='taskName' headerText='Task Name' textAlign='Left' width=180></e-column>
                        <e-column field='priority' headerText='Priority' editType= 'dropdownedit' textAlign='Right' width=140></e-column>
                        <e-column field='progress' editType= 'numericedit' headerText='Progress' textAlign='Right' width=120></e-column>
                    </e-columns>
                </ejs-treegrid>`
})
export class AppComponent implements OnInit {

    public data?: object[];
    public editSettings?: EditSettingsModel;
    @ViewChild('treegrid')
    public treegrid?: TreeGridComponent;
    ngOnInit(): void {
        this.data = sampleData;
        this.editSettings = { allowEditing: true, allowAdding: true, allowDeleting: true };
    }
    onActionFailure(e: any): any {
        let span: HTMLElement = document.createElement('span');
        ((this.treegrid?.element as HTMLElement).parentNode as ParentNode).insertBefore(span, (this.treegrid as TreeGridComponent).element);
        span.style.color = '#FF0000'
        span.innerHTML = e.error[0];
     }
}
/**
 * TreeGrid DataSource
 */

export let sampleData: Object[] =  [
    {
        taskID: 1,
        taskName: 'Planning',
        startDate: new Date('02/03/2017'),
        endDate: new Date('02/07/2017'),
        progress: 100,
        duration: 5,
        priority: 'Normal',
        approved: false,
        subtasks: [
            { taskID: 2, taskName: 'Plan timeline', startDate: new Date('02/03/2017'),
                endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Normal', approved: false },
            { taskID: 3, taskName: 'Plan budget', startDate: new Date('02/03/2017'),
                endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Low', approved: true },
            { taskID: 4, taskName: 'Allocate resources', startDate: new Date('02/03/2017'),
                endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Critical', approved: false },
            { taskID: 5, taskName: 'Planning complete', startDate: new Date('02/07/2017'),
                endDate: new Date('02/07/2017'), duration: 0, progress: 0, priority: 'Low', approved: true }
        ]
    },
    {
        taskID: 6,
        taskName: 'Design',
        startDate: new Date('02/10/2017'),
        endDate: new Date('02/14/2017'),
        duration: 3,
        progress: 86,
        priority: 'High',
        approved: false,
        subtasks: [
            { taskID: 7, taskName: 'Software Specification', startDate: new Date('02/10/2017'),
                endDate: new Date('02/12/2017'), duration: 3, progress: 60, priority: 'Normal', approved: false },
            { taskID: 8, taskName: 'Develop prototype', startDate: new Date('02/10/2017'),
                endDate: new Date('02/12/2017'), duration: 3, progress: 100, priority: 'Critical', approved: false },
            { taskID: 9, taskName: 'Get approval from customer', startDate: new Date('02/13/2017'),
                endDate: new Date('02/14/2017'), duration: 2, progress: 100, priority: 'Low', approved: true },
            { taskID: 10, taskName: 'Design Documentation', startDate: new Date('02/13/2017'),
                endDate: new Date('02/14/2017'), duration: 2, progress: 100, priority: 'High', approved: true },
            { taskID: 11, taskName: 'Design complete', startDate: new Date('02/14/2017'),
                endDate: new Date('02/14/2017'), duration: 0, progress: 0, priority: 'Normal', approved: true }
        ]
    },
    {
        taskID: 12,
        taskName: 'Implementation Phase',
        startDate: new Date('02/17/2017'),
        endDate: new Date('02/27/2017'),
        priority: 'Normal',
        approved: false,
        duration: 11,
        progress: 66,
        subtasks: [
            {
                taskID: 13,
                taskName: 'Phase 1',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'High',
                approved: false,
                progress: 50,
                duration: 11,
                subtasks: [{
                    taskID: 14,
                    taskName: 'Implementation Module 1',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'Normal',
                    duration: 11,
                    progress: 10,
                    approved: false,
                    subtasks: [
                        { taskID: 15, taskName: 'Development Task 1', startDate: new Date('02/17/2017'),
                            endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'High', approved: false },
                        { taskID: 16, taskName: 'Development Task 2', startDate: new Date('02/17/2017'),
                            endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 17, taskName: 'Testing', startDate: new Date('02/20/2017'),
                            endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 18, taskName: 'Bug fix', startDate: new Date('02/24/2017'),
                            endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'Critical', approved: false },
                        { taskID: 19, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'),
                            endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 20, taskName: 'Phase 1 complete', startDate: new Date('02/27/2017'),
                            endDate: new Date('02/27/2017'), duration: 0, progress: '50', priority: 'Low', approved: true }

                    ]
                }]
            },
            {
                taskID: 21,
                taskName: 'Phase 2',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/28/2017'),
                priority: 'High',
                approved: false,
                duration: 12,
                progress: 60,
                subtasks: [{
                    taskID: 22,
                    taskName: 'Implementation Module 2',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/28/2017'),
                    priority: 'Critical',
                    approved: false,
                    duration: 12,
                    progress: 90,
                    subtasks: [
                        { taskID: 23, taskName: 'Development Task 1', startDate: new Date('02/17/2017'),
                            endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Normal', approved: true },
                        { taskID: 24, taskName: 'Development Task 2', startDate: new Date('02/17/2017'),
                            endDate: new Date('02/20/2017'), duration: 4, progress: '50', priority: 'Critical', approved: true },
                        { taskID: 25, taskName: 'Testing', startDate: new Date('02/21/2017'),
                            endDate: new Date('02/24/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 26, taskName: 'Bug fix', startDate: new Date('02/25/2017'),
                            endDate: new Date('02/26/2017'), duration: 2, progress: '0', priority: 'Low', approved: false },
                        { taskID: 27, taskName: 'Customer review meeting', startDate: new Date('02/27/2017'),
                            endDate: new Date('02/28/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 28, taskName: 'Phase 2 complete', startDate: new Date('02/28/2017'),
                            endDate: new Date('02/28/2017'), duration: 0, progress: '50', priority: 'Normal', approved: false }

                    ]
                }]
            },

            {
                taskID: 29,
                taskName: 'Phase 3',
                startDate: new Date('02/17/2017'),
                endDate: new Date('02/27/2017'),
                priority: 'Normal',
                approved: false,
                duration: 11,
                progress: 30,
                subtasks: [{
                    taskID: 30,
                    taskName: 'Implementation Module 3',
                    startDate: new Date('02/17/2017'),
                    endDate: new Date('02/27/2017'),
                    priority: 'High',
                    approved: false,
                    duration: 11,
                    progress: 60,
                    subtasks: [
                        { taskID: 31, taskName: 'Development Task 1', startDate: new Date('02/17/2017'),
                            endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Low', approved: true },
                        { taskID: 32, taskName: 'Development Task 2', startDate: new Date('02/17/2017'),
                            endDate: new Date('02/19/2017'), duration: 3, progress: '50', priority: 'Normal', approved: false },
                        { taskID: 33, taskName: 'Testing', startDate: new Date('02/20/2017'),
                            endDate: new Date('02/21/2017'), duration: 2, progress: '0', priority: 'Critical', approved: true },
                        { taskID: 34, taskName: 'Bug fix', startDate: new Date('02/24/2017'),
                            endDate: new Date('02/25/2017'), duration: 2, progress: '0', priority: 'High', approved: false },
                        { taskID: 35, taskName: 'Customer review meeting', startDate: new Date('02/26/2017'),
                            endDate: new Date('02/27/2017'), duration: 2, progress: '0', priority: 'Normal', approved: true },
                        { taskID: 36, taskName: 'Phase 3 complete', startDate: new Date('02/27/2017'),
                            endDate: new Date('02/27/2017'), duration: 0, progress: '50', priority: 'Critical', approved: false },
                    ]
                }]
            }
        ]
    }
];
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

See Also
