Connecting the Syncfusion Angular Grid with GraphQL backend in Node.js

6 Feb 202624 minutes to read

GraphQL is a query language that allows applications to request exactly the data needed, nothing more and nothing less. Unlike traditional REST APIs that return fixed data structures, GraphQL enables the client to specify the shape and content of the response.

Traditional REST APIs and GraphQL differ mainly in the way data is requested and returned: REST APIs expose multiple endpoints that return fixed data structures, often including unnecessary fields and requiring several requests to fetch related data, while GraphQL uses a single endpoint where queries define the exact fields needed, enabling precise responses and allowing related data to be retrieved efficiently in one request. This makes GraphQL especially useful for Angular Grid integration, the reason is data‑centric UI components require well‑structured and selective datasets to support efficient filtering, reduce network calls, and improve overall performance.

Key GraphQL concepts:

  • Queries: A query is a request to read data. Queries do not modify data; they only retrieve it.
  • Mutations: A mutation is a request to modify data. Mutations create, update, or delete records.
  • Resolvers: Each query or mutation is handled by a resolver, which is a function responsible for fetching data or executing an operation. Query resolvers handle read operations, while mutation resolvers handle write operations.
  • Schema: Defines the structure of the API. The schema describes available data types, the fields within those types, and the operations that can be executed. Query definitions specify the way data can be retrieved, and mutation definitions specify the way data can be modified.

Node.js is a fast and efficient JavaScript runtime built on Google’s V8 engine. It enables JavaScript to run on the server, making it a popular platform for building web APIs, real‑time applications, and modern backend services. Node.js offers a non‑blocking, event‑driven architecture that supports high performance and scalability.

Prerequisites

Software / Package Recommended version Purpose
Node.js 20.x LTS or later Backend runtime
npm Latest (11.x+) Package manager
Angular CLI 18.x or later Create and manage Angular apps

Setting up the GraphQL backend using Node.js

The GraphQL backend acts as the central data service, handling queries and mutations that power the Syncfusion Angular Grid.

Step 1: Create the GraphQL server and install required packages

Before configuring the GraphQL API, a new folder must be created to host the GraphQL server. This folder will contain the server configuration, required dependencies, and sample data used for processing GraphQL queries.

For this guide, a GraphQL server named GraphQLServer is created using Node.js.

Create project folder

Open a terminal (for example, an integrated terminal in Visual Studio Code or Windows Command Prompt opened with (Win+R), or macOS Terminal launched with (Cmd+Space)) and run the following command to create and navigate to the project folder:

mkdir GraphQLServer
cd GraphQLServer

Install required packages

The GraphQL server is set up using graphpack, a lightweight GraphQL development tool. The Syncfusion ej2-data package is installed to handle data operations such as filtering, sorting, and paging.

Run the following commands in the terminal window to install the required packages:

npm i graphpack
npm install @syncfusion/ej2-data --save
  • graphpack – Lightweight GraphQL server and development environment.
  • @syncfusion/ej2-data – Provides data utilities for advanced data operations.

Create sample datasource

After installing the required packages, create a new file named data.js inside the src folder. This file acts as an in‑memory datasource for the GraphQL server.

[data.js]

export const productDetails = [
  {
    "productId": "PROD-ELC-0001",
    "productImage": "assets/productImages/watch2.png",
    "productName": "Smartwatch Lite (Max)",
    "category": "Electronics",
    "brand": "Philips",
    "sellingPrice": 98.0,
    "mrp": 100.0,
    "discount": 0.02,
    "stockQuantity": 114,
    "stockStatus": "In Stock",
    "rating": 2.1,
    "description": "Smartwatch Lite with modern features and energy-efficient design. Suitable for everyday use at home or office.",
    "minimumOrderQuantity": 1,
    "manufacturer": "South Korea",
    "tags": "Clearance",
    "warrantyPeriod": 3,
    "returnPolicy": "15-day return"
  },
  . . . .
  . . . .
  . . . .
]

The GraphQLServer folder is now created, required packages are installed, and a sample data source is configured. The project is ready for defining the GraphQL schema, resolvers, and server configuration.

Step 2: Configuring schema in GraphQL

The GraphQL schema defines the structure of the “product” data model and the server‑side operations available for performing CRUD actions.

Instructions:

  1. Create a new schema file (src/schema.graphql) in the GraphQLServer folder.
  2. Add type definition for “Product”.
# --- Product type definition ---
type Product {
  productId: String!
  productImage: String
  # Include additional fields
}
  1. Add type definition for “ReturnType”.
# --- Return type for Grid paging ---
type ReturnType {
  result: [Product!]!
  count: Int!
}
  1. Add type definition for “Sort”.
# --- Sorting input ---
input Sort {
  name: String
  direction: String
}
  1. Add type definition for “ProductInput”.
# --- Product input for mutation operations ---
input ProductInput {
  productId: String!
  productName: String
  # Include additional fields
}
  1. Add type definition for “DataManagerInput”.
# --- Syncfusion DataManager payload ---
input DataManagerInput {
  skip: Int
  take: Int
  sorted: [Sort]
  group: [String!]
  table: String
  select: [String!]
  where: String
  search: String
  requiresCounts: Boolean
  params: String
}

For detailed information about DataManagerInput type refer to Configuring Syncfusion DataManagerInput schema.

  1. Define the Query type to expose the “getProducts” operation that returns the list of “products”.
type Query {
  getProducts(datamanager: DataManagerInput): ReturnType!
}
  1. Define Mutation types for CRUD operations.
type Mutation {
  createProduct(value: ProductInput!): Product!
  updateProduct(key: String!, keyColumn: String, value: ProductInput!): Product
  deleteProduct(key: String!, keyColumn: String): Product!
}

Key parameters definitions:

  • key: The unique identifier (primary key) of the product to be updated.
  • keyColumn: The name of the column containing the unique identifier.
  • value: An object containing the created or updated product details.

Step 3: Configuring Syncfusion DataManagerInput schema

Syncfusion Data Grid sends all operation details paging, sorting, filtering, and searching as a single request object. GraphQL requires a clear, typed structure to understand these values.

Since Syncfusion’s DataManager already has a fixed structure for sending operation details, the GraphQL backend define a matching typical input type.

DataManagerInput serves as the input type that matches the structure of the DataManager request, ensuring that all operation details are correctly received by the GraphQL API.

Purpose:
The DataManagerInput schema provides a standard format for delivering Grid operation parameters to the GraphQL server.
This structure allows the backend to return only the required records, improving performance, reducing payload size, and enabling efficient data handling.

Here are the details of DataManagerInput parameter type.

Parameters Description
requiresCounts If it is “true” then the total count of records will be included in response.
skip Holds the number of records to skip.
take Holds the number of records to take.
sorted Contains details about current sorted column and its direction.
where Contains details about current filter column name and its constraints.
group Contains details about current Grouped column names.
search Contains details about current search data.
aggregates Contains details about aggregate data.

Use this DataManagerInput in the “getProducts” query to access the parameters sent from the client, allowing the GraphQL server to handle these operations in a consistent and unified way.

Step 4: GraphQL Query resolvers

A resolver in GraphQL is a function responsible for fetching the data for a specific field in a GraphQL schema.

When a client sends a GraphQL query, resolvers run behind the scenes to retrieve the requested information from a database, API, or any data source and return it in the format defined by the schema.

Instructions:

  1. Create a new resolver file (src/resolvers.js) inside the GraphQLServer folder.
  2. Import the required data source (e.g., productDetails) from the data file.
  3. Implement the “getProducts” resolver to handle the logic for the “getProducts” query defined in the schema.
  4. Ensure the resolver returns the processed list of “products” in the structure specified by the schema.
 getProducts: (_parent, { datamanager }) => {
      let products = [...productDetails];
      const query = new Query();

      /* Apply search, filter, sort, and paging operations as provided by the Grid. */
      /* Operations are applied sequentially: search → filter → sort → paging. */
      let result = products;
      let count = products.length;
      return {
        result,
        count
      };
    },

Step 5: GraphQL Mutation resolvers

Mutations in GraphQL are used to modify data on the server, such as creating, updating, or deleting records.

Previously, the CRUD mutation types were defined in the (schema.graphql) file. The next step is to implement these mutation actions inside the (resolver.js) file.

Instructions:

  1. Open the (src/resolvers.js) file.
  2. Implement the “createProduct” mutation:
Mutation: {
    createProduct: (parent, { value }, context, info) => {
      productDetails.push(value);
      return value;
    },
}

“createProduct” - code breakdown:

Step Purpose Implementation
1. Receive Input Accept “product” data from the client. The argument { value } contains all fields needed to create a new “product” (e.g., “productName”, “category”, etc).
2. Insert Record Add the new “product” to the backend data source. productDetails.push(value) stores the “product” in an in‑memory array.
3. Return Created Send the inserted record back to the client. return value returns the same object that was inserted, allowing the client to receive immediate confirmation.
  1. Implement the “updateProduct” mutation:
Mutation: {
    updateProduct: (_parent, { key, keyColumn = "productId", value }) => {
      const product = productDetails.find((p) => p[keyColumn] === key);
      if (!product) throw new Error("Product not found");
      /* Merge the incoming partial fields into the existing product. */
      Object.assign(product, value);
      return product;
    },
  }

“updateProduct” - code breakdown:

Step Purpose Implementation
1. Receive Input Accept the key, keyColumn, and updated field values. The resolver receives { key, keyColumn, value }, where value contains the partial “product” updates.
2. Locate Record Identify the “product” that matches the given key value. productDetails.find((p) => p[keyColumn] === key).
3. Validate Record Ensure the “product” exists before modifying it. if (!product) throw new Error("Product not found").
4. Apply Updates Merge updated values into the located “product” record. Object.assign(product, value) overwrites only the provided fields while keeping others intact.
5. Return Updated Send back the modified product to the client. return product object with all updates applied.
  1. Implement the “deleteProduct” mutation:
Mutation: {
    deleteProduct: (_parent, { key, keyColumn = 'productId' }) => {
      const idx = productDetails.findIndex((p) => String(p[keyColumn]) === key);
      if (idx === -1) throw new Error('Product not found');
      const [deleted] = productDetails.splice(idx, 1);
      return deleted;
    }
  }

“deleteProduct” - code breakdown:

Step Purpose Implementation
1. Receive Key Backend receives only the primary key value from client. Resolver parameters: key, keyColumn = ‘productId.
2. Locate Index Identify the array index of the target record using the dynamic key column. findIndex((p) => String(p[keyColumn]) === String(key)).
3. Validate Existence Ensure a matching record exists before deletion if (idx === -1) throw new Error('Product not found') check.
4. Remove Record Delete the record from the data source at the located index. const [deleted] = productDetails.splice(idx, 1).
5. Return Deleted Provide the removed record back to the client. return deleted.

Now all required GraphQL types, queries, and mutations have now been fully implemented.

Integrating Syncfusion Angular Grid with GraphQL

Open a Visual Studio Code terminal or Command prompt and run the below command:

ng new GridClient
cd GridClient

This command creates a Angular application named GridClient with the essential folder structure and files required to begin development immediately.

Step 1: Adding Syncfusion packages

Install the necessary Syncfusion packages using the below command in Visual Studio Code terminal or Command prompt:

npm install @syncfusion/ej2-angular-grids --save
npm install @syncfusion/ej2-data --save
  • @syncfusion/ej2-angular-grids – Required for using the Syncfusion Angular Grid component.
  • @syncfusion/ej2-data – Provides data utilities for advanced data operations in Syncfusion DataManager.

Step 2: Including required Syncfusion stylesheets

Once the dependencies are installed, the required CSS files are made available in the (../node_modules/@syncfusion) package directory, and the corresponding CSS references are included in the styles.css file.

[src/styles.css]

@import '../node_modules/@syncfusion/ej2-base/styles/tailwind.css';
@import '../node_modules/@syncfusion/ej2-buttons/styles/tailwind.css';
@import '../node_modules/@syncfusion/ej2-calendars/styles/tailwind.css';
@import '../node_modules/@syncfusion/ej2-dropdowns/styles/tailwind.css';
@import '../node_modules/@syncfusion/ej2-inputs/styles/tailwind.css';
@import '../node_modules/@syncfusion/ej2-navigations/styles/tailwind.css';
@import '../node_modules/@syncfusion/ej2-popups/styles/tailwind.css';
@import '../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind.css';
@import '../node_modules/@syncfusion/ej2-notifications/styles/tailwind.css';
@import '../node_modules/@syncfusion/ej2-angular-grids/styles/tailwind.css';

For this project, the “Tailwind” theme is used. A different theme can be selected or the existing theme can be customized based on project requirements. Refer to the Syncfusion Angular Components Appearance documentation to learn more about theming and customization options.

Step 3: Configure GraphQL Adaptor

Syncfusion provides a built‑in GraphQLAdaptor that translates the user interaction into GraphQL requests, enabling efficient communication with GraphQL servers which helps in integrating the Grid component with the GraphQL server.

What is a GraphQL Adaptor?

An adaptor is a translator between two different systems. The GraphQLAdaptor specifically:

  • Receives interaction events from the Grid (user clicks Add, Edit, Delete, sorts, filters, etc).
  • Converts these actions into GraphQL query or mutation syntax.
  • Sends the GraphQL request to the backend GraphQL endpoint.
  • Receives the response data from the backend.
  • Formats the response back into a structure the Grid understands.
  • Updates the grid display with the new data.

The adaptor enables bi-directional communication between the frontend (Grid) and backend (GraphQL server).

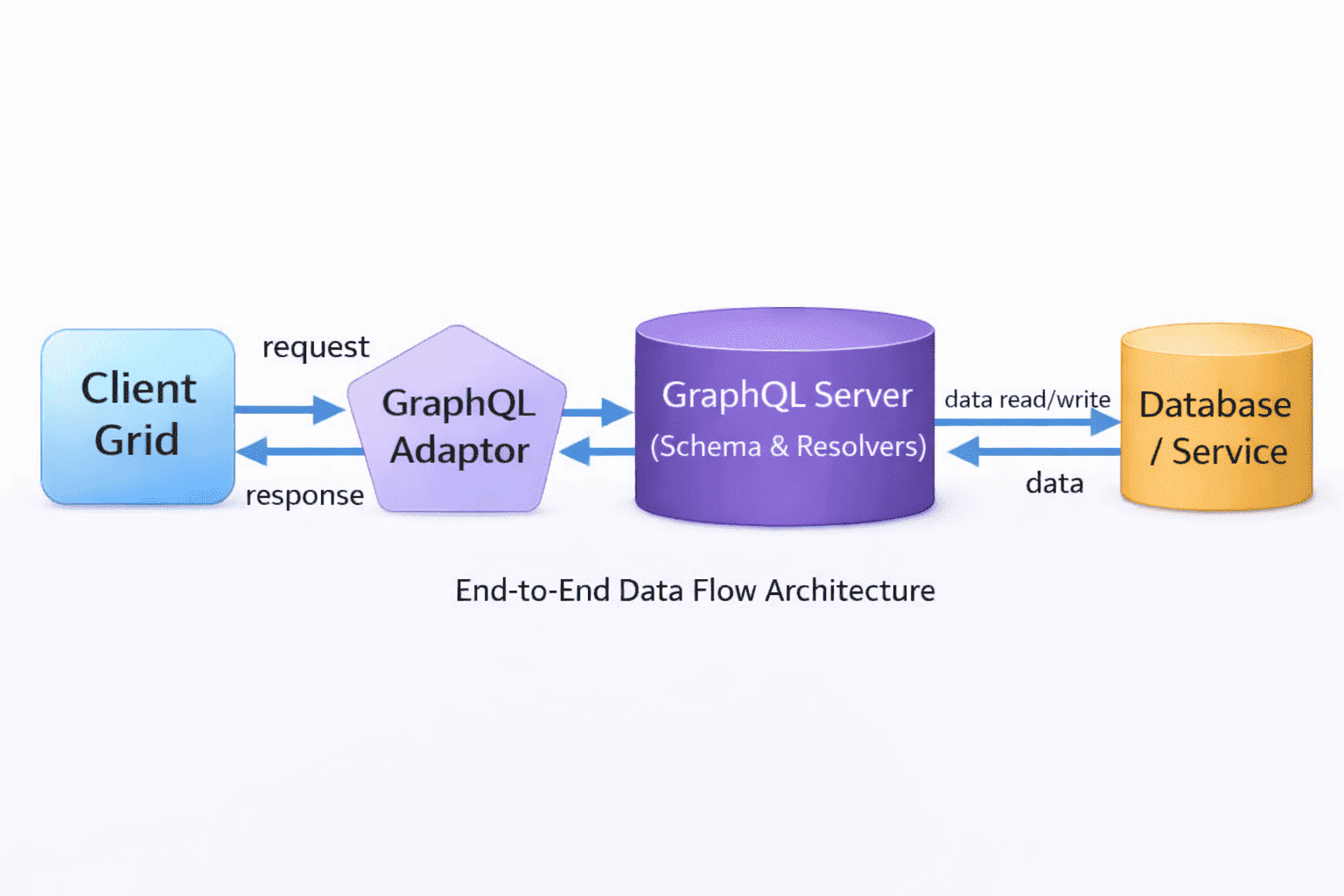

GraphQL-NodeJs-DataFlow-Diagram

When using the GraphQLAdaptor, the client expects the response from the server in a specific structure so that the Grid can process and render the results correctly.

The required response format includes:

  • result: The list of data to be displayed in the current Grid view.
  • count: The total number of records available in the dataset.

The GraphQLAdaptor needs to be configured to the Syncfusion DataManager to convert the user interaction into GraphQL compatible requests. To enable this setup, configure the DataManager with the GraphQLAdaptor, specify the GraphQL server’s response format, and define the query. Finally, assign this DataManager instance to the Grid component.

Instructions:

  1. In the (app.component.html) file render the Grid component.
    ```html
    [app.component.html]

<ejs-grid [dataSource]=’data’>

</ejs-grid>

2. In the (**app.component.ts**) file to configure the `DataManager` with the `GraphQLAdaptor`.

```ts
    @Component({
        selector: 'app-root',
        standalone: true,
        templateUrl: './app.component.html',
        styleUrls: ['./app.component.css'],
        imports: [GridModule],
    })
    public data!: DataManager;

    ngOnInit(): void {
        this.data = new DataManager({
            url: 'http://localhost:xxxx', // xxxx represents the port number.
            adaptor: new GraphQLAdaptor({
            response: {
                result: 'getProducts.result',
                count: 'getProducts.count'
            },
            query: `
                query getProducts($datamanager: DataManagerInput) {
                getProducts(datamanager: $datamanager) {
                    count
                    result {
                    productId, productImage,    # add additional fields to fetch initially, e.g.,category
                    }
                }
                }
            `,
        })
        });
    }

GraphQL Query structure explained in detail:

The Query property is critical for understanding the data flows. Let’s break down each component:

query getProducts($datamanager: DataManagerInput) {}

Line breakdown:

  • query - GraphQL keyword indicating a read operation.
  • getProducts - Name of the query (must match resolver name with camelCase).
  • ($dataManager: DataManagerInput!) - Parameter declaration.
    • $dataManager - Variable name (referenced as $dataManager throughout the query).
    • DataManagerInput - Type specification.
getProducts(datamanager: $datamanager) {}

Line breakdown:

  • getProducts(...) - Calls the resolver method in backend.
  • dataManager: $dataManager - Passes the “$dataManager” variable to the resolver.
  • The resolver receives this object and uses it to apply filters, sorts, searches, and pagination.
count
  result {
    productId, productImage
  }

Line breakdown:

  • count - Returns total number of records (used for pagination).
    • Example: If “150” total product records exist, count = 150.
    • Grid uses this to calculate the number of pages.
  • result - Contains the array of product records.
    • { ... } - List of fields to return for each record.
    • Only requested fields are returned (no over-fetching).

Response structure example:

When the backend executes the query, it returns a JSON response in this exact structure:

{

"data": {
    "getProducts": {
        "count": 1500,
        "result": [
            {
                "productId": "PROD-ELC-0001",
                "productImage": "assets/productImages/watch2.png",
                "productName": "Smartwatch Lite (Max)",
                "category": "Electronics",
                "brand": "Philips",
                "rating": 2.1,
                "mrp": 100,
                "discount": 0.02,
                "stockQuantity": 114,
                "stockStatus": "In Stock"
            },
        ]
    }
  }
}

Response structure explanation:

Part Purpose Example
data Root object returned for every successful GraphQL query. Always present in successful response
getProducts Matches the GraphQL query name; contains paginated product data. Contains count and result.
count Total number of records available. 1 (in this example).
result Array of “products” objects. [ {…}, {…} ]
Each field in result Matches GraphQL query field names. Field values from database.

Step 4: Add toolbar with CRUD and search options

The toolbar provides buttons for adding, editing, deleting records, and searching the data.

Instructions:

  1. Open the app.component.html file.
  2. Update the Grid component to include the Toolbar property with CRUD and search options:
<ejs-grid [dataSource]='data' [toolbar]="['Add', 'Edit', 'Delete', 'Search']">
    <e-columns>
        <e-column field='productId' headerText='Product ID' textAlign='Right' width=150 isPrimaryKey='true'></e-column>
         <!--Include Additional columns-->
    </e-columns>
</ejs-grid>
  1. Open the (app.component.ts) file, include the ToolbarService and EditService, to the providers.
import { GridModule, ToolbarService, EditService } from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
  imports: [GridModule],
  providers: [ToolbarService, EditService]
});

Step 5: Implement paging feature

Paging divides large datasets into smaller pages to improve performance and usability.

During pagination, the GraphQLAdaptor sends the paging details though “skip” and “take” parameters of the “DataManagerInput”. These details are converted to the paging query and passed to the DataManager ensuring that data is returned in paged segments and allowing smooth navigation through large datasets.

Instruction:

  1. Set the allowPaging property “true” to enable paging in the Grid.
[app.component.html]

  <ejs-grid [dataSource]='data' [allowPaging]="true" [pageSettings]="pageSettings">
    <e-columns>
        <e-column field='productId' headerText='Product ID' textAlign='Right' width=150 isPrimaryKey='true' [template]="idTemplate"></e-column>
        <!--Include Additional columns-->
    </e-columns>
</ejs-grid>
  1. Open the (app.component.ts) file, inject the PageService, and define the pageSettings property.
import { GridModule, PageService } from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
  imports: [GridModule],
  providers: [PageService]
})

public pageSettings!: PageSettingsModel = { pageSize: 10 };
  1. Implement the page logic within the “getProducts” resolver function located in the (resolvers.js) file.
import { productDetails } from "./data";
import { Query, DataManager, Predicate } from "@syncfusion/ej2-data";

const resolvers = {
  Query: {
     getProducts: (parent, { datamanager }, context, info) => {
      let products = [...productDetails];
      const query = new Query();

      if (datamanager?.take != null) {
          const take = datamanager.take;
          const skip = datamanager?.skip ?? 0;
          query.page(Math.floor(skip / take) + 1, take);
      }
      let result = new DataManager(products).executeLocal(query);
      let count = products.length
      return {
        result,
        count
      };
    },
  },
};

export default resolvers;

Page logic breakdown:

Part Purpose
datamanager.skip Number of records to skip from the start of the dataset.
datamanager.take Number of records to return (page size).
query.page(currentPage, take) Applies paging to the Query.
executeLocal(query) Runs the search against the in‑memory “products” collection.

Paging details included in request payloads:

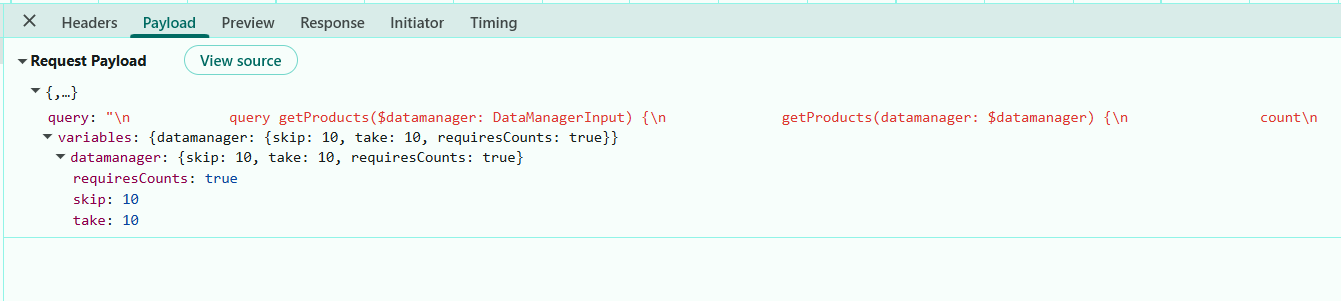

The image illustrates the paging details (skip and take) included in the server request payload.

GraphQLAdaptor-NodeJs-Paging

The resolver processes the Grid’s skip and take parameters and returns the total count along with the paged result. Paging feature is now active with “10” records per page.

To use Row Virtualization, inject the VirtualScroll service and set enableVirtualization property to “true”. When virtualization is enabled, the grid automatically sends the correct “skip” and “take” values to the server.The resolver does not require any additional modifications. The Grid inherently handles all virtual block requests, ensuring the expected behavior without additional configuration.

Step 6: Implement searching feature

Searching provides the capability to find specific records by entering keywords into the search box.

When a search action is performed in the Grid, the GraphQLAdaptor sends the search key and the target fields through the “search” parameter of the “DataManagerInput”. These values are converted as the search query and processed through the DataManager.

Instruction:

  1. Enable searching in the Grid, add the “Search” in the Grid’s toolbar items.
[app.component.html]

  <ejs-grid [dataSource]='data' [toolbar]="['Search']">
    <e-columns>
        <e-column field='productId' headerText='Product ID' textAlign='Right' width=150 isPrimaryKey='true' [template]="idTemplate"></e-column>
        <!--Include Additional columns-->
    </e-columns>
</ejs-grid>
  1. Implement the search logic within the “getProducts” resolver function located in the (resolver.js) file.
import { productDetails } from "./data";
import { Query, DataManager, Predicate } from "@syncfusion/ej2-data";

const resolvers = {
  Query: {
     getProducts: (parent, { datamanager }, context, info) => {
        let products = [...productDetails];
        const query = new Query();

        /* Custom function to handle the search operation. */
        const performSearching = (searchParam) => {
          const { fields, key } = JSON.parse(searchParam)[0];
          query.search(key, fields);
        }

        if (datamanager.search) {
          performSearching(datamanager.search);
        }

        /** Execute the composed Query.
          * result: data to render.
          * count: total number of matched records.
        */
        let result = new DataManager(products).executeLocal(query);
        let count = result.length
        return {
          result,
          count
        };
    },
  },
}

Search logic breakdown:

Part Purpose
datamanager.search JSON‑stringified array of search instructions sent by the Grid via GraphQLAdaptor.
performSearching(searchParam) Parses the JSON and applies the search to the Query.
query.search(key, fields) Applies Syncfusion’s contains search across the specified fields.
executeLocal(query) Runs the search against the in‑memory products collection.

Searching details included in request payloads:

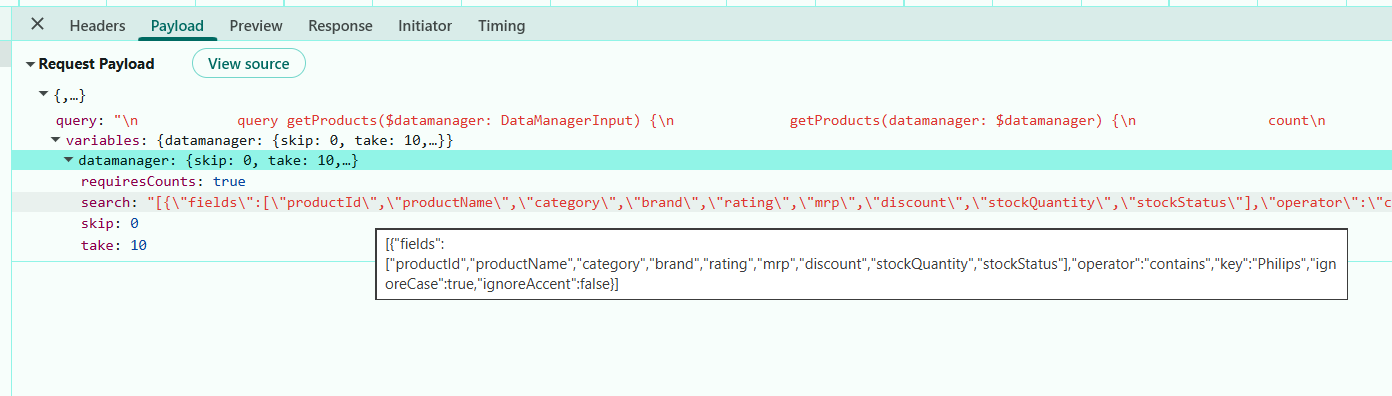

The image below displays the “search” parameter values.

GraphQLAdaptor-NodeJs-Searching

The resolver applies the search query parameters received from the Grid and returns the search filtered result along with the total count. Searching feature is now active.

Step 7: Implement sorting feature

Sorting allows the user to organize records by clicking on column headers to arrange data in ascending or descending order.

The GraphQLAdaptor automatically passes the sorting details to the server through the “sorted” parameter of the “DataManagerInput” and the details are converted to the sorting query and executed through the DataManager to get the sorted data.

Instruction:

  1. Enable sorting in the Grid by setting the allowSorting property to “true”.
[app.component.html]

  <ejs-grid [dataSource]='data' [allowSorting]="true">
    <e-columns>
        <e-column field='productId' headerText='Product ID' textAlign='Right' width=150 isPrimaryKey='true'></e-column>
        <!--Include Additional columns-->
    </e-columns>
</ejs-grid>
  1. Open the (app.component.ts) file and add the SortService to the providers.
import { GridModule, SortService } from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
  imports: [GridModule],
  providers: [SortService]
})
  1. Implement the sort logic within the “getProducts” resolver function located in the (resolver.js) file.
import { productDetails } from "./data";
import { Query, DataManager, Predicate } from "@syncfusion/ej2-data";

const resolvers = {
  Query: {
    getProducts: (_parent, { datamanager }) => {
      let products = [...productDetails];
      const query = new Query();

      /* Custom function to apply sorting. */
      const performSorting = (sorted[]) => {
          for (let i = 0; i < sorted.length; i++) {
            const { name, direction } = sorted[i];

            /* Append sorting to the Query for the specified field and direction. */
            query.sortBy(name, direction);
          }
        }

      if (datamanager.sorted) {
        performSorting(datamanager.sorted);
      }
      /** Execute the composed Query.
        * result: data to render.
        * count: total number of records.
      */
      let result = new DataManager(products).executeLocal(query);
      let count = products.length;

      return {
        result,
        count
      };
    },
  },
};

export default resolvers;

Sorting logic breakdown:

Part Purpose
datamanager.sorted Array of sort instructions sent by the Grid via GraphQLAdaptor.
performSorting(sorted) Iterates the sort array and appends sort clauses to the Query.
query.sortBy(name, direction) Field/column name to sort by (e.g., “productName”, “category”).
executeLocal(query) Executes the sorted query on the dataset.

Sorting details included in request payloads:

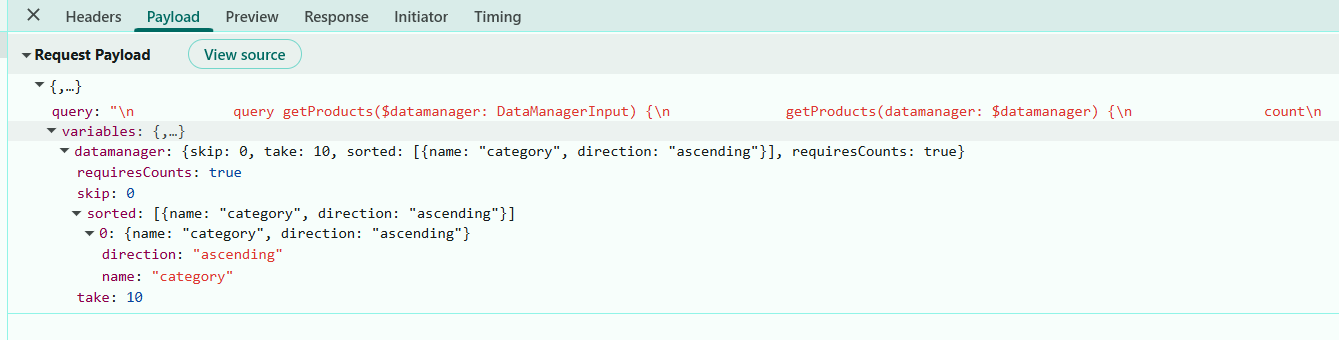

The image below shows the values passed to the “sorted” parameter.

GraphQLAdaptor-NodeJs-Sorting

To apply multiple sorting conditions in sequence, press and hold the Ctrl key while clicking on the desired column headers.

The resolver processes the sorting parameters and returns the result in the requested sorted order. Sorting functionality is now active.

Step 8: Implement filtering feature

Filtering allows the user to narrow down records by specifying conditions on column values. Users can filter by selecting checkbox filters or using comparison operators like equals, greater than, less than, etc.

The GraphQLAdaptor automatically passes the filter conditions to the server through the “where” parameter of the “DataManagerInput”. In the server, the filter parameters are converted to the Syncfusion filter query and executed through the DataManager to get the filtered data.

Instructions:

  1. Enable the Grid with filtering by setting the allowFiltering property to “true”.
[app.component.html]

  <ejs-grid [dataSource]='data' [allowFiltering]="true" [filterSettings]="{ type: 'CheckBox' }">
    <e-columns>
        <e-column field='productId' headerText='Product ID' textAlign='Right' width=150 isPrimaryKey='true' [template]="idTemplate"></e-column>
        <!--Include Additional columns-->
    </e-columns>
</ejs-grid>
  1. Open the (app.component.ts) file and add the FilterService to the providers.
import { GridModule, FilterService } from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
  imports: [GridModule],
  providers: [FilterService]
})
  1. Implement the filter processing logic within the “getProducts” resolver function located in the (resolver.js) file.
const resolvers = {
  Query: {
     getProducts: (parent, { datamanager }, context, info) => {
        let products = [...productDetails];
        const query = new Query();

        if (datamanager.where) {
          performFiltering(datamanager.where);
        }

      /* Execute filtering using Syncfusion DataManager. */
      const result = new DataManager(products).executeLocal(query);

      /* Total count after filtering.*/
      const count = result.length;

      return {
        result,
        count
      };
    },
  },
};

The “performFiltering” function processes the filtering rules received from the client and return the filter query.

  const query = new Query();

  const performFiltering = (filterString) => {
          const parsed = JSON.parse(filterString);

            /**
            * The parsed filter can be an array or a single object.
            * We normalize it here so we always work on the first element.
            */
          const predicateCollection = Array.isArray(parsed) ? parsed[0] : parsed;

          /* If no valid predicate structure exists, return the original query unchanged. */
          if (!predicateCollection || !Array.isArray(predicateCollection.predicates) || predicateCollection.predicates.length === 0) {
            return query;
          }

          /* Determines whether multiple predicates should be combined using AND / OR. */
          const condition = (predicateCollection.condition || 'and').toLowerCase();
          const ignoreCase = predicateCollection.ignoreCase !== undefined ? !!predicateCollection.ignoreCase : true;

          /* This variable will accumulate the full predicate chain */
          let combinedPredicate = null;


          /**
           * Loop through each predicate and convert it into Syncfusion Predicate objects.
           * Supports nested (complex) filter groups through recursive processing.
           */
          predicateCollection.predicates.forEach((p:any) => {
            if (p.isComplex && Array.isArray(p.predicates)) {
              /*  Handle nested predicates via recursive helper */
              const nested = buildNestedPredicate(p, ignoreCase);
              if (nested) {
                combinedPredicate = combinedPredicate
                  ? (condition === 'or' ? combinedPredicate.or(nested) : combinedPredicate.and(nested))
                  : nested;
              }
              return;
            }

            /* Create a simple (single field) predicate. */
            const singlePredicate = new Predicate(p.field, p.operator, p.value, ignoreCase);

            /* Merge predicate into the chain using AND/OR. */
            combinedPredicate = combinedPredicate
              ? (condition === 'or' ? combinedPredicate.or(singlePredicate) : combinedPredicate.and(singlePredicate))
              : singlePredicate;
          });

          /* Apply the final combined predicate to the Syncfusion Query object. */
          if (combinedPredicate) {
            query.where(combinedPredicate);
          }
          return query;
        };

The “buildNestedPredicate” function handles complex filtering scenarios containing nested groups.

  /**
    * Builds a nested Predicate structure from complex filter conditions.
    * This function is called recursively to handle multi-level filter logic.
    * (e.g., AND/OR combinations inside other AND/OR blocks).
    *
    * @param block - A complex filter object containing nested predicates.
    * @param ignoreCase - Whether string comparisons should ignore case.
    * @returns A merged Predicate representing the entire nested filter block.
    */
  function buildNestedPredicate(block, ignoreCase ) {
      /*  Determine whether this block uses "and" or "or" to merge its child predicates. */
      const condition = (block.condition || 'and').toLowerCase();

      /*  Will store the final combined Predicate after processing all nested items. */
      let mergedPredicate : Predicate | null = null;

      /**
        * Loop through each predicate entry within the current block.
        * Each entry can be a simple predicate or another nested (complex) block.
      */
      block.predicates.forEach((p:any) => {
      let node;
      if (p.isComplex && Array.isArray(p.predicates)) {
          node = buildNestedPredicate(p, ignoreCase);
      } else {
          node = new Predicate(p.field, p.operator, p.value, ignoreCase);
      }
      if (node) {
          mergedPredicate  = mergedPredicate
          ? (condition === 'or' ? mergedPredicate .or(node) : mergedPredicate .and(node))
          : node;
      }
      });

      return mergedPredicate;
  }

Filter logic breakdown:

Part Purpose
dataManager.Where List of filter conditions from the Grid.
predicateCollection The normalized top-level filter group object containing condition, ignoreCase, and predicates.
predicateCollection.condition Logical operator to combine child predicates at the current level: “and” or “or” (defaults to “and”).
predicate.Value The value to compare against.
predicateCollection.ignoreCase Whether string comparisons ignore case (defaults to true if not present).
predicateCollection.predicates[] Array of predicate entries; each entry can be a simple predicate or a complex (nested) group.
p.isComplex Flag indicating a nested group that contains its own predicates (processed recursively).
p.field Column/field name to filter (e.g., “productName”, “category”).
p.operator Operator string (equal, contains, greaterthan, etc.) passed into new Predicate(...).
performFiltering(filterString) Parses the where string, builds a combined Predicate chain (AND/OR), and applies it to query via query.where(combinedPredicate).
buildNestedPredicate(block, ignoreCase) Recursively constructs a Predicate tree for nested groups using the group’s condition and child predicates.
query.where(combinedPredicate) Applies the final merged Predicate to the Syncfusion query.

Supported filter operators:

Operator Purpose Example
equal Exact match “productId” equals PROD-ELC-0001
notequal Not equal to value “stockStatus” not equal to “Out of Stock”
contains Contains substring (case-insensitive) “description” contains “Book”
startswith Starts with value “productName” starts with “Smart”
endswith Ends with value “category” ends with “Accessories”
greaterthan Greater than numeric value “stockQuantity” > 5
lessthan Less than numeric value “discount” < 0.15
greaterthanequal Greater than or equal “stockQuantity” >= 20
lessthanequal Less than or equal “discount” <= 0.10

Filtering details included in request payloads:

The image illustrates the serialized “where” condition passed from the DataManager.

GraphQLAdaptor-NodeJs-Filtering

Filter logic with multiple checkbox selections:

When a user selects multiple checkbox values for the same column (e.g., (category = “Electronics” OR category = “Accessories”)), the Grid sends a nested predicate block where all selected values are combined using OR logic.

  • Top‑level predicates across different fields are combined using AND logic.
  • Nested predicates within the same field are combined using OR logic.
  • This enables expressions such as:(category = “Electronics” OR category = “Accessories”) (stockStatus = “In Stock” OR stockStatus = “Limited”).

The resolver handles the filter conditions passed from the Grid and returns the filtered data along with the updated count. Filtering is now enabled.

Perform CRUD operations

CRUD operations (Create, Read, Update, Delete) allow users to manage data through the Grid. The Grid provides built-in dialogs and buttons to perform these operations, while the backend resolvers handle the actual data modifications.

Enable editing operations in the Grid by configuring editSettings and setting allowEditing, allowAdding, and allowDeleting to “true”.

The getMutation function in the GraphQLAdaptor handles the Grid CRUD actions by sending the appropriate mutation for each action (insert, update, or delete) to the GraphQL server.

Previously, the required mutation definitions and schema for CRUD operations were created in the (resolver.js) and (schema.graphql) files. The next step is to enable CRUD actions in the client Data Grid by using the GraphQLAdaptor.

Insert:

The insert operation enables adding new “product” records to the existing list. When the Add button in the toolbar is selected, the Grid opens a dialog that displays input fields for entering “product” details.

After the required data is submitted, the GraphQL mutation sends the new “product” record to the backend for processing and storage.

Open the (app.component.ts) file and configure the getMutation function in the GraphQLAdaptor to return the GraphQL mutation for the insert action.

  [app.component.ts]

  // mutation to perform insert.
  this.data = new DataManager({
        url: 'http://localhost:xxxx', // xxxx represents the port number.
        adaptor: new GraphQLAdaptor({
          response: {
            result: 'getProducts.result',
            count: 'getProducts.count'
          },
          query: `
            query getProducts($datamanager: DataManagerInput) {
              getProducts(datamanager: $datamanager) {
                count
                result {
                  productId, productImage, productName    # add additional fields to fetch initially, e.g.,category
                }
              }
            }
          `,
          getMutation: function (action: any): string {

          if (action === 'insert') {
              return `mutation CreateProductMutation($value: ProductInput!) {
                createProduct(value: $value) {
                  productId, productName         # add additional fields to fetch initially, e.g.,category
                }
              }`;
            }
            }
        })
      });

Insert mutation request parameters:

When the Add button is clicked, the dialog is filled, and the data is submitted, the GraphQL adaptor constructs the mutation using these parameters:

GraphQL-Nodejs-inserting

Update:

The Update operation enables editing of existing “product” records. When the Edit option in the toolbar is selected and a row is chosen, the Grid opens a dialog displaying the current values of the selected record.

After the required modifications are submitted, a GraphQL mutation sends the updated record to the backend for processing.

Open the (app.component.ts) file and configure the getMutation function in the GraphQLAdaptor to return the appropriate GraphQL mutation based on the update action which reference the “updateProduct” mutation defined in the schema.

  // mutation to perform update.
  this.data = new DataManager({
        url: 'http://localhost:xxxx', // xxxx represents the port number.
        adaptor: new GraphQLAdaptor({
          response: {
            result: 'getProducts.result',
            count: 'getProducts.count'
          },
          query: `
            query getProducts($datamanager: DataManagerInput) {
              getProducts(datamanager: $datamanager) {
                count
                result {
                  productId, productImage, productName      # add additional fields to fetch initially, e.g.,category
                }
              }
            }
          `,
          getMutation: function (action) {
          if (action === 'update') {
              return `mutation UpdateProductMutation($key: String!, $keyColumn: String, $value: ProductInput!) {
                updateProduct(key: $key, keyColumn: $keyColumn, value: $value) {
                  productId, productName                  # add additional fields to fetch initially, e.g.,category
                }
              }`;
            }
            }
        })
      });

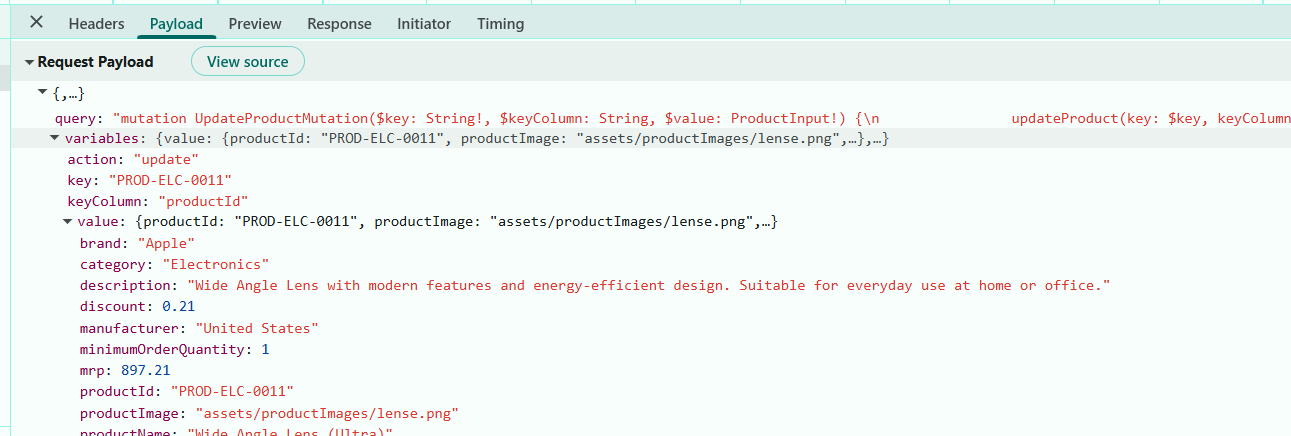

Update mutation request parameters:

When the Update button is clicked, the dialog is modified, and the changes are submitted, the GraphQLAdaptor constructs the mutation using these parameters:

GraphQL-Nodejs-updating

Delete:

The Delete operation enables removal of “product” records from the application. When the Delete option in the toolbar is selected and a row is marked for removal, a confirmation prompt appears. After confirmation, a GraphQL mutation sends a delete request to the backend containing only the primary key value.

Open the (app.component.ts) file and configure the getMutation function in the GraphQLAdaptor to return the delete mutation that matches the “deleteProduct” mutation defined in the schema.

  // mutation to perform delete.
  this.data = new DataManager({
        url: 'http://localhost:xxxx', // xxxx represents the port number.
        adaptor: new GraphQLAdaptor({
          response: {
            result: 'getProducts.result',
            count: 'getProducts.count'
          },
          query: `
            query getProducts($datamanager: DataManagerInput) {
              getProducts(datamanager: $datamanager) {
                count
                result {
                  productId, productImage, productName             # add additional fields to fetch initially, e.g.,category
                }
              }
            }
          `,
          getMutation: function (action) {
          if (action === 'delete') {
             return `mutation RemoveProductMutation($key: String!, $keyColumn: String) {
              deleteProduct(key: $key, keyColumn: $keyColumn) {
                productId,productName                             # add additional fields to fetch initially, e.g.,category
              }
            }`;
            }
            }
        })
      });

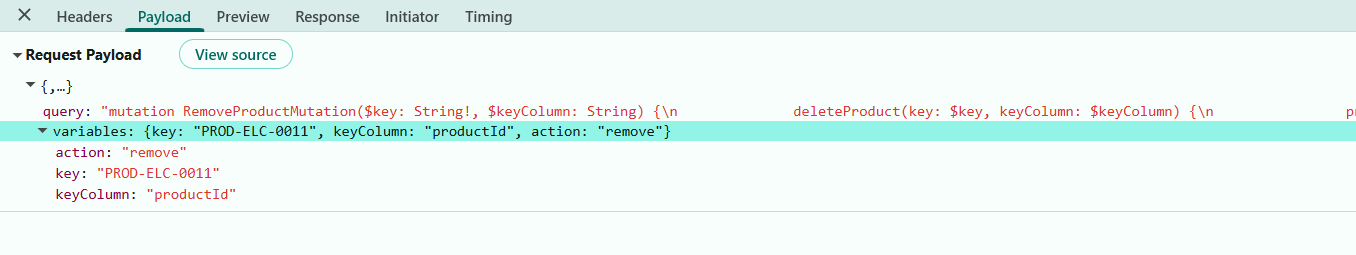

Delete mutation request parameters:

When the Delete button is clicked, a row is selected for deletion, and the action is confirmed, the GraphQLAdaptor constructs the mutation using minimal parameters:

GraphQL-Nodejs-deleteRecord

Normal/Inline editing is the default edit mode for the Grid component. To enable CRUD operations, ensure that the isPrimaryKey property is set to “true” for a specific Grid Column which has unique values.

Running the application

Open a terminal or Command Prompt. Run the server application first, then start the client application.

### Run the GraphQL server

  • Run the following commands to start the server:
    cd GraphQLServer
npm start
  • The server is now running at http://localhost:4205/.

### Run the client

  • Execute the below commands to run the client application:
      cd GridClient
  npm start
  • Open http://localhost:4200/ in the browser.

Complete Sample Repository

For a complete working implementation of this example, refer to the following GitHub repository:

Syncfusion Grid with GraphQL Sample

Summary

This guide demonstrates:

  1. Setting up and Configuring the GraphQL backend using Node.js. 🔗
  2. Integrating Syncfusion Angular Grid with Graphql 🔗
  3. Configure GraphQLAdaptor. 🔗
  4. Implement data operations such as filtering, searching, sorting, and paging. 🔗
  5. Perform CRUD operations. 🔗

The application now provides a fully integrated “product” management workflow using the Syncfusion Angular Grid connected to a Node.js GraphQL backend.
