Getting Started with Angular Form Renderer component

06 Aug 20268 minutes to read

The Form Renderer is a powerful, schema-driven component that enables you to build and render complex forms with ease using a structured JSON schema definition. It streamlines form creation, customization, and data capture by letting you declaratively define form layouts, fields, and validation, and then render the form through a simple component property binding.

This guide demonstrates how to set up and configure the Syncfusion® Angular Form Renderer component, from initial installation through setting up the form schema in the component.

Note: This guide supports Angular 21 and other recent Angular versions. For detailed compatibility with other Angular versions, please refer to the Angular version support matrix. Starting from Angular 19, standalone components are the default, and this guide reflects that architecture.

Prerequisites

Setup the Angular application

A straightforward approach to getting started with Angular is to create a new application using the Angular CLI. Install Angular CLI globally with the following command:

npm install -g @angular/cli

To install a particular version of Angular CLI, use:

npm install -g @angular/[email protected]

Angular 21 Standalone Architecture: Standalone components are the default in Angular 21. This guide uses the modern standalone architecture. If you need more information about the standalone architecture, refer to the Standalone Guide.

Create a new application

With Angular CLI installed, use this command to generate a new application:

ng new syncfusion-angular-app
  • This command will prompt you to configure settings like enabling Angular routing and choosing a stylesheet format.
? Which stylesheet format would you like to use? (Use arrow keys)
> CSS             [ https://developer.mozilla.org/docs/Web/CSS                     ]
  Sass (SCSS)     [ https://sass-lang.com/documentation/syntax#scss                ]
  Sass (Indented) [ https://sass-lang.com/documentation/syntax#the-indented-syntax ]
  Less            [ http://lesscss.org                                             ]
  • By default, a CSS-based application is created. Use SCSS if required:
ng new syncfusion-angular-app --style=scss
  • During project setup, when prompted for the Server-side rendering (SSR) option, choose the appropriate configuration.

Initial_setup

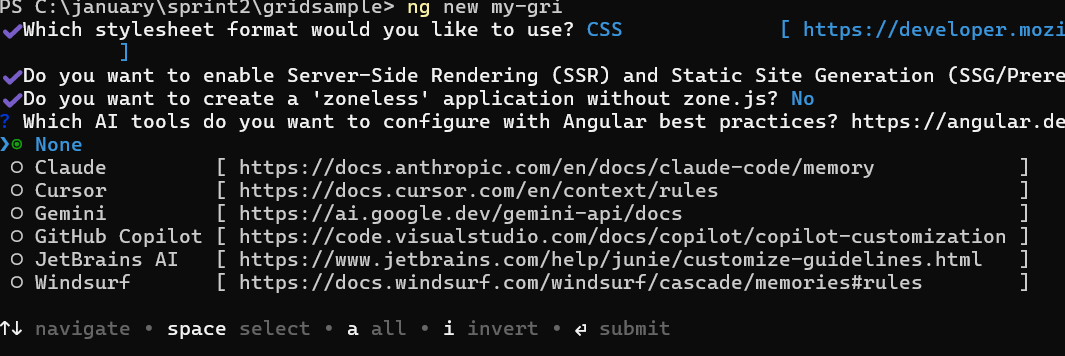

  • Select the required AI tool, or choose ‘None’ if you do not need one.

Initial_setup

  • Navigate to your newly created application directory:
cd syncfusion-angular-app

Note: In Angular 19 and earlier, the project uses app.component.ts, app.component.html, and app.component.css, and so on. In Angular 20+, the CLI generates a simpler structure with app.ts, app.html, and app.css (no .component. suffixes).

Adding the Syncfusion® Angular Form Renderer package

To install the Syncfusion® Angular Form Renderer package, use the following command:

ng add @syncfusion/ej2-angular-form-renderer

The ng add command installs the package, registers it in package.json, and configures the required entries in your workspace automatically.

If ng add is unavailable in your setup, install the package manually with:

npm install @syncfusion/ej2-angular-form-renderer

Adding CSS reference

Themes for the Syncfusion® Form Renderer component can be applied using CSS files provided through npm theme packages. For available themes, refer to the Themes documentation.

Install the Material 3 theme package using the following npm command:

npm install @syncfusion/ej2-material3-theme

Then add the following CSS reference to the src/styles.css file. This is the default global stylesheet registered under styles in angular.json:

@import "../node_modules/@syncfusion/ej2-material3-theme/styles/material3.css";

Add Syncfusion® Form Renderer component

After package and theme setup, update the root component. File and class names can vary by Angular CLI version (src/app/app.ts with export class App, or app.component.ts with AppComponent). Replace the root component content with the sample below, or merge the Form Renderer import, schema, and event handler into your generated file.

The Form Renderer is a schema-driven component. Define your form by passing a JSON schema to the schema property of the <ej2-form-renderer> element, and capture the submitted form data through the submit event.

import { Component } from '@angular/core';
import { FormRendererAllModule, Schema } from '@syncfusion/ej2-angular-form-renderer';

@Component({
  selector: 'app-root',
  standalone: true,
  imports: [FormRendererAllModule],
  template: `<ejs-form-renderer [schema]="schema" (submit)="onSubmit($event)"></ejs-form-renderer>`
})

export class AppComponent {
  public schema: Schema = {
    "version": "0.1.0",
    "properties": {
      "emailAddress": {
        "id": "textbox_1785491685456_167",
        "name": "emailAddress",
        "type": "string",
        "label": "Email Address",
        "textboxType": "email",
        "required": true,
        "widget": "textbox"
      },
      "password": {
        "id": "textbox_1785491685456_537",
        "name": "password",
        "type": "string",
        "label": "Password",
        "textboxType": "password",
        "required": true,
        "minLength": 6,
        "widget": "textbox"
      },
      "rememberMe": {
        "id": "checkbox_1785491685456_262",
        "name": "rememberMe",
        "type": "boolean",
        "label": "Remember Me",
        "widget": "checkbox"
      },
      "submit": {
        "id": "submit_button_initial",
        "name": "defaultFormsubmit",
        "type": "button",
        "label": "Submit",
        "buttonType": "submit",
        "widget": "button",
        "style": "primary",
        "disabled": false
      }
    },
    "layout": [
      {
        "type": "field",
        "propertyId": "emailAddress"
      },
      {
        "type": "field",
        "propertyId": "password"
      },
      {
        "type": "field",
        "propertyId": "rememberMe"
      },
      {
        "type": "field",
        "propertyId": "submit"
      }
    ],
    "settings": {
      "name": "Untitled Form"
    }
  };
  public onSubmit(args: any) {
    if(args.data){
    console.log(args.data, args.isValid);
    }
  }
}

Running the application

Run the application using the following command:

ng serve

When the build succeeds, the CLI reports a local URL (default: http://localhost:4200). Open that URL in a browser to view the Form Renderer. If the port is already in use, the CLI prompts for another port, or you can run ng serve --port 4201.

The output will appear as follows:

Angular Form Renderer
