Getting Started with ASP.NET Core Grid Control

20 May 202610 minutes to read

This section briefly explains about how to include ASP.NET Core Grid control in your ASP.NET Core application using Visual Studio.

Ready to streamline your Syncfusion® ASP.NET Core development? Discover the full potential of Syncfusion® ASP.NET Core controls with Syncfusion® AI Coding Assistant. Effortlessly integrate, configure, and enhance your projects with intelligent, context-aware code suggestions, streamlined setups, and real-time insights—all seamlessly integrated into your preferred AI-powered IDEs like Visual Studio, Visual Studio Code, Cursor, Syncfusion® CodeStudio and more. Explore Syncfusion® AI Coding Assistant

To get start quickly with ASP.NET Core Grid component, you can check on this video.

Prerequisites

System requirements for ASP.NET Core controls

Create ASP.NET Core web application with Razor pages

Create an ASP.NET Core Razor Pages project using Visual Studio:

  1. Start Visual Studio and select Create a new project.

  2. In the Create a new project window, choose ASP.NET Core Web App (Razor Pages) → Next.

  3. In the Configure your new project dialog, specify the project name (and optionally change location/folder).

  4. Click Next.

  5. In the Additional information dialog:
    • Select .NET 10.0.
    • Verify: Do not use top-level statements is unchecked.
  6. Click Create.

For alternative approaches to create the project, see Create a new project in Visual Studio.

Install ASP.NET Core package in the application

To add ASP.NET Core controls in the application, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for Syncfusion.EJ2.AspNet.Core and then install it. Alternatively, you can utilize the following package manager command to achieve the same.

Install-Package Syncfusion.EJ2.AspNet.Core -Version 33.2.3

Create an ASP.NET Core Razor Pages project using Visual Studio Code:

  • Install the latest .NET SDK that supports .NET 10.0 or later.
  • Open Visual Studio Code.
  • Press Ctrl + ` to open the integrated terminal.
  • Run the following commands:
dotnet new webapp -o RazorPagesMovie

code -r RazorPagesMovie

Install ASP.NET Core package in the application

To integrate the Syncfusion® ASP.NET Core DataGrid component, install the required Syncfusion.EJ2.AspNet.Core NuGet packages using the integrated terminal:

  1. Press Ctrl + ` to open the integrated terminal in Visual Studio Code.
  2. Navigate to the directory containing the .csproj file.
  3. Run the following commands to install the packages:
dotnet add package Syncfusion.EJ2.AspNet.Core --version 33.2.3

NOTE

Syncfusion® ASP.NET Core controls are available in nuget.org. Refer to NuGet packages topic to learn more about installing NuGet packages in various OS environments. The Syncfusion.EJ2.AspNet.Core NuGet package has dependencies, Newtonsoft.Json for JSON serialization and Syncfusion.Licensing for validating Syncfusion® license key.

Add Syncfusion® ASP.NET Core Tag Helper

Open ~/Pages/_ViewImports.cshtml file and import the Syncfusion.EJ2 TagHelper.

@addTagHelper *, Syncfusion.EJ2

Add stylesheet and script resources

Here, the theme and script is referred using CDN inside the <head> of ~/Pages/Shared/_Layout.cshtml file as follows,

<head>
    ...
    <!-- Syncfusion ASP.NET Core controls styles -->
    <link rel="stylesheet" href="https://cdn.syncfusion.com/ej2/33.2.3/fluent2.css" />
    <!-- Syncfusion ASP.NET Core controls scripts -->
    <script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js"></script>
</head>

NOTE

Checkout the Themes topic to learn different ways (CDN, NPM package, and CRG) to refer styles in ASP.NET Core application, and to have the expected appearance for Syncfusion® ASP.NET Core controls.

NOTE

Checkout the Adding Script Reference topic to learn different approaches for adding script references in your ASP.NET Core application.

Register Syncfusion® Script Manager

Also, register the script manager <ejs-script> at the end of <body> in the ASP.NET Core application as follows.

<body>
    ...
    <!-- Syncfusion ASP.NET Core Script Manager -->
    <ejs-scripts></ejs-scripts>
</body>

Add ASP.NET Core Grid control

Now, add the Syncfusion® ASP.NET Core Grid tag helper in ~/Pages/Index.cshtml page.

<ejs-grid id="Grid" dataSource="@ViewBag.DataSource">
  <e-grid-columns>
    <e-grid-column field="OrderID" headerText="Order ID" textAlign="Right" width="120"></e-grid-column>
    <e-grid-column field="CustomerID" headerText="Customer ID" width="150"></e-grid-column>
    <e-grid-column field="OrderDate" headerText="Order Date" width="130" textAlign="Right" format="yMd"></e-grid-column>
    <e-grid-column field="Freight" headerText="Freight" width="100" textAlign="Right" format="C2"></e-grid-column>
    <e-grid-column field="ShipCountry" headerText="Ship Country" width="120"></e-grid-column>
  </e-grid-columns>
</ejs-grid>
public class HomeController : Controller
{
    public IActionResult Index()
    {
        var Order = OrdersDetails.GetAllRecords();
        ViewBag.DataSource = Order;
        return View();
    }

    public class OrdersDetails
    {
        public static List<OrdersDetails> order = new List<OrdersDetails>();
        public OrdersDetails()
        {

        }
        public OrdersDetails(int OrderID, string CustomerId, DateTime OrderDate, string ShipCountry, double Freight)
        {
            this.OrderID = OrderID;
            this.CustomerID = CustomerId;
            this.OrderDate = OrderDate;
            this.ShipCountry = ShipCountry;
            this.Freight = Freight;
        }
        public static List<OrdersDetails> GetAllRecords()
        {
            if (order.Count() == 0)
            {
                order.Add(new OrdersDetails(10248, "Ana Trujillo", new DateTime(2025, 1, 12), "France", 32.38));
                order.Add(new OrdersDetails(10249, "Martin Sommer", new DateTime(2025, 1, 15), "Germany", 11.61));
                order.Add(new OrdersDetails(10250, "Thomas Hardy", new DateTime(2025, 2, 5), "Brazil", 65.83));
                order.Add(new OrdersDetails(10251, "Elizabeth Lincoln", new DateTime(2025, 2, 18), "France", 41.34));
                order.Add(new OrdersDetails(10252, "Victoria Ashworth", new DateTime(2025, 3, 10), "Belgium", 51.30));
                order.Add(new OrdersDetails(10253, "Martine Rance", new DateTime(2025, 3, 22), "Brazil", 58.17));
            }
            return order;
        }
        public int? OrderID { get; set; }
        public string? CustomerID { get; set; }
        public DateTime? OrderDate { get; set; }
        public string? ShipCountry { get; set; }
        public double? Freight { get; set; }
    }
}

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to run the app. Then, the Syncfusion® ASP.NET Core Grid control will be rendered in the default web browser.

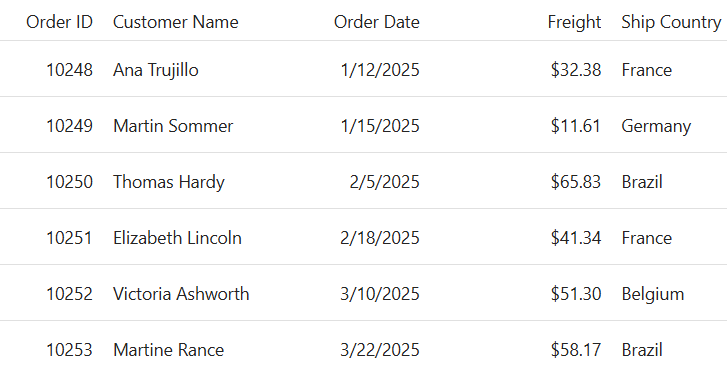

The output looks like below

ASP.NET Core Grid with Columns Data
