Getting Started

The following section explains the steps required to create the NumericTextBox component and also it demonstrates the basic usage of the NumericTextBox.

Dependencies

The following list of dependencies are required to use the NumericTextBox component in your application.

|-- @syncfusion/ej2-angular-inputs
    |-- @syncfusion/ej2-angular-base
    |-- @syncfusion/ej2-angular-popups
    |-- @syncfusion/ej2-angular-buttons
    |-- @syncfusion/ej2-angular-splitbuttons
    |-- @syncfusion/ej2-inputs
        |-- @syncfusion/ej2-base
        |-- @syncfusion/ej2-popups
        |-- @syncfusion/ej2-buttons
        |-- @syncfusion/ej2-splitbuttons

Setup angular environment

Angular provides the easiest way to set angular CLI projects using Angular CLI tool.

Install the CLI application globally to your machine.

npm install -g @angular/cli

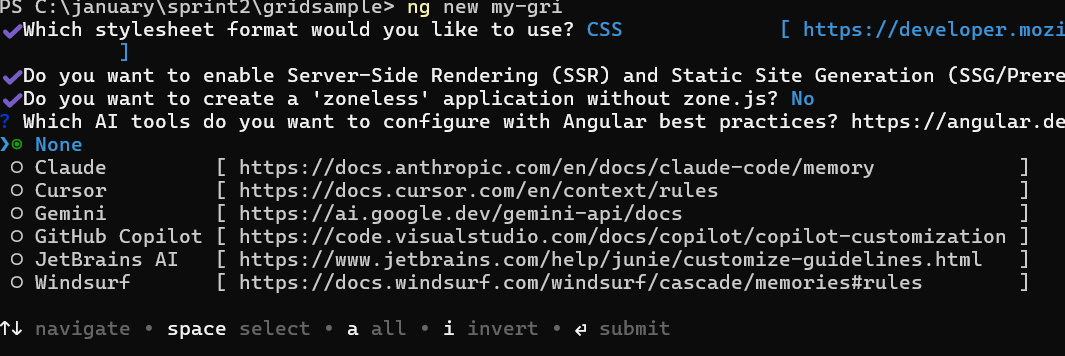

Create a new application

ng new syncfusion-angular-numerictextbox

By default, it install the CSS style base application. To setup with SCSS, pass —style=scss argument on create project.

Example code snippet.

ng new syncfusion-angular-numerictextbox --style=scss

Navigate to the created project folder.

cd syncfusion-angular-numerictextbox

Adding NumericTextBox package

All the available Essential JS 2 packages are published in npmjs.com registry.

To install NumericTextBox component, use the following command.

npm install @syncfusion/ej2-angular-inputs --save
(or)
npm i @syncfusion/ej2-angular-inputs --save

The —save will instruct NPM to include the NumericTextBox package inside of the dependencies section of the package.json.

Registering NumericTextBox module

Import NumericTextBox module into Angular application(app.module.ts) from the package @syncfusion/ej2-angular-inputs.

import { NgModule }      from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
// imports the NumericTextBoxModule for the NumericTextBox component
import { NumericTextBoxModule } from '@syncfusion/ej2-angular-inputs';
import { AppComponent }  from './app.component';

@NgModule({
  // declaration of ej2-angular-inputs module into NgModule
  imports:      [ BrowserModule , NumericTextBoxModule],
  declarations: [ AppComponent],
  bootstrap:    [ AppComponent ]
})
export class AppModule { }

Adding CSS reference

The following CSS files are available in ../node_modules/@syncfusion package folder. This can be referenced in [src/styles.css] using following code.

@import '../node_modules/@syncfusion/ej2-base/styles/material.css';
@import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';
@import '../node_modules/@syncfusion/ej2-inputs/styles/material.css';
@import '../node_modules/@syncfusion/ej2-popups/styles/material.css';
@import '../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css';
@import '../node_modules/@syncfusion/ej2-angular-inputs/styles/material.css';

Adding NumericTextBox component

Modify the template in [src/app/app.component.ts] file to render the NumericTextBox component. Add the Angular NumericTextBox by using <ejs-numerictextbox> selector in template section of the app.component.ts file..

import { Component } from '@angular/core';

@Component({
  selector: 'app-root',
  // specifies the template string for the NumericTextBox component
  template: `<ejs-numerictextbox value='10'></ejs-numerictextbox>`
})
export class AppComponent  { }

Note: If you want to refer the combined component styles, please make use of our CRG (Custom Resource Generator) in your application.

Running the application

After completing the configuration required to render a basic NumericTextBox, run the following command to display the output in your default browser.

ng serve

The following example illustrates the output in your browser.

Source
Preview
app.component.ts
app.module.ts
main.ts
index.html
index.css
import { Component } from '@angular/core';

@Component({
    selector: 'app-root',
    // specifies the template string for the NumericTextBox component
    template: `<ejs-numerictextbox value='10'></ejs-numerictextbox>`,
})
export class AppComponent {
    constructor() {
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { NumericTextBoxModule } from '@syncfusion/ej2-angular-inputs';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        NumericTextBoxModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Angular NumericTextBox</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Angular NumericTextBox Component" />
    <meta name="author" content="Syncfusion" />
    <!-- Here we have used CDN links for our preview purpose  -->
    <link href="index.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-angular-inputs/styles/material.css" rel="stylesheet" />

    <script src="https://unpkg.com/core-js/client/shim.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/core-js/2.4.1/core.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/zone.js/0.6.25/zone.min.js"></script>
    <script src="https://unpkg.com/reflect-metadata@0.1.3"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
</head>

<body>
    <div id='ang_container'>
        <div class='wrap'>
            <app-root>
                <div id='loader'>LOADING....</div>
            </app-root>
        </div>
    </div>
</body>

</html>
#container {
    visibility: hidden;
}

#loader {
  color: #008cff;
  height: 40px;
  left: 45%;
  position: absolute;
  top: 45%;
  width: 30%;
}

.wrap {
  margin: 35px auto;
  width: 240px;
  padding-top: 25px;
}

Range validation

You can set the minimum and maximum range of values in the NumericTextBox using the min and max properties, so the numeric value should be in the min and max range.

The validation behavior depends on the strictMode property.

The below example demonstrates range validation.

Source
Preview
app.component.ts
app.module.ts
main.ts
index.html
index.css
import { Component, ViewChild } from '@angular/core';

@Component({
    selector: 'app-root',
    // specifies the template string for the NumericTextBox component
    // sets the minimum and maximum range values
    // strictMode has been enabled by defualt
    template: `
            <ejs-numerictextbox min='10' max='20' value='16' step='2'></ejs-numerictextbox>
            `
})
export class AppComponent {
    constructor() {
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { NumericTextBoxModule } from '@syncfusion/ej2-angular-inputs';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        NumericTextBoxModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Angular NumericTextBox</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Angular NumericTextBox Component" />
    <meta name="author" content="Syncfusion" />
    <!-- Here we have used CDN links for our preview purpose  -->
    <link href="index.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-angular-inputs/styles/material.css" rel="stylesheet" />

    <script src="https://unpkg.com/core-js/client/shim.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/core-js/2.4.1/core.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/zone.js/0.6.25/zone.min.js"></script>
    <script src="https://unpkg.com/reflect-metadata@0.1.3"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
</head>

<body>
    <div id='ang_container'>
        <div class='wrap'>
            <app-root>
                <div id='loader'>LOADING....</div>
            </app-root>
        </div>
    </div>
</body>

</html>
#container {
    visibility: hidden;
}

#loader {
  color: #008cff;
  height: 40px;
  left: 45%;
  position: absolute;
  top: 45%;
  width: 30%;
}

.wrap {
  margin: 35px auto;
  width: 240px;
  padding-top: 25px;
}

Formatting the value

User can set the format of the NumericTextBox component using format property. The value will be displayed in the specified format, when the component is in focused out state. For more information about formatting the value, refer to this link.

The below example demonstrates format the value by using currency format value c2.

Source
Preview
app.component.ts
app.module.ts
main.ts
index.html
index.css
import { Component } from '@angular/core';

@Component({
    selector: 'app-root',
    // specifies the template string for the NumericTextBox component
    // sets currency with 2 numbers of decimal places format
    template: `
            <ejs-numerictextbox format='c2' value='10'></ejs-numerictextbox>
            `
})
export class AppComponent {
    constructor() {
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { NumericTextBoxModule } from '@syncfusion/ej2-angular-inputs';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        NumericTextBoxModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Angular NumericTextBox</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Angular NumericTextBox Component" />
    <meta name="author" content="Syncfusion" />
    <!-- Here we have used CDN links for our preview purpose  -->
    <link href="index.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-angular-inputs/styles/material.css" rel="stylesheet" />

    <script src="https://unpkg.com/core-js/client/shim.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/core-js/2.4.1/core.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/zone.js/0.6.25/zone.min.js"></script>
    <script src="https://unpkg.com/reflect-metadata@0.1.3"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
</head>

<body>
    <div id='ang_container'>
        <div class='wrap'>
            <app-root>
                <div id='loader'>LOADING....</div>
            </app-root>
        </div>
    </div>
</body>

</html>
#container {
    visibility: hidden;
}

#loader {
  color: #008cff;
  height: 40px;
  left: 45%;
  position: absolute;
  top: 45%;
  width: 30%;
}

.wrap {
  margin: 35px auto;
  width: 240px;
  padding-top: 25px;
}

Precision of numbers

You can restrict the number of decimals to be entered in the NumericTextBox by using the decimals and validateDecimalOnType properties. So, you can’t enter the number whose precision is greater than the mentioned decimals.

  • If validateDecimalOnType is false, number of decimals will not be restricted. Else, number of decimals will be restricted while typing in the NumericTextBox.
Source
Preview
app.component.ts
app.module.ts
main.ts
index.html
index.css
import { Component } from '@angular/core';

@Component({
    selector: 'app-root',
    // specifies the template string for the NumericTextBox component
    // restricts number of decimals to be entered in the NumericTextBox by using validateDecimalOnType property
    // sets number of decimal places to be allowed by the NumericTextBox
    template: `
             <div class='wrap'>
               <ejs-numerictextbox [validateDecimalOnType]='true' decimals='3' format='n3' value='10' placeholder='ValidateDecimalOnType Enabled' floatLabelType= 'Auto'></ejs-numerictextbox>
            </div>
            <div class='wrap'>
               <ejs-numerictextbox decimals='3' format='n3' value='10' placeholder='ValidateDecimalOnType Disabled' floatLabelType= 'Auto'></ejs-numerictextbox>
            </div>
            `
})
export class AppComponent {
    constructor() {
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { NumericTextBoxModule } from '@syncfusion/ej2-angular-inputs';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        NumericTextBoxModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Angular NumericTextBox</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Angular NumericTextBox Component" />
    <meta name="author" content="Syncfusion" />
    <!-- Here we have used CDN links for our preview purpose  -->
    <link href="index.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-angular-inputs/styles/material.css" rel="stylesheet" />

    <script src="https://unpkg.com/core-js/client/shim.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/core-js/2.4.1/core.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/zone.js/0.6.25/zone.min.js"></script>
    <script src="https://unpkg.com/reflect-metadata@0.1.3"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
</head>

<body>
    <div id='ang_container'>
        <div class='wrap'>
            <app-root>
                <div id='loader'>LOADING....</div>
            </app-root>
        </div>
    </div>
</body>

</html>
#container {
    visibility: hidden;
}

#loader {
  color: #008cff;
  height: 40px;
  left: 45%;
  position: absolute;
  top: 45%;
  width: 30%;
}

.wrap {
  margin: 35px auto;
  width: 240px;
  padding-top: 25px;
}

Two way binding

In NumericTextBox, the value property supports two-way binding functionality. The below example demonstrates two-way binding functionality with the NumericTextBox and HTML input element.

Source
Preview
app.component.ts
app.module.ts
main.ts
index.html
index.css
import { Component } from '@angular/core';

@Component({
    selector: 'app-root',
    // specifies the template string for the NumericTextBox component and
    // input element for checking the two-way binding support using value property
    template: `
     <div class='e-input-group' style='margin-bottom:30px'>
        <input class='e-input' type='text' [(ngModel)]='value' placeholder='Enter a number'  />
     </div>
    <ejs-numerictextbox [(value)]='value'></ejs-numerictextbox>
    `
})
export class AppComponent {
    constructor() {
    }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { NumericTextBoxModule } from '@syncfusion/ej2-angular-inputs';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        NumericTextBoxModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Angular NumericTextBox</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Angular NumericTextBox Component" />
    <meta name="author" content="Syncfusion" />
    <!-- Here we have used CDN links for our preview purpose  -->
    <link href="index.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-angular-inputs/styles/material.css" rel="stylesheet" />

    <script src="https://unpkg.com/core-js/client/shim.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/core-js/2.4.1/core.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/zone.js/0.6.25/zone.min.js"></script>
    <script src="https://unpkg.com/reflect-metadata@0.1.3"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
</head>

<body>
    <div id='ang_container'>
        <div class='wrap'>
            <app-root>
                <div id='loader'>LOADING....</div>
            </app-root>
        </div>
    </div>
</body>

</html>
#container {
    visibility: hidden;
}

#loader {
  color: #008cff;
  height: 40px;
  left: 45%;
  position: absolute;
  top: 45%;
  width: 30%;
}

.wrap {
  margin: 35px auto;
  width: 240px;
  padding-top: 25px;
}

Reactive form

NumericTextBox is a form component and validation is playing vital role in forms to get the valid data. Here to showcase the NumericTextBox with form validations we have used the reactive form. For more details about Reactive Forms refer: https://angular.io/guide/reactive-forms.

  • To use reactive forms, import ReactiveFormsModule from the @angular/forms package and add it to your NgModule’s imports array. In addition to this, FormGroup, FormControl should be imported to the app component.
  • The FormGroup is used to declare formGroupName for the form. The constructor of this FormGroup then takes an object, that can contain sub-form-groups and FormControls.
  • The FormControl is used to declare formControlName for form controls.

The following example demonstrates how to use the reactive forms.

Source
Preview
app.component.ts
app.module.ts
main.ts
index.css
import { Component, Inject } from '@angular/core';
import { FormBuilder, FormGroup, Validators } from '@angular/forms';

@Component({
    selector: 'app-root',
    templateUrl: './app/template.html',
})
export class AppComponent {
    skillForm: FormGroup;
    build: FormBuilder;
    constructor(@Inject(FormBuilder) private builder: FormBuilder) {
        this.build = builder;
        this.createForm();
    }
    createForm() {
        this.skillForm = this.build.group({
          numeric: ['', Validators.required],
          username: ['', Validators.required],
        });
    }
    get username() { return this.skillForm.get('username'); }
    get numeric() { return this.skillForm.get('numeric'); }

    onSubmit() {
       alert("You have entered the value: " + this.numeric.value );
  }
}
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { HttpModule, JsonpModule } from '@angular/http';
import { FormsModule, ReactiveFormsModule  } from '@angular/forms';
import { AppComponent } from './app.component';
import { NumericTextBoxModule } from '@syncfusion/ej2-angular-inputs';
import { ButtonComponent } from '@syncfusion/ej2-angular-buttons';


/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,FormsModule,ReactiveFormsModule, HttpModule, JsonpModule, NumericTextBoxModule
    ],
    declarations: [AppComponent, ButtonComponent],
    bootstrap: [AppComponent]
})
export class AppModule { }
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);
#container {
    visibility: hidden;
}

#loader {
  color: #008cff;
  height: 40px;
  left: 45%;
  position: absolute;
  top: 45%;
  width: 30%;
}

.wrap {
  margin: 5px auto;
  width: 240px;
}
.footer{
    text-align: center;
}
#submitbutton{
    margin-right:20px;
}

See Also
