Connecting SQL Server to Angular Grid Using ASP.NET Core Web API

8 Apr 202624 minutes to read

The Syncfusion^® Angular Grid supports binding data from a Microsoft SQL Server database through an ASP.NET Core Web API using ADO.NET SqlClient. This modern architecture provides a secure and scalable alternative to accessing the database directly from the client, while enabling efficient server‑side processing for paging, sorting, and filtering. By leveraging Angular for the UI and ASP.NET Core with SqlClient for data access, applications maintain a clear separation between presentation and data layers and retain full control over SQL Server interactions.

What is Microsoft SqlClient?

Microsoft.Data.SqlClient is the official .NET data provider used to connect ASP.NET Core applications to Microsoft SQL Server. It enables applications to execute SQL queries, call stored procedures, and read or write data securely using strongly supported APIs from Microsoft. SqlClient is commonly used in Web APIs where precise control over database access, performance, and security is required.

Key benefits of SqlClient:

• Secure by design: Enforces parameterized queries to help prevent SQL injection attacks.
• High performance: Provides efficient, low‑level access to SQL Server with minimal overhead.
• Asynchronous support: Supports async database operations for better scalability in web APIs.
• Full SQL control: Allows precise control over SQL queries, stored procedures, and transactions.
• Official Microsoft provider: Maintained and supported by Microsoft for long‑term compatibility with SQL Server.

Prerequisites

Ensure the following software and packages are installed before proceeding:

Software/Package	Version	Purpose
Node.js	18.x or later	Angular development runtime
Angular CLI	16 or later	Create and run Angular apps
.NET SDK	8.0 or later	Build and run ASP.NET Core Web API
SQL Server	2019 or later	Database server
@syncfusion/ej2-angular-grids	Latest	Angular Grid component
@syncfusion/ej2-data	Latest	DataManager and adaptors
Microsoft.Data.SqlClient (NuGet)	Latest	SQL Server connectivity
Syncfusion.EJ2.AspNet.Core	Latest	Server helpers (DataManagerRequest, DataOperations)

Key topics

#	Topics	Link
1	Setting up and configuring a Microsoft SQL Server–backed ASP.NET Core Web API using ADO.NET SqlClient	View
2	Integrating the Syncfusion® Angular Grid with the ASP.NET Core Web API using DataManager and CustomAdaptor	View
3	Implementing server‑side data operations including paging, searching, filtering, and sorting	View
4	Performing full CRUD and batch operations from the Angular Grid against the SQL Server database	View
6	Run the applications	View
7	Explore a complete working sample	View

Setting up the SQL server environment for SqlClient

First, create the SQL Server database structure required to store ticket records.

Instructions:

1. Open SQL Server Management Studio (SSMS) or any SQL Server client.
2. Create a new database named “NetworkSupportDB”.
3. Define a “Tickets” table with the specified schema.
4. Insert sample data for testing.

Run the following SQL script:

-- Create Database
IF NOT EXISTS (SELECT * FROM sys.databases WHERE name = 'NetworkSupportDB')
BEGIN
    CREATE DATABASE NetworkSupportDB;
END
GO

USE NetworkSupportDB;
GO

-- Create Tickets Table
IF NOT EXISTS (SELECT * FROM sys.tables WHERE name = 'Tickets')
BEGIN
    CREATE TABLE dbo.Tickets (
        TicketId INT PRIMARY KEY IDENTITY(1,1),
        PublicTicketId VARCHAR(50) NOT NULL UNIQUE,
        Title VARCHAR(200) NULL,
        Description TEXT NULL,
        Category VARCHAR(100) NULL,
        Department VARCHAR(100) NULL,
        Assignee VARCHAR(100) NULL,
        CreatedBy VARCHAR(100) NULL,
        Status VARCHAR(50) NOT NULL DEFAULT 'Open',
        Priority VARCHAR(50) NOT NULL DEFAULT 'Medium',
        ResponseDue DATETIME2 NULL,
        DueDate DATETIME2 NULL,
        CreatedAt DATETIME2 NOT NULL DEFAULT GETDATE(),
        UpdatedAt DATETIME2 NOT NULL DEFAULT GETDATE()
    );
END
GO

-- Insert Sample Data (Optional)
INSERT INTO dbo.Tickets (PublicTicketId, Title, Description, Category, Department, Assignee, CreatedBy, Status, Priority, ResponseDue, DueDate, CreatedAt, UpdatedAt)
VALUES
('NET-1001', 'Network Connectivity Issue', 'Users unable to connect to the VPN', 'Network Issue', 'Network Ops', 'John Doe', 'Alice Smith', 'Open', 'High', '2026-01-14 10:00:00', '2026-01-15 17:00:00', '2026-01-13 10:15:30', '2026-01-13 10:15:30'),
('NET-1002', 'Server Performance Degradation', 'Email server responding slowly', 'Performance', 'Infrastructure', 'Emily White', 'Bob Johnson', 'InProgress', 'Critical', '2026-01-13 15:00:00', '2026-01-14 17:00:00', '2026-01-13 11:20:10', '2026-01-13 11:20:10');
GO

After executing this script, the ticket records are stored in the “Tickets” table within the “NetworkSupportDB” database. The database is now ready for integration with the application.

Step 1: Create the ASP.NET Core Web API project

To connect the Syncfusion® Angular Grid to Microsoft SQL Server, the ASP.NET Core Web API server must be configured with the required NuGet packages. The server application is responsible for handling HTTP requests from the Grid and accessing data from SQL Server.

An ASP.NET Core Web API project includes essential files such as Program.cs, appsettings.json, and a Controllers folder. These components manage application startup, configuration, and API endpoints.

In this guide, an ASP.NET Core Web API project named Grid_MSSQL.Server is used. After the server project is available, install the required NuGet packages to enable SQL Server connectivity and server‑side grid operations.

To create a new ASP.NET Core Web API project using the .NET CLI, execute the below command in terminal.

dotnet new webapi -n Grid_MSSQL.Server
cd Grid_MSSQL.Server

Add the SQL Server client library and Syncfusion^® server‑side helper packages.

dotnet add package Microsoft.Data.SqlClient
dotnet add package Syncfusion.EJ2.AspNet.Core

The Web API exposes HTTP endpoints that are used by the Grid to perform read and data modification operations. The Syncfusion^® server helper package provides the required types for processing grid requests and applying data operations on the server.

Step 2: Create the data model

A data model is a C# class that represents the structure of a database table. This model defines the properties that correspond to the columns in the “Tickets” table.

Instructions:

1. Create a new folder named Data in the application project.
2. Inside the Data folder, create a new file named Tickets.cs.
3. Define the Tickets class with the following code:

using System.ComponentModel.DataAnnotations;

namespace Grid_MSSQL.Server.Data
{
    /// <summary>
    /// Represents a ticket record mapped to the 'Tickets' table in the database.
    /// This model defines the structure of ticket-related data used throughout the application.
    /// </summary>
    public class Tickets
    {
        /// <summary>
        /// Gets or sets the unique identifier for the ticket record.
        /// </summary>
        [Key]
        public int TicketId { get; set; }

        /// <summary>
        /// Gets or sets the public-facing ticket identifier (e.g., NET-1001).
        /// </summary>
        public string? PublicTicketId { get; set; }

        /// <summary>
        /// Gets or sets the ticket title or subject.
        /// </summary>
        public string? Title { get; set; }

        /// <summary>
        /// Gets or sets a detailed description of the ticket.
        /// </summary>
        public string? Description { get; set; }

        /// <summary>
        /// Gets or sets the category of the issue (e.g., Network, Hardware, Software).
        /// </summary>
        public string? Category { get; set; }

        /// <summary>
        /// Gets or sets the department responsible for handling the ticket.
        /// </summary>
        public string? Department { get; set; }

        /// <summary>
        /// Gets or sets the name of the agent assigned to the ticket.
        /// </summary>
        public string? Assignee { get; set; }

        /// <summary>
        /// Gets or sets the name of the person who created the ticket.
        /// </summary>
        public string? CreatedBy { get; set; }

        /// <summary>
        /// Gets or sets the current status of the ticket (e.g., Open, In Progress, Resolved, Closed).
        /// </summary>
        public string? Status { get; set; }

        /// <summary>
        /// Gets or sets the priority level of the ticket (e.g., Critical, High, Medium, Low).
        /// </summary>
        public string? Priority { get; set; }

        /// <summary>
        /// Gets or sets the deadline for responding to the ticket.
        /// </summary>
        public DateTime? ResponseDue { get; set; }

        /// <summary>
        /// Gets or sets the deadline for resolving the ticket.
        /// </summary>
        public DateTime? DueDate { get; set; }

        /// <summary>
        /// Gets or sets the timestamp indicating when the ticket was created.
        /// </summary>
        public DateTime? CreatedAt { get; set; }

        /// <summary>
        /// Gets or sets the timestamp indicating when the ticket was last updated.
        /// </summary>
        public DateTime? UpdatedAt { get; set; }
    }
}

Explanation:

• The “[Key]” attribute marks the “TicketId” property as the primary key (a unique identifier for each record).
• Each property represents a column in the database table.
• The “?” symbol indicates that a property is nullable (can be empty).
• The model includes comprehensive XML documentation for each property.

The data model has been successfully created.

Step 3: Create the Repository class

A repository class is an intermediary layer that handles all database operations. This class uses SqlClient to communicate with the database.

Instructions:

1. Inside the Data folder, create a new file named TicketRepository.cs.
2. Define the TicketRepository class with the following code:

using Microsoft.Data.SqlClient;

namespace Grid_MSSQL.Server.Data
{
    public class TicketRepository
    {
        private readonly string _connectionString;

        // Public Ticket ID Configuration
        private const string PublicTicketIdPrefix = "NET";
        private const string PublicTicketIdSeparator = "-";
        private const int PublicTicketIdStartNumber = 1001;

        /// <summary>
        /// Initializes the repository with a connection string from configuration.
        /// </summary>
        public TicketRepository(IConfiguration configuration)
        {
            _connectionString = configuration.GetConnectionString("TicketDb")!;
        }

        /// <summary>
        /// Creates a new SQL connection using the configured connection string.
        /// </summary>
        private SqlConnection GetConnection() => new SqlConnection(_connectionString);

        /// <summary>
        /// Returns all tickets ordered by TicketId.
        /// </summary>
        public async Task<List<Tickets>> GetTicketsAsync()
        {
            var list = new List<Tickets>();
            const string sql =
                @"SELECT TicketId, PublicTicketId, Title, Description, Category, Department, Assignee,
                                        CreatedBy, Status, Priority, ResponseDue, DueDate, CreatedAt, UpdatedAt
                                 FROM dbo.Tickets ORDER BY TicketId";

            await using var conn = GetConnection();
            await conn.OpenAsync();
            await using var cmd = new SqlCommand(sql, conn);
            await using var reader = await cmd.ExecuteReaderAsync();

            while (await reader.ReadAsync())
            {
                list.Add(
                    new Tickets
                    {
                        TicketId = reader.GetInt32(reader.GetOrdinal("TicketId")),
                        PublicTicketId = reader["PublicTicketId"] as string,
                        Title = reader["Title"] as string,
                        Description = reader["Description"] as string,
                        Category = reader["Category"] as string,
                        Department = reader["Department"] as string,
                        Assignee = reader["Assignee"] as string,
                        CreatedBy = reader["CreatedBy"] as string,
                        Status = reader["Status"] as string,
                        Priority = reader["Priority"] as string,
                        ResponseDue =
                            reader["ResponseDue"] == DBNull.Value
                                ? null
                                : Convert.ToDateTime(reader["ResponseDue"]),
                        DueDate =
                            reader["DueDate"] == DBNull.Value
                                ? null
                                : Convert.ToDateTime(reader["DueDate"]),
                        CreatedAt =
                            reader["CreatedAt"] == DBNull.Value
                                ? null
                                : Convert.ToDateTime(reader["CreatedAt"]),
                        UpdatedAt =
                            reader["UpdatedAt"] == DBNull.Value
                                ? null
                                : Convert.ToDateTime(reader["UpdatedAt"]),
                    }
                );
            }
            return list;
        }

        /// <summary>
        /// Generates the next public ticket ID (e.g., NET-1002) by reading the current max numeric suffix.
        /// </summary>
        private async Task<string> GeneratePublicTicketIdAsync()
        {
            // Efficiently get max numeric suffix with SQL
            string like = $"{PublicTicketIdPrefix}{PublicTicketIdSeparator}%";
            const string sql =
                @"
                SELECT MAX(TRY_CAST(SUBSTRING(PublicTicketId, LEN(@prefix) + LEN(@sep) + 1, 50) AS INT))
                FROM dbo.Tickets
                WHERE PublicTicketId LIKE @like";
            int? maxNumber = null;

            await using var conn = GetConnection();
            await conn.OpenAsync();
            await using var cmd = new SqlCommand(sql, conn);
            cmd.Parameters.AddWithValue("@prefix", PublicTicketIdPrefix);
            cmd.Parameters.AddWithValue("@sep", PublicTicketIdSeparator);
            cmd.Parameters.AddWithValue("@like", like);

            var result = await cmd.ExecuteScalarAsync();
            if (result != DBNull.Value && result != null)
            {
                maxNumber = Convert.ToInt32(result);
            }

            int next = (maxNumber ?? (PublicTicketIdStartNumber - 1)) + 1;
            return $"{PublicTicketIdPrefix}{PublicTicketIdSeparator}{next}";
        }

        /// <summary>
        /// Inserts a new ticket and returns the created entity with its TicketId.
        /// </summary>
        public async Task<Tickets> InsertAsync(Tickets value)
        {
            // Auto-generate PublicTicketId if empty
            if (string.IsNullOrWhiteSpace(value.PublicTicketId))
            {
                value.PublicTicketId = await GeneratePublicTicketIdAsync();
            }

            // Default timestamps
            value.CreatedAt ??= DateTime.UtcNow;
            value.UpdatedAt ??= DateTime.UtcNow;

            const string sql =
                @"
                INSERT INTO dbo.Tickets
                (PublicTicketId, Title, Description, Category, Department, Assignee, CreatedBy, Status, Priority, ResponseDue, DueDate, CreatedAt, UpdatedAt)
                OUTPUT INSERTED.TicketId
                VALUES
                (@PublicTicketId, @Title, @Description, @Category, @Department, @Assignee, @CreatedBy, @Status, @Priority, @ResponseDue, @DueDate, @CreatedAt, @UpdatedAt);";

            await using var conn = GetConnection();
            await conn.OpenAsync();
            await using var cmd = new SqlCommand(sql, conn);
            cmd.Parameters.AddWithValue(
                "@PublicTicketId",
                (object?)value.PublicTicketId ?? DBNull.Value
            );
            cmd.Parameters.AddWithValue("@Title", (object?)value.Title ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Description", (object?)value.Description ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Category", (object?)value.Category ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Department", (object?)value.Department ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Assignee", (object?)value.Assignee ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@CreatedBy", (object?)value.CreatedBy ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Status", (object?)value.Status ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Priority", (object?)value.Priority ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@ResponseDue", (object?)value.ResponseDue ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@DueDate", (object?)value.DueDate ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@CreatedAt", (object?)value.CreatedAt ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@UpdatedAt", (object?)value.UpdatedAt ?? DBNull.Value);

            value.TicketId = Convert.ToInt32(await cmd.ExecuteScalarAsync());
            return value;
        }

        /// <summary>
        /// Updates an existing ticket by TicketId and returns the updated entity.
        /// </summary>
        public async Task<Tickets> UpdateAsync(Tickets value)
        {
            value.UpdatedAt ??= DateTime.UtcNow;

            const string sql =
                @"
                UPDATE dbo.Tickets
                   SET PublicTicketId = @PublicTicketId,
                       Title         = @Title,
                       Description   = @Description,
                       Category      = @Category,
                       Department    = @Department,
                       Assignee      = @Assignee,
                       CreatedBy     = @CreatedBy,
                       Status        = @Status,
                       Priority      = @Priority,
                       ResponseDue   = @ResponseDue,
                       DueDate       = @DueDate,
                       UpdatedAt     = @UpdatedAt
                 WHERE TicketId     = @TicketId;";

            await using var conn = GetConnection();
            await conn.OpenAsync();
            await using var cmd = new SqlCommand(sql, conn);
            cmd.Parameters.AddWithValue("@TicketId", value.TicketId);
            cmd.Parameters.AddWithValue(
                "@PublicTicketId",
                (object?)value.PublicTicketId ?? DBNull.Value
            );
            cmd.Parameters.AddWithValue("@Title", (object?)value.Title ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Description", (object?)value.Description ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Category", (object?)value.Category ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Department", (object?)value.Department ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Assignee", (object?)value.Assignee ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@CreatedBy", (object?)value.CreatedBy ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Status", (object?)value.Status ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@Priority", (object?)value.Priority ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@ResponseDue", (object?)value.ResponseDue ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@DueDate", (object?)value.DueDate ?? DBNull.Value);
            cmd.Parameters.AddWithValue("@UpdatedAt", (object?)value.UpdatedAt ?? DBNull.Value);

            await cmd.ExecuteNonQueryAsync();
            return value;
        }

        /// <summary>
        /// Deletes a ticket by TicketId. Returns affected rows (0 or 1).
        /// </summary>
        public async Task<int> DeleteAsync(int ticketId)
        {
            const string sql = @"DELETE FROM dbo.Tickets WHERE TicketId = @TicketId;";
            await using var conn = GetConnection();
            await conn.OpenAsync();
            await using var cmd = new SqlCommand(sql, conn);
            cmd.Parameters.AddWithValue("@TicketId", ticketId);
            return await cmd.ExecuteNonQueryAsync();
        }
    }
}

Explanation:

• TicketRepository: Reads the “TicketDb” connection string from configuration and stores it for later use.

• GetConnection: Creates a new “SqlConnection” using the stored connection string.

• GetTicketsAsync: Executes a SELECT on “Tickets”, maps rows to “Tickets” objects (handling NULLs), and returns the full list ordered by “TicketId”.

• GeneratePublicTicketIdAsync: Finds the current max numeric suffix in “PublicTicketId” (format “NET-####”) and returns the next ID; starts at “NET-1001” if none exist.

• InsertAsync: Ensures “PublicTicketId” exists (auto-generates if blank), sets default timestamps, inserts the ticket, and returns the entity with the generated “TicketId”.

• UpdateAsync: Updates all mutable fields for an existing ticket by “TicketId”, refreshes “UpdatedAt”, and returns the updated entity.

• DeleteAsync: Deletes the ticket matching “TicketId” and returns the number of affected rows (0 or 1).

The repository class has been created.

Step 4: Configure the connection string

A connection string contains the information needed to connect the application to the SQL Server database, including the server address, database name, and authentication credentials.

Instructions:

1. Open the appsettings.json file in the project root.
2. Add or update the ConnectionStrings section with the SQL Server connection details:

{
  "ConnectionStrings": {
    "TicketDb": "Data Source=localhost;Initial Catalog=NetworkSupportDB;Integrated Security=True;Connect Timeout=30;Encrypt=False;Trust Server Certificate=False;Application Intent=ReadWrite;Multi Subnet Failover=False"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*"
}

Connection string components:

Component	Description
Data Source	The address of the SQL Server instance (server name, IP address, or localhost)
Initial Catalog	The database name (in this case, “NetworkSupportDB”)
Integrated Security	Set to True for Windows Authentication; use False with Username/Password for SQL Authentication
Connect Timeout	Connection timeout in seconds (default is 15)
Encrypt	Enables encryption for the connection (set to True for production environments)
Trust Server Certificate	Whether to trust the server certificate (set to False for security)
Application Intent	Set to “ReadWrite” for normal operations or “ReadOnly” for read-only scenarios
Multi Subnet Failover	Used in failover clustering scenarios (typically False)

The database connection string has been configured successfully.

Step 5: Register services

The Program.cs file is where application services are registered and configured. This file must be updated to register services and the repository for dependency injection.

Instructions:

1. Open the Program.cs file at the project root.
2. Replace the existing content with the following configuration:

using Grid_MSSQL.Server.Data;

var builder = WebApplication.CreateBuilder(args);

// Add controllers and keep JSON property names as-is (PascalCase)
builder
    .Services.AddControllers()
    .AddJsonOptions(options =>
    {
        options.JsonSerializerOptions.PropertyNamingPolicy = null;
        options.JsonSerializerOptions.DictionaryKeyPolicy = null;
        options.JsonSerializerOptions.ReferenceHandler = null;
    });

// (Optional) Swagger for API exploration in Development
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();

// CORS: allow all (simple for local dev / separate frontend)
builder.Services.AddCors(options =>
{
    options.AddDefaultPolicy(policy => policy.AllowAnyOrigin().AllowAnyHeader().AllowAnyMethod());
});

// Register repository for DI
builder.Services.AddScoped<TicketRepository>();

var app = builder.Build();

// Swagger only in Development
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

// Enable CORS and map controllers
app.UseCors();
app.MapControllers();

app.Run();

Explanation:

• Create the app builder: Initializes the ASP.NET Core application and prepares services and configuration.

• Add Controllers: Enables API controllers so the app can handle HTTP requests.

• JSON Options: Keeps JSON property names exactly as defined in your C# models (PascalCase).

• Swagger: Adds Swagger support so you can test APIs easily during development.

• CORS: Allows requests from any frontend (useful when frontend and backend are on different ports/domains).

• Register TicketRepository: Registers the repository with Dependency Injection so controllers can use it.

• Build the app: Finalizes all configurations and services.

• Enable Swagger (Dev only): Shows Swagger UI only when running in development mode.

• Use CORS: Applies the CORS rules to incoming requests.

• Map Controllers: Connects controller routes (e.g., api/tickets) to the app.

• Run the app: Starts the web server and listens for requests.

This setup registers controllers, enables a permissive CORS policy for development, exposes Swagger UI, and wires the “TicketRepository” for dependency injection.

Integrating Syncfusion Angular Grid

The Syncfusion^® Angular Grid is a robust, high‑performance component built to efficiently display, manage, and manipulate large datasets. It provides advanced features such as sorting, filtering, and paging. Follow these steps to render the grid and integrate it with the SQL Server database.

Step 1: Creating the Angular client application

Open a Visual Studio Code terminal or Command prompt and run the below command to create an Angular application:

ng new grid_mssql.client
cd grid_mssql.client

Step 2: Adding Syncfusion packages

Install the necessary Syncfusion^® packages using the below command in Visual Studio Code terminal or Command prompt.

npm install @syncfusion/ej2-angular-grids --save
npm install @syncfusion/ej2-data --save

After installation, the necessary CSS files are available in the (../node_modules/@syncfusion) directory. Add the required CSS references to the (src/styles.css) file to ensure proper styling of the Grid component.

@import '../node_modules/@syncfusion/ej2-base/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-buttons/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-calendars/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-dropdowns/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-inputs/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-navigations/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-popups/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-splitbuttons/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-notifications/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-angular-grids/styles/bootstrap5.3.css';

For this project, the “Bootstrap 5.3” theme is applied. Other themes can be selected, or the existing theme can be customized to meet specific project requirements. For detailed guidance on theming and customization, refer to the Syncfusion^® Angular Components Appearance documentation.

Step 3: Add Syncfusion Angular Grid

The Angular Grid component can be added to the application by following these steps. To get started, add the Grid component to the application using the following code in (src/app/app.component.ts):

import { Component } from "@angular/core";
import { CommonModule, DatePipe } from "@angular/common";
import { GridModule } from "@syncfusion/ej2-angular-grids";
import { DataManager } from "@syncfusion/ej2-data";
import { CustomAdaptor } from "./custom-adaptor";

const BASE_URL = "http://localhost:5239/api/tickets";

@Component({
  selector: "app-root",
  standalone: true,
  imports: [CommonModule, GridModule],
  templateUrl: "app.component.html",
  styleUrls: ["app.component.css"],
})
export class AppComponent {
  public dataManager: DataManager = new DataManager({
    url: `${BASE_URL}`,
    adaptor: new CustomAdaptor(),
  });
}

And update (src/app/app.component.html):

<ejs-grid #grid [dataSource]="dataManager">
  <e-columns>
    <e-column field="TicketId" headerText="ID" isPrimaryKey="true" width="80" textAlign="Right"></e-column>
    <!-- Additional columns -->
  </e-columns>
</ejs-grid>

This completes the Angular UI setup required to display and manage ticket data using the Syncfusion Angular Grid.

Step 4: Implement the CustomAdaptor

The Syncfusion^® Angular Grid can bind data from a SQL Server database using DataManager and set the adaptor property to CustomAdaptor for scenarios that require full control over data operations.

The CustomAdaptor (client-side) is a bridge between the Angular Grid and the ASP.NET Core backend. It extends the UrlAdaptor and handles all data operation requests by constructing HTTP POST calls to corresponding server endpoints. When the Grid performs operations like reading, searching, filtering, sorting, paging, and CRUD operations, the CustomAdaptor intercepts these actions and formats them into HTTP requests. These requests are sent to the ASP.NET Core Web API controller on the server, which processes the DataManagerRequest using ADO.NET SqlClient to query the SQL Server database and return the results.

Instructions:

1. Create a new custom-adaptor.ts file in the (src/app) folder.
2. Add the following code inside this file:

import { BatchChanges } from '@syncfusion/ej2-angular-grids';
import {
  DataManager,
  UrlAdaptor,
  Query,
  ReturnOption,
  DataResult,
} from '@syncfusion/ej2-data';

export class CustomAdaptor extends UrlAdaptor {
  public override processResponse(data: DataResult): ReturnOption {
    const original = data as any;
    if (original && original.result) {
      let i = 0;
      original.result.forEach((item: any) => (item.SNo = ++i));
    }
    return original;
  }

  public override beforeSend(
    dm: DataManager,
    request: Request,
    settings?: any,
  ): void {
    super.beforeSend(dm, request, settings);
  }

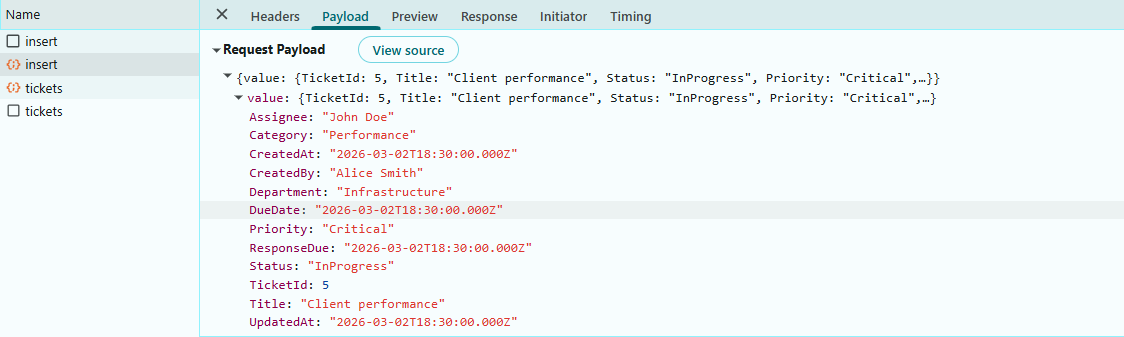

  public override insert(dm: DataManager, data: DataResult) {
    return {
      url: `${dm.dataSource['insertUrl']}`,
      type: 'POST',
      contentType: 'application/json; charset=utf-8',
      data: JSON.stringify({ value: data }),
    };
  }

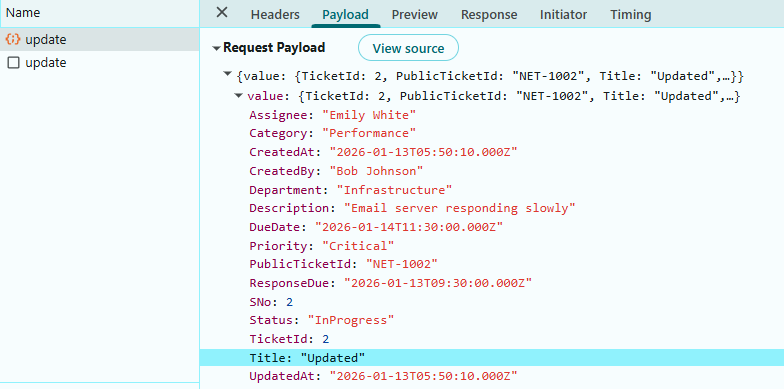

  public override update(dm: DataManager, _keyField: string, value: any) {
    return {
      url: `${dm.dataSource['updateUrl']}`,
      type: 'POST',
      contentType: 'application/json; charset=utf-8',
      data: JSON.stringify({ value }),
    };
  }

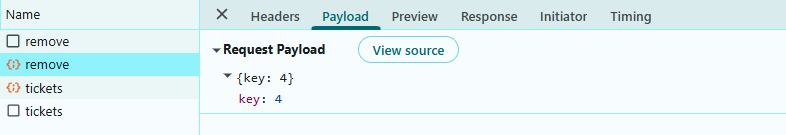

  public override remove(dm: DataManager, keyField: string, value: any) {
    const keyValue =
      value && typeof value === 'object' ? value[keyField] : value;
    return {
      url: `${dm.dataSource['removeUrl']}`,
      type: 'POST',
      contentType: 'application/json; charset=utf-8',
      data: JSON.stringify({ key: keyValue }),
    };
  }

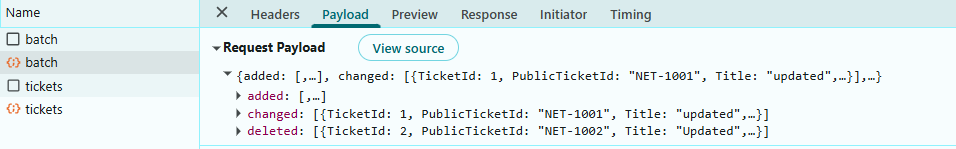

  public override batchRequest(dm: DataManager, changes: BatchChanges) {
    return {
      url: `${dm.dataSource['batchUrl']}`,
      type: 'POST',
      contentType: 'application/json; charset=utf-8',
      data: JSON.stringify({
        added: changes.addedRecords,
        changed: changes.changedRecords,
        deleted: changes.deletedRecords,
      }),
    };
  }
}

The CustomAdaptor class has been successfully implemented with all data operations.

Step 5: Add toolbar with CRUD and search options

The toolbar provides buttons for adding, editing, deleting records, and searching the data.

Instructions:

1. Open the (src/app/app.component.ts) file and create a property with CRUD and search options.
2. And Inject the ToolbarService modules into the component providers property.
3. Then in Grid component (src/app/app.component.html) include the toolbar property.

src/app/app.component.ts:

import { Component, OnInit } from '@angular/core';
import { CommonModule } from '@angular/common';
import { GridComponent, GridModule, ToolbarItems, ToolbarService } from '@syncfusion/ej2-angular-grids';
import { DataManager } from '@syncfusion/ej2-data';
import { CustomAdaptor } from './custom-adaptor';

const BASE_URL = 'http://localhost:5239/api/tickets';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  imports: [CommonModule, GridModule],
  providers: [ToolbarService],
})
export class AppComponent implements OnInit {
  public dataManager: DataManager = new DataManager({
    url: `${BASE_URL}`,
    adaptor: new CustomAdaptor()
  });

  public toolbar = ["Add", "Edit", "Delete", "Update", "Cancel", "Search"];
}

<ejs-grid #grid [dataSource]="dataManager" [toolbar]="toolbar">
  <e-columns>
    <e-column field="TicketId" headerText="ID" width="80" [isPrimaryKey]="true" textAlign="Right"></e-column>
    <!-- Additional columns -->
  </e-columns>
</ejs-grid>

Toolbar items explanation:

Item	Function
Add	Opens a form row to add a new ticket.
Edit	Enables editing of the selected ticket.
Delete	Deletes the selected ticket.
Update	Saves changes made to the selected row.
Cancel	Cancels the current edit or add action.
Search	Displays a search box to find records.

Step 6: Implement paging feature

Paging divides large datasets into smaller pages to improve performance and usability.

Instructions:

1. Set the allowPaging property to true and inject the PageService module into the providers property to enable paging in the Grid.

   Update (app.component.ts):

    import { Component } from '@angular/core';
    import { GridComponent, GridModule, ToolbarService, PageService } from '@syncfusion/ej2-angular-grids';
    import { DataManager } from '@syncfusion/ej2-data';
    import { CustomAdaptor } from './custom-adaptor';

    const BASE_URL = 'http://localhost:5239/api/tickets';

    @Component({
      selector: 'app-root',
      standalone: true,
      imports: [GridModule],
      templateUrl: "app.component.html",
      providers: [ToolbarService, PageService],
    })
    export class AppComponent {
      public dataManager: DataManager = new DataManager({
        url: `${BASE_URL}`,
        adaptor: new CustomAdaptor()
      });

      public toolbar = ["Add", "Edit", "Delete", "Update", "Cancel", "Search"];

      public pageSettings = { pageSize: 12 };
    }

   Update (app.component.html):

    <ejs-grid
      [dataSource]="dataManager"
      [allowPaging]="true"
      [pageSettings]="pageSettings"
      [toolbar]="toolbar">
      <e-columns>
        <e-column field="TicketId" headerText="ID" width="90" textAlign="Right" isPrimaryKey="true" isIdentity="true"></e-column>
        <!-- Additional columns -->
      </e-columns>
    </ejs-grid>

2. On the API controller create a file TicketsController.cs and add the “List” method provided below and handle paging using _dataOps.PerformSkip and _dataOps.PerformTake.

    using Microsoft.AspNetCore.Mvc;
    using Syncfusion.EJ2.Base;
    using Grid_MSSQL.Server.Data;

    namespace Grid_MSSQL.Server.Controllers
    {
        [ApiController]
        [Route("api/[controller]")]
        public class TicketsController : ControllerBase
        {
            private readonly TicketRepository _repo;
            private readonly DataOperations _dataOps = new DataOperations();

            // POST: api/tickets
            [HttpPost]
            public async Task<IActionResult> List([FromBody] DataManagerRequest dm)
            {
                IEnumerable<Tickets> data = await _repo.GetTicketsAsync();

                // Count BEFORE paging
                int count = data.Count();

                // Paging
                if (dm.Skip != 0) data = _dataOps.PerformSkip(data, dm.Skip);
                if (dm.Take != 0) data = _dataOps.PerformTake(data, dm.Take);

                return Ok(dm.RequiresCounts ? new { result = data, count } : data);
            }
        }
    }

Paging details:

• The Grid sends skip and take values to the server through the CustomAdaptor.
• The controller receives a DataManagerRequest and applies PerformSkip and PerformTake.
• The count is calculated before paging, and { result, count } is returned when RequiresCounts = true.
• The Grid renders the requested page and navigation controls based on the returned shape.

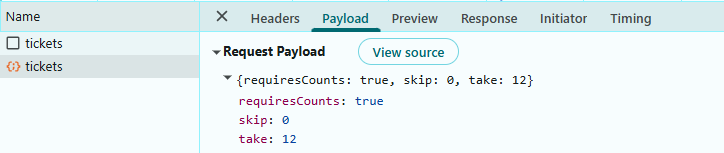

When paging is performed in the Grid, a request is sent to the server with the following payload.

Step 7: Implement searching feature

Searching allows finding records by entering keywords in the search box.

Instructions:

1. Ensure the toolbar includes the Search item.

2. Inject the ToolbarService module into the providers property of the “AppComponent”.

   Update (app.component.ts):

    import { Component } from '@angular/core';
    import { GridComponent, GridModule, ToolbarService, PageService } from '@syncfusion/ej2-angular-grids';
    import { DataManager } from '@syncfusion/ej2-data';
    import { CustomAdaptor } from './custom-adaptor';

    const BASE_URL = 'http://localhost:5239/api/tickets';

    @Component({
      selector: 'app-root',
      standalone: true,
      imports: [GridModule],
      templateUrl: "app.component.html",
      providers: [ToolbarService, PageService],
    })
    export class AppComponent {
      public dataManager: DataManager = new DataManager({
        url: `${BASE_URL}`,
        adaptor: new CustomAdaptor()
      });

      public toolbar = ["Add", "Edit", "Delete", "Update", "Cancel", "Search"];

      public pageSettings = { pageSize: 12 };
    }

   Update (app.component.html):

    <ejs-grid
      [dataSource]="dataManager"
      [allowPaging]="true"
      [pageSettings]="pageSettings"
      [toolbar]="toolbar">
      <e-columns>
        <e-column field="TicketId" headerText="ID" width="90" textAlign="Right" isPrimaryKey="true" isIdentity="true"></e-column>
        <!-- Additional columns -->
      </e-columns>
    </ejs-grid>

3. Apply PerformSearching in the server action using the DataManagerRequest.Search property.

    using Microsoft.AspNetCore.Mvc;
    using Syncfusion.EJ2.Base;
    using Grid_MSSQL.Server.Data;

    namespace Grid_MSSQL.Server.Controllers
    {
        [ApiController]
        [Route("api/[controller]")]
        public class TicketsController : ControllerBase
        {
            private readonly TicketRepository _repo;
            private readonly DataOperations _dataOps = new DataOperations();

            // POST: api/tickets
            [HttpPost]
            public async Task<IActionResult> List([FromBody] DataManagerRequest dm)
            {
                IEnumerable<Tickets> data = await _repo.GetTicketsAsync();

                // Searching
                if (dm.Search != null && dm.Search.Count > 0)
                    data = _dataOps.PerformSearching(data, dm.Search);

                // Other operations (filter, sort, paging)...
                int count = data.Count();
                if (dm.Skip != 0) data = _dataOps.PerformSkip(data, dm.Skip);
                if (dm.Take != 0) data = _dataOps.PerformTake(data, dm.Take);

                return Ok(dm.RequiresCounts ? new { result = data, count } : data);
            }
        }
    }

Searching details:

• Entering a term and pressing Enter key sends search descriptors in the search property.
• _dataOps.PerformSearching() applies the search term across all searchable fields.
• Filtered data is counted and then paged; the shaped response is returned to the client.

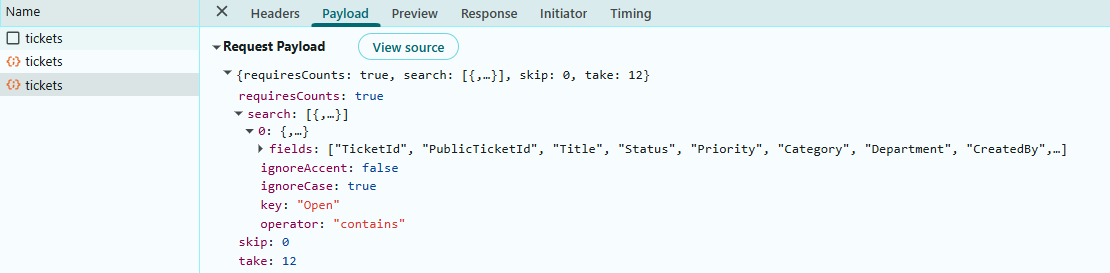

When searching is performed in the Grid, a request is sent to the server with the following payload.

Step 8: Implement filtering feature

Filtering allows restricting data based on column values using the Excel filter UI.

Instructions:

1. Enable filtering by setting allowFiltering and injecting the FilterService module.

2. Configure filterSettings for customizing filter type.

   Update (app.component.ts):

    import { Component } from '@angular/core';
    import { GridComponent, GridModule, ToolbarService, PageService, FilterService } from '@syncfusion/ej2-angular-grids';
    import { DataManager } from '@syncfusion/ej2-data';
    import { CustomAdaptor } from './custom-adaptor';

    const BASE_URL = 'http://localhost:5239/api/tickets';

    @Component({
      selector: 'app-root',
      standalone: true,
      imports: [GridModule],
      templateUrl: "app.component.html",
      providers: [ToolbarService, PageService, FilterService],
    })
    export class AppComponent {
      public dataManager: DataManager = new DataManager({
        url: `${BASE_URL}`,
        adaptor: new CustomAdaptor()
      });

      public pageSettings = { pageSize: 12 };
      public toolbar = ["Add", "Edit", "Delete", "Update", "Cancel", "Search"];
      public filterSettings = { type: 'Excel' };
    }

   Update (app.component.html):

    <ejs-grid
      [dataSource]="dataManager"
      [allowPaging]="true"
      [pageSettings]="pageSettings"
      [toolbar]="toolbar"
      [allowFiltering]="true"
      [filterSettings]="filterSettings">
      <e-columns>
        <e-column field="TicketId" headerText="ID" width="90" textAlign="Right" isPrimaryKey="true" isIdentity="true" [allowFiltering]="false"></e-column>
        <!-- Additional columns -->
      </e-columns>
    </ejs-grid>

3. Apply PerformFiltering using the Where property in the controller.

    using Microsoft.AspNetCore.Mvc;
    using Syncfusion.EJ2.Base;
    using Grid_MSSQL.Server.Data;

    namespace Grid_MSSQL.Server.Controllers
    {
        [ApiController]
        [Route("api/[controller]")]
        public class TicketsController : ControllerBase
        {
            private readonly TicketRepository _repo;
            private readonly DataOperations _dataOps = new DataOperations();

            // POST: api/tickets
            [HttpPost]
            public async Task<IActionResult> List([FromBody] DataManagerRequest dm)
            {
                IEnumerable<Tickets> data = await _repo.GetTicketsAsync();

                // Filtering
                if (dm.Where != null && dm.Where.Count > 0)
                    data = _dataOps.PerformFiltering(data, dm.Where, dm.Where[0].Operator);

                // Other operations (search, sort, paging)...
                int count = data.Count();
                if (dm.Skip != 0) data = _dataOps.PerformSkip(data, dm.Skip);
                if (dm.Take != 0) data = _dataOps.PerformTake(data, dm.Take);

                return Ok(dm.RequiresCounts ? new { result = data, count } : data);
            }
        }
    }

Filtering details:

• The Excel filter UI builds filter predicates on the client and sends them in the where property.
• _dataOps.PerformFiltering() applies predicates against the in-memory data set.
• Filtering executes before count and paging to ensure accurate total counts.

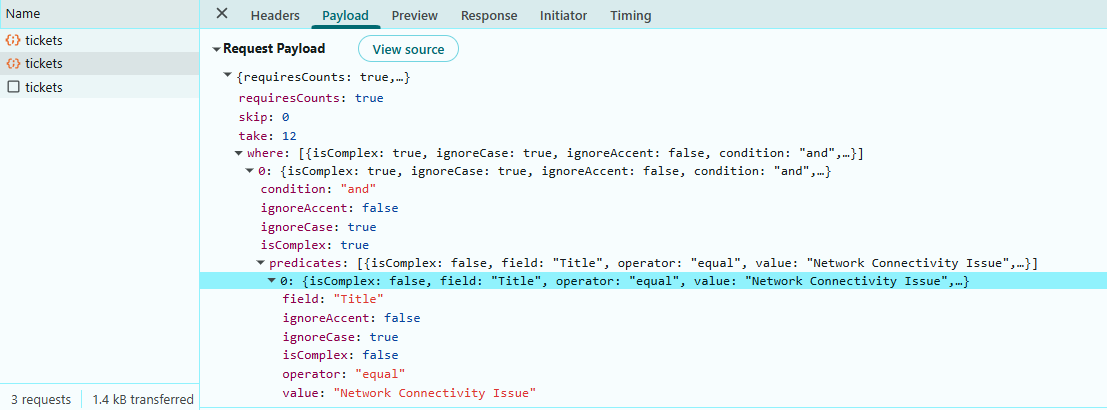

When filtering is performed in the Grid, a request is sent to the server with the following payload.

Step 9: Implement sorting feature

Sorting enables arranging records in ascending or descending order based on column values.

Instructions:

1. Enable sorting with allowSorting set to true and inject the SortService module.

   Update (app.component.ts):

    import { Component } from '@angular/core';
    import { GridComponent, GridModule, ToolbarService, PageService, FilterService, SortService } from '@syncfusion/ej2-angular-grids';
    import { DataManager } from '@syncfusion/ej2-data';
    import { CustomAdaptor } from './custom-adaptor';

    const BASE_URL = 'http://localhost:5239/api/tickets';

    @Component({
      selector: 'app-root',
      standalone: true,
      imports: [GridModule],
      templateUrl: "app.component.html",
      providers: [ToolbarService, PageService, FilterService, SortService],
    })
    export class AppComponent {
      public dataManager: DataManager = new DataManager({
        url: `${BASE_URL}`,
        adaptor: new CustomAdaptor()
      });

      public pageSettings = { pageSize: 12 };
      public toolbar = ["Add", "Edit", "Delete", "Update", "Cancel", "Search"];
      public filterSettings = { type: 'Excel' };
    }

   Update (app.component.html):

    <ejs-grid
      [dataSource]="dataManager"
      [allowPaging]="true"
      [pageSettings]="pageSettings"
      [toolbar]="toolbar"
      [allowFiltering]="true"
      [filterSettings]="filterSettings"
      [allowSorting]="true">
      <e-columns>
        <e-column field="TicketId" headerText="ID" width="90" textAlign="Right" isPrimaryKey="true" isIdentity="true" [allowSorting]="false"></e-column>
        <!-- Additional columns -->
      </e-columns>
    </ejs-grid>

2. Apply PerformSorting using the Sorted property on the server.

    using Microsoft.AspNetCore.Mvc;
    using Syncfusion.EJ2.Base;
    using Grid_MSSQL.Server.Data;

    namespace Grid_MSSQL.Server.Controllers
    {
        [ApiController]
        [Route("api/[controller]")]
        public class TicketsController : ControllerBase
        {
            private readonly TicketRepository _repo;
            private readonly DataOperations _dataOps = new DataOperations();

            // POST: api/tickets
            [HttpPost]
            public async Task<IActionResult> List([FromBody] DataManagerRequest dm)
            {
                IEnumerable<Tickets> data = await _repo.GetTicketsAsync();

                // Sorting
                if (dm.Sorted != null && dm.Sorted.Count > 0)
                    data = _dataOps.PerformSorting(data, dm.Sorted);

                // Other operations (search, filter, paging)...
                int count = data.Count();
                if (dm.Skip != 0) data = _dataOps.PerformSkip(data, dm.Skip);
                if (dm.Take != 0) data = _dataOps.PerformTake(data, dm.Take);

                return Ok(dm.RequiresCounts ? new { result = data, count } : data);
            }
        }
    }

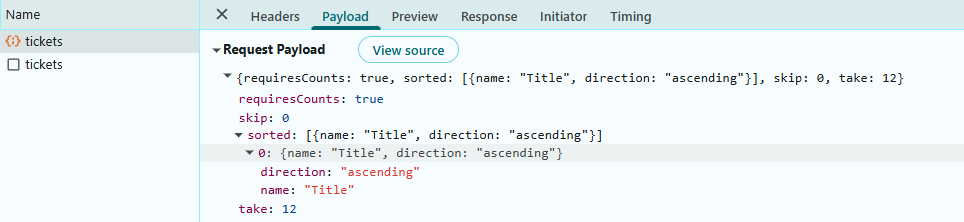

Sorting details:

• Clicking a column header creates sort descriptors that arrive in the sorted property.
• _dataOps.PerformSorting() orders the sequence based on field name and sort direction.
• Sorting executes before count and paging to return correct page slices.

When sorting is performed in the Grid, a request is sent to the server with the following payload.

Step 10: Perform CRUD operations

CRUD operations enable creating, reading, updating, and deleting tickets directly through the Grid component. The CustomAdaptor routes these actions to ASP.NET Core API endpoints, which then call ADO.NET repository methods in TicketRepository.cs.

Update (app.component.ts):

import { Component } from '@angular/core';
import { GridComponent, GridModule, ToolbarService, PageService, FilterService, SortService, EditService } from '@syncfusion/ej2-angular-grids';
import { DataManager } from '@syncfusion/ej2-data';
import { CustomAdaptor } from './custom-adaptor';

const BASE_URL = 'http://localhost:5239/api/tickets';

@Component({
  selector: 'app-root',
  standalone: true,
  imports: [GridModule],
  templateUrl: "app.component.html",
  providers: [ToolbarService, PageService, FilterService, SortService, EditService],
})
export class AppComponent {
  public dataManager: DataManager = new DataManager({
    url: `${BASE_URL}`,
    insertUrl: `${BASE_URL}/insert`,
    updateUrl: `${BASE_URL}/update`,
    removeUrl: `${BASE_URL}/remove`,
    batchUrl: `${BASE_URL}/batch`,
    adaptor: new CustomAdaptor()
  });

  public pageSettings = { pageSize: 12 };
  public toolbar = ["Add", "Edit", "Delete", "Update", "Cancel", "Search"];
  public editSettings = { allowEditing: true, allowAdding: true, allowDeleting: true };
  public filterSettings = { type: "Excel" };
}

Update (app.component.html):

<ejs-grid
  [dataSource]="dataManager"
  [allowPaging]="true"
  [pageSettings]="pageSettings"
  [toolbar]="toolbar"
  [allowFiltering]="true"
  [filterSettings]="filterSettings"
  [allowSorting]="true"
  [editSettings]="editSettings">
  <e-columns>
    <e-column field="TicketId" headerText="ID" width="90" textAlign="Right" isPrimaryKey="true" isIdentity="true" [allowSorting]="false"></e-column>
    <!-- Additional columns -->
  </e-columns>
</ejs-grid>

Insert:

Record insertion allows new tickets to be added directly through the Grid component. The server generates defaults (public ticket ID and timestamps) and persists the record using ADO.NET.

// TicketsController.cs
[HttpPost("insert")]
public async Task<IActionResult> Insert([FromBody] CRUDModel<Tickets> args)
{
    if (args?.Value == null)
        return BadRequest("Invalid payload.");
    var created = await _repo.InsertAsync(args.Value);
    return Ok(created);
}

Insert action details:

1. The Grid collects row values and posts a CRUDModel<Tickets> payload to /insert.
2. The controller validates the payload and calls “InsertAsync”.
3. The repository generates “PublicTicketId” when missing and sets timestamps.
4. ADO.NET executes the INSERT statement and returns the new “TicketId”.
5. The API returns the created record; the Grid refreshes and displays the new row.

When a new record is added in the Grid, a request is sent to the server with the following payload.

Update:

Record modification allows ticket details to be updated directly within the Grid. The server validates the “ID” and applies changes using ADO.NET.

// TicketsController.cs
[HttpPost("update")]
public async Task<IActionResult> Update([FromBody] CRUDModel<Tickets> args)
{
    if (args?.Value == null)
        return BadRequest("Invalid payload.");
    if (args.Value.TicketId <= 0)
        return BadRequest("TicketId is required for update.");
    var updated = await _repo.UpdateAsync(args.Value);
    return Ok(updated);
}

Update action details:

1. The Grid posts the updated row via CRUDModel<Tickets> to /update.
2. The controller validates the payload and “TicketId”.
3. The repository updates fields and sets “UpdatedAt”.
4. ADO.NET executes the UPDATE statement.
5. The API returns the updated entity; the Grid reflects the modification.

When a record is updated in the Grid, a request is sent to the server with the following payload.

Delete:

Record deletion allows tickets to be removed directly from the Grid. The server accepts a key value and deletes the record by “ID”.

// TicketsController.cs
[HttpPost("remove")]
public async Task<IActionResult> Remove([FromBody] CRUDModel<Tickets> args)
{
    if (args == null || args.Key == null)
        return BadRequest("Key is required.");
    if (!int.TryParse(args.Key.ToString(), out var id))
        return BadRequest("Invalid key format.");

    await _repo.DeleteAsync(id);
    return Ok(new { TicketId = id });
}

Delete action details:

1. A record is selected and the Delete button is clicked.
2. The Grid posts the key to /remove using CRUDModel.
3. The controller parses the key and calls DeleteAsync.
4. ADO.NET executes the DELETE statement.
5. The API returns acknowledgment; the Grid removes the row.

When a record deleted in the Grid, a request is sent to the server with the following payload.

Batch update:

Batch operations combine multiple insert, update, and delete actions into a single request, minimizing network overhead and ensuring transactional consistency by applying all changes atomically to the SQL Server database.

// TicketsController.cs
[HttpPost("batch")]
public async Task<IActionResult> Batch([FromBody] CRUDModel<Tickets> args)
{
    if (args == null)
        return BadRequest("Invalid payload.");

    if (args.Changed != null)
    {
        foreach (var t in args.Changed)
            await _repo.UpdateAsync(t);
    }

    if (args.Added != null)
    {
        for (int i = 0; i < args.Added.Count; i++)
            args.Added[i] = await _repo.InsertAsync(args.Added[i]);
    }

    if (args.Deleted != null)
    {
        foreach (var t in args.Deleted)
            await _repo.DeleteAsync(t.TicketId);
    }

    return Ok(new { status = "ok" });
}

Batch update details:

• The Grid collects pending changes and posts the combined payload.
• The server iterates and applies ADO.NET operations in sequence.
• The Grid refreshes to reflect bulk modifications.

This method is triggered when the Grid is operating in Batch edit mode.

When a batch update is performed in the Grid, a request is sent to the server with the following payload.

Step 11: Complete code

The following snippets assemble the final Angular Grid configuration used in the sample project.

App template:

<!-- app.component.html -->

<ejs-grid #grid width="100%" height="400" [dataSource]="dataManager"
  [allowSorting]="true" [allowFiltering]="true" [allowPaging]="true"
  [toolbar]="toolbar" [editSettings]="editSettings" [filterSettings]="filterSettings">
  <e-columns>
    <e-column field="TicketId" headerText="ID" isPrimaryKey="true"
      width="80" textAlign="Right" [visible]="true" [validationRules]="validationRules.ticketId"></e-column>
    <e-column field="PublicTicketId" headerText="Ticket ID" width="130"
      textAlign="Right" [allowEditing]="false">
      <ng-template #template let-data>
        <a class="status-text status-ticket-id"></a>
      </ng-template>
    </e-column>
    <e-column field="Title" headerText="Subject" width="280"
      clipMode="EllipsisWithTooltip" [validationRules]="validationRules.title"></e-column>
    <e-column field="Status" headerText="Status" width="180"
      editType="dropdownedit" [validationRules]="validationRules.status">
      <ng-template #template let-data>
        <span class="status-text "
          [title]="getStatusDescription(data)"></span>
      </ng-template>
    </e-column>
    <e-column field="Priority" headerText="Priority" width="160"
      editType="dropdownedit" [validationRules]="validationRules.priority">
      <ng-template #template let-data>
        <span class="priority-pill "
          [title]="getPriorityDescription(data)">
          <span class="priority-icon" aria-hidden="true"></span>
        </span>
      </ng-template>
    </e-column>
    <e-column field="Category" headerText="Category" width="180"
      editType="dropdownedit" [validationRules]="validationRules.category">
      <ng-template #template let-data>
        <span class="chip "></span>
      </ng-template>
    </e-column>
    <e-column field="Department" headerText="Department" width="170"
      editType="dropdownedit" [validationRules]="validationRules.department"></e-column>
    <e-column field="CreatedBy" headerText="Requested By" width="180"
      editType="dropdownedit" [validationRules]="validationRules.createdBy"></e-column>
    <e-column field="Assignee" headerText="Agent" width="160"
      editType="dropdownedit" [validationRules]="validationRules.assignee"></e-column>
    <e-column field="DueDate" headerText="Resolution Due" width="200"
      type="dateTime" format="MMM d, yyyy, h:mm a" editType="datetimepickeredit"
      [validationRules]="validationRules.dueDate"></e-column>
    <e-column field="ResponseDue" headerText="Response Due" width="200" format="MMM d, yyyy, h:mm a"
      editType="datetimepickeredit" [validationRules]="validationRules.responseDue">
    </e-column>
    <e-column field="UpdatedAt" headerText="Last Modified" width="200"
      type="dateTime" format="MMM d, yyyy, h:mm a" editType="datetimepickeredit"></e-column>
    <e-column field="CreatedAt" headerText="Created On" width="200"
      type="dateTime" format="MMM d, yyyy, h:mm a" editType="datetimepickeredit"></e-column>
  </e-columns>
</ejs-grid>

• Set isPrimaryKey to true for a column that contains unique values.
• Set isIdentity to true for auto-generated columns to disable editing during add or update operations.
• The editType property can be used to specify the desired editor for each column.
• The behavior of default editors can be customized using the edit.params property of the Grid column.
• The type property specifies the data type of a Grid column.
• The template property that allows rendering custom elements in a column instead of the default field value.

App component:

import { Component } from "@angular/core";
import { CommonModule, DatePipe } from "@angular/common";
import {
  GridModule,
  FilterService,
  SortService,
  EditService,
  ToolbarService,
  PageService,
  ToolbarItems,
  EditSettingsModel,
  FilterSettingsModel,
} from "@syncfusion/ej2-angular-grids";
import { TicketRow } from "./app.types";
import { DataManager } from "@syncfusion/ej2-data";
import { CustomAdaptor } from "./custom-adaptor";

const BASE_URL = "http://localhost:5239/api/tickets";

@Component({
  selector: "app-root",
  standalone: true,
  imports: [CommonModule, DatePipe, GridModule],
  templateUrl: "app.component.html",
  styleUrls: ["app.component.css"],
  providers: [PageService, FilterService, SortService, EditService, ToolbarService],
})
export class AppComponent {
  public dataManager: DataManager = new DataManager({
    url: `${BASE_URL}`,
    insertUrl: `${BASE_URL}/insert`,
    updateUrl: `${BASE_URL}/update`,
    removeUrl: `${BASE_URL}/remove`,
    batchUrl: `${BASE_URL}/batch`,
    adaptor: new CustomAdaptor(),
  });

  public toolbar: ToolbarItems[] = ["Add", "Edit", "Delete", "Update", "Cancel", "Search"];
  public editSettings: EditSettingsModel = { allowEditing: true, allowAdding: true, allowDeleting: true };
  public filterSettings: FilterSettingsModel = { type: "Excel" };

  public validationRules = {
    ticketId: { required: true },
    title: { required: true },
    status: { required: true },
    priority: { required: true },
    category: { required: true },
    department: { required: true },
    createdBy: { required: true },
    assignee: { required: true },
    dueDate: { required: true },
    responseDue: { required: true }
  };

  getStatusClass(row: TicketRow): string {
    const map: Record<string, string> = { Open: "status-open", Closed: "status-closed", Pending: "status-pending" };
    return map[row.Status] ?? "";
  }

  getStatusDescription(row: TicketRow): string {
    return `Status: ${row.Status}`;
  }

  getPriorityClass(row: TicketRow): string {
    const map: Record<string, string> = { High: "priority-high", Medium: "priority-medium", Low: "priority-low" };
    return map[row.Priority] ?? "";
  }

  getPriorityDescription(row: TicketRow): string {
    return `Priority: ${row.Priority}`;
  }

  getCategoryClass(row: TicketRow): string {
    const map: Record<string, string> = { Bug: "chip-bug", Feature: "chip-feature", Task: "chip-task" };
    return map[row.Category] ?? "";
  }
}

Here is the complete Controller TicketsController.cs file:

using Grid_MSSQL.Server.Data;
using Microsoft.AspNetCore.Mvc;
using Syncfusion.EJ2.Base;

namespace Grid_MSSQL.Server.Controllers
{
    [ApiController]
    [Route("api/[controller]")]
    public class TicketsController : ControllerBase
    {
        private readonly TicketRepository _repo;
        private readonly DataOperations _dataOps = new DataOperations();

        public TicketsController(TicketRepository repo)
        {
            _repo = repo;
        }

        // READ (DataManager + UrlAdaptor expects POST)
        // POST api/tickets
        [HttpPost]
        public async Task<IActionResult> List([FromBody] DataManagerRequest dm)
        {
            IEnumerable<Tickets> data = await _repo.GetTicketsAsync();

            // Searching
            if (dm.Search != null && dm.Search.Count > 0)
            {
                data = _dataOps.PerformSearching(data, dm.Search);
            }

            // Filtering
            if (dm.Where != null && dm.Where.Count > 0)
            {
                data = _dataOps.PerformFiltering(data, dm.Where, dm.Where[0].Operator);
            }

            // Sorting
            if (dm.Sorted != null && dm.Sorted.Count > 0)
            {
                data = _dataOps.PerformSorting(data, dm.Sorted);
            }

            // Count BEFORE paging
            int count = data.Count();

            // Paging
            if (dm.Skip != 0)
                data = _dataOps.PerformSkip(data, dm.Skip);
            if (dm.Take != 0)
                data = _dataOps.PerformTake(data, dm.Take);

            // Final shape required by UrlAdaptor
            return Ok(dm.RequiresCounts ? new { result = data, count } : data);
        }

        // INSERT
        // POST api/tickets/insert
        [HttpPost("insert")]
        public async Task<IActionResult> Insert([FromBody] CRUDModel<Tickets> args)
        {
            if (args?.Value == null)
                return BadRequest("Invalid payload.");
            var created = await _repo.InsertAsync(args.Value);
            return Ok(created);
        }

        // UPDATE
        // POST api/tickets/update
        [HttpPost("update")]
        public async Task<IActionResult> Update([FromBody] CRUDModel<Tickets> args)
        {
            if (args?.Value == null)
                return BadRequest("Invalid payload.");
            if (args.Value.TicketId <= 0)
                return BadRequest("TicketId is required for update.");
            var updated = await _repo.UpdateAsync(args.Value);
            return Ok(updated);
        }

        // REMOVE
        // POST api/tickets/remove
        // UrlAdaptor sends { key: <id>, keyColumn: "TicketId", action: "remove" }
        [HttpPost("remove")]
        public async Task<IActionResult> Remove([FromBody] CRUDModel<Tickets> args)
        {
            if (args == null || args.Key == null)
                return BadRequest("Key is required.");
            if (!int.TryParse(args.Key.ToString(), out var id))
                return BadRequest("Invalid key format.");

            await _repo.DeleteAsync(id);
            return Ok(new { TicketId = id });
        }

        // BATCH
        // POST api/tickets/batch
        [HttpPost("batch")]
        public async Task<IActionResult> Batch([FromBody] CRUDModel<Tickets> args)
        {
            if (args == null)
                return BadRequest("Invalid payload.");

            if (args.Changed != null)
            {
                foreach (var t in args.Changed)
                    await _repo.UpdateAsync(t);
            }

            if (args.Added != null)
            {
                for (int i = 0; i < args.Added.Count; i++)
                    args.Added[i] = await _repo.InsertAsync(args.Added[i]);
            }

            if (args.Deleted != null)
            {
                foreach (var t in args.Deleted)
                    await _repo.DeleteAsync(t.TicketId);
            }

            return Ok(new { status = "ok" });
        }
    }
}

Running the application

Run the Server:

• Configure the TicketDb connection string in appsettings.json, then open a terminal in the server project folder and run the following command:

dotnet build
dotnet run

• The API exposes endpoints at a base similar to https://localhost:7000/api/tickets (adjust ports as necessary).

Run the Angular client:

• From the client folder, install dependencies and start the Angular dev server:

ng serve --open

• The Angular development server will start and typically run on http://localhost:4200.

Available features:

• View Data: All tickets from the SQL Server database are displayed in the Grid.
• Search: Use the search box to find tickets by any field.
• Filter: Click on column headers to apply filters.
• Sort: Click on column headers to sort data in ascending or descending order.
• Pagination: Navigate through records using page numbers.
• Add: Click the “Add” button to create a new ticket.
• Edit: Click the “Edit” button to modify existing tickets.
• Delete: Click the “Delete” button to remove tickets.

Complete sample repository

A complete, working sample implementation is available in the GitHub repository.

The application now provides a complete end‑to‑end ticket management workflow using the Syncfusion^® Angular Grid with server‑side processing and direct integration with Microsoft SQL Server.

See also

• Types of Editing
• Validation Rules
• Filter Menu
