Table in React Rich text editor component

15 Mar 202424 minutes to read

Rich Text Editor allows to insert table of content in edit panel and provide options to add, edit, and remove the table as well as perform other table related action. For inserting the table to the Rich Text Editor, the following list of options have been provided in the tableSettings

Options	Description	Default Value
minWidth	Sets the default minWidth of the table.	0
maxWidth	Sets the default maxWidth of the table.	null
resize	Enable resize feature in table.	true
styles	This is an array of key value pair, on each pair, key should be name of styling and value is class name. this list will be shown on quick toolbar options to change the styles of table on designing like dashed, double bordered.	`TableStyleItems`
width	Sets the default width of the table.	100%

Rich Text Editor features are segregated into individual feature-wise modules. To use table tool,
inject table module using the <Inject services={[Table]} />.

Insert table

Using the table toolbar option, select a number of rows and columns to be inserted over the table grid and insert table into Rich Text Editor content using the mouse.

Tables can also be inserted through the Insert Table option in the pop-up where the number of rows and columns can be provided manually, and this is the default way in devices.

In the following sample, the table has been injected from table module.

[Class-component]

app.jsx
app.tsx
import { HtmlEditor, Image, Inject, Link, QuickToolbar, RichTextEditorComponent, Table, Toolbar } from '@syncfusion/ej2-react-richtexteditor';
import * as React from 'react';
class App extends React.Component {
    toolbarSettings = {
        items: ['CreateTable']
    };
    render() {
        return (<RichTextEditorComponent height={450} toolbarSettings={this.toolbarSettings}>
        <p>The Rich Text Editor component is WYSIWYG ("what you see is what you get") editor that provides the best user experience to create and update the content.
          Users can format their content using standard toolbar commands.</p>
        <p><b>Key features:</b></p>
        <ul>
          <li>
            <p>Provides &lt;IFRAME&gt; and &lt;DIV&gt; modes</p>
          </li>
          <li>
            <p>Capable of handling markdown editing.</p>
          </li>
          <li>
            <p>Contains a modular library to load the necessary functionality on demand.</p>
          </li>
          <li>
            <p>Provides a fully customizable toolbar.</p>
          </li>
          <li>
            <p>Provides HTML view to edit the source directly for developers.</p>
          </li>
          <li>
            <p>Supports third-party library integration.</p>
          </li>
          <li>
            <p>Allows preview of modified content before saving it.</p>
          </li>
          <li>
            <p>Handles images, hyperlinks, video, hyperlinks, uploads, etc.</p>
          </li>
          <li>
            <p>Contains undo/redo manager.</p>
          </li>
          <li>
            <p>Creates bulleted and numbered lists.</p>
          </li>
        </ul>
        <Inject services={[Toolbar, Image, Link, HtmlEditor, QuickToolbar, Table]}/>
      </RichTextEditorComponent>);
    }
}
export default App;
import { HtmlEditor, Image, Inject, Link, QuickToolbar, RichTextEditorComponent, Table, Toolbar } from '@syncfusion/ej2-react-richtexteditor';
import * as React from 'react';

class App extends React.Component<{},{}> {
  private toolbarSettings: object = {
    items: ['CreateTable']
  }

  public render() {
    return (
      <RichTextEditorComponent height={450} toolbarSettings={this.toolbarSettings}>
        <p>The Rich Text Editor component is WYSIWYG ("what you see is what you get") editor that provides the best user experience to create and update the content.
          Users can format their content using standard toolbar commands.</p>
        <p><b>Key features:</b></p>
        <ul>
          <li>
            <p>Provides &lt;IFRAME&gt; and &lt;DIV&gt; modes</p>
          </li>
          <li>
            <p>Capable of handling markdown editing.</p>
          </li>
          <li>
            <p>Contains a modular library to load the necessary functionality on demand.</p>
          </li>
          <li>
            <p>Provides a fully customizable toolbar.</p>
          </li>
          <li>
            <p>Provides HTML view to edit the source directly for developers.</p>
          </li>
          <li>
            <p>Supports third-party library integration.</p>
          </li>
          <li>
            <p>Allows preview of modified content before saving it.</p>
          </li>
          <li>
            <p>Handles images, hyperlinks, video, hyperlinks, uploads, etc.</p>
          </li>
          <li>
            <p>Contains undo/redo manager.</p>
          </li>
          <li>
            <p>Creates bulleted and numbered lists.</p>
          </li>
        </ul>
        <Inject services={[Toolbar, Image, Link, HtmlEditor, QuickToolbar, Table]} />
      </RichTextEditorComponent>
    );
  }
}

export default App;

[Functional-component]

app.jsx
app.tsx
import { HtmlEditor, Image, Inject, Link, QuickToolbar, RichTextEditorComponent, Table, Toolbar } from '@syncfusion/ej2-react-richtexteditor';
import * as React from 'react';
function App() {
    let toolbarSettings = {
        items: ['CreateTable']
    };
    return (<RichTextEditorComponent height={450} toolbarSettings={toolbarSettings}>
      <p>The Rich Text Editor component is WYSIWYG ("what you see is what you get") editor that provides the best user experience to create and update the content.
        Users can format their content using standard toolbar commands.</p>
      <p><b>Key features:</b></p>
      <ul>
        <li>
          <p>Provides &lt;IFRAME&gt; and &lt;DIV&gt; modes</p>
        </li>
        <li>
          <p>Capable of handling markdown editing.</p>
        </li>
        <li>
          <p>Contains a modular library to load the necessary functionality on demand.</p>
        </li>
        <li>
          <p>Provides a fully customizable toolbar.</p>
        </li>
        <li>
          <p>Provides HTML view to edit the source directly for developers.</p>
        </li>
        <li>
          <p>Supports third-party library integration.</p>
        </li>
        <li>
          <p>Allows preview of modified content before saving it.</p>
        </li>
        <li>
          <p>Handles images, hyperlinks, video, hyperlinks, uploads, etc.</p>
        </li>
        <li>
          <p>Contains undo/redo manager.</p>
        </li>
        <li>
          <p>Creates bulleted and numbered lists.</p>
        </li>
      </ul>
      <Inject services={[Toolbar, Image, Link, HtmlEditor, QuickToolbar, Table]}/>
    </RichTextEditorComponent>);
}
export default App;
import { HtmlEditor, Image, Inject, Link, QuickToolbar, RichTextEditorComponent, Table, Toolbar } from '@syncfusion/ej2-react-richtexteditor';
import * as React from 'react';

function App(){
  let toolbarSettings: object = {
    items: ['CreateTable']
  }

  return (
    <RichTextEditorComponent height={450} toolbarSettings={toolbarSettings}>
      <p>The Rich Text Editor component is WYSIWYG ("what you see is what you get") editor that provides the best user experience to create and update the content.
        Users can format their content using standard toolbar commands.</p>
      <p><b>Key features:</b></p>
      <ul>
        <li>
          <p>Provides &lt;IFRAME&gt; and &lt;DIV&gt; modes</p>
        </li>
        <li>
          <p>Capable of handling markdown editing.</p>
        </li>
        <li>
          <p>Contains a modular library to load the necessary functionality on demand.</p>
        </li>
        <li>
          <p>Provides a fully customizable toolbar.</p>
        </li>
        <li>
          <p>Provides HTML view to edit the source directly for developers.</p>
        </li>
        <li>
          <p>Supports third-party library integration.</p>
        </li>
        <li>
          <p>Allows preview of modified content before saving it.</p>
        </li>
        <li>
          <p>Handles images, hyperlinks, video, hyperlinks, uploads, etc.</p>
        </li>
        <li>
          <p>Contains undo/redo manager.</p>
        </li>
        <li>
          <p>Creates bulleted and numbered lists.</p>
        </li>
      </ul>
      <Inject services={[Toolbar, Image, Link, HtmlEditor, QuickToolbar, Table]} />
    </RichTextEditorComponent>
  );
}

export default App;

Quick toolbar is opened by clicking the table. It has different sets of commands to be performed on the table which increases the feasibility to edit the table easily.

To use quick toolbar, inject the quick toolbar module using the <Inject services={[QuickToolbar]} />.

Table Header

Table Header command is available with quick toolbar option through which the header row can be added or removed from the inserted table. The following image illustrates the table header.

RTE table header

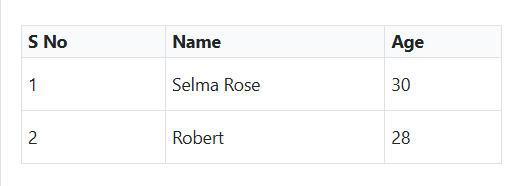

Insert Rows

Rows can be inserted above or below the required table cell through the quick toolbar. Also, focused row can be deleted. The following screenshot shows the available options of the row item.

RTE table row

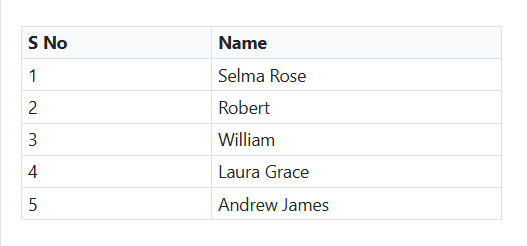

Insert Columns

Columns can be inserted to the left or right side of the required table cell through the quick toolbar. Also, the focused column can be deleted. The following screenshot shows the available options of the column item.

RTE table column

Set Color

The background color can be set for each table cell through the background color command available with quick toolbar.

RTE table background color

Delete Table

Using the delete item in the quick toolbar, users can delete the entire table.

Vertical Align

Text inside the table can be aligned to top, middle, or bottom using the tableCellVerticalAlign tool of the quick toolbar.

RTE table vertical alignment

Horizontal Align

Text inside the table can be aligned left, right, or center using the tableCellHorizontalAlign tool of the quick toolbar.

RTE table horizontal alignment

Table Styles

Table styles provided for class name should be appended to a table element. It helps to design the table in specific CSS styles when inserting in the editor.

By Default, provides Dashed border and Alternate rows.

Dashed border: Applies the dashed border to the table.

Alternate border: Applies the alternative background to the table.

RTE table styles

Table Properties

Sets the default width of the table when it is inserted in the Rich Text Editor using the width of tableSettings.

Using the quick toolbar, users can change the width, cell padding, and cell spacing in the selected table using the properties option.

RTE table settings

Table cell merge and split

The Rich Text Editor allows users to change the appearance of the tables by splitting or merging the table cells.

TableCell item should be configured in the Table quickToolbarSettings Property to show the merge/split icons while selecting the table cells

Table cell merge

The table cell merge feature allows you to merge two or more row and column cells into a single cell with its contents.

The following image explains the table merge action.

RTE table cell merge

Table cell split

The table cell split feature allows you to a selected cell can be split both horizontally and vertically.

The following image explains the table split action.

RTE table cell split
