Getting started

This section explains the steps to create a simple RichTextEditor and demonstrates the basic usage of the RTE component.

Dependencies

The following minimum dependencies are required to use the RichTextEditor.

|-- @syncfusion/ej2-react-richtexteditor
    |-- @syncfusion/ej2-base
    |-- @syncfusion/ej2-data
    |-- @syncfusion/ej2-buttons
    |-- @syncfusion/ej2-inputs
    |-- @syncfusion/ej2-lists
    |-- @syncfusion/ej2-popups
    |-- @syncfusion/ej2-navigations
    |-- @syncfusion/ej2-splitbuttons
    |-- @syncfusion/ej2-richtexteditor
    |-- @syncfusion/ej2-react-base

Setup for local development

Before starting, need to install Create-react-app command line interface into your machine globally by using following command.

npm install -g create-react-app

Create a new project using create-react-app command as follows

create-react-app quickstart --scripts-version=react-scripts-ts

cd quickstart

Adding CSS reference

Combined CSS files are available in the Essential JS 2 package root folder. This can be referenced in your [src/App.css] file using the following code.

@import '../../node_modules/@syncfusion/ej2/material.css';

Initialize RichTextEditor component

To get started, add the RichTextEditor component in src/App.tsx file.

Initialize from <div> element

RichTextEditor can be initialized on div element.

Place the following RichTextEditor code in the App.tsx.

/**
 * RichTextEditor DIV Sample
 */
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { RichTextEditorComponent, Toolbar, Inject, Image, Link, HtmlEditor, QuickToolbar } from '@syncfusion/ej2-react-richtexteditor';

export class DivRTE extends SampleBase<{}, {}> {
  render() {
    return (
        <RichTextEditorComponent>
            <p>The rich text editor component is WYSIWYG ("what you see is what you get") editor that provides the best user experience to create and update the content. Users can format their content using standard toolbar commands.</p>

            <p><b>Key features:</b></p>
            <ul>
                <li>
                    <p>Provides &lt;IFRAME&gt; and &lt;DIV&gt; modes</p>
                </li>
                <li>
                    <p>Capable of handling markdown editing.</p>
                </li>
                <li>
                    <p>Contains a modular library to load the necessary functionality on demand.</p>
                </li>
                <li>
                    <p>Provides a fully customizable toolbar.</p>
                </li>
                <li>
                    <p>Provides HTML view to edit the source directly for developers.</p>
                </li>
                <li>
                    <p>Supports third-party library integration.</p>
                </li>
                <li>
                    <p>Allows preview of modified content before saving it.</p>
                </li>
                <li>
                    <p>Handles images, hyperlinks, video, hyperlinks, uploads, etc.</p>
                </li>
                <li>
                    <p>Contains undo/redo manager.</p>
                </li>
                <li>
                    <p>Creates bulleted and numbered lists.</p>
                </li>
            </ul>
            <Inject services={[Toolbar, Image, Link, HtmlEditor, QuickToolbar]} />
        </RichTextEditorComponent>
    );
  }
}
ReactDOM.render(<DivRTE />, document.getElementById('sample'));

Initialize from <IFRAME> element

The RichTextEditor’s content is placed in an iframe and isolated from the rest of the page. Initialize the RichTextEditor on div element and set the enable field of iframeSettings property to true.

Place the following RichTextEditor code in the app.tsx.

/**
 * RichTextEditor Iframe Samples
 */
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { RichTextEditorComponent, Toolbar, Inject, Image, Link, HtmlEditor, QuickToolbar } from '@syncfusion/ej2-react-richtexteditor';

export class IFrame extends SampleBase<{}, {}> {
  private iframeSetting: object = {
    enable: true
  };

  render() {
    return (
        <RichTextEditorComponent iframeSettings={this.iframeSetting}>
            <p>The rich text editor component is WYSIWYG ("what you see is what you get") editor that provides the best user experience to create and update the content. Users can format their content using standard toolbar commands.</p>

            <p><b>Key features:</b></p>
            <ul>
                <li>
                    <p>Provides &lt;IFRAME&gt; and &lt;DIV&gt; modes</p>
                </li>
                <li>
                    <p>Capable of handling markdown editing.</p>
                </li>
                <li>
                    <p>Contains a modular library to load the necessary functionality on demand.</p>
                </li>
                <li>
                    <p>Provides a fully customizable toolbar.</p>
                </li>
                <li>
                    <p>Provides HTML view to edit the source directly for developers.</p>
                </li>
                <li>
                    <p>Supports third-party library integration.</p>
                </li>
                <li>
                    <p>Allows preview of modified content before saving it.</p>
                </li>
                <li>
                    <p>Handles images, hyperlinks, video, hyperlinks, uploads, etc.</p>
                </li>
                <li>
                    <p>Contains undo/redo manager.</p>
                </li>
                <li>
                    <p>Creates bulleted and numbered lists.</p>
                </li>
            </ul>
            <Inject services={[Toolbar, Image, Link, HtmlEditor, QuickToolbar]} />
        </RichTextEditorComponent>
    );
  }
}
ReactDOM.render(<IFrame />, document.getElementById('sample'));

Initialize from textarea

Initialize the RichTextEditor on a textarea.

Now, add an HTML textarea element to act as the RichTextEditor element using the following code.

Source
Preview
index.tsx
index.html
/**
 * RichTextEditor - TextArea Sample
 */
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { RichTextEditor, Toolbar, Image, Link, HtmlEditor, Count } from '@syncfusion/ej2-react-richtexteditor';
RichTextEditor.Inject(HtmlEditor, Image, Link, Toolbar, Count);

export class DefaultRTE extends React.Component<{}, {}> {
  private rteObj: RichTextEditor;

  private template: string = `
    <p><a href="http://www.syncfusion.com">The rich text editor</a> component is WYSIWYG ("what you see is what you get") editor that provides the best user experience to create and update the content.
        Users can format their content using standard toolbar commands.</p>
    <img alt="Logo" src="http://cdn.syncfusion.com/content/images/sales/buynow/Character-opt.png" />
    <p><b>Key features:</b></p>
    <ul>
        <li> <p>Provides IFRAME and DIV modes</p> </li>
        <li> <p>Capable of handling markdown editing.</p> </li>
        <li> <p>Contains a modular library to load the necessary functionality on demand.</p> </li>
        <li> <p>Provides a fully customizable toolbar.</p> </li>
        <li> <p>Provides HTML view to edit the source directly for developers.</p> </li>
        <li> <p>Supports third-party library integration.</p> </li>
    </ul>`;

  public componentDidMount(): void {
    this.rteObj = new RichTextEditor ({
      height: 400,
      valueTemplate: this.template
    }, '#rteElement');
  }

  render() {
    return (
      <textarea id="rteElement"></textarea>
    );
  }
}
ReactDOM.render(<DefaultRTE />, document.getElementById('sample'));
<!DOCTYPE html>
<html lang="en">

<head>
    <title> Syncfusion React RichTextEditor </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for React Components" />
    <meta name="author" content="Syncfusion" />
     <link href="//cdn.syncfusion.com/ej2/ej2-react-richtexteditor/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-buttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-lists/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-buttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-popups/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-navigations/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-splitbuttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-inputs/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-dropdowns/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
    <style>
        #loader {
            color: #008cff;
            height: 40px;
            left: 45%;
            position: absolute;
            top: 45%;
            width: 30%;
        }
    </style>
</head>

<body>
    <div id='sample' style="margin: 20px auto 0;">
        <div id='loader'>Loading....</div>
    </div>
</body>

</html>

Module Injection

To create RichTextEditor with additional features, inject the required modules. The following modules are used to extend RichTextEditor’s basic functionality.

  • Toolbar - Inject this module to use toolbar feature.
  • Link - Inject this module to use link in RTE feature.
  • Image- Inject this module to use image in RTE feature.
  • Count - Inject this module to use character count in RTE.
  • HtmlEditor - Inject this module to use RTE as html editor.
  • MarkdownEditor- Inject this module to use RTE as markdown editor.
  • QuickToolbar - Inject this module to use quick toolbar feature for the target element.

These modules should be inject by using services.

Configure the Toolbar

Configure the toolbar with the tools using items field of the toolbarSettings property as your application requires.

Source
Preview
index.tsx
index.html
/**
 * RichTextEditor - Toolbar Config Sample
 */
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { RichTextEditorComponent, Toolbar, Inject, HtmlEditor } from '@syncfusion/ej2-react-richtexteditor';

export class ToolsRTE extends React.Component<{}, {}> {
  private toolbarSettings: object = {
      items: ['Bold', 'Italic', 'Underline', 'StrikeThrough',
            'FontName', 'FontSize', 'FontColor', 'BackgroundColor',
            'LowerCase', 'UpperCase', '|',
            'Formats', 'Alignments', 'OrderedList', 'UnorderedList',
            'Outdent', 'Indent', '|',
            'CreateLink', 'Image', '|', 'ClearFormat', 'Print',
            'SourceCode', 'FullScreen', '|', 'Undo', 'Redo']
  }
  render() {
    return (
      <RichTextEditorComponent height={450} toolbarSettings={this.toolbarSettings}>
        <p>The rich text editor component is WYSIWYG ("what you see is what you get") editor that provides the best user experience to create and update the content.
          Users can format their content using standard toolbar commands.</p>
        <p><b>Key features:</b></p>
        <ul>
          <li>
            <p>Provides &lt;IFRAME&gt; and &lt;DIV&gt; modes</p>
          </li>
          <li>
            <p>Capable of handling markdown editing.</p>
          </li>
          <li>
            <p>Contains a modular library to load the necessary functionality on demand.</p>
          </li>
          <li>
            <p>Provides a fully customizable toolbar.</p>
          </li>
          <li>
            <p>Provides HTML view to edit the source directly for developers.</p>
          </li>
          <li>
            <p>Supports third-party library integration.</p>
          </li>
          <li>
            <p>Allows preview of modified content before saving it.</p>
          </li>
          <li>
            <p>Handles images, hyperlinks, video, hyperlinks, uploads, etc.</p>
          </li>
          <li>
            <p>Contains undo/redo manager.</p>
          </li>
          <li>
            <p>Creates bulleted and numbered lists.</p>
          </li>
        </ul>
        <Inject services={[Toolbar, HtmlEditor]} />
      </RichTextEditorComponent>
    );
  }
}
ReactDOM.render(<ToolsRTE />, document.getElementById('sample'));
<!DOCTYPE html>
<html lang="en">

<head>
    <title> Syncfusion React RichTextEditor </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for React Components" />
    <meta name="author" content="Syncfusion" />
     <link href="//cdn.syncfusion.com/ej2/ej2-react-richtexteditor/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-buttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-lists/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-buttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-popups/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-navigations/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-splitbuttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-inputs/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-dropdowns/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
    <style>
        #loader {
            color: #008cff;
            height: 40px;
            left: 45%;
            position: absolute;
            top: 45%;
            width: 30%;
        }
    </style>
</head>

<body>
    <div id='sample' style="margin: 20px auto 0;">
        <div id='loader'>Loading....</div>
    </div>
</body>

</html>

| and - can insert a vertical and horizontal separator lines in the toolbar.

Retrieve the formatted content

To retrieve the editor contents, use the value property of RichTextEditor.

  let rteValue: string = this.rteObj.value;

Or, you can use the public method getContent to retrieve the RTE content.

  let rteValue: string = this.rteObj.getContent();

To fetch the RichTextEditor’s text content, use the textContent property of RTE EditPanel.

  let rteValue: string = this.rteObj.contentModule.getEditPanel().textContent;

The image module inserts an image into RichTextEditor’s content area, and the link module links external resources such as website URLs, to selected text in the RichTextEditor’s content, respectively.

The link inject module adds a link icon to the toolbar and the image inject module adds an image icon to the toolbar.

Specifies the items to be rendered in the quick toolbar based on the target element such image, link, and text element. The quick toolbar opens to customize the element by clicking the target element.

Source
Preview
index.tsx
index.html
/**
 * RichTextEditor - Insert Image Sample
 */
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { RichTextEditorComponent, Toolbar, Image, Link, Inject, HtmlEditor, QuickToolbar } from '@syncfusion/ej2-react-richtexteditor';

export class ToolsRTE extends React.Component<{}, {}> {
  private toolbarSettings: object = {
      items: ['Bold', 'Italic', 'Underline', 'StrikeThrough',
            'FontName', 'FontSize', 'FontColor', 'BackgroundColor',
            'LowerCase', 'UpperCase', '|',
            'Formats', 'Alignments', 'OrderedList', 'UnorderedList',
            'Outdent', 'Indent', '|',
            'CreateLink', 'Image', '|', 'ClearFormat', 'Print',
            'SourceCode', 'FullScreen', '|', 'Undo', 'Redo']
  }

  private quickToolbarSettings: object = {
    image: ['Replace', 'Align', 'Caption', 'Remove', 'InsertLink', 'OpenImageLink', '-', 'EditImageLink', 'RemoveImageLink', 'Display', 'AltText', 'Dimension']
  }

  render() {
    return (
      <RichTextEditorComponent height={450} toolbarSettings={this.toolbarSettings} quickToolbarSettings={this.quickToolbarSettings}>
        <p>The rich text editor component is WYSIWYG ("what you see is what you get") editor that provides the best user experience to create and update the content.
          Users can format their content using standard toolbar commands.</p>
        <p><b>Key features:</b></p>
        <ul>
          <li>
            <p>Provides &lt;IFRAME&gt; and &lt;DIV&gt; modes</p>
          </li>
          <li>
            <p>Capable of handling markdown editing.</p>
          </li>
          <li>
            <p>Contains a modular library to load the necessary functionality on demand.</p>
          </li>
          <li>
            <p>Provides a fully customizable toolbar.</p>
          </li>
          <li>
            <p>Provides HTML view to edit the source directly for developers.</p>
          </li>
          <li>
            <p>Supports third-party library integration.</p>
          </li>
          <li>
            <p>Allows preview of modified content before saving it.</p>
          </li>
          <li>
            <p>Handles images, hyperlinks, video, hyperlinks, uploads, etc.</p>
          </li>
          <li>
            <p>Contains undo/redo manager.</p>
          </li>
          <li>
            <p>Creates bulleted and numbered lists.</p>
          </li>
        </ul>
        <Inject services={[Toolbar, Image, Link, HtmlEditor, QuickToolbar]} />
      </RichTextEditorComponent>
    );
  }
}
ReactDOM.render(<ToolsRTE />, document.getElementById('sample'));
<!DOCTYPE html>
<html lang="en">

<head>
    <title> Syncfusion React RichTextEditor </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for React Components" />
    <meta name="author" content="Syncfusion" />
     <link href="//cdn.syncfusion.com/ej2/ej2-react-richtexteditor/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-buttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-lists/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-buttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-popups/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-navigations/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-splitbuttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-inputs/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-dropdowns/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
    <style>
        #loader {
            color: #008cff;
            height: 40px;
            left: 45%;
            position: absolute;
            top: 45%;
            width: 30%;
        }
    </style>
</head>

<body>
    <div id='sample' style="margin: 20px auto 0;">
        <div id='loader'>Loading....</div>
    </div>
</body>

</html>

Run the application

The create-react-app will pre-configure the project to compile and run the application in browser. Use the following command to run the application.

npm start

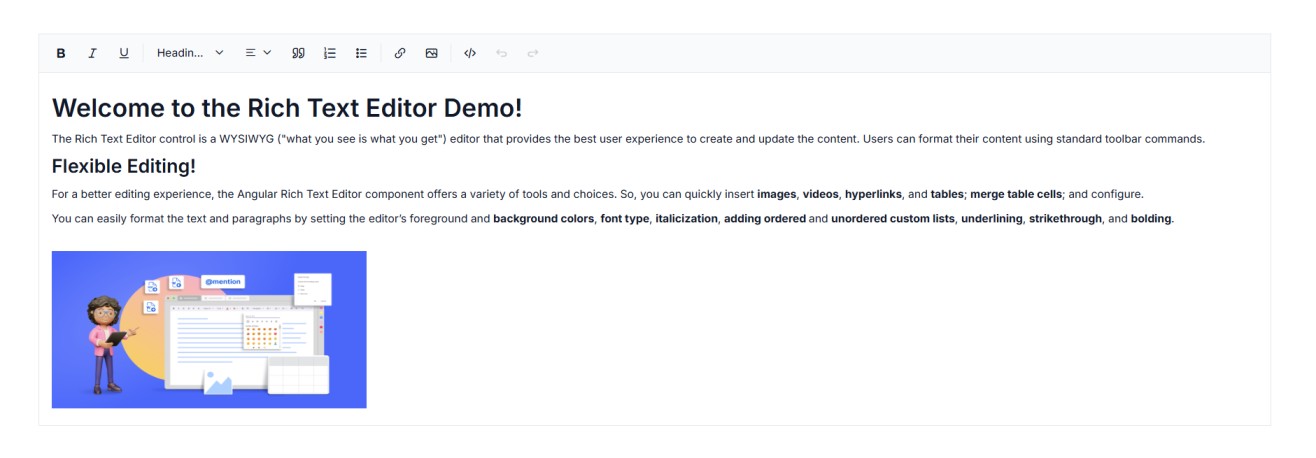

Output will be displayed as follows

Source
Preview
index.tsx
index.html
/**
 * RichTextEditor - Getting Started Sample
 */
import * as ReactDOM from 'react-dom';
import * as React from 'react';
import { RichTextEditorComponent, Toolbar, Image, Link, Inject, HtmlEditor, QuickToolbar } from '@syncfusion/ej2-react-richtexteditor';

export class ToolsRTE extends React.Component<{}, {}> {
  private toolbarSettings: object = {
      items: ['Bold', 'Italic', 'Underline', 'StrikeThrough',
            'FontName', 'FontSize', 'FontColor', 'BackgroundColor',
            'LowerCase', 'UpperCase', '|',
            'Formats', 'Alignments', 'OrderedList', 'UnorderedList',
            'Outdent', 'Indent', '|',
            'CreateLink', 'Image', '|', 'ClearFormat', 'Print',
            'SourceCode', 'FullScreen', '|', 'Undo', 'Redo']
  }

  private quickToolbarSettings: object = {
    image: ['Replace', 'Align', 'Caption', 'Remove', 'InsertLink', 'OpenImageLink', '-', 'EditImageLink', 'RemoveImageLink', 'Display', 'AltText', 'Dimension'],
    link: ['Open', 'Edit', 'UnLink']
  }

  render() {
    return (
      <RichTextEditorComponent height={450} toolbarSettings={this.toolbarSettings} quickToolbarSettings={this.quickToolbarSettings}>
        <p>The rich text editor component is WYSIWYG ("what you see is what you get") editor that provides the best user experience to create and update the content.
          Users can format their content using standard toolbar commands.</p>
        <p><b>Key features:</b></p>
        <ul>
          <li>
            <p>Provides &lt;IFRAME&gt; and &lt;DIV&gt; modes</p>
          </li>
          <li>
            <p>Capable of handling markdown editing.</p>
          </li>
          <li>
            <p>Contains a modular library to load the necessary functionality on demand.</p>
          </li>
          <li>
            <p>Provides a fully customizable toolbar.</p>
          </li>
          <li>
            <p>Provides HTML view to edit the source directly for developers.</p>
          </li>
          <li>
            <p>Supports third-party library integration.</p>
          </li>
          <li>
            <p>Allows preview of modified content before saving it.</p>
          </li>
          <li>
            <p>Handles images, hyperlinks, video, hyperlinks, uploads, etc.</p>
          </li>
          <li>
            <p>Contains undo/redo manager.</p>
          </li>
          <li>
            <p>Creates bulleted and numbered lists.</p>
          </li>
        </ul>
        <Inject services={[Toolbar, Image, Link, HtmlEditor, QuickToolbar]} />
      </RichTextEditorComponent>
    );
  }
}
ReactDOM.render(<ToolsRTE />, document.getElementById('sample'));
<!DOCTYPE html>
<html lang="en">

<head>
    <title> Syncfusion React RichTextEditor </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for React Components" />
    <meta name="author" content="Syncfusion" />
     <link href="//cdn.syncfusion.com/ej2/ej2-react-richtexteditor/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-buttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-lists/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-buttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-popups/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-navigations/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-splitbuttons/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-inputs/styles/material.css" rel="stylesheet" />
    <link href="//cdn.syncfusion.com/ej2/ej2-react-dropdowns/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
    <style>
        #loader {
            color: #008cff;
            height: 40px;
            left: 45%;
            position: absolute;
            top: 45%;
            width: 30%;
        }
    </style>
</head>

<body>
    <div id='sample' style="margin: 20px auto 0;">
        <div id='loader'>Loading....</div>
    </div>
</body>

</html>
