Salesforce integration in EJ2 TypeScript Schedule control

14 Jun 202420 minutes to read

This topic provides you with a detailed step-by-step guide on how to seamlessly integrate the JavaScript Scheduler component into Salesforce. By integrating it into Salesforce, you can enhance your productivity and streamline your scheduling processes.

Prerequisites

Before getting started, make sure you have the following prerequisites need to be installed

Configuring salesforce

To begin the integration process, you need to configure Salesforce by following these steps.

Sign up with salesforce developer account, if you don’t have salesforce account, sign up for one to access the necessary tools and resources for integration.

Log in with salesforce account.

After successful login, search for Dev Hub in the quick find search box and select Dev Hub. In the Dev Hub setup tab, ensure that the Enable Dev Hub option is enabled. If it’s not enabled, enable it to proceed further.

Enable Dev Hub

Creating a salesforce project

Now you have have Salesforce configured, let’s create a Salesforce project for our integration.

In your preferred location, create a base directory for your Salesforce project. For example, you can create a directory named salesforceApp using the following command:

mkdir salesforceApp

Navigate to the base directory you created in the previous step and generate a Salesforce DX project using the following CLI command.

sfdx project:generate -n scheduler-salesforce-app

Salesforce App

Authorization of salesforce project

Before proceeding further, you need to authorize your Salesforce project by following these steps

Run the following command to authorize your Salesforce project with your Salesforce account in the browser.

sfdx org:login:web -d

Salesforce Authorization

Open the sfdx-project.json file located in salesforceApp/scheduler-salesforce-app and update the sfdcLoginUrl with the domain URL of your Salesforce account as shown in image (fig 2). You can obtain the domain URL from the My Domain setup tab in Salesforce as shown in image (fig 1).

fig 1
Salesforce project fig 1

fig 2
Salesforce project fig 2

Create scratch organization

To facilitate development and testing, the creation of a scratch organization will be done using the following steps.

Run the following command to create a new scratch organization, which will provide a fresh Salesforce environment for development and testing with organization id and username as link below image.

sfdx org:create:scratch -f config/project-scratch-def.json

Salesforce create scratch organization

Adding static resources

To integrate the Syncfusion scripts and styles as static resource files within Salesforce, follow these steps.

Use the following command to open the scratch project in the browser

sfdx org:open -o <scratch org user name>

Replace with the username of your scratch organization, which was generated during the scratch organization creation process.

In the Salesforce setup menu, search for Static Resources and click on New button in the static resources tab.

Salesforce Setup menu

Load the Syncfusion scripts and styles as static files in a zip format, which you can obtain from the CRG.

In the static resource tab, provide a name for the static resource files, upload the zip file, and change the cache control to Public. Click Save button to add the static resources to your Salesforce project.

Salesforce Static Resource

Adding CSP trusted sites

To ensure seamless integration and prevent content security policy issues, follow these steps.

In the Salesforce setup menu, search for CSP Trusted Sites and click New Trusted Site button.

Salesforce CSP trusted sites

Enter the trusted site name and URL. For example, if the Syncfusion static styles refer to https://fonts.googleapis.com, enter that URL as the trusted site URL.

Enable the following options to bypass the CSP issues and Click Save button to apply the changes.

* Allow site for font-src
* Allow site for style-src

CSP trusted sites

Creating data model for appointment

To begin, navigate to the Object Manager in Salesforce and select Create followed by Custom Object.

Salesforce Object manager

In the custom object section, enter a meaningful label for your custom object. For this example, let’s name it SchedulerEvent. Once done, click Save to create the custom object.

Salesforce New custom Object

Defining fields and relationships

let’s configure the fields and relationships for the SchedulerEvent object. To do so click New button to create a new field.

Salesforce Field and Relationship

  1. Setting the Data Type for StartTime. Choose DateTime as the data type for the StartTime field. This field will store the starting time of each appointment.

Salesforce Scheduler Events

  1. Provide a clear label for the StartTime field and click Next button. Once you’ve reviewed the settings, click Save & New button to proceed.

Salesforce New custom field

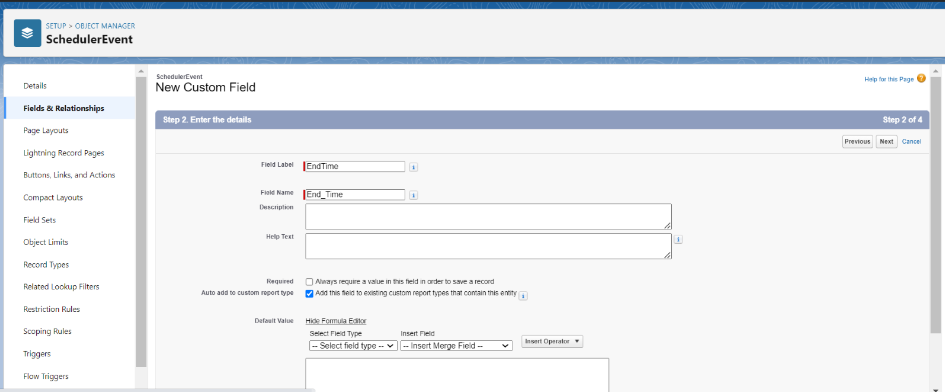

  1. Repeat the same steps as above to create the EndTime field, which will store the ending time of each appointment. Creating the EndTime Field. Once you’ve reviewed the settings, click Save & New button to proceed.

Salesforce setting allday field

  1. Choose Checkbox as the data type for the IsAllDay field. This field will be marked when an appointment is scheduled for the entire day.

Salesforce New custom field

  1. Assign an appropriate label, such as IsAllDay, to the checkbox field. Click Next button to review the settings and then click Save & New button to proceed.

Salesforce New custom field

  1. Choose Text as the data type for the Location/Recurrence Rule/Recurrence Id /Recurrence Exception field to store the location field and recurrence rule for each appointment as shown in the image respectively. Click Next to review the settings and then click Save button to proceed.

Salesforce New custom field

  1. Based on your specific requirements, you can add more fields to the SchedulerEvent object by following the same steps outlined above.

Salesforce New custom field

Creating a lightning web component

To integrate the JavaScript Scheduler into your Salesforce project, we will create a Lightning web component.

  1. In your Salesforce project, run the following command to generate a Lightning web component named scheduler.
sfdx lightning:generate:component --type lwc -n scheduler -d force-app/main/default/lwc

Salesforce Creating Lightning web component

  1. Open the scheduler.js-meta.xml file located in force-app/main/default/lwc/scheduler and modify the component definition to expose it in the Lightning App Builder. Here’s an example of the modified file.
<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
    <apiVersion>57.0</apiVersion>
    <isExposed>true</isExposed>
    <targets>
        <target>lightning__AppPage</target>
    </targets>
    <targetConfigs>
        <targetConfig targets="lightning__AppPage">
            <property name="height" label="Height" type="Integer" default="800" />
        </targetConfig>
    </targetConfigs>
</LightningComponentBundle>
  1. Open the scheduler.html file located in force-app/main/default/lwc/scheduler and add an element with a class name to append the Syncfusion scheduler. Here’s an example of the modified file.
<template>
    <div class="syncfusionscheduler" lwc:dom="manual" style='width: 100%;'></div>
</template>
  1. Open the scheduler.js file located in force-app/main/default/lwc/scheduler and implement the scheduler code in renderedCallback function. The static scripts and styles are loaded using the loadScript and loadStyle imports. Here’s an example of the modified file.
import { LightningElement, api } from 'lwc';
import { ShowToastEvent } from "lightning/platformShowToastEvent";
import { loadStyle, loadScript } from "lightning/platformResourceLoader";
import { createRecord, updateRecord, deleteRecord } from "lightning/uiRecordApi";
// Static resources
import schedulerFiles from "@salesforce/resourceUrl/syncfusionscheduler";

// Controllers
import getEvents from "@salesforce/apex/SchedulerData.getEvents";
function getEventsData(eventData) {
    const data = eventData.events.map((a) => ({
        Id: a.Id,
        Subject: a.Name,
        Location: a.Location__c,
        StartTime: a.Start_Time__c,
        EndTime: a.End_Time__c,
        IsAllDay: a.IsAllDay__c,
        RecurrenceRule: a.RecurrenceRule__c,
        RecurrenceID: a.Recurrence_Id__c,
        RecurrenceException: a.RecurrenceException__c
    }));
    return data;
}

export default class Scheduler extends LightningElement {
    static delegatesFocus = true;
    @api height;
    schedulerInitialized = false;
    renderedCallback() {
        if (this.schedulerInitialized) {
            return;
        }
        this.schedulerInitialized = true;
        Promise.all([
            loadScript(this, schedulerFiles + "/syncscheduler.js"),
            loadStyle(this, schedulerFiles + "/syncscheduler.css")
        ])
            .then(() => {
                this.initializeUI();
            })
            .catch((error) => {
                this.dispatchEvent(
                    new ShowToastEvent({
                        message: error.message, variant: "error"
                    })
                );
            });
    }
    initializeUI() {
        const root = this.template.querySelector(".syncfusionscheduler");
        root.style.height = this.height + "px";
        const scheduleOptions = {
            height: this.height + "px",
            selectedDate: new Date(),
            actionComplete: function (args) {
                //To perform CRUD in salesforce backend
                if (args.addedRecords && args.addedRecords.length > 0) {
                    var data = args.addedRecords[0];
                    var insert = {
                        apiName: "SchedulerEvent__c",
                        fields: {
                            Name: data.Subject,
                            Location__c: data.Location,
                            Start_Time__c: data.StartTime,
                            End_Time__c: data.EndTime,
                            IsAllDay__c: data.IsAllDay,
                            RecurrenceRule__c: data.RecurrenceRule,
                            Recurrence_Id__c: data.RecurrenceID,
                            RecurrenceException__c: data.RecurrenceException
                        }
                    };
                    createRecord(insert).then((res) => {
                        if (scheduleObj)
                        {
                            scheduleObj.eventSettings.dataSource[scheduleObj.eventSettings.dataSource.length - 1].Id = res.id;
                            scheduleObj.refreshEvents();
                        }
                        return { tid: res.id, ...res };
                    });
                }
                if (args.changedRecords && args.changedRecords.length > 0) {
                    var data = args.changedRecords[0];
                    var update = {
                        fields: {
                            Id: data.Id,
                            Name: data.Subject,
                            Location__c: data.Location,
                            Start_Time__c: data.StartTime,
                            End_Time__c: data.EndTime,
                            IsAllDay__c: data.IsAllDay,
                            RecurrenceRule__c: data.RecurrenceRule,
                            RecurrenceException__c: data.RecurrenceException,
                            Recurrence_Id__c: data.RecurrenceID
                        }
                    };
                    updateRecord(update).then(() => ({}));
                }
                if (args.deletedRecords && args.deletedRecords.length > 0) {
                    args.deletedRecords.forEach(event => {
                        deleteRecord(event.Id).then(() => ({}));
                    });
                }
            }
        };
        const scheduleObj = new ej.schedule.Schedule(scheduleOptions, root);
        getEvents().then((data) => {
            const eventData = getEventsData(data);
            scheduleObj.eventSettings.dataSource = eventData;
            scheduleObj.dataBind();
        });
    }
}

Creating apex class

Apex class that facilitates smooth interactions between your Lightning component and the data model. By following these steps, you will be able to fetch and manipulate data from the SchedulerEvent custom object effortlessly.

Use the following command to create Apex class with the name SchedulerData.

sfdx apex:generate:class -n SchedulerData -d force-app/main/default/classes

Salesforce Creating Apex Class

Open the SchedulerData.cls file located in force-app/main/default/classes/SchedulerData.cls.
This will fetch the event data from salesforce backend. Here’s an example of the modified file.

public with sharing class SchedulerData {
    @RemoteAction
    @AuraEnabled(cacheable=true)
    public static Map<String, Object> getEvents() {
        // fetching the Records via SOQL
        List<SchedulerEvent__c> Events = new List<SchedulerEvent__c>();
        Events = [SELECT Id, Name, Start_Time__c, End_Time__c, IsAllDay__c,
            Location__c, RecurrenceRule__c, Recurrence_Id__c, RecurrenceException__c FROM SchedulerEvent__c];
        Map<String, Object> result = new Map<String, Object>{'events' => Events };
        return result;
   }
}

Pull scratch organization

To retrieve the changes made in the scratch organization and sync them with your local Salesforce project, use the following command.

sfdx project:retrieve:start -o <scratch org use name>

Replace with the username of your scratch organization.

Salesforce Pull Scratch

Push scratch organization

To push the changes made in your local Salesforce project to the scratch organization, use the following command.

sfdx project:deploy:start -o <scratch org use name>

Replace with the username of your scratch organization.

Salesforce Push Scratch

Creating lightning page

To display the JavaScript Scheduler on a Lightning page, follow these steps.

  1. In your scratch organization, search for Lightning App Builder in the quick find setup, select Lightning App Builder and click New button.

Search Scheduler page

  1. Choose App Page and click Next button.

Search Scheduler page

  1. Provide a label name for the app page and click Next button. For example, here you can name it SyncfusionScheduler.

Search Scheduler page

  1. Choose One Region and click Finish button.

Search Scheduler page

  1. In the Lightning App Builder, under the Add Components Here section, drag and drop the scheduler component. The scheduler will be
    rendered inside the content body. Click Save to activate the custom component.

Search Scheduler page

Search Scheduler page

  1. Activate the custom component with name SyncfusionScheduler and click the Save button.

Search Scheduler page

Launching scheduler in home page

To access the integrated JavaScript Scheduler on the home page, follow these steps.

Click on the app launcher icon in Salesforce and Search for SyncfusionScheduler, which was registered earlier in the Lightning App Builder.

Search Scheduler page

Click on the SyncfusionScheduler app, and the scheduler will load on the home page.

Click Scheduler page

NOTE

You can also explore our JavaScript Scheduler Salesforce integration example to knows about the Salesforce integration.
