Getting Started with ASP.NET Core MultiColumn ComboBox control

23 Jul 202614 minutes to read

This section briefly explains how to include the ASP.NET Core MultiColumn ComboBox control in your ASP.NET Core application using Visual Studio.

Create an ASP.NET Core Web App with Razor pages

Create an ASP.NET Core Web App using Visual Studio via Microsoft Templates or the ASP.NET Core Extension. For detailed instructions, refer to the ASP.NET Core Web App Getting Started documentation.

Install the required ASP.NET Core packages

To add ASP.NET Core MultiColumn ComboBox control in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for and install the Syncfusion.AspNetCore.MultiColumnComboBox and Syncfusion.AspNetCore.Themes packages. All Syncfusion ASP.NET Core packages are available on nuget.org. See the NuGet packages topic for details.

Alternatively, you can install the same packages using the Package Manager Console with the following command.

Install-Package Syncfusion.AspNetCore.MultiColumnComboBox -Version 34.1.29
Install-Package Syncfusion.AspNetCore.Themes -Version 34.1.29

Add ASP.NET Core Tag Helpers

After the packages are installed, open the ~/Pages/_ViewImports.cshtml file and import the Syncfusion.AspNetCore.Base and Syncfusion.AspNetCore.MultiColumnComboBox Tag Helpers.

@addTagHelper *, Syncfusion.AspNetCore.Base
@addTagHelper *, Syncfusion.AspNetCore.MultiColumnComboBox

Add stylesheet and script resources

The theme stylesheet and script can be referenced from CDN. Include the stylesheet and script references inside the <head> of ~/Pages/Shared/_Layout.cshtml.

<head>
    ...
    @* ASP.NET Core controls styles *@
    <link rel="stylesheet" href="_content/Syncfusion.AspNetCore.Themes/styles/fluent2.css" />
    @* ASP.NET Core controls scripts *@
    <script src="_content/Syncfusion.AspNetCore.MultiColumnComboBox/scripts/sf-multicolumn-combobox.min.js"></script>
</head>

Register the Script Manager

Open the ~/Pages/Shared/_Layout.cshtml file and register the script manager <ejs-scripts> at the end of the <body> element as follows.

<body>
    ...
    @*  ASP.NET Core Script Manager *@
    <ejs-scripts></ejs-scripts>
</body>

Add ASP.NET Core MultiColumn ComboBox control

Add the ASP.NET Core MultiColumn ComboBox control in the ~/Pages/Index.cshtml file.

@using Syncfusion.EJ2.MultiColumnComboBox;

<div class="container" style="width: 500px">
    <ejs-multicolumncombobox id="default" dataSource="ViewBag.EmpData">
        <e-multicolumncombobox-fields text="Name" value="EmpID"></e-multicolumncombobox-fields>
        <e-multicolumncombobox-columns>
            <e-multicolumncombobox-column field="EmpID" header="Employee ID" width="120"></e-multicolumncombobox-column>
            <e-multicolumncombobox-column field="Name" header="Name" width="120"></e-multicolumncombobox-column>
            <e-multicolumncombobox-column field="Designation" header="Designation" width="120"></e-multicolumncombobox-column>
            <e-multicolumncombobox-column field="Country" header="Country" width="100"></e-multicolumncombobox-column>
        </e-multicolumncombobox-columns>
    </ejs-multicolumncombobox>
</div>
public ActionResult Demo()
{
    var employees = new List<Employee>
    {
        new Employee { EmpID = 1001, Name = "Andrew Fuller", Designation = "Team Lead", Country = "England" },
        new Employee { EmpID = 1002, Name = "Robert", Designation = "Developer", Country = "USA" },
        new Employee { EmpID = 1003, Name = "Michael", Designation = "HR", Country = "Russia" },
        new Employee { EmpID = 1004, Name = "Steven Buchanan", Designation = "Product Manager", Country = "Ukraine" },
        new Employee { EmpID = 1005, Name = "Margaret Peacock", Designation = "Developer", Country = "Egypt" },
        new Employee { EmpID = 1006, Name = "Janet Leverling", Designation = "Team Lead", Country = "Africa" },
        new Employee { EmpID = 1007, Name = "Alice", Designation = "Product Manager", Country = "Australia" },
        new Employee { EmpID = 1008, Name = "Bob", Designation = "Developer", Country = "India" },
        new Employee { EmpID = 1009, Name = "John", Designation = "Product Manager", Country = "Ireland" },
        new Employee { EmpID = 1010, Name = "Mario Pontes", Designation = "Team Lead", Country = "South Africa" },
        new Employee { EmpID = 1011, Name = "Yang Wang", Designation = "Developer", Country = "Russia" },
        new Employee { EmpID = 1012, Name = "David", Designation = "Product Manager", Country = "Egypt" },
        new Employee { EmpID = 1013, Name = "Antonio Bianchi", Designation = "Team Lead", Country = "USA" },
        new Employee { EmpID = 1014, Name = "Laura", Designation = "Developer", Country = "England" },
        new Employee { EmpID = 1015, Name = "Carlos Hernandez", Designation = "Developer", Country = "Canada" },
        new Employee { EmpID = 1016, Name = "Lily", Designation = "Product Manager", Country = "France" },
        new Employee { EmpID = 1017, Name = "Tom Williams", Designation = "Developer", Country = "Ukraine" },
        new Employee { EmpID = 1018, Name = "Grace", Designation = "Developer", Country = "Australia" },
        new Employee { EmpID = 1019, Name = "Olivia", Designation = "Team Lead", Country = "Ireland" },
        new Employee { EmpID = 1020, Name = "James", Designation = "Developer", Country = "China" }
    };

    ViewBag.EmpData = employees;
    return View(ViewBag.EmpData);
}

public class Employee
{
	public int EmpID { get; set; }
	public string Name { get; set; }
	public string Designation { get; set; }
	public string Country { get; set; }
}

Run the application

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. The ASP.NET Core MultiColumn ComboBox control will render in your default web browser.

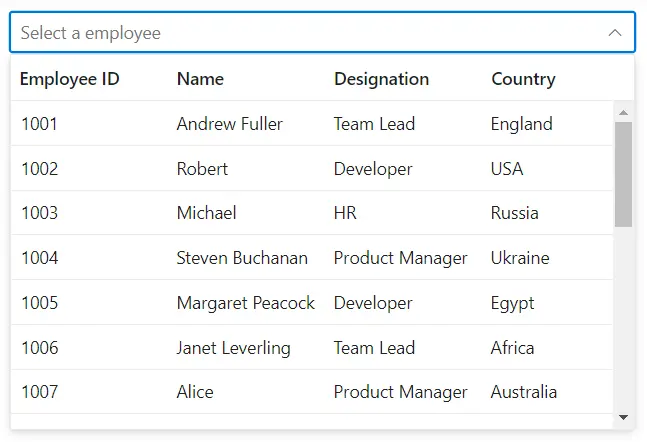

ASP.NET Core MultiColumn ComboBox Control

Configure the popup list

By default, the width of the popup list automatically adjusts according to the ASP.NET Core MultiColumn ComboBox input element’s width, and the height of the popup list has 300px.

The height and width of the popup list can also be customized using the popupHeight and popupWidth properties respectively.

In the following sample, the popup list’s width and height are configured.

@using Syncfusion.EJ2.MultiColumnComboBox;

<div style="width: 550px">
    <ejs-multicolumncombobox id="popup" dataSource="ViewBag.EmpData" popupHeight="250px" popupWidth="550px" placeholder="Select a employee">
        <e-multicolumncombobox-fields text="Name" value="EmpID"></e-multicolumncombobox-fields>
        <e-multicolumncombobox-columns>
            <e-multicolumncombobox-column field="EmpID" header="Employee ID" width="120"></e-multicolumncombobox-column>
            <e-multicolumncombobox-column field="Name" header="Name" width="120"></e-multicolumncombobox-column>
            <e-multicolumncombobox-column field="Designation" header="Designation" width="120"></e-multicolumncombobox-column>
            <e-multicolumncombobox-column field="Country" header="Country" width="100"></e-multicolumncombobox-column>
        </e-multicolumncombobox-columns>
    </ejs-multicolumncombobox>
</div>
public ActionResult Demo()
{
    var employees = new List<Employee>
    {
        new Employee { EmpID = 1001, Name = "Andrew Fuller", Designation = "Team Lead", Country = "England" },
        new Employee { EmpID = 1002, Name = "Robert", Designation = "Developer", Country = "USA" },
        new Employee { EmpID = 1003, Name = "Michael", Designation = "HR", Country = "Russia" },
        new Employee { EmpID = 1004, Name = "Steven Buchanan", Designation = "Product Manager", Country = "Ukraine" },
        new Employee { EmpID = 1005, Name = "Margaret Peacock", Designation = "Developer", Country = "Egypt" },
        new Employee { EmpID = 1006, Name = "Janet Leverling", Designation = "Team Lead", Country = "Africa" },
        new Employee { EmpID = 1007, Name = "Alice", Designation = "Product Manager", Country = "Australia" },
        new Employee { EmpID = 1008, Name = "Bob", Designation = "Developer", Country = "India" },
        new Employee { EmpID = 1009, Name = "John", Designation = "Product Manager", Country = "Ireland" },
        new Employee { EmpID = 1010, Name = "Mario Pontes", Designation = "Team Lead", Country = "South Africa" },
        new Employee { EmpID = 1011, Name = "Yang Wang", Designation = "Developer", Country = "Russia" },
        new Employee { EmpID = 1012, Name = "David", Designation = "Product Manager", Country = "Egypt" },
        new Employee { EmpID = 1013, Name = "Antonio Bianchi", Designation = "Team Lead", Country = "USA" },
        new Employee { EmpID = 1014, Name = "Laura", Designation = "Developer", Country = "England" },
        new Employee { EmpID = 1015, Name = "Carlos Hernandez", Designation = "Developer", Country = "Canada" },
        new Employee { EmpID = 1016, Name = "Lily", Designation = "Product Manager", Country = "France" },
        new Employee { EmpID = 1017, Name = "Tom Williams", Designation = "Developer", Country = "Ukraine" },
        new Employee { EmpID = 1018, Name = "Grace", Designation = "Developer", Country = "Australia" },
        new Employee { EmpID = 1019, Name = "Olivia", Designation = "Team Lead", Country = "Ireland" },
        new Employee { EmpID = 1020, Name = "James", Designation = "Developer", Country = "China" }
    };

    ViewBag.EmpData = employees;
    return View(ViewBag.EmpData);
}

public class Employee
{
	public int EmpID { get; set; }
	public string Name { get; set; }
	public string Designation { get; set; }
	public string Country { get; set; }
}

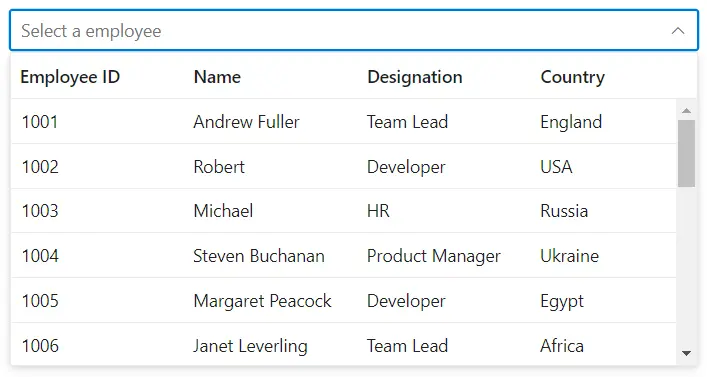

Popup
