Getting started with ASP.NET Core Breadcrumb control

03 Dec 2021 / 3 minutes to read

Starting with v19.3.0.x, if you reference Syncfusion assemblies from trial setup or from the NuGet feed, you also have to include a license key in your projects. Please refer to this link to know about registering Syncfusion license key in your ASP.NET Core application to use our components.

Prerequisites

To get started with ASP.NET Core application, need to ensure the following software to be installed on the machine.

  • Visual Studio 2017
  • .Net Core 2.0

Create ASP.NET Core application

Create ASP.NET Core Web Application with default template project in Visual Studio 2017.

Alt text

Adding Syncfusion package

Using NuGet Package Manager we need to add Syncfusion.EJ2.AspNet.Core package into your application.

Open the NuGet package manager.

Alt text

Install the Syncfusion.EJ2.AspNet.Core package to the application

Alt text

After Installation completed the Syncfusion DLL’s will be included in the project.

We need to install NewtonSoft.JSON as dependency since Syncfusion.EJ2.AspNet.Core dependent to NewtonSoft.JSON package.

Open the Views/_ViewImports.cshtml to import Syncfusion.EJ2.AspNet.Core package.

Copied to clipboard
@addTagHelper *, Syncfusion.EJ2

Adding Scripts and CSS reference

We can add client side resource through CDN or NPM package in the layout page Views/Shared/_Layout.cshtml

CDN Link:

Copied to clipboard
<head>
@* Syncfusion Essential JS 2 Styles *@
<link rel="stylesheet" href="https://cdn.syncfusion.com/ej2/material.css" />

@* Syncfusion Essential JS 2 Scripts *@
<script src="https://cdn.syncfusion.com/ej2/dist/ej2.min.js"></script>
</head>

NPM Package:

Install @syncfusion/ej2 package using below command.

npm install @syncfusion/ej2

Now the required scripts and CSS files are available in the ../node_modules/@syncfusion/ej2/dist and CSS ../node_modules/@syncfusion/ej2/styles package folders respectively. Copy those script and themes files from the node_modules into the wwwroot folder of the application.

Copied to clipboard
<head>
@* Syncfusion Essential JS 2 Styles *@
<link href="~/styles/material.css" rel="stylesheet" />

@* Syncfusion Essential JS 2 Scripts *@
<script src="~/scripts/ej2.min.js"></script>
</head>

Adding ScriptManager in layout page

Add ScriptManager to the bottom of the _Layout.cshtml page. The ScriptManager used to place our control initialization script in the page.

Copied to clipboard
<body>
@RenderBody()
@RenderSection("Scripts", required: false)
<ejs-scripts></ejs-scripts>
</body>

Add Breadcrumb component

To initialize the Breadcrumb component add the below code to your Index.cshtml view page which is present under Views/Home folder.

tagHelper
Copied to clipboard
<ejs-breadcrumb id="default">
</ejs-breadcrumb>

Output be like the below.

Breadcrumb Sample

Add Items to the Breadcrumb Component

Use e-breadcrumb-items directive to bind items for Breadcrumb component. The below example demonstrates the basic rendering of Breadcrumb with items support.

tagHelper
Copied to clipboard
<ejs-breadcrumb id="default" enableNavigation="false">
    <e-breadcrumb-items>
        <e-breadcrumb-item iconCss="e-icons e-home" url="https://ej2.syncfusion.com/home/aspnetcore.html#platform"></e-breadcrumb-item>
        <e-breadcrumb-item text="Components" url="https://ej2.syncfusion.com/aspnetcore/Grid/GridOverview#/material"></e-breadcrumb-item>
        <e-breadcrumb-item text="Navigations" url="https://ej2.syncfusion.com/aspnetcore/Menu/DefaultFunctionalities#/material"></e-breadcrumb-item>
        <e-breadcrumb-item text="Breadcrumb" url="https://ej2.syncfusion.com/aspnetcore/Breadcrumb/DefaultFunctionalities"></e-breadcrumb-item>
    </e-breadcrumb-items>
</ejs-breadcrumb>

  <style>
    @@font-face {
        font-family: 'e-bicons';
        src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1wSfkAAAEoAAAAVmNtYXDnHOdpAAABmAAAAD5nbHlmSRvkRAAAAegAAANoaGVhZB2Xb78AAADQAAAANmhoZWEIUQQHAAAArAAAACRobXR4GAAAAAAAAYAAAAAYbG9jYQSCAv4AAAHYAAAADm1heHABFwEfAAABCAAAACBuYW1lXj/4/wAABVAAAAIlcG9zdE4LDloAAAd4AAAAegABAAAEAAAAAFwEAAAAAAAD9AABAAAAAAAAAAAAAAAAAAAABgABAAAAAQAA6q1k4F8PPPUACwQAAAAAAN1ClWcAAAAA3UKVZwAAAAAD9AP0AAAACAACAAAAAAAAAAEAAAAGARMABwAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wPnBwQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAAAAAAAgAAAAMAAAAUAAMAAQAAABQABAAqAAAABAAEAAEAAOcH//8AAOcD//8AAAABAAQAAAABAAIABQADAAQAAAAAAAABTgFqAYABlAG0AAAABwAAAAADdwP0AB8AXwCfAOMA5gDsARIAAAEVDwUrAS8FPQE/BTsBHwUHFR8OPw8vDisBDw0XDw8jLw4/Dx8OJxUPAycHFw8EJwcfBAcXNx8EBxc3HwE/Ahc3Jz8DFzcnPwUnBy8DNycHLwQ1JyM/ASERIREzJREVHwgzITM/CDURNS8IIyECGAICAwQEBAUFBQQDAwMBAQMDAwQFBQUEBAQDAgJvAgIDAwUFBQcGBwgICAkJCQgJCAcHBwYGBQQEAwIBAQEBAgMEBAUGBgcHBwgJCAkJCQgICAcGBwUFBQMDAgLeAQIDBQUHCAkJCwsMDA0NDg4ODQwMCwoKCQgGBgUDAgEBAgMFBgYICQoKCwwMDQ4ODg0NDAwLCwkJCAcFBQMCohYTEhIiKyIOBQoIBDQJNAEDBQYvHDANDg8IDBQ0FBQUDw8IFDQTEg8NEDAcLwUFBAEBNAo0BwgKECIqIg0RERMLuHFxPgGW/ZDa/ucBAgUGCQoLBgYHAnAHBgYLCgkGBQIBAQIFBgkKCwYGB/4+AaIFBAQEAwICAgIDBAQEBQUFBAMDAwEBAwMDBAUFCQgJCAcHBwYGBQQEAwIBAQEBAgMEBAUGBgcHBwgJCAkJCQgICAcGBwUFBQMDAgICAgMDBQUFBwYHCAgICQkODQ0MDAsLCQkIBwYEAwIBAwMEBgcICAoLCwwMDQ0ODg0NDQwLCgoJBwcGBAQCAQECAwUGBwcJCgoLDA0NDew2BQUICikkKRIIERILCTcKGBQTEhwwHA8MDAUGOBM4AwEBAQI4EzcLCwwRHTEcDRETEw0JOAkUEBAUKSQpBwgGBQI2fHEt/JQCkC39QwYGBgsKCQYFAgEBAgUGCQoLBgYGA2wGBgYLCgkGBQIBAAACAAAAAAPzA0wAAwALAAA3IRMhAzMTITUhJyFSAuq4/QPrDrgCaf4uOv7dtAG9/kMB8Sh/AAAAAAEAAAAAAxcD9AAFAAATCQEXCQHpAcn+NzMB+/4FA8H+P/4/MwH0AfQAAAAAAQAAAAAD9AOAAAUAAAEnBwkBJwFZ52YBTQKbZwFM52b+sgKbZwAAAAIAAAAAA/QDngAIAA4AABMRMzUhFTMRJQUVCQE1AYzuAQnx/pL+BgH6Ae7+EgHT/o/09AFx84NwAVv+rnEBUQAAABIA3gABAAAAAAAAAAEAAAABAAAAAAABAAcAAQABAAAAAAACAAcACAABAAAAAAADAAcADwABAAAAAAAEAAcAFgABAAAAAAAFAAsAHQABAAAAAAAGAAcAKAABAAAAAAAKACwALwABAAAAAAALABIAWwADAAEECQAAAAIAbQADAAEECQABAA4AbwADAAEECQACAA4AfQADAAEECQADAA4AiwADAAEECQAEAA4AmQADAAEECQAFABYApwADAAEECQAGAA4AvQADAAEECQAKAFgAywADAAEECQALACQBIyBlLWJjb25zUmVndWxhcmUtYmNvbnNlLWJjb25zVmVyc2lvbiAxLjBlLWJjb25zRm9udCBnZW5lcmF0ZWQgdXNpbmcgU3luY2Z1c2lvbiBNZXRybyBTdHVkaW93d3cuc3luY2Z1c2lvbi5jb20AIABlAC0AYgBjAG8AbgBzAFIAZQBnAHUAbABhAHIAZQAtAGIAYwBvAG4AcwBlAC0AYgBjAG8AbgBzAFYAZQByAHMAaQBvAG4AIAAxAC4AMABlAC0AYgBjAG8AbgBzAEYAbwBuAHQAIABnAGUAbgBlAHIAYQB0AGUAZAAgAHUAcwBpAG4AZwAgAFMAeQBuAGMAZgB1AHMAaQBvAG4AIABNAGUAdAByAG8AIABTAHQAdQBkAGkAbwB3AHcAdwAuAHMAeQBuAGMAZgB1AHMAaQBvAG4ALgBjAG8AbQAAAAACAAAAAAAAAAoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAYBAgEDAQQBBQEGAQcAE2RvY3VtZW50LXNldHRpbmctd2YOZm9sZGVyLW9wZW4tMDERY2hldnJvbi1yaWdodF8wMy0KY2hlY2stbWFyawhob3VzZS0wNAAAAAA=) format('truetype');
        font-weight: normal;
        font-style: normal;
    }

    .e-bicons {
        font-family: 'e-bicons' !important;
        font-size: 14px;
    }

</style>

Output be like the below.

Breadcrumb Sample

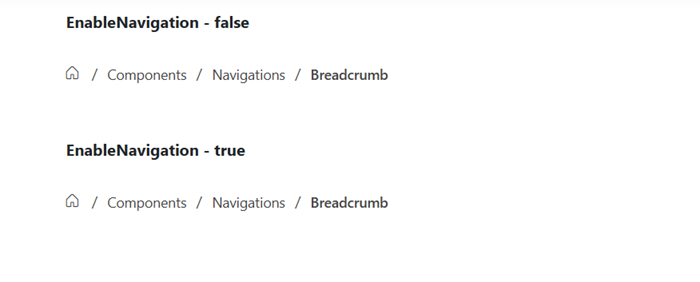

Enable or Disable Navigation

This feature enables or disables the item navigation. By default, the navigation will be enabled when setting url property. To prevent breadcrumb item navigation, set enableNavigation property as false in Breadcrumb. The below example shows enabling and disabling the navigation of Breadcrumb items.

The following example shows a Enable or disable navigation of Breadcrumb.

tagHelper
default.cs
Copied to clipboard
<div id="breadcrumb-control">
  <div class='header'><b>EnableNavigation - false</b></div><br />
    <ejs-breadcrumb id="disable" enableNavigation="false">
      <e-breadcrumb-items>
        <e-breadcrumb-item iconCss="e-icons e-home" url="https://ej2.syncfusion.com/home/aspnetcore.html#platform" />
        <e-breadcrumb-item text="Components" url="https://ej2.syncfusion.com/aspnetcore/demos/#/material/grid/overview/" />
        <e-breadcrumb-item text="Navigations" url="https://ej2.syncfusion.com/aspnetcore/demos/#/material/menu/default" />
        <e-breadcrumb-item text="Breadcrumb" url="https://ej2.syncfusion.com/aspnetcore/Breadcrumb/BindToLocation" />
        </e-breadcrumb-items>
    </ejs-breadcrumb>
    <br />
    <br />
<div class='header'><b>EnableNavigation - true</b></div><br />
  <ejs-breadcrumb id="enable" enableNavigation="true">
    <e-breadcrumb-items>
      <e-breadcrumb-item iconCss="e-icons e-home" url="https://ej2.syncfusion.com/home/aspnetcore.html#platform" />
      <e-breadcrumb-item text="Components" url="https://ej2.syncfusion.com/aspnetcore/demos/#/material/grid/overview/" />
      <e-breadcrumb-item text="Navigations" url="https://ej2.syncfusion.com/aspnetcore/demos/#/material/menu/default" />
      <e-breadcrumb-item text="Breadcrumb" url="https://ej2.syncfusion.com/aspnetcore/Breadcrumb/BindToLocation" />
    </e-breadcrumb-items>
  </ejs-breadcrumb>
  </div>

  <style>
    @@font-face {
        font-family: 'e-bicons';
        src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1wSfkAAAEoAAAAVmNtYXDnHOdpAAABmAAAAD5nbHlmSRvkRAAAAegAAANoaGVhZB2Xb78AAADQAAAANmhoZWEIUQQHAAAArAAAACRobXR4GAAAAAAAAYAAAAAYbG9jYQSCAv4AAAHYAAAADm1heHABFwEfAAABCAAAACBuYW1lXj/4/wAABVAAAAIlcG9zdE4LDloAAAd4AAAAegABAAAEAAAAAFwEAAAAAAAD9AABAAAAAAAAAAAAAAAAAAAABgABAAAAAQAA6q1k4F8PPPUACwQAAAAAAN1ClWcAAAAA3UKVZwAAAAAD9AP0AAAACAACAAAAAAAAAAEAAAAGARMABwAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wPnBwQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAAAAAAAgAAAAMAAAAUAAMAAQAAABQABAAqAAAABAAEAAEAAOcH//8AAOcD//8AAAABAAQAAAABAAIABQADAAQAAAAAAAABTgFqAYABlAG0AAAABwAAAAADdwP0AB8AXwCfAOMA5gDsARIAAAEVDwUrAS8FPQE/BTsBHwUHFR8OPw8vDisBDw0XDw8jLw4/Dx8OJxUPAycHFw8EJwcfBAcXNx8EBxc3HwE/Ahc3Jz8DFzcnPwUnBy8DNycHLwQ1JyM/ASERIREzJREVHwgzITM/CDURNS8IIyECGAICAwQEBAUFBQQDAwMBAQMDAwQFBQUEBAQDAgJvAgIDAwUFBQcGBwgICAkJCQgJCAcHBwYGBQQEAwIBAQEBAgMEBAUGBgcHBwgJCAkJCQgICAcGBwUFBQMDAgLeAQIDBQUHCAkJCwsMDA0NDg4ODQwMCwoKCQgGBgUDAgEBAgMFBgYICQoKCwwMDQ4ODg0NDAwLCwkJCAcFBQMCohYTEhIiKyIOBQoIBDQJNAEDBQYvHDANDg8IDBQ0FBQUDw8IFDQTEg8NEDAcLwUFBAEBNAo0BwgKECIqIg0RERMLuHFxPgGW/ZDa/ucBAgUGCQoLBgYHAnAHBgYLCgkGBQIBAQIFBgkKCwYGB/4+AaIFBAQEAwICAgIDBAQEBQUFBAMDAwEBAwMDBAUFCQgJCAcHBwYGBQQEAwIBAQEBAgMEBAUGBgcHBwgJCAkJCQgICAcGBwUFBQMDAgICAgMDBQUFBwYHCAgICQkODQ0MDAsLCQkIBwYEAwIBAwMEBgcICAoLCwwMDQ0ODg0NDQwLCgoJBwcGBAQCAQECAwUGBwcJCgoLDA0NDew2BQUICikkKRIIERILCTcKGBQTEhwwHA8MDAUGOBM4AwEBAQI4EzcLCwwRHTEcDRETEw0JOAkUEBAUKSQpBwgGBQI2fHEt/JQCkC39QwYGBgsKCQYFAgEBAgUGCQoLBgYGA2wGBgYLCgkGBQIBAAACAAAAAAPzA0wAAwALAAA3IRMhAzMTITUhJyFSAuq4/QPrDrgCaf4uOv7dtAG9/kMB8Sh/AAAAAAEAAAAAAxcD9AAFAAATCQEXCQHpAcn+NzMB+/4FA8H+P/4/MwH0AfQAAAAAAQAAAAAD9AOAAAUAAAEnBwkBJwFZ52YBTQKbZwFM52b+sgKbZwAAAAIAAAAAA/QDngAIAA4AABMRMzUhFTMRJQUVCQE1AYzuAQnx/pL+BgH6Ae7+EgHT/o/09AFx84NwAVv+rnEBUQAAABIA3gABAAAAAAAAAAEAAAABAAAAAAABAAcAAQABAAAAAAACAAcACAABAAAAAAADAAcADwABAAAAAAAEAAcAFgABAAAAAAAFAAsAHQABAAAAAAAGAAcAKAABAAAAAAAKACwALwABAAAAAAALABIAWwADAAEECQAAAAIAbQADAAEECQABAA4AbwADAAEECQACAA4AfQADAAEECQADAA4AiwADAAEECQAEAA4AmQADAAEECQAFABYApwADAAEECQAGAA4AvQADAAEECQAKAFgAywADAAEECQALACQBIyBlLWJjb25zUmVndWxhcmUtYmNvbnNlLWJjb25zVmVyc2lvbiAxLjBlLWJjb25zRm9udCBnZW5lcmF0ZWQgdXNpbmcgU3luY2Z1c2lvbiBNZXRybyBTdHVkaW93d3cuc3luY2Z1c2lvbi5jb20AIABlAC0AYgBjAG8AbgBzAFIAZQBnAHUAbABhAHIAZQAtAGIAYwBvAG4AcwBlAC0AYgBjAG8AbgBzAFYAZQByAHMAaQBvAG4AIAAxAC4AMABlAC0AYgBjAG8AbgBzAEYAbwBuAHQAIABnAGUAbgBlAHIAYQB0AGUAZAAgAHUAcwBpAG4AZwAgAFMAeQBuAGMAZgB1AHMAaQBvAG4AIABNAGUAdAByAG8AIABTAHQAdQBkAGkAbwB3AHcAdwAuAHMAeQBuAGMAZgB1AHMAaQBvAG4ALgBjAG8AbQAAAAACAAAAAAAAAAoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAYBAgEDAQQBBQEGAQcAE2RvY3VtZW50LXNldHRpbmctd2YOZm9sZGVyLW9wZW4tMDERY2hldnJvbi1yaWdodF8wMy0KY2hlY2stbWFyawhob3VzZS0wNAAAAAA=) format('truetype');
        font-weight: normal;
        font-style: normal;
    }

    .e-bicons {
        font-family: 'e-bicons' !important;
        font-size: 14px;
    }

    #breadcrumb-control {
      margin-left: auto;
      margin-right: auto;
      width: 60%;
    }

    #breadcrumb-control .header {
        text-align: left;
        padding-left: 10px;
    }

    #breadcrumb-control .e-control.e-breadcrumb {
        text-align: left;
    }

  </style>
Copied to clipboard
public ActionResult Index()
{
    return View();
}

Output be like the below.

Breadcrumb Sample
