Field list in Angular Pivotview component

27 Apr 202424 minutes to read

The pivot table provides a built-in Field List similar to Microsoft Excel. It allows to add or remove fields and also rearrange them between different axes, including column, row, value, and filter along with sort and filter options dynamically at runtime.

The field list can be displayed in two different formats to interact with pivot table. They are:

  • In-built Field List (Popup): To display the field list icon in pivot table UI to invoke the built-in dialog.
  • Stand-alone Field List (Fixed): To display the field list in a static position within a web page.

In-built Field List (Popup)

To enable the field list in pivot table UI, set the showFieldList property in pivot view to true. A small icon will appear on the top left corner of the pivot table and clicking on this icon, field list dialog will appear.

The field list icon will be displayed at the top right corner of the pivot table, when grouping bar is enabled.

To use field list, you need to inject the FieldListService module in pivot table.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataOptions, IDataSet, PivotView, FieldListService } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true' width=width></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            allowLabelFilter: true,
            allowValueFilter: true,
            enableSorting: true,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Stand-alone Field List (Fixed)

The field list can be rendered in a static position, anywhere in web page layout, like a separate component. To do so, you need to set renderMode property to Fixed in pivot fieldlist.

To make field list interact with pivot table, you need to use the updateView and update methods for data source update in both field list and pivot table simultaneously.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, ViewChild } from '@angular/core';
import { PivotFieldListComponent, PivotViewComponent, FieldListService, IDataOptions, IDataSet,
    EnginePopulatedEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Browser, setStyleAttribute, prepend } from '@syncfusion/ej2-base';
import { GridSettings } from '@syncfusion/ej2-pivotview/src/pivotview/model/gridsettings';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  styleUrls: ['./app.component.css'],
  // specifies the template string for the pivot table component
  template: `<ejs-pivotfieldlist #pivotfieldlist id='PivotFieldList' [dataSourceSettings]=dataSourceSettings renderMode="Fixed" (enginePopulated)='afterPopulate($event)' allowCalculatedField='true' (load)='onLoad()' (dataBound)='ondataBound()'></ejs-pivotfieldlist>
  <ejs-pivotview #pivotview id='PivotViewFieldList' width='99%' height='530' (enginePopulated)='afterEnginePopulate($event)' [gridSettings]='gridSettings'></ejs-pivotview>`
})

export class AppComponent {
    public dataSourceSettings?: IDataOptions;
    public gridSettings?: GridSettings;

    @ViewChild('pivotview', {static: false})
    public pivotGridObj?: PivotViewComponent;

    @ViewChild('pivotfieldlist')
    public fieldlistObj?: PivotFieldListComponent;

    afterPopulate(arge: EnginePopulatedEventArgs): void {
        if (this.fieldlistObj && this.pivotGridObj) {
            this.fieldlistObj.updateView(this.pivotGridObj);
        }
    }
    afterEnginePopulate(args: EnginePopulatedEventArgs): void {
        if (this.fieldlistObj && this.pivotGridObj) {
            this.fieldlistObj.update(this.pivotGridObj);
        }
    }
    onLoad(): void {
        if (Browser.isDevice) {
            (this.fieldlistObj as PivotFieldListComponent).renderMode = 'Popup';
            (this.fieldlistObj as PivotFieldListComponent).target = '.control-section';
            (document.getElementById('PivotFieldList') as HTMLElement).removeAttribute('style');
            setStyleAttribute(document.getElementById('PivotFieldList') as HTMLElement, {
                'height': 0,
                'float': 'left'
            });
        }
    }

    ondataBound(): void {
        if (Browser.isDevice) {
            prepend([document.getElementById('PivotFieldList') as HTMLElement], document.getElementById('PivotView') as HTMLElement);
        }
    }

    ngOnInit(): void {

        this.gridSettings = {
            columnWidth: 140
        } as GridSettings;

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            enableSorting: true,
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Search desired field

End user can search for desired field in the field list UI by typing the field name into the search box at runtime. It can be enabled by setting the enableFieldSearching property to true via code-behind.

By default, field search option is disabled in the field list UI.

To enable search box in the static field list UI, set the enableFieldSearching property to true in ejs-pivotfieldlist.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, ViewChild } from '@angular/core';
import { PivotFieldListComponent, PivotViewComponent, FieldListService, IDataOptions, IDataSet,
    EnginePopulatedEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Browser, setStyleAttribute, prepend } from '@syncfusion/ej2-base';
import { GridSettings } from '@syncfusion/ej2-pivotview/src/pivotview/model/gridsettings';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  styleUrls: ['./app.component.css'],
  // specifies the template string for the pivot table component
  template: `<ejs-pivotfieldlist #pivotfieldlist id='PivotFieldList' [dataSourceSettings]=dataSourceSettings renderMode="Fixed" (enginePopulated)='afterPopulate($event)' allowCalculatedField='true' enableFieldSearching='true' (load)='onLoad()' (dataBound)='ondataBound()'></ejs-pivotfieldlist>
  <ejs-pivotview #pivotview id='PivotViewFieldList' width='99%' height='530' (enginePopulated)='afterEnginePopulate($event)' [gridSettings]='gridSettings'></ejs-pivotview>`
})

export class AppComponent {
    public dataSourceSettings?: IDataOptions;
    public gridSettings?: GridSettings;

    @ViewChild('pivotview', {static: false})
    public pivotGridObj?: PivotViewComponent;

    @ViewChild('pivotfieldlist')
    public fieldlistObj?: PivotFieldListComponent;

    afterPopulate(arge: EnginePopulatedEventArgs): void {
        if (this.fieldlistObj && this.pivotGridObj) {
            this.fieldlistObj.updateView(this.pivotGridObj);
        }
    }
    afterEnginePopulate(args: EnginePopulatedEventArgs): void {
        if (this.fieldlistObj && this.pivotGridObj) {
            (this.fieldlistObj as PivotFieldListComponent).update(this.pivotGridObj);
        }
    }
    onLoad(): void {
        if (Browser.isDevice) {
            (this.fieldlistObj as PivotFieldListComponent).renderMode = 'Popup';
            (this.fieldlistObj as PivotFieldListComponent).target = '.control-section';
            (document.getElementById('PivotFieldList') as HTMLElement).removeAttribute('style');
            setStyleAttribute(document.getElementById('PivotFieldList') as HTMLElement, {
                'height': 0,
                'float': 'left'
            });
        }
    }

    ondataBound(): void {
        if (Browser.isDevice) {
            prepend([document.getElementById('PivotFieldList') as HTMLElement], document.getElementById('PivotView') as HTMLElement);
        }
    }

    ngOnInit(): void {

        this.gridSettings = {
            columnWidth: 140
        } as GridSettings;

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            enableSorting: true,
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

To enable search box in the pivot table’s built-in popup field list UI, set the enableFieldSearching property to true in ejs-pivotview.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataOptions, IDataSet, PivotView, FieldListService } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true' enableFieldSearching='true' width=width></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            allowLabelFilter: true,
            allowValueFilter: true,
            enableSorting: true,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Option to sort fields

End user can sort fields in the field list UI to ascending (or) descending (or) default order (as obtained from the data source) using the built-in sort icons.

By default, fields are displayed in the default order.

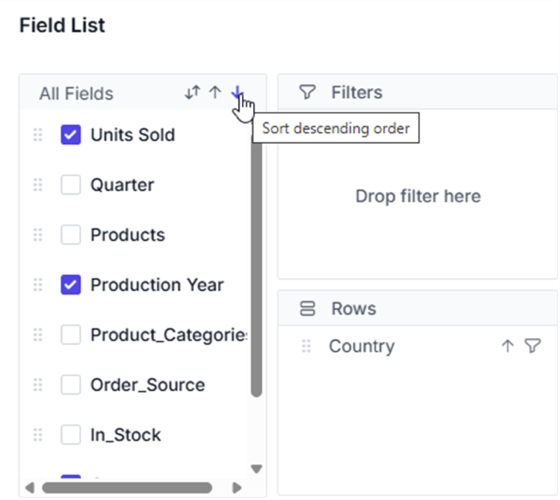

Field list with sorting options

Sort fields in a desired order

To display the fields in descending order by default, set the defaultFieldListOrder property to Descending in the load event.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataOptions, IDataSet, GroupingBarService, FieldListService, LoadEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService, GroupingBarService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true' showGroupingBar='true' (load)='onLoad($event)' width=width></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    onLoad(args: LoadEventArgs): void {
        args.defaultFieldListOrder = 'Descending';
    }

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            allowLabelFilter: true,
            allowValueFilter: true,
            columns: [{ name: 'Year', caption: 'Production Year' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }],
            rows: [{ name: 'Country' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: [],
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Group fields under desired folder name

In the field list UI, you can display fields by grouping them under the desired folder name. It can only be configured via code-behind by setting the groupName property in fieldMapping.

You can only group fields to one level using the groupName property.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataOptions, IDataSet, PivotView, FieldListService, GroupingBarService } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService, GroupingBarService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true' showGroupingBar='true' width=width></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            allowLabelFilter: true,
            allowValueFilter: true,
            columns: [{ name: 'Year', caption: 'Production Year' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }],
            rows: [{ name: 'Country' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: [],
            fieldMapping: [
                { name: 'Quarter', groupName: 'Product category' },
                { name: 'Products', groupName: 'Product category' },
                { name: 'Amount', groupName: 'Product category', caption: 'Sold Amount' },
            ]
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Add or remove fields

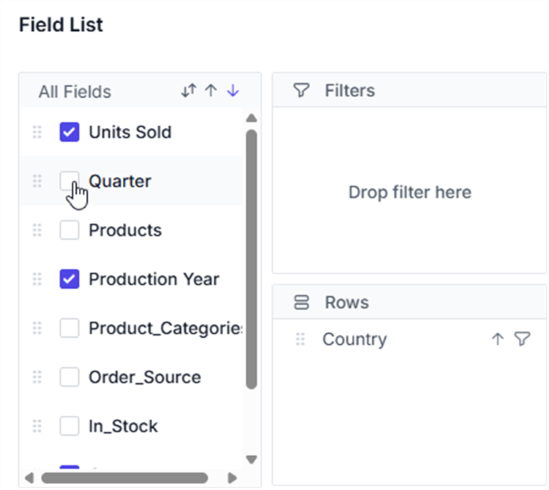

Using check box besides each field, end user can select or unselect to add or remove fields respectively from the report at runtime.

output

Remove specific field(s) from displaying

When a data source is bound to the component, fields will be automatically populated inside the Field List. In such case, user can also restrict specific field(s) from displaying. To do so, set the appropriate field name(s) in excludeFields property belonging to dataSourceSettings.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataOptions, IDataSet, PivotView, FieldListService } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true' width=width></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            allowLabelFilter: true,
            allowValueFilter: true,
            enableSorting: true,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            filters: [],
            excludeFields:["Products", "Amount" ]
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Re-arranging fields

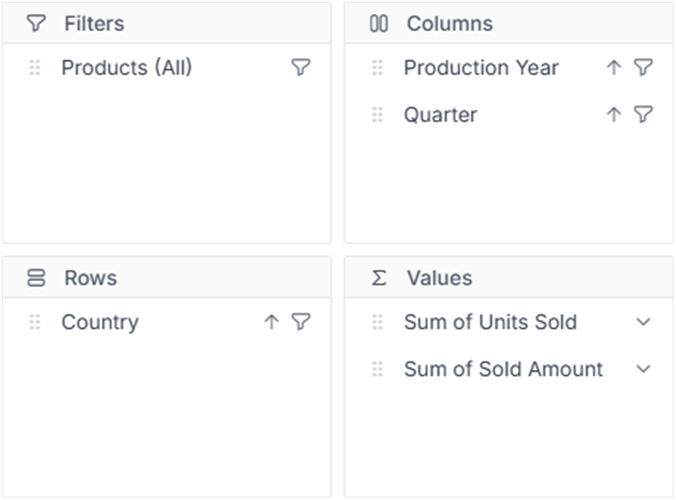

In-order to re-arrange, drag any field from the field list and drop it into the column, row, value, or filter axis using the drag-and-drop holder. It helps end user to alter the report at runtime.

output

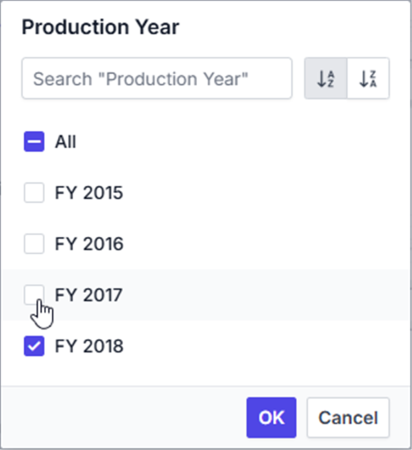

Filtering members

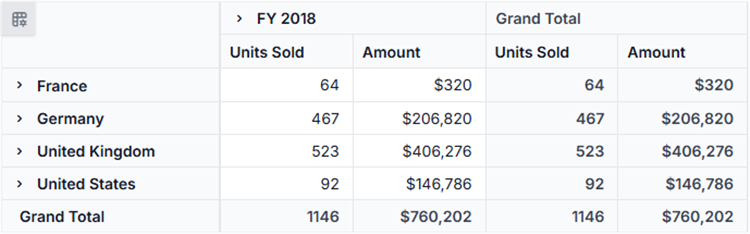

Using the filter icon besides each field in row, column and filter axes, members can be either included or excluded at runtime. To know more about member filtering, refer here.

output


output


output

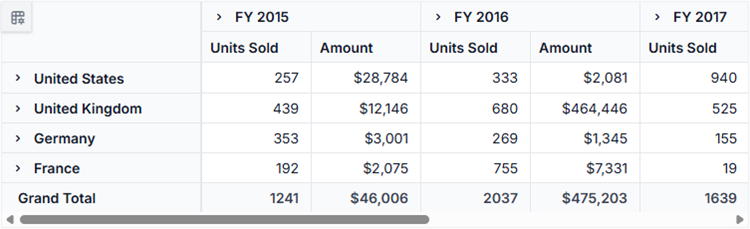

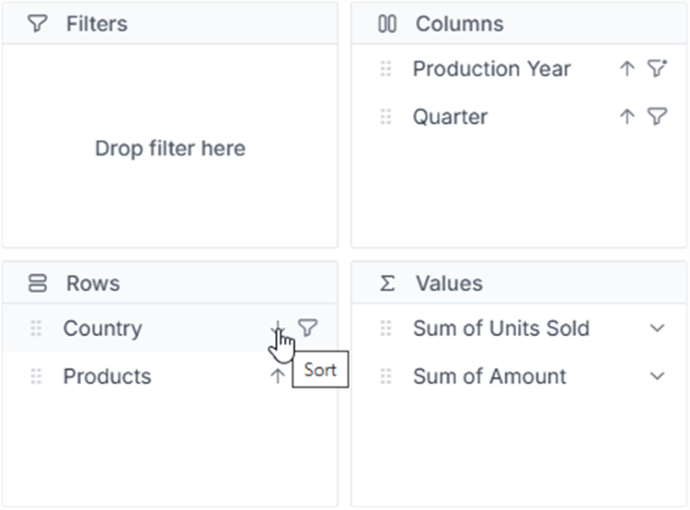

Sorting members

Using the sort icon besides each field in row and column axes, members can be arranged either in ascending or descending order at runtime. To know more about member sorting, refer here.

output


output

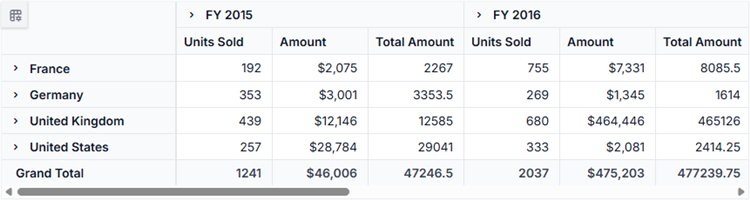

Calculated fields

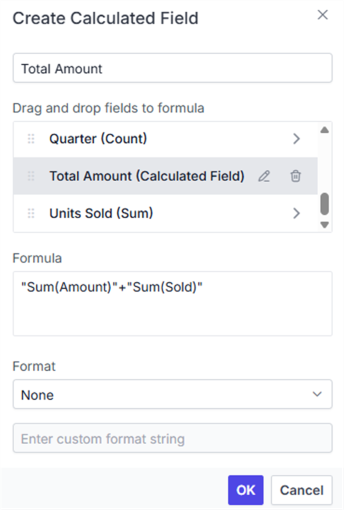

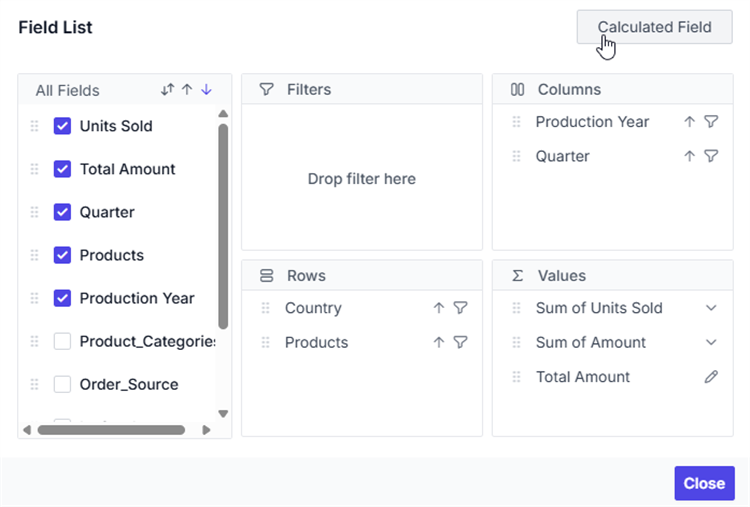

The calculated field support allows end user to add a new calculated field based on the available fields from the bound data source using basic arithmetic operators. To enable this support in Field List UI, set the allowCalculatedField property in pivot table to true in pivot table. Now a button will be seen automatically inside the field list UI which will invoke the calculated field dialog on click. To know more about calculated field, refer here.

output


output


output

Changing aggregation type of value fields at runtime

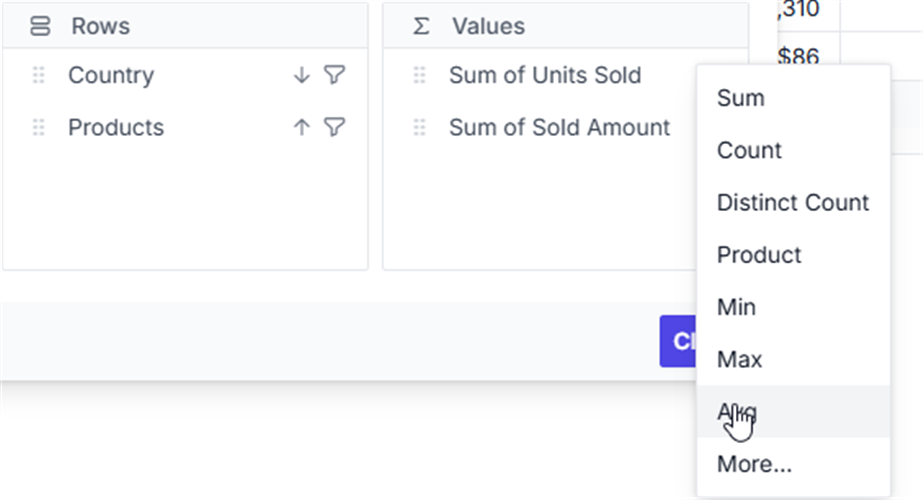

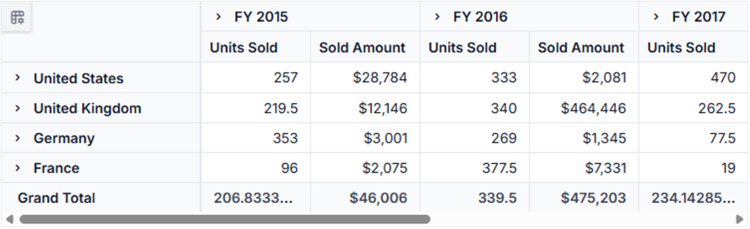

End user can perform calculations over a group of values using the aggregation option. The value fields bound to the field list, appears with a dropdown icon, helps to select an appropriate aggregation type at runtime. On selection, the values in the Pivot Table will be changed dynamically. To know more about aggregation, refer here.

output




output


output

Defer layout update

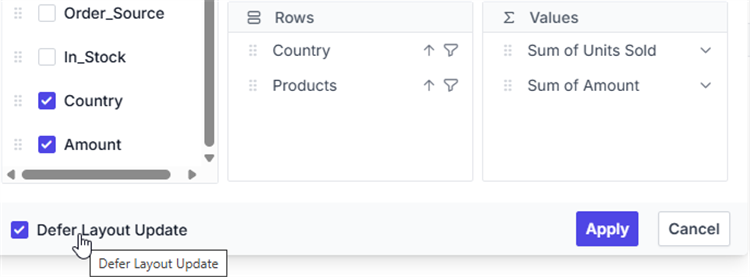

Defer layout update support to update the pivot table only on demand and not during every user action. To enable this support in Field List UI, set the allowDeferLayoutUpdate property to true in pivot table. Now a check box inside Field List UI will be seen in checked state, allowing pivot table to update only on demand. To know more about defer layout, refer here.

output

Show built-in Field List (Popup) over specific target

By passing the target element to the built-in field list dialog module in the dataBound event, the field list dialog will be displayed over the appropriate target element on a web page. By default, the Pivot Table’s parent element is used as the target element to display the built-in field list dialog.

The sample code below shows the built-in field list dialog using document.body as the target element.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, OnInit, ViewChild } from '@angular/core';
import { IDataOptions, IDataSet, PivotView } from '@syncfusion/ej2-angular-pivotview';
import { GridSettings } from '@syncfusion/ej2-pivotview/src/pivotview/model/gridsettings';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  // specifies the template string for the pivot table component
  template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings
  width=width (dataBound)='ondataBound()' showFieldList='true'></ejs-pivotview>`
})
export class AppComponent implements OnInit {
    public width?: string;
    public dataSourceSettings?: IDataOptions;
    public gridSettings?: GridSettings;

    @ViewChild('pivotview',{static: false})
    public pivotGridObj?: PivotView;

    ondataBound(): void {
        (this.pivotGridObj as PivotView).pivotFieldListModule.dialogRenderer.fieldListDialog.target = document.body;
    }

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Show field list using toolbar

It can also be viewed in toolbar by setting showFieldList and showToolbar properties in pivot table to true. Also, include the item FieldList within the toolbar property in pivot table. When toolbar is enabled, field list icon will be automatically added into the toolbar and the icon won’t appear on top left corner in the pivot table component.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, OnInit, ViewChild } from '@angular/core';
import { IDataOptions, IDataSet, ConditionalFormattingService, PivotView,
    FieldListService, ToolbarService, ToolbarItems } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService, ToolbarService ],
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true' [width]=width showToolbar='true' [toolbar]='toolbarOptions'></ejs-pivotview></div>`
})
export class AppComponent implements OnInit {
  public dataSourceSettings?: IDataOptions;
  public width?: string;

    @ViewChild('pivotview', {static: false})
    public pivotGridObj?: PivotView;
    public toolbarOptions?: ToolbarItems[];
    ngOnInit(): void {
        this.toolbarOptions = ['FieldList'] as ToolbarItems[];
        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            enableSorting: true,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
        this.width = '100%';
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Invoking dynamic Field List (Customized)

Also, you can display the field list dialog independently through other means. For example, you can invoke the field list dialog on an external button click. To do so, set renderMode property to Popup and since on button click, field list dialog will be invoked.

  • Meanwhile, you can display the field list dialog over specific target element within a web page using target property. By default, the target value is “null”, which by default refers the document.body element.
  • To make field list interact with pivot table, you need to use the updateView and update methods for data source update in both field list and pivot table simultaneously.

The below sample code illustrates the field list dialog invoked on an external button click.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, ViewChild } from '@angular/core';
import { PivotFieldListComponent, PivotViewComponent, FieldListService, IDataOptions, IDataSet,
    EnginePopulatedEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Browser, setStyleAttribute, prepend } from '@syncfusion/ej2-base';
import { GridSettings } from '@syncfusion/ej2-pivotview/src/pivotview/model/gridsettings';
import { Button } from '@syncfusion/ej2-buttons';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  styleUrls: ['./app.component.css'],
  // specifies the template string for the pivot table component
  template: `<button ej-button id='fieldlistbtn'>Open Field List</button><ejs-pivotfieldlist #pivotfieldlist id='PivotFieldList' [dataSourceSettings]=dataSourceSettings renderMode="Popup" (enginePopulated)='afterPopulate($event)' target='#fieldlisttarget' allowCalculatedField='true' (load)='onLoad()' (dataBound)='ondataBound()'></ejs-pivotfieldlist> <ejs-pivotview #pivotview id='PivotView' height='530' (enginePopulated)='afterEnginePopulate($event)' [gridSettings]='gridSettings'></ejs-pivotview> <div class="col-md-2"></div><div id='fieldlisttarget'></div>`
})

export class AppComponent {
    public dataSourceSettings?: IDataOptions;
    public gridSettings?: GridSettings;
    public button?: Button;

    @ViewChild('pivotview', {static: false})
    public pivotGridObj?: PivotViewComponent;

    @ViewChild('pivotfieldlist')
    public fieldlistObj?: PivotFieldListComponent;

    afterPopulate(arge: EnginePopulatedEventArgs): void {
        if (this.fieldlistObj && this.pivotGridObj) {
            this.fieldlistObj.updateView(this.pivotGridObj);
        }
    }
    afterEnginePopulate(args: EnginePopulatedEventArgs): void {
        if (this.fieldlistObj && this.pivotGridObj) {
            this.fieldlistObj.update(this.pivotGridObj);
        }
    }
    onLoad(): void {
        if (Browser.isDevice) {
            (this.fieldlistObj as PivotFieldListComponent).renderMode = 'Popup';
            (this.fieldlistObj as PivotFieldListComponent).target = '.control-section';
            (document.getElementById('PivotFieldList') as HTMLElement).removeAttribute('style');
            setStyleAttribute(document.getElementById('PivotFieldList') as HTMLElement, {
                'height': 0,
                'float': 'left'
            });
        }
    }

    ondataBound(): void {
        if (Browser.isDevice) {
            prepend([document.getElementById('PivotFieldList') as HTMLElement], document.getElementById('PivotView') as HTMLElement);
        }
    }

    ngOnInit(): void {

        this.gridSettings = {
            columnWidth: 140
        } as GridSettings;

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            enableSorting: true,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };

        this.button = new Button({ isPrimary: true });
        this.button.appendTo('#fieldlistbtn');

        this.button.element.onclick = (): void => {
            (this.fieldlistObj as PivotFieldListComponent).dialogRenderer.fieldListDialog.show();
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Set caption to fields which isn’t bound to the report

One can set the caption to all fields from the data source even if it is not bound to the actual report. It can be achieved using the enginePopulated event. On doing so, caption of the respective field will be displayed in both grouping bar and field list.

In the sample, we have set caption to the fields Year and Quarter dynamically.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, ViewChild } from '@angular/core';
import { IDataOptions, IDataSet, PivotView, FieldListService, PivotViewComponent, EnginePopulatedEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true' width=width  (enginePopulated)='afterPopulate($event)'></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    @ViewChild('pivotview', {static: false})
    public pivotGridObj?: PivotViewComponent;

    afterPopulate(arge: EnginePopulatedEventArgs): void {
        Object.keys((this.pivotGridObj as PivotViewComponent).engineModule.fieldList).forEach((key, index) => {
                if (key === 'Quarter') {
                    (this.pivotGridObj as PivotViewComponent).engineModule.fieldList[key].caption = 'Production Quarter Year';
                }
                else if (key === 'Year') {
                    (this.pivotGridObj as PivotViewComponent).engineModule.fieldList[key].caption = 'Production Year';
                }
        });
    }

    ngOnInit(): void {

        this.width = '100%';
        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            columns: [{ name: 'Products' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Show values button

During runtime, the Values button in the field list can be moved to a different position (i.e., different index) among other fields in the column or row axis. To enable the Values button, set the showValuesButton property to true.

This support is only available for relational data sources.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, ViewChild } from '@angular/core';
import { PivotFieldListComponent, PivotViewComponent, FieldListService, IDataOptions, IDataSet,
    EnginePopulatedEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Browser, setStyleAttribute, prepend } from '@syncfusion/ej2-base';
import { GridSettings } from '@syncfusion/ej2-pivotview/src/pivotview/model/gridsettings';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  styleUrls: ['./app.component.css'],
  // specifies the template string for the pivot table component
  template: `<ejs-pivotfieldlist #pivotfieldlist id='PivotFieldList' [dataSourceSettings]=dataSourceSettings renderMode="Fixed" showValuesButton='true' (enginePopulated)='afterPopulate($event)' allowCalculatedField='true' (load)='onLoad()' (dataBound)='ondataBound()'></ejs-pivotfieldlist>
  <ejs-pivotview #pivotview id='PivotViewFieldList' width='99%' height='530' (enginePopulated)='afterEnginePopulate($event)' [gridSettings]='gridSettings'></ejs-pivotview>`
})

export class AppComponent {
    public dataSourceSettings?: IDataOptions;
    public gridSettings?: GridSettings;

    @ViewChild('pivotview', {static: false})
    public pivotGridObj?: PivotViewComponent;

    @ViewChild('pivotfieldlist')
    public fieldlistObj?: PivotFieldListComponent;

    afterPopulate(arge: EnginePopulatedEventArgs): void {
        if (this.fieldlistObj && this.pivotGridObj) {
            this.fieldlistObj.updateView(this.pivotGridObj);
        }
    }
    afterEnginePopulate(args: EnginePopulatedEventArgs): void {
        if (this.fieldlistObj && this.pivotGridObj) {
            this.fieldlistObj.update(this.pivotGridObj);
        }
    }
    onLoad(): void {
        if (Browser.isDevice) {
            (this.fieldlistObj as PivotFieldListComponent).renderMode = 'Popup';
            (this.fieldlistObj as PivotFieldListComponent).target = '.control-section';
            (document.getElementById('PivotFieldList') as HTMLElement).removeAttribute('style');
            setStyleAttribute(document.getElementById('PivotFieldList') as HTMLElement, {
                'height': 0,
                'float': 'left'
            });
        }
    }

    ondataBound(): void {
        if (Browser.isDevice) {
            prepend([document.getElementById('PivotFieldList') as HTMLElement], document.getElementById('PivotView') as HTMLElement);
        }
    }

    ngOnInit(): void {

        this.gridSettings = {
            columnWidth: 140
        } as GridSettings;

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            enableSorting: true,
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Events

EnginePopulated

The enginePopulated event is available in both Pivot Table and Field List.

  • The event enginePopulated is triggered in field list whenever the report gets modified. The updated report is passed to the pivot table via updateView method written within this event to refresh the same.

  • Likewise, enginePopulated event is triggered in pivot table whenever the report gets modified. The updated report is passed to the field list via update method written within this event to refresh the same.

The event enginePopulated is triggered after engine is populated. It has following parameters - dataSourceSettings, pivotFieldList and pivotValues.

Note: This event is not required for Popup field list since it is a in built one.

FieldListRefreshed

The event fieldListRefreshed is triggered whenever there is any change done in the field list UI. It has following parameter - dataSourceSettings and pivotValues. It allows user to identify each field list update. This event is applicable only for static field list.

For example, if we perform a sort operation within the field list, the field list will be refreshed. The fieldListRefreshed event will be triggered at that time and the user can perform custom operation inside that event.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, ViewChild } from '@angular/core';
import { IDataOptions, IDataSet, PivotView, FieldListService, PivotViewComponent, FieldListRefreshedEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings (fieldListRefreshed)='fieldListRefreshed($event)' showFieldList='true' width=width></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    @ViewChild('pivotview', {static: false})
    public pivotGridObj?: PivotViewComponent;

    fieldListRefreshed(args: FieldListRefreshedEventArgs): void {
        //Triggers, whenever field list get refreshed.
    }

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            allowLabelFilter: true,
            allowValueFilter: true,
            enableSorting: true,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

OnFieldDropped

The event onFieldDropped fires whenever a field is dropped in an axis. It has following parameters - droppedAxis, droppedField and dataSourceSettings. In this illustration, we have modified the droppedField caption through this event at runtime.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, ViewChild } from '@angular/core';
import { IDataOptions, IDataSet, PivotView, FieldListService, PivotViewComponent, FieldDroppedEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings (onFieldDropped)='fieldDropped($event)' showFieldList='true' width=width></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    @ViewChild('pivotview', {static: false})
    public pivotGridObj?: PivotViewComponent;

    fieldDropped(args: FieldDroppedEventArgs | any): void {
        //Triggers, whenever field list get refreshed.
        args.droppedField.caption = args.droppedField.name + " --> " + args.droppedAxis;
    }

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            allowLabelFilter: true,
            allowValueFilter: true,
            enableSorting: true,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

ActionBegin

The event actionBegin triggers when the UI actions such as sorting, filtering, aggregation or edit calculated field, that are present in the field list UI begin. This allows user to identify the current action being performed at runtime. It has the following parameters:

  • dataSourceSettings: It holds the current data source settings such as input data source, rows, columns, values, filters, format settings and so on.

  • actionName: It holds the name of the current action began. The following are the UI actions and their names:

    Action Action Name
    Sort icon Sort field
    Filter icon Filter field
    Aggregation (Value type drop down and menu) Aggregate field
    Edit icon Edit calculated field
    Calculated field button Open calculated field dialog
    Field list Open field list
    Field list tree – Sort icon Sort field tree

  • fieldInfo: It holds the selected field information.

Note: This option is applicable only when the field based UI actions are performed such as filtering, sorting, removing field from grouping bar, editing and aggregation type change.

  • cancel: It allows user to restrict the current action.

In the below sample, opening pop-up field list can be restricted by setting the args.cancel option to true in the actionBegin event.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataOptions, IDataSet, PivotView, FieldListService, PivotActionBeginEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true' (actionBegin)='actionBegin($event)' width=width></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    actionBegin(args: PivotActionBeginEventArgs): void {
        if (args.actionName == 'Open field list') {
            args.cancel = true;
        }
    }

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            allowLabelFilter: true,
            allowValueFilter: true,
            enableSorting: true,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

ActionComplete

The event actionComplete triggers when the UI actions such as sorting, filtering, aggregation or edit calculated field, that are present in the field list UI, is completed. This allows user to identify the current UI actions being completed at runtime. It has the following parameters:

  • dataSourceSettings: It holds the current data source settings such as input data source, rows, columns, values, filters, format settings and so on.

  • actionName: It holds the name of the current action completed. The following are the UI actions and their names:

    Action Action Name
    Sort icon Field sorted
    Filter icon Field filtered
    Aggregation(Value type drop down and menu) Field aggregated
    Edit icon Calculated field edited
    Calculated field button Calculated field applied
    Field list Field list closed
    Field list tree – Sort icon Field tree sorted

  • fieldInfo: It holds the selected field information.

Note: This option is applicable only when the field based UI actions are performed such as filtering, sorting, removing field from grouping bar, editing and aggregation type change.

  • actionInfo: It holds the unique information about the current UI action. For example, if sorting is completed, the event argument contains information such as sort order and the field name.
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataOptions, IDataSet, PivotView, FieldListService, PivotActionCompleteEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true' (actionComplete)='actionComplete($event)' width=width></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    actionComplete(args: PivotActionCompleteEventArgs): void {
        if (args.actionName == 'Field list closed') {
            // Triggers when the field list dialog is closed.
        }
    }

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            allowLabelFilter: true,
            allowValueFilter: true,
            enableSorting: true,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

ActionFailure

The event actionFailure triggers when the current UI action fails to achieve the desired result. It has the following parameters:

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataOptions, IDataSet, PivotView, FieldListService, PivotActionFailureEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [FieldListService],
  // specifies the template string for the pivot table component
  template: `<div><ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true' (actionFailure)='actionFailure($event)' width=width></ejs-pivotview></div>`
})

export class AppComponent {

    public width?: string;
    public dataSourceSettings?: IDataOptions;

    actionFailure(args: PivotActionFailureEventArgs): void {
        if (args.actionName == 'Open field list') {
            // Triggers when the current UI action fails to achieve the desired result.
        }
    }

    ngOnInit(): void {

        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            allowLabelFilter: true,
            allowValueFilter: true,
            enableSorting: true,
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

See Also
