Aggregation in Angular Pivotview component

8 Sep 202524 minutes to read

This feature is applicable only for the relational data source.

End users can perform calculations on groups of values (specifically for value fields placed in the value axis) by using different aggregation types. By default, values are combined by summing them. Additional aggregation types are described below.

Numeric fields support all aggregation types listed below, except CalculatedField. Fields of type string, date, datetime, boolean, and similar types support only Count and DistinctCount aggregation.

Operator Description
Sum Displays the total sum for the selected field values.
Product Displays the product of the selected field values.
Count Displays the number of records for the selected field.
DistinctCount Displays the number of unique records for the selected field.
Min Displays the minimum value for the selected field.
Max Displays the maximum value for the selected field.
Avg Displays the average (mean) of the selected field values.
Median Displays the median value for the selected field.
Index Displays the index value for the selected field data.
PopulationStDev Displays the standard deviation of the population for the selected field.
SampleStDev Displays the sample standard deviation for the selected field.
PopulationVar Displays the variance of the population for the selected field.
SampleVar Displays the sample variance for the selected field.
RunningTotals Displays the running total for the selected field values.
DifferenceFrom Displays the pivot table values with difference from the value of the base item in the base field.
PercentageOfDifferenceFrom Displays the pivot table values with percentage difference from the value of the base item in the base field.
PercentageOfGrandTotal Displays the pivot table values with percentage of grand total of all values.
PercentageOfColumnTotal Displays the pivot table values in each column with percentage of total values for the column.
PercentageOfRowTotal Displays the pivot table values in each row with percentage of total values for the row.
PercentageOfParentTotal Displays the pivot table values with percentage of total of all values based on selected field.
PercentageOfParentColumnTotal Displays the pivot table values with percentage of its parent total in each column.
PercentageOfParentRowTotal Displays the pivot table values with percentage of its parent total in each row.
CalculatedField Displays the pivot table with calculated field values. It allows user to create a new calculated field alone.

Assigning aggregation type for value fields through API

For each value field, the aggregation type can be set using the property type in values. Meanwhile, aggregation types like DifferenceFrom and PercentageOfDifferenceFrom can check for specific field of specific item using baseField and baseItem properties. Likewise, PercentageOfParentTotal type can for specific field using baseField property. For instance, the aggregation type DifferenceFrom would intake the specified field and its corresponding member as input and its value is compared across other members in the same field and also across different fields to formulate an appropriate output value.

  • type: It allows to set the aggregate type of the field.
  • baseField: It allows to set the specific field to aggregate the values.
  • baseItem: It allows to set the specific member to aggregate the values.
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, OnInit } from '@angular/core';
import { IDataSet } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';
import { DataSourceSettingsModel } from '@syncfusion/ej2-pivotview/src/model/datasourcesettings-model';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  // specifies the template string for the pivot table component
  template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings [width]=width></ejs-pivotview>`
})
export class AppComponent implements OnInit {
    public dataSourceSettings?: DataSourceSettingsModel;
    public width?: string;

    ngOnInit(): void {
        this.width = '100%';

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold', type:'DifferenceFrom', baseField:'Country', baseItem:'France'}, { name: 'Amount', caption: 'Sold Amount', type: 'Sum' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

By default, the aggregation will be considered as Sum to the value fields which had number type and for the value fields which had non-number type values such as string, date, datetime, boolean, etc., the aggregation type will be considered as Count.

Modifying aggregation type for value fields at runtime

You can dynamically modify the aggregation type for value fields in the Pivot Table component through the UI at runtime. Value fields, displayed in the grouping bar and field list, include a dropdown icon that allows you to select from various aggregation types (e.g., Sum, Average, Count). Once you select a new aggregation type, the pivot table updates instantly to reflect the change, providing a seamless experience for data analysis.

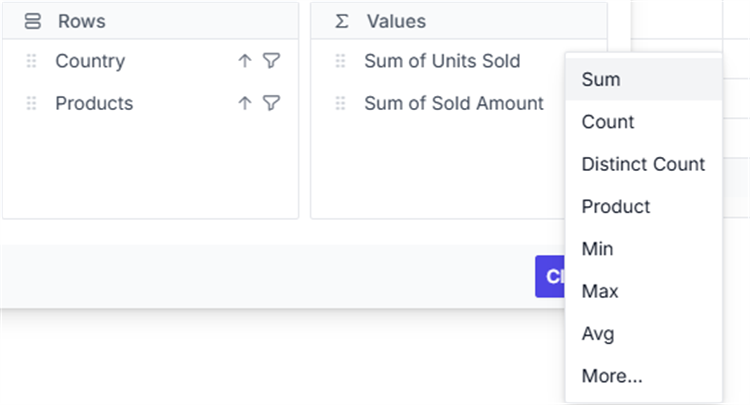

List of pre-defined aggregation types to be changed via Field List

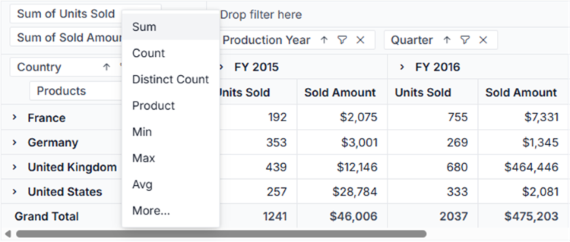

List of pre-defined aggregation types to be changed via Grouping Bar

Show desired aggregation types in its dropdown menu

By default, the dropdown menu for value fields includes all available aggregation types. However, you can customize this menu to display only specific aggregation types relevant to your application using the aggregateTypes property. This allows you to tailor the user experience by limiting the options to those that best fit your use case.

The following code demonstrates how to configure the pivot table component to display only the DistinctCount, Average, and Product aggregation types in the dropdown menu.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, OnInit } from '@angular/core';
import { GroupingBarService, AggregateTypes, IDataSet } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';
import { DataSourceSettingsModel } from '@syncfusion/ej2-pivotview/src/model/datasourcesettings-model';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [GroupingBarService],
  // specifies the template string for the pivot table component
  template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings [width]=width showGroupingBar='true' [aggregateTypes]='aggregateTypesOption'></ejs-pivotview>`
})
export class AppComponent implements OnInit {
    public dataSourceSettings?: DataSourceSettingsModel;
    public width?: string;
    public aggregateTypesOption?: AggregateTypes[];
    ngOnInit(): void {
        this.width = '100%';
        this.aggregateTypesOption = ['DistinctCount', 'Avg', 'Product'],
        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            drilledMembers: [{ name: 'Country', items: ['France'] }],
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount', type: 'Sum' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            filters: [],
        };
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Hiding aggregation type from button text

By default, each field in the value axis is displayed with its name and aggregation type (e.g., “Sum of Units Sold”). To display only the field name (e.g., “Units Sold”) and hide the aggregation type, set the showAggregationOnValueField property in the dataSourceSettings to false.

This customization enhances the clarity of the pivot table’s interface by simplifying the button text, making it more concise and user-friendly.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataSet, PivotView, GroupingBarService } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';
import { DataSourceSettingsModel } from '@syncfusion/ej2-pivotview/src/model/datasourcesettings-model';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [GroupingBarService],
  // specifies the template string for the pivot table component
  template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings [width]=width showGroupingBar='true'></ejs-pivotview>`
})

export class AppComponent {
    public dataSourceSettings?: DataSourceSettingsModel;
    public width?: string;
    ngOnInit(): void {
        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            enableSorting: true,
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: [],
            showAggregationOnValueField: false
        };
        this.width = "100%";
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Hiding aggregation type icon from UI

By default, the dropdown icon to change the aggregation type is visible in the grouping bar. To hide this icon, set the showValueTypeIcon property within groupingBarSettings to false.

The aggregation type icon can only be hidden in the Grouping Bar, not in the Field List.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataSet, PivotView, GroupingBarService, GroupingBarSettings } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';
import { DataSourceSettingsModel } from '@syncfusion/ej2-pivotview/src/model/datasourcesettings-model';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [GroupingBarService],
  // specifies the template string for the pivot table component
  template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings [width]=width showGroupingBar='true' [groupingBarSettings]='groupingSettings'></ejs-pivotview>`
})

export class AppComponent {
    public dataSourceSettings?: DataSourceSettingsModel;
    public groupingSettings?: GroupingBarSettings;
    public width?: string;
    ngOnInit(): void {
        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            enableSorting: true,
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: [],
            showAggregationOnValueField: false
        };
        this.width = "100%";
        this.groupingSettings = {
            showValueTypeIcon: false
        } as GroupingBarSettings;
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Event

AggregateCellInfo

The aggregateCellInfo event triggers each time a value cell is rendered. This allows users to override the cell’s value or skip formatting. The event provides the following parameters:

  • fieldName - It holds current cell’s field name.
  • row - It holds current cell’s row value.
  • column - It holds current cell’s column value.
  • value - It holds value of current cell.
  • cellSets - It holds raw data for the aggregated value cell.
  • rowCellType - It holds row cell type value.
  • columnCellType - It holds column cell type value.
  • aggregateType - It holds aggregate type of the cell.
  • skipFormatting - boolean property, it allows to skip formatting if applied.
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component } from '@angular/core';
import { IDataSet, PivotView, GroupingBarService, AggregateEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';
import { DataSourceSettingsModel } from '@syncfusion/ej2-pivotview/src/model/datasourcesettings-model';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [GroupingBarService],
  // specifies the template string for the pivot table component
  template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings [width]=width showGroupingBar='true' (aggregateCellInfo)='aggregateCell($event)'></ejs-pivotview>`
})

export class AppComponent {
    public dataSourceSettings?: DataSourceSettingsModel;
    public width?: string;
    aggregateCell(args: AggregateEventArgs) {
        args.skipFormatting = true;
    }

    ngOnInit(): void {
        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            enableSorting: true,
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: [],
            showAggregationOnValueField: false
        };
        this.width = "100%";
    }
 }
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

ActionBegin

The event actionBegin triggers when clicking and selecting the aggregate type via the dropdown icon in the value field button, which is present in both grouping bar and field list UI. This allows the user to identify the current action being performed at runtime. It has the following parameters:

  • dataSourceSettings: Contains the current data source settings such as input data source, rows, columns, values, filters, format settings and more.

  • actionName: Provides the name of the current action initiated. For example, when selecting aggregation, the action name is Aggregate field.

  • fieldInfo: Contains information regarding the selected value field.

Note: This option applies only to actions performed through the field-based UI, such as filtering, sorting, removing a field from the grouping bar, editing, and changing the aggregation type.

  • cancel: Allows restricting the current action.

In the following example, an action taken during aggregation type selection via the dropdown icon can be prevented by setting the args.cancel option to true in the actionBegin event.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, OnInit } from '@angular/core';
import { IDataSet, GroupingBarService, FieldListService, PivotActionBeginEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';
import { DataSourceSettingsModel } from '@syncfusion/ej2-pivotview/src/model/datasourcesettings-model';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [GroupingBarService, FieldListService],
  // specifies the template string for the pivot table component
  template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showGroupingBar='true' showFieldList='true' (actionBegin)='actionBegin($event)'  [width]=width></ejs-pivotview>`
})
export class AppComponent implements OnInit {
    public width?: string;
    public dataSourceSettings?: DataSourceSettingsModel;

    actionBegin(args: PivotActionBeginEventArgs): void {
        if (args.actionName == 'Aggregate field') {
            args.cancel = true;
        }
    }

    ngOnInit(): void {

        this.width = "100%";

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' , showFilterIcon: false }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

ActionComplete

The actionComplete event is triggered when a UI action is completed, such as changing the aggregation type using the dropdown icon in the value field button, available within both the grouping bar and field list user interfaces. This event enables users to identify which UI action has been completed at runtime. The event provides the following parameters:

  • dataSourceSettings: The current data source settings, including input data source, rows, columns, values, filters, format settings, and related properties.
  • actionName: Specifies the name of the completed action. For example, after changing the aggregation type, the value will be Field aggregated.
  • fieldInfo: Contains information about the selected value field.
  • actionInfo: Defines the unique information about the current UI action performed.

Note: This event is triggered only when field-based UI actions are performed, such as filtering, sorting, removing a field from the grouping bar, editing, or changing the aggregation type.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, OnInit } from '@angular/core';
import { IDataSet, GroupingBarService, FieldListService, PivotActionCompleteEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';
import { DataSourceSettingsModel } from '@syncfusion/ej2-pivotview/src/model/datasourcesettings-model';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [GroupingBarService, FieldListService],
  // specifies the template string for the pivot table component
  template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showGroupingBar='true' (actionComplete)='actionComplete($event)'   showFieldList='true' [width]=width></ejs-pivotview>`
})
export class AppComponent implements OnInit {
    public width?: string;
    public dataSourceSettings?: DataSourceSettingsModel;

    actionComplete(args: PivotActionCompleteEventArgs): void {
        if (args.actionName == 'Field aggregated') {
            // Triggers when the aggregation type is applied.
        }
    }

    ngOnInit(): void {

        this.width = "100%";

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' , showFilterIcon: false }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

ActionFailure

The actionFailure event is triggered when a UI action fails to produce the expected result. This event provides detailed information about the failure through the following parameters:

  • actionName: Specifies the name of the failed action. For example, if the failure occurs during aggregation, the action name will be Aggregate field.
  • errorInfo: Contains detailed error information related to the failed UI action.
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { PivotViewAllModule, PivotFieldListAllModule } from '@syncfusion/ej2-angular-pivotview'



import { Component, OnInit } from '@angular/core';
import { IDataSet, GroupingBarService, FieldListService, PivotActionFailureEventArgs } from '@syncfusion/ej2-angular-pivotview';
import { Pivot_Data } from './datasource';
import { DataSourceSettingsModel } from '@syncfusion/ej2-pivotview/src/model/datasourcesettings-model';

@Component({
imports: [

        PivotViewAllModule,
        PivotFieldListAllModule
    ],


standalone: true,
  selector: 'app-container',
  providers: [GroupingBarService, FieldListService],
  // specifies the template string for the pivot table component
  template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showGroupingBar='true' (actionFailure)='actionFailure($event)'  showFieldList='true' [width]=width></ejs-pivotview>`
})
export class AppComponent implements OnInit {
    public width?: string;
    public dataSourceSettings?: DataSourceSettingsModel;

    actionFailure(args: PivotActionFailureEventArgs): void {
        if (args.actionName == 'Aggregate field') {
            // Triggers when the current UI action fails to achieve the desired result.
        }
    }

    ngOnInit(): void {

        this.width = "100%";

        this.dataSourceSettings = {
            dataSource: Pivot_Data as IDataSet[],
            expandAll: false,
            columns: [{ name: 'Year', caption: 'Production Year' }, { name: 'Quarter' }],
            values: [{ name: 'Sold', caption: 'Units Sold' }, { name: 'Amount', caption: 'Sold Amount' }],
            rows: [{ name: 'Country' }, { name: 'Products' , showFilterIcon: false }],
            formatSettings: [{ name: 'Amount', format: 'C0' }],
            filters: []
        };
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
