Bar Chart in Angular Charts

13 Mar 202624 minutes to read

Bar

Bar charts are ideal for comparing values across different categories, displaying data horizontally where the length of each bar represents the value.

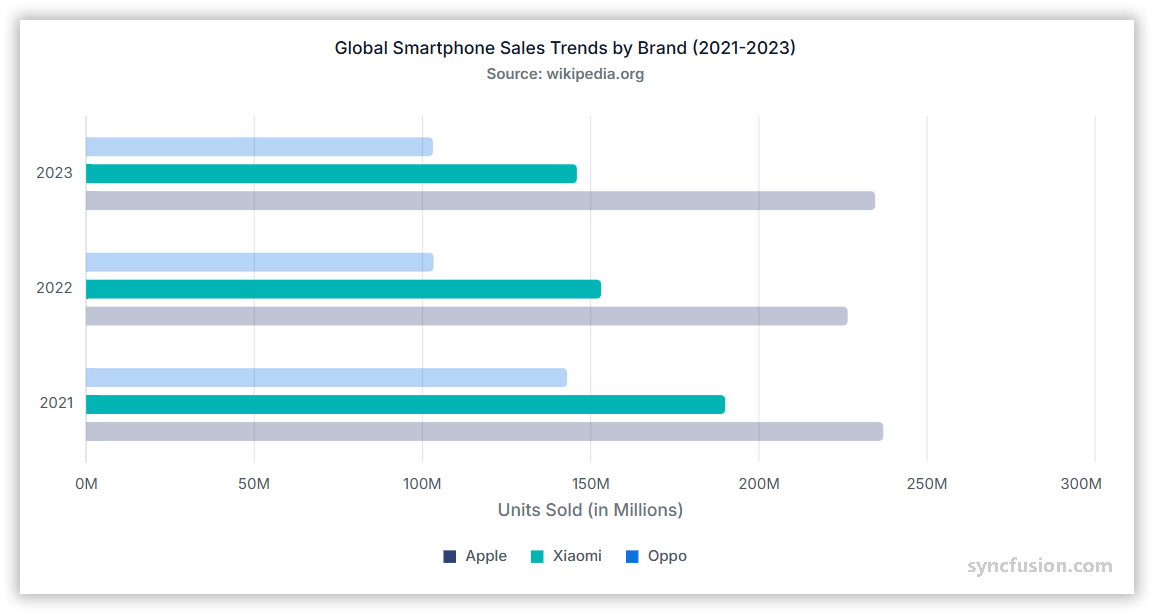

Bar chart showing data trends

To render a bar series in your chart:

  1. Set the series type: Define the series type as Bar in your chart configuration. This indicates that the data should be represented as a bar chart, which makes it easy to compare values across categories.

  2. Inject the BarSeries module: Use the @NgModule.providers method to inject the BarSeriesService module into your chart. This step is essential, as it ensures that the necessary functionalities for rendering bar series are available in your chart.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts';
import { BarSeriesService, TooltipService, CategoryService, LegendService } from '@syncfusion/ej2-angular-charts';
import { Component, OnInit } from '@angular/core';
import { appleSalesData, xiaomiSalesData, oppoSalesData } from './datasource';

@Component({
    imports: [ChartModule, ChartAllModule],
    providers: [BarSeriesService, CategoryService, LegendService, TooltipService],
    standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis'[primaryYAxis]='primaryYAxis' [title]='title' [legendSettings]='legendSettings' [tooltip]='tooltip' [chartArea]='chartArea'>
        <e-series-collection>
            <e-series [dataSource]='appleChartData' type='Bar' xName='year' yName='count' name='Apple' columnSpacing=0.3 legendShape='Rectangle' [cornerRadius]='cornerRadius'></e-series>
            <e-series [dataSource]='xiaomiChartData' type='Bar' xName='year' yName='count' name='Xiaomi' columnSpacing=0.3 legendShape='Rectangle' [cornerRadius]='cornerRadius'></e-series>
            <e-series [dataSource]='oppoChartData' type='Bar' xName='year' yName='count' name='Oppo' columnSpacing=0.3 legendShape='Rectangle' [cornerRadius]='cornerRadius'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public appleChartData?: Object[];
    public xiaomiChartData?: Object[];
    public oppoChartData?: Object[];
    public title?: string;
    public primaryYAxis?: Object;
    public legendSettings?: Object;
    public tooltip?: Object;
    public cornerRadius?: Object;
    public chartArea?: Object;
    ngOnInit(): void {
        this.appleChartData = appleSalesData;
        this.xiaomiChartData = xiaomiSalesData;
        this.oppoChartData = oppoSalesData;
        this.primaryXAxis = {
            valueType: 'Category',
            majorTickLines: { width: 0 },
            lineStyle: { width: 0 }
        };
        this.primaryYAxis = {
            labelFormat: '{value}M',
            title: 'Units Sold (in Millions)',
            maximum: 300,
            edgeLabelPlacement: 'Shift',
            majorTickLines: { width: 0 },
            majorGridLines: { width: 0 },
            lineStyle: { width: 0 }
        };
        this.title = 'Global Smartphone Sales Trends by Brand (2022-2024)';
        this.legendSettings = {
            visible: true,
            enableHighlight: true,
            shapeWidth: 9,
            shapeHeight: 9
        };
        this.tooltip = {
            enable: true,
            enableHighlight: true,
            header: '<b>${series.name}</b>',
            format: '${point.x} : <b>${point.y}</b>'
        };
        this.cornerRadius = {
            topRight: 4,
            bottomRight: 4
        };
        this.chartArea = {
            border: {
                width: 0
            },
            margin: {
                bottom: 12
            }
        };
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let appleSalesData: Object[] = [
  { year: '2022', count: 226.4 },
  { year: '2023', count: 234.6 },
  { year: '2024', count: 232.1 }
];

export let xiaomiSalesData: Object[] = [
  { year: '2022', count: 153.1 },
  { year: '2023', count: 145.9 },
  { year: '2024', count: 168.5 }
];

export let oppoSalesData: Object[] = [
  { year: '2022', count: 103.3 },
  { year: '2023', count: 103.1 },
  { year: '2024', count: 104.8 }
];

Binding data with series

You can bind data to the chart using the dataSource property within the series configuration. This allows you to connect a JSON dataset or remote data to your chart. To display the data correctly, map the fields from the data to the chart series xName and yName properties.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts';
import { BarSeriesService, TooltipService, CategoryService, LegendService } from '@syncfusion/ej2-angular-charts';
import { Component, OnInit } from '@angular/core';
import { appleSalesData, xiaomiSalesData, oppoSalesData } from './datasource';

@Component({
    imports: [ChartModule, ChartAllModule],
    providers: [BarSeriesService, CategoryService, LegendService, TooltipService],
    standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis'[primaryYAxis]='primaryYAxis' [title]='title' [legendSettings]='legendSettings' [tooltip]='tooltip' [chartArea]='chartArea'>
        <e-series-collection>
            <e-series [dataSource]='appleChartData' type='Bar' xName='year' yName='count' name='Apple' columnSpacing=0.3 legendShape='Rectangle' [cornerRadius]='cornerRadius'></e-series>
            <e-series [dataSource]='xiaomiChartData' type='Bar' xName='year' yName='count' name='Xiaomi' columnSpacing=0.3 legendShape='Rectangle' [cornerRadius]='cornerRadius'></e-series>
            <e-series [dataSource]='oppoChartData' type='Bar' xName='year' yName='count' name='Oppo' columnSpacing=0.3 legendShape='Rectangle' [cornerRadius]='cornerRadius'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public appleChartData?: Object[];
    public xiaomiChartData?: Object[];
    public oppoChartData?: Object[];
    public title?: string;
    public primaryYAxis?: Object;
    public legendSettings?: Object;
    public tooltip?: Object;
    public cornerRadius?: Object;
    public chartArea?: Object;
    ngOnInit(): void {
        this.appleChartData = appleSalesData;
        this.xiaomiChartData = xiaomiSalesData;
        this.oppoChartData = oppoSalesData;
        this.primaryXAxis = {
            valueType: 'Category',
            majorTickLines: { width: 0 },
            lineStyle: { width: 0 }
        };
        this.primaryYAxis = {
            labelFormat: '{value}M',
            title: 'Units Sold (in Millions)',
            maximum: 300,
            edgeLabelPlacement: 'Shift',
            majorTickLines: { width: 0 },
            majorGridLines: { width: 0 },
            lineStyle: { width: 0 }
        };
        this.title = 'Global Smartphone Sales Trends by Brand (2022-2024)';
        this.legendSettings = {
            visible: true,
            enableHighlight: true,
            shapeWidth: 9,
            shapeHeight: 9
        };
        this.tooltip = {
            enable: true,
            enableHighlight: true,
            header: '<b>${series.name}</b>',
            format: '${point.x} : <b>${point.y}</b>'
        };
        this.cornerRadius = {
            topRight: 4,
            bottomRight: 4
        };
        this.chartArea = {
            border: {
                width: 0
            },
            margin: {
                bottom: 12
            }
        };
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let appleSalesData: Object[] = [
  { year: '2022', count: 226.4 },
  { year: '2023', count: 234.6 },
  { year: '2024', count: 232.1 }
];

export let xiaomiSalesData: Object[] = [
  { year: '2022', count: 153.1 },
  { year: '2023', count: 145.9 },
  { year: '2024', count: 168.5 }
];

export let oppoSalesData: Object[] = [
  { year: '2022', count: 103.3 },
  { year: '2023', count: 103.1 },
  { year: '2024', count: 104.8 }
];

Series customization

The following properties can be used to customize the appearance of the bar series.

Fill

The fill property determines the color applied to the series.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts';
import { BarSeriesService, TooltipService, CategoryService, LegendService } from '@syncfusion/ej2-angular-charts';
import { Component, OnInit } from '@angular/core';
import { appleSalesData, xiaomiSalesData, oppoSalesData } from './datasource';
