Getting started with Angular Chart component

25 Jul 202424 minutes to read

This section explains you the steps required to create a simple Angular Chart and demonstrate the basic usage of the Chart component in an Angular environment.

To get start quickly with Angular Chart using CLI and Schematics, you can check on this video:

Setup Angular Environment

You can use Angular CLI to setup your Angular applications. For more details about Angular CLI and Node versions, please refer to this page.

To install Angular CLI use the following command.

npm install -g @angular/cli

Create an Angular Application

Start a new Angular application using below Angular CLI command.

ng new my-app
cd my-app

Installing Syncfusion Chart package

Syncfusion packages are distributed in npm as @syncfusion scoped packages. You can get all the Angular Syncfusion package from npm link.

Currently, Syncfusion provides two types of package structures for Angular components,

  1. Ivy library distribution package format
  2. Angular compatibility compiler(Angular’s legacy compilation and rendering pipeline) package.

Ivy library distribution package

Syncfusion Angular packages(>=20.2.36) has been moved to the Ivy distribution to support the Angular Ivy rendering engine and the package are compatible with Angular version 12 and above. To download the package use the below command.

Add @syncfusion/ej2-angular-charts package to the application.

npm install @syncfusion/ej2-angular-charts --save

Angular compatibility compiled package(ngcc)

For Angular version below 12, you can use the legacy (ngcc) package of the Syncfusion Angular components. To download the ngcc package use the below.

Add @syncfusion/ej2-angular-charts@ngcc package to the application.

npm install @syncfusion/ej2-angular-charts@ngcc --save

To mention the ngcc package in the package.json file, add the suffix -ngcc with the package version as below.

@syncfusion/ej2-angular-charts:"20.2.38-ngcc"

Note: If the ngcc tag is not specified while installing the package, the Ivy Library Package will be installed and this package will throw a warning.

Add Chart component

Modify the template in app.component.ts file to render the ej2-angular-charts component [src/app/app.component.ts].

import { ChartModule, ChartAllModule} from '@syncfusion/ej2-angular-charts'
import { Component, ViewEncapsulation } from '@angular/core';

@Component({
imports: [
  ChartModule,
  ChartAllModule
],
standalone: true,
selector: 'app-root',
// specifies the template string for the Charts component
template: `<ejs-chart id='chart-container'></ejs-chart>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent { }

Now use the app-container in the index.html instead of default one.

<app-container></app-container>
  • Now run the application in the browser using the below command.
npm start

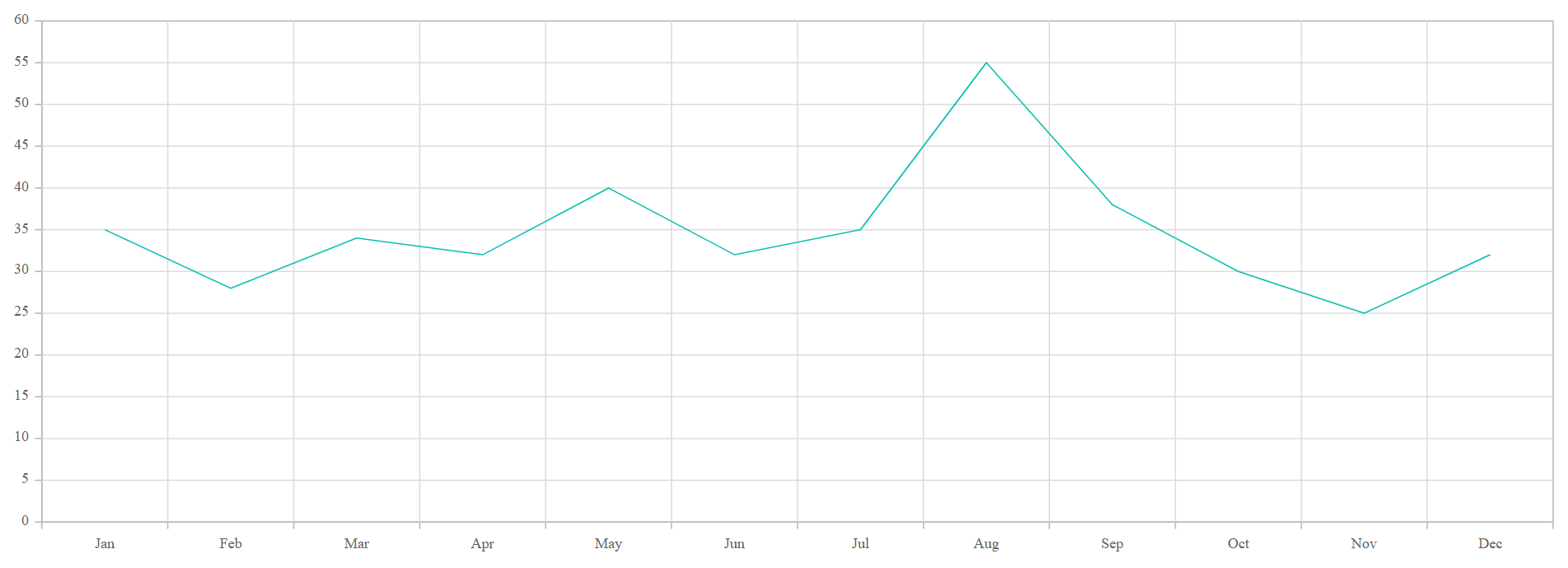

The below example shows a basic Charts.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ChartModule} from '@syncfusion/ej2-angular-charts'



import { Component } from '@angular/core';

@Component({
imports: [
         ChartModule
    ],

standalone: true,
    selector: 'app-container',
    // specifies the template string for the Chart component
    template: `<ejs-chart id="chart-container"></ejs-chart>`
})
export class AppComponent {

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app/app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Module Injection

Chart component are segregated into individual feature-wise modules. In order to use a particular feature, you need to inject its feature service in the app.component.ts. In the current application, we are going to modify the above basic chart to visualize sales data for a particular year.
For this application we are going to use line series, tooltip, data label, category axis and legend feature of the chart. Please find relevant feature service name and description as follows.

  • LineSeriesService - Inject this provider to use line series.
  • LegendService - Inject this provider to use legend feature.
  • TooltipService - Inject this provider to use tooltip feature.
  • DataLabelService - Inject this provider to use datalabel feature.
  • CategoryService - Inject this provider to use category feature.

These modules should be injected to the provider section as follows,

    import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
    import { CategoryService, LegendService, TooltipService } from '@syncfusion/ej2-angular-charts';
    import { DataLabelService, LineSeriesService} from '@syncfusion/ej2-angular-charts';
    import { Component } from '@angular/core';

    @Component({
        imports: [
            ChartModule,
            ChartAllModule
        ],
        standalone: true,
        providers: [ CategoryService, LegendService, TooltipService, DataLabelService, LineSeriesService ]
    })

Populate Chart with Data

This section explains how to plot below JSON data to the chart.

    export class AppComponent implements OnInit {
    public chartData: Object[];
    ngOnInit(): void {
        // Data for chart series
        this.chartData = [
            { month: 'Jan', sales: 35 }, { month: 'Feb', sales: 28 },
            { month: 'Mar', sales: 34 }, { month: 'Apr', sales: 32 },
            { month: 'May', sales: 40 }, { month: 'Jun', sales: 32 },
            { month: 'Jul', sales: 35 }, { month: 'Aug', sales: 55 },
            { month: 'Sep', sales: 38 }, { month: 'Oct', sales: 30 },
            { month: 'Nov', sales: 25 }, { month: 'Dec', sales: 32 }
        ];
    }

}

Add a series object to the chart by using series property. Now map the field names month and sales in the JSON data to the xName and yName properties of the series, then set the JSON data to dataSource property.

Since the JSON contains category data, set the valueTypefor horizontal axis to Category. By default, the axis valueType is Numeric.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, LineSeriesService} from '@syncfusion/ej2-angular-charts'




import { Component, OnInit } from '@angular/core';

@Component({
imports: [
         ChartModule
    ],

providers: [ CategoryService, LineSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Line' xName='month' yName='sales' name='Sales'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    ngOnInit(): void {
        // Data for chart series
        this.chartData = [
            { month: 'Jan', sales: 35 }, { month: 'Feb', sales: 28 },
            { month: 'Mar', sales: 34 }, { month: 'Apr', sales: 32 },
            { month: 'May', sales: 40 }, { month: 'Jun', sales: 32 },
            { month: 'Jul', sales: 35 }, { month: 'Aug', sales: 55 },
            { month: 'Sep', sales: 38 }, { month: 'Oct', sales: 30 },
            { month: 'Nov', sales: 25 }, { month: 'Dec', sales: 32 }
        ];
        this.primaryXAxis = {
            valueType: 'Category'
        };
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app/app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

The sales data are in thousands, so format the vertical axis label by adding
$ as a prefix and K as a suffix to each label. This can be achieved by setting the
${value}K to the labelFormat property of axis. Here, {value} act as a placeholder
for each axis label.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, LineSeriesService} from '@syncfusion/ej2-angular-charts'




import { Component, OnInit } from '@angular/core';

@Component({
imports: [
         ChartModule
    ],

providers: [ CategoryService, LineSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [primaryYAxis]='primaryYAxis'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Line' xName='month' yName='sales' name='Sales'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public primaryYAxis?: Object;
    public chartData?: Object[];
    ngOnInit(): void {
        this.chartData = [
            { month: 'Jan', sales: 35 }, { month: 'Feb', sales: 28 },
            { month: 'Mar', sales: 34 }, { month: 'Apr', sales: 32 },
            { month: 'May', sales: 40 }, { month: 'Jun', sales: 32 },
            { month: 'Jul', sales: 35 }, { month: 'Aug', sales: 55 },
            { month: 'Sep', sales: 38 }, { month: 'Oct', sales: 30 },
            { month: 'Nov', sales: 25 }, { month: 'Dec', sales: 32 }
        ];
        this.primaryXAxis = {
            valueType: 'Category'
        };
        this.primaryYAxis = {
            labelFormat: '${value}K'
        };
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app/app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Add Chart Title

You can add a title using title property to the chart to provide
quick information to the user about the data plotted in the chart.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ChartModule} from '@syncfusion/ej2-angular-charts'
import { CategoryService, LegendService, TooltipService, DataLabelService, LineSeriesService} from '@syncfusion/ej2-angular-charts'




import { Component, OnInit } from '@angular/core';

@Component({
imports: [
         ChartModule
    ],

providers: [ CategoryService, LegendService, TooltipService, DataLabelService, LineSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [primaryYAxis]='primaryYAxis'
    [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Line' xName='month' yName='sales' name='Sales'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public primaryYAxis?: Object;
    public title?: string;
    ngOnInit(): void {
        // Title for chart
        this.title = 'Sales Analysis';
        this.chartData = [
            { month: 'Jan', sales: 35 }, { month: 'Feb', sales: 28 },
            { month: 'Mar', sales: 34 }, { month: 'Apr', sales: 32 },
            { month: 'May', sales: 40 }, { month: 'Jun', sales: 32 },
            { month: 'Jul', sales: 35 }, { month: 'Aug', sales: 55 },
            { month: 'Sep', sales: 38 }, { month: 'Oct', sales: 30 },
            { month: 'Nov', sales: 25 }, { month: 'Dec', sales: 32 }
        ];
        this.primaryXAxis = {
            valueType: 'Category'
        };
        this.primaryYAxis = {
            labelFormat: '${value}K'
        };
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app/app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Enable Legend

You can use legend for the chart by setting the visible property to true in legendSettings object and by injecting the LegendService into the @NgModule.providers.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, LegendService, LineSeriesService} from '@syncfusion/ej2-angular-charts'




import { Component, OnInit } from '@angular/core';

@Component({
imports: [
         ChartModule
    ],

providers: [ CategoryService, LegendService, LineSeriesService ],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [primaryYAxis]='primaryYAxis' [legendSettings]='legendSettings' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Line' xName='month' yName='sales' name='Sales'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public primaryYAxis?: Object;
    public legendSettings?: Object;
    public title?: string;
    ngOnInit(): void {
        // Legend for chart
        this.legendSettings = {
            visible: true
        }
        this.chartData = [
            { month: 'Jan', sales: 35 }, { month: 'Feb', sales: 28 },
            { month: 'Mar', sales: 34 }, { month: 'Apr', sales: 32 },
            { month: 'May', sales: 40 }, { month: 'Jun', sales: 32 },
            { month: 'Jul', sales: 35 }, { month: 'Aug', sales: 55 },
            { month: 'Sep', sales: 38 }, { month: 'Oct', sales: 30 },
            { month: 'Nov', sales: 25 }, { month: 'Dec', sales: 32 }
        ];
        this.primaryXAxis = {
            valueType: 'Category'
        };
        this.primaryYAxis = {
            labelFormat: '${value}K'
        };
        this.title = 'Sales Analysis';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app/app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Add Data Label

You can add data labels to improve the readability of the chart.
This can be achieved by setting the visible property to true in the dataLabel object and by injecting DataLabelService into the @NgModule.providers.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, LegendService, DataLabelService, LineSeriesService} from '@syncfusion/ej2-angular-charts'




import { Component, OnInit } from '@angular/core';

@Component({
imports: [
         ChartModule
    ],

providers: [ CategoryService, LegendService, DataLabelService, LineSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [primaryYAxis]='primaryYAxis' [legendSettings]='legendSettings' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Line' xName='month' yName='sales' name='Sales' [marker]='marker'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public primaryYAxis?: Object;
    public legendSettings?: Object;
    public marker?: Object;
    public title?: string;
    ngOnInit(): void {
        // Data label for chart series
        this.marker = {
            dataLabel:{
                visible: true
            }
        };
        this.chartData = [
            { month: 'Jan', sales: 35 }, { month: 'Feb', sales: 28 },
            { month: 'Mar', sales: 34 }, { month: 'Apr', sales: 32 },
            { month: 'May', sales: 40 }, { month: 'Jun', sales: 32 },
            { month: 'Jul', sales: 35 }, { month: 'Aug', sales: 55 },
            { month: 'Sep', sales: 38 }, { month: 'Oct', sales: 30 },
            { month: 'Nov', sales: 25 }, { month: 'Dec', sales: 32 }
        ];
        this.primaryXAxis = {
            valueType: 'Category'
        };
        this.primaryYAxis = {
            labelFormat: '${value}K'
        };
        this.legendSettings = {
            visible: true
        };
        this.title = 'Sales Analysis';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app/app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Enable Tooltip

The tooltip is useful when you cannot display information by using the data labels due to space constraints. You can enable tooltip by setting the enable property as true in tooltip object and by injecting TooltipService into the @NgModule.providers.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ChartModule} from '@syncfusion/ej2-angular-charts'
import { CategoryService, LegendService, TooltipService, DataLabelService, LineSeriesService} from '@syncfusion/ej2-angular-charts'




import { Component, OnInit } from '@angular/core';

@Component({
imports: [
         ChartModule
    ],

providers: [ CategoryService, LegendService, TooltipService, DataLabelService, LineSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [primaryYAxis]='primaryYAxis'
    [legendSettings]='legendSettings' [tooltip]='tooltip' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Line' xName='month' yName='sales' name='Sales' [marker]='marker'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public primaryYAxis?: Object;
    public legendSettings?: Object;
    public tooltip?: Object;
    public title?: string;
    public marker?: Object;
    ngOnInit(): void {
        // Tooltip for chart
        this.tooltip = {
            enable: true
        }
        this.chartData = [
            { month: 'Jan', sales: 35 }, { month: 'Feb', sales: 28 },
            { month: 'Mar', sales: 34 }, { month: 'Apr', sales: 32 },
            { month: 'May', sales: 40 }, { month: 'Jun', sales: 32 },
            { month: 'Jul', sales: 35 }, { month: 'Aug', sales: 55 },
            { month: 'Sep', sales: 38 }, { month: 'Oct', sales: 30 },
            { month: 'Nov', sales: 25 }, { month: 'Dec', sales: 32 }
        ];
        this.primaryXAxis = {
            valueType: 'Category'
        };
        this.primaryYAxis = {
            labelFormat: '${value}K'
        };
        this.marker = {
            dataLabel:{
                visible: true
            }
        };
        this.legendSettings = {
            visible: true
        };
        this.title = 'Sales Analysis';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app/app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

You can also explore our Angular Charts example that shows various chart types and how to represent time-dependent data, showing trends in data at equal intervals.
