Getting started with EJ2 JavaScript Maps component

28 Feb 202624 minutes to read

This section explains the steps required to create a simple Essential® JS 2 Maps and demonstrate the basic usage of the Maps control in a JavaScript application.

You can explore some useful features in the Maps component using the following video.

Dependencies

A list of dependencies to use the Maps with all features.

|-- @syncfusion/ej2-maps
    |-- @syncfusion/ej2-base
    |-- @syncfusion/ej2-data
    |-- @syncfusion/ej2-svg-base
    |-- @syncfusion/ej2-pdf-export
    |-- @syncfusion/ej2-file-utils
    |-- @syncfusion/ej2-compression

Setup for local environment

Refer to the following steps to set up your local environment.

Step 1: Create a root folder named my-app for your application.

Step 2: Create a my-app/resources folder to store local scripts and styles files.

Step 3: Open Visual Studio Code and create my-app/index.js and my-app/index.html files to initialize the Essential® JS 2 Maps control.

Adding Syncfusion® resources

The Essential® JS 2 Maps control can be initialized by using either of the following ways.

  • Using local script and style.
  • Using CDN link for script and style.

Using local script and style

To use local scripts and styles for Syncfusion® Maps, you can follow these steps:

1. Download Essential Studio® JavaScript (Essential® JS 2): Obtain the global scripts and styles from the Essential Studio® JavaScript (Essential® JS 2) build installation location.

2. Copy Files to Resources Folder: After installing the Essential® JS 2 product build, copy the Maps’s scripts, and dependencies scripts and style file into the designated folders:

  • Scripts: Copy the scripts to the resources/scripts folder.
  • Styles: Copy the styles to the resources/styles folder.

3. Locate Script and Style Files: Identify the location of the Maps’s script and style files. The syntax for the file paths are as follows:

Syntax:

Script: **(installed location)**/Syncfusion/Essential Studio/{RELEASE_VERSION}/Essential JS 2/{PACKAGE_NAME}/dist/global/{PACKAGE_NAME}.min.js

Styles: **(installed location)**/Syncfusion/Essential Studio/{RELEASE_VERSION}/Essential JS 2/{PACKAGE_NAME}/styles/material.css

Example:

Script: C:/Program Files (x86)/Syncfusion/Essential Studio/25.1.35/Essential JS 2/ej2-maps/dist/global/ej2-maps.min.js

Styles: C:/Program Files (x86)/Syncfusion/Essential Studio/25.1.35/Essential JS 2/ej2-maps/styles/material.css

4. Referencing in HTML File: Once the files are copied, reference the Maps’s scripts and styles into the index.html file.

Here’s an example of referencing the Maps’s scripts and styles in an HTML file:

a. Essential® Dependency (Minimal Setup)

This setup includes only the necessary scripts and styles required to render the Syncfusion® Maps. Use this setup for a lightweight application that requires basic Maps functionality.

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">

<head>
    <title>Essential JS 2 Maps</title>

    <!-- Essential JS 2 Maps's dependent material theme -->
    <link href="resources/base/styles/material.css" rel="stylesheet" type="text/css" />
    <link href="resources/maps/styles/material.css" rel="stylesheet" type="text/css" />

    <!-- Essential JS 2 Maps's dependent scripts -->
    <script src="resources/scripts/ej2-base.min.js" type="text/javascript"></script>
    <script src="resources/scripts/ej2-data.min.js" type="text/javascript"></script>
    <script src="resources/scripts/ej2-svg-base.min.js" type="text/javascript"></script>

    <!-- Essential JS 2 Maps's global script -->
    <script src="resources/scripts/ej2-maps.min.js" type="text/javascript"></script>
</head>

<body>
</body>

</html>

b. Extended Dependency (Additional Components)

This setup includes additional dependencies required for more advanced functionalities of the Maps, such as PDF export and compression features. Use this setup when you need to integrate additional features like exporting and more.

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">

<head>
    <title>Essential JS 2 Maps</title>

    <!-- Essential JS 2 Maps's dependent material theme -->
    <link href="resources/base/styles/material.css" rel="stylesheet" type="text/css" />
    <link href="resources/maps/styles/material.css" rel="stylesheet" type="text/css" />

    <!-- Essential JS 2 Maps's dependent scripts -->
    <script src="resources/scripts/ej2-base.min.js" type="text/javascript"></script>
    <script src="resources/scripts/ej2-data.min.js" type="text/javascript"></script>
    <script src="resources/scripts/ej2-svg-base.min.js" type="text/javascript"></script>
    <script src="resources/scripts/ej2-pdf-export.min.js" type="text/javascript"></script>
    <script src="resources/scripts/ej2-file-utils.min.js" type="text/javascript"></script>
    <script src="resources/scripts/ej2-compression.min.js" type="text/javascript"></script>

    <!-- Essential JS 2 Maps's global script -->
    <script src="resources/scripts/ej2-maps.min.js" type="text/javascript"></script>
</head>

<body>
</body>

</html>

c. Comprehensive Dependency (All Components)

This setup includes all possible dependencies for Syncfusion® components in a single comprehensive file, ensuring maximum compatibility and functionality. Use this setup for a complex application that utilizes a wide range of Syncfusion® components.

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">

<head>
    <title>Essential JS 2 Maps</title>

    <!-- Essential JS 2 material theme -->
    <link href="resources/styles/material.css" rel="stylesheet" type="text/css" />
    <!-- Essential JS 2 script -->
    <script src="resources/scripts/ej2.min.js" type="text/javascript"></script>
</head>

<body>
</body>

</html>

Using CDN links, you can directly refer the Maps control’s script and style into the index.html.

Refer the Maps’s CDN links as below

Syntax:

Script: http://cdn.syncfusion.com/ej2/{PACKAGE_NAME}/dist/global/{PACKAGE_NAME}.min.js

Styles: http://cdn.syncfusion.com/ej2/{PACKAGE_NAME}/styles/material.css

Example:

Script: https://cdn.syncfusion.com/ej2/ej2-maps/dist/global/ej2-maps.min.js

Styles: https://cdn.syncfusion.com/ej2/ej2-maps/styles/material.css

Here’s an example of referencing the Maps’s scripts and styles in an HTML file using CDN links:

a. Essential® Dependency (Minimal Setup)

This setup includes only the necessary scripts and styles required to render the Syncfusion® Maps. Use this setup for a lightweight application that requires basic Maps functionality.

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">

<head>
    <title>Essential JS 2 Maps</title>

    <!-- Essential JS 2 Maps's dependent material theme -->
    <link href="http://cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" type="text/css" />
    <link href="https://cdn.syncfusion.com/ej2/ej2-maps/styles/material.css" rel="stylesheet" type="text/css" />

    <!-- Essential JS 2 Maps's dependent script -->
    <script src="http://cdn.syncfusion.com/ej2/ej2-base/dist/global/ej2-base.min.js" type="text/javascript"></script>
    <script src="http://cdn.syncfusion.com/ej2/ej2-data/dist/global/ej2-data.min.js" type="text/javascript"></script>
    <script src="http://cdn.syncfusion.com/ej2/ej2-svg-base/dist/global/ej2-svg-base.min.js" type="text/javascript"></script>

    <!-- Essential JS 2 Maps's global script -->
    <script src="https://cdn.syncfusion.com/ej2/ej2-maps/dist/global/ej2-maps.min.js" type="text/javascript"></script>
</head>

<body>
</body>

</html>

b. Extended Dependency (Additional Components)

This setup includes additional dependencies required for more advanced functionalities of the Maps, such as PDF export and compression features. Use this setup when you need to integrate additional features like exporting and more.

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">

<head>
    <title>Essential JS 2 Maps</title>

    <!-- Essential JS 2 Maps's dependent material theme -->
    <link href="http://cdn.syncfusion.com/ej2/ej2-base/styles/material.css" rel="stylesheet" type="text/css" />
    <link href="https://cdn.syncfusion.com/ej2/ej2-maps/styles/material.css" rel="stylesheet" type="text/css" />

    <!-- Essential JS 2 Maps's dependent scripts -->
    <script src="https://cdn.syncfusion.com/ej2/ej2-base/dist/global/ej2-base.min.js" type="text/javascript"></script>
    <script src="https://cdn.syncfusion.com/ej2/ej2-data/dist/global/ej2-data.min.js" type="text/javascript"></script>
    <script src="https://cdn.syncfusion.com/ej2/ej2-svg-base/dist/global/ej2-svg-base.min.js" type="text/javascript"></script>
    <script src="https://cdn.syncfusion.com/ej2/ej2-pdf-export/dist/global/ej2-pdf-export.min.js" type="text/javascript"></script>
    <script src="https://cdn.syncfusion.com/ej2/ej2-file-utils/dist/global/ej2-file-utils.min.js" type="text/javascript"></script>
    <script src="https://cdn.syncfusion.com/ej2/ej2-compression/dist/global/ej2-compression.min.js" type="text/javascript"></script>

    <!-- Essential JS 2 Maps's global script -->
    <script src="https://cdn.syncfusion.com/ej2/ej2-maps/dist/global/ej2-maps.min.js" type="text/javascript"></script>
</head>

<body>
</body>

</html>

c. Comprehensive Dependency (All Components)

This setup includes all possible dependencies for Syncfusion® components in a single comprehensive file, ensuring maximum compatibility and functionality. Use this setup for a complex application that utilizes a wide range of Syncfusion® components.

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">

<head>
    <title>Essential JS 2 Maps</title>

    <!-- Essential JS 2 material theme -->
    <link href="https://cdn.syncfusion.com/ej2/material.css" rel="stylesheet" type="text/css" />
    <!-- Essential JS 2 all script -->
    <script src="https://cdn.syncfusion.com/ej2/dist/ej2.min.js" type="text/javascript"></script>

</head>

<body>
</body>

</html>

Based on your requirement, additional dependencies can be included as needed. In this documentation, the common ej2.min.js and material.css are used, which include all the Essential® JS 2 components and their dependent scripts and theme files.

Adding Maps control

Now, you can start adding Maps control in the application. For getting started, add a div element for Maps control in index.html. Then refer the index.js file into the index.html file.

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">

<head>
    <title>Essential JS 2 Maps</title>

    <!-- Essential JS 2 material theme -->
    <link href="https://cdn.syncfusion.com/ej2/material.css" rel="stylesheet" type="text/css" />
    <!-- Essential JS 2 all script -->
    <script src="https://cdn.syncfusion.com/ej2/dist/ej2.min.js" type="text/javascript"></script>

</head>

<body>
    <!-- Add the HTML <div> element for Maps  -->
    <div id="element"></div>
    <script src="index.js" type="text/javascript"></script>
</body>

</html>

Place the following Maps code in the index.js.

var map = new ej.maps.Maps();
map.appendTo('#element');

Defining shape data

Shape data for the Maps control is bind by using the shapeData property in the layers. It accepts GeoJSON data which defines the geographic shapes to be rendered in the map.

Note: The shape data (GeoJSON) is required to render the map. Download the shape data from this location and include it as a script file in your HTML page.

Create an HTML file at ~/my-app/index.html and add the following Essential® JS 2 script and style references using CDN.

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">

<head>
    <title>Essential JS 2 Maps</title>

    <!-- Essential JS 2 material theme -->
    <link href="https://cdn.syncfusion.com/ej2/material.css" rel="stylesheet" type="text/css" />
    <!-- Essential JS 2 all script -->
    <script src="https://cdn.syncfusion.com/ej2/dist/ej2.min.js" type="text/javascript"></script>

</head>

<body>
    <!-- Add the HTML <div> element for Maps  -->
    <div id="element"></div>
    <script src="index.js" type="text/javascript"></script>
</body>

</html>

Add the shape data world_map.js as a script file within the head tag of the HTML code.

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
    <head>
        <!-- Add the worldmap -->
        <script src="world_map.js"></script>
    </head>
</html>

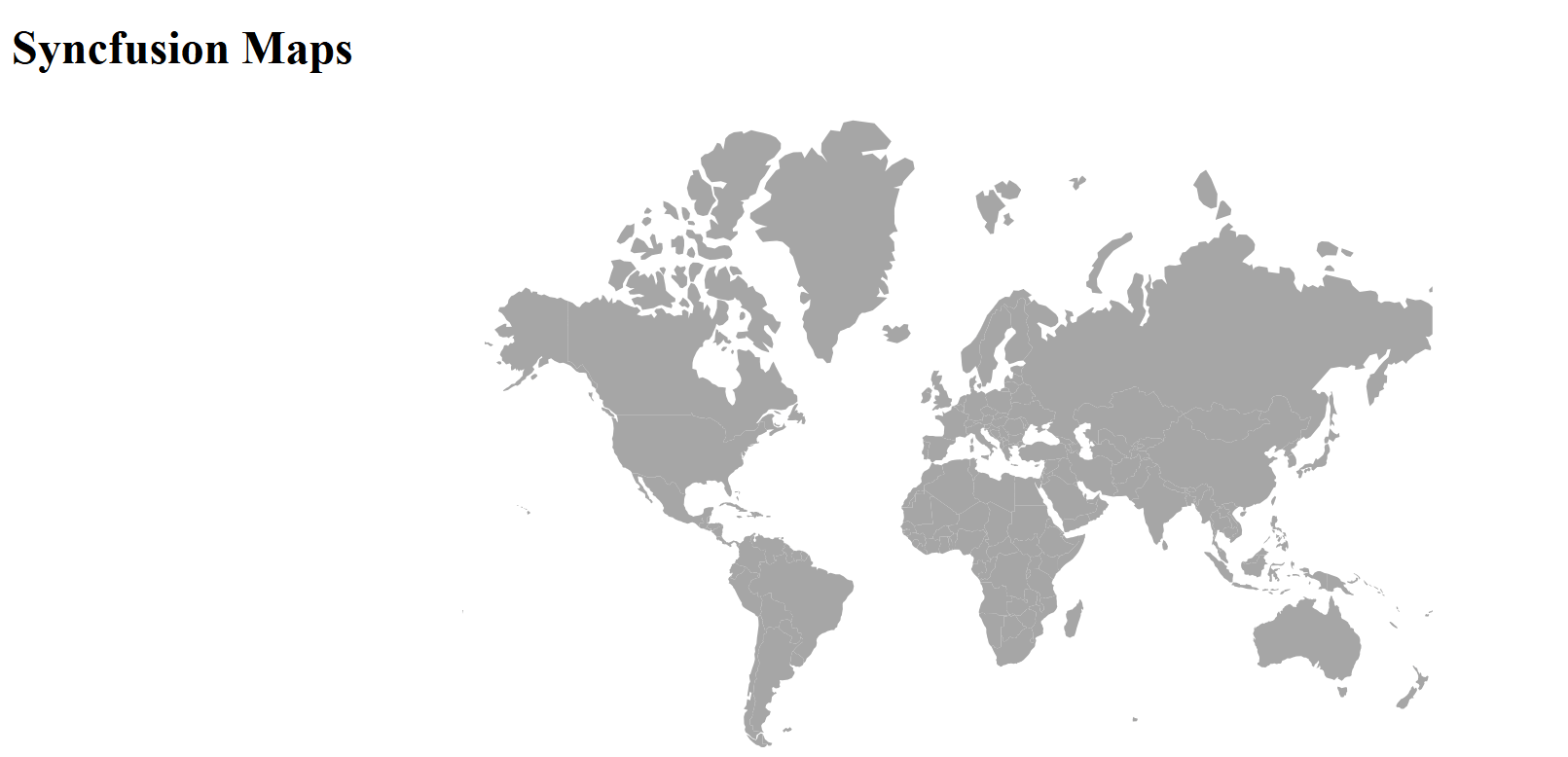

Place the following Maps code in the index.js.

var map = new ej.maps.Maps({
   layers: [
        {
            shapeData: world_map
        }
    ]
});
map.appendTo('#element');

Bind data source to map

Data for the Maps control is bind by using the dataSource property in the layers. It accepts either an array of JSON objects or DataManager instance.

The following properties in layers are used for binding data source to map:

  • dataSource - Specifies the data source for the layer
  • shapeDataPath - Specifies the field name in the dataSource to match with the shape data
  • shapePropertyPath - Specifies the field name in the shapeData to match with the dataSource

The dataSource property takes collection value as input. For example, a list of JSON objects can be provided as input. This data is further used in tooltip, data label, bubble, legend and in color mapping.

The shapeDataPath property is used to refer the data ID in dataSource. Where as, the shapePropertyPath property is used to refer the column name in shapeData to identify the shape. Both the properties are related to each other. When the values of the shapeDataPath property in the dataSource property and the value of shapePropertyPath in the shapeData property match, then the associated object from the dataSource is bound to the corresponding shape.

var map = new ej.maps.Maps({
   layers: [
        {
            shapeData: world_map,
            dataSource: [{  "Country": "China", "Membership": "Permanent"},
            {"Country": "France","Membership": "Permanent" },
            { "Country": "Russia","Membership": "Permanent"},
            {"Country": "Kazakhstan","Membership": "Non-Permanent"},
            { "Country": "Poland","Membership": "Non-Permanent"},
            {"Country": "Sweden","Membership": "Non-Permanent"}],
            shapePropertyPath: 'name',
            shapeDataPath: 'Country',
        }
    ]
});
map.appendTo('#element');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Maps</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <script src="world-map.js"></script>

    <script src="https://cdn.syncfusion.com/ej2/32.2.3/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container" style="height: 500px; width: 700px">
        <div id="element"></div>
    </div>


    <script>
        var ele = document.getElementById('container');
        if (ele) {
            ele.style.visibility = "visible";
        }
    </script>
    <script src="index.js" type="text/javascript"></script>
</body>

</html>

Note: Refer the data values for world_map here.

Apply Color Mapping

The Color Mapping feature supports customization of shape colors based on the underlying value of shape received from bounded data. Specify the field name from which the values have to be compared for the shapes in colorValuePath property in shapeSettings.

var map = new ej.maps.Maps({
   layers: [
        {
            shapeData: world_map,
            dataSource: [{  "Country": "China", "Membership": "Permanent"},
            {"Country": "France","Membership": "Permanent" },
            { "Country": "Russia","Membership": "Permanent"},
            {"Country": "Kazakhstan","Membership": "Non-Permanent"},
            { "Country": "Poland","Membership": "Non-Permanent"},
            {"Country": "Sweden","Membership": "Non-Permanent"}],
            shapePropertyPath: 'name',
            shapeDataPath: 'Country',
            shapeSettings: {
                colorValuePath: 'Membership',
                colorMapping: [
                {
                    value: 'Permanent', color: '#D84444'
                },
                {
                    value: 'Non-Permanent', color: '#316DB5'
                }]
            }
        }
    ]
});
map.appendTo('#element');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Maps</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <script src="world-map.js"></script>

    <script src="https://cdn.syncfusion.com/ej2/32.2.3/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container" style="height: 500px; width: 700px">
        <div id="element"></div>
    </div>

    <script>
        var ele = document.getElementById('container');
        if (ele) {
            ele.style.visibility = "visible";
        }
    </script>
    <script src="index.js" type="text/javascript"></script>
</body>

</html>

Add Title for Maps

Use the titleSettings property to add a title to the map. A title provides context and quick information about the shapes and data displayed in the map.

var map = new ej.maps.Maps({
    titleSettings: {
        text: 'Members of the UN Security Council',
    },
   layers: [{
        shapeData: world_map,
        dataSource: [
            {  "Country": "China", "Membership": "Permanent"},
            {"Country": "France","Membership": "Permanent" },
            { "Country": "Russia","Membership": "Permanent"},
            {"Country": "Kazakhstan","Membership": "Non-Permanent"},
            { "Country": "Poland","Membership": "Non-Permanent"},
            {"Country": "Sweden","Membership": "Non-Permanent"}
        ],
        shapePropertyPath: 'name',
        shapeDataPath: 'Country',
        shapeSettings: {
            colorValuePath: 'Membership',
            colorMapping: [
            {
                value: 'Permanent', color: '#D84444'
            },
            {
                value: 'Non-Permanent', color: '#316DB5'
            }]
        }
        }
    ]
});
map.appendTo('#element');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Maps</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <script src="world-map.js"></script>

    <script src="https://cdn.syncfusion.com/ej2/32.2.3/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container" style="height: 500px; width: 700px">
        <div id="element"></div>
    </div>

    <script>
        var ele = document.getElementById('container');
        if (ele) {
            ele.style.visibility = "visible";
        }
    </script>
    <script src="index.js" type="text/javascript"></script>
</body>

</html>

Enable Legend

Display a legend for the map by setting the visible property to true in the legendSettings object. The legend helps users understand the meaning of colors and symbols used in the map.

var map = new ej.maps.Maps({
    titleSettings: {
        text: 'USA Election Results'
    },
    layers: [
        {
            shapeData: world_map,
            dataSource: [
                { "Country": "China", "Membership": "Permanent" },
                { "Country": "France", "Membership": "Permanent" },
                { "Country": "Russia", "Membership": "Permanent" },
                { "Country": "Kazakhstan", "Membership": "Non-Permanent" },
                { "Country": "Poland", "Membership": "Non-Permanent" },
                { "Country": "Sweden", "Membership": "Non-Permanent" }
            ],
            shapePropertyPath: 'name',
            shapeDataPath: 'Country',
            shapeSettings: {
                colorValuePath: 'Membership',
                colorMapping: [
                    { value: 'Permanent', color: '#D84444' },
                    { value: 'Non-Permanent', color: '#316DB5' }
                ]
            }
        }
    ],
    legendSettings: {
        visible: true
    }
});
map.appendTo('#element');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Maps</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <script src="world-map.js"></script>


    <script src="https://cdn.syncfusion.com/ej2/32.2.3/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container" style="height: 500px; width: 700px">
        <div id="element"></div>
    </div>

    <script>
        var ele = document.getElementById('container');
        if (ele) {
            ele.style.visibility = "visible";
        }
    </script>
    <script src="index.js" type="text/javascript"></script>
</body>

</html>

Add Data Label

Add data labels to display additional information about shapes in the map. Set the visible property to true in the dataLabelSettings object.

var map = new ej.maps.Maps({
    layers: [
        {
            shapeData: usa_map,
            shapeSettings: {
                autofill: true
            },
            dataLabelSettings: {
                visible: true,
                labelPath: 'name',
            }
        }
    ]
});
map.appendTo('#element');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Maps</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">
    <script src="usa.js"></script>

    <script src="https://cdn.syncfusion.com/ej2/32.2.3/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container" style="height: 500px; width: 700px">
        <div id="element"></div>
    </div>

    <script>
        var ele = document.getElementById('container');
        if (ele) {
            ele.style.visibility = "visible";
        }
    </script>
    <script src="index.js" type="text/javascript"></script>
</body>

</html>

Enable Tooltip

The tooltip displays additional information when space constraints prevent using data labels. Enable tooltips by setting the visible property to true in the tooltipSettings object.

var map = new ej.maps.Maps({
    layers: [{
        shapeData: world_map,
        tooltipSettings: {
            visible: true,
            valuePath: 'name'
        }
    }]
});
map.appendTo('#element');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Maps</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <script src="world-map.js"></script>

    <script src="https://cdn.syncfusion.com/ej2/32.2.3/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container" style="height: 500px; width: 700px">
        <div id="element"></div>
    </div>

    <script>
        var ele = document.getElementById('container');
        if (ele) {
            ele.style.visibility = "visible";
        }
    </script>
    <script src="index.js" type="text/javascript"></script>
</body>

</html>

Run the application

Now, run the index.html in a web browser. It will render the Essential® JS 2 Maps control with all the features configured in the previous sections, including tooltips, legends, data labels, and color mapping.

The final output will display a fully functional interactive map component.

Deploy the application

The Essential® JS 2 Maps control features are segregated into individual feature-wise modules. The Essential Studio® JavaScript (Essential® JS 2) build and CDN scripts include code for all Maps features. Therefore, these are not recommended for production environments. For production use, generate optimized script and style files using the Custom Resource Generator (CRG) for Essential® JS 2. CRG will allow you to generate the bundled script for the currently enabled features in Maps.

See also
