Snowflake in EJ2 Angular Pivotview Component

8 Sep 202511 minutes to read

This guide explains how to retrieve data from a Snowflake database using the Snowflake.Data library and bind it to the Pivot Table through a Web API controller.

Creating a Web API Service to Fetch Snowflake Data

Follow these steps to create a Web API service that retrieves data from a Snowflake database and prepares it for the Pivot Table.

Step 1: Create an ASP.NET Core Web Application

  1. Open Visual Studio and create a new ASP.NET Core Web App project named MyWebService.
  2. Follow the official Microsoft documentation for detailed instructions on creating an ASP.NET Core Web application.

Creating an ASP.NET Core Web App project

Step 2: Install the Snowflake NuGet Package

To enable Snowflake database connectivity:

  1. Open the NuGet Package Manager in your project solution and search for Snowflake.Data.
  2. Install the Snowflake.Data package to add Snowflake support.

Installing the Snowflake.Data NuGet package

Step 3: Create a Web API Controller

  1. Under the Controllers folder, create a new Web API controller named PivotController.cs.
  2. This controller facilitates data communication between the Snowflake database and the Pivot Table.

Step 4: Connect to Snowflake and Retrieve Data

In the PivotController.cs file, use the Snowflake.Data library to connect to a Snowflake database and retrieve data for the Pivot Table.

  1. Establish Connection: Use SnowflakeDbConnection with a valid connection string (e.g., account=myaccount;user=myuser;password=mypassword;db=mydb;schema=myschema;) to connect to the Snowflake database.
  2. Query and Fetch Data: Execute a SQL query (e.g., SELECT * FROM CALL_CENTER) using SnowflakeDbDataAdapter to retrieve data for the Pivot Table.
  3. Structure the Data: Use SnowflakeDbDataAdapter’s Fill method to populate query results into a DataTable for JSON serialization.
using Microsoft.AspNetCore.Mvc;
using Snowflake.Data.Client;
using Newtonsoft.Json;
using System.Data;

namespace MyWebService.Controllers
{
    [ApiController]
    [Route("[controller]")]
    public class PivotController : ControllerBase
    {
        [HttpGet(Name = "GetSnowflakeResult")]
        public object Get()
        {
            return JsonConvert.SerializeObject(FetchSnowflakeResult());
        }

        public static DataTable FetchSnowflakeResult()
        {
            using (SnowflakeDbConnection snowflakeConnection = new SnowflakeDbConnection())
            {
                // Replace with your own connection string.
                snowflakeConnection.ConnectionString = "<Enter your valid connection string here>";
                snowflakeConnection.Open();
                SnowflakeDbDataAdapter adapter = new SnowflakeDbDataAdapter("select * from CALL_CENTER", snowflakeConnection);
                DataTable dataTable = new DataTable();
                adapter.Fill(dataTable);
                snowflakeConnection.Close();
                return dataTable;
            }
        }
    }
}

Step 5: Serialize Data to JSON

In the PivotController.cs file, define a Get method that calls FetchSnowflakeResult to retrieve data from the Snowflake database as a DataTable. Then, use JsonConvert.SerializeObject from the Newtonsoft.Json library to convert the DataTable into JSON format. This JSON data will be used by the Pivot Table component.

Ensure the Newtonsoft.Json NuGet package is installed in your project to use JsonConvert.

using Microsoft.AspNetCore.Mvc;
using Snowflake.Data.Client;
using Newtonsoft.Json;
using System.Data;

namespace MyWebService.Controllers
{
    [ApiController]
    [Route("[controller]")]
    public class PivotController : ControllerBase
    {
        [HttpGet(Name = "GetSnowflakeResult")]
        public object Get()
        {
            return JsonConvert.SerializeObject(FetchSnowflakeResult());
        }

        public static DataTable FetchSnowflakeResult()
        {
            using (SnowflakeDbConnection snowflakeConnection = new SnowflakeDbConnection())
            {
                // Replace with your own connection string.
                snowflakeConnection.ConnectionString = "<Enter your valid connection string here>";
                snowflakeConnection.Open();
                SnowflakeDbDataAdapter adapter = new SnowflakeDbDataAdapter("select * from CALL_CENTER", snowflakeConnection);
                DataTable dataTable = new DataTable();
                adapter.Fill(dataTable);
                snowflakeConnection.Close();
                return dataTable;
            }
        }
    }
}

Step 6: Run the Web API Service

  1. Build and run the application.
  2. The application will be hosted at https://localhost:44378/ (the port number may vary based on your configuration).

Step 7: Access the JSON Data

  1. Access the Web API endpoint at https://localhost:44378/Pivot to view the JSON data retrieved from the Snowflake database.
  2. The browser will display the JSON data, as shown below.

JSON data from the Web API endpoint

Connecting the Pivot Table to a Snowflake Database Using the Web API Service

This section explains how to connect the Pivot Table component to a Snowflake database by retrieving data from the Web API service created in the previous section.

Step 1: Create a Pivot Table in Angular

  1. Set up a basic Angular Pivot Table by following the Getting Started documentation.
  2. Ensure your Angular project is configured with the necessary EJ2 Pivot Table dependencies.

Step 2: Configure the Web API URL in the Pivot Table

  1. In the app.component.ts file, map the Web API URL (https://localhost:44378/Pivot) to the Pivot Table using the url property within the dataSourceSettings.
  2. Below is the sample code to configure the Pivot Table to fetch data from the Web API:
import { Component, OnInit } from '@angular/core';
import { FieldListService, IDataSet } from '@syncfusion/ej2-angular-pivotview';
import { DataSourceSettingsModel } from '@syncfusion/ej2-pivotview/src/model/datasourcesettings-model';

@Component({
    selector: 'app-root',
    template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings></ejs-pivotview>`,
    providers: [FieldListService]
})
export class AppComponent implements OnInit {
    public pivotData: IDataSet[];
    public dataSourceSettings: DataSourceSettingsModel;

    ngOnInit(): void {
        this.dataSourceSettings = {
            url: 'https://localhost:44378/Pivot'
            // Additional configuration will be added in the next step
        };
    }
}

Step 3: Define the Pivot Table Report

  1. Configure the Pivot Table report in the app.component.ts file to structure the data retrieved from the Snowflake database.
  2. Add fields to the rows, columns, values, and filters properties of dataSourceSettings to define the report structure, specifying how data fields are organized and aggregated in the Pivot Table.
  3. Enable the field list by setting the showFieldList property to true and including the FieldListService module in the providers section. This allows users to dynamically add or rearrange fields across the columns, rows, and values axes using an interactive user interface.

Here’s the updated sample code for app.component.ts with the report configuration and field list support:

import { Component, OnInit } from '@angular/core';
import { FieldListService, IDataSet } from '@syncfusion/ej2-angular-pivotview';
import { DataSourceSettingsModel } from '@syncfusion/ej2-pivotview/src/model/datasourcesettings-model';

@Component({
    selector: 'app-root',
    template: `<ejs-pivotview #pivotview id='PivotView' height='350' [dataSourceSettings]=dataSourceSettings showFieldList='true'></ejs-pivotview>`,
    providers: [FieldListService]
})
export class AppComponent implements OnInit {
    public pivotData: IDataSet[];
    public dataSourceSettings: DataSourceSettingsModel;

    ngOnInit(): void {
        this.dataSourceSettings = {
            url: 'https://localhost:44378/Pivot',
            enableSorting: true,
            expandAll: false,
            columns: [
                { name: 'CC_COUNTRY', caption: 'Country' }
            ],
            rows: [
                { name: 'CC_STATE', caption: 'State' },
                { name: 'CC_CITY', caption: 'City' }
            ],
            values: [
                { name: 'CC_COMPANY', caption: 'Company' },
                { name: 'CC_EMPLOYEES', caption: 'Employees' },
                { name: 'CC_TAX_PERCENTAGE', caption: 'Percentage' }
            ],
            filters: []
        };
    }
}

Step 4: Run and Verify the Pivot Table

  1. Run the Angular application.
  2. The Pivot Table will display the data fetched from the Snowflake database via the Web API, structured according to the defined report.

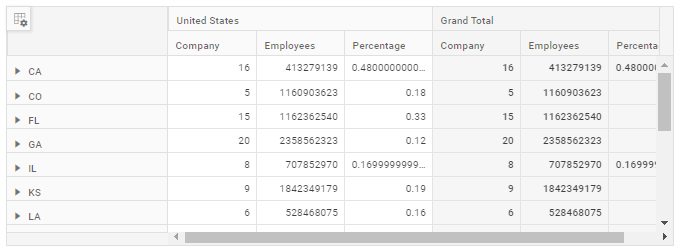

  3. The resulting Pivot Table will look like this:

Pivot Table bound with Snowflake database

Additional Resources

Explore a complete example of the Angular Pivot Table integrated with an ASP.NET Core Web Application to fetch data from a Snowflake database in this GitHub repository.
