Getting started with Angular Maps component

22 Nov 2022 / 11 minutes to read

This section explains you the steps required to create a map and demonstrate the basic usage of the maps component.

You can explore some useful features in the Maps component using the following video.

Dependencies

The following is a list of the dependencies required to use the Maps component.

|-- @syncfusion/ej2-angular-maps
    |-- @syncfusion/ej2-angular-base
    |-- @syncfusion/ej2-angular-maps
    |-- @syncfusion/ej2-maps
    |-- @syncfusion/ej2-base
    |-- @syncfusion/ej2-svg-base
    |-- @syncfusion/ej2-data

Setup Angular Environment

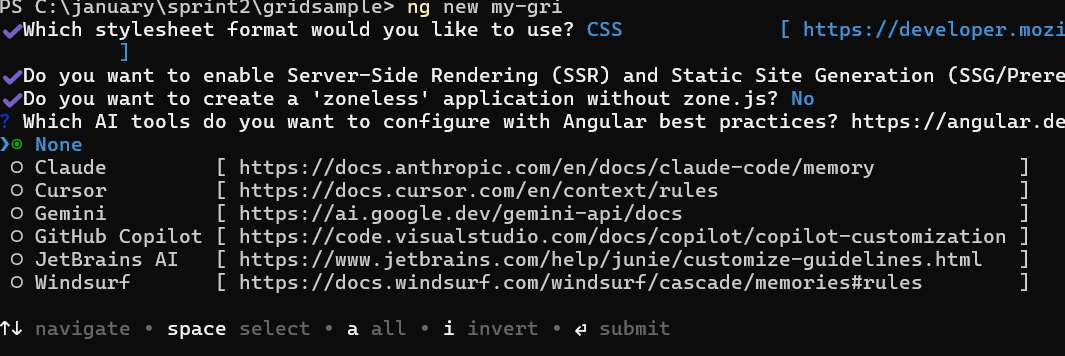

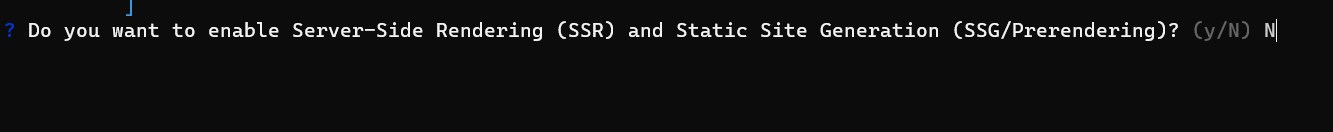

You can use Angular CLI to setup your Angular applications. To install Angular CLI use the following command.

npm install -g @angular/cli

Create an Angular Application

Start a new Angular application using below Angular CLI command.

ng new my-app
cd my-app

Installing Syncfusion Maps package

Syncfusion packages are distributed in npm as @syncfusion scoped packages. You can get all the Angular Syncfusion package from npm link.

Currently, Syncfusion provides two types of package structures for Angular components,

Ivy library distribution package format
Angular compatibility compiler(Angular’s legacy compilation and rendering pipeline) package.

Ivy library distribution package

Syncfusion Angular packages(>=20.2.36) has been moved to the Ivy distribution to support the Angular Ivy rendering engine and the package are compatible with Angular version 12 and above. To download the package use the below command.

Add @syncfusion/ej2-angular-maps package to the application.

npm install @syncfusion/ej2-angular-maps --save

Angular compatibility compiled package(ngcc)

For Angular version below 12, you can use the legacy (ngcc) package of the Syncfusion Angular components. To download the ngcc package use the below.

Add @syncfusion/ej2-angular-maps@ngcc package to the application.

npm install @syncfusion/ej2-angular-maps@ngcc --save

To mention the ngcc package in the package.json file, add the suffix -ngcc with the package version as below.

@syncfusion/ej2-angular-maps:"20.2.38-ngcc"

Note: If the ngcc tag is not specified while installing the package, the Ivy Library Package will be installed and this package will throw a warning.

Registering Maps Module

Import Maps module into Angular application(app.module.ts) from the package @syncfusion/ej2-angular-maps [src/app/app.module.ts].

import { NgModule }      from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
// import the MapsModule for the Maps component
import { MapsModule } from '@syncfusion/ej2-angular-maps';
import { AppComponent }  from './app.component';

@NgModule({
  //declaration of Maps module into NgModule
  imports:      [ BrowserModule, MapsModule ],
  declarations: [ AppComponent ],
  bootstrap:    [ AppComponent ]
})
export class AppModule { }

Modify the template in app.component.ts file to render the Maps component [src/app/app.component.ts].

import { Component, ViewEncapsulation } from '@angular/core';

@Component({
  selector: 'app-container',
  // specifies the template string for the maps component
  template: `<ejs-maps id='maps-container'></ejs-maps>`,
  encapsulation: ViewEncapsulation.None
})
export class AppComponent  { }

Add the world-map data in the app.component.ts file.

Note: Refer the data for world-map here. These data must be imported in the src/app/app.component.ts file.

import { world_map } from './world-map';

Bind the world-map data to the shapeData property of the layer in the Maps control.

@Component({
// specifies the template string for the maps component
template: `<ejs-maps id='maps-container'>
            <e-layers>
                <e-layer [shapeData] = 'shapeData'></e-layer>
            </e-layers>
           </ejs-maps>`
})
export class AppComponent {
  public shapeData: object = world_map;
}

Now use the app-container in the index.html instead of default one.

<app-container></app-container>

@Component({
selector: 'app-container'
})

Now run the application in the browser using the below command.

npm start

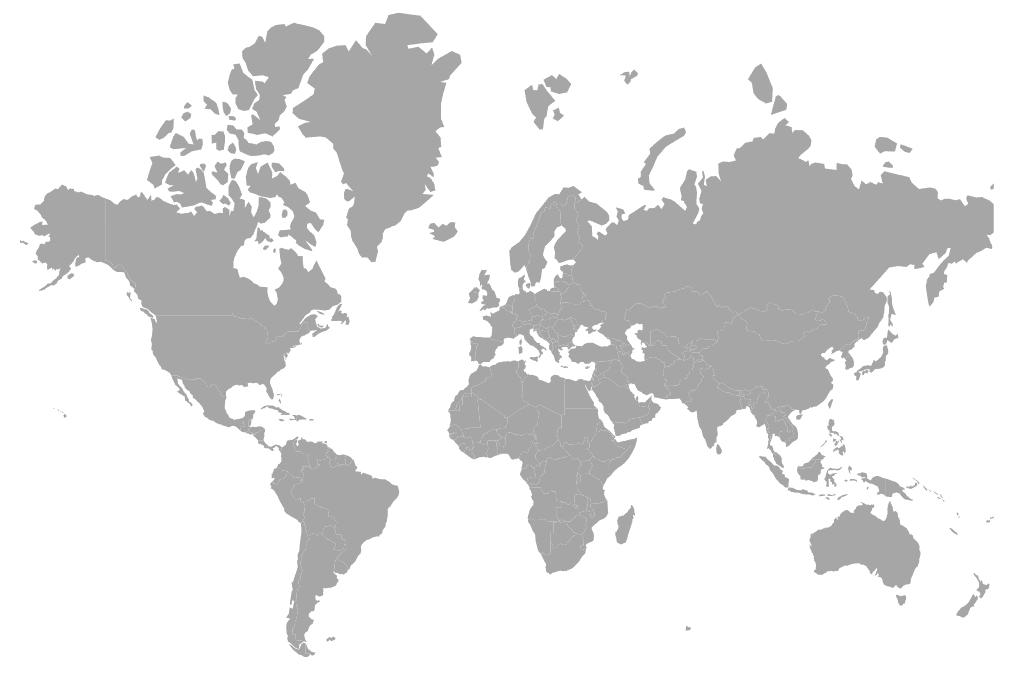

The below example shows a basic map.

import { Component } from '@angular/core';
import { world_map } from './world-map';

@Component({
selector: 'app-container',
// specifies the template string for the maps component
template: `<ejs-maps id='maps-container'>
            <e-layers>
                <e-layer [shapeData] = 'shapeData'></e-layer>
            </e-layers>
           </ejs-maps>`
})
export class AppComponent {
  public shapeData: object = world_map;
}

Module Injection

Maps component are segregated into individual feature-wise modules. In order to use a particular feature, you need to inject its feature module using Maps.Inject() method. Find the modules available in maps and its description as follows.

AnnotationsService - Inject this provider to use annotations feature.
BubbleService - Inject this provider to use bubble feature.
DataLabelService - Inject this provider to use data label feature.
HighlightService - Inject this provider to use highlight feature.
LegendService - Inject this provider to use legend feature.
MarkerService - Inject this provider to use marker feature.
MapsTooltipService - Inject this provider to use tooltip series.
NavigationLineService - Inject this provider to use navigation lines feature.
SelectionService - Inject this provider to use selection feature.
ZoomService - Inject this provider to use zooming and panning feature.

For this application we are going to use tooltip, data label and legend features of the maps. Now import the MapsTooltip, DataLabel and Legend modules from maps package @syncfusion/ej2-angular-maps

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { MapsComponent,LegendService, DataLabelService,MapsTooltipService} from '@syncfusion/ej2-angular-maps';

@NgModule({
   imports: [
       BrowserModule,
   ],
   declarations: [AppComponent, MapsComponent],
   bootstrap: [AppComponent],
   providers: [ MapsComponent,LegendService, DataLabelService,MapsTooltipService ]
})

Render shapes from GeoJSON data

This section explains how to bind GeoJSON data to the map.

let usMap: object =
{
"type": "FeatureCollection",
"crs": { "type": "name", "properties": { "name": "urn:ogc:def:crs:OGC:1.3:CRS84" } },
"features": [
    { "type": "Feature", "properties": { "iso_3166_2": "MA", "name": "Massachusetts", "admin": "United States of America" }, "geometry":{
        "type": "MultiPolygon",
        "coordinates": [ [ [ [ -70.801756294617277, 41.248076234530558 ]] ] ] }
    }
]
//..
};

Elements in the maps will get rendered in the layers. So add a layer collection to the maps by using [layers]property. Now bind the GeoJSON data to the [shapeData] property.

[app.module.ts]

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, OnInit } from '@angular/core';
import { Maps } from '@syncfusion/ej2-angular-maps';
import { world_map } from 'world-map.ts';

@Component({
selector: 'app-container',
template:
`<ejs-maps id='rn-container'>
 <e-layers>
<e-layer [shapeData] = 'shapeData'></e-layer>
</e-layers>
</ejs-maps>`
})
export class AppComponent implements OnInit {
public shapeData: object;
ngOnInit(): void {
    this.shapeData = world_map;
}
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { MapsModule } from '@syncfusion/ej2-angular-maps';
import { LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService, SelectionService, AnnotationsService, ZoomService } from '@syncfusion/ej2-angular-maps';
/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, MapsModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
     providers: [LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService , SelectionService, AnnotationsService, ZoomService]

})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Bind data source to map

The following properties in layers are used for binding data source to map.

dataSource
shapeDataPath
shapePropertyPath

The dataSource property takes collection value as input. For example, the list of objects can be provided as input. This data is further used in tooltip, data label, bubble, legend and in color mapping.

The shapeDataPath property used to refer the data ID in dataSource. Where as, the shapePropertyPath property is used to refer the column name in shapeData to identify the shape. Both the properties are related to each other. When the values of the shapeDataPath property in the dataSource property and the value of shapePropertyPath in the shapeData property match, then the associated object from the dataSource is bound to the corresponding shape.

The JSON object “electionData” is used as data source below.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, OnInit } from '@angular/core';
import { Maps } from '@syncfusion/ej2-angular-maps';
import { world_map } from 'world-map.ts';
@Component({
selector: 'app-container',
template:
`<ejs-maps id='rn-container' >
<e-layers>
<e-layer  [shapeData]= 'shapeData'  [shapePropertyPath]= 'shapePropertyPath' [shapeDataPath]= 'shapeDataPath' [dataSource] = 'dataSource'></e-layer>
</e-layers>
</ejs-maps>`
})
export class AppComponent implements OnInit {
public dataSource: object[];
public shapeData: object;
public shapePropertyPath: string;
public shapeDataPath: string;
ngOnInit(): void {
    this.dataSource = [{  "Country": "China", "Membership": "Permanent"},
        {"Country": "France","Membership": "Permanent" },
        { "Country": "Russia","Membership": "Permanent"},
        {"Country": "Kazakhstan","Membership": "Non-Permanent"},
        { "Country": "Poland","Membership": "Non-Permanent"},
        {"Country": "Sweden","Membership": "Non-Permanent"}];
    this.shapeData = world_map;
    this.shapePropertyPath = 'name';
    this.shapeDataPath = 'Country';
};
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { MapsModule } from '@syncfusion/ej2-angular-maps';
import { LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService, SelectionService, AnnotationsService, ZoomService } from '@syncfusion/ej2-angular-maps';
/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, MapsModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
     providers: [LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService , SelectionService, AnnotationsService, ZoomService]

})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Apply Color Mapping

The Color Mapping feature supports customization of shape colors based on the underlying value of shape received from bounded data. Specify the field name from which the values have to be compared for the shapes in colorValuePath property in shapeSettings.

Specify color and value in colorMapping property. Here ‘#D84444’ is specified for ‘Trump’ and ‘#316DB5’ is specified for ‘Clinton’.

[app.module.ts]

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { Maps } from '@syncfusion/ej2-angular-maps';
import { world_map } from 'world-map.ts';
@Component({
selector: 'app-container',
template:
`<ejs-maps id='rn-container' >
<e-layers>
<e-layer  [shapeData]= 'shapeData'  [shapePropertyPath]= 'shapePropertyPath' [shapeDataPath]= 'shapeDataPath' [dataSource] = 'dataSource' [shapeSettings] = 'shapeSettings'></e-layer>
</e-layers>
</ejs-maps>`
})

export class AppComponent implements OnInit {
public dataSource: object[];
public shapeData: object;
public shapePropertyPath: string;
public shapeDataPath: string;
public shapeSettings: object;
ngOnInit(): void {
    this.dataSource = [{  "Country": "China", "Membership": "Permanent"},
        {"Country": "France","Membership": "Permanent" },
        { "Country": "Russia","Membership": "Permanent"},
        {"Country": "Kazakhstan","Membership": "Non-Permanent"},
        { "Country": "Poland","Membership": "Non-Permanent"},
        {"Country": "Sweden","Membership": "Non-Permanent"}];
    this.shapeData = world_map;
    this.shapePropertyPath = 'name';
    this.shapeDataPath = 'Country';
    this.shapeSettings = {
            colorValuePath: 'Membership',
            colorMapping: [
            {
                value: 'Permanent', color: '#D84444'
            },
            {
                value: 'Non-Permanent', color: '#316DB5'
            }]
        };
   }
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { MapsModule } from '@syncfusion/ej2-angular-maps';
import { LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService, SelectionService, AnnotationsService, ZoomService } from '@syncfusion/ej2-angular-maps';
/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, MapsModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
     providers: [LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService , SelectionService, AnnotationsService, ZoomService]

})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Add Title for Maps

You can add a title using titleSettings property to the map to provide quick information to the user about the shapes rendered in the map.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, OnInit } from '@angular/core';
import { Maps } from '@syncfusion/ej2-angular-maps';
import { world_map } from 'world-map.ts';
@Component({
selector: 'app-container',
template:
`<ejs-maps id='rn-container' [titleSettings] = 'titleSettings' >
<e-layers>
<e-layer  [shapeData]= 'shapeData'  [shapePropertyPath]= 'shapePropertyPath' [shapeDataPath]= 'shapeDataPath' [dataSource] = 'dataSource' [shapeSettings] = 'shapeSettings'></e-layer>
</e-layers>
</ejs-maps>`
})

export class AppComponent implements OnInit {
public titleSettings: object;
public dataSource: object[];
public shapeData: object;
public shapePropertyPath: string;
public shapeDataPath: string;
public shapeSettings: object;
ngOnInit(): void {
    this.titleSettings = {
     text: 'World map membership',
      titleStyle: {
        size: '16px'
       }
    }
    this.dataSource = [{  "Country": "China", "Membership": "Permanent"},
        {"Country": "France","Membership": "Permanent" },
        { "Country": "Russia","Membership": "Permanent"},
        {"Country": "Kazakhstan","Membership": "Non-Permanent"},
        { "Country": "Poland","Membership": "Non-Permanent"},
        {"Country": "Sweden","Membership": "Non-Permanent"}];
    this.shapeData = world_map;
    this.shapePropertyPath = 'name';
    this.shapeDataPath = 'Country';
    this.shapeSettings = {
            colorValuePath: 'Membership',
            colorMapping: [
            {
                value: 'Permanent', color: '#D84444'
            },
            {
                value: 'Non-Permanent', color: '#316DB5'
            }]
        };
   }
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { MapsModule } from '@syncfusion/ej2-angular-maps';
import { LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService, SelectionService, AnnotationsService, ZoomService } from '@syncfusion/ej2-angular-maps';
/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, MapsModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
     providers: [LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService , SelectionService, AnnotationsService, ZoomService]

})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Enable Legend

You can show legend for the maps by setting true to the visible property in legendSettings object and by injecting the LegendService module using @NgModule.providers method.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, OnInit } from '@angular/core';
import { Maps, Legend } from '@syncfusion/ej2-angular-maps';
import { world_map } from 'world-map.ts';

Maps.Inject(Legend);
@Component({
selector: 'app-container',
template:
`<ejs-maps id='rn-container' [legendSettings] = 'legendSettings'>
<e-layers>
<e-layer  [shapeData]= 'shapeData'  [shapePropertyPath]= 'shapePropertyPath' [shapeDataPath]= 'shapeDataPath' [dataSource] = 'dataSource' [shapeSettings] = 'shapeSettings'></e-layer>
</e-layers>
</ejs-maps>`
})

export class AppComponent implements OnInit {
public dataSource: object[];
public shapeData: object;
public shapePropertyPath: string;
public shapeDataPath: string;
public shapeSettings: object;
public legendSettings: object;
ngOnInit(): void {
    this.dataSource = [{  "Country": "China", "Membership": "Permanent"},
        {"Country": "France","Membership": "Permanent" },
        { "Country": "Russia","Membership": "Permanent"},
        {"Country": "Kazakhstan","Membership": "Non-Permanent"},
        { "Country": "Poland","Membership": "Non-Permanent"},
        {"Country": "Sweden","Membership": "Non-Permanent"}];
    this.shapeData = world_map;
    this.shapePropertyPath = 'name';
    this.shapeDataPath = 'Country';
    this.shapeSettings = {
            colorValuePath: 'Membership',
            colorMapping: [
            {
                value: 'Permanent', color: '#D84444'
            },
            {
                value: 'Non-Permanent', color: '#316DB5'
            }]
        };
    this.legendSettings = {
            visible: true
            }
   }
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { MapsModule } from '@syncfusion/ej2-angular-maps';
import { LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService, SelectionService, AnnotationsService, ZoomService } from '@syncfusion/ej2-angular-maps';
/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, MapsModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
     providers: [LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService , SelectionService, AnnotationsService, ZoomService]

})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Add Data Label

You can add data labels to show additional information of the shapes in map. This can be achieved by setting visible property to true in the dataLabelSettings object and by injecting DataLabelService module using @NgModule.providers method.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, OnInit } from '@angular/core';
import { Maps, DataLabel } from '@syncfusion/ej2-angular-maps';
import { world_map } from 'world-map.ts';

Maps.Inject(DataLabel);
@Component({
selector: 'app-container',
template:
`<ejs-maps id='rn-container'  >
<e-layers>
<e-layer  [shapeData]= 'shapeData' [shapeSettings] = 'shapeSettings' [dataLabelSettings] = 'dataLabelSettings'></e-layer>
</e-layers>
</ejs-maps>`
})

export class AppComponent implements OnInit {
public shapeData: object;
public shapeSettings: object;
public dataLabelSettings: object;
ngOnInit(): void {
    this.shapeData = world_map;
    this.shapeSettings = {
        autofill: true
    };
    this.dataLabelSettings = {
        visible: true,
        labelPath: 'name',
        smartLabelMode: 'Trim'
    };
   }
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { MapsModule } from '@syncfusion/ej2-angular-maps';
import { LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService, SelectionService, AnnotationsService, ZoomService } from '@syncfusion/ej2-angular-maps';
/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, MapsModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
     providers: [LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService , SelectionService, AnnotationsService, ZoomService]

})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

The tooltip is useful when you cannot display information by using the data labels due to space constraints. You can enable tooltip by setting the visible property as true in tooltipSettings object and by injecting MapsTooltipService module using @NgModule.providers method.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, OnInit } from '@angular/core';
import { Maps, MapsTooltip, DataLabel } from '@syncfusion/ej2-angular-maps';
import { world_map } from 'world-map.ts';

Maps.Inject(MapsTooltip, DataLabel);
@Component({
selector: 'app-container',
template:
`<ejs-maps id='rn-container'  >
<e-layers>
<e-layer  [shapeData]= 'shapeData' [shapeSettings] = 'shapeSettings' [dataLabelSettings] = 'dataLabelSettings'[tooltipSettings] = 'tooltipSettings'></e-layer>
</e-layers>
</ejs-maps>`
})

export class AppComponent implements OnInit {
public shapeData: object;
public shapeSettings: object;
public tooltipSettings: object;
ngOnInit(): void {
    this.shapeData = world_map;
    this.shapeSettings = {
            autofill: true
        };
    this.dataLabelSettings = {
        visible: true,
        labelPath: 'name',
        smartLabelMode: 'Trim'
    };
    this.tooltipSettings = {
        visible: true,
        valuePath: 'name'
    };
   }
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { MapsModule } from '@syncfusion/ej2-angular-maps';
import { LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService, SelectionService, AnnotationsService, ZoomService } from '@syncfusion/ej2-angular-maps';
/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, MapsModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
     providers: [LegendService, MarkerService, MapsTooltipService, DataLabelService, BubbleService, NavigationLineService , SelectionService, AnnotationsService, ZoomService]

})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Contents

Dependencies
Setup Angular Environment
Create an Angular Application
Installing Syncfusion Maps package
Ivy library distribution package
Angular compatibility compiled packagengcc
Registering Maps Module
Module Injection
Render shapes from GeoJSON data
Bind data source to map
Apply Color Mapping
Add Title for Maps
Enable Legend
Add Data Label
Enable Tooltip

Contents

Dependencies
Setup Angular Environment
Create an Angular Application
Installing Syncfusion Maps package
Ivy library distribution package
Angular compatibility compiled packagengcc
Registering Maps Module
Module Injection
Render shapes from GeoJSON data
Bind data source to map
Apply Color Mapping
Add Title for Maps
Enable Legend
Add Data Label
Enable Tooltip

Please provide additional information

Thank you for your feedback and comments.We will rectify this as soon as possible!

Getting started with Angular Maps component

Dependencies

Setup Angular Environment

Create an Angular Application

Installing Syncfusion Maps package

Ivy library distribution package

Angular compatibility compiled package(ngcc)

Registering Maps Module

Module Injection

Render shapes from GeoJSON data

Bind data source to map

Apply Color Mapping

Add Title for Maps

Enable Legend

Add Data Label

Enable Tooltip
