Getting Started with the Vue Query builder Component in Vue 2

25 Apr 202524 minutes to read

This article provides a step-by-step guide for setting up a Vue 2 project using Vue-CLI and integrating the Syncfusion® Vue Query builder component.

Prerequisites

System requirements for Syncfusion® Vue UI components

Dependencies

The list of dependencies required to use the Query Builder component in your application is given below:

|-- @syncfusion/ej2-vue-querybuilder
    |-- @syncfusion/ej2-base
    |-- @syncfusion/ej2-vue-base
    |-- @syncfusion/ej2-querybuilder
    |-- @syncfusion/ej2-datamanager
    |-- @syncfusion/ej2-dropdowns
    |-- @syncfusion/ej2-calenders
    |-- @syncfusion/ej2-inputs

Setting up the Vue 2 project

To generate a Vue 2 project using Vue-CLI, use the vue create command. Follow these steps to install Vue CLI and create a new project:

npm install -g @vue/cli
vue create quickstart
cd quickstart
npm run serve

or

yarn global add @vue/cli
vue create quickstart
cd quickstart
yarn run serve

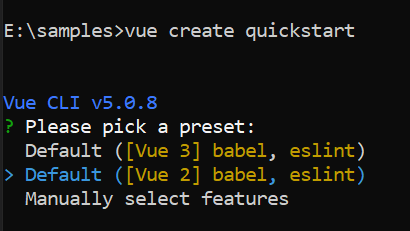

When creating a new project, choose the option Default ([Vue 2] babel, eslint) from the menu.

Vue 2 project

Once the quickstart project is set up with default settings, proceed to add Syncfusion® components to the project.

Add Syncfusion® Vue packages

Syncfusion® packages are available at npmjs.com. To use Vue components, install the required npm package.

This article uses the Vue Query builder component as an example. Install the @syncfusion/ej2-vue-querybuilder package by running the following command:

npm install @syncfusion/ej2-vue-querybuilder --save

or

yarn add @syncfusion/ej2-vue-querybuilder

Import Syncfusion® CSS styles

You can import themes for the Syncfusion® Vue component in various ways, such as using CSS or SASS styles from npm packages, CDN, CRG and Theme Studio. Refer to themes topic to know more about built-in themes and different ways to refer to themes in a Vue project.

In this article, the Material theme is applied using CSS styles, which are available in installed packages. The necessary Material CSS styles for the Query builder component and its dependents were imported into the <style> section of src/App.vue file.

<style>
@import "../node_modules/@syncfusion/ej2-base/styles/material.css";
@import "../node_modules/@syncfusion/ej2-buttons/styles/material.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css";
@import "../node_modules/@syncfusion/ej2-dropdowns/styles/material.css";
@import "../node_modules/@syncfusion/ej2-inputs/styles/material.css";
@import "../node_modules/@syncfusion/ej2-lists/styles/material.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/material.css";
@import "../node_modules/@syncfusion/ej2-calendars/styles/material.css";
@import "../node_modules/@syncfusion/ej2-vue-querybuilder/styles/material.css";
</style>

Note: If you want to refer the combined component styles, please make use of our CRG (Custom Resource Generator) in your application.

Add Syncfusion® Vue component

Follow the below steps to add the Vue Query builder component:

1. First, import and register the Query builder component in the script section of the src/App.vue file.

<script setup>
import { QueryBuilderComponent, ColumnDirective, ColumnsDirective } from "@syncfusion/ej2-vue-querybuilder";

export default {
    components: {
        'ejs-querybuilder': QueryBuilderComponent,
        'e-column': ColumnDirective,
        'e-columns': ColumnsDirective
    }
}
</script>
<script>
import { QueryBuilderComponent, ColumnDirective, ColumnsDirective } from "@syncfusion/ej2-vue-querybuilder";

export default {
name: "App",
components: {
"ejs-querybuilder':":Querybuilder':Component

},

    components: {
        'ejs-querybuilder': QueryBuilderComponent,
        'e-column': ColumnDirective,
        'e-columns': ColumnsDirective
    }
}
</script>

2. In the template section, define the Query builder component with the values property.

<template>
    <div class="control-section">
        <div class="col-lg-12 querybuilder-control">
            <ejs-querybuilder width="70%">
                <e-columns>
                    <e-column field='EmployeeID' label='Employee ID' type='number' />
                    <e-column field='FirstName' label='First Name' type='string' />
                    <e-column field='TitleOfCourtesy' label='Title Of Courtesy' type='boolean' :values="values" />
                    <e-column field='Title' label='Title' type='string' />
                    <e-column field='HireDate' label='Hire Date' type='date' format='dd/MM/yyyy' />
                    <e-column field='Country' label='Country' type='string' />
                    <e-column field='City' label='City' type='string' />
                </e-columns>
            </ejs-querybuilder>
        </div>
    </div>
</template>

3. Declare the value for the values property in the script section.

<script setup>
data: function() {
    return {
        values: ['Mr.', 'Mrs.']
    };
}
</script>
<script>
data: function() {
    return {
        values: ['Mr.', 'Mrs.']
    };
}
</script>

Here is the summarized code for the above steps in the src/App.vue file:

<template>
    <div class="control-section">
        <div class="col-lg-12 querybuilder-control">
            <ejs-querybuilder width="70%">
                <e-columns>
                    <e-column field='EmployeeID' label='Employee ID' type='number' />
                    <e-column field='FirstName' label='First Name' type='string' />
                    <e-column field='TitleOfCourtesy' label='Title Of Courtesy' type='boolean' :values="values"/>
                    <e-column field='Title' label='Title' type='string' />
                    <e-column field='HireDate' label='Hire Date' type='date' format='dd/MM/yyyy' />
                    <e-column field='Country' label='Country' type='string' />
                    <e-column field='City' label='City' type='string' />
                </e-columns>
            </ejs-querybuilder>
        </div>
    </div>
</template>
<script setup>
import { QueryBuilderComponent as EjsQuerybuilder, ColumnDirective as EColumn, ColumnsDirective as EColumns } from "@syncfusion/ej2-vue-querybuilder";

const values = ['Mr.', 'Mrs.'];

</script>
<style>
    @import "../node_modules/@syncfusion/ej2-base/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-buttons/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-dropdowns/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-inputs/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-lists/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-popups/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-calendars/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-vue-querybuilder/styles/material.css";
    .e-query-builder {
        margin: 0 auto;
    }
</style>
<template>
    <div class="control-section">
        <div class="col-lg-12 querybuilder-control">
            <ejs-querybuilder width="70%">
                <e-columns>
                    <e-column field='EmployeeID' label='Employee ID' type='number' />
                    <e-column field='FirstName' label='First Name' type='string' />
                    <e-column field='TitleOfCourtesy' label='Title Of Courtesy' type='boolean' :values="values"/>
                    <e-column field='Title' label='Title' type='string' />
                    <e-column field='HireDate' label='Hire Date' type='date' format='dd/MM/yyyy' />
                    <e-column field='Country' label='Country' type='string' />
                    <e-column field='City' label='City' type='string' />
                </e-columns>
            </ejs-querybuilder>
        </div>
    </div>
</template>
<script>
import { QueryBuilderComponent, ColumnDirective, ColumnsDirective } from "@syncfusion/ej2-vue-querybuilder";

export default {
name: "App",
components: {
"ejs-querybuilder":QueryBuilderComponent,
"e-columns":ColumnsDirective,
"e-column":ColumnDirective,

    },
    data: function() {
        return {
            values: ['Mr.', 'Mrs.']
        };
    }
}
</script>
<style>
    @import "../node_modules/@syncfusion/ej2-base/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-buttons/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-dropdowns/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-inputs/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-lists/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-popups/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-calendars/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-vue-querybuilder/styles/material.css";
    .e-query-builder {
        margin: 0 auto;
    }
</style>

Run the project

To run the project, use the following command:

npm run serve

or

yarn run serve

Rendering with rule

Add the EJ2 Vue Query Builder using <ejs-querybuilder> to the <template> section of the App.vue file in src directory.

<template>
    <div class="control-section">
        <div class="col-lg-12 querybuilder-control">
            <ejs-querybuilder :dataSource="dataSource" :rule="importRules" width="70%">
                <e-columns>
                    <e-column field='EmployeeID' label='Employee ID' type='number' />
                    <e-column field='FirstName' label='First Name' type='string' />
                    <e-column field='TitleOfCourtesy' label='Title Of Courtesy' type='boolean' :values="values" />
                    <e-column field='Title' label='Title' type='string' />
                    <e-column field='HireDate' label='Hire Date' type='date' format='dd/MM/yyyy' />
                    <e-column field='Country' label='Country' type='string' />
                    <e-column field='City' label='City' type='string' />
                </e-columns>
            </ejs-querybuilder>
        </div>
    </div>
</template>

<style>
    .e-query-builder {
        margin: 0 auto;
    }
</style>

<script setup>
import { QueryBuilderComponent, ColumnDirective, ColumnsDirective } from "@syncfusion/ej2-vue-querybuilder";

export default {
  components: {
    'ejs-querybuilder': QueryBuilderComponent,
    'e-column': ColumnDirective,
    'e-columns': ColumnsDirective
  },
  data: function() {
    return {
      dataSource: employeeData,
      values: ['Mr.', 'Mrs.'],
      importRules: {
        'condition': 'and',
        'rules': [{
                'label': 'Employee ID',
                'field': 'EmployeeID',
                'type': 'number',
                'operator': 'equal',
                'value': 1
            },
            {
                'label': 'Title',
                'field': 'Title',
                'type': 'string',
                'operator': 'equal',
                'value': 'Sales Manager'
            }]
        }
    };
  }
}
var employeeData = [{
      'EmployeeID': 1,
      'FirstName': 'Nancy',
      'Title': 'Sales Representative',
      'TitleOfCourtesy': 'Ms.',
      'HireDate': '22/07/2001',
      'City': 'Seattle',
      'Country': 'USA'
    },
    {
      'EmployeeID': 2,
      'FirstName': 'Andrew',
      'Title': 'Vice President',
      'TitleOfCourtesy': 'Dr.',
      'HireDate': '21/04/2003',
      'City': 'Tacoma',
      'Country': 'USA'
    },
    {
      'EmployeeID': 3,
      'FirstName': 'Janet',
      'Title': 'Sales Representative',
      'TitleOfCourtesy': 'Ms.',
      'HireDate': '22/07/2001',
      'City': 'Kirkland',
      'Country': 'USA'
    }];
</script>
<template>
    <div class="control-section">
        <div class="col-lg-12 querybuilder-control">
            <ejs-querybuilder :dataSource="dataSource" :rule="importRules" width="70%">
                <e-columns>
                    <e-column field='EmployeeID' label='Employee ID' type='number' />
                    <e-column field='FirstName' label='First Name' type='string' />
                    <e-column field='TitleOfCourtesy' label='Title Of Courtesy' type='boolean' :values="values" />
                    <e-column field='Title' label='Title' type='string' />
                    <e-column field='HireDate' label='Hire Date' type='date' format='dd/MM/yyyy' />
                    <e-column field='Country' label='Country' type='string' />
                    <e-column field='City' label='City' type='string' />
                </e-columns>
            </ejs-querybuilder>
        </div>
    </div>
</template>

<style>
    .e-query-builder {
        margin: 0 auto;
    }
</style>

<script>
import { QueryBuilderComponent, ColumnDirective, ColumnsDirective } from "@syncfusion/ej2-vue-querybuilder";

export default {
name: "App",
components: {
"ejs-querybuilder":QuerybuilderComponent,
"e-columns":ColumnsDirective,
"e-column":ColumnDirective,
"ejs-querybuilder':":Querybuilder':Component

},

  components: {
    'ejs-querybuilder': QueryBuilderComponent,
    'e-column': ColumnDirective,
    'e-columns': ColumnsDirective
  },
  data: function() {
    return {
      dataSource: employeeData,
      values: ['Mr.', 'Mrs.'],
      importRules: {
        'condition': 'and',
        'rules': [{
                'label': 'Employee ID',
                'field': 'EmployeeID',
                'type': 'number',
                'operator': 'equal',
                'value': 1
            },
            {
                'label': 'Title',
                'field': 'Title',
                'type': 'string',
                'operator': 'equal',
                'value': 'Sales Manager'
            }]
        }
    };
  }
}
var employeeData = [{
      'EmployeeID': 1,
      'FirstName': 'Nancy',
      'Title': 'Sales Representative',
      'TitleOfCourtesy': 'Ms.',
      'HireDate': '22/07/2001',
      'City': 'Seattle',
      'Country': 'USA'
    },
    {
      'EmployeeID': 2,
      'FirstName': 'Andrew',
      'Title': 'Vice President',
      'TitleOfCourtesy': 'Dr.',
      'HireDate': '21/04/2003',
      'City': 'Tacoma',
      'Country': 'USA'
    },
    {
      'EmployeeID': 3,
      'FirstName': 'Janet',
      'Title': 'Sales Representative',
      'TitleOfCourtesy': 'Ms.',
      'HireDate': '22/07/2001',
      'City': 'Kirkland',
      'Country': 'USA'
    }];
</script>

The following example shows a basic Query builder.

<template>
    <div class="control-section">
        <div class="col-lg-12 querybuilder-control">
            <ejs-querybuilder width="70%" :dataSource="dataSource" :rule="importRules">
                <e-columns>
                    <e-column field='EmployeeID' label='Employee ID' type='number' />
                    <e-column field='FirstName' label='First Name' type='string' />
                    <e-column field='TitleOfCourtesy' label='Title Of Courtesy' type='boolean' :values="values"/>
                    <e-column field='Title' label='Title' type='string' />
                    <e-column field='HireDate' label='Hire Date' type='date' format='dd/MM/yyyy' />
                    <e-column field='Country' label='Country' type='string' />
                    <e-column field='City' label='City' type='string' />
                </e-columns>
            </ejs-querybuilder>
        </div>
    </div>
</template>
<script setup>
import { QueryBuilderComponent as EjsQuerybuilder, ColumnDirective as EColumn, ColumnsDirective as EColumns } from "@syncfusion/ej2-vue-querybuilder";

const dataSource = employeeData;
const values = ['Mr.', 'Mrs.'];

const importRules = {
    'condition': 'and',
    'rules': [{
        'label': 'Employee ID',
        'field': 'EmployeeID',
        'type': 'number',
        'operator': 'equal',
        'value': 1
    },
    {
        'label': 'Title',
        'field': 'Title',
        'type': 'string',
        'operator': 'equal',
        'value': 'Sales Manager'
    }]
};

var employeeData = [{
      'EmployeeID': 1,
      'FirstName': 'Nancy',
      'Title': 'Sales Representative',
      'TitleOfCourtesy': 'Ms.',
      'HireDate': '22/07/2001',
      'City': 'Seattle',
      'Country': 'USA'
    },
    {
      'EmployeeID': 2,
      'FirstName': 'Andrew',
      'Title': 'Vice President',
      'TitleOfCourtesy': 'Dr.',
      'HireDate': '21/04/2003',
      'City': 'Tacoma',
      'Country': 'USA'
    },
    {
      'EmployeeID': 3,
      'FirstName': 'Janet',
      'Title': 'Sales Representative',
      'TitleOfCourtesy': 'Ms.',
      'HireDate': '22/07/2001',
      'City': 'Kirkland',
      'Country': 'USA'
    }];

</script>
<style>
    @import "../node_modules/@syncfusion/ej2-base/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-buttons/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-dropdowns/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-inputs/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-lists/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-popups/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-calendars/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-vue-querybuilder/styles/material.css";
    .e-query-builder {
        margin: 0 auto;
    }
</style>
<template>
    <div class="control-section">
        <div class="col-lg-12 querybuilder-control">
            <ejs-querybuilder width="70%" :dataSource="dataSource" :rule="importRules">
                <e-columns>
                    <e-column field='EmployeeID' label='Employee ID' type='number' />
                    <e-column field='FirstName' label='First Name' type='string' />
                    <e-column field='TitleOfCourtesy' label='Title Of Courtesy' type='boolean' :values="values"/>
                    <e-column field='Title' label='Title' type='string' />
                    <e-column field='HireDate' label='Hire Date' type='date' format='dd/MM/yyyy' />
                    <e-column field='Country' label='Country' type='string' />
                    <e-column field='City' label='City' type='string' />
                </e-columns>
            </ejs-querybuilder>
        </div>
    </div>
</template>
<script>
import { QueryBuilderComponent, ColumnDirective, ColumnsDirective } from "@syncfusion/ej2-vue-querybuilder";

export default {
name: "App",
components: {
"ejs-querybuilder":QueryBuilderComponent,
"e-columns":ColumnsDirective,
"e-column":ColumnDirective,

    },
    data: function() {
        return {
            dataSource: employeeData,
            values: ['Mr.', 'Mrs.'],
            importRules: {
                'condition': 'and',
                'rules': [{
                    'label': 'Employee ID',
                    'field': 'EmployeeID',
                    'type': 'number',
                    'operator': 'equal',
                    'value': 1
                },
                {
                    'label': 'Title',
                    'field': 'Title',
                    'type': 'string',
                    'operator': 'equal',
                    'value': 'Sales Manager'
                }]
            }
        };
    }
}
var employeeData = [{
      'EmployeeID': 1,
      'FirstName': 'Nancy',
      'Title': 'Sales Representative',
      'TitleOfCourtesy': 'Ms.',
      'HireDate': '22/07/2001',
      'City': 'Seattle',
      'Country': 'USA'
    },
    {
      'EmployeeID': 2,
      'FirstName': 'Andrew',
      'Title': 'Vice President',
      'TitleOfCourtesy': 'Dr.',
      'HireDate': '21/04/2003',
      'City': 'Tacoma',
      'Country': 'USA'
    },
    {
      'EmployeeID': 3,
      'FirstName': 'Janet',
      'Title': 'Sales Representative',
      'TitleOfCourtesy': 'Ms.',
      'HireDate': '22/07/2001',
      'City': 'Kirkland',
      'Country': 'USA'
    }];

</script>
<style>
    @import "../node_modules/@syncfusion/ej2-base/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-buttons/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-dropdowns/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-inputs/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-lists/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-popups/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-calendars/styles/material.css";
    @import "../node_modules/@syncfusion/ej2-vue-querybuilder/styles/material.css";
    .e-query-builder {
        margin: 0 auto;
    }
</style>

You can also explore our Vue Query Builder example that shows how to render the Query Builder in Vue.
