Getting Started with the Vue Checkbox Component in Vue 2

11 Jun 20246 minutes to read

This article provides a step-by-step guide for setting up a Vue 2 project using Vue-CLI and integrating the Syncfusion Vue Checkbox component using the Composition API / Options API.

Prerequisites

System requirements for Syncfusion Vue UI components

Dependencies

The list of dependencies required to use the Checkbox component in your application is given below:

|-- @syncfusion/ej2-vue-buttons
    |-- @syncfusion/ej2-base
    |-- @syncfusion/ej2-buttons
    |-- @syncfusion/ej2-vue-base

Setting up the Vue 2 project

To generate a Vue 2 project using Vue-CLI, use the vue create command. Follow these steps to install Vue CLI and create a new project:

npm install -g @vue/cli
vue create quickstart
cd quickstart
npm run serve

or

yarn global add @vue/cli
vue create quickstart
cd quickstart
yarn run serve

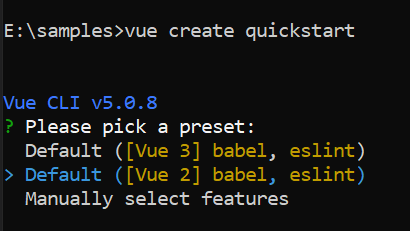

When creating a new project, choose the option Default ([Vue 2] babel, eslint) from the menu.

Vue 2 project

Once the quickstart project is set up with default settings, proceed to add Syncfusion components to the project.

Add Syncfusion Vue packages

Syncfusion packages are available at npmjs.com. To use Vue components, install the required npm package.

This article uses the Vue Checkbox component as an example. Install the @syncfusion/ej2-vue-buttons package by running the following command:

npm install @syncfusion/ej2-vue-buttons --save

or

yarn add @syncfusion/ej2-vue-buttons

Import Syncfusion CSS styles

You can import themes for the Syncfusion Vue component in various ways, such as using CSS or SASS styles from npm packages, CDN, CRG and Theme Studio. Refer to themes topic to know more about built-in themes and different ways to refer to themes in a Vue project.

In this article, the Material theme is applied using CSS styles, which are available in installed packages. The necessary Material CSS styles for the Checkbox component and its dependents were imported into the <style> section of src/App.vue file.

<style>
@import '../node_modules/@syncfusion/ej2-base/styles/material.css';
@import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';
</style>

Add Syncfusion Vue component

Follow the below steps to add the Vue Checkbox component using Composition API or Options API:

1. First, import and register the Checkbox component in the script section of the src/App.vue file. If you are using the Composition API, you should add the setup attribute to the script tag to indicate that Vue will be using the Composition API.

<script setup>
import { CheckBoxComponent as EjsCheckbox } from "@syncfusion/ej2-vue-buttons";
</script>
<script>
import { CheckBoxComponent } from "@syncfusion/ej2-vue-buttons";
export default {
  components: {
    'ejs-checkbox': CheckBoxComponent
  }
}
</script>

2. In the template section define the Checkbox component with the label

<template>
<ejs-checkbox label='Default'></ejs-checkbox>
</template>

Here is the summarized code for the above steps in the src/App.vue file:

<template>
<ejs-checkbox label='Default'></ejs-checkbox>
</template>

<script setup>
import { CheckBoxComponent as EjsCheckbox } from "@syncfusion/ej2-vue-buttons";
import { enableRipple } from '@syncfusion/ej2-base';
enableRipple(true);
</script>

<style>
  @import '../node_modules/@syncfusion/ej2-base/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';

.e-checkbox-wrapper {
  margin-top: 18px;
}
</style>
<template>
  <ejs-checkbox label='Default'></ejs-checkbox>
</template>

<script>
import { CheckBoxComponent } from "@syncfusion/ej2-vue-buttons";
import { enableRipple } from '@syncfusion/ej2-base';

enableRipple(true);

export default {
  name: "App",
  components: {
    'ejs-checkbox': CheckBoxComponent
  }
}
</script>

<style>
@import '../node_modules/@syncfusion/ej2-base/styles/material.css';
@import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';

.e-checkbox-wrapper {
  margin-top: 18px;
}
</style>

Run the project

To run the project, use the following command:

npm run serve

or

yarn run serve

Change the Checkbox state

The Essential JS 2 Checkbox contains 3 different states visually, they are:

  • Checked
  • Unchecked
  • Indeterminate

The Checkbox checked property is used to handle the checked and unchecked state. In checked state a tick mark will be added to the visualization of Checkbox.

Indeterminate

The Checkbox indeterminate state can be set through indeterminate property. Checkbox indeterminate state masks the real value of Checkbox visually. The Checkbox cannot be changed to indeterminate state through the user interface, this state can be achieved only through the property.

<template>
<ul>
<li><ejs-checkbox label='Checked State' checked=true></ejs-checkbox></li>
<li><ejs-checkbox label='Unchecked State'></ejs-checkbox></li>
<li><ejs-checkbox label='Indeterminate State' indeterminate=true></ejs-checkbox></li>
</ul>
</template>

<script setup>
import { CheckBoxComponent as EjsCheckbox } from "@syncfusion/ej2-vue-buttons";
import { enableRipple } from '@syncfusion/ej2-base';

enableRipple(true);
</script>

<style>
  @import '../node_modules/@syncfusion/ej2-base/styles/material.css';
  @import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';

.e-checkbox-wrapper {
  margin-top: 18px;
}

li {
  list-style: none;
}
</style>
<template>
  <ul>
    <li><ejs-checkbox label='Checked State' checked=true></ejs-checkbox></li>
    <li><ejs-checkbox label='Unchecked State'></ejs-checkbox></li>
    <li><ejs-checkbox label='Indeterminate State' indeterminate=true></ejs-checkbox></li>
  </ul>
</template>

<script>
import { CheckBoxComponent } from "@syncfusion/ej2-vue-buttons";
import { enableRipple } from '@syncfusion/ej2-base';

enableRipple(true);

export default {
  name: "App",
  components: {
    'ejs-checkbox': CheckBoxComponent
  }
}
</script>

<style>
@import '../node_modules/@syncfusion/ej2-base/styles/material.css';
@import '../node_modules/@syncfusion/ej2-buttons/styles/material.css';

.e-checkbox-wrapper {
  margin-top: 18px;
}

li {
  list-style: none;
}
</style>
