Style and Appearance in React Gantt Chart Component

12 Mar 20269 minutes to read

The React Gantt Chart component’s appearance is customized by overriding default CSS styles to align with application designs, using classes for taskbars, milestones, and grid elements. The queryTaskbarInfo event modifies taskbar styles dynamically, while grid lines are configured with gridLines for horizontal, vertical, or both. Custom themes are created via Theme Studio. Styles include ARIA labels for accessibility, ensuring screen reader compatibility, and adapt to responsive designs, though narrow screens may require adjustments for taskbar visibility.

CSS class reference

The Gantt Chart component uses CSS classes for styling, organized by functional areas:

  • Core structure:

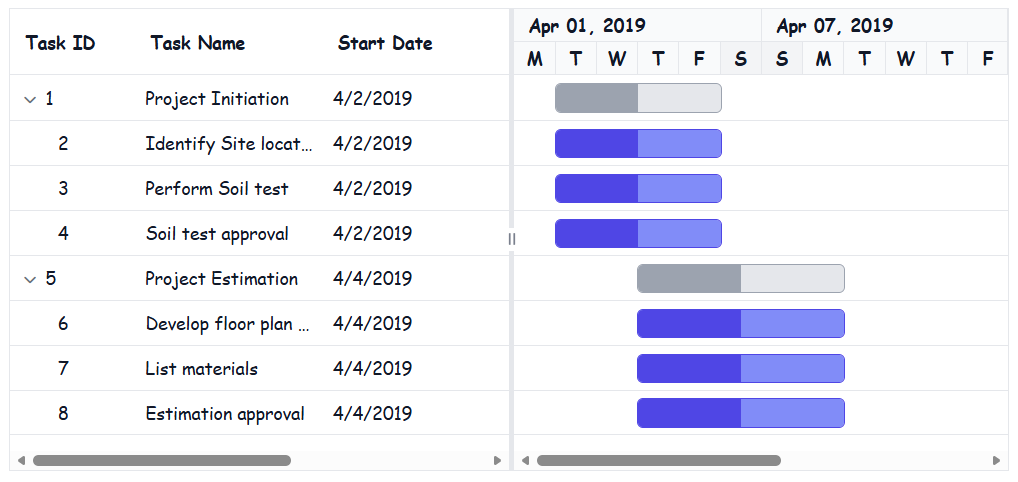

    • e-gantt: Root container for the entire component.
    • e-gridheader: Header container separating headers from content.
    • e-table: Header table for full-width rendering.

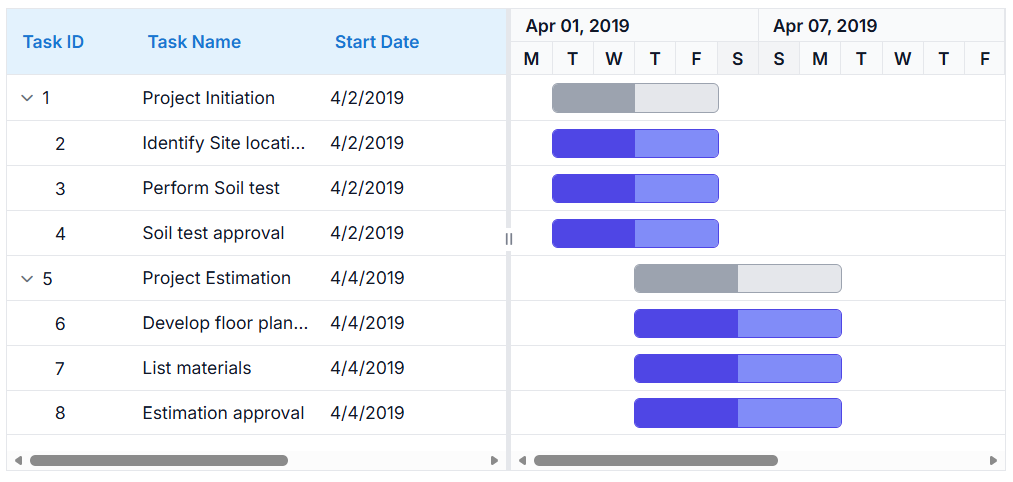

    • e-columnheader: Header row for column titles and sorting indicators.
  • Content area:
    • e-gridcontent: Main content container for background and layout.
    • e-table: Content table for task data.
    • e-row: Individual task row styling and spacing.
    • e-altrow: Alternate row styling for readability.
    • e-rowcell: Individual cell styling and alignment.
  • Chart and timeline:
    • e-gantt-chart: Chart container for timeline visualization.
    • e-chart-row: Chart row alignment with grid rows.

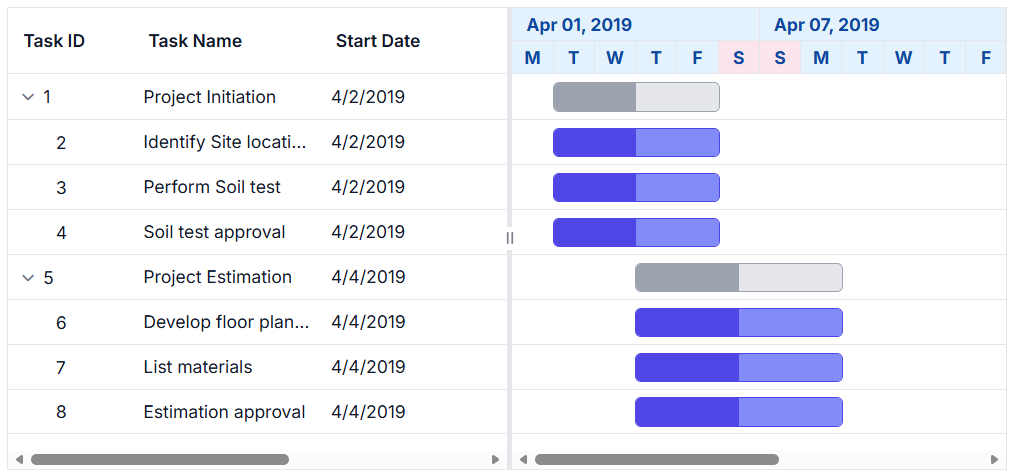

    • e-timeline-header-container: Timeline header for date labels.
    • e-header-cell-label: Timeline header cell text formatting.
    • e-weekend-header-cell: Weekend header cells.
  • Taskbar elements:
    • e-taskbar-main-container: Main taskbar container for positioning.
    • e-gantt-parent-taskbar: Parent taskbar styling.
    • e-gantt-child-taskbar: Child taskbar appearance.
    • e-gantt-milestone: Milestone diamond shape.
    • e-gantt-unscheduled-taskbar: Unscheduled taskbars.
    • e-gantt-manualparenttaskbar: Manual parent taskbar.
    • e-gantt-child-manualtaskbar: Manual child taskbar.
    • e-gantt-unscheduled-manualtask: Unscheduled manual task.
    • e-parent-taskbar-inner-div: Parent taskbar inner.
    • e-child-taskbar-inner-div: Child taskbar inner.
    • e-child-progress-resizer: Child progress resizer.
  • Dependency lines:
    • e-line: Dependency line base style.
    • e-connector-line-right-arrow: Right-side arrowhead.
    • e-connector-line-left-arrow: Left-side arrowhead.
  • Additional elements:

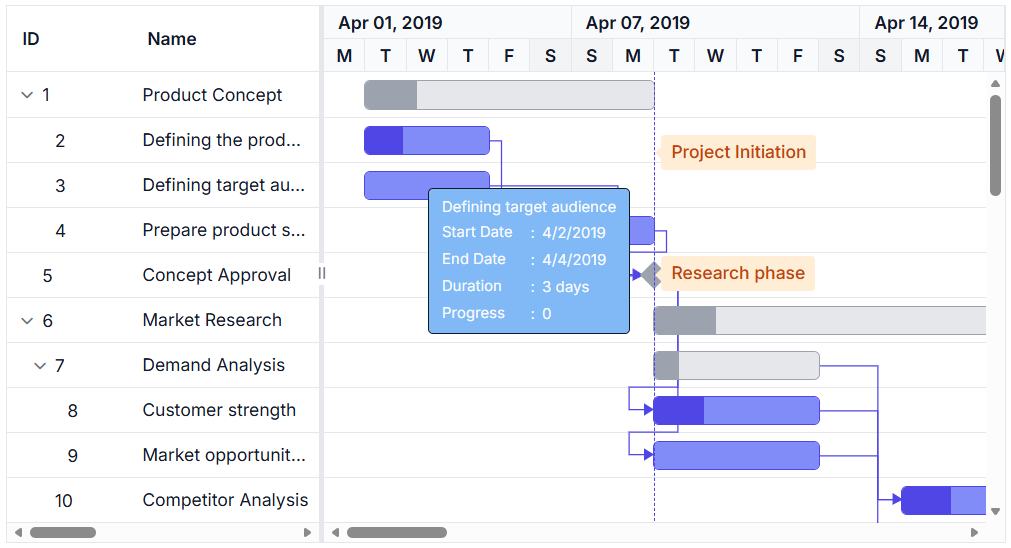

    • e-gantt-tooltip: Tooltip container for task details.

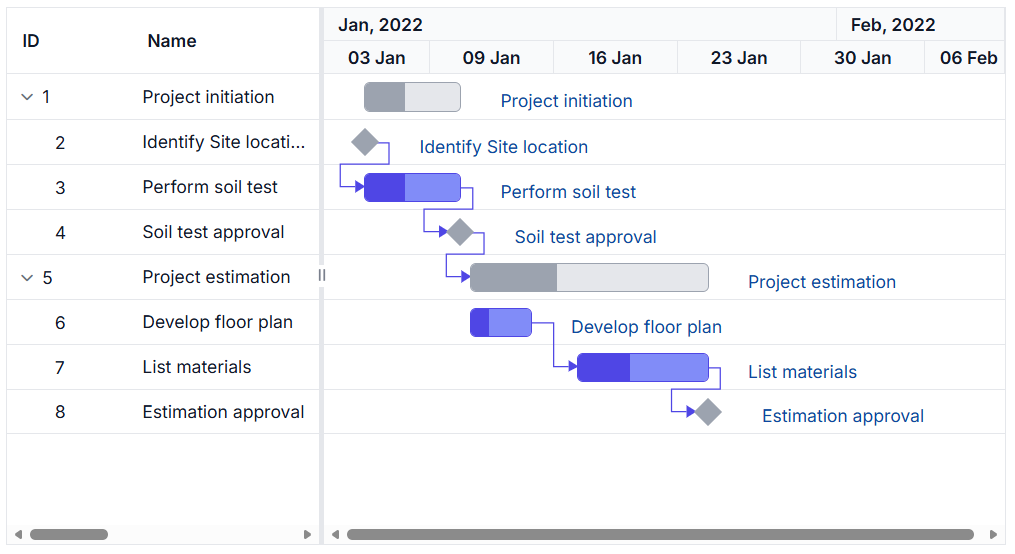

    • e-left-label-container: Left label container.
    • e-right-label-container: Right label container.
    • e-header-cell-label: Header cell labels.
    • e-task-label: Task labels.
    • e-taskbar-left-resizer: Left taskbar resizer.
    • e-taskbar-right-resizer: Right taskbar resizer.
    • e-weekend-container: Weekend container.
    • e-left-label-inner-div: Left label inner.
    • e-right-label-inner-div: Right label inner.
    • e-left-resize-gripper: Left resizer gripper.
    • e-right-resize-gripper: Right resizer gripper.
    • e-connectorpoint-left: Left connector point.
    • e-connectorpoint-right: Right connector point.
    • e-child-progressbar-inner-div: Child progress bar inner.
    • e-parent-progressbar-inner-div: Parent progress bar inner.
    • e-row-expand: Row expand.
    • e-row-collapse: Row collapse.
    • e-progressbar-handler: Progress bar handler.
    • e-connectorpoint-left-hover: Connector point left hover.
    • e-connectorpoint-right-hover: Connector point right hover.

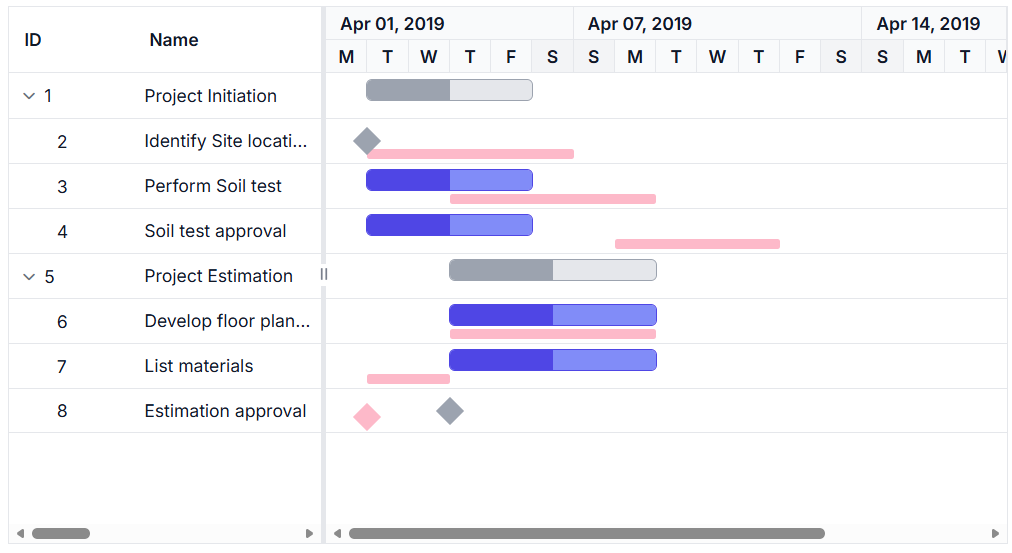

    • e-baseline-bar: Baseline bar.

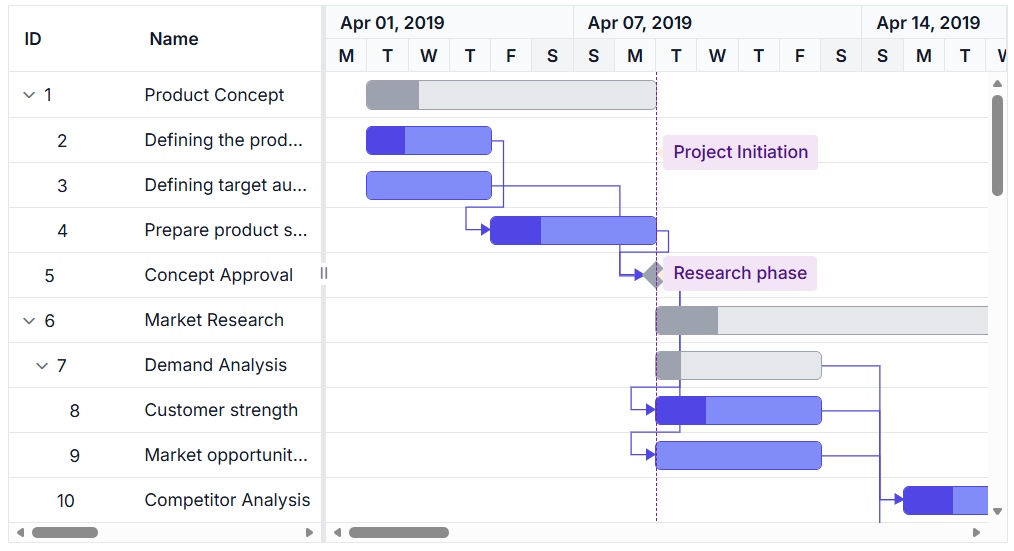

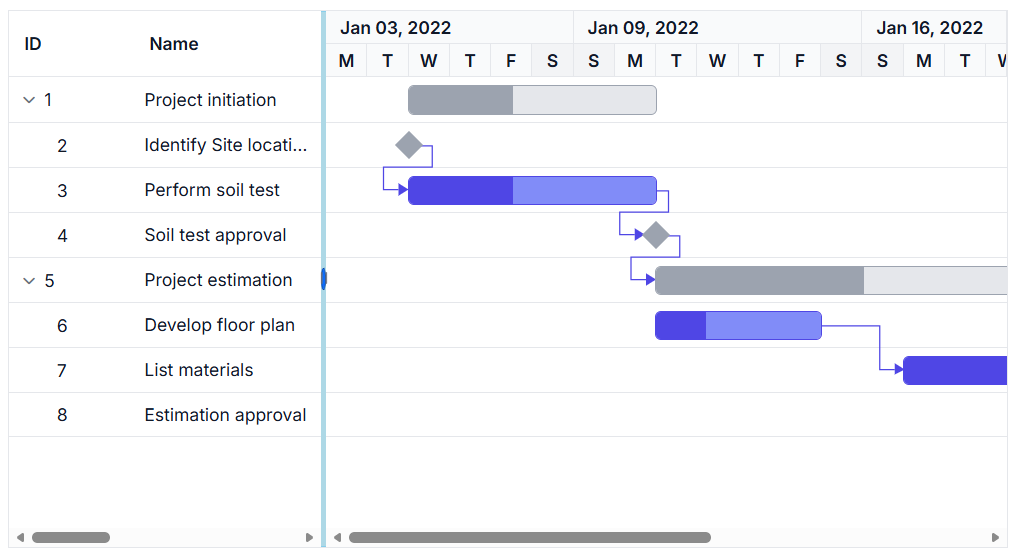

Override default styles

Override default CSS styles for custom appearance, using classes like .e-gantt .e-gantt-parent-taskbar for parent taskbars or .e-gantt .e-gantt-milestone for milestones. Theme Studio customizes themes across components.

The following example overrides taskbar and milestone styles:

/* Customize child taskbar appearance */
.e-gantt .e-gantt-parent-taskbar {
    background-color: #28a745;
    border-color: #1e7e34;
}

/* Customize milestone appearance */
.e-gantt .e-gantt-milestone {
    background-color: #ff6600;
    border-color: #cc5200;
}

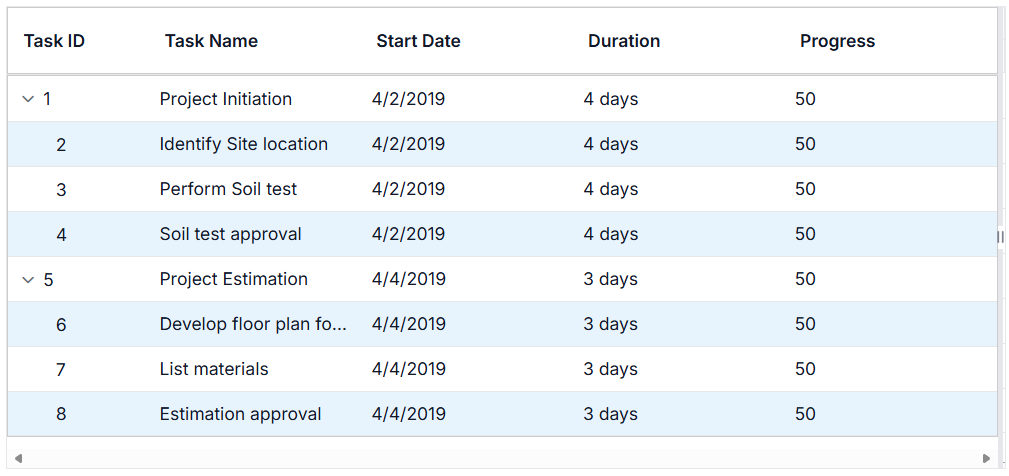

Grid appearance customization

/* Customize alternate row colors */
.e-gantt .e-altrow {
    background-color: #f8f9fa;
}

/* Customize cell borders */
.e-gantt .e-rowcell {
    border-right: 1px solid #dee2e6;
}

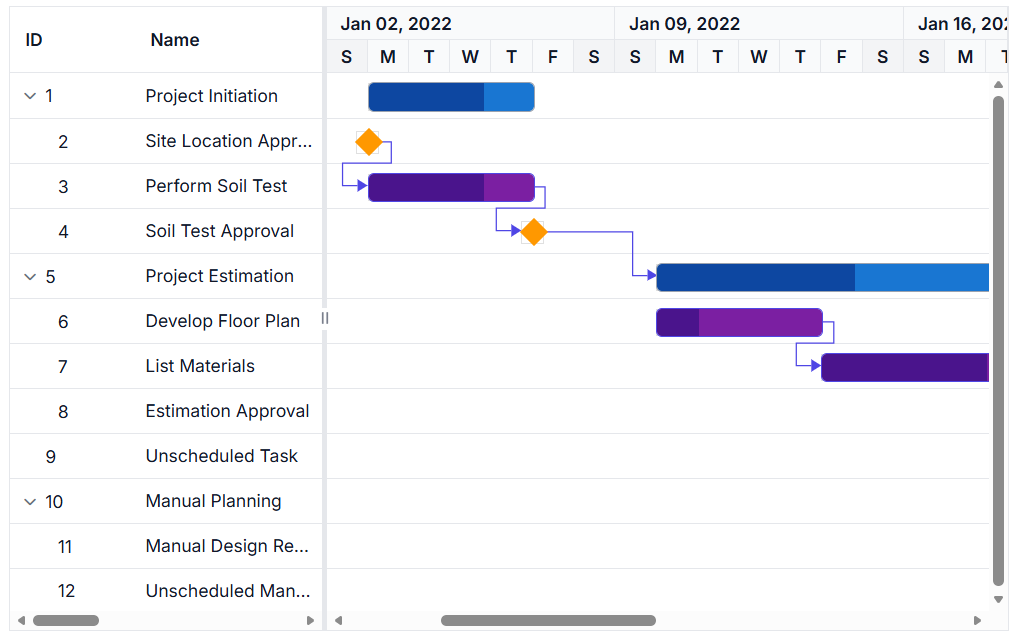

Customize the taskbar

To customize the appearance of child taskbars in the Gantt Chart, apply the following CSS.

.e-gantt-child-taskbar{
  border-radius: 40%!important;
}

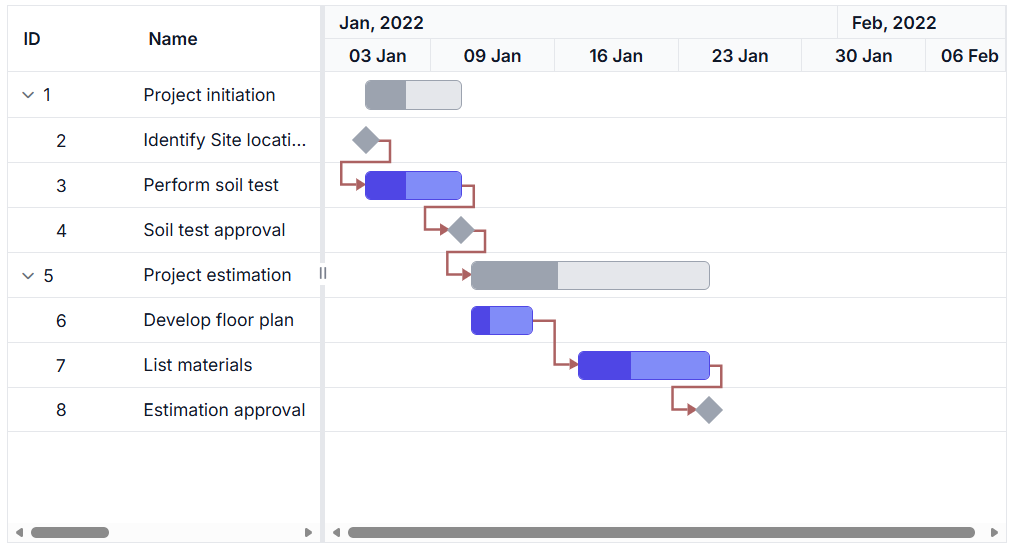

Customize the connector line

To customize the connector line in the Gantt Chart, apply the following CSS

 .e-connector-line{
    stroke-width: 6;
  }
  .e-connector-line:hover {
    stroke-width: 3px !important;
    stroke: #f10c0c !important;
  }

customize the dialog popup on editing

To customize the header area of the dialog editor in the Gantt Chart, apply the following CSS.

.e-gantt-dialog .e-dlg-header-content, .e-gantt-dialog .e-tab .e-tab-header {
  background: #5b3f51 !important;
}

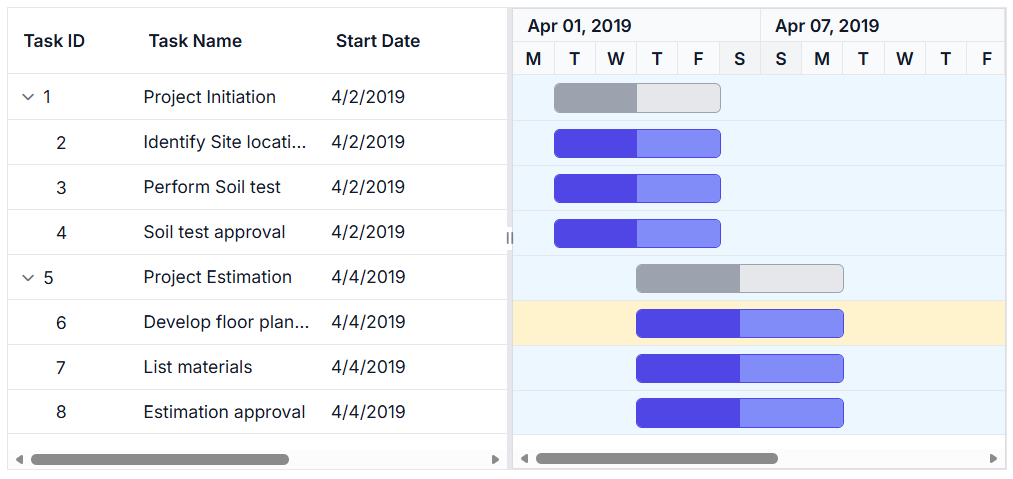

Customize row hover

To customize the row hover effect in the Gantt Chart, apply the following CSS.

.e-gantt .e-chart-row:hover {
  background: pink;
}
.e-gantt .e-row:hover {
  background: pink;
}

Configure grid lines

Control grid line visibility with gridLines:

  • Horizontal: Shows only horizontal lines for row separation.
  • Vertical: Shows only vertical lines for column separation.
  • Both: Shows both for full grid structure.
  • None: Hides all lines for minimal appearance.

The following example configures both grid lines:

import * as React from 'react';
import * as ReactDOM from 'react-dom';
import { GanttComponent } from '@syncfusion/ej2-react-gantt';
import { data } from './datasource';
function App() {
  const taskFields = {
    id: 'TaskID',
    name: 'TaskName',
    startDate: 'StartDate',
    duration: 'Duration',
    progress: 'Progress',
    parentID: 'ParentID'
  };
  return (
    <GanttComponent
      dataSource={data}
      gridLines='Both'
      taskFields={taskFields}
      height='450px'
    >
    </GanttComponent>
  );
};
ReactDOM.render(<App />, document.getElementById('root'));
import * as React from 'react';
import * as ReactDOM from 'react-dom';
import { GanttComponent } from '@syncfusion/ej2-react-gantt';
import { data } from './datasource';
function App() {
  const taskFields: any = {
    id: 'TaskID',
    name: 'TaskName',
    startDate: 'StartDate',
    duration: 'Duration',
    progress: 'Progress',
    parentID: 'ParentID'
  };
  return (
    <GanttComponent
      dataSource={data}
      gridLines='Both'
      taskFields={taskFields}
      height='450px'
      gridLines="Both"
    >
    </GanttComponent>
  );
};
ReactDOM.render(<App />, document.getElementById('root'));
<!DOCTYPE html>
<html lang="en">

<head>
    <title>Syncfusion React Gantt</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for React Components" />
    <meta name="author" content="Syncfusion" />
    <link href="https://cdn.syncfusion.com/ej2/33.1.44/tailwind3.css" rel="stylesheet" type="text/css"/>
    <link href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
     <style>
        #loader {
            color: #008cff;
            height: 40px;
            left: 45%;
            position: absolute;
            top: 45%;
            width: 30%;
        }
    </style>
</head>

<body>
        <div id='root'>
            <div id='loader'>Loading....</div>
        </div>
</body>

</html>

By default, gridLines is Horizontal.
