Getting started with EJ2 TypeScript Smith Chart control

19 Feb 202624 minutes to read

This document explains how to create a simple Smith Chart and configure its features in TypeScript using the Essential^® JS 2 quickstart seed repository.

This application is integrated with the webpack.config.js configuration and uses the latest version of the webpack-cli. It requires node v14.15.0 or higher. For more information about webpack and its features, refer to the webpack getting-started guide.

Dependencies

Below is the list of minimum dependencies required to use the Smith Chart.

|-- @syncfusion/ej2-charts
    |-- @syncfusion/ej2-base
    |-- @syncfusion/ej2-data
    |-- @syncfusion/ej2-svg-base
    |-- @syncfusion/ej2-pdf-export
    |-- @syncfusion/ej2-compression
    |-- @syncfusion/ej2-file-utils

Set up development environment

Open the command prompt from the required directory, and run the following command to clone the Syncfusion^® JavaScript (Essential^® JS 2) quickstart project from GitHub.

git clone https://github.com/SyncfusionExamples/ej2-quickstart-webpack ej2-quickstart

After cloning the application in the ej2-quickstart folder, run the following command line to navigate to the ej2-quickstart folder.

cd ej2-quickstart

Add Syncfusion^® JavaScript packages

Syncfusion^® JavaScript (Essential^® JS 2) packages are available on the npmjs.com public registry. You can install all Syncfusion^® JavaScript (Essential^® JS 2) controls in a single @syncfusion/ej2 package or individual packages for each control.

The quickstart application is preconfigured with the dependent @syncfusion/ej2 package in the ~/package.json file. Use the following command to install the dependent npm packages from the command prompt.

npm install

Add smith chart to the project

Open the project in Visual Studio Code and add the Smith Chart to the application.

Add the HTML div tag with its id attribute as container in your ~/src/index.html file to initialize the Smith Chart.

index.html
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Smith Chart</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Typescript UI Controls" />
    <meta name="author" content="Syncfusion" />
</head>

<body>
    <!--container which is going to render the Smith Chart-->
    <div id='container'>
    </div>
</body>

</html>

Import the Smith Chart component into src/app/app.ts to instantiate and render the Smith Chart.

app.ts
import { Smithchart } from '@syncfusion/ej2-charts';

// initialize Smithchart component
let smithchart: Smithchart = new Smithchart();

// render initialized Smithchart
smithchart.appendTo('#container');

Now use the npm run start command to run the application in the browser.

npm run start

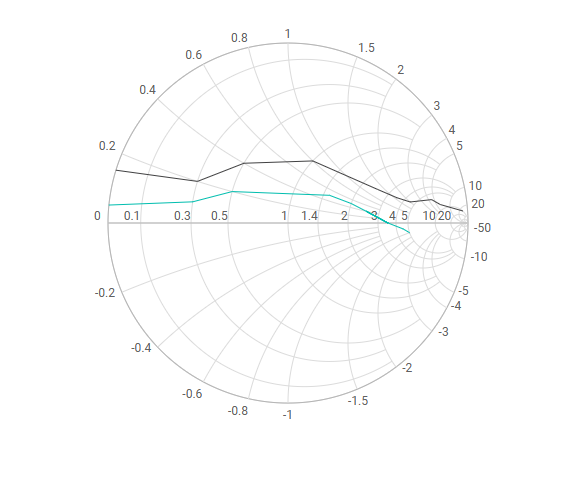

The below example shows a basic Smithchart.

index.ts
index.html
import { Smithchart } from '@syncfusion/ej2-charts';

let smithchart: Smithchart = new Smithchart();

smithchart.appendTo('#container');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2 for Smith chart </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for Smithchart UI Control" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/32.2.3/ej2-charts/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
    </div>

</body>

</html>

Module Injection

The Smithchart component is segregated into individual feature-wise modules. To use a particular feature, you need to inject its module using the Smithchart.Inject() method. In the current application, we modify the basic Smithchart to visualize transmission lines using the tooltip and legend features. The relevant feature modules are:

SmithchartLegend — Inject to use the legend feature.
TooltipRender — Inject to use the tooltip feature.

Now import the above-mentioned modules from smithchart package and inject it into the Smithchart component using
Smithchart.Inject method.

app.ts
import { Smithchart, SmithchartLegend, TooltipRender } from '@syncfusion/ej2-charts';
Smithchart.Inject(SmithchartLegend, TooltipRender);

Add Series to Smithchart

The Smithchart has two ways to add series:

dataSource — Bind a data object by specifying resistance and reactance values; the series renders from the provided dataSource.
points — Provide a collection of resistance and reactance value points for the series.

The sample below demonstrates adding two series to the Smithchart in both ways.

First series Transmission1 shows dataSource bound series.
Second series Transmission2 shows points bound series.

index.ts
index.html
import { Smithchart } from '@syncfusion/ej2-charts';

let smithchart: Smithchart = new Smithchart({
    series: [
        {
            dataSource: [
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0.3, reactance: 0.1 }, { resistance: 0.5, reactance: 0.2 },
                { resistance: 1.5, reactance: 0.5 }, { resistance: 2.0, reactance: 0.5 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 4.5, reactance: -0.5 }, { resistance: 5.0, reactance: -1.0 }

            ],
            name: 'Transmission1',
            reactance: 'reactance', resistance: 'resistance'
        },
        {
            points: [{ resistance: 0, reactance: 0.15 }, { resistance: 0, reactance: 0.15 },
            { resistance: 0, reactance: 0.15 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.5, reactance: 0.4 }, { resistance: 1.0, reactance: 0.8 },
            { resistance: 2.5, reactance: 1.3 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 3.5, reactance: 1.6 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 4.5, reactance: 2.0 }, { resistance: 6.0, reactance: 4.5 },
            { resistance: 8, reactance: 6 }, { resistance: 10, reactance: 25 }],
            name: 'Transmission2'
        }
    ]
});
smithchart.appendTo('#container');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2 for Smith chart </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for Smithchart UI Control" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/32.2.3/ej2-charts/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
    </div>

</body>

</html>

Add title to Smith Chart

You can add a title using the title property to the Smith Chart to provide quick information to the user about the data plotted in the Smith Chart.

index.ts
index.html
import { Smithchart } from '@syncfusion/ej2-charts';

let smithchart: Smithchart = new Smithchart({
    title: { text: 'Transmission lines applied for both impedance and admittance'},
    series: [
        {
            dataSource: [
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0.3, reactance: 0.1 }, { resistance: 0.5, reactance: 0.2 },
                { resistance: 1.5, reactance: 0.5 }, { resistance: 2.0, reactance: 0.5 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 4.5, reactance: -0.5 }, { resistance: 5.0, reactance: -1.0 }

            ],
            name: 'Transmission1',
            reactance: 'reactance', resistance: 'resistance'
        },
        {
            points: [{ resistance: 0, reactance: 0.15 }, { resistance: 0, reactance: 0.15 },
            { resistance: 0, reactance: 0.15 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.5, reactance: 0.4 }, { resistance: 1.0, reactance: 0.8 },
            { resistance: 2.5, reactance: 1.3 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 3.5, reactance: 1.6 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 4.5, reactance: 2.0 }, { resistance: 6.0, reactance: 4.5 },
            { resistance: 8, reactance: 6 }, { resistance: 10, reactance: 25 }],
            name: 'Transmission2'
        }
    ]
});
smithchart.appendTo('#container');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2 for Smith chart </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for Smithchart UI Control" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/32.2.3/ej2-charts/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
    </div>

</body>

</html>

Enable markers in the Smithchart

You can add and customize markers in the Smith Chart. This can be achieved by setting the visible property to true in the marker object. The sample below enables markers for the first series.

index.ts
index.html
import { Smithchart } from '@syncfusion/ej2-charts';

let smithchart: Smithchart = new Smithchart({
    title: { text: 'Transmission lines applied for both impedance and admittance'},
    series: [
        {
            dataSource: [
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0.3, reactance: 0.1 }, { resistance: 0.5, reactance: 0.2 },
                { resistance: 1.5, reactance: 0.5 }, { resistance: 2.0, reactance: 0.5 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 4.5, reactance: -0.5 }, { resistance: 5.0, reactance: -1.0 }
            ],
            name: 'Transmission1',
            reactance: 'reactance', resistance: 'resistance',
            marker: {
                visible: true
            }
        },
        {
            points: [{ resistance: 0, reactance: 0.15 }, { resistance: 0, reactance: 0.15 },
            { resistance: 0, reactance: 0.15 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.5, reactance: 0.4 }, { resistance: 1.0, reactance: 0.8 },
            { resistance: 2.5, reactance: 1.3 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 3.5, reactance: 1.6 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 4.5, reactance: 2.0 }, { resistance: 6.0, reactance: 4.5 },
            { resistance: 8, reactance: 6 }, { resistance: 10, reactance: 25 }],
            name: 'Transmission2'
        }
    ]
});
smithchart.appendTo('#container');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2 for Smith chart </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for Smithchart UI Control" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/32.2.3/ej2-charts/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
    </div>

</body>

</html>

Enable data labels for Smithchart markers

You can add data labels to improve the readability of the Smith Chart. This can be achieved by setting the visible property to true in the dataLabel object. The sample below enables data labels for the first series.

index.ts
index.html
import { Smithchart } from '@syncfusion/ej2-charts';

let smithchart: Smithchart = new Smithchart({
    title: { text: 'Transmission lines applied for both impedance and admittance'},
    series: [
        {
            dataSource: [
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0.3, reactance: 0.1 }, { resistance: 0.5, reactance: 0.2 },
                { resistance: 1.5, reactance: 0.5 }, { resistance: 2.0, reactance: 0.5 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 4.5, reactance: -0.5 }, { resistance: 5.0, reactance: -1.0 }
            ],
            name: 'Transmission1',
            reactance: 'reactance', resistance: 'resistance',
            marker: {
                visible: true,
                dataLabel: {
                    visible: true
                }
            }
        },
        {
            points: [{ resistance: 0, reactance: 0.15 }, { resistance: 0, reactance: 0.15 },
            { resistance: 0, reactance: 0.15 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.5, reactance: 0.4 }, { resistance: 1.0, reactance: 0.8 },
            { resistance: 2.5, reactance: 1.3 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 3.5, reactance: 1.6 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 4.5, reactance: 2.0 }, { resistance: 6.0, reactance: 4.5 },
            { resistance: 8, reactance: 6 }, { resistance: 10, reactance: 25 }],
            name: 'Transmission2'
        }
    ]
});
smithchart.appendTo('#container');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2 for Smith chart </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for Smithchart UI Control" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/32.2.3/ej2-charts/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
    </div>

</body>

</html>

Enable legend for Smithchart

You can use a legend for the Smith Chart by setting the visible property to true in the legendSettings object and by injecting the SmithchartLegend module using Smithchart.Inject(SmithchartLegend). The following example shows enabling the legend for the Smithchart. The series name can be customized using the series name.

index.ts
index.html
import { Smithchart, SmithchartLegend} from '@syncfusion/ej2-charts';

Smithchart.Inject(SmithchartLegend);

let smithchart: Smithchart = new Smithchart({
    title: { text: 'Transmission lines applied for both impedance and admittance'},
    legendSettings: {
        visible: true
    },
    series: [
        {
            dataSource: [
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0.3, reactance: 0.1 }, { resistance: 0.5, reactance: 0.2 },
                { resistance: 1.5, reactance: 0.5 }, { resistance: 2.0, reactance: 0.5 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 4.5, reactance: -0.5 }, { resistance: 5.0, reactance: -1.0 }
            ],
            name: 'Transmission1',
            reactance: 'reactance', resistance: 'resistance',
            marker: {
                visible: true,
                dataLabel: {
                    visible: true
                }
            }
        },
        {
            points: [{ resistance: 0, reactance: 0.15 }, { resistance: 0, reactance: 0.15 },
            { resistance: 0, reactance: 0.15 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.5, reactance: 0.4 }, { resistance: 1.0, reactance: 0.8 },
            { resistance: 2.5, reactance: 1.3 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 3.5, reactance: 1.6 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 4.5, reactance: 2.0 }, { resistance: 6.0, reactance: 4.5 },
            { resistance: 8, reactance: 6 }, { resistance: 10, reactance: 25 }],
            name: 'Transmission2'
        }
    ]
});
smithchart.appendTo('#container');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2 for Smith chart </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for Smithchart UI Control" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/32.2.3/ej2-charts/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
    </div>

</body>

</html>

The tooltip is useful when you cannot display information by using data labels due to space constraints. You can enable the tooltip by setting the visible property to true in the tooltip object and by injecting TooltipRender using Smithchart.Inject(TooltipRender).

index.ts
index.html
import { Smithchart, SmithchartLegend, TooltipRender} from '@syncfusion/ej2-charts';

Smithchart.Inject(SmithchartLegend, TooltipRender);

let smithchart: Smithchart = new Smithchart({
    title: { text: 'Transmission lines applied for both impedance and admittance'},
    legendSettings: {
        visible: true
    },
    series: [
        {
            dataSource: [
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0, reactance: 0.05 }, { resistance: 0, reactance: 0.05 },
                { resistance: 0.3, reactance: 0.1 }, { resistance: 0.5, reactance: 0.2 },
                { resistance: 1.5, reactance: 0.5 }, { resistance: 2.0, reactance: 0.5 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 2.5, reactance: 0.4 }, { resistance: 3.5, reactance: 0.0 },
                { resistance: 4.5, reactance: -0.5 }, { resistance: 5.0, reactance: -1.0 }
            ],
            name: 'Transmission1',
            reactance: 'reactance', resistance: 'resistance',
            tooltip: {
                visible: true
            },
            marker: {
                visible: true,
                dataLabel: {
                    visible: true
                }
            }
        },
        {
            points: [{ resistance: 0, reactance: 0.15 }, { resistance: 0, reactance: 0.15 },
            { resistance: 0, reactance: 0.15 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.3, reactance: 0.2 }, { resistance: 0.3, reactance: 0.2 },
            { resistance: 0.5, reactance: 0.4 }, { resistance: 1.0, reactance: 0.8 },
            { resistance: 2.5, reactance: 1.3 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 3.5, reactance: 1.6 }, { resistance: 3.5, reactance: 1.6 },
            { resistance: 4.5, reactance: 2.0 }, { resistance: 6.0, reactance: 4.5 },
            { resistance: 8, reactance: 6 }, { resistance: 10, reactance: 25 }],
            name: 'Transmission2',
            tooltip: {
                visible: true
            }
        }
    ]
});
smithchart.appendTo('#container');
<!DOCTYPE html>
<html lang="en">

<head>
    <title>Essential JS 2 for Smith chart </title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Essential JS 2 for Smithchart UI Control" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <link href="https://cdn.syncfusion.com/ej2/32.2.3/ej2-charts/styles/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
    </div>

</body>

</html>

Search docs

Ask HelpBot

Search docs

Ask HelpBot

How can I help you?

Getting started with EJ2 TypeScript Smith Chart control

Dependencies

Set up development environment

Add Syncfusion^® JavaScript packages

Add smith chart to the project

Module Injection

Add Series to Smithchart

Add title to Smith Chart

Enable markers in the Smithchart

Enable data labels for Smithchart markers

Enable legend for Smithchart

Enable tooltip for Smithchart series

How can I help you?

Getting started with EJ2 TypeScript Smith Chart control

Dependencies

Set up development environment

Add Syncfusion® JavaScript packages

Add smith chart to the project

Module Injection

Add Series to Smithchart

Add title to Smith Chart

Enable markers in the Smithchart

Enable data labels for Smithchart markers

Enable legend for Smithchart

Enable tooltip for Smithchart series

Add Syncfusion^® JavaScript packages
