Getting Started with ASP.NET MVC Splitter Control

10 May 202212 minutes to read

This section briefly explains about how to include ASP.NET MVC Splitter control in your ASP.NET MVC application using Visual Studio.

Prerequisites

System requirements for ASP.NET MVC controls

Create ASP.NET MVC application with HTML helper

Install ASP.NET MVC package in the application

Syncfusion ASP.NET MVC controls are available in nuget.org. Refer to NuGet packages topic to learn more about installing NuGet packages in various OS environments. To add ASP.NET MVC controls in the application, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for Syncfusion.EJ2.MVC5 and then install it.

The Syncfusion.EJ2.MVC5 NuGet package has dependencies, Newtonsoft.Json for JSON serialization and Syncfusion.Licensing for validating Syncfusion license key.

If you create ASP.NET MVC application with MVC4 package, search for Syncfusion.EJ2.MVC4 and then install it.

Add namespace

Add Syncfusion.EJ2 namespace reference in Web.config under Views folder.

<namespaces>
    <add namespace="Syncfusion.EJ2"/>
</namespaces>

Add style sheet

Checkout the Themes topic to learn different ways (CDN, NPM package, and CRG) to refer styles in ASP.NET MVC application, and to have the expected appearance for Syncfusion ASP.NET MVC controls. Here, the theme is referred using CDN inside the <head> of ~/Views/Shared/_Layout.cshtml file as follows,

<head>
    ...
    <!-- Syncfusion ASP.NET MVC controls styles -->
    <link rel="stylesheet" href="https://cdn.syncfusion.com/ej2/20.1.55/fluent.css" />
</head>

Add script reference

In this getting started walk-through, the required scripts are referred using CDN inside the <head> of ~/Views/Shared/_Layout.cshtml file as follows,

<head>
    ...
    <!-- Syncfusion ASP.NET MVC controls scripts -->
    <script src="https://cdn.syncfusion.com/ej2/20.1.55/dist/ej2.min.js"></script>
</head>

Register Syncfusion Script Manager

Open ~/Views/Shared/_Layout.cshtml page and register the script manager EJS().ScriptManager() at the end of <body> in the ASP.NET MVC application as follows.

<body>
...
    <!-- Syncfusion ASP.NET MVC Script Manager -->
    @Html.EJS().ScriptManager()
</body>

Add ASP.NET MVC Splitter control

Now, add the Syncfusion ASP.NET MVC Splitter control in ~/Views/Home/Index.cshtml page.

@Html.EJS().Splitter("splitter").Width("600px").Height("250px").PaneSettings(item => { item.Content("<div></div>").Add();item.Content("<div></div>").Add();item.Content("<div></div>").Add();}).Render()

Press Ctrl+F5 (Windows) or +F5 (macOS) to run the app. Then, the Syncfusion ASP.NET MVC Splitter control will be rendered in the default web browser.

ASP.NET MVC Splitter Control

Load content to the pane

You can load the pane contents in either HTML element or string types using Content property.

@Html.EJS().Splitter("splitter").Width("550px").Height("250px").PaneSettings(item => {
    item.Content("<div class='content'><h3 class='h3'>HTML</h3><div class='code-preview'>&lt;<span>!DOCTYPE html&gt;</span><div>&lt;<span>html&gt;</span></div><div>&lt;<span>body&gt;</span></div>&lt;<span>div</span> id='custom-image'&gt;<div style='margin-left: 5px'>&lt;<span>img</span> src='src/albert.png'&gt;</div><div>&lt;<span>div</span>&gt;</div><div>&lt;<span>/body&gt;</span></div><div>&lt;<span>/html&gt;</span></div></div></div>").Add();
    item.Content("<div class='content'><h3 class='h3'>CSS</h3><div class='code-preview'><span>img {</span><div id='code-text'>margin:<span>0 auto;</span></div><div id='code-text'>display:<span>flex;</span></div><div id='code-text'>height:<span>70px;</span></div><span>   }</span></div></div>").Add();
    item.Content("<div class='content'><h3 class='h3'>JavaScript</h3><div class='code-preview'><span>var</span> image = document.getElementById('custom-image');<div>image.addEventListener('click', function() {</div><div style='padding-left: 20px;'>// Code block for click action</div><span> }</span></div></div>").Add();}).Render()

<style>
    #code-text {
        margin-left: 5px;
    }

    .code-preview {
        margin-top: 15px;
        font-size: 12px;
    }

    .h3 {
        font-size: 14px;
        margin: 4px;
    }

    .content {
        padding: 12px;
    }

    .splitter-image {
        margin: 0 auto;
        display: flex;
        height: 115px;
        margin-top: 10px;
    }
</style>

Loading Content to Panes in ASP.NET MVC Splitter

Configure pane size

You can specify the size to each pane using Size property. It accepts pane values in percentage and pixel types.

In case of pane size is not declared, panes will equally share the sizes automatically.

For Horizontal orientation, panes will share the total width.
For Vertical orientation, panes will share the total height.

@Html.EJS().Splitter("splitter").Width("550px").Height("250px").PaneSettings(item => {
item.Size("40%").Content("<div class='content'><h3 class='h3'>HTML</h3><div class='code-preview'>&lt;<span>!DOCTYPE html&gt;</span><div>&lt;<span>html&gt;</span></div><div>&lt;<span>body&gt;</span></div>&lt;<span>div</span> id='custom-image'&gt;<div style='margin-left: 5px'>&lt;<span>img</span> src='src/albert.png'&gt;</div><div>&lt;<span>div</span>&gt;</div><div>&lt;<span>/body&gt;</span></div><div>&lt;<span>/html&gt;</span></div></div></div>").Add();
item.Size("20%").Content("<div class='content'><h3 class='h3'>CSS</h3><div class='code-preview'><span>img {</span><div id='code-text'>margin:<span>0 auto;</span></div><div id='code-text'>display:<span>flex;</span></div><div id='code-text'>height:<span>70px;</span></div><span>   }</span></div></div>").Add();
item.Size("40%").Content("<div class='content'><h3 class='h3'>JavaScript</h3><div class='code-preview'><span>var</span> image = document.getElementById('custom-image');<div>image.addEventListener('click', function() {</div><div style='padding-left: 20px;'>// Code block for click action</div><span> }</span></div></div>").Add();}).Render()

<style>
    #code-text {
        margin-left: 5px;
    }

    .code-preview {
        margin-top: 15px;
        font-size: 12px;
    }

    .h3 {
        font-size: 14px;
        margin: 4px;
    }

    .content {
        padding: 12px;
    }

    .splitter-image {
        margin: 0 auto;
        display: flex;
        height: 115px;
        margin-top: 10px;
    }
</style>

Resizable panes

Splitter allows you to change the pane dimensions by resizing the panes. By default, all the panes are resizable. You can disable the resize by using Resizable property in each pane settings.

@Html.EJS().Splitter("splitter").Width("550px").Height("250px").PaneSettings(item => {
item.Size("40%").Min("30px").Resizable(false).Content("<div class='content'><h3 class='h3'>HTML</h3><div class='code-preview'>&lt;<span>!DOCTYPE html&gt;</span><div>&lt;<span>html&gt;</span></div><div>&lt;<span>body&gt;</span></div>&lt;<span>div</span> id='custom-image'&gt;<div style='margin-left: 5px'>&lt;<span>img</span> src='src/albert.png'&gt;</div><div>&lt;<span>div</span>&gt;</div><div>&lt;<span>/body&gt;</span></div><div>&lt;<span>/html&gt;</span></div></div></div>").Add();
item.Size("20%").Min("15%").Content("<div class='content'><h3 class='h3'>CSS</h3><div class='code-preview'><span>img {</span><div id='code-text'>margin:<span>0 auto;</span></div><div id='code-text'>display:<span>flex;</span></div><div id='code-text'>height:<span>70px;</span></div><span>   }</span></div></div>").Add();
item.Size("40%").Content("<div class='content'><h3 class='h3'>JavaScript</h3><div class='code-preview'><span>var</span> image = document.getElementById('custom-image');<div>image.addEventListener('click', function() {</div><div style='padding-left: 20px;'>// Code block for click action</div><span> }</span></div></div>").Add();}).Render()

Resizable Panes in ASP.NET MVC Splitter

Set minimum and maximum pane sizes

Splitter allows you to set the minimum and maximum sizes for each pane. Resize will happens up to the minimum and maximum values only. It will accepts the size in both percentage and pixel formats.

@Html.EJS().Splitter("splitter").Width("550px").Height("250px").PaneSettings(item => {
item.Size("40%").Min("30px").Max("60%").Resizable(false).Content("<div class='content'><h3 class='h3'>HTML</h3><div class='code-preview'>&lt;<span>!DOCTYPE html&gt;</span><div>&lt;<span>html&gt;</span></div><div>&lt;<span>body&gt;</span></div>&lt;<span>div</span> id='custom-image'&gt;<div style='margin-left: 5px'>&lt;<span>img</span> src='src/albert.png'&gt;</div><div>&lt;<span>div</span>&gt;</div><div>&lt;<span>/body&gt;</span></div><div>&lt;<span>/html&gt;</span></div></div></div>").Add();
item.Size("20%").Min("15%").Max("40%").Content("<div class='content'><h3 class='h3'>CSS</h3><div class='code-preview'><span>img {</span><div id='code-text'>margin:<span>0 auto;</span></div><div id='code-text'>display:<span>flex;</span></div><div id='code-text'>height:<span>70px;</span></div><span>   }</span></div></div>").Add();
item.Size("40%").Content("<div class='content'><h3 class='h3'>JavaScript</h3><div class='code-preview'><span>var</span> image = document.getElementById('custom-image');<div>image.addEventListener('click', function() {</div><div style='padding-left: 20px;'>// Code block for click action</div><span> }</span></div></div>").Add();}).Render()

Orientation

Splitter supports both Horizontal and Vertical orientation for the panes. By default, it will be rendered in Horizontal orientation. You can change it by using Orientation property.

@using Syncfusion.EJ2.Layouts
@Html.EJS().Splitter("vertical").CssClass("splitterContent").Width("100%").Height("200px").PaneSettings(item => {
item.Size("50%").Min("30%").Content("<div class='content'> Top pane</div>").Add();
item.Size("50%").Min("30%").Content("<div class='content'> Bottom pane</div>").Add(); }).Orientation(Orientation.Vertical).Render()

<style>
    .content {
        justify-content: center;
        text-align: center;
        align-items: center;
        height: 100%;
        display: flex;
    }
</style>

Orientation in ASP.NET MVC Splitter Control

Nested Splitter

Splitter provides support to render the nested pane to achieve the complex layouts. You can render the nested splitter using the <div> element provided for parent splitter.

Also you can render the nested splitter using direct child of the splitter pane. For this, nested splitter should have 100% width and height to match with the parent pane dimensions.

@using Syncfusion.EJ2.Layouts

@{
    var pane4Content = @"<div class='content'>
    <h3 class='h3'>Preview of sample</h3>
    <div class='splitter-image'>
         <img class='img1' src='https://ej2.syncfusion.com/demos/src/listview/images/albert.png' style='width: 20%;margin: 0 auto;'/>
    </div>
</div>";
}

<div>
    @Html.EJS().Splitter("outerSplitter").Created("onCreate").PaneSettings(item => {
    item.Size("50%").Min("30%").Add();
    item.Size("50%").Content(@pane4Content).Min("30%").Add();
}).Height("430px").Width("600px").Orientation(Orientation.Vertical).Render()
</div>
<style>
    .h3 {
        font-size: 14px;
        margin: 4px;
    }

    .content {
        padding: 12px;
    }

    .splitter-image {
        margin: 0 auto;
        display: flex;
        height: 115px;
        margin-top: 10px;
    }

    #code-text {
        margin-left: 5px;
    }

    .code-preview {
        margin-top: 15px;
        font-size: 12px;
    }
</style>
<script>

    var pane1Content = "<div><div class='content'><h3 class='h3'>HTML</h3><div class='code-preview'>&lt;<span>!DOCTYPE html></span><div>&lt;<span>html></span></div>" +
        "<div>&lt;<span>body></span></div>&lt;<span>div</span> id='custom-image'><div style='margin-left: 5px'>&lt;<span>img</span> src='src/albert.png'></div>" +
        "<div>&lt;<span>div</span>&gt;</div><div>&lt;<span>/body></span></div><div>&lt;<span>/html></span></div></div></div></div>";

    var pane2Content = "<div><div class='content'><h3 class='h3'>CSS</h3><div class='code-preview'><span>img {</span><div id='code-text'>margin:<span>0 auto;</span></div>" +
        "<div id='code-text'>display:<span>flex;</span></div><div id='code-text'>height:<span>70px;</span></div><span>}</span></div></div></div>";

    var pane3Content = "<div><div class='content'><h3 class='h3'>JavaScript</h3><div class='code-preview'><span>var </span>" +
        "image = document.getElementById('custom-image');<div>image.addEventListener('click', function() {</div>" +
        "<div style='padding-left: 20px;'>// Code block for click action</div><span> }</span></div></div></div>";

    function onCreate(args) {
        document.getElementById('outerSplitter').querySelector('.e-pane-vertical').setAttribute('id', 'Innersplitter');
        var splitterObj = new ej.layouts.Splitter({
            height: '250px',
            paneSettings: [
                { size: '40%', min: '23%', resizable: false, content: pane1Content },
                { size: '20%', min: '15%', content: pane2Content },
                { size: '40%', content: pane3Content }
            ],
            width: '100%'
        });
        splitterObj.appendTo('#Innersplitter');
    }
</script>

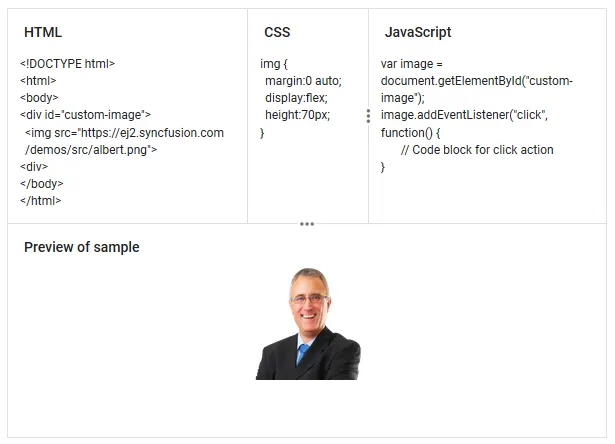

Nested ASP.NET MVC Splitter Control

View Sample in GitHub.
