Working with Data in Mention

21 Dec 202213 minutes to read

The Mention loads the data either from local data source or remote data services using the DataSource property. It supports the data type of either array or DataManager.

The Mention also supports different kinds of data services such as OData V4 and Web API, and data formats such as XML, JSON, and JSONP with the help of DataManager adaptors.

Fields Type Description
text string Specifies the display text of each list item.
value number or string Specifies the hidden data value mapped to each list item that should contain a unique value.
groupBy string Specifies the category under which the list item has to be grouped.
iconCss string Specifies the icon class of each list item.

NOTE

When binding complex data to the Mention, fields should be mapped correctly. Otherwise, the selected item remains undefined.

Binding local data

Local data can be represented in three ways as described in the following.

Array of simple data

The Mention has provided support to load an array of primitive data such as strings and numbers. Here, both the value and text fields act the same.

@model List<string>
@{
    char nameMentionChar = '@';
    string[] data = new string[] { "Selma Rose", "Garth", "Robert", "William", "Joseph" };
}
<div id="mentionElement" placeholder="Type @Html.Raw("mention") and tag user"></div>

@Html.EJS().Mention("Array-Of-Simple-Data").MentionChar(nameMentionChar).Target("#mentionElement").DataSource((IEnumerable<object>)data).Render()

<style>

    div#mentionElement[placeholder]:empty:before {
        content: attr(placeholder);
    }

    #mentionElement {
        min-height: 100px;
        border: 1px solid #D7D7D7;
        border-radius: 4px;
        padding: 8px;
        font-size: 14px;
        width: 600px;
    }

</style>
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using WebApplication1.Models;

namespace WebApplication1.Controllers
{
    public class MentionController : Controller
    {
        public ActionResult Index()
        {
            return View();
        }
    }
}

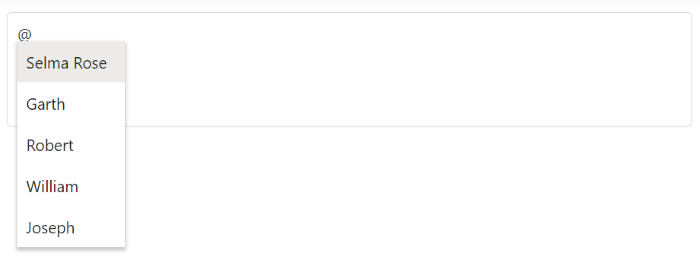

ASP.NET MVC Mention array of simple data

Array of JSON data

The Mention can generate its list of items through an array of JSON data. Therefore the appropriate columns should be mapped to the Fields property.

In the following example, ID column and Game column from complex data have been mapped to the Value field and Text field, respectively.

@model List<string>
@{
    char nameMentionChar = '@';
    List<SportsData> data = new SportsData().SportsList();
}

<div id="mentionElement" placeholder="Type @Html.Raw("mention") and tag sport"></div>

@Html.EJS().Mention("Array-Of-Json-Data").MentionChar(nameMentionChar).Target("#mentionElement").DataSource((IEnumerable<object>)data).Fields(new Syncfusion.EJ2.DropDowns.MentionFieldSettings { Text = "Game" , Value = "ID" }).Render()

<style>

    div#mentionElement[placeholder]:empty:before {
        content: attr(placeholder);
    }

    #mentionElement {
        min-height: 100px;
        border: 1px solid #D7D7D7;
        border-radius: 4px;
        padding: 8px;
        font-size: 14px;
        width: 600px;
    }

</style>
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

namespace WebApplication1.Models
{
    public class SportsData
    {
        public string ID { get; set; }
        public string Game { get; set; }
        public List<SportsData> SportsList()
        {
            List<SportsData> sports = new List<SportsData>()
            {
                new SportsData { ID = "game1", Game = "Badminton" },
                new SportsData { ID = "game2", Game = "Football" },
                new SportsData { ID = "game3", Game = "Tennis" },
                new SportsData { ID = "game4", Game = "Hockey" },
                new SportsData { ID = "game5", Game = "Basketball" },
            };
            return sports;
        }
    }
}

ASP.NET MVC Mention array of JSON data

Array of complex data

The Mention can generate its list items through an array of complex data. For this, the appropriate columns should be mapped to the Fields property.

In the following example, Code.ID and Country.Name columns from the complex data have been mapped to the Value and Text fields respectively.

@model List<string>
@{
    char nameMentionChar = '@';
    List<CountryGroup> data = new CountryGroup().GetData();
}
<div id="mentionElement" placeholder="Type @Html.Raw("mention") and tag country"></div>

@Html.EJS().Mention("Complex-data-biding").MentionChar(nameMentionChar).Target("#mentionElement").DataSource((IEnumerable<object>)data).Fields(new Syncfusion.EJ2.DropDowns.MentionFieldSettings { Text = "Country.Name", Value = "Code.Id" }).Render()

<style>

    div#mentionElement[placeholder]:empty:before {
        content: attr(placeholder);
    }

    #mentionElement {
        min-height: 100px;
        border: 1px solid #D7D7D7;
        border-radius: 4px;
        padding: 8px;
        font-size: 14px;
        width: 600px;
    }

</style>
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

namespace WebApplication1.Models
{
    public class Code
    {
        public string ID { get; set; }
    }

    public class Country
    {
        public string Name { get; set; }
    }

    public class CountryGroup
    {
        public Country Country { get; set; }
        public Code Code { get; set; }
        public List<CountryGroup> GetData()
        {
            List<CountryGroup> data = new List<CountryGroup>
            {
                new CountryGroup() { Country = new Country() { Name = "Australia" }, Code = new Code() { ID = "AU" } },
                new CountryGroup() { Country = new Country() { Name = "Bermuda" }, Code = new Code() { ID = "BM" } },
                new CountryGroup() { Country = new Country() { Name = "Canada" }, Code = new Code() { ID = "CA" } },
                new CountryGroup() { Country = new Country() { Name = "Cameroon" }, Code = new Code() { ID = "CM" } },
                new CountryGroup() { Country = new Country() { Name = "Denmark" }, Code = new Code() { ID = "DK" } },
                new CountryGroup() { Country = new Country() { Name = "France" }, Code = new Code() { ID = "FR" } }
            };
            return data;
        }
    }
}

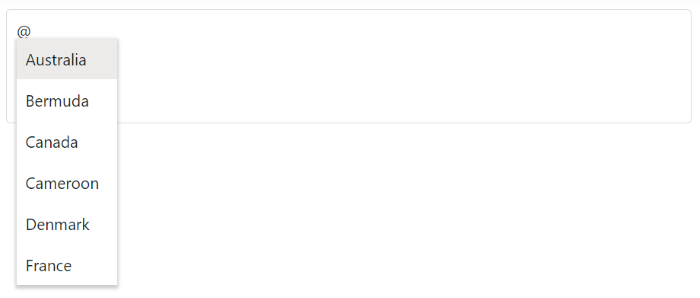

ASP.NET MVC Mention array of complex data

Binding remote data

The Mention supports retrieval of data from remote data services with the help of DataManager control. The Query property is used to fetch the data from the database and bind it to the Mention control.

OData v4 adaptor - Binding OData v4 service

The ODataV4 is an improved version of OData protocols, and the DataManager can also retrieve and consume OData v4 services. For more details on OData v4 services, refer to the odata documentation. To bind OData v4 service, use the ODataV4Adaptor.

The following sample displays the first 6 contacts from Customers table of the Northwind Data Service.

@model List<string>
@{
    char nameMentionChar = '@';
    var query = "new ej.data.Query().from('Employees').select('EmployeeID,FirstName,Title').take(6)";
}
<div id="mentionElement" placeholder="Type @Html.Raw("mention") and tag user"></div>

@Html.EJS().Mention("employee").Target("#mentionElement").MentionChar(nameMentionChar).DataSource(obj =>
obj.Url("https://services.syncfusion.com/aspnet/production/api/Employees").CrossDomain(true).Adaptor("WebApiAdaptor")).Fields(new Syncfusion.EJ2.DropDowns.MentionFieldSettings
{
   Text = "FirstName",
   Value = "EmployeeID"
}).Query((string)query).Render()

<style>

    div#mentionElement[placeholder]:empty:before {
        content: attr(placeholder);
    }

    #mentionElement {
        min-height: 100px;
        border: 1px solid #D7D7D7;
        border-radius: 4px;
        padding: 8px;
        font-size: 14px;
        width: 600px;
    }

</style>
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using WebApplication1.Models;

namespace WebApplication1.Controllers
{
    public class MentionController : Controller
    {
        public ActionResult Index()
        {
            return View();
        }
    }
}

ASP.NET MVC Mention odata v4 adaptor

Web API adaptor

You can use WebApiAdaptor to bind mention with Web API created using OData endpoint.

@model List<string>
@{
    char nameMentionChar = '@';
    var query = "new ej.data.Query().select(['FirstName','Country', 'EmployeeID']).take(6).requiresCount()";
}
<div id="mentionElement" placeholder="Type @Html.Raw("mention") and tag user"></div>

@Html.EJS().Mention("employee").MentionChar(nameMentionChar).Target("#mentionElement").DataSource(obj =>
obj.Url("https://services.syncfusion.com/aspnet/production/api/Employees").CrossDomain(true).Adaptor("WebApiAdaptor")).Fields(new Syncfusion.EJ2.DropDowns.MentionFieldSettings
{
   Text = "FirstName",
   Value = "EmployeeID"
}).Query((string)query).Render()

<style>

    div#mentionElement[placeholder]:empty:before {
        content: attr(placeholder);
    }

    #mentionElement {
        min-height: 100px;
        border: 1px solid #D7D7D7;
        border-radius: 4px;
        padding: 8px;
        font-size: 14px;
        width: 600px;
    }

</style>
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using WebApplication1.Models;

namespace WebApplication1.Controllers
{
    public class MentionController : Controller
    {
        public ActionResult Index()
        {
            return View();
        }
    }
}

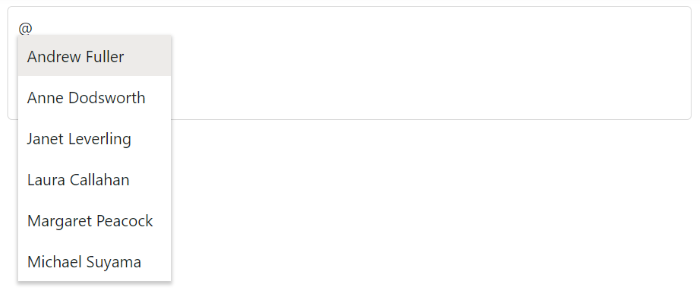

ASP.NET MVC Mention web api adaptor
