Getting Started with ASP.NET MVC Inline AI Assist

06 Aug 202612 minutes to read

This section briefly explains how to include the ASP.NET MVC Inline AI Assist control in your ASP.NET MVC application using Visual Studio.

Prerequisites

.NET and Visual Studio compatibility

.NET Version	Visual Studio Version
.NET Framework 4.6.2	Visual Studio 2015 Update 3 or later

Browser support

Browser	Versions
Google Chrome, including Android & iOS	Latest Version
Mozilla Firefox	Latest Version
Microsoft Edge	Latest Version
Apple Safari, including iOS	Latest Version
Opera	Latest Version
Microsoft Internet Explorer	11

Create ASP.NET MVC application with HTML helper

Install ASP.NET MVC package in the application

To add ASP.NET MVC controls in the application, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for Syncfusion.EJ2.MVC5 and then install it.

Package Manager
Install-Package Syncfusion.EJ2.MVC5 -Version 35.1.37

Syncfusion^® ASP.NET MVC controls are available in nuget.org. Refer to NuGet packages topic to learn more about installing NuGet packages in various OS environments. The Syncfusion.EJ2.MVC5 NuGet package has dependencies, Newtonsoft.Json for JSON serialization and Syncfusion.Licensing for validating Syncfusion^® license key.

Add namespace

Add Syncfusion.EJ2 namespace reference in Web.config under Views folder.

<namespaces>
    <add namespace="Syncfusion.EJ2"/>
</namespaces>

Add stylesheet and script resources

Here, the theme and script are referred using CDN inside the <head> of the ~/Views/Shared/_Layout.cshtml file as follows,

~/_Layout.cshtml
<head>
    ...
    <!-- Syncfusion ASP.NET MVC controls styles -->
    <link rel="stylesheet" href="https://cdn.syncfusion.com/ej2/35.1.37/fluent.css" />
    <!-- Syncfusion ASP.NET MVC controls scripts -->
    <script src="https://cdn.syncfusion.com/ej2/35.1.37/dist/ej2.min.js"></script>
</head>

Check out the Themes topic to learn different ways (CDN, NPM package, and CRG) to refer styles in ASP.NET MVC application, and to have the expected appearance for Syncfusion^® ASP.NET MVC controls. Check out the Adding Script Reference topic to learn different approaches for adding script references in your ASP.NET MVC application.

Register Syncfusion^® script manager

Also, register the script manager EJS().ScriptManager() at the end of <body> in the ~/Views/Shared/_Layout.cshtml file as follows.

~/_Layout.cshtml
<body>
...
    <!-- Syncfusion ASP.NET MVC Script Manager -->
    @Html.EJS().ScriptManager()
</body>

Add ASP.NET MVC Inline AI Assist control

Now, add the Syncfusion^® ASP.NET MVC Inline AI Assist control in ~/Views/Home/Index.cshtml page.

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to run the app. Then, the Syncfusion^® ASP.NET MVC Inline AI Assist control will be rendered in the default web browser.

RelateTo and target configuration

You can use the RelateTo property to position the Inline AI Assist relative to a specific DOM element. It accepts either a CSS selector string (e.g., ‘.container’ or ‘#id’) or an HTMLElement. The Target property specifies the element or CSS selector where the Inline AI Assist will be appended. It accepts either a CSS selector string (e.g., ‘.container’ or ‘#id’) or an HTMLElement.

CSHTML
relateTo.cs
@using Syncfusion.EJ2.InteractiveChat

<style>
    #editableText {
        width: 100%;
        min-height: 120px;
        max-height: 300px;
        overflow-y: auto;
        font-size: 16px;
        padding: 12px;
        border-radius: 4px;
        border: 1px solid;
    }
</style>

<div class="container" style="height: 350px; width: 650px;">
    <button id="summarizeBtn" class="e-btn e-primary" style="margin-bottom: 10px;" onclick="onSummarizeClick()">Content Summarize</button>
    <div id="editableText" contenteditable="true">
        <p>Inline AI Assist component provides intelligent text processing capabilities that enhance user productivity. It leverages advanced natural language processing to understand context and deliver precise suggestions. Users can seamlessly integrate AI-powered features into their applications.</p>
        <p>With real-time response streaming and customizable prompts, developers can create interactive experiences. The component supports multiple response modes including inline editing and popup-based interactions.</p>
    </div>

    @Html.EJS().InlineAIAssist("defaultInlineAssist").RelateTo("#summarizeBtn").Target("#container").Created("onCreated").PromptRequest("onPromptRequest").ResponseSettings(new Syncfusion.EJ2.InteractiveChat.InlineAIAssistResponseSettings { ItemSelect = "onItemSelect" }).Render()
</div>

<script>
    var inlineAssist;

    function onCreated() {
        inlineAssist = this;
    }

    function onPromptRequest(args) {
        setTimeout(function () {
            var defaultResponse = 'For real-time prompt processing, connect the Inline AI Assist component to your preferred AI service, such as OpenAI or Azure Cognitive Services. Ensure you obtain the necessary API credentials to authenticate and enable seamless integration.';
            inlineAssist.addResponse(defaultResponse);
        }, 1000);
    }

    function onItemSelect(args) {
        if (args.command.label === 'Accept') {
            var editable = document.getElementById('editableText');
            if (editable) {
                editable.innerHTML = '<p>' + inlineAssist.prompts[inlineAssist.prompts.length - 1].response + '</p>';
            }
            inlineAssist.hidePopup();
        } else if (args.command.label === 'Discard') {
            inlineAssist.hidePopup();
        }
    }

    function onSummarizeClick() {
        if (inlineAssist) {
            inlineAssist.showPopup();
        }
    }
</script>
public ActionResult Default()
{
    return View();
}

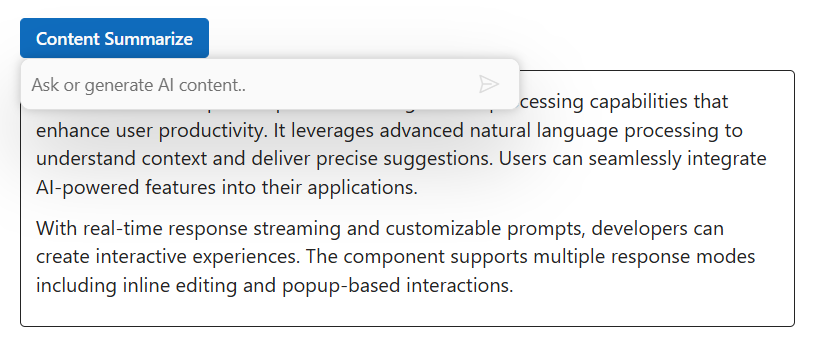

RelateTo

Response display modes

Responses can be shown in two modes: Inline (updates content in-place) and Popup (shows responses in a floating popup). Use the ResponseMode property to choose the desired behavior.

CSHTML
response-mode.cs
@using Syncfusion.EJ2.InteractiveChat

<style>
    #editableText {
        width: 100%;
        min-height: 120px;
        max-height: 300px;
        overflow-y: auto;
        font-size: 16px;
        padding: 12px;
        border-radius: 4px;
        border: 1px solid;
    }
</style>

<div class="container" style="height: 350px; width: 650px;">
    <div style="margin-bottom: 10px;">
        <label for="responseMode">Response Mode:</label>
        <select id="responseMode" onchange="onResponseModeChange()">
            <option value="Popup">Popup</option>
            <option value="Inline">Inline</option>
        </select>
    </div>
    <button id="summarizeBtn" class="e-btn e-primary" style="margin-bottom: 10px;" onclick="onSummarizeClick()">Content Summarize</button>
    <div id="editableText" contenteditable="true">
        <p>Inline AI Assist component provides intelligent text processing capabilities that enhance user productivity. It leverages advanced natural language processing to understand context and deliver precise suggestions. Users can seamlessly integrate AI-powered features into their applications.</p>
        <p>With real-time response streaming and customizable prompts, developers can create interactive experiences. The component supports multiple response modes including inline editing and popup-based interactions.</p>
    </div>

    @Html.EJS().InlineAIAssist("defaultInlineAssist").ResponseMode("Popup").RelateTo("#summarizeBtn").Created("onCreated").PromptRequest("onPromptRequest").ResponseSettings(new Syncfusion.EJ2.InteractiveChat.InlineAIAssistResponseSettings { ItemSelect = "onItemSelect" }).Render()
</div>

<script>
    var inlineAssist;

    function onCreated() {
        inlineAssist = this;
    }

    function onPromptRequest(args) {
        setTimeout(function () {
            var defaultResponse = 'For real-time prompt processing, connect the Inline AI Assist component to your preferred AI service, such as OpenAI or Azure Cognitive Services. Ensure you obtain the necessary API credentials to authenticate and enable seamless integration.';
            inlineAssist.addResponse(defaultResponse);
        }, 1000);
    }

    function onItemSelect(args) {
        if (args.command.label === 'Accept') {
            var editable = document.getElementById('editableText');
            if (editable) {
                editable.innerHTML = '<p>' + inlineAssist.prompts[inlineAssist.prompts.length - 1].response + '</p>';
            }
            inlineAssist.hidePopup();
        } else if (args.command.label === 'Discard') {
            inlineAssist.hidePopup();
        }
    }

    function onSummarizeClick() {
        if (inlineAssist) {
            inlineAssist.showPopup();
        }
    }

    function onResponseModeChange() {
        var modeSelect = document.getElementById('responseMode');
        if (modeSelect && inlineAssist) {
            inlineAssist.responseMode = modeSelect.value;
            inlineAssist.showPopup();
        }
    }
</script>
public ActionResult Default()
{
    return View();
}

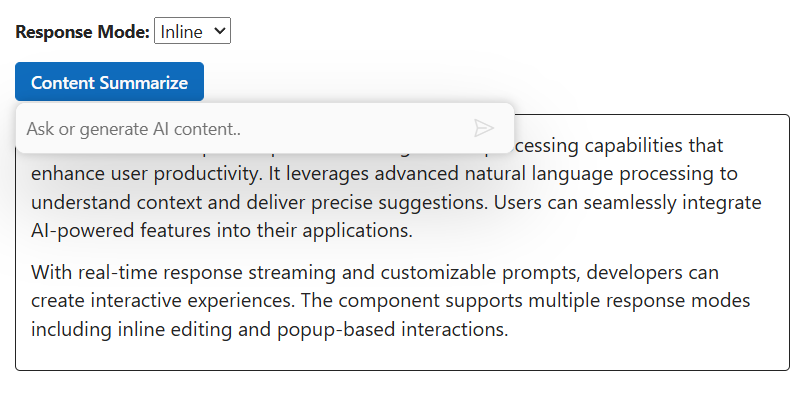

ResponseMode
