WebMethodAdaptor in Syncfusion ASP.NET MVC Grid

20 Mar 202524 minutes to read

The WebMethodAdaptor in Syncfusion ASP.NET MVC Grid enables seamless data binding from remote services using web methods. This powerful feature enables efficient communication between the client-side application and the server. Similar to the URLAdaptor, the WebMethodAdaptor sends query parameters encapsulated within an object named value. This value object includes various DataManager properties such as requiresCounts, skip, take, sorted, and where queries are included.

This section provides a step-by-step guide to retrieving data using WebMethodAdaptor, binding it to the ASP.NET MVC Grid, and managing CRUD operations effectively.

Creating an API Service

To configure a server with Syncfusion ASP.NET MVC Grid, follow the steps below:

1. Project Creation:

1. Open Visual Studio.
2. Select Create a new project → Choose ASP.NET Web Application (.NET Framework).
3. Name the project WebMethodAdaptor and select MVC as the project template.
4. Ensure that the Web API option is selected.

For detailed information, refer to this documentation.

2. Model Class Creation:

Create a model class named OrdersDetails.cs inside the Models folder on the server-side. This model will represent the order data structure.

OrdersDetails.cs

namespace WebMethodAdaptor.Models
{
  public class OrdersDetails
  {
    public static List<OrdersDetails> order = new List<OrdersDetails>();
    public OrdersDetails()
    {
    }
    public OrdersDetails(int OrderID, string CustomerId, int EmployeeId, double Freight, bool Verified, DateTime OrderDate, string ShipCity, string ShipName, string ShipCountry, DateTime ShippedDate, string ShipAddress)
    {
      this.OrderID = OrderID;
      this.CustomerID = CustomerId;
      this.EmployeeID = EmployeeId;
      this.Freight = Freight;
      this.ShipCity = ShipCity;
      this.Verified = Verified;
      this.OrderDate = OrderDate;
      this.ShipName = ShipName;
      this.ShipCountry = ShipCountry;
      this.ShippedDate = ShippedDate;
      this.ShipAddress = ShipAddress;
    }

    public static List<OrdersDetails> GetAllRecords()
    {
      if (order.Count() == 0)
      {
        int code = 10000;
        for (int i = 1; i <= 2000; i++)
        {
          order.Add(new OrdersDetails(code + 1, "ALFKI", i + 0, 2.3 * i, false, new DateTime(1991, 05, 15), "Berlin", "Simons bistro", "Denmark", new DateTime(1996, 7, 16), "Kirchgasse 6"));
          order.Add(new OrdersDetails(code + 2, "ANATR", i + 2, 3.3 * i, true, new DateTime(1990, 04, 04), "Madrid", "Queen Cozinha", "Brazil", new DateTime(1996, 9, 11), "Avda. Azteca 123"));
          order.Add(new OrdersDetails(code + 3, "ANTON", i + 1, 4.3 * i, true, new DateTime(1957, 11, 30), "Cholchester", "Frankenversand", "Germany", new DateTime(1996, 10, 7), "Carrera 52 con Ave. Bolívar #65-98 Llano Largo"));
          order.Add(new OrdersDetails(code + 4, "BLONP", i + 3, 5.3 * i, false, new DateTime(1930, 10, 22), "Marseille", "Ernst Handel", "Austria", new DateTime(1996, 12, 30), "Magazinweg 7"));
          order.Add(new OrdersDetails(code + 5, "BOLID", i + 4, 6.3 * i, true, new DateTime(1953, 02, 18), "Tsawassen", "Hanari Carnes", "Switzerland", new DateTime(1997, 12, 3), "1029 - 12th Ave. S."));
          code += 5;
        }
      }
      return order;
    }
    [Key]
    public int? OrderID { get; set; }
    public string CustomerID { get; set; }
    public int? EmployeeID { get; set; }
    public double? Freight { get; set; }
    public string ShipCity { get; set; }
    public bool Verified { get; set; }
    public DateTime OrderDate { get; set; }
    public string ShipName { get; set; }
    public string ShipCountry { get; set; }
    public DateTime ShippedDate { get; set; }
    public string ShipAddress { get; set; }
  }
}

3. Configure Routing in Web API

Modify WebApiConfig.cs inside the App_Start folder to enable routing.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net.Http.Headers;
using System.Web.Http;

namespace WebMethodAdaptor
{
    public static class WebApiConfig
    {
        public static void Register(HttpConfiguration config)
        {
            // Enable Attribute Routing.
            config.MapHttpAttributeRoutes();
            // Default route.
            config.Routes.MapHttpRoute(
                name: "DefaultApi",
                routeTemplate: "api/{controller}/{id}",
                defaults: new { id = RouteParameter.Optional }
            );
            // Format JSON responses properly.
            config.Formatters.JsonFormatter.SerializerSettings.Formatting = Newtonsoft.Json.Formatting.Indented;
            config.Formatters.JsonFormatter.SupportedMediaTypes.Add(new MediaTypeHeaderValue("application/json"));
        }
    }
}

4. API Controller Creation:

Create a file named GridController.cs under the Controllers folder. This controller will handle data retrieval and communication with the Syncfusion ASP.NET MVC Grid.

GridController.cs

using Syncfusion.EJ2.Base;
using System.Collections.Generic;
using System.Linq;
using System.Web.Http;
using WebMethodAdaptor.Models;

namespace WebMethodAdaptor.Controllers
{
  public class GridController : ApiController
  {
    // Method to retrieve order data.
    public List<OrdersDetails> GetOrderData()
    {
        // Retrieve all records and convert to list.
        var data = OrdersDetails.GetAllRecords().ToList();
        return data;
    }
    // Method to handle incoming data manager requests.
    public object Post()
    {
        // Retrieve data source and convert to queryable.
        IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

        // Get total record count.
        int totalRecordsCount = DataSource.Count();

        // Return result and total record count.
        return new { result = DataSource, count = totalRecordsCount };
    }
  }
}

The GetOrderData method retrieves sample order data. You can modify it to fetch data from a database or any other source.

5. Run the Application:

Run the application in Visual Studio. It will be accessible via a URL like https://localhost:xxxx.

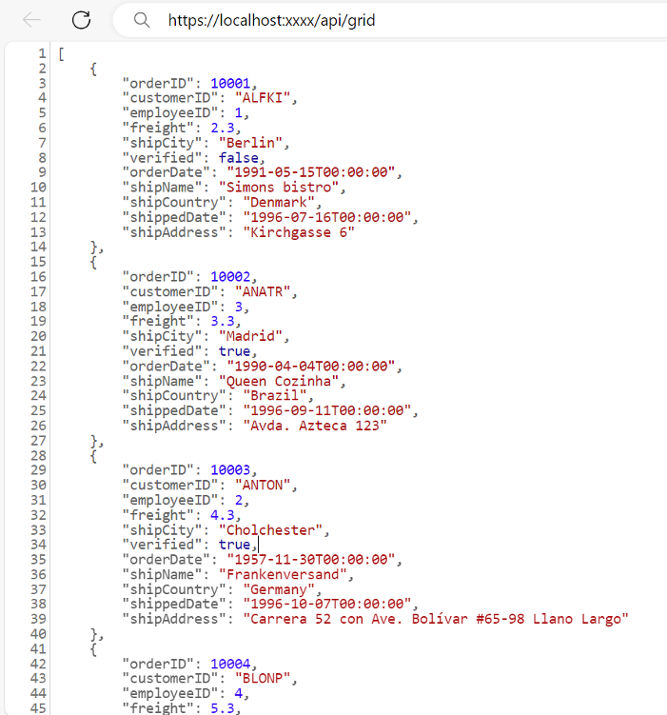

After running the application, you can verify that the server-side API controller is successfully returning the order data at the URL(https://localhost:xxxx/api/Grid). Here xxxx denotes the port number.

Connecting Syncfusion ASP.NET MVC Grid to an API Service

To integrate the Syncfusion Grid into your ASP.NET MVC project using Visual Studio, follow these steps:

Step 1: Install the Syncfusion ASP.NET MVC Package:

To add ASP.NET MVC controls to your application, open the NuGet Package Manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for Syncfusion.EJ2.MVC5 and then install it. Alternatively, you can install it using the following Package Manager Console command:

Package Manager

Install-Package Syncfusion.EJ2.MVC5 -Version 29.1.33

Step 2: Add Syncfusion ASP.NET MVC namespace

Add Syncfusion.EJ2 namespace reference in Web.config under Views folder.

<namespaces>
    <add namespace="Syncfusion.EJ2"/>
</namespaces>

Step 3: Add stylesheet and script resources

To include the required styles and scripts, add the following references inside the <head> of ~/Views/Shared/_Layout.cshtml file:

~/_Layout.cshtml

<head>
  ...
  <!-- Syncfusion ASP.NET MVC controls styles -->
  <link rel="stylesheet" href="https://cdn.syncfusion.com/ej2/29.1.33/bootstrap5.css" />
  <!-- Syncfusion ASP.NET MVC controls scripts -->
  <script src="https://cdn.syncfusion.com/ej2/29.1.33/dist/ej2.min.js"></script>
  <!-- Include the necessary CSS files to style the Syncfusion ASP.NET MVC component: -->
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-base/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-grids/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-buttons/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-popups/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-richtexteditor/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-navigations/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-dropdowns/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-lists/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-inputs/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-calendars/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-notifications/styles/bootstrap5.css" rel="stylesheet" />
  <link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-splitbuttons/styles/bootstrap5.css" rel="stylesheet" />
  <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
  <script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type="text/javascript"></script>
</head>

Step 4: Register Syncfusion Script Manager

To ensure proper script execution, register the Syncfusion Script Manager EJS().ScriptManager() at the end of <body> in the ~/Views/Shared/_Layout.cshtml file as follows.

~/_Layout.cshtml

<body>
  <!-- Syncfusion ASP.NET MVC Script Manager -->
  @Html.EJS().ScriptManager()
</body>

Step 5: Add the Syncfusion ASP.NET MVC Grid

Now, add the Syncfusion ASP.NET MVC Grid in ~/Views/Home/Index.cshtml file.

Index.cshtml

@using Syncfusion.EJ2
// Replace `xxxx` with your actual localhost port number.
@Html.EJS().Grid("Grid").DataSource(ds => ds.Url("https://localhost:xxxx/api/Grid").Adaptor("WebMethodAdaptor")).Columns(col =>
    {
        col.Field("OrderID").HeaderText("Order ID").Width("150").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).IsPrimaryKey(true).Add();
        col.Field("CustomerID").HeaderText("Customer ID").Width("150").Add();
        col.Field("ShipCity").HeaderText("Ship City").Width("150").Add();
        col.Field("ShipCountry").HeaderText("Ship Country").Width("150").Add();
    }).Render()

Replace https://localhost:xxxx/api/Grid with the actual URL of your endpoint that provides the data in a consumable format (e.g., JSON).

Step 7: Run the Project

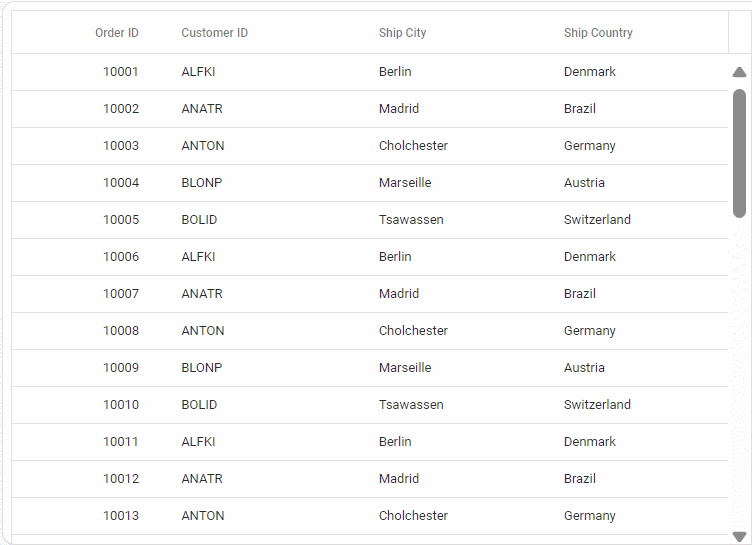

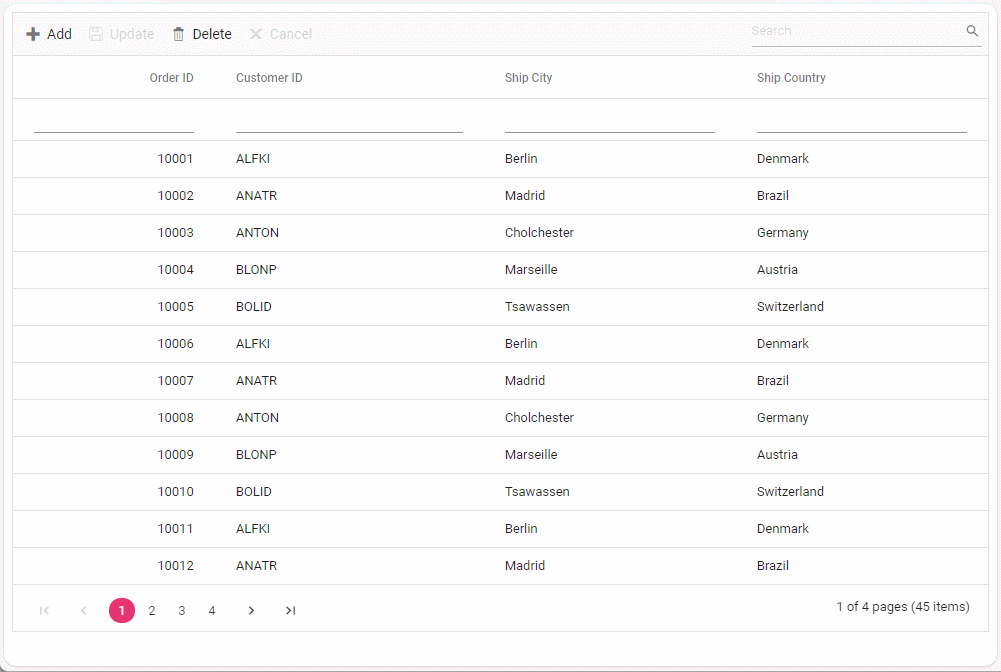

Run the project in Visual Studio, and the Syncfusion ASP.NET MVC Grid will successfully fetch data from the API service.

• The Syncfusion Grid provides built-in support for handling various data operations such as searching, sorting, filtering, aggregate and paging on the server-side. These operations can be handled using methods such as PerformSearching, PerformFiltering, PerformSorting, PerformTake and PerformSkip available in the Syncfusion.EJ2.MVC5 package. Let’s explore how to manage these data operations using the WebMethodAdaptor.
• In an API service project, add Syncfusion.EJ2.MVC5 by opening the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install it.
• To access DataManagerRequest, import Syncfusion.EJ2.Base in GridController.cs file.
• In the WebMethodAdaptor configuration, the properties of the DataManager object are encapsulated within an object named value. To access the DataManager properties, a dedicated class is created, representing the value object.

```cs
// Model for handling data manager requests.
public class DataManager
{
    public required DataManagerRequest Value { get; set; }
}
```

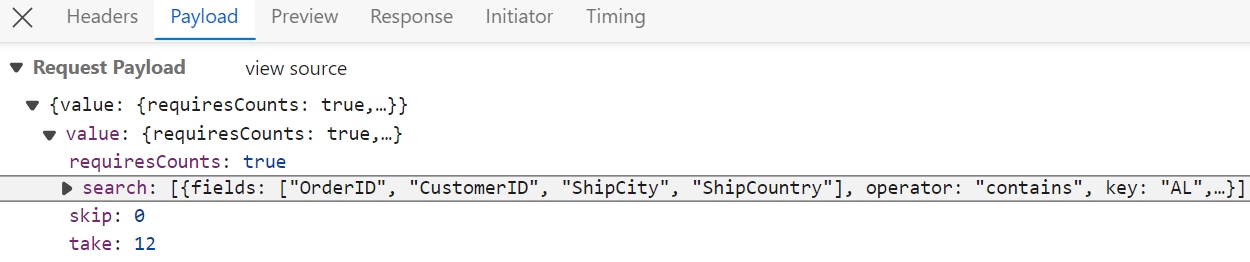

Handling Searching Operation

To enable search functionality, ensure that your API endpoint supports custom searching criteria. Implement the searching logic on the server-side using the PerformSearching method from the QueryableOperation class. This allows the custom data source to undergo searching based on the criteria specified in the incoming DataManagerRequest object.

GridController.cs

public object Post(DataManager DataManagerRequest)
{
    // Retrieve data from the data source (e.g., database).
    IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

    QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance.

    // Retrieve data manager value.
    DataManagerRequest DataManagerParams = DataManagerRequest.Value;

    // Handling Searching.
    if (DataManagerParams.Search != null && DataManagerParams.Search.Count > 0)
    {
    DataSource = queryableOperation.PerformSearching(DataSource, DataManagerParams.Search);
    }
    // Get the total records count.
    int totalRecordsCount = DataSource.Count();

    // Return data based on the request.
    return new { result = DataSource, count = totalRecordsCount };
}

// Model for handling data manager requests.
public class DataManager
{
    public required DataManagerRequest Value { get; set; }
}

Index.cshtml

// Replace `xxxx` with your actual localhost port number.
@Html.EJS().Grid("Grid").DataSource(ds => ds.Url("https://localhost:xxxx/api/Grid").Adaptor("WebMethodAdaptor")).Columns(col =>
    {
        col.Field("OrderID").HeaderText("Order ID").Width("150").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).IsPrimaryKey(true).Add();
        col.Field("CustomerID").HeaderText("Customer ID").Width("150").Add();
        col.Field("ShipCity").HeaderText("Ship City").Width("150").Add();
        col.Field("ShipCountry").HeaderText("Ship Country").Width("150").Add();
    }).Toolbar(new List<string>() { "Search" }).Render()

Handling Filtering Operation

To handle filtering operation, configure your API endpoint to support filter criteria. Implement the filtering logic on the server-side using the PerformFiltering method from the QueryableOperation class. This allows the custom data source to undergo filtering based on the criteria specified in the incoming DataManagerRequest object.

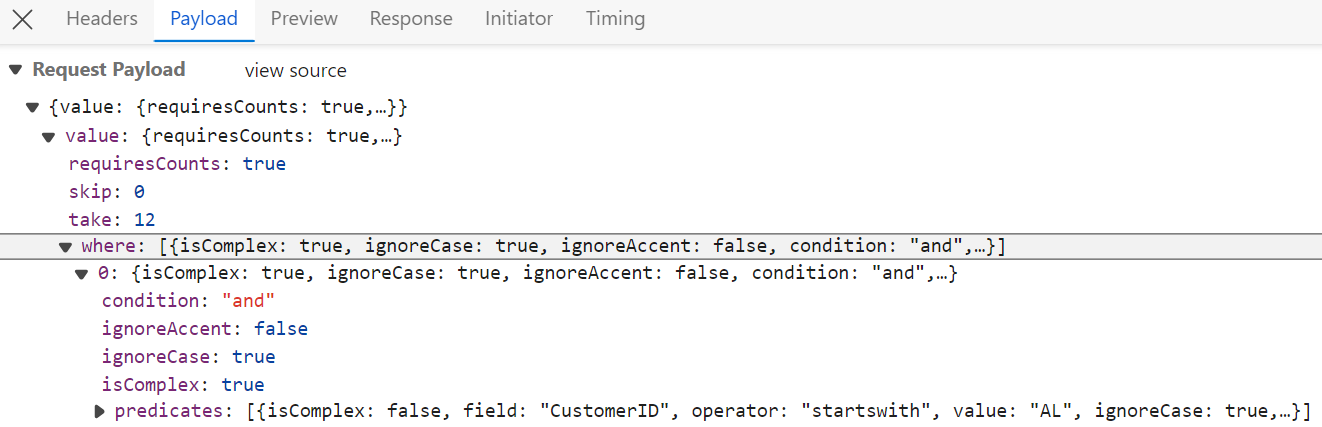

Single column filtering

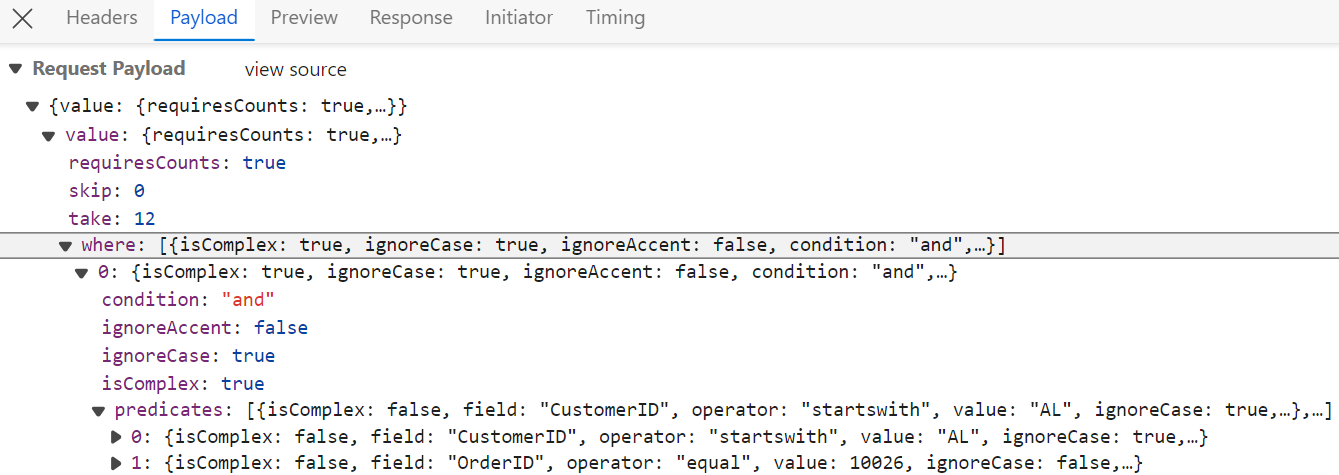

Multi column filtering

GridController.cs

[HttpPost]
public object Post(DataManager DataManagerRequest)
{
    // Retrieve data from the data source (e.g., database).
    IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

    QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance.

    // Retrieve data manager value.
    DataManagerRequest DataManagerParams = DataManagerRequest.Value;

    if (DataManagerParams.Where != null && DataManagerParams.Where.Count > 0)
    {
        // Handling filtering operation.
        foreach (var condition in DataManagerParams.Where)
        {
            foreach (var predicate in condition.predicates)
            {
                DataSource = queryableOperation.PerformFiltering(DataSource, DataManagerParams.Where, predicate.Operator);
            }
        }
    }
    // Get the total records count.
    int totalRecordsCount = DataSource.Count();

    // Return data based on the request.
    return new { result = DataSource, count = totalRecordsCount };
}

// Model for handling data manager requests.
public class DataManager
{
    public required DataManagerRequest Value { get; set; }
}

Index.cshtml

// Replace `xxxx` with your actual localhost port number.
@Html.EJS().Grid("Grid").DataSource(ds => ds.Url("https://localhost:xxxx/api/Grid").Adaptor("WebMethodAdaptor")).Columns(col =>
    {
        col.Field("OrderID").HeaderText("Order ID").Width("150").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).IsPrimaryKey(true).Add();
        col.Field("CustomerID").HeaderText("Customer ID").Width("150").Add();
        col.Field("ShipCity").HeaderText("Ship City").Width("150").Add();
        col.Field("ShipCountry").HeaderText("Ship Country").Width("150").Add();
    }).AllowFiltering().Render()

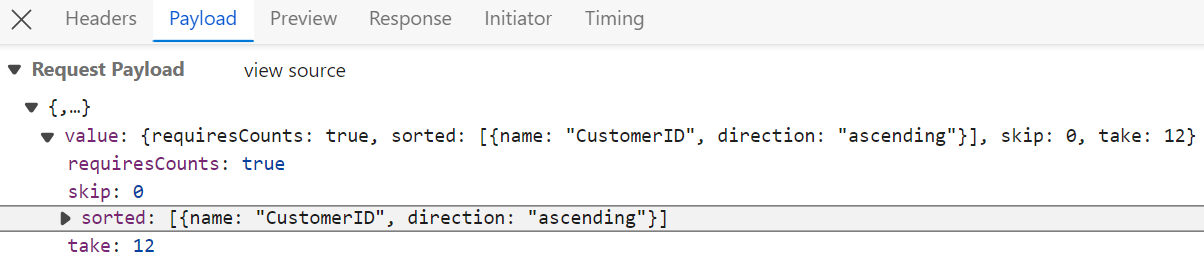

Handling Sorting Operation

To handle sorting operation, configure your API to support custom sorting criteria. Implement the sorting logic on the server-side using the PerformSorting method from the QueryableOperation class. This allows the custom data source to undergo sorting based on the criteria specified in the incoming DataManagerRequest object.

Single column sorting

Multi column sorting

GridController.cs

[HttpPost]
public object Post(DataManager DataManagerRequest)
{
    // Retrieve data from the data source (e.g., database).
    IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

    QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance.

    // Retrieve data manager value.
    DataManagerRequest DataManagerParams = DataManagerRequest.Value;

    // Handling Sorting operation.
    if (DataManagerParams.Sorted != null && DataManagerParams.Sorted.Count > 0)
    {
        DataSource = queryableOperation.PerformSorting(DataSource, DataManagerParams.Sorted);
    }

    // Get the total count of records.
    int totalRecordsCount = DataSource.Count();

    // Return data based on the request.
    return new { result = DataSource, count = totalRecordsCount };
}

// Model for handling data manager requests.
public class DataManager
{
    public required DataManagerRequest Value { get; set; }
}

Index.cshtml

// Replace `xxxx` with your actual localhost port number.
@Html.EJS().Grid("Grid").DataSource(ds => ds.Url("https://localhost:xxxx/api/Grid").Adaptor("WebMethodAdaptor")).Columns(col =>
    {
        col.Field("OrderID").HeaderText("Order ID").Width("150").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).IsPrimaryKey(true).Add();
        col.Field("CustomerID").HeaderText("Customer ID").Width("150").Add();
        col.Field("ShipCity").HeaderText("Ship City").Width("150").Add();
        col.Field("ShipCountry").HeaderText("Ship Country").Width("150").Add();
    }).AllowSorting().Render()

Handling Paging Operation

To handle paging operation, configure your API endpoint to support custom paging criteria. Implement the paging logic on the server-side using the PerformTake and PerformSkip method from the QueryableOperation class. This allows the custom data source to undergo paging based on the custom paging criteria specified in the incoming DataManagerRequest object.

GridController.cs

[HttpPost]
public object Post(DataManager DataManagerRequest)
{
    // Retrieve data from the data source (e.g., database).
    IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

    // Get the total records count.
    int totalRecordsCount = DataSource.Count();

    QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance.

    // Retrieve data manager value.
    DataManagerRequest DataManagerParams = DataManagerRequest.Value;

    // Handling paging operation.
    if (DataManagerParams.Skip != 0)
    {
        DataSource = queryableOperation.PerformSkip(DataSource, DataManagerParams.Skip);
    }
    if (DataManagerParams.Take != 0)
    {
        DataSource = queryableOperation.PerformTake(DataSource, DataManagerParams.Take);
    }

    // Return data based on the request.
    return new { result = DataSource, count = totalRecordsCount };
}

// Model for handling data manager requests.
public class DataManager
{
    public required DataManagerRequest Value { get; set; }
}

Index.cshtml

// Replace `xxxx` with your actual localhost port number.
@Html.EJS().Grid("Grid").DataSource(ds => ds.Url("https://localhost:xxxx/api/Grid").Adaptor("WebMethodAdaptor")).Columns(col =>
    {
        col.Field("OrderID").HeaderText("Order ID").Width("150").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).IsPrimaryKey(true).Add();
        col.Field("CustomerID").HeaderText("Customer ID").Width("150").Add();
        col.Field("ShipCity").HeaderText("Ship City").Width("150").Add();
        col.Field("ShipCountry").HeaderText("Ship Country").Width("150").Add();
    }).AllowPaging().Render()

Handling CRUD Operations

The Syncfusion ASP.NET MVC Grid seamlessly integrates CRUD (Create, Read, Update, Delete) operations with server-side controller actions through specific properties: InsertUrl, RemoveUrl, UpdateUrl, CrudUrl, and BatchUrl. These properties enable the Grid to communicate with the data service for every Grid action, facilitating server-side operations.

CRUD Operations Mapping

The following properties enable the Grid to interact with API endpoints for different CRUD actions:

1. InsertUrl: Specifies the URL for inserting new data.
2. RemoveUrl: Specifies the URL for removing existing data.
3. UpdateUrl: Specifies the URL for updating existing data.
4. CrudUrl: Specifies a single URL for all CRUD operations.
5. BatchUrl: Specifies the URL for batch editing.

To enable editing in ASP.NET MVC Grid, refer to the editing documentation. In the below example, the inline edit Mode is enabled and Toolbar property is configured to display toolbar items for editing purposes.

Index.cshmtl

// Replace `xxxx` with your actual localhost port number.
@Html.EJS().Grid("Grid").DataSource(dm => dm.Url("https://localhost:xxxx/api/Grid").Adaptor("WebMethodAdaptor").InsertUrl("https://localhost:xxxx/api/Grid/Insert").UpdateUrl("https://localhost:xxxx/api/Grid/Update").RemoveUrl("https://localhost:xxxx/api/Grid/Remove")).AllowFiltering().AllowSorting().AllowPaging().EditSettings(edit => edit.AllowAdding(true).AllowEditing(true).AllowDeleting(true).Mode(Syncfusion.EJ2.Grids.EditMode.Normal)).Toolbar(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel", "Search" }).Columns(col =>
	{
		col.Field("OrderID").HeaderText("Order ID").Width("150").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).IsPrimaryKey(true).Add();
		col.Field("CustomerID").HeaderText("Customer ID").Width("150").Add();
		col.Field("ShipCity").HeaderText("Ship City").Width("150").Add();
		col.Field("ShipCountry").HeaderText("Ship Country").Width("150").Add();
	}).Render()

Normal/Inline editing is the default edit Mode for the Grid. To enable CRUD operations, ensure that the IsPrimaryKey property is set to true for a specific Grid column, ensuring that its value is unique.

Insert Operation:

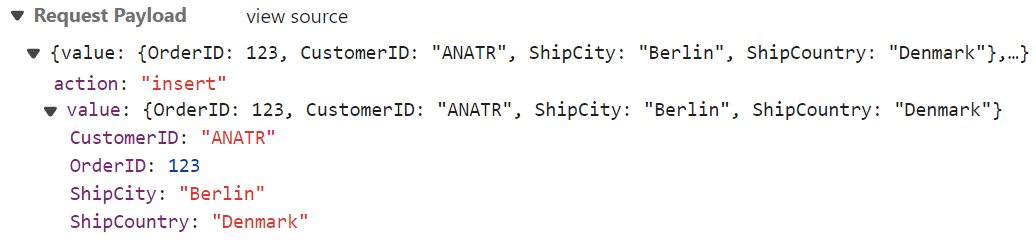

To insert a new record, utilize the InsertUrl property to specify the controller action mapping URL for the insert operation. The newly added record details are bound to the newRecord parameter.

/// <summary>
/// Inserts a new data item into the data collection.
/// </summary>
/// <param name="newRecord">It contains the new record detail which is need to be inserted.</param>
/// <returns>Returns new record data.</returns>
[Route("api/Grid/Insert")]
public IHttpActionResult Insert(CRUDModel<OrdersDetails> newRecord)
{
    if (newRecord?.Value == null)
        return BadRequest("Invalid order data");

    OrdersDetails.GetAllRecords().Insert(0, newRecord.Value);
    return Ok(newRecord.Value);
}

Update Operation:

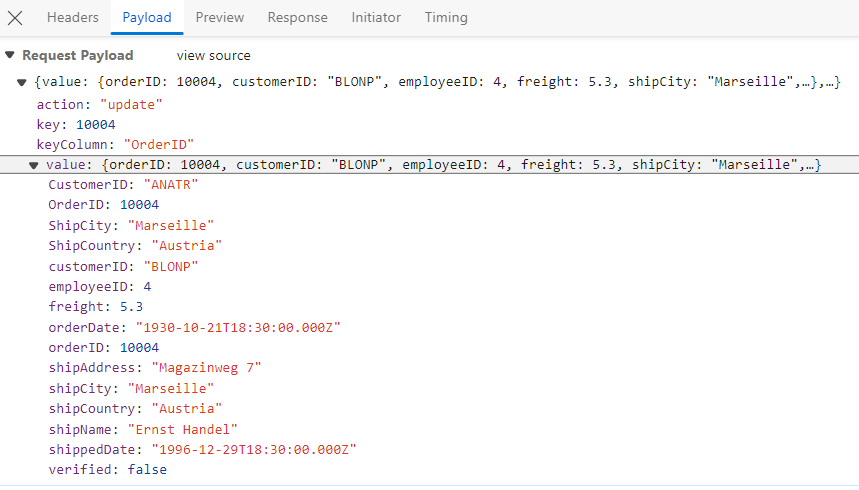

For updating existing records, utilize the UpdateUrl property to specify the controller action mapping URL for the update operation. The updated record details are bound to the updatedRecord parameter.

/// <summary>
/// Update a existing data item from the data collection.
/// </summary>
/// <param name="updatedRecord">It contains the updated record detail which is need to be updated.</param>
/// <returns>Returns data.</returns>
[Route("api/Grid/Update")]
public IHttpActionResult Update(CRUDModel<OrdersDetails> updatedRecord)
{
    var updatedOrder = updatedRecord?.Value;
    if (updatedOrder == null){
        return BadRequest("Invalid update data");
    }
    var data = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == updatedOrder.OrderID);
    if (data == null) return NotFound();
    data.CustomerID = updatedOrder.CustomerID;
    data.ShipCity = updatedOrder.ShipCity;
    data.ShipCountry = updatedOrder.ShipCountry;
    // Update other properties...
    return Ok(data);
}

Delete Operation

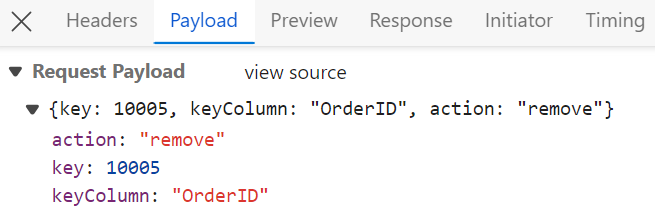

To delete existing records, use the RemoveUrl property to specify the controller action mapping URL for the delete operation. The primary key value of the deleted record is bound to the deletedRecord parameter.

/// <summary>
/// Remove a specific data item from the data collection.
/// </summary>
/// <param name="deletedRecord">It contains the specific record detail which is need to be removed.</param>
/// <return>Returns message</return>
[Route("api/Grid/Remove")]
public IHttpActionResult Remove(CRUDModel<OrdersDetails> deletedRecord)
{
    int orderId = int.Parse(deletedRecord.Key.ToString());
    var data = OrdersDetails.GetAllRecords().FirstOrDefault(order => order.OrderID == orderId);

    if (data == null) return NotFound();

    OrdersDetails.GetAllRecords().Remove(data);
    return Ok($"Order {orderId} deleted successfully");
}

Single Method for Performing All CRUD Operations

Using the CrudUrl property, the controller action mapping URL can be specified to perform all the CRUD operation at server-side using a single method instead of specifying separate controller action method for CRUD (insert, update and delete) operations.

The following code example describes the above behavior.

Index.cshmtl

// Replace `xxxx` with your actual localhost port number.
@Html.EJS().Grid("Grid").DataSource(dm => dm.Url("https://localhost:xxxx/api/Grid").Adaptor("WebMethodAdaptor").CrudUrl("https://localhost:xxxx/api/Grid/CrudUpdate")).AllowFiltering().AllowSorting().AllowPaging().EditSettings(edit => edit.AllowAdding(true).AllowEditing(true).AllowDeleting(true).Mode(Syncfusion.EJ2.Grids.EditMode.Normal)).Toolbar(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel", "Search" }).Columns(col =>
	{
		col.Field("OrderID").HeaderText("Order ID").Width("150").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).IsPrimaryKey(true).Add();
		col.Field("CustomerID").HeaderText("Customer ID").Width("150").Add();
		col.Field("ShipCity").HeaderText("Ship City").Width("150").Add();
		col.Field("ShipCountry").HeaderText("Ship Country").Width("150").Add();
	}).Render()

[Route("api/Grid/CrudUpdate")]
public void CrudUpdate(CRUDModel<OrdersDetails> request)
{
    // Perform update operation.
    if (request.Action == "update")
    {
        var orderValue = request.Value;
        OrdersDetails existingRecord = OrdersDetails.GetAllRecords().Where(or => or.OrderID == orderValue.OrderID).FirstOrDefault();
        existingRecord.OrderID = orderValue.OrderID;
        existingRecord.CustomerID = orderValue.CustomerID;
        existingRecord.ShipCity = orderValue.ShipCity;
        existingRecord.ShipCountry = orderValue.ShipCountry;
    }
    // Perform insert operation.
    else if (request.Action == "insert")
    {
        OrdersDetails.GetAllRecords().Insert(0, request.Value);
    }
    // Perform remove operation.
    else if (request.Action == "remove")
    {
        OrdersDetails.GetAllRecords().Remove(OrdersDetails.GetAllRecords().Where(or => or.OrderID == int.Parse(request.Key.ToString())).FirstOrDefault());
    }
}

Batch Operation

To perform batch operation, set the edit Mode as Batch and specify the BatchUrl property in the DataManager. Use the Add toolbar button to insert new row in batch editing mode. To edit a cell, double-click the desired cell and update the value as required. To delete a record, simply select the record and press the Delete toolbar button. Now, all CRUD operations will be executed in single request. Clicking the Update toolbar button will update the newly added, edited, or deleted records from the OrdersDetails table using a single API POST request.

Index.cshmtl

// Replace `xxxx` with your actual localhost port number.
@Html.EJS().Grid("Grid").DataSource(dm => dm.Url("https://localhost:xxxx/api/Grid").Adaptor("WebMethodAdaptor").BatchUrl("https://localhost:xxxx/api/Grid/BatchUpdate")).AllowFiltering().AllowSorting().AllowPaging().EditSettings(edit => edit.AllowAdding(true).AllowEditing(true).AllowDeleting(true).Mode(Syncfusion.EJ2.Grids.EditMode.Batch)).Toolbar(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel", "Search" }).Columns(col =>
	{
		col.Field("OrderID").HeaderText("Order ID").Width("150").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).IsPrimaryKey(true).Add();
		col.Field("CustomerID").HeaderText("Customer ID").Width("150").Add();
		col.Field("ShipCity").HeaderText("Ship City").Width("150").Add();
		col.Field("ShipCountry").HeaderText("Ship Country").Width("150").Add();
	}).Render()

[Route("api/Grid/BatchUpdate")]
public object BatchUpdate(CRUDModel<OrdersDetails> batchOperation)
{
    if (batchOperation.Added != null)
    {
        foreach (var addedOrder in batchOperation.Added)
        {
            OrdersDetails.GetAllRecords().Insert(0, addedOrder);
        }
    }
    if (batchOperation.Changed != null)
    {
        foreach (var changedOrder in batchOperation.Changed)
        {
            var existingOrder = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == changedOrder.OrderID);
            if (existingOrder != null)
            {
                existingOrder.CustomerID = changedOrder.CustomerID;
                existingOrder.ShipCity = changedOrder.ShipCity;
                // Update other properties as needed.
            }
        }
    }
    if (batchOperation.Deleted != null)
    {
        foreach (var deletedOrder in batchOperation.Deleted)
        {
            var orderToDelete = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == deletedOrder.OrderID);
            if (orderToDelete != null)
            {
                OrdersDetails.GetAllRecords().Remove(orderToDelete);
            }
        }
    }
    return Json(batchOperation);

}
