MySQL Data Binding in ASP.NET Core Pivot Table

28 Aug 202610 minutes to read

This section describes how to retrieve data from a MySQL database using MySqlClient and bind it to the Pivot Table via a Web API controller.

Creating a Web API Service to Fetch MySQL Data

Follow these steps to create a Web API service that retrieves data from a MySQL database and prepares it for the Pivot Table.

Step 1: Create an ASP.NET Core Web Application

  1. Open Visual Studio and create a new ASP.NET Core Web App project named MyWebService. Select the Web API project template (for example, ASP.NET Core Web API in Visual Studio 2022) so the project is configured with controllers and Swagger by default.
  2. Follow the official Microsoft documentation for detailed instructions on creating an ASP.NET Core Web application.
  3. Before proceeding, ensure that a MySQL Server instance is running locally (or reachable on the network) and that the mydb database and orders table exist with sample data. The connection string and database/table names used later in this walkthrough assume the example dataset from the walkthrough’s GitHub sample.

Create ASP.NET Core Web App project

Step 2: Install the MySql.Data NuGet Package

To enable MySQL database connectivity in your application:

  1. Open the NuGet Package Manager in your project solution and search for MySql.Data.
  2. Install the MySql.Data package to add MySQL database support. Use MySql.Data version 8.x (or later) to match this walkthrough; pin the version if you want reproducible builds. If you prefer an async-first, MIT-licensed alternative, MySqlConnector is a drop-in replacement with the same connection-string format.

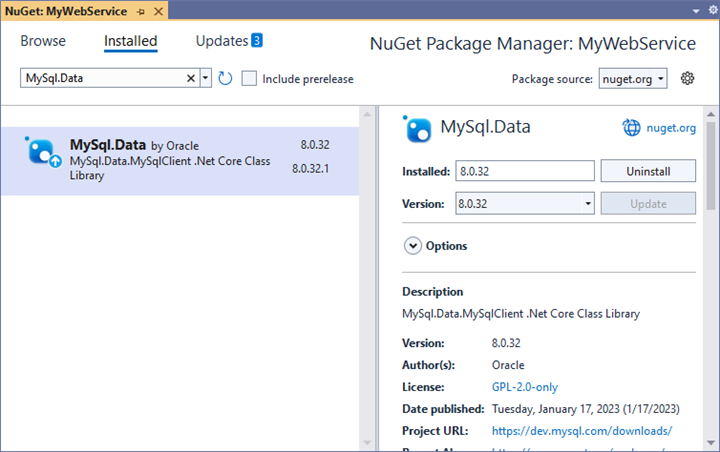

Add the NuGet package MySql.Data to the project

Step 3: Create a Web API Controller

  1. In the Controllers folder, create a new file named PivotController.cs.
  2. This controller will handle data communication between the MySQL database and the Pivot Table.

Step 4: Connect to MySQL and Retrieve Data

In the PivotController.cs file, use the MySqlClient from the MySql.Data library to connect to a MySQL database and retrieve data for the Pivot Table.

  1. Establish Connection: Use MySqlConnection with a valid connection string (e.g., Server=localhost;Database=mydb;Uid=myuser;Pwd=mypassword;) to connect to the MySQL database.
  2. Query and Fetch Data: Execute a SQL query (e.g., SELECT * FROM orders) using MySqlCommand to retrieve data for the Pivot Table.
  3. Structure the Data: Use MySqlDataAdapter’s Fill method to populate query results into a DataTable for JSON serialization.
    using Microsoft.AspNetCore.Mvc;
    using MySql.Data.MySqlClient;
    using Newtonsoft.Json;
    using System.Data;

    namespace MyWebService.Controllers
    {
        [ApiController]
        [Route("[controller]")]
        public class PivotController : ControllerBase
        {
            public dynamic GetMySQLResult()
            {
                // Replace with your own connection string.
                MySqlConnection connection = new MySqlConnection("<Enter your valid connection string here>");
                connection.Open();
                MySqlCommand command = new MySqlCommand("SELECT * FROM orders", connection);
                MySqlDataAdapter dataAdapter = new MySqlDataAdapter(command);
                DataTable dataTable = new DataTable();
                dataAdapter.Fill(dataTable);
                connection.Close();
                return dataTable;
            }
        }
    }

Replace the placeholder connection string with your actual MySQL credentials.

Step 5: Serialize Data to JSON

In the PivotController.cs file, define a Get method that calls GetMySQLResult to retrieve data from the MySQL database as a DataTable. Then, use JsonConvert.SerializeObject from the Newtonsoft.Json library to convert the DataTable into a JSON format. This JSON data will be used by the Pivot Table component.

Ensure the Newtonsoft.Json NuGet package (version 13.x or later) is installed in your project before using JsonConvert. The Get method serializes the DataTable into a JSON string before ASP.NET Core’s pipeline returns it as the response body. Note: returning a JsonConvert.SerializeObject of a DataTable produces a JSON array of row objects whose column values are mapped from the underlying SQL types.

    using Microsoft.AspNetCore.Mvc;
    using MySql.Data.MySqlClient;
    using Newtonsoft.Json;
    using System.Data;

    namespace MyWebService.Controllers
    {
        [ApiController]
        [Route("[controller]")]
        public class PivotController : ControllerBase
        {
            [HttpGet(Name = "GetMySQLResult")]
            public object Get()
            {
                return JsonConvert.SerializeObject(GetMySQLResult());
            }

            public dynamic GetMySQLResult()
            {
                // Replace with your own connection string.
                MySqlConnection connection = new MySqlConnection("<Enter your valid connection string here>");
                connection.Open();
                MySqlCommand command = new MySqlCommand("SELECT * FROM orders", connection);
                MySqlDataAdapter dataAdapter = new MySqlDataAdapter(command);
                DataTable dataTable = new DataTable();
                dataAdapter.Fill(dataTable);
                connection.Close();
                return dataTable;
            }
        }
    }

Step 6: Run the Web API Service

  1. In Visual Studio, set MyWebService as the startup project and press F5 (or run dotnet run from the project folder). The actual listening ports are read from launchSettings.json; both HTTP and HTTPS endpoints are printed in the console.
  2. The application is hosted at a URL such as https://localhost:7146 (the port number may vary based on your configuration). Note the exact URL printed by the runtime so you can reference it from the ASP.NET Core project.

Step 7: Verify the JSON Data

  1. Access the Web API endpoint at https://localhost:7146/Pivot to view the JSON data retrieved from the MySQL database.

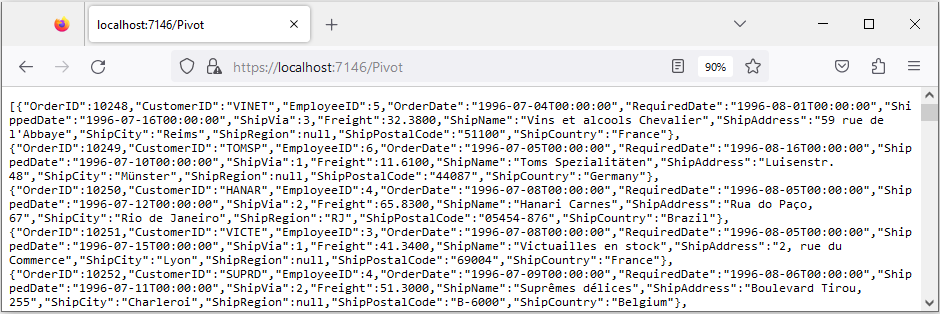

  2. The browser displays the JSON data, as shown in the image below.
    Hosted Web API URL

Connecting the Pivot Table to a MySQL Database Using the Web API Service

This section explains how to connect the Pivot Table to a MySQL database by fetching data from the Web API service created above. Ensure that the Web API service from the previous section is still running before proceeding.

Step 1: Set up the ASP.NET Core Pivot Table

  1. Set up a basic ASP.NET Core Pivot Table by following the Getting Started documentation.
  2. Install the Syncfusion ASP.NET Core Tag Helper package by running dotnet add package Syncfusion.EJ2.AspNet.Core (the package is registered automatically and the _ViewImports.cshtml file is updated to import the Tag Helpers).
  3. Register the Syncfusion license key in Startup.cs (or Program.cs for .NET 6+) as described in the Syncfusion Getting Started documentation.
  4. Add the required EJ2 client-side references (for example, ej2.min.js, ej2-pivotview.min.js, and the matching theme CSS) in ~/Views/Shared/_Layout.cshtml as described in the Getting Started documentation.

Step 2: Configure the Web API URL in the Pivot Table

  1. In the ~/Views/Home/Index.cshtml file, map the Web API URL (https://localhost:7146/Pivot) to the Pivot Table using the url property within the e-datasourcesettings.
  2. Below is the sample code to configure the Pivot Table to fetch data from the Web API:
<ejs-pivotview id="PivotView" height="300" showFieldList="true">
    <e-datasourcesettings Url="https://localhost:7146/pivot" expandAll="false" enableSorting="true">
     //Other codes here...
    </e-datasourcesettings>
</ejs-pivotview>

Step 3: Define the Pivot Table Report

  1. Configure the Pivot Table report in the ~/Views/Home/Index.cshtml file to structure the data retrieved from the MySQL database.
  2. Use the rows, columns, values, and filters properties of e-datasourcesettings to define how data fields are organized and aggregated.
  3. Enable the field list by setting the showFieldList property to true on the PivotView component (not on the data source settings) and including the FieldList module in the services. This allows users to interactively modify the Pivot Table’s structure by adding or rearranging fields. Note: enableSorting is a property of the PivotView component; the sample above demonstrates the equivalent Tag Helper usage on the data source settings.
<ejs-pivotview id="PivotView" height="300" showFieldList="true">
    <e-datasourcesettings Url="https://localhost:7146/Pivot" expandAll="false" enableSorting="true">
        <e-rows>
            <e-field name="ShipCity"></e-field>
        </e-rows>
        <e-columns>
            <e-field name="ShipName"></e-field>
        </e-columns>
        <e-values>
            <e-field name="Freight" caption="Sum of Freight"></e-field>
        </e-values>
    </e-datasourcesettings>
</ejs-pivotview>

Step 4: Run and Verify the Pivot Table

  1. Run the ASP.NET Core application.
  2. The Pivot Table will display the data fetched from the MySQL database via the Web API, structured according to the defined report.
  3. The resulting Pivot Table will look like this:

Pivot Table bound with MySQL database

Additional Resources

Explore a complete example of the ASP.NET Core Pivot Table integrated with an ASP.NET Core Web Application to fetch data from a MySQL database in this GitHub repository.
