Google Calendar API Integration with Syncfusion Angular Scheduler

17 Mar 202624 minutes to read

This Syncfusion^® Angular Scheduler allows users to manage their Google Calendar events directly within the Scheduler. Changes made in the Scheduler are synced to Google Calendar, and existing Google events are displayed in the Scheduler interface.

Prerequisites

Node.js & Angular CLI: Must be installed on your local machine to create, manage, and run the Angular application.
Google Account: Required to access the Google Cloud Console to enable APIs and generate OAuth 2.0 credentials.

High-level flow

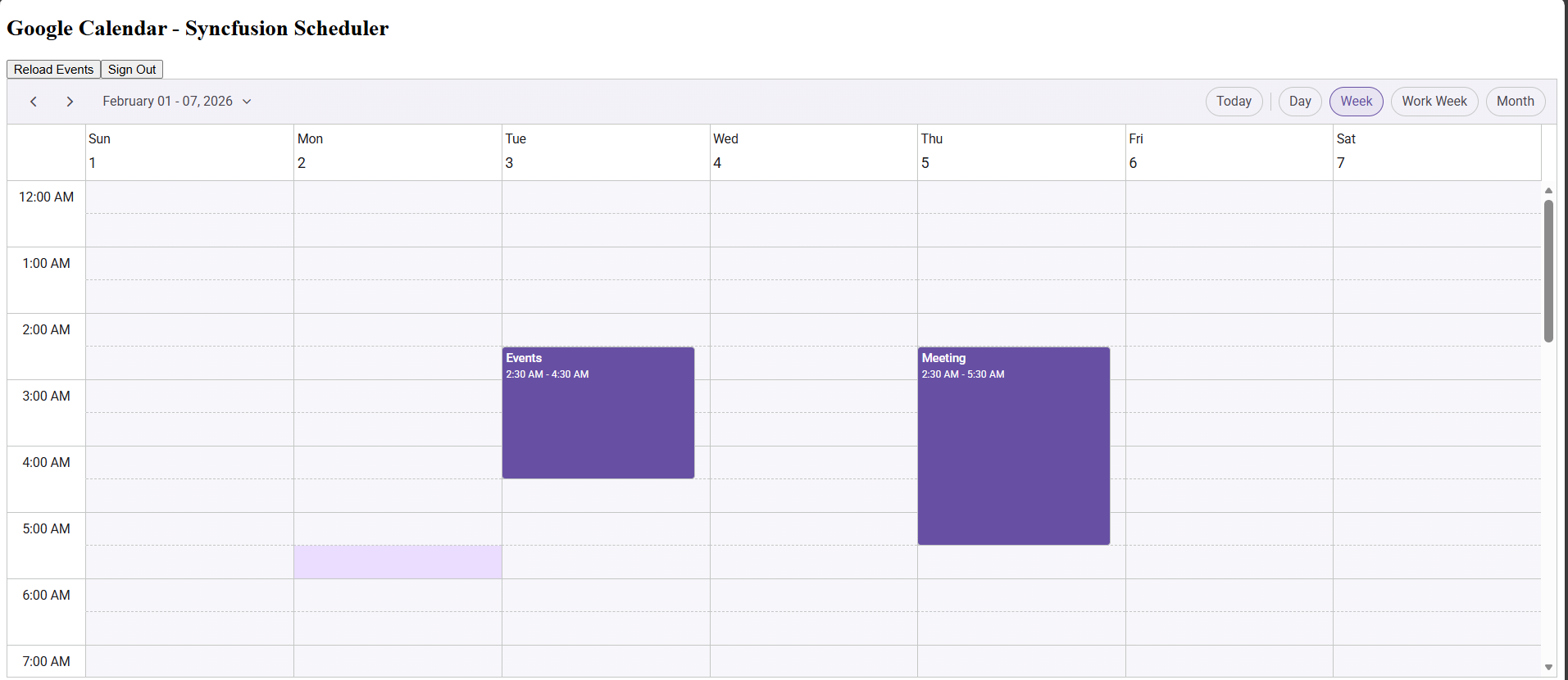

The Scheduler displays events using data from Google Calendar.
The app uses Google Identity Services (GIS) to obtain short-lived access tokens.
CRUD operations from the Scheduler are converted into Google Calendar API calls.
After each successful operation the app reload events from Google.

Create Google Cloud credentials

Step 1: Setup Google Calendar API

Open Google Cloud Console..
Click the Project Dropdown > New Project.
Name it (e.g., Scheduler-Integration) and click Create.

Step 2: Enable the Google Calendar API

Navigate to APIs & Services → Library → search “Calendar” → Click Enable.

Navigate to APIs & Services → OAuth consent screen → select External → Click Create.
Provide the App name and Support email

Step 4: Add Test Users

Navigate to APIs & Services → Audience → Add mail in Test User → Click Save.
Step 5: Generate Credentials
Navigate to APIs & Services → Credentials → Click Create Credentials → OAuth client ID.
Set Application Type to Web application.
Add http://localhost:4200 to Authorized JavaScript origins.
Note: Copy the generated Client ID for your Angular configuration.

Scaffold the Angular project and install packages

Create a new angular application with the following commands.

ng new sf-scheduler-google --routing=false --style=css
cd sf-scheduler-google
npm install @syncfusion/ej2-angular-schedule

(If you use Yarn, replace npm install with yarn add.)

Add Google Identity script

The Google Identity Services (GIS) script enables OAuth authentication in your app.

Add the GIS script in the <head> section of public/index.html file:

<script src="https://accounts.google.com/gsi/client" async defer></script>

Add the Syncfusion CSS References

Styles make your Scheduler look professional. Add these imports at the top of src/styles.css:

/* You can add global styles to this file, and also import other style files */
@import '../node_modules/@syncfusion/ej2-base/styles/material3.css';
@import '../node_modules/@syncfusion/ej2-buttons/styles/material3.css';
@import '../node_modules/@syncfusion/ej2-calendars/styles/material3.css';
@import '../node_modules/@syncfusion/ej2-dropdowns/styles/material3.css';
@import '../node_modules/@syncfusion/ej2-inputs/styles/material3.css';
@import '../node_modules/@syncfusion/ej2-lists/styles/material3.css';
@import '../node_modules/@syncfusion/ej2-popups/styles/material3.css';
@import '../node_modules/@syncfusion/ej2-navigations/styles/material3.css';
@import '../node_modules/@syncfusion/ej2-angular-schedule/styles/material3.css';

Configuring the Syncfusion Angular Scheduler

Adding the Syncfusion Angular Scheduler in src/app.ts

This part adds the core Scheduler component with toolbar controls for signing in, reloading events, and signing out.

 @Component({
   standalone: true,
   selector: 'app-root',
   imports: [CommonModule, ScheduleModule],
   providers: [
     DayService, WeekService, WorkWeekService, MonthService, AgendaService,
     ResizeService, DragAndDropService, GoogleCalendarService
   ],
   template: `
     <div class="app-container">
       <div class="header">
         <h2>Google Calendar - Syncfusion Scheduler</h2>
         <div class="controls">
           <button class="btn btn-signin" (click)="signIn()" *ngIf="!isSignedIn">Sign In with Google</button>
           <button class="btn btn-reload" (click)="loadEvents()" *ngIf="isSignedIn">Reload Events</button>
           <button class="btn btn-signout" (click)="signOut()" *ngIf="isSignedIn">Sign Out</button>
         </div>
       </div>

       <ejs-schedule
         #scheduleObj
         width="100%"
         height="650px"
         [allowDragAndDrop]="true"
         [allowResizing]="true"
         [showQuickInfo]="true"
         (actionComplete)="onActionComplete($event)"
         [eventSettings]="eventSettings"
         currentView="Week"
         [views]="scheduleViews"
         [selectedDate]="selectedDate">
       </ejs-schedule>
     </div>
   `,
 })

Configure Your Google Calendar with the Syncfusion Scheduler using the API key, Client-id and Calendar-id in the src/app.ts file.

All credential values are case-sensitive.Paste the Google OAuth Client ID, API Key, and Calendar ID exactly as issued
```
 export const CONFIG = {
   clientId: 'YOUR_CLIENT_ID',//Enter Your Client-ID
   apiKey: 'YOUR_API_KEY',//Enter Your API Key
   calendarId: 'YOUR_CALENDAR_ID'//Enter Your Calendar-ID
 };
```

Integration of Google Calendar

Integrating the Google Calendar with the Syncfusion Scheduler in the src/app.ts file using the GoogleCalendarService class.

The service handles OAuth token generation,Fetching logged-in user info, Initializing the Google Identity Token Client

 import { Component, OnInit, Injectable, ViewChild } from '@angular/core';
 import { CommonModule } from '@angular/common';
 import { HttpClient, HttpHeaders } from '@angular/common/http';
 import { BehaviorSubject, Observable } from 'rxjs';
 import { ScheduleModule, DayService, WeekService, WorkWeekService, MonthService, AgendaService, ResizeService, DragAndDropService, ScheduleComponent } from '@syncfusion/ej2-angular-schedule';

 @Injectable({ providedIn: 'root' })
 export class GoogleCalendarService {
   private tokenClient: any = null;
   private accessToken: string | null = null;
   public signedIn$ = new BehaviorSubject<boolean>(false);
   public userEmail$ = new BehaviorSubject<string>('');
   public lastGsiError$ = new BehaviorSubject<string | null>(null);
   private scope = 'https://www.googleapis.com/auth/calendar https://www.googleapis.com/auth/userinfo.email';
   public calendarId: string = CONFIG.calendarId;

   constructor(private http: HttpClient) {}

   private initializeTokenClient() {
     const clientId = CONFIG.clientId;
     if (!clientId) return;
     try {
       this.tokenClient = (window as any).google.accounts.oauth2.initTokenClient({
         client_id: clientId,
         scope: this.scope,
         callback: (response: any) => {
           if (response.error) {
             this.lastGsiError$.next(response.error_description || response.error);
             this.signedIn$.next(false);
             return;
           }
           this.accessToken = response.access_token;
           this.lastGsiError$.next(null);
           this.signedIn$.next(!!this.accessToken);
           this.getUserInfo();
         }
       });
     } catch {}
   }

   private ensureGsiReady(timeout = 10000): Promise<void> {
     return new Promise((resolve, reject) => {
       if ((window as any).google?.accounts?.oauth2) return resolve();
       const interval = 200;
       let waited = 0;
       const h = setInterval(() => {
         if ((window as any).google?.accounts?.oauth2) {
           clearInterval(h);
           return resolve();
         }
         waited += interval;
         if (waited >= timeout) {
           clearInterval(h);
           return reject();
         }
       }, interval);
     });
   }

   private getUserInfo() {
     if (!this.accessToken) return;
     this.http.get('https://www.googleapis.com/oauth2/v2/userinfo', {
       headers: new HttpHeaders({ Authorization: `Bearer ${this.accessToken}` })
     }).subscribe({
       next: (user: any) => this.userEmail$.next(user.email || ''),
       error: () => this.userEmail$.next('')
     });
   }

   public signIn(prompt = 'consent') {
     this.ensureGsiReady().then(() => {
       if (!this.tokenClient) this.initializeTokenClient();
       if (!this.tokenClient) return;
       this.tokenClient.requestAccessToken({ prompt });
     }).catch(() => {
       this.signedIn$.next(false);
     });
   }

   public async signOut(): Promise<void> {
     if (this.accessToken) {
       try { await fetch(`https://oauth2.googleapis.com/revoke?token=${this.accessToken}`, { method: 'POST' }); } catch {}
     }
     this.accessToken = null;
     this.signedIn$.next(false);
     this.userEmail$.next('');
   }

   private authHeaders(): HttpHeaders {
     return new HttpHeaders({ Authorization: `Bearer ${this.accessToken}` });
   }

Configuring the CRUD Operations with the Syncfusion Scheduler in the src/app.ts file in GoogleCalendarService class.

To load events from Google Calendar into the Syncfusion Scheduler, the application uses the getEvents method from the GoogleCalendarService

 public getEvents(timeMin?: string, timeMax?: string, expandRecurring: boolean = true): Observable<any> {
     const params: any = {
       singleEvents: expandRecurring ? 'true' : 'false',
       orderBy: expandRecurring ? 'startTime' : undefined,
       maxResults: '2500'
     };
     if (timeMin) params.timeMin = timeMin;
     if (timeMax) params.timeMax = timeMax;
     const url = `https://www.googleapis.com/calendar/v3/calendars/${encodeURIComponent(this.calendarId)}/events`;
     return this.http.get(url, { headers: this.authHeaders(), params });
   }

To insert events between Google Calendar and Syncfusion Scheduler, the application uses the insertEvent method from the GoogleCalendarService

   public insertEvent(event: any): Observable<any> {
     const url = `https://www.googleapis.com/calendar/v3/calendars/${encodeURIComponent(this.calendarId)}/events`;
     return this.http.post(url, event, { headers: this.authHeaders() });
   }

To update events between Google Calendar and Syncfusion Scheduler, the application uses the updateEvent method from the GoogleCalendarService

   public updateEvent(eventId: string, event: any): Observable<any> {
     const url = `https://www.googleapis.com/calendar/v3/calendars/${encodeURIComponent(this.calendarId)}/events/${encodeURIComponent(eventId)}`;
     return this.http.patch(url, event, { headers: this.authHeaders() });
   }

To delete events between Google Calendar and Syncfusion Scheduler, the application uses the deleteEvent method from the GoogleCalendarService

   public deleteEvent(eventId: string): Observable<any> {
     const url = `https://www.googleapis.com/calendar/v3/calendars/${encodeURIComponent(this.calendarId)}/events/${encodeURIComponent(eventId)}`;
     return this.http.delete(url, { headers: this.authHeaders() });
   }
 }

To load google events into the scheduler and syncs all create/update/delete actions back to Google Calendar after user sign-in, using App class.

Handled the AllDay conversion between Syncfusion Scheduler and Google Calendar.
```ts
export class App implements OnInit {
@ViewChild(‘scheduleObj’) public scheduleObj?: ScheduleComponent;

public events: any[] = [];
public eventSettings: any = { dataSource: [], allowAdding: true, allowEditing: true, allowDeleting: true };
public isSignedIn = false;
public selectedDate: Date = new Date();
public scheduleViews: Array = [ { option: 'Day' }, { option: 'Week' }, { option: 'WorkWeek' }, { option: 'Month' } ];

constructor(private gcal: GoogleCalendarService) {}

ngOnInit(): void {
this.gcal.signedIn$.subscribe(signedIn => {
this.isSignedIn = signedIn;
if (signedIn) {
this.loadEvents();
} else {
this.events = [];
this.eventSettings = { …this.eventSettings, dataSource: [] };
}
});
}

private parseDateOnly(dateStr: string): Date {
const [y, m, d] = dateStr.split(‘-‘).map(Number);
return new Date(y, m - 1, d);
}

private toLocalDateString(d: Date): string {
return ${d.getFullYear()}-${String(d.getMonth() + 1).padStart(2,'0')}-${String(d.getDate()).padStart(2,'0')};
}

private addDays(d: Date, days: number): Date {
const nd = new Date(d.getFullYear(), d.getMonth(), d.getDate());
nd.setDate(nd.getDate() + days);
return nd;
}

private mapEventFromGoogle(ge: any) {
const event: any = {
Id: ge.id,
Subject: ge.summary || ‘(no title)’,
Description: ge.description || ‘’,
IsAllDay: !!ge.start?.date,
_raw: ge
};

 if (ge.start?.date) {
   event.StartTime = this.parseDateOnly(ge.start.date);
   event.EndTime = this.parseDateOnly(ge.end?.date ?? ge.start.date);
 } else {
   event.StartTime = ge.start?.dateTime ? new Date(ge.start.dateTime) : null;
   event.EndTime = ge.end?.dateTime ? new Date(ge.end.dateTime) : null;
 }

 if (ge.recurrence && ge.recurrence.length > 0) {
   let rrule = ge.recurrence[0];
   if (rrule.startsWith('RRULE:')) rrule = rrule.substring(6);
   event.RecurrenceRule = rrule;
 }

 if (ge.recurringEventId) event.RecurrenceID = ge.recurringEventId;

 return event;    }

private mapEventToGoogle(e: any) {
const googleEvent: any = {
summary: e.Subject || ‘(no title)’,
description: e.Description || ‘’
};

 if (e.IsAllDay) {
   const s = e.StartTime instanceof Date ? e.StartTime : new Date(e.StartTime);
   const en = e.EndTime instanceof Date ? e.EndTime : new Date(e.EndTime);
   const sLocal = new Date(s.getFullYear(), s.getMonth(), s.getDate());
   let eLocal = new Date(en.getFullYear(), en.getMonth(), en.getDate());
   if (eLocal <= sLocal) eLocal = this.addDays(sLocal, 1);
   googleEvent.start = { date: this.toLocalDateString(sLocal) };
   googleEvent.end   = { date: this.toLocalDateString(eLocal) };
 } else {
   googleEvent.start = { dateTime: e.StartTime instanceof Date ? e.StartTime.toISOString() : e.StartTime, timeZone: 'UTC' };
   googleEvent.end   = { dateTime: e.EndTime instanceof Date ? e.EndTime.toISOString() : e.EndTime, timeZone: 'UTC' };
 }

 if (e.RecurrenceRule) {
   let rrule = e.RecurrenceRule.startsWith('RRULE:') ? e.RecurrenceRule : 'RRULE:' + e.RecurrenceRule;
   googleEvent.recurrence = [rrule];
 }

 return googleEvent;    }

public loadEvents() {
const now = new Date();
const timeMin = new Date(now.getFullYear() - 1, 0, 1).toISOString();
const timeMax = new Date(now.getFullYear() + 1, 11, 31).toISOString();

 this.gcal.getEvents(timeMin, timeMax).subscribe({
   next: (res: any) => {
     const items = res.items || [];
     this.events = items.map((it: any) => this.mapEventFromGoogle(it));
     this.eventSettings = {
       dataSource: this.events,
       allowAdding: true,
       allowEditing: true,
       allowDeleting: true
     };
     setTimeout(() => this.scheduleObj?.refresh(), 100);
   },
   error: () => {}
 });    }

public signIn() { this.gcal.signIn(); }
public signOut() { this.gcal.signOut(); }
}
```

Performing CRUD operations in the App class using onActionComplete method in src/app.ts file

To insert the created events form Syncfusion Scheduler to Google Calendar, the application uses the eventCreated requesttype.

 public onActionComplete(args: any) {
     if (args.requestType === 'eventCreated') {
       const added = args.addedRecords || [];
       for (const a of added) {
         const body = this.mapEventToGoogle(a);
         this.gcal.insertEvent(body).subscribe({
           next: (created: any) => {
             a.Id = created.id;
             (a as any)._raw = created;

             const idx = this.events.findIndex(ev =>
               ev === a ||
               (ev.Subject === a.Subject &&
                 +new Date(ev.StartTime) === +new Date(a.StartTime) &&
                 +new Date(ev.EndTime) === +new Date(a.EndTime))
             );
             if (idx > -1) {
               this.events[idx].Id = created.id;
               this.events[idx]._raw = created;
               this.eventSettings = { ...this.eventSettings, dataSource: [...this.events] };
             }

             setTimeout(() => this.loadEvents(), 300);
           },
           error: () => setTimeout(() => this.loadEvents(), 500)
         });
       }
     }

To update the events form Syncfusion Scheduler to Google Calendar, the application uses the eventChanged requesttype.

     if (args.requestType === 'eventChanged') {
       const changed = args.changedRecords || [];
       for (const c of changed) {
         if (!c.Id) continue;
         const body = this.mapEventToGoogle(c);
         this.gcal.updateEvent(c.Id, body).subscribe({
           next: () => {
             if (body.recurrence || c.RecurrenceRule) setTimeout(() => this.loadEvents(), 1000);
           },
           error: () => this.loadEvents()
         });
       }
     }

To delete the events form Syncfusion Scheduler to Google Calendar, the application uses the eventRemoved requesttype.

     if (args.requestType === 'eventRemoved') {
       const removed =
         (Array.isArray(args.deletedRecords) && args.deletedRecords.length ? args.deletedRecords :
           (args.data ? (Array.isArray(args.data) ? args.data : [args.data]) : [])) as any[];

       for (const r of removed) {
         const eventId = r?.Id || r?._raw?.id;
         if (!eventId) continue;

         this.gcal.deleteEvent(eventId).subscribe({
           next: () => setTimeout(() => this.loadEvents(), 300),
           error: () => this.loadEvents()
         });
       }
     }
   }

Running the Application

ng serve

Output

For additional help, see the Google Calendar Integration sample on GitHub

Testing and verification

Use ng serve to run locally: http://localhost:4200.
Verify OAuth consent and that http://localhost:4200 appears in Authorized JavaScript origins.

TroubleShooting

Problem :

Clicking “Sign In with Google” does nothing.
No popup appears.

Errors :

google is not defined
accounts.oauth2 is undefined

Solution :

Make sure this script exists inside index.html

<script src="https://accounts.google.com/gsi/client" async defer></script>

Make sure the application in running on the exact URL http://localhost:4200

Problem :

origin_mismatch
Unauthorized origin

Solution :

Add the http://localhost:4200 URL to Authorized JavaScript origins on the Google Cloud Console

Search docs

Ask Syncfusion AI Assistant

Search docs

Ask Syncfusion AI Assistant

How can I help you?

Google Calendar API Integration with Syncfusion Angular Scheduler

Prerequisites

High-level flow

Create Google Cloud credentials

Step 1: Setup Google Calendar API

Step 2: Enable the Google Calendar API

Step 4: Add Test Users

Step 5: Generate Credentials

Scaffold the Angular project and install packages

Add Google Identity script

Add the Syncfusion CSS References

Configuring the Syncfusion Angular Scheduler

Running the Application

Output

Testing and verification

TroubleShooting

How can I help you?

Google Calendar API Integration with Syncfusion Angular Scheduler

Prerequisites

High-level flow

Create Google Cloud credentials

Step 1: Setup Google Calendar API

Step 2: Enable the Google Calendar API

Step 3: Configure OAuth consent screen (External or Internal depending on your audience).

Step 4: Add Test Users

Step 5: Generate Credentials

Scaffold the Angular project and install packages

Add Google Identity script

Add the Syncfusion CSS References

Configuring the Syncfusion Angular Scheduler

Running the Application

Output

Testing and verification

TroubleShooting

Google Sign‑In Button Does Not Work

Origin mismatch Error During Sign‑In
