Getting started with Angular QueryBuilder component

08 Dec 2021 / 4 minutes to read

This section explains how to create and demonstrate the basic usage of the Angular Query Builder module.

Dependencies

The list of dependencies required to use the Query Builder module in your application is given below:

Copied to clipboard
|-- @syncfusion/ej2-angular-querybuilder
    |-- @syncfusion/ej2-angular-base
    |-- @syncfusion/ej2-base
    |-- @syncfusion/ej2-querybuilder
    |-- @syncfusion/ej2-datamanager
    |-- @syncfusion/ej2-dropdowns
    |-- @syncfusion/ej2-calenders
    |-- @syncfusion/ej2-inputs

Setup Angular environment

You can use Angular CLI to setup your Angular applications. To install Angular CLI use the following command.

Copied to clipboard
npm install -g @angular/cli

Create an Angular application

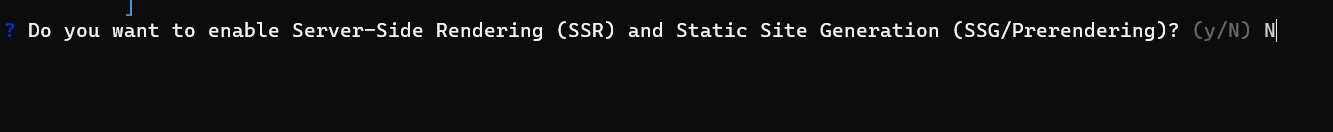

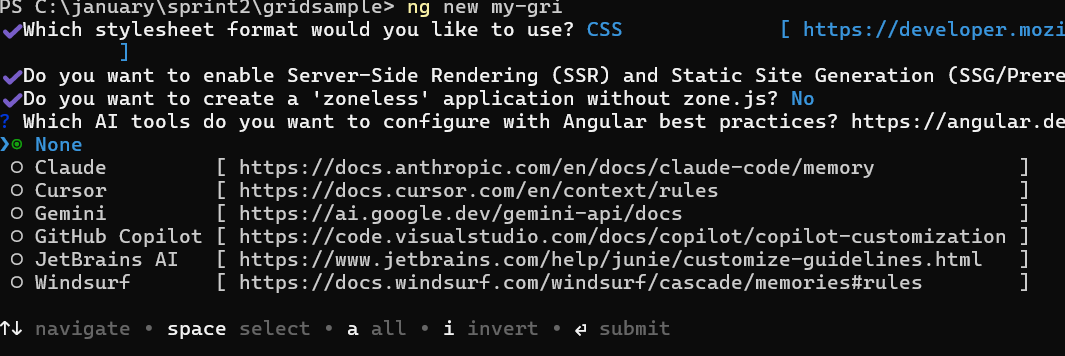

Start a new Angular application using below Angular CLI command.

Copied to clipboard
ng new my-app
cd my-app

Installing Syncfusion Query Builder package

To install Query Builder package, use the following command.

Copied to clipboard
npm install @syncfusion/ej2-angular-querybuilder --save

The above package installs Query Builder dependencies which are required to render the component in the Angular environment.

Adding Query Builder module

Import Query Builder module into Angular application(app.module.ts) from the package @syncfusion/ej2-angular-querybuilder.

Copied to clipboard
import { NgModule }      from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';

// Importing QueryBuilderModule from ej2-angular-querybuilder package.
import { QueryBuilderModule } from '@syncfusion/ej2-angular-querybuilder';
import { AppComponent }  from './app.component';

@NgModule({
  imports:      [ BrowserModule, QueryBuilderModule ], // Declaration of QueryBuilder module into NgModule.
  declarations: [ AppComponent ],
  bootstrap:    [ AppComponent ]
})
export class AppModule { }

Adding Syncfusion Query Builder component

Modify the template in app.component.ts file to render the Angular Query Builder component.

Copied to clipboard
import { Component } from '@angular/core';

@Component({
  selector: 'app-root',
  template: `<!-- To render Query Builder. -->
               <ejs-querybuilder width="70%">
                <e-columns>
                  <e-column field="EmployeeID" label="Employee ID" type="number"></e-column>
                  <e-column field="FirstName" label="First Name" type="string"></e-column>
                  <e-column field="TitleOfCourtesy" label="Title Of Courtesy" type="boolean" [values]="values"></e-column>
                  <e-column field="Title" label="Title" type="string"></e-column>
                  <e-column field="HireDate" label="Hire Date" type="date" format="dd/MM/yyyy"></e-column>
                  <e-column field="Country" label="Country" type="string"></e-column>
                  <e-column field="City" label="City" type="string"></e-column>
                </e-columns>
              </ejs-querybuilder>`
})
export class AppComponent  { }

Adding CSS reference

Add Angular Query Builder component’s styles as given below in style.css.

Copied to clipboard
@import "../node_modules/@syncfusion/ej2-base/styles/material.css";
@import "../node_modules/@syncfusion/ej2-buttons/styles/material.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/material.css";
@import "../node_modules/@syncfusion/ej2-dropdowns/styles/material.css";
@import "../node_modules/@syncfusion/ej2-inputs/styles/material.css";
@import "../node_modules/@syncfusion/ej2-calendars/styles/material.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/material.css";
@import "../node_modules/@syncfusion/ej2-querybuilder/styles/material.css";

Running the application

Run the application in the browser using the following command:

Copied to clipboard
ng serve

The following example shows a basic Query Builder component.

Source
Preview
app.component.ts
app.module.ts
Copied to clipboard
import { Component } from '@angular/core';

@Component({
    selector: 'app-root',
    template: `<!-- To render Query Builder. -->
               <ejs-querybuilder width="70%">
                <e-columns>
                  <e-column field="EmployeeID" label="Employee ID" type="number"></e-column>
                  <e-column field="FirstName" label="First Name" type="string"></e-column>
                  <e-column field="TitleOfCourtesy" label="Title Of Courtesy" type="boolean" [values]="values"></e-column>
                  <e-column field="Title" label="Title" type="string"></e-column>
                  <e-column field="HireDate" label="Hire Date" type="date" format="dd/MM/yyyy"></e-column>
                  <e-column field="Country" label="Country" type="string"></e-column>
                  <e-column field="City" label="City" type="string"></e-column>
                </e-columns>
              </ejs-querybuilder>`
})

export class AppComponent {
   public values: string[] = ['Mr.', 'Mrs.'];

}
Copied to clipboard
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { QueryBuilderModule } from '@syncfusion/ej2-angular-querybuilder';
import { AppComponent } from './app.component';
import { enableRipple } from '@syncfusion/ej2-base';

enableRipple(true);

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        QueryBuilderModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent]
})
export class AppModule { }

Rendering with rule

To render the Angular Query Builder component with rule, use the rule property.

Source
Preview
app.component.ts
app.module.ts
Copied to clipboard
import { Component, OnInit } from '@angular/core';
import { RuleModel } from '@syncfusion/ej2-angular-querybuilder';

@Component({
    selector: 'app-root',
    template: `<!-- To render Query Builder. -->
               <ejs-querybuilder width="70%" [rule]="importRules">
                <e-columns>
                  <e-column field="EmployeeID" label="Employee ID" type="number"></e-column>
                  <e-column field="FirstName" label="First Name" type="string"></e-column>
                  <e-column field="TitleOfCourtesy" label="Title Of Courtesy" type="boolean" [values]="values"></e-column>
                  <e-column field="Title" label="Title" type="string"></e-column>
                  <e-column field="HireDate" label="Hire Date" type="date" format="dd/MM/yyyy"></e-column>
                  <e-column field="Country" label="Country" type="string"></e-column>
                  <e-column field="City" label="City" type="string"></e-column>
                </e-columns>
              </ejs-querybuilder>`
})

export class AppComponent implements OnInit {

    public importRules: RuleModel;
    public values: string[] = ['Mr.', 'Mrs.'];

    ngOnInit(): void {
        this.importRules = {
        'condition': 'and',
        'rules': [{
                'label': 'Employee ID',
                'field': 'EmployeeID',
                'type': 'number',
                'operator': 'equal',
                'value': 1
            },
            {
                'label': 'Title',
                'field': 'Title',
                'type': 'string',
                'operator': 'equal',
                'value': 'Sales Manager'
            }]
        };
    }
}
Copied to clipboard
import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { QueryBuilderModule } from '@syncfusion/ej2-angular-querybuilder';
import { AppComponent } from './app.component';
import { enableRipple } from '@syncfusion/ej2-base';

enableRipple(true);

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule,
        QueryBuilderModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent]
})
export class AppModule { }

You can also explore our Angular Query Builder example that shows how to render the Query Builder in Angular.
