Overview of Chart Series

13 Mar 20267 minutes to read

What is a series?

A series represents a set of related data points visualized together on a chart. Each series is plotted using a specific rendering type, such as Line, Column, Area, Spline, or Scatter. A single chart can contain one or multiple series, allowing you to compare trends or relationships across datasets.

Single Series

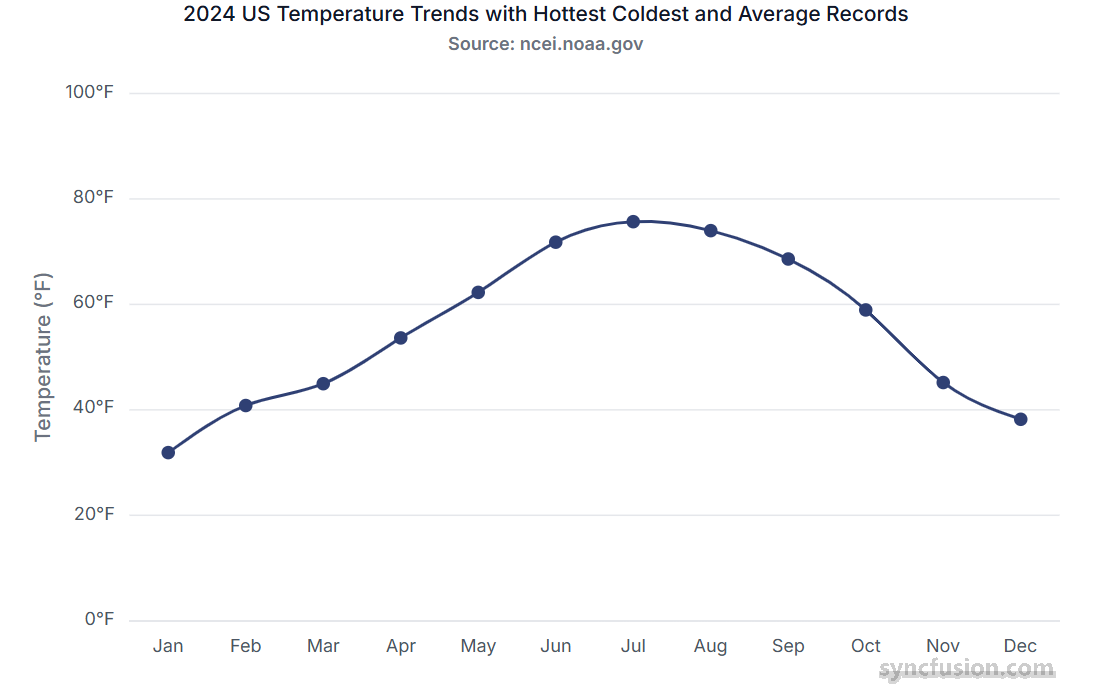

A single series refers to a chart that displays only one set of data points. It represents one continuous dataset plotted on the chart, allowing you to visualize trends or values from a single source of data.

Multiple series

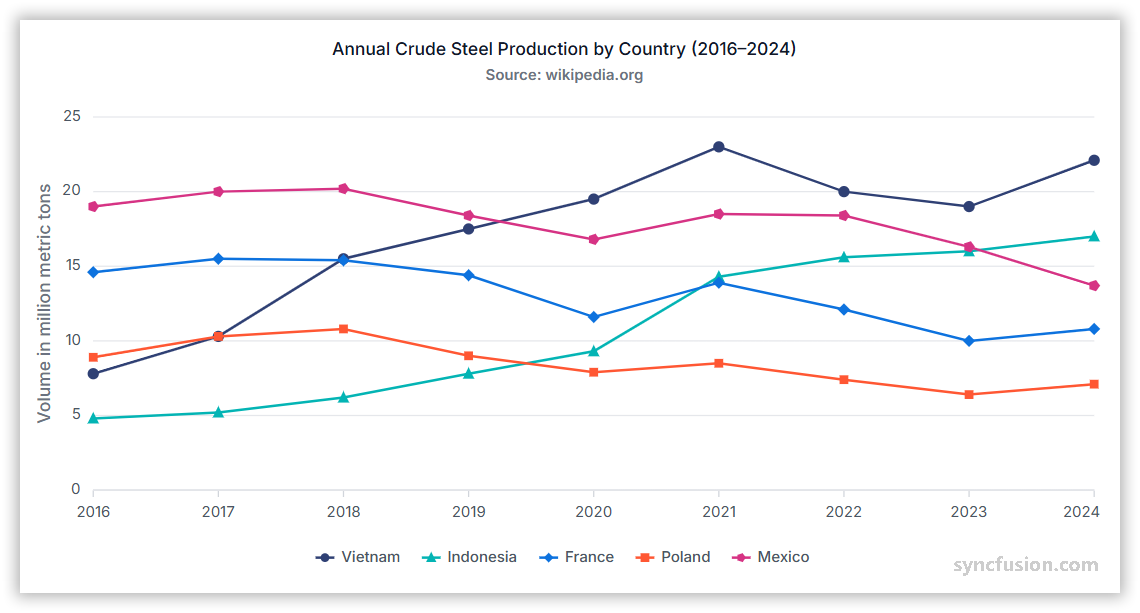

A multiple series chart displays two or more datasets together, allowing you to compare trends or values across different series.

Binding data with series

You can bind data to the chart using the dataSource property within the series configuration. This allows you to connect a JSON dataset or remote data to your chart. To display the data correctly, map the fields from the data to the chart series xName and yName properties.

app.component.ts

import { ChartModule } from '@syncfusion/ej2-angular-charts'
import { CategoryService, LineSeriesService, StepLineSeriesService, SplineSeriesService, StackingLineSeriesService, DateTimeService,
    SplineAreaSeriesService, MultiColoredLineSeriesService, ParetoSeriesService, ColumnSeriesService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { lineData } from './datasource';

@Component({
imports: [
         ChartModule
    ],

providers: [ CategoryService, LineSeriesService, StepLineSeriesService, SplineSeriesService, StackingLineSeriesService, DateTimeService,
        SplineAreaSeriesService, MultiColoredLineSeriesService, ParetoSeriesService, ColumnSeriesService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis'[primaryYAxis]='primaryYAxis'
    [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='Line' xName='x' yName='y'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public chartData?: Object[];
    public title?: string;
     public primaryXAxis?: Object;
      public primaryYAxis?: Object;
    ngOnInit(): void {
        this.chartData = lineData;
        this.primaryXAxis = {
            interval: 1
        };
        this.primaryYAxis =
        {
            title: 'Expense',
        },
        this.title = 'Efficiency of oil-fired power production';
    }

}

main.ts

import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

datasource.ts

export let lineData: Object[] = [
             { x: 2005, y: 28 },
             { x: 2006, y: 25 },
             { x: 2007, y: 26 },
             { x: 2008, y: 27 },
             { x: 2009, y: 32 },
             { x: 2010, y: 35 },
             { x: 2011, y: 30 }
        ];

Common series properties

Property	Description
type	Series rendering type: Line, Column, Area, Bar, Spline, Scatter, etc.
dataSource	Array or remote data source bound to the series.
xName	Field name in the data source used for X-axis values.
yName	Field name in the data source used for Y-axis values.
name	Series label shown in the legend and tooltips.
visible	Determines whether the series is displayed on the chart.
fill	Fill color or gradient for the series.
width	Stroke width for line-type series.
marker	Object configuring data point markers (visibility, size, shape, fill).
opacity	Series transparency (0.0 - 1.0).
dashArray	Dash pattern for stroke lines (for example: "5,3").
animation	Animation options (enable, duration, delay) for series rendering.
enableTooltip	Enable or disable tooltip for the series points.
columnSpacing	Spacing between bars/columns for Column/Bar series.
columnWidth	Width of columns/bars (relative or pixel value).
border	Border settings (color, width) for Area, Column, and Bar series.
legendShape	Shape/icon used in the legend for the series.
emptyPointSettings	How to render empty/null points (gap, zero, average, etc.).
errorBar	Configuration to render error bars for each point.
trendlines	Add trendlines (Linear, Polynomial, Moving Average, etc.).
marker	Configuration object for highlighting individual data points with symbols (circle, diamond, etc.).
dataLabel	Configuration object for displaying the value of each data point directly on the chart.
