Getting Started with the Vue Diagram Component in the Quasar Framework

7 Dec 202424 minutes to read

This article provides a step-by-step guide for setting up a Quasar project and integrating the Syncfusion® Vue Diagram component using the Composition API.

The Quasar Framework is a Vue.js-based open-source framework that empowers developers to create high-performance and responsive applications across various platforms, such as web, mobile, and desktop.

Prerequisites

System requirements for Syncfusion® Vue UI components

Set up the Quasar project

To initiate the creation of a new Quasar project, use the following commands:

npm init quasar

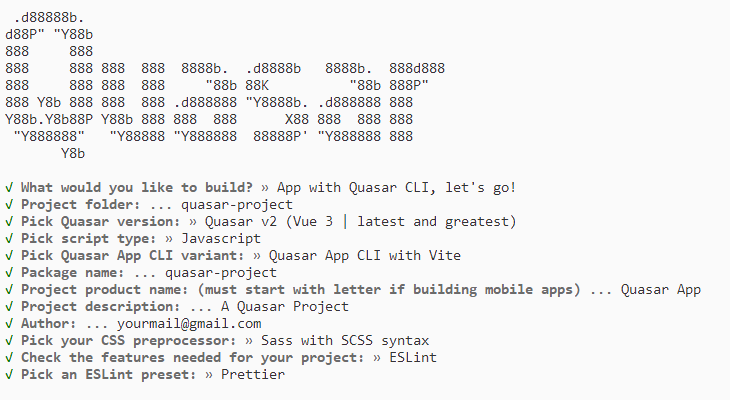

This command prompts additional configurations. Follow the steps outlined in the images below:

quasar-setup1

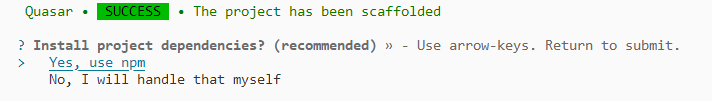

This generates the necessary files and prompts for project dependency installation. Respond with ‘yes’ to proceed with npm install, as shown in the image below:

quasar-setup2

Navigate to your project directory:

cd quasar-project

Now that quasar-project is ready to run with default settings, let’s add Syncfusion® components to the project.

Add the Syncfusion® Vue packages

Syncfusion® Vue component packages are available at npmjs.com. To use Syncfusion® Vue components in the project, install the corresponding npm package.

This article uses the Vue Diagram component as an example. To use the Vue Diagram component in the project, the @syncfusion/ej2-vue-diagrams package needs to be installed using the following command:

npm install @syncfusion/ej2-vue-diagrams --save

Import Syncfusion® CSS styles

You can import themes for the Syncfusion® Vue component in various ways, such as using CSS or SASS styles from npm packages, CDN, CRG and Theme Studio. Refer to the themes topic to learn more about built-in themes and different ways to refer to themes in a Vue project.

In this article, the Material 3 theme is applied using CSS styles, which are available in installed packages. The necessary Material 3 CSS styles for the Diagram component and its dependents were imported into the <style> section of the src/app.vue file.

~/src/app.vue
<style>
@import "../node_modules/@syncfusion/ej2-base/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-buttons/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-inputs/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/material3.css";
</style>

The order of importing CSS styles should be in line with their dependency graph.

Add the Syncfusion® Vue component

Follow the below steps to add the Vue Diagram component:

1. First, add the setup attribute to the script tag to indicate that Vue will be using the Composition API. And import the Diagram component and its child directives in the script section of the src/app.vue file.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<script setup>
import { DiagramComponent, DataBinding, HierarchicalTree } from "@syncfusion/ej2-vue-diagrams";
</script>
<script>
import { DiagramComponent, DataBinding, HierarchicalTree } from "@syncfusion/ej2-vue-diagrams";

export default {
    name: "App",
    components: {
        'ej2-diagram': DiagramComponent
    }
}
</script>

2. Then, define the Diagram component in the src/app.vue file, as shown below:

~/src/app.vue
<template>
    <ejs-diagram
        id="diagram"
        :width="width"
        :height="height"
        :layout="layout"
        :dataSourceSettings="dataSourceSettings"
        :getNodeDefaults="getNodeDefaults"
        :getConnectorDefaults="getConnectorDefaults"
        >
    </ejs-diagram>
</template>

3. Declare the values for the dataSource property in the script section.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<script setup>
import { provide } from "vue";
import { DataManager } from "@syncfusion/ej2-data";
const width="1300px";
const height = "800px";

const localdata = [
    {
    Name: "Elizabeth",
    Role: "Editor",
    },
    {
    Name: "Christina",
    ReportingPerson: "Elizabeth",
    Role: "Managing Editor",
    },
    {
    Name: "Yoshi",
    ReportingPerson: "Christina",
    Role: "Assistant Editor",
    },
    {
    Name: "Philip",
    ReportingPerson: "Christina",
    Role: "Copy Editor",
    },
    {
    Name: "Yang",
    ReportingPerson: "Elizabeth",
    Role: "Bussiness Editor",
    },
    {
    Name: "Roland",
    ReportingPerson: "Yang",
    Role: "Assistant Editor",
    },
    {
    Name: "Yvonne",
    ReportingPerson: "Yang",
    Role: "Editorial Assistant",
    },
];
const getNodeDefaults= (node) => {
        node.height = 60;
        node.width = 150;
        return node;
        };

const getConnectorDefaults= (obj) => {
    obj.type = "Orthogonal";
        obj.style = {
            strokeColor: "#6BA5D7",
            fill: "#6BA5D7",
            strokeWidth: 2,
        };
        obj.targetDecorator = {
            style: {
            fill: "#6BA5D7",
            strokeColor: "#6BA5D7",
            },
        };
        return obj;
};
const layout={
        type: "OrganizationalChart",
        };
const dataSourceSettings= {
        id: "Name",
        parentId: "ReportingPerson",
        dataManager: new DataManager(localdata),
        doBinding: (nodeModel, localdata) => {
            nodeModel.annotations = [
            {
                content: localdata.Name,
                offset: { x: 0.5, y: 0.2 },
                style: { color: "white" },
            },
            {
                content: localdata.Role,
                offset: { x: 0.5, y: 0.7 },
                style: { color: "white" },
            },
            ];
            nodeModel.style = { fill: "#6BA5D7", strokeWidth: 0 };
        },
        };
const diagram = [DataBinding, HierarchicalTree];
provide('diagram', diagram);
</script>
<script>
import { DataManager } from "@syncfusion/ej2-data";

export default {
    data() {
        return {
            width: "1300px",
            height: "800px",
            localdata: [
                {
                Name: "Elizabeth",
                Role: "Editor",
                },
                {
                Name: "Christina",
                ReportingPerson: "Elizabeth",
                Role: "Managing Editor",
                },
                {
                Name: "Yoshi",
                ReportingPerson: "Christina",
                Role: "Assistant Editor",
                },
                {
                Name: "Philip",
                ReportingPerson: "Christina",
                Role: "Copy Editor",
                },
                {
                Name: "Yang",
                ReportingPerson: "Elizabeth",
                Role: "Bussiness Editor",
                },
                {
                Name: "Roland",
                ReportingPerson: "Yang",
                Role: "Assistant Editor",
                },
                {
                Name: "Yvonne",
                ReportingPerson: "Yang",
                Role: "Editorial Assistant",
                },
            ],
            layout: {
                type: "OrganizationalChart",
            },
            dataSourceSettings: {
                id: "Name",
                parentId: "ReportingPerson",
                dataManager: new DataManager(localdata),
                doBinding: (nodeModel, localdata) => {
                    nodeModel.annotations = [
                    {
                        content: localdata.Name,
                        offset: { x: 0.5, y: 0.2 },
                        style: { color: "white" },
                    },
                    {
                        content: localdata.Role,
                        offset: { x: 0.5, y: 0.7 },
                        style: { color: "white" },
                    },
                    ];
                    nodeModel.style = { fill: "#6BA5D7", strokeWidth: 0 };
                }
            }
        }
    },
    methods: {
        getNodeDefaults: (node) => {
            node.height = 60;
            node.width = 150;
            return node;
        },
        getConnectorDefaults: (obj) => {
            obj.type = "Orthogonal";
                obj.style = {
                    strokeColor: "#6BA5D7",
                    fill: "#6BA5D7",
                    strokeWidth: 2,
                };
                obj.targetDecorator = {
                    style: {
                    fill: "#6BA5D7",
                    strokeColor: "#6BA5D7",
                    },
                };
            return obj;
        }
    },
    provide: {
        diagram: [DataBinding, HierarchicalTree]
    }
}
</script>

Here is the summarized code for the above steps in the src/app.vue file:

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <ejs-diagram
        id="diagram"
        :width="width"
        :height="height"
        :layout="layout"
        :dataSourceSettings="dataSourceSettings"
        :getNodeDefaults="getNodeDefaults"
        :getConnectorDefaults="getConnectorDefaults"
        >
    </ejs-diagram>
</template>

<script setup>
import {DiagramComponent as EjsDiagram,DataBinding,HierarchicalTree,} from "@syncfusion/ej2-vue-diagrams";
import { provide } from "vue";
import { DataManager } from "@syncfusion/ej2-data";
const width="1300px";
const height = "800px";

const localdata = [
    {
    Name: "Elizabeth",
    Role: "Editor",
    },
    {
    Name: "Christina",
    ReportingPerson: "Elizabeth",
    Role: "Managing Editor",
    },
    {
    Name: "Yoshi",
    ReportingPerson: "Christina",
    Role: "Assistant Editor",
    },
    {
    Name: "Philip",
    ReportingPerson: "Christina",
    Role: "Copy Editor",
    },
    {
    Name: "Yang",
    ReportingPerson: "Elizabeth",
    Role: "Bussiness Editor",
    },
    {
    Name: "Roland",
    ReportingPerson: "Yang",
    Role: "Assistant Editor",
    },
    {
    Name: "Yvonne",
    ReportingPerson: "Yang",
    Role: "Editorial Assistant",
    },
];
const getNodeDefaults= (node) => {
        node.height = 60;
        node.width = 150;
        return node;
        };

const getConnectorDefaults= (obj) => {
    obj.type = "Orthogonal";
        obj.style = {
            strokeColor: "#6BA5D7",
            fill: "#6BA5D7",
            strokeWidth: 2,
        };
        obj.targetDecorator = {
            style: {
            fill: "#6BA5D7",
            strokeColor: "#6BA5D7",
            },
        };
        return obj;
};
const layout={
        type: "OrganizationalChart",
        };
const dataSourceSettings= {
        id: "Name",
        parentId: "ReportingPerson",
        dataManager: new DataManager(localdata),
        doBinding: (nodeModel, localdata) => {
            nodeModel.annotations = [
            {
                content: localdata.Name,
                offset: { x: 0.5, y: 0.2 },
                style: { color: "white" },
            },
            {
                content: localdata.Role,
                offset: { x: 0.5, y: 0.7 },
                style: { color: "white" },
            },
            ];
            nodeModel.style = { fill: "#6BA5D7", strokeWidth: 0 };
        },
        };
const diagram = [DataBinding, HierarchicalTree];
provide('diagram', diagram);
</script>

<style>
@import "../node_modules/@syncfusion/ej2-base/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-buttons/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-inputs/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/material3.css";
</style>
<script>
import { DataManager } from "@syncfusion/ej2-data";
import { DiagramComponent, DataBinding, HierarchicalTree } from "@syncfusion/ej2-vue-diagrams";

export default {
    name: "App",
    components: {
        'ej2-diagram': DiagramComponent
    },
    data() {
        return {
            width: "1300px",
            height: "800px",
            localdata: [
                {
                Name: "Elizabeth",
                Role: "Editor",
                },
                {
                Name: "Christina",
                ReportingPerson: "Elizabeth",
                Role: "Managing Editor",
                },
                {
                Name: "Yoshi",
                ReportingPerson: "Christina",
                Role: "Assistant Editor",
                },
                {
                Name: "Philip",
                ReportingPerson: "Christina",
                Role: "Copy Editor",
                },
                {
                Name: "Yang",
                ReportingPerson: "Elizabeth",
                Role: "Bussiness Editor",
                },
                {
                Name: "Roland",
                ReportingPerson: "Yang",
                Role: "Assistant Editor",
                },
                {
                Name: "Yvonne",
                ReportingPerson: "Yang",
                Role: "Editorial Assistant",
                },
            ],
            layout: {
                type: "OrganizationalChart",
            },
            dataSourceSettings: {
                id: "Name",
                parentId: "ReportingPerson",
                dataManager: new DataManager(localdata),
                doBinding: (nodeModel, localdata) => {
                    nodeModel.annotations = [
                    {
                        content: localdata.Name,
                        offset: { x: 0.5, y: 0.2 },
                        style: { color: "white" },
                    },
                    {
                        content: localdata.Role,
                        offset: { x: 0.5, y: 0.7 },
                        style: { color: "white" },
                    },
                    ];
                    nodeModel.style = { fill: "#6BA5D7", strokeWidth: 0 };
                }
            }
        }
    },
    methods: {
        getNodeDefaults: (node) => {
            node.height = 60;
            node.width = 150;
            return node;
        },
        getConnectorDefaults: (obj) => {
            obj.type = "Orthogonal";
                obj.style = {
                    strokeColor: "#6BA5D7",
                    fill: "#6BA5D7",
                    strokeWidth: 2,
                };
                obj.targetDecorator = {
                    style: {
                    fill: "#6BA5D7",
                    strokeColor: "#6BA5D7",
                    },
                };
            return obj;
        }
    },
    provide: {
        diagram: [DataBinding, HierarchicalTree]
    }
}
</script>

<style>
@import "../node_modules/@syncfusion/ej2-base/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-buttons/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-inputs/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/material3.css";
</style>

Run the project

To run the project, use the following command:

npm run dev

The output will appear as follows:

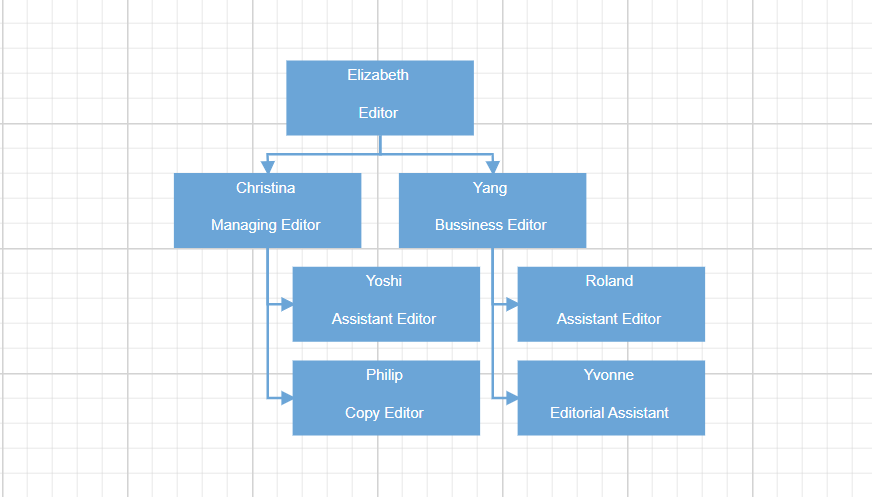

Quasar output
