UrlAdaptor in Syncfusion® EJ2 JavaScript Grid Control

7 May 202524 minutes to read

The UrlAdaptor serves as the base adaptor for facilitating communication between remote data services and an UI control. It enables seamless data binding and interaction with custom API services or any remote service through URLs. The UrlAdaptor is particularly useful for the scenarios where a custom API service with unique logic for handling data and CRUD operations is in place. This approach allows for custom handling of data and CRUD operations, and the resultant data returned in the result and count format for display in the Syncfusion® EJ2 JavaScript Grid control.

This section describes a step-by-step process for retrieving data using UrlAdaptor, then binding it to the EJ2 JavaScript Grid control to facilitate data and CRUD operations.

Creating an api service

Step 1: Create a New ASP.NET Core Project

To create a new ASP.NET Core Web API project named UrlAdaptor, follow these steps:

  • Open Visual Studio.
  • Select “Create a new project”
  • Choose ASP.NET Core Web API project template.
  • Name the project UrlAdaptor.
  • Click “Create”

Step 2: Configure the server

In the Program.cs file of your project, configure the server to serve static files by adding the following code:

var app = builder.Build();

app.UseDefaultFiles();
app.UseStaticFiles();

Additionally, comment out the following line in the launchSettings.json file:

    "https": {
      "commandName": "Project",
      "dotnetRunMessages": true,
      "launchBrowser": true,
     // "launchUrl": "swagger",
      "applicationUrl": "https://localhost:xxxx;http://localhost:xxxx",
      "environmentVariables": {
        "ASPNETCORE_ENVIRONMENT": "Development"
      }
    },

This configuration enables the server to locate and serve the index.html file.

Step 3: Model Class Creation

Create a model class named OrdersDetails.cs in the Models folder to represent the order data.

namespace UrlAdaptor.Models
 {
 public class OrdersDetails
 {
    public static List<OrdersDetails> order = new List<OrdersDetails>();
    public OrdersDetails()
    {

    }
    public OrdersDetails(
    int OrderID, string CustomerId, int EmployeeId, double Freight, bool Verified,
    DateTime OrderDate, string ShipCity, string ShipName, string ShipCountry,
    DateTime ShippedDate, string ShipAddress)
    {
    this.OrderID = OrderID;
    this.CustomerID = CustomerId;
    this.EmployeeID = EmployeeId;
    this.Freight = Freight;
    this.ShipCity = ShipCity;
    this.Verified = Verified;
    this.OrderDate = OrderDate;
    this.ShipName = ShipName;
    this.ShipCountry = ShipCountry;
    this.ShippedDate = ShippedDate;
    this.ShipAddress = ShipAddress;
    }

    public static List<OrdersDetails> GetAllRecords()
    {
    if (order.Count() == 0)
    {
        int code = 10000;
        for (int i = 1; i < 10; i++)
        {
        order.Add(new OrdersDetails(code + 1, "ALFKI", i + 0, 2.3 * i, false, new DateTime(1991, 05, 15), "Berlin", "Simons bistro", "Denmark", new DateTime(1996, 7, 16), "Kirchgasse 6"));
        order.Add(new OrdersDetails(code + 2, "ANATR", i + 2, 3.3 * i, true, new DateTime(1990, 04, 04), "Madrid", "Queen Cozinha", "Brazil", new DateTime(1996, 9, 11), "Avda. Azteca 123"));
        order.Add(new OrdersDetails(code + 3, "ANTON", i + 1, 4.3 * i, true, new DateTime(1957, 11, 30), "Cholchester", "Frankenversand", "Germany", new DateTime(1996, 10, 7), "Carrera 52 con Ave. Bolívar #65-98 Llano Largo"));
        order.Add(new OrdersDetails(code + 4, "BLONP", i + 3, 5.3 * i, false, new DateTime(1930, 10, 22), "Marseille", "Ernst Handel", "Austria", new DateTime(1996, 12, 30), "Magazinweg 7"));
        order.Add(new OrdersDetails(code + 5, "BOLID", i + 4, 6.3 * i, true, new DateTime(1953, 02, 18), "Tsawassen", "Hanari Carnes", "Switzerland", new DateTime(1997, 12, 3), "1029 - 12th Ave. S."));
        code += 5;
        }
    }
    return order;
    }

    public int? OrderID { get; set; }
    public string? CustomerID { get; set; }
    public int? EmployeeID { get; set; }
    public double? Freight { get; set; }
    public string? ShipCity { get; set; }
    public bool? Verified { get; set; }
    public DateTime OrderDate { get; set; }
    public string? ShipName { get; set; }
    public string? ShipCountry { get; set; }
    public DateTime ShippedDate { get; set; }
    public string? ShipAddress { get; set; }
 }
}

Step 4: API Controller Creation

Create a file named GridController.cs under the Controllers folder. This controller will handle data communication with the Grid control.

using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using UrlAdaptor.Models;

namespace UrlAdaptor.Controllers
{
  [ApiController]
  public class GridController : ControllerBase
  {

    // method to retrieve data
    [HttpGet]
    [Route("api/[controller]")]
    public List<OrdersDetails> GetOrderData()
    {
        // Retrieve all records and convert to list
        var data = OrdersDetails.GetAllRecords().ToList();
        return data;
    }

     // method to handle incoming data manager requests
    [HttpPost]
    [Route("api/[controller]")]
    public object Post()
    {
        // Retrieve data source and convert to queryable
        IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

        // Get total record count
        int totalRecordsCount = DataSource.Count();

        // Return result and total record count
        return new { result = DataSource, count = totalRecordsCount };
    }
  }
}

The GetOrderData method retrieves sample order data. You can replace it with your custom logic to fetch data from a database or any other source.

Connecting syncfusion® grid to an api service

Step 1: Create wwwroot folder

Create a folder named wwwroot in the project root directory. This folder will contain static files served by the web server.

Step 2: Create JS and CSS Folders

Inside the wwwroot folder, create js and css folders to hold script and CSS files, respectively.

Step 3: Create index.html File

Create an index.html file under the wwwroot folder and add the necessary HTML structure along with CSS and JavaScript links to include Syncfusion® Grid dependencies.

<!DOCTYPE html>
<html lang="en">
<head>
    <title>EJ2 Grid</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Javascript Grid Control">
    <meta name="author" content="Syncfusion">
    <link href="css/index.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-base/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-grids/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-buttons/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-popups/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-richtexteditor/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-navigations/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-dropdowns/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-lists/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-inputs/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-calendars/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-notifications/styles/bootstrap5.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/26.1.35/ej2-splitbuttons/styles/bootstrap5.css" rel="stylesheet">

    <script src="https://cdn.syncfusion.com/ej2/26.1.35/dist/ej2.min.js" type="text/javascript"></script>
    <script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type="text/javascript"></script>
</head>
<body>

    <div id="container">
        <div id="Grid"></div>
    </div>
    <script src="js/index.js" type="text/javascript"></script>
</body>
</html>

Step 4: Create JavaScript File

Create a index.js file under the wwwroot/js folder and add the JavaScript code to initialize the Syncfusion® Grid with data from the API service.

var data = new ej.data.DataManager({
    url: 'https://localhost:xxxx/api/Grid', // Here xxxx represents the port number
    adaptor: new ej.data.UrlAdaptor()
});

var grid = new ej.grids.Grid({
    dataSource: data,

    columns: [
        { field: 'OrderID', headerText: 'Order ID', textAlign: 'Right', width: 120, isPrimaryKey: true, type: 'number' },
        { field: 'CustomerID', width: 140, headerText: 'Customer ID', type: 'string' },
        { field: 'ShipCity', headerText: 'ShipCity', width: 140 },
        { field: 'ShipCountry', headerText: 'ShipCountry', width: 140 }
    ]
});

grid.appendTo('#Grid');

Step 5: Run the Project

Now, run the project to see the Syncfusion® Grid connected to the API service in action.

  • The Syncfusion® Grid control provides built-in support for handling various data operations such as searching, sorting, filtering, aggregate and paging on the server-side. These operations can be handled using methods such as PerformSearching, PerformFiltering, PerformSorting, PerformTake and PerformSkip available in the Syncfusion.EJ2.AspNet.Core package. Let’s explore how to manage these data operations using the UrlAdaptor.
  • In an API service project, add Syncfusion.EJ2.AspNet.Core by opening the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install it.
  • To access DataManagerRequest and QueryableOperation, import Syncfusion.EJ2.Base in GridController.cs file.
  • In the UrlAdaptor configuration, the properties of the DataManager object are encapsulated within an object named value. To access the DataManager properties, a dedicated class is created, representing the value object.
      // Model for handling data manager requests
  public class DataManager
  {
      public required DataManagerRequest Value { get; set; }
  }

Handling searching operation

To handle searching operation, ensure that your API endpoint supports custom searching criteria. Implement the searching logic on the server-side using the PerformSearching method from the QueryableOperation class. This allows the custom data source to undergo searching based on the criteria specified in the incoming DataManagerRequest object

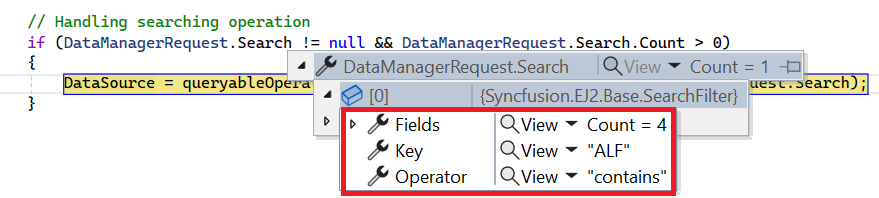

UrlAdaptor searching

[HttpPost]
public object Post([FromBody] DataManagerRequest DataManagerRequest)
{
  // Retrieve data from the data source (e.g., database)
  IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();
  QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance

  // Handling Searching
  if (DataManagerRequest.Search != null && DataManagerRequest.Search.Count > 0)
  {
      DataSource = queryableOperation.PerformSearching(DataSource, DataManagerRequest.Search);
  }
  // Get the total records count
  int totalRecordsCount = DataSource.Count();

  // Return data based on the request
  return new { result = DataSource, count = totalRecordsCount };
}
ej.grids.Grid.Inject(ej.grids.Toolbar);

var data = new ej.data.DataManager({
    url: 'https://localhost:xxxx/api/Grid',
    adaptor: new ej.data.UrlAdaptor()
});

var grid = new ej.grids.Grid({
    dataSource: data,
    toolbar: ['Search'],
    columns: [
                { field: 'OrderID', headerText: 'Order ID', textAlign: 'Right', width: 120, type: 'number' },
                { field: 'CustomerID', width: 140, headerText: 'Customer ID', type: 'string' },
                { field: 'ShipCity', headerText: 'ShipCity', width: 140 },
                { field: 'ShipCountry', headerText: 'ShipCountry', width: 140 }
    ]
});

grid.appendTo('#Grid');

Handling filtering operation

To handle filtering operation, ensure that your API endpoint supports custom filtering criteria. Implement the filtering logic on the server-side using the PerformFiltering method from the QueryableOperation class. This allows the custom data source to undergo filtering based on the criteria specified in the incoming DataManagerRequest object.

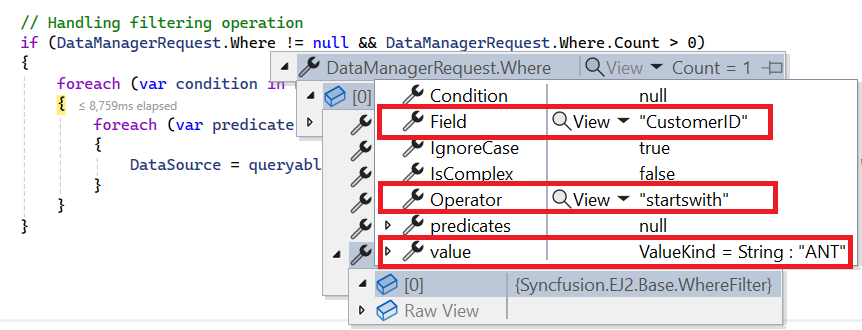

Single column filtering
Single column filtering

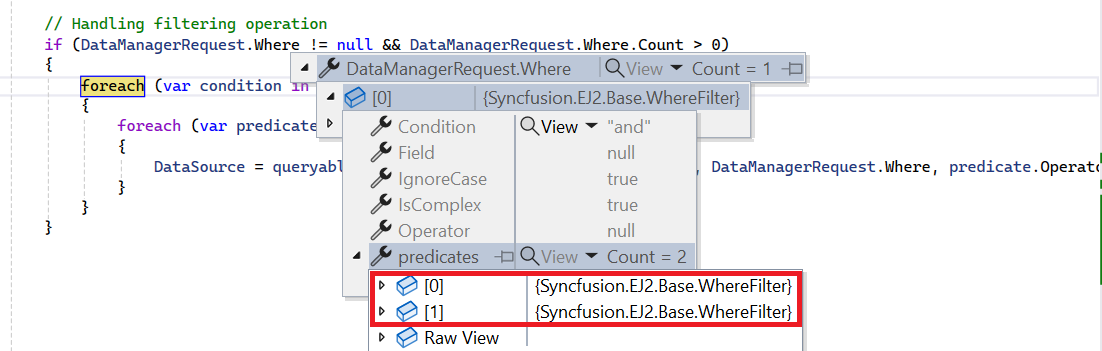

Multi column filtering
Multi column filtering

[HttpPost]
public object Post([FromBody] DataManagerRequest DataManagerRequest)
{
  // Retrieve data from the data source (e.g., database)
  IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

  QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance

  if (DataManagerRequest.Where != null && DataManagerRequest.Where.Count > 0)
  {
    // Handling filtering operation
    foreach (var condition in DataManagerRequest.Where)
    {
      foreach (var predicate in condition.predicates)
      {
        DataSource = queryableOperation.PerformFiltering(DataSource, DataManagerRequest.Where, predicate.Operator);
      }
    }
  }
  // Get the total records count
  int totalRecordsCount = DataSource.Count();

  // Return data based on the request
  return new { result = DataSource, count = totalRecordsCount };
}
ej.grids.Grid.Inject(ej.grids.Filter);

var data = new ej.data.DataManager({
    url: 'https://localhost:xxxx/api/Grid',
    adaptor: new ej.data.UrlAdaptor()
});

var grid = new ej.grids.Grid({
    dataSource: data,
    allowFiltering: true,
    columns: [
                { field: 'OrderID', headerText: 'Order ID', textAlign: 'Right', width: 120, type: 'number' },
                { field: 'CustomerID', width: 140, headerText: 'Customer ID', type: 'string' },
                { field: 'ShipCity', headerText: 'ShipCity', width: 140 },
                { field: 'ShipCountry', headerText: 'ShipCountry', width: 140 }
    ]
});

grid.appendTo('#Grid');

Handling sorting operation

To handle sorting operation, ensure that your API endpoint supports custom sorting criteria. Implement the sorting logic on the server-side using the PerformSorting method from the QueryableOperation class. This allows the custom data source to undergo sorting based on the criteria specified in the incoming DataManagerRequest object.

Single column sorting
Single column sorting

Multi column sorting
Multi column sorting

[HttpPost]
public object Post([FromBody] DataManagerRequest DataManagerRequest)
{
  // Retrieve data from the data source (e.g., database)
  IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

  QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance

  // Handling Sorting operation
  if (DataManagerRequest.Sorted != null && DataManagerRequest.Sorted.Count > 0)
  {
    DataSource = queryableOperation.PerformSorting(DataSource, DataManagerRequest.Sorted);
  }

  // Get the total count of records
  int totalRecordsCount = DataSource.Count();

  // Return data based on the request
  return new { result = DataSource, count = totalRecordsCount };
}
ej.grids.Grid.Inject(ej.grids.Sort);

var data = new ej.data.DataManager({
    url: 'https://localhost:xxxx/api/Grid',
    adaptor: new ej.data.UrlAdaptor()
});

var grid = new ej.grids.Grid({
    dataSource: data,
    allowSorting: true,
    columns: [
                { field: 'OrderID', headerText: 'Order ID', textAlign: 'Right', width: 120, type: 'number' },
                { field: 'CustomerID', width: 140, headerText: 'Customer ID', type: 'string' },
                { field: 'ShipCity', headerText: 'ShipCity', width: 140 },
                { field: 'ShipCountry', headerText: 'ShipCountry', width: 140 }
    ]
});

grid.appendTo('#Grid');

Handling paging operation

To handle paging operation, ensure that your API endpoint supports custom paging criteria. Implement the paging logic on the server-side using the PerformTake and PerformSkip method from the QueryableOperation class. This allows the custom data source to undergo paging based on the criteria specified in the incoming DataManagerRequest object.

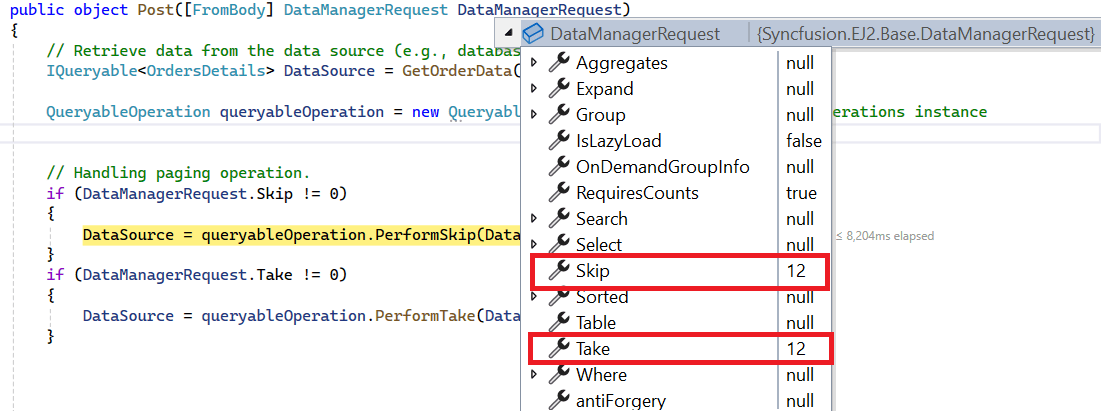

UrlAdaptor paging

[HttpPost]
public object Post([FromBody] DataManager DataManagerRequest)
{
    // Retrieve data from the data source (e.g., database)
    IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

    // Get the total records count
    int totalRecordsCount = DataSource.Count();

    QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance

    // Retrieve data manager value
    DataManagerRequest DataManagerParams = DataManagerRequest.Value;

    // Handling paging operation.
    if (DataManagerParams.Skip != 0)
    {
        // Paging
        DataSource = queryableOperation.PerformSkip(DataSource, DataManagerParams.Skip);
    }
    if (DataManagerParams.Take != 0)
    {
        DataSource = queryableOperation.PerformTake(DataSource, DataManagerParams.Take);
    }

    // Return data based on the request
    return new { result = DataSource, count = totalRecordsCount };
}

// Model for handling data manager requests
public class DataManager
{
    public required DataManagerRequest Value { get; set; }
}
ej.grids.Grid.Inject(ej.grids.Page);
var data = new ej.data.DataManager({
    url: 'https://localhost:xxxx/api/Grid',
    adaptor: new ej.data.UrlAdaptor()
});

var grid = new ej.grids.Grid({
    dataSource: data,
    allowPaging: true,
    columns: [
                { field: 'OrderID', headerText: 'Order ID', textAlign: 'Right', width: 120, type: 'number' },
                { field: 'CustomerID', width: 140, headerText: 'Customer ID', type: 'string' },
                { field: 'ShipCity', headerText: 'ShipCity', width: 140 },
                { field: 'ShipCountry', headerText: 'ShipCountry', width: 140 }
    ]
});

grid.appendTo('#Grid');

You can find the complete sample for the UrlAdaptor in GitHub link.

Handling CRUD operations

The Syncfusion® EJ2 JavaScript Grid Control seamlessly integrates CRUD (Create, Read, Update, Delete) operations with server-side controller actions through specific properties: insertUrl, removeUrl, updateUrl, crudUrl, and batchUrl. These properties enable the grid to communicate with the data service for every grid action, facilitating server-side operations.

CRUD Operations Mapping

CRUD operations within the grid can be mapped to server-side controller actions using specific properties:

  1. insertUrl: Specifies the URL for inserting new data.
  2. removeUrl: Specifies the URL for removing existing data.
  3. updateUrl: Specifies the URL for updating existing data.
  4. crudUrl: Specifies a single URL for all CRUD operations.
  5. batchUrl: Specifies the URL for batch editing.

To enable editing in EJ2 JavaScript Grid control, refer to the editing documentation. In the below example, the inline edit mode is enabled and toolbar property is configured to display toolbar items for editing purposes.

ej.grids.Grid.Inject(ej.grids.Toolbar, ej.grids.Edit);

var data = new ej.data.DataManager({
    url: 'https://localhost:xxxx/api/Grid', // Here xxxx represents the port number
    insertUrl: 'https://localhost:xxxx/api/grid/Insert',
    updateUrl: 'https://localhost:xxxx/api/grid/Update',
    removeUrl: 'https://localhost:xxxx/api/grid/Remove',
    adaptor: new ej.data.UrlAdaptor()
});

var grid = new ej.grids.Grid({
    dataSource: data,
    toolbar: ['Add', 'Edit', 'Delete', 'Update', 'Cancel'],
    editSettings: { allowEditing: true, allowAdding: true, allowDeleting: true, mode: 'Normal' },
    columns: [
        { field: 'OrderID', headerText: 'Order ID', textAlign: 'Right', width: 120, isPrimaryKey: true, type: 'number' },
        { field: 'CustomerID', width: 140, headerText: 'Customer ID', type: 'string' },
        { field: 'ShipCity', headerText: 'ShipCity', width: 140 },
        { field: 'ShipCountry', headerText: 'ShipCountry', width: 140 }
    ]
});

grid.appendTo('#Grid');

Normal/Inline editing is the default edit mode for the Grid control. To enable CRUD operations, ensure that the isPrimaryKey property is set to true for a specific Grid column, ensuring that its value is unique.

The below class is used to structure data sent during CRUD operations.

public class CRUDModel<T> where T : class
{
  public string? action { get; set; }
  public string? keyColumn { get; set; }
  public object? key { get; set; }
  public T? value { get; set; }
  public List<T>? added { get; set; }
  public List<T>? changed { get; set; }
  public List<T>? deleted { get; set; }
  public IDictionary<string, object>? @params { get; set; }
}

Insert operation:

To insert a new record, utilize the insertUrl property to specify the controller action mapping URL for the insert operation. The newly added record details are bound to the newRecord parameter.

Insert record

/// <summary>
/// Inserts a new data item into the data collection.
/// </summary>
/// <param name="newRecord">It contains the new record detail which is need to be inserted.</param>
/// <returns>Returns void</returns>
[HttpPost]
[Route("api/[controller]/Insert")]
public void Insert([FromBody] CRUDModel<OrdersDetails> newRecord)
{
    // Check if new record is not null
    if (newRecord.value != null)
    {
        // Insert new record
        OrdersDetails.GetAllRecords().Insert(0, newRecord.value);
    }
}

Update operation:

For updating existing records, utilize the updateUrl property to specify the controller action mapping URL for the update operation. The updated record details are bound to the updatedRecord parameter.

Update record

/// <summary>
/// Update a existing data item from the data collection.
/// </summary>
/// <param name="updatedRecord">It contains the updated record detail which is need to be updated.</param>
/// <returns>Returns void</returns>
[HttpPost]
[Route("api/[controller]/Update")]
public void Update([FromBody] CRUDModel<OrdersDetails> updatedRecord)
{
    // Retrieve updated order
    var updatedOrder = updatedRecord.value;
    if (updatedOrder != null)
    {
        // Find existing record
        var data = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == updatedOrder.OrderID);
        if (data != null)
        {
            // Update existing record
            data.OrderID = updatedOrder.OrderID;
            data.CustomerID = updatedOrder.CustomerID;
            data.ShipCity = updatedOrder.ShipCity;
            data.ShipCountry = updatedOrder.ShipCountry;
            // Update other properties similarly
        }
    }
}

Delete operation

To delete existing records, use the removeUrl property to specify the controller action mapping URL for the delete operation. The primary key value of the deleted record is bound to the deletedRecord parameter.

Delete Record

/// <summary>
/// Remove a specific data item from the data collection.
/// </summary>
/// <param name="deletedRecord">It contains the specific record detail which is need to be removed.</param>
/// <return>Returns void</return>
[HttpPost]
[Route("api/[controller]/Remove")]
public void Remove([FromBody] CRUDModel<OrdersDetails> deletedRecord)
{
    int orderId = int.Parse(deletedRecord.key.ToString()); // get key value from the deletedRecord
    var data = OrdersDetails.GetAllRecords().FirstOrDefault(orderData => orderData.OrderID == orderId);
    if (data != null)
    {
        // Remove the record from the data collection
        OrdersDetails.GetAllRecords().Remove(data);
    }
}

UrlAdaptor CRUD operations

Single method for performing all CRUD operations

Using the crudUrl property, the controller action mapping URL can be specified to perform all the CRUD operation at server-side using a single method instead of specifying separate controller action method for CRUD (insert, update and delete) operations.

The following code example describes the above behavior.

ej.grids.Grid.Inject(ej.grids.Toolbar, ej.grids.Edit);

var data = new ej.data.DataManager({
    url: 'https://localhost:xxxx/api/Grid', // Here xxxx represents the port number
    crudUrl:'https://localhost:xxxx/api/grid/CrudUpdate',
    adaptor: new ej.data.UrlAdaptor()
});

var grid = new ej.grids.Grid({
    dataSource: data,
    toolbar: ['Add', 'Edit', 'Delete', 'Update', 'Cancel'],
    editSettings: { allowEditing: true, allowAdding: true, allowDeleting: true, mode: 'Normal' },
    columns: [
        { field: 'OrderID', headerText: 'Order ID', textAlign: 'Right', width: 120, isPrimaryKey: true, type: 'number' },
        { field: 'CustomerID', width: 140, headerText: 'Customer ID', type: 'string' },
        { field: 'ShipCity', headerText: 'ShipCity', width: 140 },
        { field: 'ShipCountry', headerText: 'ShipCountry', width: 140 }
    ]
});

grid.appendTo('#Grid');
[HttpPost]
[Route("api/[controller]/CrudUpdate")]
public void CrudUpdate([FromBody] CRUDModel<OrdersDetails> request)
{
  // perform update operation
  if (request.action == "update")
  {
    var orderValue = request.value;
    OrdersDetails existingRecord = OrdersDetails.GetAllRecords().Where(or => or.OrderID == orderValue.OrderID).FirstOrDefault();
    existingRecord.OrderID = orderValue.OrderID;
    existingRecord.CustomerID = orderValue.CustomerID;
    existingRecord.ShipCity = orderValue.ShipCity;
  }
  // perform insert operation
  else if (request.action == "insert")
  {
    OrdersDetails.GetAllRecords().Insert(0, request.value);
  }
  // perform remove operation
  else if (request.action == "remove")
  {
    OrdersDetails.GetAllRecords().Remove(OrdersDetails.GetAllRecords().Where(or => or.OrderID == int.Parse(request.key.ToString())).FirstOrDefault());
  }
}

Batch operation

To perform batch operation, define the edit mode as Batch and specify the batchUrl property in the DataManager. Use the Add toolbar button to insert new row in batch editing mode. To edit a cell, double-click the desired cell and update the value as required. To delete a record, simply select the record and press the Delete toolbar button. Now, all CRUD operations will be executed in single request. Clicking the Update toolbar button will update the newly added, edited, or deleted records from the OrdersDetails table using a single API POST request.

ej.grids.Grid.Inject(ej.grids.Toolbar, ej.grids.Edit);

var data = new ej.data.DataManager({
    url: 'https://localhost:xxxx/api/Grid', // Here xxxx represents the port number
    batchUrl:'https://localhost:xxxx/api/grid/BatchUpdate',
    adaptor: new ej.data.UrlAdaptor()
});

var grid = new ej.grids.Grid({
    dataSource: data,
    toolbar: ['Add', 'Edit', 'Delete', 'Update', 'Cancel'],
    editSettings: { allowEditing: true, allowAdding: true, allowDeleting: true, mode: 'Normal' },
    columns: [
        { field: 'OrderID', headerText: 'Order ID', textAlign: 'Right', width: 120, isPrimaryKey: true, type: 'number' },
        { field: 'CustomerID', width: 140, headerText: 'Customer ID', type: 'string' },
        { field: 'ShipCity', headerText: 'ShipCity', width: 140 },
        { field: 'ShipCountry', headerText: 'ShipCountry', width: 140 }
    ]
});

grid.appendTo('#Grid');
[HttpPost]
[Route("api/[controller]/BatchUpdate")]
public IActionResult BatchUpdate([FromBody] CRUDModel<OrdersDetails> batchOperation)
{
  if (batchOperation.added != null)
  {
    foreach (var addedOrder in batchOperation.added)
    {
      OrdersDetails.GetAllRecords().Insert(0, addedOrder);
    }
  }
 if (batchOperation.changed != null)
  {
    foreach (var changedOrder in batchOperation.changed)
    {
      var existingOrder = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == changedOrder.OrderID);
      if (existingOrder != null)
      {
        existingOrder.CustomerID = changedOrder.CustomerID;
        existingOrder.ShipCity = changedOrder.ShipCity;
        // Update other properties as needed
      }
    }
  }
if (batchOperation.deleted != null)
  {
    foreach (var deletedOrder in batchOperation.deleted)
    {
      var orderToDelete = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == deletedOrder.OrderID);
      if (orderToDelete != null)
      {
        OrdersDetails.GetAllRecords().Remove(orderToDelete);
      }
    }
  }
  return Json(batchOperation);
}

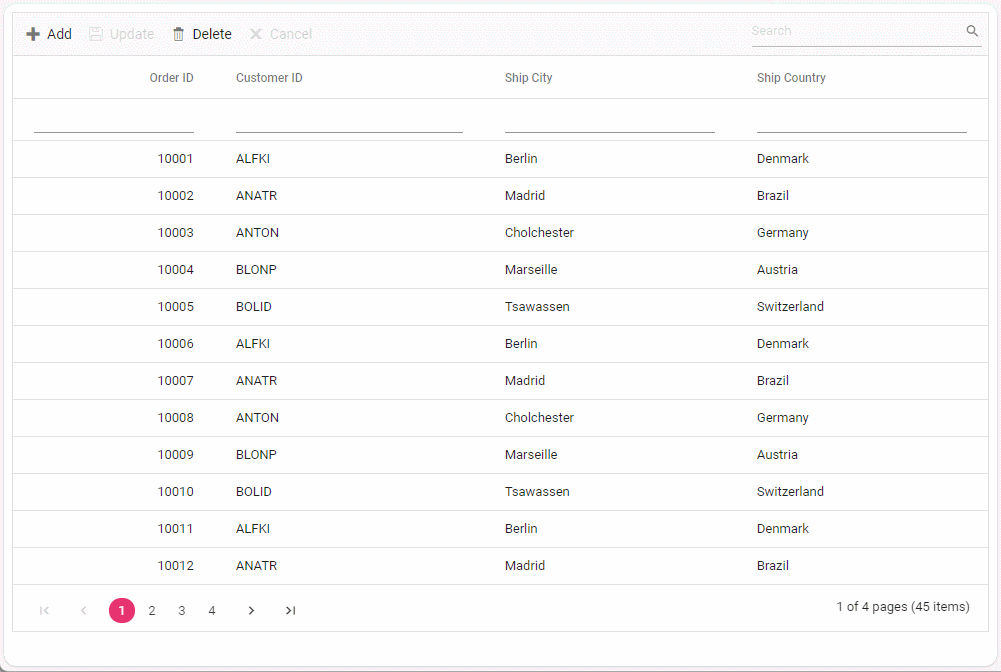

UrlAdaptor Batch Editing

You can find the complete sample for the UrlAdaptor in GitHub link.
