Getting started with EJ2 JavaScript Form Builder control

The Form Builder is an intuitive, visual form designer that lets you create and customize forms interactively by dragging and dropping fields—no code required. You can visually design forms, configure field properties, and preview the generated form in real time. The Form Builder also allows you to export the form schema for use with the Form Renderer control.

This section explains the steps required to create a simple Essential® JS 2 Form Builder and demonstrate the basic usage of the Form Builder control in a JavaScript application.

Prerequisites

Ensure the following tools are installed on your machine:

  • Visual Studio Code (or any text editor) to create the HTML file.
  • A modern web browser (Chrome, Edge, Firefox, or Safari) to view the result.

Setup for local environment

Follow these steps to set up your local environment.

Step 1: Create a root folder named my-app for your application.

Step 2: Open Visual Studio Code and create two files inside the my-app folder:

  • index.html — the main HTML file that loads the scripts and resources and provides the Form Builder container element.
  • index.js — the JavaScript file where the Form Builder control is initialized.

Step 3: In index.html, add a <script> tag at the end of <body> to link index.js:

<script src="index.js" type="text/javascript"></script>

Adding Syncfusion® resources

The Essential® JS 2 Form Builder control can be initialized by using either of the following ways.

  • Using local script and style.
  • Using CDN link for script and style.

Using local script and style references in an HTML page

Obtain the global scripts and styles from the Essential Studio® JavaScript (Essential® JS 2) build installed location.

Syntax:

Dependency Script: **(installed location)**\Syncfusion\Essential Studio\JavaScript - EJ2\{RELEASE_VERSION}\Web (Essential JS 2)\JavaScript\{DEPENDENCY_PACKAGE_NAME}\dist\global\{DEPENDENCY_PACKAGE_NAME}.min.js

Control Script: **(installed location)**\Syncfusion\Essential Studio\JavaScript - EJ2\{RELEASE_VERSION}\Web (Essential JS 2)\JavaScript\{PACKAGE_NAME}\dist\global\{PACKAGE_NAME}.min.js

Dependency Styles: **(installed location)**\Syncfusion\Essential Studio\JavaScript - EJ2\{RELEASE_VERSION}\Web (Essential JS 2)\JavaScript\{DEPENDENCY_PACKAGE_NAME}\styles\material3.css

Control Styles: **(installed location)**\Syncfusion\Essential Studio\JavaScript - EJ2\{RELEASE_VERSION}\Web (Essential JS 2)\JavaScript\{PACKAGE_NAME}\styles\material3.css

Example:

Dependency Script: C:\Program Files (x86)\Syncfusion\Essential Studio\JavaScript - EJ2\34.2.2\Web (Essential JS 2)\JavaScript\ej2-base\dist\global\ej2-base.min.js

Control Script: C:\Program Files (x86)\Syncfusion\Essential Studio\JavaScript - EJ2\34.2.2\Web (Essential JS 2)\JavaScript\ej2-form-builder\dist\global\ej2-form-builder.min.js

Dependency Styles: C:\Program Files (x86)\Syncfusion\Essential Studio\JavaScript - EJ2\34.2.2\Web (Essential JS 2)\JavaScript\ej2-base\styles\material3.css

Control Styles: C:\Program Files (x86)\Syncfusion\Essential Studio\JavaScript - EJ2\34.2.2\Web (Essential JS 2)\JavaScript\ej2-form-builder\styles\material3.css

The following script and style files contain all Syncfusion® JavaScript (ES5) UI control resources in a single file:

Scripts: **(installed location)**\Syncfusion\Essential Studio\JavaScript - EJ2\{RELEASE_VERSION}\Web (Essential JS 2)\JavaScript\ej2\dist\ej2.min.js

Styles: **(installed location)**\Syncfusion\Essential Studio\JavaScript - EJ2\{RELEASE_VERSION}\Web (Essential JS 2)\JavaScript\ej2\material3.css

Use the Custom Resource Generator (CRG) online web tool to generate custom scripts and styles for specific controls. This tool is useful for combining required control scripts and styles in a single file.

Create a folder named ~/quickstart/resources and copy or paste the global scripts and styles from the installed location above into the corresponding ~/quickstart/resources/package location.

The Essential® JS 2 controls’ global scripts and styles are already hosted at the CDN links shown in the following formats.

Syntax:

Dependency Script: https://cdn.syncfusion.com/ej2/{DEPENDENCY_PACKAGE_NAME}/dist/global/{PACKAGE_NAME}.min.js

Control Script: https://cdn.syncfusion.com/ej2/{PACKAGE_NAME}/dist/global/{PACKAGE_NAME}.min.js

Dependency Styles: https://cdn.syncfusion.com/ej2/{DEPENDENCY_PACKAGE_NAME}/styles/material3.css

Control Styles: https://cdn.syncfusion.com/ej2/{PACKAGE_NAME}/styles/material3.css

Adding Form Builder control

Add an HTML <div> element to the index.html file to act as the root element of the Form Builder control.

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
    <head>
        <title>Essential JS 2</title>
        <!-- Essential JS 2's material theme -->
        <link href="https://cdn.syncfusion.com/ej2/34.2.2/material3.css" type="text/css"/>

        <!-- Essential JS 2's global script  -->
        <script src="https://cdn.syncfusion.com/ej2/34.2.2/dist/ej2.min.js"></script>
    </head>
    <body>
        <!-- Add the HTML div that will render as the Form Builder -->
        <div id="formbuilder"></div>
        <script src="index.js" type="text/javascript"></script>
    </body>
</html>

Place the following code in the index.js file to render the Form Builder control:

            // initialize Form Builder control
            var formBuilder = new ej.formbuilder.FormBuilder();

            // Render initialized Form Builder.
            formBuilder.appendTo('#formbuilder');

Run the application

Run the index.html file in a web browser. It will render the Essential® JS 2 Form Builder control.

The output will appear as follows:

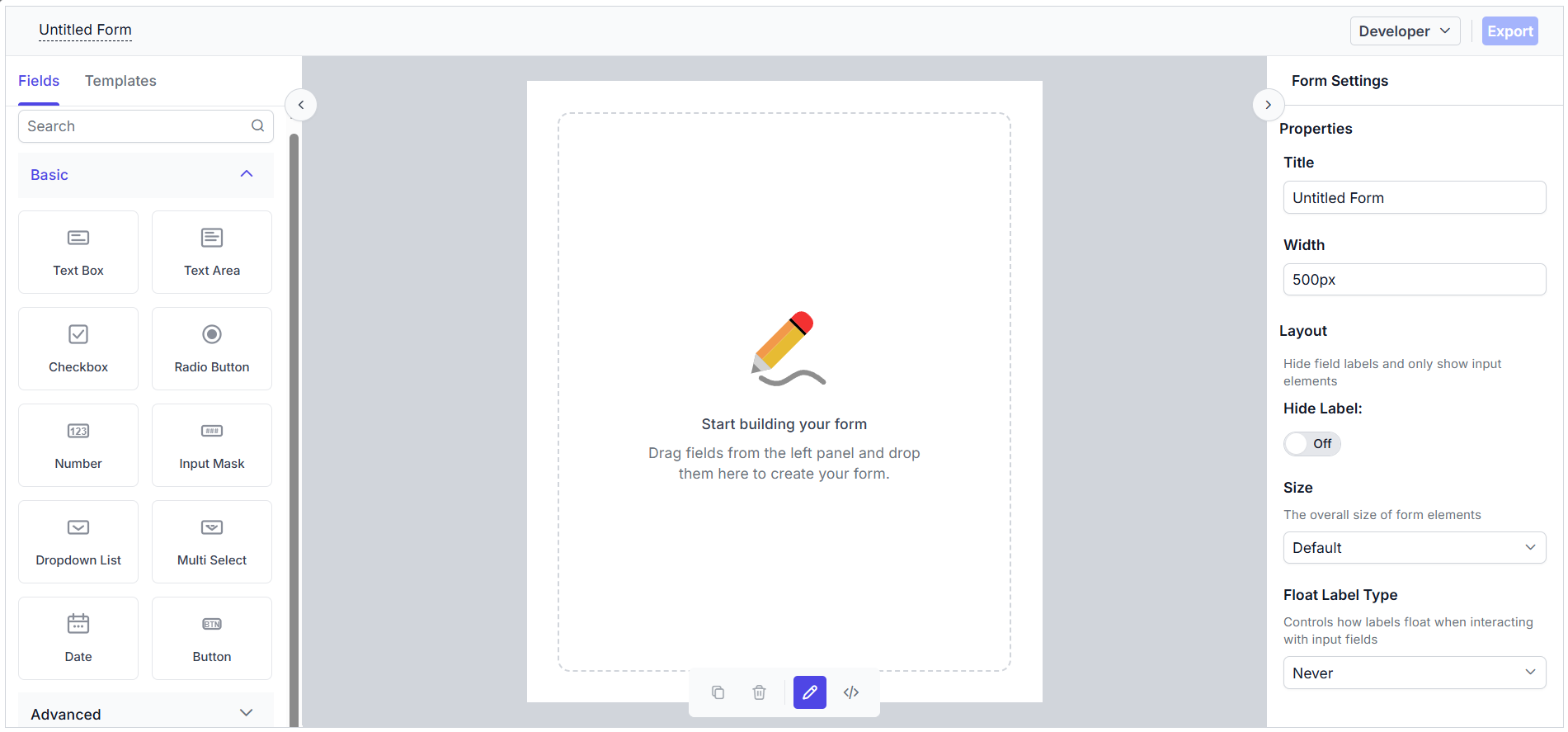

JavaScript Form Builder

Registering Syncfusion license

The Syncfusion® Form Builder requires a valid license key to be registered in the application. To prevent license validation warnings, refer to the Syncfusion licensing documentation.

Basic components of Form Builder

The Form Builder control consists of the following sections:

  1. Left Pane / Toolbox — Displays all the supported form fields, which can be dragged and dropped.
  2. Central design canvas — Holds the dropped form fields to construct the form.
  3. Right Pane — Provides options to customize the form settings as well as the selected form fields.
  4. Code view — Displays the form schema during the form design process.
  5. Form Preview — Allows you to preview and interact with the generated form in real time once it is created.

Adding form fields to the design canvas

Form fields can be added to the central design canvas in the following ways:

  • Form Components Panel — A toolbox of form fields is available in the left-side pane to drag and drop them onto the design canvas.
  • Context Menu in the Design Canvas — After the first form field is dropped, a button at the end of the central canvas can be used to add additional form fields using a context menu that appears when the button is clicked.

Form Builder with context menu
