Connector customization

22 Mar 202524 minutes to read

Diagram allows you to customize the connector appearances. The following topics shows how to customize several properties of the connectors.

Decorator

Starting and ending points of a connector can be decorated with some customizable shapes like arrows, circles, diamond, or path. The connection end points can be decorated with the sourceDecorator and targetDecorator properties of the connector.
The shape property of sourceDecorator allows to define the shape of the decorators. Similarly, the shape property of targetDecorator allows to define the shape of the decorators.
To create custom shape for source decorator, use pathData property. Similarly, to create custom shape for target decorator, use pathData property.
The following code example illustrates how to create decorators of various shapes.

index.js
index.html
var connectors = {
    id: 'connector1',
    type: 'Straight',
    // Decorator shape- circle
    sourceDecorator: {
      shape: 'Circle',
    },
    // Decorator shape - Diamond
    targetDecorator: {
      // Defines the custom shape for the connector's target decorator
      shape: 'Custom',
      //Defines the  path for the connector's target decorator
      pathData:
        'M80.5,12.5 C80.5,19.127417 62.59139,24.5 40.5,24.5 C18.40861,24.5 0.5,19.127417 0.5,12.5' +
        'C0.5,5.872583 18.40861,0.5 40.5,0.5 C62.59139,0.5 80.5,5.872583 80.5,12.5 z',
    },
    sourcePoint: {
      x: 100,
      y: 100,
    },
    targetPoint: {
      x: 200,
      y: 200,
    },
  };
  var connectors2 = {
    id: 'connectors2',
    type: 'Straight',
    // Decorator shape - IndentedArrow
    sourceDecorator: {
      shape: 'IndentedArrow',
    },
    // Decorator shape - OutdentedArrow
    targetDecorator: {
      shape: 'OutdentedArrow',
    },
    sourcePoint: {
      x: 400,
      y: 100,
    },
    targetPoint: {
      x: 300,
      y: 200,
    },
  };

  var diagram = new ej.diagrams.Diagram(
    {
      width: '100%',
      height: '600px',
      connectors: [connectors, connectors2],
    },
    '#element'
  );
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Customize the decorator appearance

The source decorator’s strokeColor, strokeWidth, and strokeDashArray properties are used to customize the color, width, and appearance of the decorator.
To set the border stroke color, stroke width, and stroke dash array for the target decorator, use strokeColor, strokeWidth, and strokeDashArray.
To set the size for source and target decorator, use width and height property.

The following code example illustrates how to customize the appearance of the decorator.

index.js
index.html
var connectors = {
    id: "connector1",
    type: 'Straight',
    // Decorator shape- circle
    sourceDecorator: {
        shape: 'Circle',
        // Defines the style for the sourceDecorator
        style: {
            // Defines the strokeWidth for the sourceDecorator
            strokeWidth: 3,
            // Defines the strokeColor for the sourceDecorator
            strokeColor: 'red'
        },

    },
    // Decorator shape - Diamond
    targetDecorator: {
        // Defines the custom shape for the connector's target decorator
        shape: 'Custom',
        //Defines the  path for the connector's target decorator
        pathData: 'M80.5,12.5 C80.5,19.127417 62.59139,24.5 40.5,24.5 C18.40861,24.5 0.5,19.127417 0.5,12.5' +
            'C0.5,5.872583 18.40861,0.5 40.5,0.5 C62.59139,0.5 80.5,5.872583 80.5,12.5 z',
        //defines the style for the target decorator
        style: {
            // Defines the strokeWidth for the targetDecorator
            strokeWidth: 3,
            // Defines the strokeColor for the sourceDecorator
            strokeColor: 'green',
            // Defines the opacity for the sourceDecorator
            opacity: .8
        },
    },
    sourcePoint: {
        x: 100,
        y: 100
    },
    targetPoint: {
        x: 200,
        y: 200
    }
};
var connectors2 = {
    id: "connectors2",
    type: 'Straight',
    // Decorator shape - IndentedArrow
    sourceDecorator: {
        shape: 'IndentedArrow',
        style: {
            strokeWidth: 3,
            strokeColor: 'blue'
        },

    },
    // Decorator shape - OutdentedArrow
    targetDecorator: {
        shape: 'OutdentedArrow',
        style: {
            strokeWidth: 3,
            strokeColor: 'yellow'
        },
    },
    sourcePoint: {
        x: 400,
        y: 100
    },
    targetPoint: {
        x: 300,
        y: 200
    }
}

var diagram = new ej.diagrams.Diagram({
    width: '100%',
    height: '600px',
    connectors: [connectors, connectors2],
}, '#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Gradient style for decorator.

The gradient property is used to set the gradient color for the decorator. There are two types of gradient.

Linear
Radial

The following code example illustrates how to apply gradient for the decorator.

index.js
index.html
var connectors = [
  {
    id: 'connector1',
    type: 'Straight',
    style: {
      strokeColor: '#6BA5D7',
      fill: '#6BA5D7',
      strokeWidth: 2,
    },
    bridgeSpace: 20,
    // Cutomize the target decorator
    targetDecorator: {
      style: {
        strokeWidth: 1,
        opacity: 0.5,
        gradient: {
          x1: 20,
          y1: 20,
          x2: 70,
          y2: 70,
          stops: [
            {
              color: 'green',
              offset: 50,
              opacity: 1,
            },
            {
              color: 'yellow',
              offset: 100,
              opacity: 1,
            },
          ],
          type: 'Linear',
        },
      },
    },
    sourcePoint: {
      x: 100,
      y: 100,
    },
    targetPoint: {
      x: 200,
      y: 200,
    },
  },
  {
    id: 'connector2',
    type: 'Straight',
    style: {
      strokeColor: '#6BA5D7',
      fill: '#6BA5D7',
      strokeWidth: 2,
    },
    bridgeSpace: 20,
    // Cutomize the target decorator
    targetDecorator: {
      style: {
        gradient: {
          cx: 50,
          cy: 50,
          fx: 50,
          fy: 50,
          stops: [
            { color: '#00555b', offset: 0 },
            { color: 'yellow', offset: 90 },
          ],
          type: 'Radial',
        },
      },
    },
    sourcePoint: {
      x: 300,
      y: 100,
    },
    targetPoint: {
      x: 400,
      y: 200,
    },
  },
];
var diagram = new ej.diagrams.Diagram(
  {
    width: '100%',
    height: '600px',
    connectors: connectors,
  },
  '#element'
);
diagram.zoomTo({
  type: 'ZoomIn',
  zoomFactor: 2,
  focusPoint: { x: 0, y: 0.5 },
});
diagram.fitToPage();
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Padding

Padding is used to leave the space between the Connector’s end point and the object to where it is connected.

The sourcePadding property of connector defines space between the source point and the source node of the connector.
The targetPadding property of connector defines space between the end point and the target node of the connector.
The following code example illustrates how to leave space between the connection end points and source and target nodes.

index.js
index.html
var nodes = [{
       id: 'node',
        width: 100,
        height: 100,
        offsetX: 100,
        offsetY: 100,
    },
    {
        id: 'node1',
        width: 100,
        height: 100,
        offsetX: 300,
        offsetY: 100,
    }
];

var connector = {
    id: "connector1",
    style: {
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        strokeWidth: 2
    },
    targetDecorator: {
        style: {
            fill: '#6BA5D7',
            strokeColor: '#6BA5D7'
        }
    },
    sourceID: 'node',
    targetID: 'node1',
    // Set Source Padding value
    sourcePadding:20,
    // Set Target Padding value
    targetPadding:20
};


var diagram = new ej.diagrams.Diagram({
    width: '100%',
    height: '350px',
    getNodeDefaults: function(node) {
        node.height = 100;
        node.width = 100;
        node.style.fill = '#6BA5D7';
        node.style.strokeColor = 'white';
        return node;
    },
    nodes: nodes,
    connectors: [connector]
}, '#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Bridging

Line bridging creates a bridge for lines to smartly cross over the other lines, at points of intersection. By default, bridgeDirection is set to top. Depending upon the direction given bridging direction appears.
Bridging can be enabled/disabled either with the connector.constraints or diagram.constraints. The following code example illustrates how to enable line bridging.

index.js
index.html
var node1 = {
    id: 'Transaction',
    width: 150,
    height: 60,
    offsetX: 300,
    offsetY: 60,
    shape: {
        type: 'Flow',
        shape: 'Terminator'
    },
    annotations: [{
        id: 'label1',
        content: 'Start Transaction',
        offset: {
            x: 0.5,
            y: 0.5
        }
    }],
};

var node2 = {
    id: 'Verification',
    width: 150,
    height: 60,
    offsetX: 300,
    offsetY: 250,
    shape: {
        type: 'Flow',
        shape: 'Process'
    },
    annotations: [{
        id: 'label2',
        content: 'Verification',
        offset: {
            x: 0.5,
            y: 0.5
        }
    }]
};

var connectors = {
    id: 'connector1',
    type: 'Straight',
    sourceID: 'Transaction',
    targetID: 'Verification'
};
var connectors2 = {
    id: 'connector2',
    type: 'Straight',
    sourcePoint: {
        x: 200,
        y: 130
    },
    targetPoint: {
        x: 400,
        y: 130
    }
};
var connector3 = {
    id: 'connector3',
    type: 'Straight',
    sourcePoint: {
        x: 200,
        y: 170
    },
    targetPoint: {
        x: 400,
        y: 170
    }
};
//Enables bridging for every connector added in the model
var diagram = new ej.diagrams.Diagram({
    width: '100%',
    getConnectorDefaults: (obj)  => {
        obj.style.strokeColor = '#6BA5D7';
        obj.style.fill = '#6BA5D7';
        obj.style.strokeWidth = 2;
        obj.targetDecorator.style.fill = '#6BA5D7';
        obj.targetDecorator.style.strokeColor = '#6BA5D7';
        return obj;
    },
    getNodeDefaults: (node) => {
        node.height = 100;
        node.width = 100;
        node.style.fill = '#6BA5D7';
        node.style.strokeColor = 'white';
        return node;
    },
    nodes: [node1, node2],
    height: '600px',
    //enables the bridging constraints for the connector
    constraints: ej.diagrams.DiagramConstraints.Default | ej.diagrams.DiagramConstraints.Bridging,
    connectors: [connectors, connectors2, connector3]
}, '#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

NOTE

You need to inject connector bridging module into the diagram.

The bridgeSpace property of connectors can be used to define the width for line bridging.

Limitation: Bezier segments do not support bridging.

Hit padding

The hitPadding property enables you to define the clickable area around the connector path.The default value for hitPadding is 10.
The following code example illustrates how to specify hit padding for connector.

index.js
index.html
ej.diagrams.Diagram.Inject(ej.diagrams.ConnectorEditing);
var connectors = [{
    id: "connector1",
    type:"Orthogonal",
    hitPadding:40,
    style: {
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        strokeWidth: 2
    },
    targetDecorator: {
        style: {
            fill: '#6BA5D7',
            strokeColor: '#6BA5D7'
        }
    },
    sourcePoint: { x: 100, y: 100 },
    targetPoint: { x: 300, y: 300 },
    constraints: ej.diagrams.ConnectorConstraints.Default | ej.diagrams.ConnectorConstraints.DragSegmentThumb
    }
]

var diagram = new ej.diagrams.Diagram({
    width: '100%',
    height: '600px',
    connectors: connectors,
}, '#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Corner radius

Corner radius allows to create connectors with rounded corners. The radius of the rounded corner is set with the cornerRadius property.

index.js
index.html
var nodes = [
    {
      id: 'node1',
      width: 100,
      height: 100,
      offsetX: 100,
      offsetY: 100,
    },
    {
      id: 'node2',
      width: 100,
      height: 100,
      offsetX: 100,
      offsetY: 350,
    },
  ];

  var connectors = [
    {
      id: 'connector1',
      type: 'Orthogonal',
      style: {
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        strokeWidth: 2,
      },
      targetDecorator: {
        style: {
          fill: '#6BA5D7',
          strokeColor: '#6BA5D7',
        },
      },
      cornerRadius: 10,
      sourceID: 'node1',
      targetID: 'node2',
      segments: [
        {
          type: 'Orthogonal',
          direction: 'Right',
          length: 50,
        },
      ],
    },
  ];

  var diagram = new ej.diagrams.Diagram(
    {
      width: 1500,
      height: 1500,
      getConnectorDefaults: function (node) {
        node.height = 100;
        node.width = 100;
        node.style.fill = '#6BA5D7';
        return node;
      },
      connectors: connectors,
      nodes: nodes,
    },
    '#element'
  );
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Connector Appearance

The connector’s strokeWidth, strokeColor, strokeDashArray, and opacity properties are used to customize the appearance of the connector segments.
The visible property of the connector enables or disables the visibility of connector.
Default values for all the connectors can be set using the getConnectorDefaults properties. For example, if all connectors have the same type or having the same property then such properties can be moved into getConnectorDefaults.

Segment appearance

The following code example illustrates how to customize the segment appearance.

index.js
index.html
var connectors = [
    {
      id: 'connector1',
      targetDecorator: {
        style: {
          strokeColor: '#6BA5D7',
          fill: '#6BA5D7',
          strokeWidth: 2,
        },
      },
      style: {
        // Stroke color
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        // Stroke width of the line
        strokeWidth: 5,
        // Line style
        strokeDashArray: '2,2',
      },
      sourcePoint: {
        x: 100,
        y: 100,
      },
      targetPoint: {
        x: 200,
        y: 200,
      },
    },
    {
      id: 'connector2',
      // Set the visibility of the connector to false
      visible: true,
      type: 'Orthogonal',
      targetDecorator: {
        style: {
          strokeColor: '#6BA5D7',
          fill: '#6BA5D7',
          strokeWidth: 2,
        },
      },
      style: {
        // Stroke color
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        // Stroke width of the line
        strokeWidth: 5,
        // Line style
        strokeDashArray: '2,2',
      },
      sourcePoint: {
        x: 300,
        y: 300,
      },
      targetPoint: {
        x: 400,
        y: 400,
      },
      segments: [
        {
          type: 'Orthogonal',
          direction: 'Right',
          length: 50,
        },
      ],
    },
    {
      id: 'connector3',
      // Set the visibility of the connector to false
      visible: true,
      type: 'Bezier',
      targetDecorator: {
        style: {
          strokeColor: '#6BA5D7',
          fill: '#6BA5D7',
          strokeWidth: 2,
        },
      },
      style: {
        // Stroke color
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        // Stroke width of the line
        strokeWidth: 5,
        // Line style
        strokeDashArray: '2,2',
      },
      sourcePoint: {
        x: 500,
        y: 100,
      },
      targetPoint: {
        x: 600,
        y: 300,
      },
      segments: [
        {
          type: 'Bezier',
        },
      ],
    },
  ];

  var diagram = new ej.diagrams.Diagram(
    {
      width: '100%',
      height: '600px',
      connectors: connectors,
    },
    '#element'
  );
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Connector constraints

The constraints property of connector allows to enable/disable certain features of connectors.
To enable or disable the constraints, refer constraints.

The following code illustrates how to disable selection.

index.js
index.html
var connectors = [
    {
      id: 'connector1',
      constraints:
        ej.diagrams.ConnectorConstraints.Default &
        ~ej.diagrams.ConnectorConstraints.Select,
      annotations: [{ content: 'Connector Selection disabled' }],
      type: 'Straight',
      style: {
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        strokeWidth: 2,
      },
      targetDecorator: {
        style: {
          fill: '#6BA5D7',
          strokeColor: '#6BA5D7',
        },
      },
      sourcePoint: {
        x: 100,
        y: 100,
      },
      targetPoint: {
        x: 200,
        y: 200,
      },
    },
    {
      id: 'connector2',
      constraints:
        ej.diagrams.ConnectorConstraints.Default &
        ~ej.diagrams.ConnectorConstraints.Drag,
      annotations: [{ content: 'Connector Drag disabled' }],
      type: 'Straight',
      style: {
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        strokeWidth: 2,
      },
      targetDecorator: {
        style: {
          fill: '#6BA5D7',
          strokeColor: '#6BA5D7',
        },
      },
      sourcePoint: {
        x: 300,
        y: 100,
      },
      targetPoint: {
        x: 400,
        y: 200,
      },
    },
    {
      id: 'connector3',
      constraints:
        ej.diagrams.ConnectorConstraints.Default &
        ~ej.diagrams.ConnectorConstraints.DragSourceEnd,
      annotations: [{ content: 'Connector Source end disabled' }],
      type: 'Straight',
      style: {
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        strokeWidth: 2,
      },
      targetDecorator: {
        style: {
          fill: '#6BA5D7',
          strokeColor: '#6BA5D7',
        },
      },
      sourcePoint: {
        x: 500,
        y: 100,
      },
      targetPoint: {
        x: 600,
        y: 200,
      },
    },
    {
      id: 'connector4',
      constraints:
        ej.diagrams.ConnectorConstraints.Default &
        ~ej.diagrams.ConnectorConstraints.DragTargetEnd,
      annotations: [{ content: 'Connector Target end disabled' }],
      type: 'Straight',
      style: {
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        strokeWidth: 2,
      },
      targetDecorator: {
        style: {
          fill: '#6BA5D7',
          strokeColor: '#6BA5D7',
        },
      },
      sourcePoint: {
        x: 700,
        y: 100,
      },
      targetPoint: {
        x: 800,
        y: 200,
      },
    },
  ];

  var diagram = new ej.diagrams.Diagram(
    {
      width: 1500,
      height: 1500,
      connectors: connectors,
    },
    '#element'
  );
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Add info for connector

The addInfo property of connectors allow you to maintain additional information to the connectors.

var connectors = {
        id: 'connector1',
        //AddInfo for connector
        addInfo: {type:'connector',id:'connector1'},
        type: 'Straight',
        sourcePoint: {x: 300,y: 100},
        targetPoint: {x: 300,y: 200}
    }

ZIndex for connector

The connectors zIndex property specifies the stack order of the connector. A connector with greater stack order is always in front of a connector with a lower stack order.

The following code illustrates how to render connector based on the stack order.

index.js
index.html
var connectors = {
        id: 'connector1',
        zIndex: 2,
        type: 'Straight',
        sourcePoint: {
            x: 300,
            y: 100
        },
        targetPoint: {
            x: 300,
            y: 200
        }
    };
    var connectors2 = {
        id: 'connector2',
        type: 'Straight',
        zIndex: 1,
        sourcePoint: {
            x: 100,
            y: 100
        },
        targetPoint: {
            x: 200,
            y: 200
        }
    };
    var diagram = new ej.diagrams.Diagram({
        width: '100%',
        getConnectorDefaults: function (obj) {
            obj.style.strokeColor = '#6BA5D7';
            obj.style.fill = '#6BA5D7';
            obj.style.strokeWidth = 2;
            obj.targetDecorator.style.fill = '#6BA5D7';
            obj.targetDecorator.style.strokeColor = '#6BA5D7';
            return obj;
        },
        height: '600px',
        connectors: [ connectors,connectors2]
    }, '#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Connector spacing

The connectorSpacing property allows you to define the distance between the source node and the connector. It is the minimum distance the connector will re-rout or the new segment will create.

index.js
index.html
var nodes = [{
        id: 'Start',
        width: 140,
        height: 50,
        offsetX: 300,
        offsetY: 50,
        annotations: [{
            id: 'label1',
            content: 'Start'
        }],
        shape: {
            type: 'Flow',
            shape: 'Terminator'
        }
    },
    {
        id: 'Init',
        width: 140,
        height: 50,
        offsetX: 300,
        offsetY: 140,
        shape: {
            type: 'Flow',
            shape: 'Process'
        },
        annotations: [{
            content: 'var i = 0;'
        }]
    }
];

var connector = {
    id: "connector1",
    style: {
        strokeColor: '#6BA5D7',
        fill: '#6BA5D7',
        strokeWidth: 2
    },
    targetDecorator: {
        style: {
            fill: '#6BA5D7',
            strokeColor: '#6BA5D7'
        }
    },
    sourceID: "Start",
    targetID: "Init",
    connectorSpacing: 7,
    type: 'Orthogonal'
};


var diagram = new ej.diagrams.Diagram({
    width: '100%',
    height: '350px',
    getNodeDefaults: function(node) {
        node.height = 100;
        node.width = 100;
        node.style.fill = '#6BA5D7';
        return node;
    },
    nodes: nodes,
    connectors: [connector]
}, '#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

MaxSegment thumb

The property maxSegmentThumb is used to limit the number of segment thumb in the connector.

index.js
index.html
ej.diagrams.Diagram.Inject(ej.diagrams.ConnectorEditing);
var connectors = [{
        id: "connector1",
        type: 'Orthogonal',
        segments: [{
            type: 'Orthogonal',
            // Defines the direction for the segment lines
            direction: 'Right',
            // Defines the length for the segment lines
            length: 50
        }],
        style: {
            strokeColor: '#6BA5D7',
            fill: '#6BA5D7',
            strokeWidth: 2
        },
        targetDecorator: {
            style: {
                fill: '#6BA5D7',
                strokeColor: '#6BA5D7'
            }
        },
        sourcePoint: {
            x: 100,
            y: 100
        },
        targetPoint: {
            x: 200,
            y: 200
        }
    },
    {
        id: "connector2",
        type: 'Orthogonal',
        // Defines multile segemnts for the connectors
        segments: [{
                type: 'Orthogonal',
                direction: 'Bottom',
                length: 150
            },
            {
                type: 'Orthogonal',
                direction: 'Right',
                length: 150
            }
        ],
        style: {
            strokeColor: '#6BA5D7',
            fill: '#6BA5D7',
            strokeWidth: 2
        },
        targetDecorator: {
            style: {
                fill: '#6BA5D7',
                strokeColor: '#6BA5D7'
            }
        },
        sourcePoint: {
            x: 300,
            y: 100
        },
        targetPoint: {
            x: 400,
            y: 200,
        },
        maxSegmentThumb: 3,
        constraints: ej.diagrams.ConnectorConstraints.Default | ej.diagrams.ConnectorConstraints.DragSegmentThumb
    }
]

var diagram = new ej.diagrams.Diagram({
    width: '100%',
    height: '600px',
    connectors: connectors,
}, '#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

maxSegmentThumb

Reset segments

The resetSegments method resets the segments of connectors to their default state based on their connection points. This operation removes any custom segments and restores the connectors to their original configuration. The following example demonstrates how to reset connector segments at runtime.

index.js
index.html
var nodes = [
  {
    id: 'Start',
    width: 140,
    height: 50,
    offsetX: 300,
    offsetY: 50,
    annotations: [
      {
        content: 'Node1',
      },
    ],
    style: {
      fill: '#6BA5D7',
      strokeColor: 'white',
    },
    expandIcon: {
      shape: 'ArrowDown',
      width: 20,
      height: 15,
    },
    collapseIcon: {
      shape: 'ArrowUp',
      width: 20,
      height: 15,
    },
  },
  {
    id: 'Init',
    width: 140,
    height: 50,
    offsetX: 200,
    offsetY: 240,
    style: {
      fill: '#6BA5D7',
      strokeColor: 'white',
    },
    annotations: [
      {
        content: 'Node2',
      },
    ],
  },
];
var connectors = [
  {
    // Unique name for the connector
    id: 'connector1',
    // Source and Target node's name to which connector needs to be connected.
    sourceID: 'Start',
    targetID: 'Init',
    type: 'Orthogonal',
    constraints:
      ej.diagrams.ConnectorConstraints.Default |
      ej.diagrams.ConnectorConstraints.DragSegmentThumb,
  },
];
var diagram = new ej.diagrams.Diagram({
  width: '100%',
  height: '600px',
  nodes: nodes,
  connectors: connectors,
});
diagram.appendTo('#element');

document.getElementById('resetSegments').onclick = () => {
  diagram.resetSegments();
};
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <input type="button" value="resetSegments" id="resetSegments" />
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

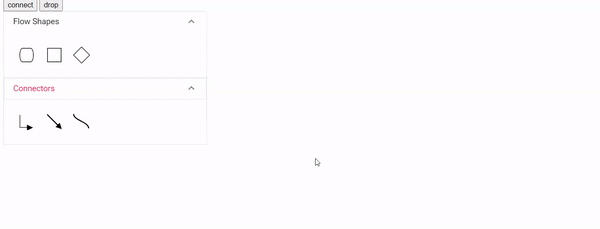

Enable Connector Splitting

The connectors are used to create a link between two points, ports, or nodes to represent the relationship between them. Split the connector between two nodes when dropping a new node onto an existing connector and create a connection between the new node and existing nodes by setting the enableConnectorSplit as true. The default value of the enableConnectorSplit is false

The following code illustrates how to split the connector and create a connection with new node.

index.js
index.html
var node1 = {
    id: 'node1',
    width: 100, height: 100,
    offsetX: 150, offsetY: 150,
    annotations: [{ content: 'node1' } ],
};
var node2= {
    id: 'node2',
    width: 100, height: 100,
    offsetX: 650, offsetY: 150,
    annotations: [{ content: 'node2' } ],
};
var node3 = {
    id: 'node3',
    width: 100, height: 100,
     offsetX: 490, offsetY: 290,
     annotations: [{ content: 'node3' } ],
};
var connector1 = {
    id: 'connector1',sourceID:"node1",targetID:"node2",
    constraints: ej.diagrams.ConnectorConstraints.Default | ej.diagrams.ConnectorConstraints.AllowDrop
};
var diagram = new ej.diagrams.Diagram({
    width: 1500, height: 1000,
    enableConnectorSplit:true,
    nodes: [node1, node2, node3],
    connectors: [connector1]
}, '#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Enable Connector Split

Preserve connector style while connector splitting

When splitting a connector using enableConnectorSplit, the new connector created will be a normal connector without any specific styles. To ensure the new connector has the same style as the original connector, you can use the collectionChange event to apply the styles.

The following example demonstrates how to apply the same style of the original connector to the newly added connector:

index.js
index.html
// Initial nodes for the diagram
let nodes = [
    {
      id: 'node1',
      offsetX: 100,
      offsetY: 100,
      width: 100,
      height: 100,
    },
    {
      id: 'node2',
      offsetX: 600,
      offsetY: 100,
      width: 100,
      height: 100,
    },
    {
      id: 'node3',
      offsetX: 400,
      offsetY: 300,
      width: 100,
      height: 100,
    },
  ];

  // Initial connectors for the diagram
  let connectors = [
    {
      id: 'connector1',
      sourceID: 'node1',
      targetID: 'node2',
      style: { strokeColor: 'red', strokeWidth: 2, strokeDashArray: '3,3' },
    },
  ];

  // Create and initialize the diagram
  let diagram = new ej.diagrams.Diagram({
    width: '100%',
    height: '645px',
    nodes: nodes,
    connectors: connectors,
    getNodeDefaults: (obj) => {
      obj.width = 100;
      obj.height = 100;
      obj.constraints =
        ej.diagrams.NodeConstraints.Default |
        ej.diagrams.NodeConstraints.AllowDrop;
      return obj;
    },
    getConnectorDefaults: (obj) => {
      obj.constraints =
        ej.diagrams.ConnectorConstraints.Default |
        ej.diagrams.ConnectorConstraints.AllowDrop;
      return obj;
    },
    enableConnectorSplit: true,
    collectionChange: function (args) {
      if (
        args.state === 'Changed' &&
        args.element instanceof ej.diagrams.Connector
      ) {
        let sourceNode = diagram.getObject(args.element.sourceID);
        if (sourceNode) {
          sourceNode.inEdges.forEach((edgeId) => {
            let initialConnector = diagram.getObject(edgeId);
            args.element.style = initialConnector.style;
          });
        }
      }
      diagram.dataBind();
    },
  });

  diagram.appendTo('#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-base/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-buttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-popups/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-splitbuttons/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-diagrams/styles/material.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/29.2.4/ej2-navigations/styles/fabric.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/29.2.4/dist/ej2.min.js" type="text/javascript"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>
