Getting started in EJ2 TypeScript Stock chart control

25 Sep 202323 minutes to read

This section explains you the steps required to create a simple Stock Chart and demonstrate the basic usage of the Stock Chart control.

Dependencies

Below is the list of minimum dependencies required to use the Stock Chart.

|-- @syncfusion/ej2-charts
    |-- @syncfusion/ej2-base
    |-- @syncfusion/ej2-data
    |-- @syncfusion/ej2-pdf-export
    |-- @syncfusion/ej2-file-utils
    |-- @syncfusion/ej2-compression
    |-- @syncfusion/ej2-svg-base
    |-- @syncfusion/ej2-navigations
    |-- @syncfusion/ej2-calendars
    |-- @syncfusion/ej2-popups
    |-- @syncfusion/ej2-lists
    |-- @syncfusion/ej2-inputs
    |-- @syncfusion/ej2-buttons
    |-- @syncfusion/ej2-splitbuttons

Installation and Configuration

To get you started with Stock Chart component, you can clone the Essential JS 2 quickstart project and install necessary packages by using the following commands.

git clone https://github.com/syncfusion/ej2-quickstart.git quickstart
cd quickstart
npm install

Stock Chart packages need to be mapped in system.config.js configuration file.

System.config({
    paths: {
        'syncfusion:': './node_modules/@syncfusion/',
    },
    map: {
        app: 'app',

        //Syncfusion packages mapping
        "@syncfusion/ej2-base": "syncfusion:ej2-base/dist/ej2-base.umd.min.js",
        "@syncfusion/ej2-data": "syncfusion:ej2-data/dist/ej2-data.umd.min.js",
        "@syncfusion/ej2-charts": "syncfusion:ej2-charts/dist/ej2-charts.umd.min.js",
        "@syncfusion/ej2-popups": "syncfusion:ej2-popups/dist/ej2-popups.umd.min.js",
        "@syncfusion/ej2-buttons": "syncfusion:ej2-buttons/dist/ej2-buttons.umd.min.js",
        "@syncfusion/ej2-pdf-export": "syncfusion:ej2-pdf-export/dist/ej2-pdf-export.umd.min.js",
        "@syncfusion/ej2-file-utils": "syncfusion:ej2-file-utils/dist/ej2-file-utils.umd.min.js",
        "@syncfusion/ej2-compression": "syncfusion:ej2-compression/dist/ej2-compression.umd.min.js",
        "@syncfusion/ej2-navigations": "syncfusion:ej2-navigations/dist/ej2-navigations.umd.min.js",
        "@syncfusion/ej2-calendars": "syncfusion:ej2-calendars/dist/ej2-calendars.umd.min.js",
        "@syncfusion/ej2-lists": "syncfusion:ej2-lists/dist/ej2-lists.umd.min.js",
        "@syncfusion/ej2-inputs": "syncfusion:ej2-inputs/dist/ej2-inputs.umd.min.js",
        "@syncfusion/ej2-svg-base": "syncfusion:ej2-svg-base/dist/ej2-svg-base.umd.min.js",
        "@syncfusion/ej2-splitbuttons": "syncfusion:ej2-splitbuttons/dist/ej2-splitbuttons.umd.min.js",
        "@syncfusion/ej2-excel-export": "syncfusion:ej2-excel-export/dist/ej2-excel-export.umd.min.js"
    },
    packages: {
        'app': { main: 'app', defaultExtension: 'js' }
    }
});

The project is preconfigured with common
settings (src/styles/styles.css, system.config.js ) to start
with all Essential JS 2 components.

Add Stock Chart to the Project

Add the HTML div element for Stock Chart into your index.html. [src/index.html]

<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Stock Chart</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Typescript UI Controls" />
    <meta name="author" content="Syncfusion" />
    <link href="index.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
</head>

<body>
     <!--container which is going to render the Stock Chart-->
     <div id='element'>
     </div>
</body>

</html>

Now import the Stock Chart component into your app.ts to instantiate a Stock Chart and append the Stock Chart instance to the #element [src/app/app.ts]

import { StockChart  } from '@syncfusion/ej2-charts';

// initialize  Stock Chart component
let stockChart: StockChart = new StockChart();

// render initialized Stock Chart
stockChart.appendTo('#element');

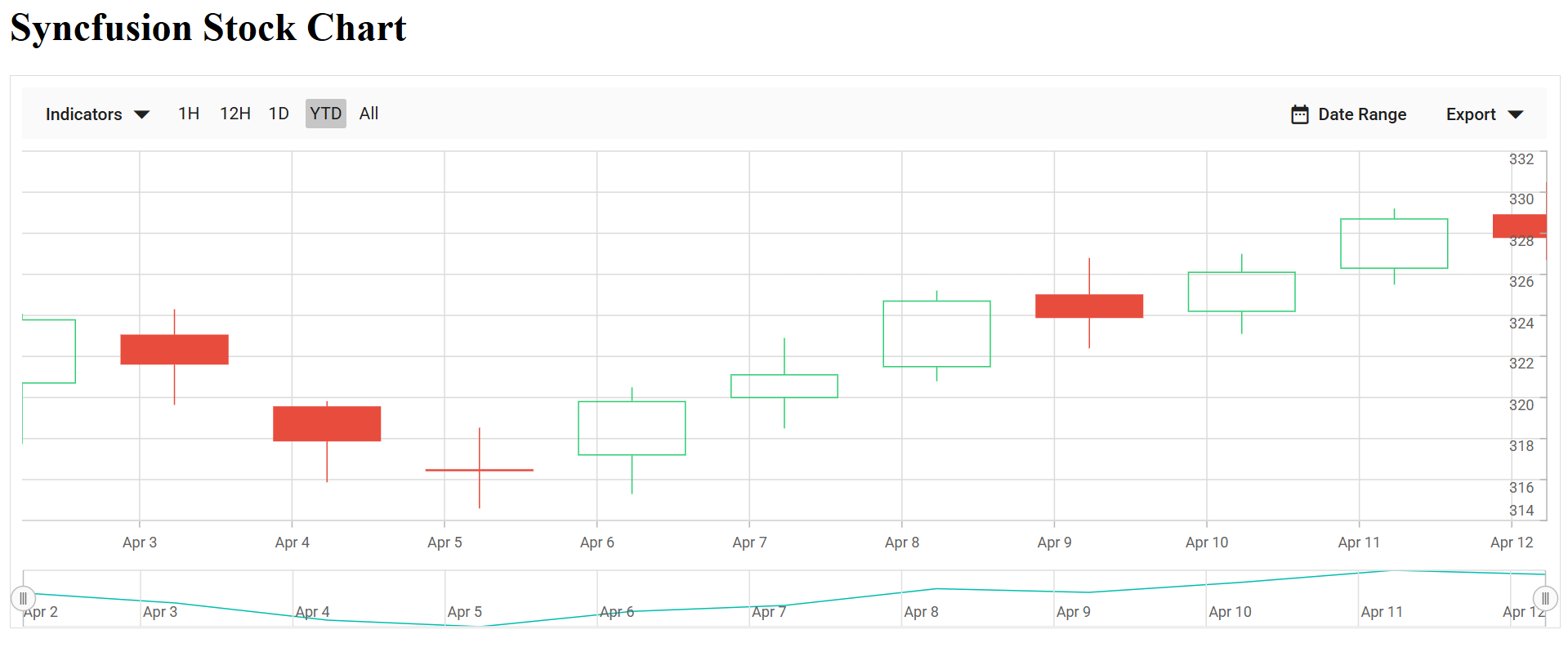

Now use the npm run start command to run the application in the browser.

npm run start

Module Injection

Stock Chart component are segregated into individual feature-wise modules. In order to use a particular feature, you need to inject its feature module using StockChart.Inject() method. In the current application, we are going to modify the above basic Stock Chart to visualize stock value of a company. For this application we are going to use candle series, tooltip, data label and datetime axis feature of the stock chart. Please find relevant feature module name and description as follows.

CandleSeries - Inject this provider to use candle series.
Tooltip - Inject this provider to use tooltip feature.
DataLabel - Inject this provider to use data label feature.
DateTime - Inject this provider to use DateTime feature.

Now import the above mentioned modules from Stock Chart package and inject it into the Stock Chart component using
StockChart.Inject method.

import { StockChart, CandleSeries, DateTime, Tooltip } from '@syncfusion/ej2-charts';
StockChart.Inject(CandleSeries, DataLabel, Tooltip, DateTime);

Populate Stock Chart With Data

This section explains how to plot below JSON data to the Stock Chart.Please find the below imported datasource.

let stockchartData: any[] = [{
   x: new Date( '2012-04-02' ),
    open : 85.9757,
    high : 90.6657,
    low : 85.7685,
    close : 90.5257,
    volume : 660187068
  },
  {
   x: new Date( '2012-04-09' ),
    open : 89.4471,
    high : 92,
    low : 86.2157,
    close : 86.4614,
    volume : 912634864
  },
  {
   x: new Date( '2012-04-16' ),
    open : 87.1514,
    high : 88.6071,
    low : 81.4885,
    close : 81.8543,
    volume : 1221746066
  },
  {
   x: new Date( '2012-04-23' ),
    open : 81.5157,
    high : 88.2857,
    low : 79.2857,
    close : 86.1428,
    volume : 965935749
  },
  {
   x: new Date( '2012-04-30' ),
    open : 85.4,
    high : 85.4857,
    low : 80.7385,
    close : 80.75,
    volume : 615249365
  },
  ............];

Add a series object to the chart by using series property and then set the JSON data to dataSource property.

Since the JSON contains DateTime data, set the valueType for horizontal axis to DateTime. By default, the axis valueType is Numeric.

index.ts
index.html
import { StockChart } from '@syncfusion/ej2-charts';
import { chartData } from './datasource.ts';
import { DateTime,AreaSeries, CandleSeries, HiloOpenCloseSeries, HiloSeries, LineSeries ,Logarithmic } from '@syncfusion/ej2-charts';
import { SplineAreaSeries, SplineSeries  } from '@syncfusion/ej2-charts';
import { AccumulationDistributionIndicator, AtrIndicator, BollingerBands, EmaIndicator, MomentumIndicator } from '@syncfusion/ej2-charts';
import { MacdIndicator, RsiIndicator, Trendlines, SmaIndicator, StochasticIndicator, Export } from '@syncfusion/ej2-charts';
import { TmaIndicator, RangeTooltip, Tooltip, Crosshair, IStockChartEventArgs, ChartTheme } from '@syncfusion/ej2-charts';
StockChart.Inject(DateTime,Logarithmic,  AreaSeries, CandleSeries, HiloOpenCloseSeries, HiloSeries, LineSeries, SplineAreaSeries, SplineSeries );
StockChart.Inject(AccumulationDistributionIndicator, AtrIndicator, BollingerBands, EmaIndicator, MomentumIndicator);
StockChart.Inject(MacdIndicator, RsiIndicator, SmaIndicator, StochasticIndicator);
StockChart.Inject(Trendlines, TmaIndicator, RangeTooltip, Tooltip, Crosshair, Export);
let stockchart: StockChart = new StockChart({
    series:[{
        // dataSource for stockchart series
        dataSource: chartData,
        type: 'Candle'
    }]
});
stockchart.appendTo("#element");
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Animation</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Typescript UI Controls" />
    <meta name="author" content="Syncfusion" />
    <link href="./index.css" rel="stylesheet" />
    <link href="http://cdn.syncfusion.com/ej2/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
        <div id='element'></div>
    </div>
</body>

</html>

Add Stock Chart Title

You can add a title using title property to the Stock Chart to provide quick information to the user about the data plotted in the Chart.

index.ts
index.html
import { StockChart } from '@syncfusion/ej2-charts';
import { chartData } from './datasource.ts';
import { DateTime,AreaSeries, CandleSeries, HiloOpenCloseSeries, HiloSeries, LineSeries ,Logarithmic } from '@syncfusion/ej2-charts';
import { SplineAreaSeries, SplineSeries  } from '@syncfusion/ej2-charts';
import { AccumulationDistributionIndicator, AtrIndicator, BollingerBands, EmaIndicator, MomentumIndicator } from '@syncfusion/ej2-charts';
import { MacdIndicator, RsiIndicator, Trendlines, SmaIndicator, StochasticIndicator, Export } from '@syncfusion/ej2-charts';
import { TmaIndicator, RangeTooltip, Tooltip, Crosshair, IStockChartEventArgs, ChartTheme } from '@syncfusion/ej2-charts';
StockChart.Inject(DateTime,Logarithmic,  AreaSeries, CandleSeries, HiloOpenCloseSeries, HiloSeries, LineSeries, SplineAreaSeries, SplineSeries );
StockChart.Inject(AccumulationDistributionIndicator, AtrIndicator, BollingerBands, EmaIndicator, MomentumIndicator);
StockChart.Inject(MacdIndicator, RsiIndicator, SmaIndicator, StochasticIndicator);
StockChart.Inject(Trendlines, TmaIndicator, RangeTooltip, Tooltip, Crosshair, Export);

let stockChart: StockChart = new StockChart({
    // Title for chart
    title: 'Sales Analysis',
    series:[{
        dataSource: chartData,
        name:'Sales',
        type: 'Candle'
    }],
});
stockChart.appendTo("#element");
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Animation</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Typescript UI Controls" />
    <meta name="author" content="Syncfusion" />
    <link href="./index.css" rel="stylesheet" />
    <link href="http://cdn.syncfusion.com/ej2/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
        <div id='element'></div>
    </div>
</body>

</html>

Add Crosshair

Crosshair has a vertical and horizontal line to view the value of the axis at mouse or touch position.

Crosshair lines can be enabled by using enable property in the crosshair. Likewise tooltip label for an axis can be enabled by using enable property of crosshairTooltip in the corresponding axis.

index.ts
index.html
import { StockChart } from '@syncfusion/ej2-charts';
import { DateTime,AreaSeries, CandleSeries, HiloOpenCloseSeries, HiloSeries, LineSeries ,Logarithmic } from '@syncfusion/ej2-charts';
import { SplineAreaSeries, SplineSeries  } from '@syncfusion/ej2-charts';
import { AccumulationDistributionIndicator, AtrIndicator, BollingerBands, EmaIndicator, MomentumIndicator } from '@syncfusion/ej2-charts';
import { MacdIndicator, RsiIndicator, Trendlines, SmaIndicator, StochasticIndicator, Export } from '@syncfusion/ej2-charts';
import { TmaIndicator, RangeTooltip, Tooltip, Crosshair, IStockChartEventArgs, ChartTheme } from '@syncfusion/ej2-charts';
StockChart.Inject(DateTime,Logarithmic,  AreaSeries, CandleSeries, HiloOpenCloseSeries, HiloSeries, LineSeries, SplineAreaSeries, SplineSeries );
StockChart.Inject(AccumulationDistributionIndicator, AtrIndicator, BollingerBands, EmaIndicator, MomentumIndicator);
StockChart.Inject(MacdIndicator, RsiIndicator, SmaIndicator, StochasticIndicator);
StockChart.Inject(Trendlines, TmaIndicator, RangeTooltip, Tooltip, Crosshair, Export);
import { chartData } from './datasource.ts';

let stockChart: StockChart = new StockChart({
        primaryXAxis: {
            valueType: 'DateTime',
        },
        series: [
            {
                type: 'Candle', width: 2,
                dataSource: chartData,
            }
        ],
        //crosshair for chart
        crosshair: { enable: true },
        title: 'Weather Condition'
});
stockChart.appendTo("#element");
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Animation</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Typescript UI Controls" />
    <meta name="author" content="Syncfusion" />
    <link href="./index.css" rel="stylesheet" />
    <link href="http://cdn.syncfusion.com/ej2/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
        <div id='element'></div>
    </div>
</body>

</html>

Add Trackball

Trackball is used to track a data point closest to the mouse or touch position. Trackball marker indicates the closest point and trackball tooltip displays the information about the point. To use trackball feature, we need to inject Crosshair module and Tooltip module using
StockChart.Inject(Crosshair, Tooltip).

Trackball can be enabled by setting the enable property of the crosshair to true and
shared property in tooltip to true in chart.

index.ts
index.html
import { StockChart } from '@syncfusion/ej2-charts';
import { DateTime,AreaSeries, CandleSeries, HiloOpenCloseSeries, HiloSeries, LineSeries ,Logarithmic } from '@syncfusion/ej2-charts';
import { SplineAreaSeries, SplineSeries  } from '@syncfusion/ej2-charts';
import { AccumulationDistributionIndicator, AtrIndicator, BollingerBands, EmaIndicator, MomentumIndicator } from '@syncfusion/ej2-charts';
import { MacdIndicator, RsiIndicator, Trendlines, SmaIndicator, StochasticIndicator, Export } from '@syncfusion/ej2-charts';
import { TmaIndicator, RangeTooltip, Tooltip, Crosshair, IStockChartEventArgs, ChartTheme } from '@syncfusion/ej2-charts';
StockChart.Inject(DateTime,Logarithmic,  AreaSeries, CandleSeries, HiloOpenCloseSeries, HiloSeries, LineSeries, SplineAreaSeries, SplineSeries );
StockChart.Inject(AccumulationDistributionIndicator, AtrIndicator, BollingerBands, EmaIndicator, MomentumIndicator);
StockChart.Inject(MacdIndicator, RsiIndicator, SmaIndicator, StochasticIndicator);
StockChart.Inject(Trendlines, TmaIndicator, RangeTooltip, Tooltip, Crosshair, Export);
import { trackData } from './datasource.ts';

let stockChart: StockChart = new StockChart({
        primaryXAxis: {
            valueType: 'DateTime',
        },
        series: [
            {
                dataSource: trackData, name: 'John', xName: 'x',
                 type: 'Line', width: 2,
                yName: 'y'
            },
            {
                dataSource: trackData, name: 'Andrew', xName: 'x',
                type: 'Line', width: 2,
                yName: 'y1'
            },
            {
                dataSource: trackData, name: 'Thomas', xName: 'x',
                type: 'Line', width: 2,
                yName: 'y2'
            },
            {
                dataSource: trackData, name: 'Mark', xName: 'x',
                type: 'Line', width: 2,
                yName: 'y3'
            },
            {
                dataSource: trackData, name: 'William', xName: 'x',
                type: 'Line', width: 2,
                yName: 'y4'
            }
        ],
        // trackball for chart
        tooltip: { enable: true, shared: true, format: '${series.name} : ${point.x} : ${point.y}' },
        crosshair: { enable: true, lineType: 'Vertical' },
        title: 'Average Sales per Person'
});
stockChart.appendTo("#element");
<!DOCTYPE html>
<html lang="en">

<head>
    <title>EJ2 Animation</title>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="description" content="Typescript UI Controls" />
    <meta name="author" content="Syncfusion" />
    <link href="./index.css" rel="stylesheet" />
    <link href="http://cdn.syncfusion.com/ej2/material.css" rel="stylesheet" />
    <script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
    <script src="systemjs.config.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type ="text/javascript"></script>
</head>

<body>
    <div id='loader'>Loading....</div>
    <div id='container'>
        <div id='element'></div>
    </div>
</body>

</html>

You can refer to our JavaScript Stock Chart feature tour page for its groundbreaking feature representations. You can also explore our JavaScript Stock Chart example that shows you how to present and manipulate data.
