Sorting in ASP.NET MVC Tree Grid control

24 Sep 2021 / 3 minutes to read

Sorting enables you to sort data in the Ascending or Descending order. To sort a column, click the column header.

To sort multiple columns, press and hold the CTRL key and click the column header. You can clear sorting of any one of the multi-sorted columns by pressing and holding the SHIFT key and clicking the specific column header.

To enable sorting in the TreeGrid, set the AllowSorting to true. Sorting options can be configured through the SortSettings.

razor
defaultSorting.cs
Copied to clipboard
@Html.EJS().TreeGrid("TreeGrid").Height(315).AllowSorting().DataSource((IEnumerable<object>)ViewBag.datasource).Columns(col =>
{
   col.Field("category").HeaderText("Category").Width(110).TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).Add();
   col.Field("orderName").HeaderText("Order Name").Width(210).Add();
   col.Field("orderDate").HeaderText("Order Date").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).Format("yMd").Width(210).Add();
   col.Field("units").HeaderText("Units").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).Width(190).Add();

}).ChildMapping("subTasks").AllowPaging(true).TreeColumnIndex(1).Render()
Copied to clipboard
public IActionResult Index()
{
    var tree = TreeData.GetDefaultData();
    ViewBag.datasource = tree;
    return View();
}

TreeGrid columns are sorted in the Ascending order. If you click the already sorted column, the sort direction toggles. You can apply and clear sorting by invoking sortByColumn and clearSorting methods. To disable sorting for a particular column, set the AllowSorting property of Column to false.

Initial sort

To sort at initial rendering, set the Field and Direction in the Columns property of SortSettings.

razor
initialSort.cs
Copied to clipboard
@{
    List<object> cols = new List<object>();
    cols.Add(new { field = "category", direction = "Ascending" });
    cols.Add(new { field = "orderName", direction = "Descending" });
}

@Html.EJS().TreeGrid("TreeGrid").Height(315).AllowSorting().DataSource((IEnumerable<object>)ViewBag.datasource).SortSettings(sort => sort.Columns(cols)).Columns(col =>
{
   col.Field("category").HeaderText("Category").Width(110).TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).Add();
   col.Field("orderName").HeaderText("Order Name").Width(210).Add();
   col.Field("orderDate").HeaderText("Order Date").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).Format("yMd").Width(210).Add();
   col.Field("units").HeaderText("Units").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).Width(190).Add();

}).ChildMapping("subTasks").AllowPaging().TreeColumnIndex(1).Render()
Copied to clipboard
public IActionResult Index()
{
    var tree = TreeData.GetDefaultData();
    ViewBag.datasource = tree;
    return View();
}

Sorting events

During the sort action, the treegrid component triggers two events. The ActionBegin event triggers before the sort action starts, and the ActionComplete event triggers after the sort action is completed. Using these events you can perform the needed actions.

razor
eventHandlers.cs
Copied to clipboard
@Html.EJS().TreeGrid("TreeGrid").Height(315).AllowSorting().DataSource((IEnumerable<object>)ViewBag.datasource).ActionBegin("actionHandler").Columns(col =>
{
   col.Field("category").HeaderText("Category").Width(110).TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).Add();
   col.Field("orderName").HeaderText("Order Name").Width(210).Add();
   col.Field("orderDate").HeaderText("Order Date").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).Format("yMd").Width(210).Add();
   col.Field("units").HeaderText("Units").TextAlign(Syncfusion.EJ2.Grids.TextAlign.Right).Width(190).Add();

}).ChildMapping("subTasks").AllowPaging(true).ActionComplete("actionHandler").TreeColumnIndex(1).Render()

<script>
    function actionHandler(args) {
        alert(args.requestType + ' ' + args.type); //custom Action
    }
</script>
Copied to clipboard
public IActionResult Index()
{
    var tree = TreeData.GetDefaultData();
    ViewBag.datasource = tree;
    return View();
}

The args.requestType is the current action name. For example, in sorting the args.requestType value is ‘sorting’.

Touch interaction

When you tap the treegrid header on touchscreen devices, the selected column header is sorted. A popup Multi column sorting is displayed for multi-column sorting. To sort multiple columns, tap the popup Multi sorting , and then tap the desired treegrid headers.

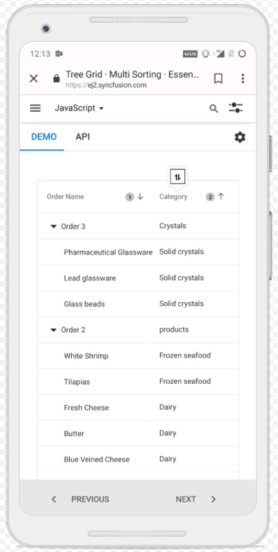

The following screenshot shows treegrid touch sorting.

Touch interaction

You can refer to our ASP.NET MVC Tree Grid feature tour page for its groundbreaking feature representations. You can also explore our ASP.NET MVC Tree Grid example to knows how to present and manipulate data.
