Table

6 Jun 20246 minutes to read

Rich Text Editor allows to insert table of content in edit panel and provide options to add, edit, and remove the table as well as perform other table related action. For inserting the table to the Rich Text Editor, the following list of options have been provided in the TableSettings

Options	Description	Default Value
minWidth	Sets the default minWidth of the table.	0
maxWidth	Sets the default maxWidth of the table.	null
resize	Enable resize feature in table.	true
styles	This is an array of key value pair, on each pair, key should be name of styling and value is class name. this list will be shown on quick toolbar options to change the styles of table on designing like dashed, double bordered.	TableStyleItems
width	Sets the default width of the table.	100%

Insert Table

Using the table toolbar option, select a number of rows and columns to be inserted over the table grid and insert table into Rich Text Editor content using the mouse.

Tables can also be inserted through the Insert Table option in the pop-up where the number of rows and columns can be provided manually, and this is the default way in devices.

Controller.cs

public class HomeController : Controller
{

    public ActionResult Index()
    {
        ViewBag.items = new[] { "CreateTable" };
        return View();
    }
}

Quick Toolbar

Quick toolbar is opened by clicking the table. It has different sets of commands to be performed on the table which increases the feasibility to edit the table easily.

Table Header

Table Header command is available with quick toolbar option through which the header row can be added or removed from the inserted table. The following image illustrates the table header.

Insert Rows

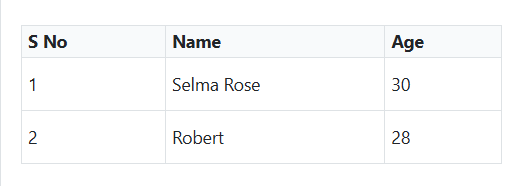

Rows can be inserted above or below the required table cell through the quick toolbar. Also, focused row can be deleted. The following screenshot shows the available options of the row item.

Insert Columns

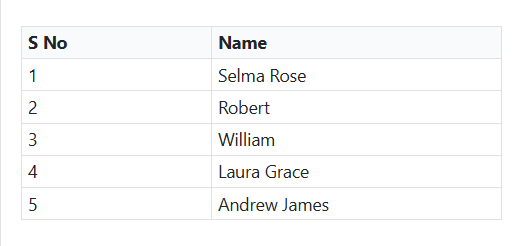

Columns can be inserted to the left or right side of the required table cell through the quick toolbar. Also, the focused column can be deleted. The following screenshot shows the available options of the column item.

Set Color

The background color can be set for each table cell through the background color command available with quick toolbar.

Delete Table

Using the delete item in the quick toolbar, users can delete the entire table.

Vertical Align

Text inside the table can be aligned to top, middle, or bottom using the tableCellVerticalAlign tool of the quick toolbar.

Horizontal Align

Text inside the table can be aligned left, right, or center using the tableCellHorizontalAlign tool of the quick toolbar.

Table Styles

Table styles provided for class name should be appended to a table element. It helps to design the table in specific CSS styles when inserting in the editor.

By Default, provides Dashed border and Alternate rows.

Dashed border: Applies the dashed border to the table.

Alternate border: Applies the alternative background to the table.

Table Properties

Sets the default width of the table when it is inserted in the Rich Text Editor using the width of TableSettings.

Using the quick toolbar, users can change the width, cell padding, and cell spacing in the selected table using the properties option.

Table row and column selection

The table row and column selection feature in our editor allows for intuitive and efficient table manipulation using both mouse and keyboard interactions.

Mouse interaction:

• Click and drag to select multiple rows or columns.
• Selected cells are highlighted with a distinct background color for better visibility.

Keyboard interaction:

• Use Shift + Arrow keys to extend the selection of rows or columns.
• Background color highlights selected cells, making it easy to see the current selection.

Table selection with backspace and delete keys:

• Press the Backspace key immediately after the table to select the entire table.
• Press the Delete key immediately before the table to select the entire table.

Table content text formatting:

The text formatting feature in tables allows users to apply various styles to selected cells, enhancing the appearance and readability of data. This includes the application of headings, paragraphs, lists, and inline styles such as bold, italic, and strikethrough. Users can efficiently format multiple cells simultaneously by selecting entire rows or columns.

Controller.cs

public class HomeController : Controller
{

    public ActionResult Index()
    {
        ViewBag.items = new[] { "CreateTable" };
        ViewBag.Table = new[] {
                "TableHeader", "TableRows", "TableColumns", "TableCell", "-", "BackgroundColor", "TableRemove", "TableCellVerticalAlign", "Styles"
            };
        return View();
    }
}

Table cell merge and split

The Rich Text Editor allows users to change the appearance of the tables by splitting or merging the table cells.

TableCell item should be configured in the Table quickToolbarSettings Property to show the merge/split icons while selecting the table cells

Table cell merge

The table cell merge feature allows you to merge two or more row and column cells into a single cell with its contents.

The following image explains the table merge action.

Table cell split

The table cell split feature allows you to split the merged cells both horizontally and vertically.

The following image explains the table split action.

Controller.cs

public class HomeController : Controller
{

    public ActionResult Index()
    {
        ViewBag.items = new[] { "CreateTable" };
        ViewBag.Table = new[] {
                "TableHeader", "TableRows", "TableColumns", "TableCell", "-", "BackgroundColor", "TableRemove", "TableCellVerticalAlign", "Styles"
            };
        return View();
    }
}
