Excel Export in ASP.NET MVC Pivot Table Component

18 Mar 202420 minutes to read

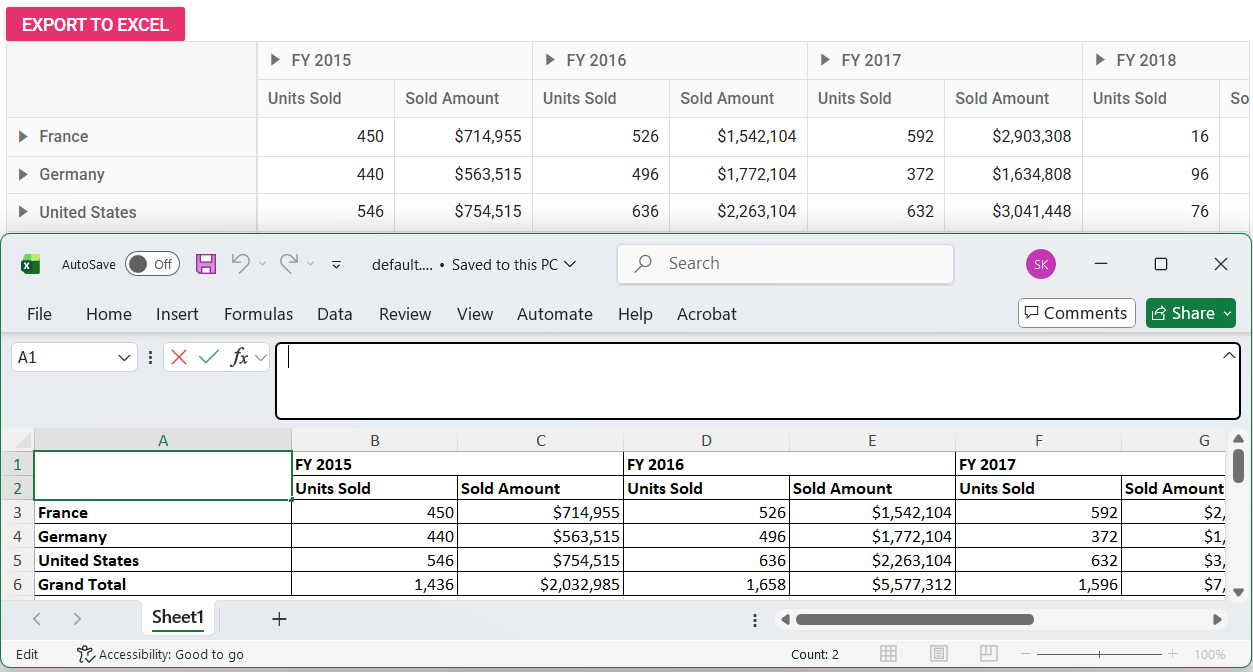

The Excel export allows Pivot Table data to be exported as Excel document. To enable Excel export in the pivot table, set the AllowExcelExport property in PivotView class to true. Once the API is set, user needs to call the excelExport method for exporting on external button click.

NOTE

The pivot table component can be exported to Excel format using options available in the toolbar. For more details refer here.

CSHTML

@Html.EJS().Button("excel").Content("Export To Excel").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()

<script>
    var pivotObj;
    document.getElementById('excel').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        pivotObj.excelExport();
    }
</script>

Export.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

Multiple pivot table exporting

The Excel export provides an option to export multiple pivot table data in the same Excel file.

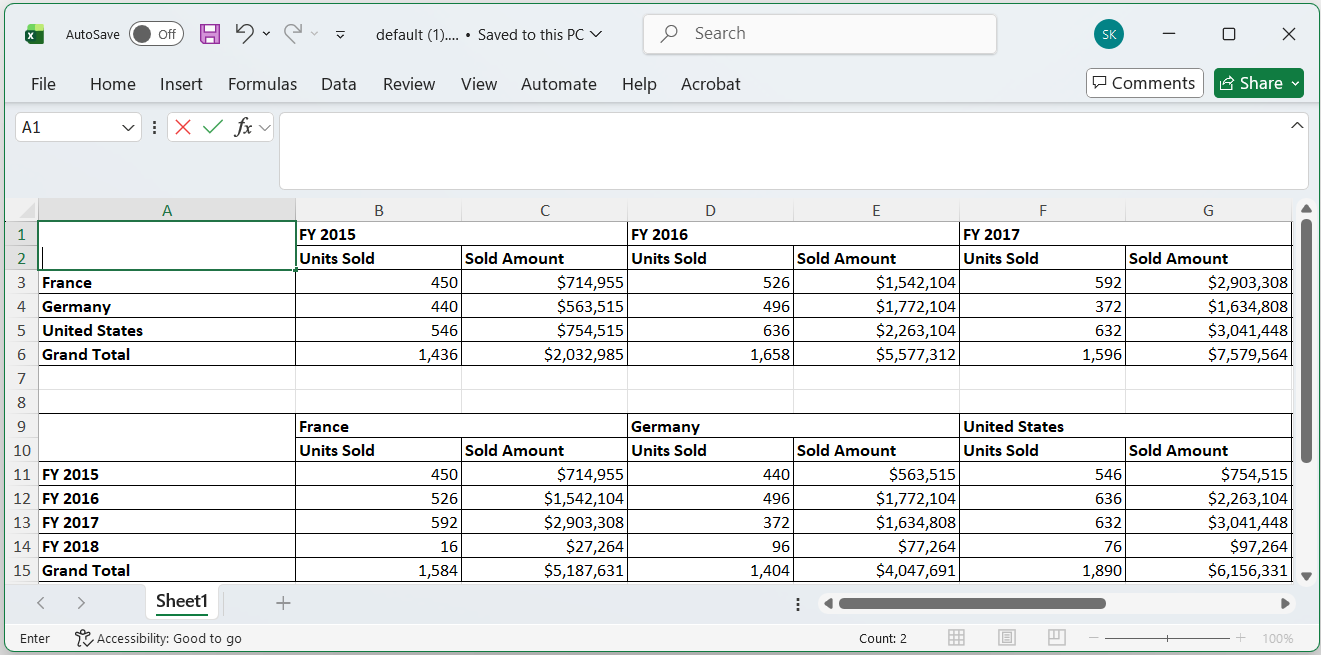

Same WorkSheet

The Excel export provides support to export multiple pivot tables in same sheet. To export in same sheet, define multipleExport.type as AppendToSheet in excelExportProperties. It has an option to provide blank rows between pivot tables and these blank row(s) count can be defined using themultipleExport.blankRows property.

NOTE

By default, multipleExport.blankRows value is 5 between pivot table’s within the same sheet.

CSHTML

@Html.EJS().Button("excel").Content("Export To Excel").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()
<br />
@Html.EJS().PivotView("PivotGrid2").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Columns(columns =>
{
    columns.Name("Country").Add(); columns.Name("Products").Add();
}).Rows(rows =>
{
    rows.Name("Year").Caption("Year").Add(); rows.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()

<script>
    var pivotObj; var pivotObj2;
    document.getElementById('excel').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        pivotObj2 = document.getElementById('PivotGrid2').ej2_instances[0];

        var excelExportProperties = {
            multipleExport: { type: 'AppendToSheet', blankRows: 2 }
        };
        var firstGridExport = pivotObj.grid.excelExport(excelExportProperties, true);
        firstGridExport.then(function (fData) {
            pivotObj2.excelExport(excelExportProperties, false, fData);
        });
    }
</script>

SameSheetExport.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

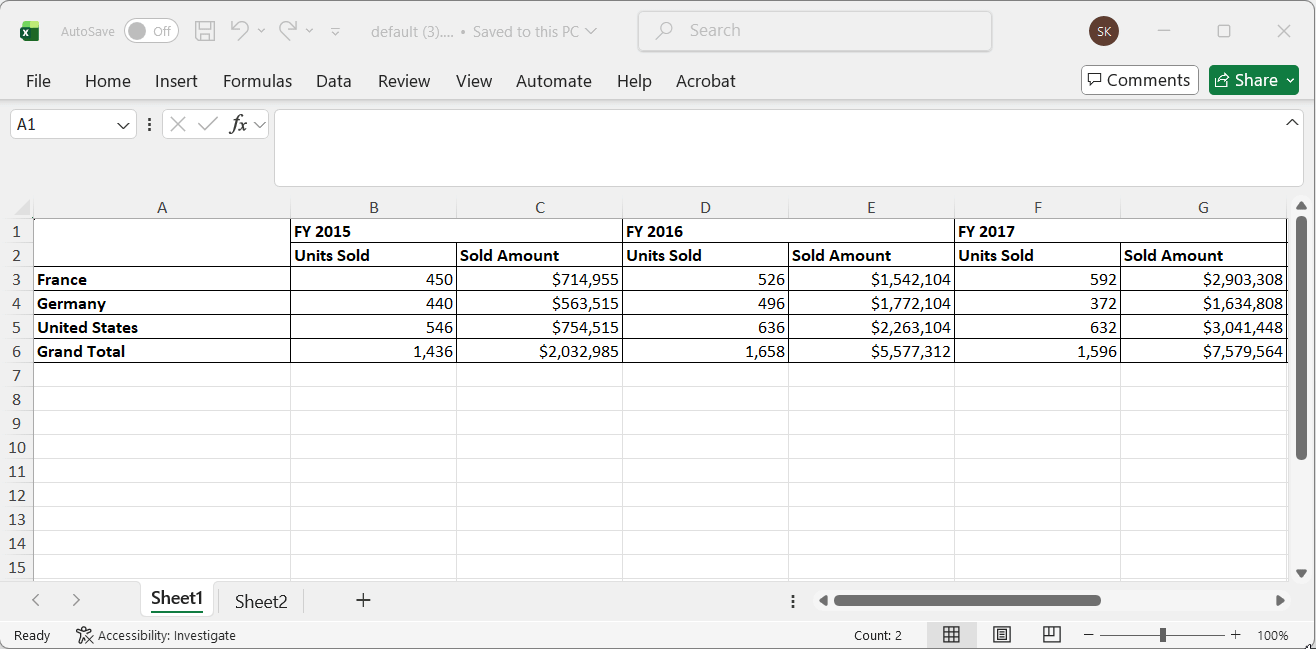

New WorkSheet

Excel export provides support to export multiple pivot tables into new sheets. To export in new sheets, define multipleExport.type as NewSheet in excelExportProperties.

CSHTML

@Html.EJS().Button("excel").Content("Export To Excel").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()
<br />
@Html.EJS().PivotView("PivotGrid2").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Columns(columns =>
{
    columns.Name("Country").Add(); columns.Name("Products").Add();
}).Rows(rows =>
{
    rows.Name("Year").Caption("Year").Add(); rows.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()

<script>
    var pivotObj; var pivotObj2;
    document.getElementById('excel').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        pivotObj2 = document.getElementById('PivotGrid2').ej2_instances[0];

        var excelExportProperties = {
            multipleExport: { type: 'NewSheet' }
        };
        var firstGridExport = pivotObj.grid.excelExport(excelExportProperties, true);
        firstGridExport.then(function (fData) {
            pivotObj2.excelExport(excelExportProperties, false, fData);
        });
    }
</script>

NewSheetExport.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

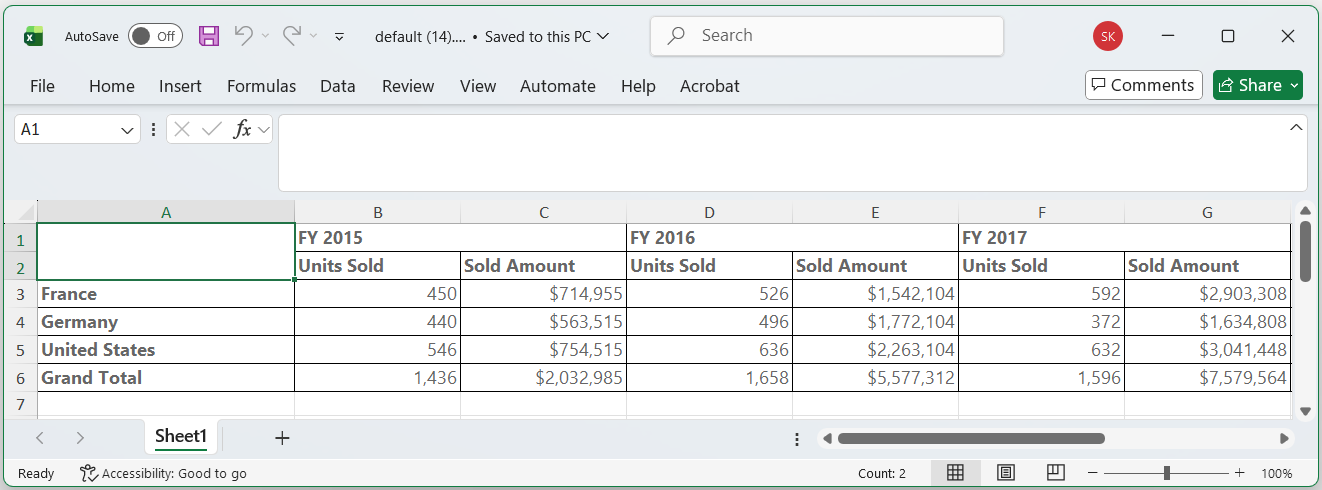

Changing the pivot table style while exporting

The Excel export provides an option to change colors for headers, caption and records in pivot table before exporting. In-order to apply colors, define theme settings in excelExportProperties object and pass it as a parameter to the excelExport method.

NOTE

By default, material theme is applied to exported Excel document.

CSHTML

@Html.EJS().Button("excel").Content("Export To Excel").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()

<script>
    var pivotObj; var pivotObj2;
    document.getElementById('excel').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        var excelExportProperties = {
            theme: {
                header: { fontName: 'Segoe UI', fontColor: '#666666' },
                record: { fontName: 'Segoe UI', fontColor: '#666666' },
                caption: { fontName: 'Segoe UI', fontColor: '#666666' }
            }
        };
        pivotObj.excelExport(excelExportProperties);
    }
</script>

ThemeExport.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

Add header and footer while exporting

The Excel export provides an option to include header and footer content for the excel document before exporting. In-order to add header and footer, define header and footer properties in excelExportProperties object and pass it as a parameter to the excelExport method.

CSHTML

@Html.EJS().Button("excel").Content("Export To Excel").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()

<script>
    var pivotObj; var pivotObj2;
    document.getElementById('excel').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        var excelExportProperties = {
            header: {
                headerRows: 2,
                rows: [
                    { cells: [{ colSpan: 4, value: "Pivot Grid", style: { fontColor: '#C67878', fontSize: 20, hAlign: 'Center', bold: true, underline: true } }] }
                ]
            },
            footer: {
                footerRows: 4,
                rows: [
                    { cells: [{ colSpan: 4, value: "Thank you for your business!", style: { hAlign: 'Center', bold: true } }] },
                    { cells: [{ colSpan: 4, value: "!Visit Again!", style: { hAlign: 'Center', bold: true } }] }
                ]
            }
        };
        pivotObj.excelExport(excelExportProperties);
    }
</script>

ThemeExport.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

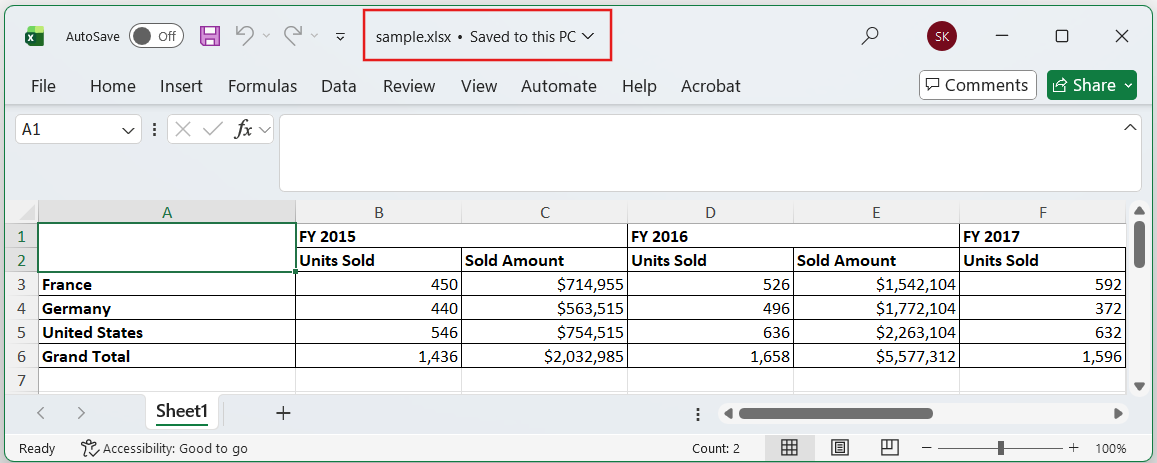

Changing the file name while exporting

The Excel export provides an option to change file name of the document before exporting. In-order to change the file name, define fileName property in excelExportProperties object and pass it as a parameter to the excelExport method.

CSHTML

@Html.EJS().Button("excel").Content("Export To Excel").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()

<script>
    var pivotObj; var pivotObj2;
    document.getElementById('excel').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        var excelExportProperties = {
            fileName:'sample.xlsx'
        };
        pivotObj.excelExport(excelExportProperties);
    }
</script>

FileName.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

Limitation when exporting millions of records to Excel format

By default, Microsoft Excel supports only 1,048,576 records in an Excel sheet. Hence, it is not possible to export millions of records to Excel. You can refer to the documentation link for more details on Microsoft Excel specifications and limits. Therefore, it is suggested to export the data in CSV (Comma-Separated Values) or other formats that can handle large datasets more efficiently than Excel.

CSV Export

Also, the Excel export allows pivot table data to be exported in CSV file format. To export pivot table in CSV file format, you need to use the csvExport method.

CSHTML

@Html.EJS().Button("excel").Content("Export To Excel").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()

<script>
    var pivotObj; var pivotObj2;
    document.getElementById('excel').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        pivotObj.csvExport();
    }
</script>

CSVExport.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

Virtual Scroll Data

You can export the pivot table virtual scroll data as Excel/CSV document by using PivotEngine export without any performance degradation. To enable PivotEngine export in the pivot table, set the AllowExcelExport as true. You need to use the exportToExcel method for PivotEngine export.

NOTE

PivotEngine export will be performed while enabling virtual scrolling by default.

Virtual Scroll Data Excel Export

CSHTML

@Html.EJS().Button("excel").Content("Export To Excel").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()

<script>
    var pivotObj;
    document.getElementById('excel').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        pivotObj.excelExportModule.exportToExcel('Excel');
    }
</script>

Export.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

Virtual Scroll Data CSV Export

CSHTML

@Html.EJS().Button("excel").Content("Export To Excel").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()

<script>
    var pivotObj; var pivotObj2;
    document.getElementById('excel').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        var excelExportProperties = {
            fileName: 'csvexport.csv',
        };
        pivotObj.csvExport(excelExportProperties);
    }
</script>

CSVExport.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

Export all pages

The pivot engine exports the entire virtual data of the pivot table (i.e. the data that contains all of the records used to render the complete pivot table) as an Excel/CSV document. To export just the current viewport of the pivot table, set the exportAllPages property to false. To use the pivot engine export, add the ExcelExport module into the pivot table.

NOTE

By default, the pivot engine export will be performed while virtual scrolling is enabled.

CSHTML

@Html.EJS().Button("pdf").Content("Pdf Export").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").EnableVirtualization(true).ExportAllPages(false).DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(true)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Sold").Add(); rows.Name("Amount").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Country").Caption("Units Sold").Add(); values.Name("Products").Caption("Sold Amount").Add();
})).AllowExcelExport(true).Render()

<script>
    var pivotObj;
    document.getElementById('pdf').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        pivotObj.excelExport();
    }
</script>

Exportallpages.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

Events

ExcelQueryCellInfo

The event ExcelQueryCellInfo triggers while framing each row and value cell during Excel export. It allows the user to customize the cell value, style etc. of the current cell. It has the following parameters:

• value - It holds the cell value.
• column - It holds column information for the current cell.
• data - It holds the entire row data across the current cell.
• style - It holds the style properties for the cell.

CSHTML

@using Syncfusion.EJ2.PivotView

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSourceSettings => dataSourceSettings.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).GridSettings(gridSettings => gridSettings.ExcelQueryCellInfo("excelQueryCell")).Render()
<script>
    function excelQueryCell(args) {

    }
</script>

ExcelQueryCell.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

ExcelHeaderQueryCellInfo

The event ExcelHeaderQueryCellInfo triggers on framing each header cell during Excel export. It allows the user to customize the cell value, style etc. of the current cell. It has the following parameters:

• cell - It holds the current cell information.
• style - It holds the style properties for the cell.

CSHTML

@using Syncfusion.EJ2.PivotView

@Html.EJS().PivotView("PivotView").Height("300").DataSourceSettings(dataSourceSettings => dataSourceSettings.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(false)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Country").Add(); rows.Name("Products").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Sold").Caption("Units Sold").Add(); values.Name("Amount").Caption("Sold Amount").Add();
})).GridSettings(gridSettings => gridSettings.ExcelHeaderCellInfo("excelHeaderCell")).Render()
<script>
    function excelHeaderCell(args) {

    }
</script>

ExcelHeader.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

ExportComplete

The event ExportComplete is triggered after the pivot table data has been exported to an Excel/CSV document. You can use this event to acquire blob stream data for further customization and processing at your end by passing the isBlob parameter as true when using the excelExport method. It has the following parameters:

• type - It holds the current export type such as PDF, Excel, and CSV.
• promise - It holds the promise object for blob data.

CSHTML

@Html.EJS().Button("pdf").Content("Pdf Export").IsPrimary(true).Render()

@Html.EJS().PivotView("PivotView").Height("300").EnableVirtualization(true).DataSourceSettings(dataSource => dataSource.DataSource((IEnumerable<object>)ViewBag.DataSource).ExpandAll(true)
.FormatSettings(formatsettings =>
{
    formatsettings.Name("Amount").Format("C0").MaximumSignificantDigits(10).MinimumSignificantDigits(1).UseGrouping(true).Add();
}).Rows(rows =>
{
    rows.Name("Sold").Add(); rows.Name("Amount").Add();
}).Columns(columns =>
{
    columns.Name("Year").Caption("Year").Add(); columns.Name("Quarter").Add();
}).Values(values =>
{
    values.Name("Country").Caption("Units Sold").Add(); values.Name("Products").Caption("Sold Amount").Add();
})).AllowExcelExport(true).ExportComplete("exportComplete").Render()

<script>
    var pivotObj;
    document.getElementById('pdf').onclick = function () {
        pivotObj = document.getElementById('PivotView').ej2_instances[0];
        pivotObj.excelExport({}, false, null, true);
    }
    function exportComplete(args) {
        if (args.promise !== null) {
            args.promise.then((e: { blobData: Blob }) => {
                console.log(e.blobData);
            });
        }
    }
</script>

Blob-export.cs

public ActionResult Index()
{
    var data = GetPivotData();
    ViewBag.DataSource = data;
    return View();
}

See Also

• PDF Exporting
