Selection cropping in the ASP.NET MVC Image Editor control

15 Dec 20239 minutes to read

The cropping feature in the Image Editor allows you to select and crop specific regions of an image. It offers different selection options, including custom shapes, squares, circles, and various aspect ratios such as 2:3, 3:2, 3:4, 4:3, 4:5, 5:4, 5:7, 7:5, 9:16, and 16:9.

To perform a selection, you can use the select method, which allows you to define the desired selection area within the image. Once the selection is made, you can then use the crop method to crop the image based on the selected region. This enables you to extract and focus on specific parts of the image while discarding the rest.

Insert custom / square / circle region

The select method allows to perform selection based on the type of selection. Here, the select method is used to perform the selection as custom, circle, or square. The selection region can also be customized using the select method based on the parameters below.

  • type - Specify the type of selection

  • startX - Specify the x-coordinate of the selection region’s starting point

  • startY - Specify the y-coordinate of the selection region’s starting point

  • width - Specify the width of the selection region

  • height - Specify the height of the selection region

Here is an example of square selection using the select method.

<div class="col-lg-12 control-section e-img-editor-sample">
    @Html.EJS().ImageEditor("image-editor").Created("created").Toolbar(new string[] { }).Render()
</div>
@Html.EJS().Button("customClick").CssClass("e-primary").Content("Custom").Click("customClick").Render()
@Html.EJS().Button("squareClick").CssClass("e-primary").Content("Square").Click("squareClick").Render()
@Html.EJS().Button("circleClick").CssClass("e-primary").Content("Circle").Click("circleClick").Render()

<script>
    function created() {
        var imageEditorObj = ej.base.getComponent(document.getElementById('image-editor'), 'image-editor');
        if (ej.base.Browser.isDevice) {
            imageEditorObj.open('https://ej2.syncfusion.com/demos/src/image-editor/images/flower.png');
        } else {
            imageEditorObj.open('https://ej2.syncfusion.com/demos/src/image-editor/images/bridge.png');
        }
    }

    function customClick() {
        var imageEditorObj = ej.base.getComponent(document.getElementById('image-editor'), 'image-editor');
        imageEditorObj.select("Custom");
    }

    function squareClick() {
        var imageEditorObj = ej.base.getComponent(document.getElementById('image-editor'), 'image-editor');
        imageEditorObj.select("Square");
    }

    function circleClick() {
        var imageEditorObj = ej.base.getComponent(document.getElementById('image-editor'), 'image-editor');
        imageEditorObj.select("Circle");
    }
</script>

<style>
    .image-editor {
        margin: 0 auto;
    }

    .e-img-editor-sample {
        height: 80vh;
        width: 100%;
    }

    @@media only screen and (max-width: 700px) {
        .e-img-editor-sample {
            height: 75vh;
            width: 100%;
        }
    }

    .control-wrapper {
        height: 100%;
    }
</style>
public ActionResult Default()
{
    return View();
}

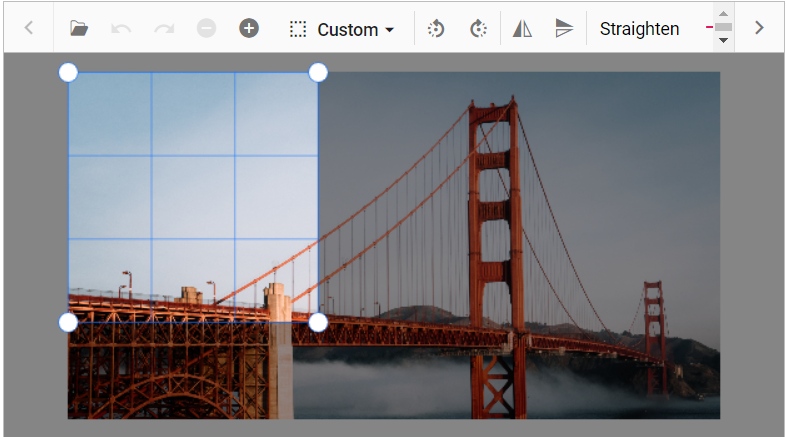

Output be like the below.

ImageEditor Sample

Insert selection based on aspect ratio

The select method is used to perform the selection with the various aspect ratios such as 2:3, 3:2, 3:4, 4:3, 4:5, 5:4, 5:7, 7:5, 9:16, and 16:9. The selection region can also be customized using the select method based on the parameters below.

  • type - Specify the type of selection

  • startX - Specify the x-coordinate of the selection region’s starting point

  • startY - Specify the y-coordinate of the selection region’s starting point

Here is an example of ratio selection using the select method.

<div class="col-lg-12 control-section e-img-editor-sample">
    @Html.EJS().ImageEditor("image-editor").Created("created").Toolbar(new string[] { }).Render()
</div>
@Html.EJS().Button("btnClick").CssClass("e-primary").Content("Click").Click("clickHandler").Render()

<script>
    function created() {
        var imageEditorObj = ej.base.getComponent(document.getElementById('image-editor'), 'image-editor');
        if (ej.base.Browser.isDevice) {
            imageEditorObj.open('https://ej2.syncfusion.com/demos/src/image-editor/images/flower.png');
        } else {
            imageEditorObj.open('https://ej2.syncfusion.com/demos/src/image-editor/images/bridge.png');
        }
    }

    function clickHandler() {
        var imageEditorObj = ej.base.getComponent(document.getElementById('image-editor'), 'image-editor');
        imageEditorObj.select("16:9");
    }
</script>

<style>
    .image-editor {
        margin: 0 auto;
    }

    .e-img-editor-sample {
        height: 80vh;
        width: 100%;
    }

    @@media only screen and (max-width: 700px) {
        .e-img-editor-sample {
            height: 75vh;
            width: 100%;
        }
    }

    .control-wrapper {
        height: 100%;
    }
</style>
public ActionResult Default()
{
    return View();
}

Output be like the below.

ImageEditor Sample

Crop an image

The crop method allows cropping based on the selected region. Here is an example of cropping the selection region using the crop method.

Here is an example of circle cropping using the select and crop method.

<div class="col-lg-12 control-section e-img-editor-sample">
    @Html.EJS().ImageEditor("image-editor").Created("created").Toolbar(new string[] { }).Render()
</div>
@Html.EJS().Button("btnClick").CssClass("e-primary").Content("Click").Click("clickHandler").Render()

<script>
    function created() {
        var imageEditorObj = ej.base.getComponent(document.getElementById('image-editor'), 'image-editor');
        if (ej.base.Browser.isDevice) {
            imageEditorObj.open('https://ej2.syncfusion.com/demos/src/image-editor/images/flower.png');
        } else {
            imageEditorObj.open('https://ej2.syncfusion.com/demos/src/image-editor/images/bridge.png');
        }
    }

    function clickHandler() {
        var imageEditorObj = ej.base.getComponent(document.getElementById('image-editor'), 'image-editor');
        imageEditorObj.select("Circle");
        imageEditorObj.crop();
    }
</script>

<style>
    .image-editor {
        margin: 0 auto;
    }

    .e-img-editor-sample {
        height: 80vh;
        width: 100%;
    }

    @@media only screen and (max-width: 700px) {
        .e-img-editor-sample {
            height: 75vh;
            width: 100%;
        }
    }

    .control-wrapper {
        height: 100%;
    }
</style>
public ActionResult Default()
{
    return View();
}

Output be like the below.

ImageEditor Sample

Cropping event

The cropping event is triggered when performing cropping on the image. This event is passed an object that contains information about the cropping event, such as the start and end point of the selection region. And this event uses CropEventArgs to handle the cropping action in the image.

The parameter available in the cropping event is,

CroppingEventArgs.startPoint – The x and y coordinates of a start point as ImageEditorPoint of the selection region.

CroppingEventArgs.endPoint - The x and y coordinates of an end point as ImageEditorPoint of the selection region.

CroppingEventArgs.cancel - To cancel the cropping action.
