Converting ASP.NET Core application to Syncfusion ASP.NET Core application

4 May 20223 minutes to read

Syncfusion ASP.NET Core conversion is a Visual Studio add-in that converts an existing ASP.NET Core application into a Syncfusion ASP.NET Core (Essential JS 2) Web application by adding the required assemblies and resource files.

The Syncfusion ASP.NET Core (Essential JS 2) Web Application Project conversion utility is available from v16.3.0.17. Before using the Syncfusion ASP.NET Core Project Conversion, check whether the ASP.NET Core Extensions - Syncfusion is installed or not in Visual Studio Extension Manager by clicking on the Extensions -> Manage Extensions -> Installed for Visual Studio 2019 or later and for Visual Studio 2017 by clicking on the Tools -> Extensions and Updates -> Installed. If this extension is not installed, please install the extension by following the steps from the download and installation help topic. Also, check whether the corresponding Essential Studio version build is installed or not. If the Essential Studio version is not same for both the Extension and build, then the Project Conversion will not be shown.

The steps below help you to convert the ASP.NET Core application to the Syncfusion ASP.NET Core application via the Visual Studio:

  1. Open an existing Microsoft ASP.NET Core Web Application or create a new Microsoft ASP.NET Core Web Application.

  2. To open the Syncfusion Project Conversion Wizard, follow either one of the options below:

    Option 1:

    Click Extensions->Syncfusion Menu and choose Essential Studio for ASP.NET Core > Convert to Syncfusion ASP.NET Core Application… in Visual Studio Menu.

    convert project

    In Visual Studio 2017, Click Syncfusion Menu and choose Essential Studio for ASP.NET Core > Convert to Syncfusion ASP.NET Core Application… in Visual Studio Menu..

    convert project

    Option 2:

    Right-click the Project from Solution Explorer, select Syncfusion Web, and choose the Convert to Syncfusion ASP.NET Core Application…

    convert to syncfusion

  3. The Syncfusion ASP.NET Core Project Conversion window will appear. You can choose the required version of Syncfusion ASP.NET Core, Assets from, and Themes to convert the application.

    project conversion wizard

    The following configurations are used in the Project conversion wizard.

    Assets From: Load the Syncfusion Essential JS 2 assets to ASP.NET Core Project, from either NPM, CDN, or Installed Location.

    Installed location option will be available only when the Syncfusion Essential JavaScript 2 setup has been installed.

    Choose the Theme: Choose the required theme.

  4. Check the “Enable a backup before converting” checkbox if you want to take the project backup and choose the location.

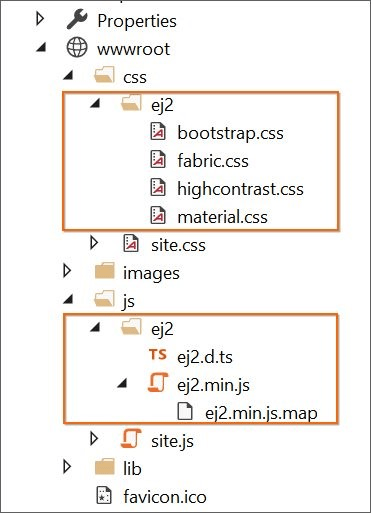

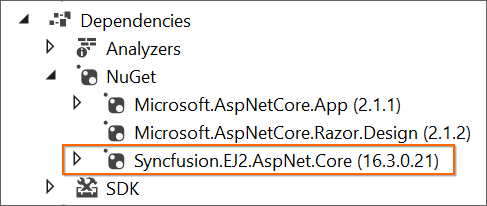

  5. The required Syncfusion NuGet packages with selected version, Scripts and CSS are added in the ASP.NET Core Web application.

    If you enabled project backup before converting, the old project was saved in the specified backup path location, as shown below once the conversion process completed.

    BackupLocation

  6. If you installed the trial setup or NuGet packages from nuget.org, you must register the Syncfusion license key to your application since Syncfusion introduced the licensing system from 2018 Volume 2 (v16.2.0.41) Essential Studio release. Navigate to the help topic to generate and register the Syncfusion license key to your project. Refer to this blog post for understanding the licensing changes introduced in Essential Studio.
