Working with Data
4 Sep 202514 minutes to read
Chart can visualise data bound from local or remote data.
Local Data
You can bind a simple JSON data to the chart using dataSource property in series.
<ejs-stockchart id="stockchart" title="AAPL Stock Price">
<e-stockchart-series-collection>
<e-stockchart-series type='Candle' dataSource="data"> </e-stockchart-series>
</e-stockchart-series-collection>
</ejs-stockchart>
<script>
var data = [
{ date: new Date('2012-04-02'), open: 85.9757, high: 90.6657, low: 85.7685, close: 90.5257, volume: 660187068 },
{ date: new Date('2012-04-09'), open: 89.4471, high: 92, low: 86.2157, close: 86.4614, volume: 912634864 },
{ date: new Date('2012-04-16'), open: 87.1514, high: 88.6071, low: 81.4885, close: 81.8543, volume: 1221746066 },
{ date: new Date('2012-04-23'), open: 81.5157, high: 88.2857, low: 79.2857, close: 86.1428, volume: 965935749 },
{ date: new Date('2012-04-30'), open: 85.4, high: 85.4857, low: 80.7385, close: 80.75, volume: 615249365 },
{ date: new Date('2012-05-07'), open: 80.2143, high: 82.2685, low: 79.8185, close: 80.9585, volume: 541742692 },
{ date: new Date('2012-05-14'), open: 80.3671, high: 81.0728, low: 74.5971, close: 75.7685, volume: 708126233 },
{ date: new Date('2012-05-21'), open: 76.3571, high: 82.3571, low: 76.2928, close: 80.3271, volume: 682076215 },
{ date: new Date('2012-05-28'), open: 81.5571, high: 83.0714, low: 80.0743, close: 80.1414, volume: 480059584 },
{ date: new Date('2012-06-04'), open: 80.2143, high: 82.9405, low: 78.3571, close: 82.9028, volume: 517577005 },
]
</script>using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
namespace EJ2CoreSampleBrowser.Controllers.StockChart
{
public partial class StockChartController : Controller
{
public IActionResult Default()
{
return View();
}
}
}Handling No Data

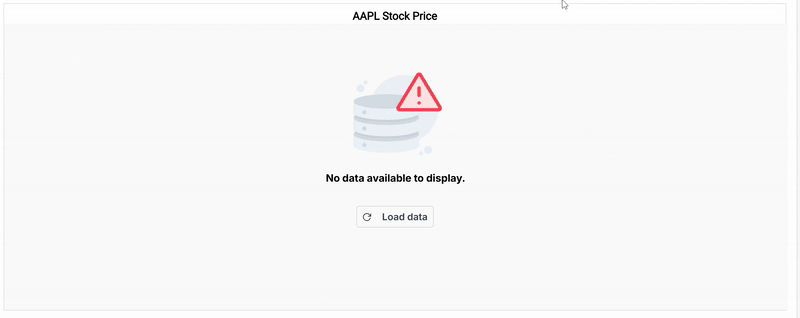

When no data is available to render in the stock chart, the noDataTemplate property can be used to display a custom layout within the chart area. This layout may include a message indicating the absence of data, a relevant image, or a button to initiate data loading. Styled text, images, or interactive elements can be incorporated to maintain design consistency and improve user guidance. Once data becomes available, the chart automatically updates to display the appropriate visualization.
<ejs-stockchart id="stockchart" title="AAPL Stock Price" load="load" loaded="loaded" >
<e-stockchart-series-collection>
<e-stockchart-series type='Candle'></e-stockchart-series>
</e-stockchart-series-collection>
</ejs-stockchart>
<div id="noDataButtonOverlay" class="no-data-button-overlay" style="display: none;">
<ejs-button id="loadDataButton" content="Load data" iconCss="e-icons e-refresh" onclick="loadChartData()"
cssClass="load-data-btn e-outline" isPrimary="false">
</ejs-button>
</div>
<style>
.no-data-button-overlay {
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
margin-top: 60px; /* Position below the no-data message */
z - index: 10;
}
#noDataTemplateContainer {
height: inherit;
width: inherit;
}
.load-data-btn {
margin-top: 55px;
border-radius: 4px!important;
}
.load-data-btn.e-btn-icon {
margin-right: 8px;
}
.light-bg {
background-color: #fafafa;
color: #000000;
}
.template-align img {
max-width: 150px;
/* Adjust size as needed */
max-height: 150px;
margin-top: 55px;
}
.template-align {
display: flex;
align-items: center;
justify-content: center;
text-align: center;
}
#control-container {
padding: 0px!important;
}
</style>
<script src = "~/scripts/chart/theme-color.js" > </script>
<script id = 'No-Data-Template' type = "text/x-template">
<div id='noDataTemplateContainer' class="light-bg" >
<div class="template-align" >
<img src="no-data.png" alt = "No Data" />
</div>
< div class="template-align" >
<p style="font-size: 15px; margin: 10px 0 10px;" > <strong>No data available to display.< /strong></p >
</div>
</div>
</script>
<script>
var chartData = [
{ date: new Date('2012-04-02'), open: 85.9757, high: 90.6657, low: 85.7685, close: 90.5257, volume: 660187068 },
{ date: new Date('2012-04-09'), open: 89.4471, high: 92, low: 86.2157, close: 86.4614, volume: 912634864 },
{ date: new Date('2012-04-16'), open: 87.1514, high: 88.6071, low: 81.4885, close: 81.8543, volume: 1221746066 },
{ date: new Date('2012-04-23'), open: 81.5157, high: 88.2857, low: 79.2857, close: 86.1428, volume: 965935749 },
{ date: new Date('2012-04-30'), open: 85.4, high: 85.4857, low: 80.7385, close: 80.75, volume: 615249365 },
{ date: new Date('2012-05-07'), open: 80.2143, high: 82.2685, low: 79.8185, close: 80.9585, volume: 541742692 },
{ date: new Date('2012-05-14'), open: 80.3671, high: 81.0728, low: 74.5971, close: 75.7685, volume: 708126233 },
{ date: new Date('2012-05-21'), open: 76.3571, high: 82.3571, low: 76.2928, close: 80.3271, volume: 682076215 },
{ date: new Date('2012-05-28'), open: 81.5571, high: 83.0714, low: 80.0743, close: 80.1414, volume: 480059584 },
{ date: new Date('2012-06-04'), open: 80.2143, high: 82.9405, low: 78.3571, close: 82.9028, volume: 517577005 },
];
var dataLoaded = false;
function load(args) {
args.stockChart.noDataTemplate = "#No-Data-Template";
args.stockChart.series[0].dataSource = (dataLoaded ? chartData : []);
}
function loaded(args) {
var buttonOverlay = document.getElementById("noDataButtonOverlay");
if (buttonOverlay) {
buttonOverlay.style.display = !dataLoaded ? 'block' : 'none';
}
}
function loadChartData() {
var chart = document.getElementById('stockchart').ej2_instances[0];
var buttonOverlay = document.getElementById("noDataButtonOverlay");
dataLoaded = true;
chart.series[0].dataSource = chartData;
chart.series[0].animation.enable = true;
if (buttonOverlay) {
buttonOverlay.style.display = 'none';
}
chart.refresh();
}
</script>using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
namespace EJ2CoreSampleBrowser.Controllers.StockChart
{
public partial class StockChartController : Controller
{
public IActionResult Default()
{
return View();
}
}
}
