Series Types

Essential JS 2 Range navigator supports 3 types of series, to render the data.

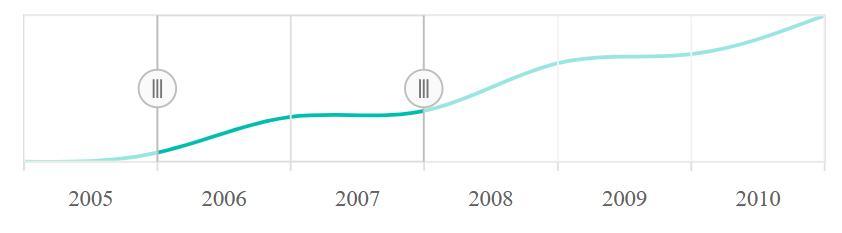

Line

To render a step line series, use series type as Line. By default line series render in range navigator.

tagHelper
line.cs
@{
   var value = new object[] { new DateTime(2005,05,01), new DateTime(2010,1,31) };
}
<ejs-rangenavigator id="rangeNavigator" valueType="DateTime" labelFormat="MMM-yy" value="value" >
                <e-rangenavigator-tooltip enable="true" format="yyyy/MM/dd" displayMode="Always"></e-rangenavigator-tooltip>
                <e-rangenavigator-rangenavigatorseriescollection>
                    <e-rangenavigator-rangenavigatorseries xName="x" yName="y" dataSource="ViewBag.dataSource" type="Line" width=2>
                    </e-rangenavigator-rangenavigatorseries>
                </e-rangenavigator-rangenavigatorseriescollection>
</ejs-rangenavigator>
public IActionResult Index()
        {
            List <data>dataSource = new List<data>
            {
                new data { x = new DateTime(2005, 01, 01), y = 21, y1 = 28 },
                new data { x = new DateTime(2006, 01, 01), y = 24, y1 = 44 },
                new data { x = new DateTime(2007, 01, 01), y = 36, y1 = 48 },
                new data { x = new DateTime(2008, 01, 01), y = 38, y1 = 50 },
                new data { x = new DateTime(2009, 01, 01), y = 54, y1 = 66 },
                new data { x = new DateTime(2010, 01, 01), y = 57, y1 = 78 },
                new data { x = new DateTime(2011, 01, 01), y = 70, y1 = 84 },
            };
            ViewBag.dataSource = dataSource;
            return View();
        }
        public class data
        {
            public DateTime x;
            public double y;
            public double y1;
        }

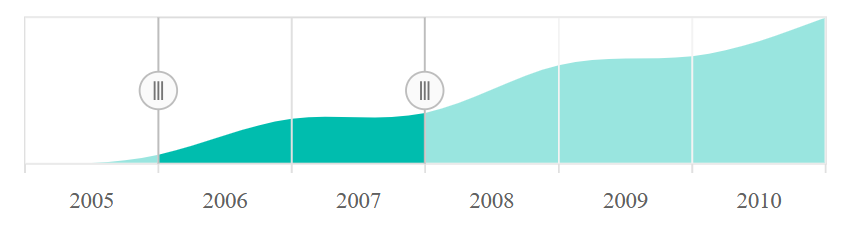

Area

To render a step line series, use series type as Area

tagHelper
area.cs
@{
   var value = new object[] { new DateTime(2005,05,01), new DateTime(2010,1,31) };
}
 <ejs-rangenavigator id="rangeNavigator" valueType="DateTime" labelFormat="MMM-yy" value="value">
                <e-rangenavigator-tooltip enable="true" format="yyyy/MM/dd" displayMode="Always"></e-rangenavigator-tooltip>
                <e-rangenavigator-rangenavigatorseriescollection>
                    <e-rangenavigator-rangenavigatorseries xName="x" yName="y" dataSource="ViewBag.dataSource" type="Area">
                    </e-rangenavigator-rangenavigatorseries>
                </e-rangenavigator-rangenavigatorseriescollection>
</ejs-rangenavigator>
public IActionResult Index()
        {
            List <data>dataSource = new List<data>
            {
                new data { x = new DateTime(2005, 01, 01), y = 21, y1 = 28 },
                new data { x = new DateTime(2006, 01, 01), y = 24, y1 = 44 },
                new data { x = new DateTime(2007, 01, 01), y = 36, y1 = 48 },
                new data { x = new DateTime(2008, 01, 01), y = 38, y1 = 50 },
                new data { x = new DateTime(2009, 01, 01), y = 54, y1 = 66 },
                new data { x = new DateTime(2010, 01, 01), y = 57, y1 = 78 },
                new data { x = new DateTime(2011, 01, 01), y = 70, y1 = 84 },
            };
            ViewBag.dataSource = dataSource;
            return View();
        }
        public class data
        {
            public DateTime x;
            public double y;
            public double y1;
        }

StepLine

To render a step line series, use series type as StepLine

tagHelper
step.cs
@{
   var value = new object[] { new DateTime(2005,05,01), new DateTime(2010,1,31) };
}
<ejs-rangenavigator id="rangeNavigator" valueType="DateTime" labelFormat="MMM-yy" value="value" >
                <e-rangenavigator-tooltip enable="true" format="yyyy/MM/dd" displayMode="Always"></e-rangenavigator-tooltip>
                <e-rangenavigator-rangenavigatorseriescollection>
                    <e-rangenavigator-rangenavigatorseries xName="x" yName="y" dataSource="ViewBag.dataSource" type="StepLine">
                    </e-rangenavigator-rangenavigatorseries>
                </e-rangenavigator-rangenavigatorseriescollection>
</ejs-rangenavigator>
public IActionResult Index()
        {
            List <data>dataSource = new List<data>
            {
                new data { x = new DateTime(2005, 01, 01), y = 21, y1 = 28 },
                new data { x = new DateTime(2006, 01, 01), y = 24, y1 = 44 },
                new data { x = new DateTime(2007, 01, 01), y = 36, y1 = 48 },
                new data { x = new DateTime(2008, 01, 01), y = 38, y1 = 50 },
                new data { x = new DateTime(2009, 01, 01), y = 54, y1 = 66 },
                new data { x = new DateTime(2010, 01, 01), y = 57, y1 = 78 },
                new data { x = new DateTime(2011, 01, 01), y = 70, y1 = 84 },
            };
            ViewBag.dataSource = dataSource;
            return View();
        }
        public class data
        {
            public DateTime x;
            public double y;
            public double y1;
        }
