WebMethodAdaptor in Syncfusion ASP.NET Core Grid
22 Apr 202524 minutes to read
The WebMethodAdaptor
in Syncfusion ASP.NET Core Grid enables seamless data binding from remote services using web methods. This powerful feature enables efficient communication between the client-side application and the server. Similar to the URLAdaptor, the WebMethodAdaptor sends query parameters encapsulated within an object named value. This value object includes various DataManager properties such as requiresCounts, skip, take, sorted, and where queries are included.
This section provides a step-by-step guide to retrieving data using WebMethodAdaptor
, binding it to the Grid, and managing CRUD operations effectively.
Creating an API service
To configure a server with Syncfusion ASP.NET Core Grid, follow the steps below:
1. Project creation:
Open Visual Studio and create a new ASP.NET Core project named WebMethodAdaptor. To create an ASP.NET Core application, follow the documentation link for detailed steps.
2. Model class creation:
Create a model class named OrdersDetails.cs inside the Models folder on the server-side. This model will represent the order data structure.
namespace WebMethodAdaptor.Models
{
public class OrdersDetails
{
public static List<OrdersDetails> order = new List<OrdersDetails>();
public OrdersDetails()
{
}
public OrdersDetails(int OrderID, string CustomerId, int EmployeeId, double Freight, bool Verified, DateTime OrderDate, string ShipCity, string ShipName, string ShipCountry, DateTime ShippedDate, string ShipAddress)
{
this.OrderID = OrderID;
this.CustomerID = CustomerId;
this.EmployeeID = EmployeeId;
this.Freight = Freight;
this.ShipCity = ShipCity;
this.Verified = Verified;
this.OrderDate = OrderDate;
this.ShipName = ShipName;
this.ShipCountry = ShipCountry;
this.ShippedDate = ShippedDate;
this.ShipAddress = ShipAddress;
}
public static List<OrdersDetails> GetAllRecords()
{
if (order.Count() == 0)
{
int code = 10000;
for (int i = 1; i <= 2000; i++)
{
order.Add(new OrdersDetails(code + 1, "ALFKI", i + 0, 2.3 * i, false, new DateTime(1991, 05, 15), "Berlin", "Simons bistro", "Denmark", new DateTime(1996, 7, 16), "Kirchgasse 6"));
order.Add(new OrdersDetails(code + 2, "ANATR", i + 2, 3.3 * i, true, new DateTime(1990, 04, 04), "Madrid", "Queen Cozinha", "Brazil", new DateTime(1996, 9, 11), "Avda. Azteca 123"));
order.Add(new OrdersDetails(code + 3, "ANTON", i + 1, 4.3 * i, true, new DateTime(1957, 11, 30), "Cholchester", "Frankenversand", "Germany", new DateTime(1996, 10, 7), "Carrera 52 con Ave. Bolívar #65-98 Llano Largo"));
order.Add(new OrdersDetails(code + 4, "BLONP", i + 3, 5.3 * i, false, new DateTime(1930, 10, 22), "Marseille", "Ernst Handel", "Austria", new DateTime(1996, 12, 30), "Magazinweg 7"));
order.Add(new OrdersDetails(code + 5, "BOLID", i + 4, 6.3 * i, true, new DateTime(1953, 02, 18), "Tsawassen", "Hanari Carnes", "Switzerland", new DateTime(1997, 12, 3), "1029 - 12th Ave. S."));
code += 5;
}
}
return order;
}
[Key]
public int? OrderID { get; set; }
public string CustomerID { get; set; }
public int? EmployeeID { get; set; }
public double? Freight { get; set; }
public string ShipCity { get; set; }
public bool Verified { get; set; }
public DateTime OrderDate { get; set; }
public string ShipName { get; set; }
public string ShipCountry { get; set; }
public DateTime ShippedDate { get; set; }
public string ShipAddress { get; set; }
}
}
3. API Controller Creation:
Create a file named GridController.cs
under the Controllers folder. This controller will handle data retrieval and communication with the Syncfusion ASP.NET Core Grid.
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using Syncfusion.EJ2.Base;
using WebMethodAdaptor.Models;
namespace WebMethodAdaptor.Controllers
{
[Route("api/[controller]")]
[ApiController]
public class GridController : ControllerBase
{
// Method to retrieve order data.
[HttpGet]
[Route("api/[controller]")]
public List<OrdersDetails> GetOrderData()
{
// Retrieve all records and convert to list.
var data = OrdersDetails.GetAllRecords().ToList();
return data;
}
// Method to handle incoming data manager requests.
[HttpPost]
[Route("api/[controller]")]
public object Post()
{
// Retrieve data source and convert to queryable.
IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();
// Get total record count.
int totalRecordsCount = DataSource.Count();
// Return result and total record count.
return new { result = DataSource, count = totalRecordsCount };
}
}
}
The GetOrderData method retrieves sample order data. You can modify it to fetch data from a database or any other source.
4. Run the application:
Run the application in Visual Studio. It will be accessible via a URL like https://localhost:xxxx.

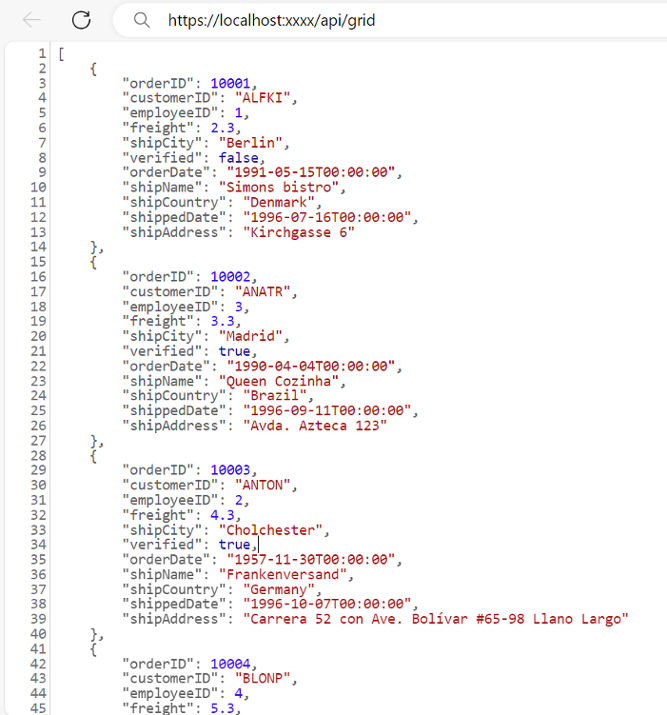

After running the application, you can verify that the server-side API controller is successfully returning the order data at the URL(https://localhost:xxxx/api/Grid). Here xxxx denotes the port number.
Connecting Syncfusion ASP.NET Core Grid to an API service
To integrate the Syncfusion Grid into your ASP.NET Core project using Visual Studio, follow these steps:
Step 1: Install the Syncfusion ASP.NET Core package:
To add ASP.NET Core
in the application, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for Syncfusion.EJ2.AspNet.Core and install it.
Alternatively, you can install it using the following Package Manager Console command:
Install-Package Syncfusion.EJ2.AspNet.Core -Version 29.1.33
Step 2: Add Syncfusion ASP.NET Core tag helper
Open ~/Pages/_ViewImports.cshtml
file and import the Syncfusion.EJ2
tagHelper.
@addTagHelper *, Syncfusion.EJ2
Step 3: Add stylesheets and script resources
To include the required styles and scripts, add the following references inside the <head>
of ~/Pages/Shared/_Layout.cshtml
file:
<head>
...
<!-- Syncfusion ASP.NET Core control styles -->
<link rel="stylesheet" href="https://cdn.syncfusion.com/ej2/29.1.33/bootstrap5.css" />
<!-- Syncfusion ASP.NET Core control scripts -->
<script src="https://cdn.syncfusion.com/ej2/29.1.33/dist/ej2.min.js"></script>
<!-- Include the necessary CSS files to style the Syncfusion ASP.NET Core controls-->
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-base/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-grids/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-buttons/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-popups/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-richtexteditor/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-navigations/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-dropdowns/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-lists/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-inputs/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-calendars/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-notifications/styles/bootstrap5.css" rel="stylesheet" />
<link href="https://cdn.syncfusion.com/ej2/29.1.33/ej2-splitbuttons/styles/bootstrap5.css" rel="stylesheet" />
<script src="https://cdnjs.cloudflare.com/ajax/libs/systemjs/0.19.38/system.js"></script>
<script src="https://cdn.syncfusion.com/ej2/syncfusion-helper.js" type="text/javascript"></script>
</head>
Step 4: Register Syncfusion script manager:
To ensure proper script execution, register the Syncfusion script manager <ejs-scripts>
at the end of the <body>
tag in your ASP.NET Core application as follows:
<body>
...
<!-- Syncfusion ASP.NET Core script manager -->
<ejs-scripts></ejs-scripts>
</body>
Step 5: Add the Syncfusion ASP.NET Core Grid:
Now, add the Syncfusion ASP.NET Core Grid inside the ~/Pages/Index.cshtml
file.
<ejs-grid id="Grid" height="315">
<e-data-manager url="https://localhost:xxxx/api/Grid" adaptor="WebMethodAdaptor"></e-data-manager> // Replace `xxxx` with your actual localhost port number.
<e-grid-columns>
<e-grid-column field="OrderID" headerText="Order ID" width="120" textAlign="Right" isPrimaryKey="true"></e-grid-column>
<e-grid-column field="CustomerID" headerText="Customer ID" width="160"></e-grid-column>
<e-grid-column field="ShipCity" headerText="Ship City" width="150"></e-grid-column>
<e-grid-column field="ShipCountry" headerText="Ship Country" width="150"></e-grid-column>
</e-grid-columns>
</ejs-grid>
Step 6: Configure the server:
In the Program.cs
file of your project, configure the server to serve static files and handle API requests by adding the following code:
builder.Services.AddRazorPages();
builder.Services.AddControllers();
var app = builder.Build();
app.MapRazorPages();
app.MapControllers();
Step 7: Run the Project:

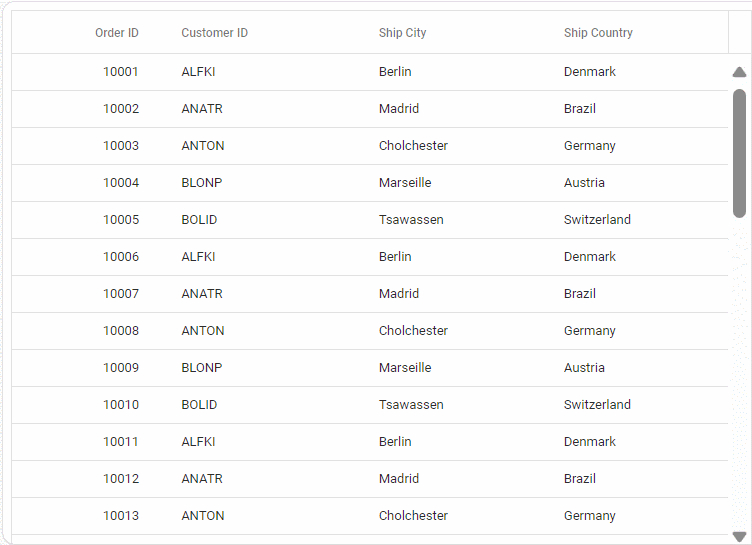

Run the project in Visual Studio, and the Syncfusion ASP.NET Core Grid will successfully fetch data from the API service.
- The Syncfusion ASP.NET Core Grid provides built-in support for handling various data operations such as searching, sorting, filtering, aggregate and paging on the server-side. These operations can be handled using methods such as
PerformSearching
,PerformFiltering
,PerformSorting
,PerformTake
andPerformSkip
available in the Syncfusion.EJ2.AspNet.Core package. Let’s explore how to manage these data operations using theWebMethodAdaptor
.- In an API service project, add
Syncfusion.EJ2.AspNet.Core
by opening the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install it.- To access
DataManagerRequest
andQueryableOperation
, import Syncfusion.EJ2.Base inGridController.cs

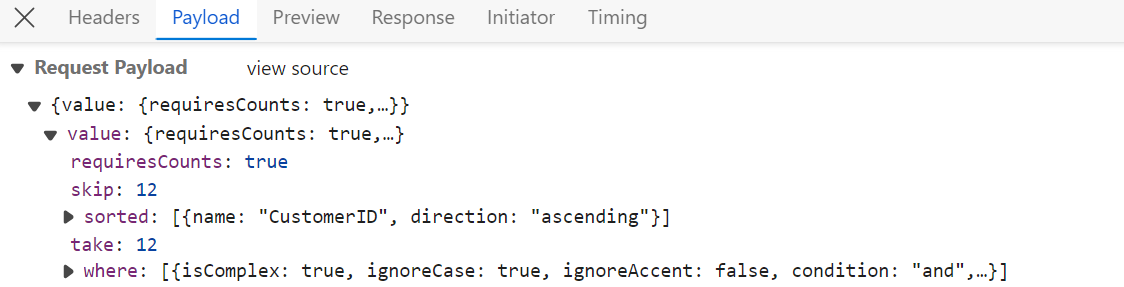

file.- In the
WebMethodAdaptor
configuration, the properties of theDataManager
object are encapsulated within an object named value. To access theDataManager
properties, a dedicated class is created, representing the value object.// Model for handling data manager requests. public class DataManager { public required DataManagerRequest Value { get; set; } }

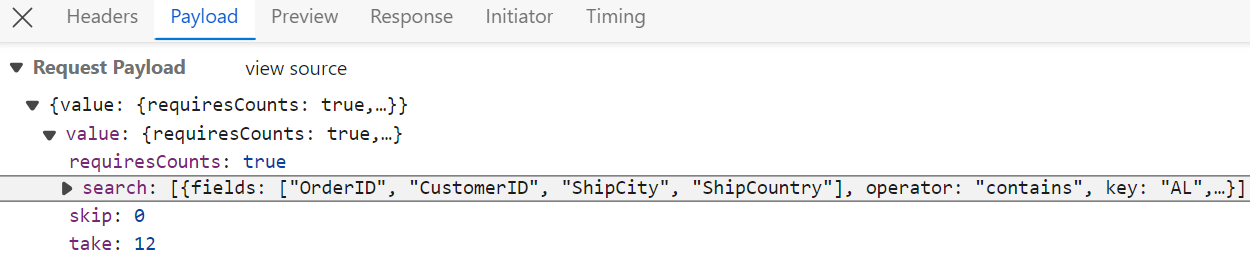

Handling searching operation
To enable search functionality, ensure that your API endpoint supports custom searching criteria. Implement the searching logic on the server-side using the PerformSearching
method from the QueryableOperation
class. This allows the custom data source to undergo searching based on the criteria specified in the incoming DataManagerRequest
object
[HttpPost]
public object Post([FromBody] DataManager DataManagerRequest)
{
// Retrieve data from the data source (e.g., database).
IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();
QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance.
// Retrieve data manager value.
DataManagerRequest DataManagerParams = DataManagerRequest.Value;
// Handling Searching.
if (DataManagerParams.Search != null && DataManagerParams.Search.Count > 0)
{
DataSource = queryableOperation.PerformSearching(DataSource, DataManagerParams.Search);
}
// Get the total records count.
int totalRecordsCount = DataSource.Count();
// Return data based on the request.
return new { result = DataSource, count = totalRecordsCount };
}
// Model for handling data manager requests.
public class DataManager
{
public required DataManagerRequest Value { get; set; }
}
<ejs-grid id="Grid" toolbar="@(new List<string>() { "Search" })" height="315">
<e-data-manager url="https://localhost:xxxx/api/Grid" adaptor="WebMethodAdaptor"></e-data-manager> // Replace `xxxx` with your actual localhost port number.
<e-grid-columns>
<e-grid-column field="OrderID" headerText="Order ID" width="120" textAlign="Right" isPrimaryKey="true"></e-grid-column>
<e-grid-column field="CustomerID" headerText="Customer ID" width="160"></e-grid-column>
<e-grid-column field="ShipCity" headerText="Ship City" width="150"></e-grid-column>
<e-grid-column field="ShipCountry" headerText="Ship Country" width="150"></e-grid-column>
</e-grid-columns>
</ejs-grid>
Handling filtering operation
To handle filtering operation, configure your API endpoint to support filter criteria. Implement the filtering logic on the server-side using the PerformFiltering
method from the QueryableOperation
class. This allows the custom data source to undergo filtering based on the criteria specified in the incoming DataManagerRequest
object.
Single column filtering
Multi column filtering
[HttpPost]
public object Post([FromBody] DataManager DataManagerRequest)
{
// Retrieve data from the data source (e.g., database).
IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();
QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance.
// Retrieve data manager value.
DataManagerRequest DataManagerParams = DataManagerRequest.Value;
if (DataManagerParams.Where != null && DataManagerParams.Where.Count > 0)
{
// Handling filtering operation.
foreach (var condition in DataManagerParams.Where)
{
foreach (var predicate in condition.predicates)
{
DataSource = queryableOperation.PerformFiltering(DataSource, DataManagerParams.Where, predicate.Operator);
}
}
}
// Get the total records count.
int totalRecordsCount = DataSource.Count();
// Return data based on the request.
return new { result = DataSource, count = totalRecordsCount };
}
// Model for handling data manager requests.
public class DataManager
{
public required DataManagerRequest Value { get; set; }
}
<ejs-grid id="Grid" allowFiltering="true" height="315">
<e-data-manager url="https://localhost:xxxx/api/Grid" adaptor="WebMethodAdaptor"></e-data-manager> // Replace `xxxx` with your actual localhost port number.
<e-grid-columns>
<e-grid-column field="OrderID" headerText="Order ID" width="120" textAlign="Right" isPrimaryKey="true"></e-grid-column>
<e-grid-column field="CustomerID" headerText="Customer ID" width="160"></e-grid-column>
<e-grid-column field="ShipCity" headerText="Ship City" width="150"></e-grid-column>
<e-grid-column field="ShipCountry" headerText="Ship Country" width="150"></e-grid-column>
</e-grid-columns>
</ejs-grid>

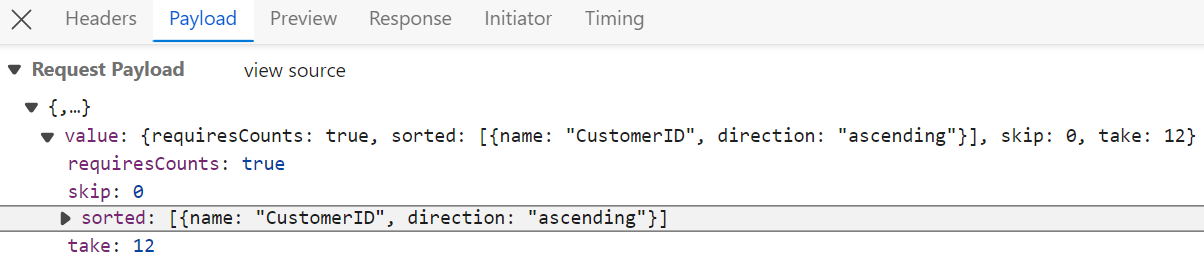

Handling sorting operation
To handle sorting operation, configure your API to support custom sorting criteria. Implement the sorting logic on the server-side using the PerformSorting
method from the QueryableOperation
class. This allows the custom data source to undergo sorting based on the criteria specified in the incoming DataManagerRequest
object.
Single column sorting

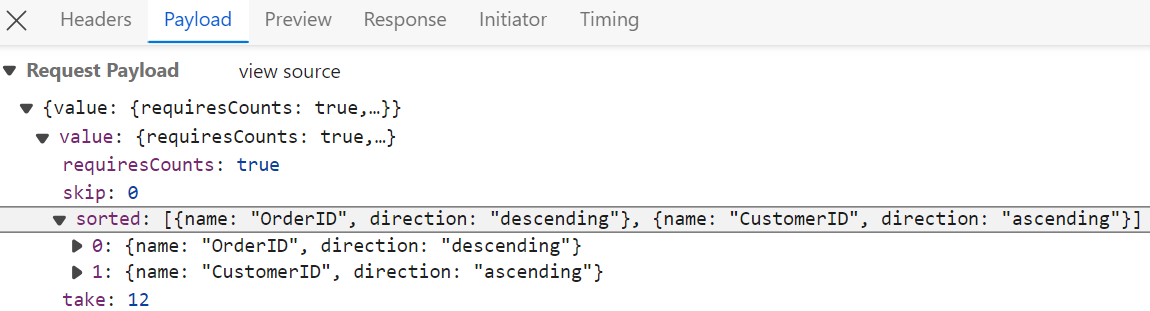

Multi column sorting
[HttpPost]
public object Post([FromBody] DataManager DataManagerRequest)
{
// Retrieve data from the data source (e.g., database).
IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();
QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance.
// Retrieve data manager value.
DataManagerRequest DataManagerParams = DataManagerRequest.Value;
// Handling Sorting operation.
if (DataManagerParams.Sorted != null && DataManagerParams.Sorted.Count > 0)
{
DataSource = queryableOperation.PerformSorting(DataSource, DataManagerParams.Sorted);
}
// Get the total count of records.
int totalRecordsCount = DataSource.Count();
// Return data based on the request.
return new { result = DataSource, count = totalRecordsCount };
}
// Model for handling data manager requests.
public class DataManager
{
public required DataManagerRequest Value { get; set; }
}
<ejs-grid id="Grid" allowSorting="true" height="315">
<e-data-manager url="https://localhost:xxxx/api/Grid" adaptor="WebMethodAdaptor"></e-data-manager> // Replace `xxxx` with your actual localhost port number.
<e-grid-columns>
<e-grid-column field="OrderID" headerText="Order ID" width="120" textAlign="Right" isPrimaryKey="true"></e-grid-column>
<e-grid-column field="CustomerID" headerText="Customer ID" width="160"></e-grid-column>
<e-grid-column field="ShipCity" headerText="Ship City" width="150"></e-grid-column>
<e-grid-column field="ShipCountry" headerText="Ship Country" width="150"></e-grid-column>
</e-grid-columns>
</ejs-grid>

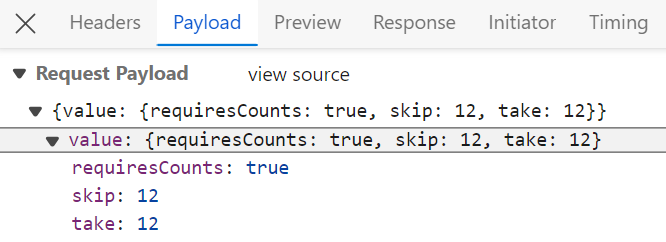

Handling paging operation
To handle paging operation, configure your API endpoint to support custom sorting criteria. Implement the paging logic on the server-side using the PerformTake
and PerformSkip
method from the QueryableOperation
class. This allows the custom data source to undergo paging based on the criteria specified in the incoming DataManagerRequest
object.
[HttpPost]
public object Post([FromBody] DataManager DataManagerRequest)
{
// Retrieve data from the data source (e.g., database).
IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();
// Get the total records count.
int totalRecordsCount = DataSource.Count();
QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance.
// Retrieve data manager value.
DataManagerRequest DataManagerParams = DataManagerRequest.Value;
// Handling paging operation.
if (DataManagerParams.Skip != 0)
{
DataSource = queryableOperation.PerformSkip(DataSource, DataManagerParams.Skip);
}
if (DataManagerParams.Take != 0)
{
DataSource = queryableOperation.PerformTake(DataSource, DataManagerParams.Take);
}
// Return data based on the request.
return new { result = DataSource, count = totalRecordsCount };
}
// Model for handling data manager requests.
public class DataManager
{
public required DataManagerRequest Value { get; set; }
}
<ejs-grid id="Grid" allowPaging="true" height="315">
<e-data-manager url="https://localhost:xxxx/api/Grid" adaptor="WebMethodAdaptor"></e-data-manager> // Replace `xxxx` with your actual localhost port number.
<e-grid-columns>
<e-grid-column field="OrderID" headerText="Order ID" width="120" textAlign="Right" isPrimaryKey="true"></e-grid-column>
<e-grid-column field="CustomerID" headerText="Customer ID" width="160"></e-grid-column>
<e-grid-column field="ShipCity" headerText="Ship City" width="150"></e-grid-column>
<e-grid-column field="ShipCountry" headerText="Ship Country" width="150"></e-grid-column>
</e-grid-columns>
</ejs-grid>

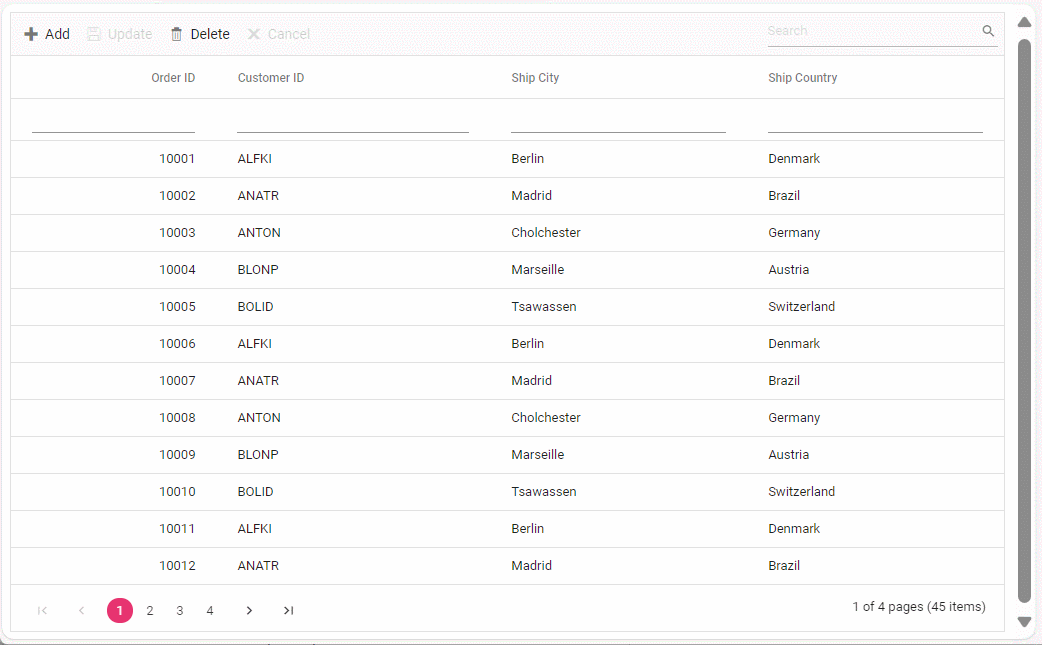

Handling CRUD operations
The Syncfusion ASP.NET Core Grid seamlessly integrates CRUD (Create, Read, Update, Delete) operations with server-side controller actions through specific properties: insertUrl
, removeUrl
, updateUrl
, crudUrl
, and batchUrl
. These properties enable the Grid to communicate with the data service for every Grid action, facilitating server-side operations.
CRUD operations mapping
The following properties enable the Grid to interact with API endpoints for different CRUD actions:
- insertUrl: Specifies the URL for inserting new data.
- removeUrl: Specifies the URL for removing existing data.
- updateUrl: Specifies the URL for updating existing data.
- crudUrl: Specifies a single URL for all CRUD operations.
- batchUrl: Specifies the URL for batch editing.
To enable editing in ASP.NET Core Grid, refer to the editing documentation. In the below example, the inline edit mode
is enabled and toolbar property is configured to display toolbar items for editing purposes.
<ejs-grid id="Grid" toolbar="@(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel"})">
<e-data-manager url='https://localhost:xxxx/api/Grid'
insertUrl='https://localhost:xxxx/api/Grid/Insert'
updateUrl='https://localhost:xxxx/api/Grid/Update'
removeUrl='https://localhost:xxxx/api/Grid/Remove'
adaptor="WebMethodAdaptor"> // Replace `xxxx` with your actual localhost port number.
</e-data-manager>
<e-grid-editSettings allowAdding="true" allowDeleting="true" allowEditing="true" mode="Normal"></e-grid-editSettings>
<e-grid-columns>
<e-grid-column field="OrderID" headerText="Order ID" width="120" textAlign="Right" isPrimaryKey="true"></e-grid-column>
<e-grid-column field="CustomerID" headerText="Customer ID" width="160"></e-grid-column>
<e-grid-column field="ShipCity" headerText="Ship City" width="150"></e-grid-column>
<e-grid-column field="ShipCountry" headerText="Ship Country" width="150"></e-grid-column>
</e-grid-columns>
</ejs-grid>
Normal/Inline editing is the default edit
mode
for the Grid. To enable CRUD operations, ensure that theisPrimaryKey
property is set to true for a specific Grid column, ensuring that its value is unique.
The below class is used to structure data sent during CRUD operations.
public class CRUDModel<T> where T : class
{
public string? action { get; set; }
public string? keyColumn { get; set; }
public object? key { get; set; }
public T? value { get; set; }
public List<T>? added { get; set; }
public List<T>? changed { get; set; }
public List<T>? deleted { get; set; }
public IDictionary<string, object>? @params { get; set; }
}

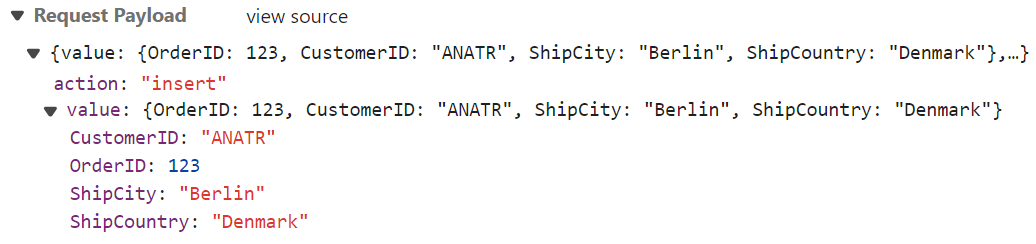

Insert operation:
To insert a new record, utilize the insertUrl
property to specify the controller action mapping URL for the insert operation. The newly added record details are bound to the newRecord parameter.
/// <summary>
/// Inserts a new data item into the data collection.
/// </summary>
/// <param name="newRecord">It contains the new record detail which is need to be inserted.</param>
/// <returns>Returns void.</returns>
[HttpPost]
[Route("api/[controller]/Insert")]
public void Insert([FromBody] CRUDModel<OrdersDetails> newRecord)
{
// Check if new record is not null.
if (newRecord.value != null)
{
// Insert new record.
OrdersDetails.GetAllRecords().Insert(0, newRecord.value);
}
}

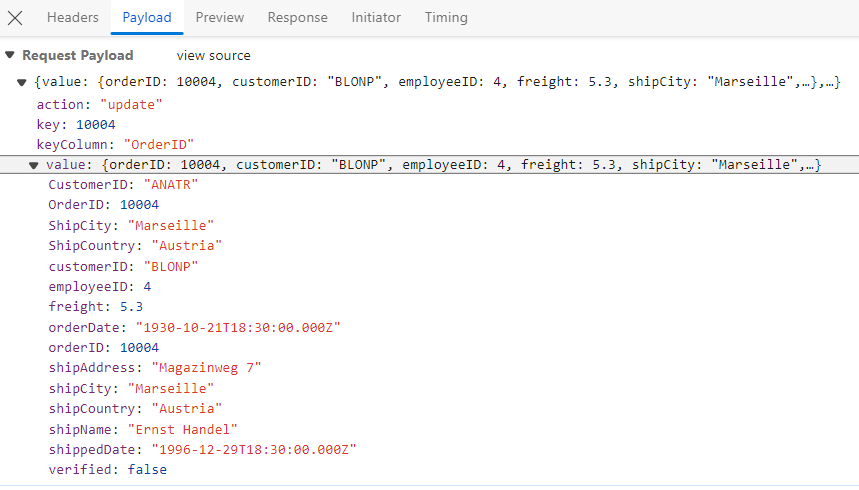

Update operation:
For updating existing records, utilize the updateUrl
property to specify the controller action mapping URL for the update operation. The updated record details are bound to the updatedRecord parameter.
/// <summary>
/// Update a existing data item from the data collection.
/// </summary>
/// <param name="updatedRecord">It contains the updated record detail which is need to be updated.</param>
/// <returns>Returns void.</returns>
[HttpPost]
[Route("api/[controller]/Update")]
public void Update([FromBody] CRUDModel<OrdersDetails> updatedRecord)
{
// Retrieve updated order.
var updatedOrder = updatedRecord.value;
if (updatedOrder != null)
{
// Find existing record.
var data = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == updatedOrder.OrderID);
if (data != null)
{
// Update existing record.
data.OrderID = updatedOrder.OrderID;
data.CustomerID = updatedOrder.CustomerID;
data.ShipCity = updatedOrder.ShipCity;
data.ShipCountry = updatedOrder.ShipCountry;
// Update other properties similarly.
}
}
}

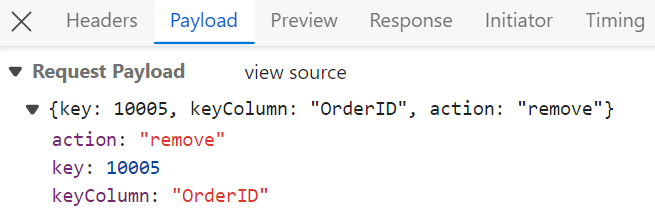

Delete operation
To delete existing records, use the removeUrl
property to specify the controller action mapping URL for the delete operation. The primary key value of the deleted record is bound to the deletedRecord parameter.
/// <summary>
/// Remove a specific data item from the data collection.
/// </summary>
/// <param name="deletedRecord">It contains the specific record detail which is need to be removed.</param>
/// <return>Returns void.</return>
[HttpPost]
[Route("api/[controller]/Remove")]
public void Remove([FromBody] CRUDModel<OrdersDetails> deletedRecord)
{
int orderId = int.Parse(deletedRecord.key.ToString()); // Get key value from the deletedRecord.
var data = OrdersDetails.GetAllRecords().FirstOrDefault(orderData => orderData.OrderID == orderId);
if (data != null)
{
// Remove the record from the data collection.
OrdersDetails.GetAllRecords().Remove(data);
}
}
Single method for performing all CRUD operations
Using the crudUrl
property, the controller action mapping URL can be specified to perform all the CRUD operation at server-side using a single method instead of specifying separate controller action method for CRUD (insert, update and delete) operations.
The following code example describes the above behavior.
<ejs-grid id="Grid" toolbar="@(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel"})">
<e-data-manager url='https://localhost:xxxx/api/Grid'
crudUrl='https://localhost:xxxx/api/grid/CrudUpdate'
adaptor="WebMethodAdaptor"> // Replace `xxxx` with your actual localhost port number.
</e-data-manager>
<e-grid-editSettings allowAdding="true" allowDeleting="true" allowEditing="true" mode="Normal"></e-grid-editSettings>
<e-grid-columns>
<e-grid-column field="OrderID" headerText="Order ID" width="120" textAlign="Right" isPrimaryKey="true"></e-grid-column>
<e-grid-column field="CustomerID" headerText="Customer ID" width="160"></e-grid-column>
<e-grid-column field="ShipCity" headerText="Ship City" width="150"></e-grid-column>
<e-grid-column field="ShipCountry" headerText="Ship Country" width="150"></e-grid-column>
</e-grid-columns>
</ejs-grid>
[HttpPost]
[Route("api/[controller]/CrudUpdate")]
public void CrudUpdate([FromBody] CRUDModel<OrdersDetails> request)
{
// Perform update operation.
if (request.action == "update")
{
var orderValue = request.value;
OrdersDetails existingRecord = OrdersDetails.GetAllRecords().Where(or => or.OrderID == orderValue.OrderID).FirstOrDefault();
existingRecord.OrderID = orderValue.OrderID;
existingRecord.CustomerID = orderValue.CustomerID;
existingRecord.ShipCity = orderValue.ShipCity;
}
// Perform insert operation.
else if (request.action == "insert")
{
OrdersDetails.GetAllRecords().Insert(0, request.value);
}
// Perform remove operation.
else if (request.action == "remove")
{
OrdersDetails.GetAllRecords().Remove(OrdersDetails.GetAllRecords().Where(or => or.OrderID == int.Parse(request.key.ToString())).FirstOrDefault());
}
}

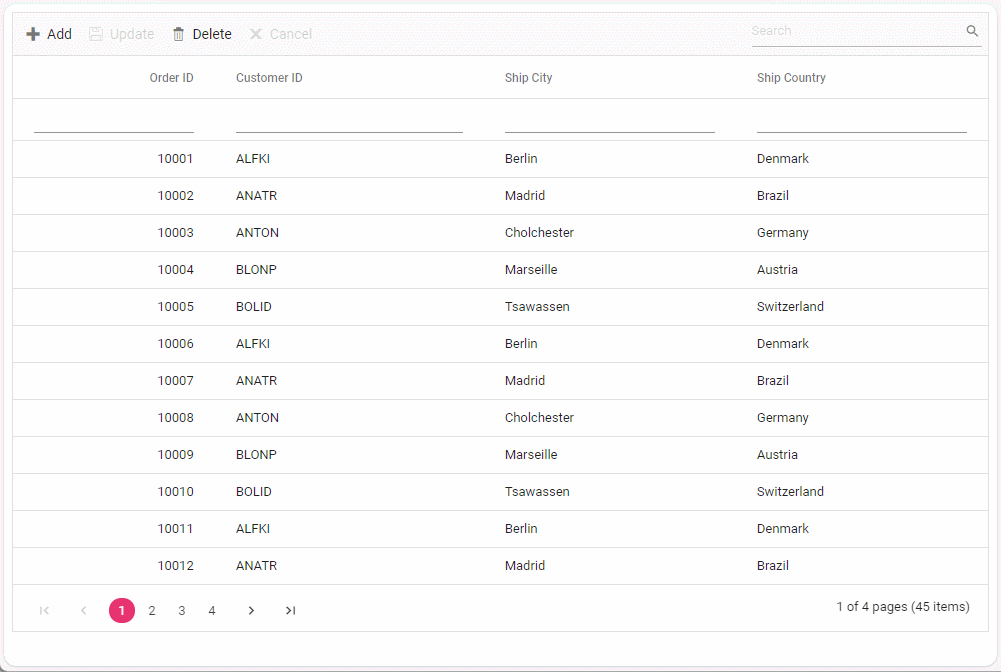

Batch operation
To perform batch operation, set the edit mode
as Batch and specify the batchUrl
property in the DataManager
. Use the Add toolbar button to insert new row in batch editing mode. To edit a cell, double-click the desired cell and update the value as required. To delete a record, simply select the record and press the Delete toolbar button. Now, all CRUD operations will be executed in single request. Clicking the Update toolbar button will update the newly added, edited, or deleted records from the OrdersDetails table using a single API POST request.
<ejs-grid id="Grid" toolbar="@(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel"})">
<e-data-manager url='https://localhost:xxxx/api/Grid'
batchUrl='https://localhost:xxxx/api/Grid/BatchUpdate'
adaptor="WebMethodAdaptor"> // Replace `xxxx` with your actual localhost port number.
</e-data-manager>
<e-grid-editSettings allowAdding="true" allowDeleting="true" allowEditing="true" mode="Batch"></e-grid-editSettings>
<e-grid-columns>
<e-grid-column field="OrderID" headerText="Order ID" width="120" textAlign="Right" isPrimaryKey="true"></e-grid-column>
<e-grid-column field="CustomerID" headerText="Customer ID" width="160"></e-grid-column>
<e-grid-column field="ShipCity" headerText="Ship City" width="150"></e-grid-column>
<e-grid-column field="ShipCountry" headerText="Ship Country" width="150"></e-grid-column>
</e-grid-columns>
</ejs-grid>
[HttpPost]
[Route("api/[controller]/BatchUpdate")]
public IActionResult BatchUpdate([FromBody] CRUDModel<OrdersDetails> batchOperation)
{
if (batchOperation.added != null)
{
foreach (var addedOrder in batchOperation.added)
{
OrdersDetails.GetAllRecords().Insert(0, addedOrder);
}
}
if (batchOperation.changed != null)
{
foreach (var changedOrder in batchOperation.changed)
{
var existingOrder = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == changedOrder.OrderID);
if (existingOrder != null)
{
existingOrder.CustomerID = changedOrder.CustomerID;
existingOrder.ShipCity = changedOrder.ShipCity;
// Update other properties as needed.
}
}
}
if (batchOperation.deleted != null)
{
foreach (var deletedOrder in batchOperation.deleted)
{
var orderToDelete = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == deletedOrder.OrderID);
if (orderToDelete != null)
{
OrdersDetails.GetAllRecords().Remove(orderToDelete);
}
}
}
return Json(batchOperation);
}
Please find the sample in this GitHub location.
