Swimlane in Angular Diagram component

24 Jun 2022 / 20 minutes to read

Swimlane is a type of diagram nodes,which is typically used to visualize the relationship between a business process and the department responsible for it by focusing on the logical relationships between activities.

Create a swimlane

To create a swimlane,the type of shape should be set as swimlane.By Default swimlane’s are arranged vertically.

The following code example illustrates how to define a swimlane object.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
    selector: "app-container",
    template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes">
    </ejs-diagram>`,
    encapsulation: ViewEncapsulation.None
})
export class AppComponent {
      public nodes: NodeModel[] = [
        {
            shape: {
                type: 'SwimLane',
                lanes: [
                    {
                        id: 'stackCanvas1',
                        height: 100,
                    },
                ],
                phases: [{
                    id: 'phase1', offset: 170,
                        header: { annotation: { content: 'Phase' } }
                }
                ],
                phaseSize: 20,
            },
            offsetX: 300, offsetY: 200,
             height: 200,
             width: 350
        },
      ]
    @ViewChild("diagram")
    public diagram: DiagramComponent;
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Headers

Header was the primary element for swimlanes. The header property of swimlane allows you to define its textual description and to customize its appearance.

Note: By using this header,the swimlane interaction will be performed,like selection, dragging,etc.

The following code example illustrates how to define a swimlane header.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
    selector: "app-container",
    template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes">
    </ejs-diagram>`,
    encapsulation: ViewEncapsulation.None
})
export class AppComponent {
      public nodes: NodeModel[] = [
        {
            shape: {
                type: 'SwimLane',
                orientation: 'Horizontal',
                 // Intialize header to swimlane
                header: {
                    annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: '#111111' } },
                    height: 50, style: { fontSize: 11 },
                },
                lanes: [
                    {
                        id: 'stackCanvas1',
                        height: 100,
                    },
                ],
                phases: [{
                    id: 'phase1', offset: 170,
                        header: { annotation: { content: 'Phase' } }
                }
                ],
                phaseSize: 20,
            },
            offsetX: 300, offsetY: 200,
             height: 200,
             width: 350
        },
      ]
    @ViewChild("diagram")
    public diagram: DiagramComponent;
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Customization of headers

The height and width of swimlane header can be customized with weight and height properties of swimlane header. set fill color of header by using the style property. The orientation of swimlane can be customized with the orientation property of the header.

Note: By default the swimlane orientation has Horizontal.

The following code example illustrates how to customize the swimlane header.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
    selector: "app-container",
    template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes">
    </ejs-diagram>`,
    encapsulation: ViewEncapsulation.None
})
export class AppComponent {
      public nodes: NodeModel[] = [
        {
            shape: {
                type: 'SwimLane',
                orientation: 'Horizontal',
                // customize the swimlane header
                 header: {
                annotation: { content: 'SALES PROCESS FLOW CHART', },
                height: 70, style: { fontSize: 11 }, style: { fill: 'pink' },
                },
                lanes: [
                    {
                        id: 'stackCanvas1',
                        height: 100,
                    },
                ],
                phases: [{
                    id: 'phase1', offset: 170,
                        header: { annotation: { content: 'Phase' } }
                }
                ],
                phaseSize: 20,
            },
            offsetX: 420, offsetY: 270,
            height: 100,
            width: 650
        },
      ]
    @ViewChild("diagram")
    public diagram: DiagramComponent;
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Dynamic customization of swimlane header

You can customize the swimlane header style and text properties dynamically. The following code illustrates how to dynamically customize the lane header.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
    selector: "app-container",
    template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes" (created)='created($event)'>
    </ejs-diagram>`,
    encapsulation: ViewEncapsulation.None
})
export class AppComponent {
      public nodes: NodeModel[] = [
        {
            shape: {
                type: 'SwimLane',
                orientation: 'Horizontal',
                // customize the swimlane header
                 header: {
                annotation: { content: 'SALES PROCESS FLOW CHART', },
                height: 70, style: { fontSize: 11 }, style: { fill: 'pink' },
                },
                lanes: [
                    {
                        id: 'stackCanvas1',
                        height: 100,
                    },
                ],
                phases: [{
                    id: 'phase1', offset: 170,
                        header: { annotation: { content: 'Phase' } }
                }
                ],
                phaseSize: 20,
            },
            offsetX: 420, offsetY: 270,
            height: 100,
            width: 650
        },
      ]
    @ViewChild("diagram")
    public diagram: DiagramComponent;
     public created(args: Object): void {
        this.diagram.nodes[0].shape.header.style.fill = 'red';
        this.diagram.dataBind();
    }
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Header editing

Diagram provides the support to edit swimlane headers at runtime. We achieve the header editing by double click event. Double clicking the header label will enables the editing of that. The following image illustrates how to edit the swimlane header.

Lanes

Lane is a functional unit or a responsible department of a business process that helps to map a process within the functional unit or in between other functional units.

The number of lanes can be added to swimlane. The lanes are automatically stacked inside swimlane based on the order they are added.

Create an empty lane

The lane id is used to define the name of the lane and its further used to find the lane at runtime and do any customization.
We can provide additional information to the lane by using the addInfo property of the lane.

The following code example illustrates how to define a swimlane with lane.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes">
</ejs-diagram>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
  public nodes: NodeModel[] = [
    {
        shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: 'pink' } },
                height: 50, style: { fontSize: 11 },
            },
             // initialize the lane of swimlane
            lanes: [
                {
                    id: 'stackCanvas1',
                    // set the lane height
                    height: 100,
                    // set the lane info
                    addInfo:{name:'lane1'}
                },
            ],
            phases: [
                {
                id: 'phase1', offset: 170,
                    header: { annotation: { content: 'Phase' } }
                }
            ],
            phaseSize: 20,
        },
        offsetX: 300, offsetY: 200,
        height: 200,
        width: 350
    },
  ]
@ViewChild("diagram")
public diagram: DiagramComponent;
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Create lane header

The header property of lane allows you to textually describe the lane and to customize the appearance of the description.

The following code example illustrates how to define a lane header.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes">
</ejs-diagram>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
  public nodes: NodeModel[] = [
    {
        id: 'swimlane',
        shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            // Intialize header to swimlane
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: 'pink' } },
                height: 50, style: { fontSize: 11 },
            },
             // Intialize lane to swimlane
            lanes: [
              {
                    id: 'stackCanvas1',
                    height: 100,
                    // Intialize header to lane
                    header: {
                        annotation: { content: 'CUSTOMER' }, width: 50,
                        style: { fontSize: 11 }
                    },
                },
            ],
            phases: [{
                id: 'phase1', offset: 170,
                    header: { annotation: { content: 'Phase' } }
            }
            ],
            phaseSize: 20,
        },
        offsetX: 420, offsetY: 270,
        height: 100,
        width: 650
    },
  ]
@ViewChild("diagram")
public diagram: DiagramComponent;
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Customizing lane header

The size of lane can be controlled by using width and height properties of lane.
The appearance of lane can be set by using the style properties.

The following code example illustrates how to customize the lane header.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes">
</ejs-diagram>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
  public nodes: NodeModel[] = [
    {
        shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            //Intialize header to swimlane
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: 'pink' } },
                height: 50, style: { fontSize: 11 },
            },
            lanes: [
              {
                   id: 'stackCanvas1',
                    height: 100,
                    // customization of lane header
                     header: {
                    annotation: { content: 'Online Consumer' }, width: 30,
                    style: { fontSize: 11 },style: { fill: 'red' }
                },
                },
            ],
            phases: [{
                id: 'phase1', offset: 170,
                    header: { annotation: { content: 'Phase' } }
            }
            ],
            phaseSize: 20,
        },
       offsetX: 300, offsetY: 200,
        height: 200,
        width: 350
    },
  ]
@ViewChild("diagram")
public diagram: DiagramComponent;
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Dynamic customization of lane header

We can customize the lane header style and text properties dynamically. The following code illustrates how to dynamically customize the lane header..

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes" (created)='created($event)'>
</ejs-diagram>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
  public nodes: NodeModel[] = [
    {
        shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            //Intialize header to swimlane
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: 'pink' } },
                height: 50, style: { fontSize: 11 },
            },
            lanes: [
              {
                   id: 'stackCanvas1',
                    height: 100,
                    // customization of lane header
                     header: {
                    annotation: { content: 'Online Consumer' }, width: 30,
                    style: { fontSize: 11 },style: { fill: 'red' }
                },
                },
            ],
            phases: [{
                id: 'phase1', offset: 170,
                    header: { annotation: { content: 'Phase' } }
            }
            ],
            phaseSize: 20,
        },
       offsetX: 300, offsetY: 200,
        height: 200,
        width: 350
    },
  ]
@ViewChild("diagram")
public diagram: DiagramComponent;
 public created(args: Object): void {
    // Update the connector properties at the run time
    this.diagram.nodes[0].shape.lanes[0].header.style.fill = 'blue';
    this.diagram.dataBind();
}
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Add lane at runtime

You can add the a lane at runtime by using the client side API method called addLanes. The following code illustrates how to dynamically add lane to swimlane.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes" (created)='created($event)'>
</ejs-diagram>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
  public nodes: NodeModel[] = [
    {
        shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            //Intialize header to swimlane
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: 'pink' } },
                height: 50, style: { fontSize: 11 },
            },
            lanes: [
              {
                   id: 'stackCanvas1',
                    height: 100,
                    // customization of lane header
                     header: {
                    annotation: { content: 'Online Consumer' }, width: 30,
                    style: { fontSize: 11 },style: { fill: 'red' }
                },
                },
            ],
            phases: [{
                id: 'phase1', offset: 170,
                    header: { annotation: { content: 'Phase' } }
            }
            ],
            phaseSize: 20,
        },
       offsetX: 300, offsetY: 200,
        height: 200,
        width: 350
    },
  ]
@ViewChild("diagram")
public diagram: DiagramComponent;
 public created(args: Object): void {
     let lane = [{id:"lane1",height:100,}];
    this.diagram.addLanes(this.diagram.nodes[0],lane,1);
    this.diagram.dataBind();
}
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Add children to lane

To add nodes to lane,you should add children collection of the lane.

The following code example illustrates how to add nodes to lane.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes">
</ejs-diagram>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
  public nodes: NodeModel[] = [
    {
        id: 'swimlane',
        orientation: 'Horizontal',
        shape: {
            type: 'SwimLane',
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: 'pink' } },
                height: 50, style: { fontSize: 11 },
            },
          lanes: [
                {
                    id: 'stackCanvas1',
                    height: 100,
                    header: {
                        annotation: { content: 'CUSTOMER' }, width: 50,
                        style: { fontSize: 11 }
                    },
                    // Set the children of lane
                      children: [
                        {
                        id: 'node1',
                        annotations: [
                            {
                                content: 'Consumer learns \n of product',
                                style: { fontSize: 11 }
                            }
                        ],
                        margin: { left: 60, top: 30 },
                        height: 40, width: 100,
                    }, {
                        id: 'node2',
                        shape: { type: 'Flow', shape: 'Decision' },
                        annotations: [
                          {
                            content: 'Does \n Consumer want \nthe product',
                            style: { fontSize: 11 }
                          }
                        ],
                        margin: { left: 200, top: 20 },
                        height: 60, width: 120,
                      },
                    ],
                },

            ],
            phases: [{
                id: 'phase1', offset: 170,
                    header: { annotation: { content: 'Phase' } }
            }
            ],
            phaseSize: 20,
        },
        offsetX: 420, offsetY: 270,
        height: 100,
        width: 650
    },
  ]
@ViewChild("diagram")
public diagram: DiagramComponent;
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Lane interaction

Resizing lane

Lane can be resized in the bottom and left direction.
Lane can be resized by using resize selector of the lane.
Once you can resize the lane,the swimlane will be resized automatically.
The lane can be resized either resizing the selector or the tight bounds of the child object. If the child node move to edge of the lane it can be automatically resized.

The following image illustrates how resize the lane. Lane Resizing

Lane swapping

Lanes can be swapped using drag the lanes over another lane.
Helper should intimate the insertion point while lane swapping.

The following image illustrates how swapping the lane. Lane Swapping

Disable Swimlane Lane swapping

You can disable swimlane lane swapping by using the property called canMove.

The following code illustrates how to disable swimlane lane swapping.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes" (created)='created($event)'>
</ejs-diagram>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
  public nodes: NodeModel[] = [
    {
        shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            //Intialize header to swimlane
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: 'pink' } },
                height: 50, style: { fontSize: 11 },
            },
            lanes: [
              {
                   id: 'stackCanvas1',
                    height: 100,
                    // customization of lane header
                     header: {
                    annotation: { content: 'Online Consumer' }, width: 30,
                    style: { fontSize: 11 },style: { fill: 'red' }
                },
                canMove: false ,
                },
            ],
            phases: [{
                id: 'phase1', offset: 170,
                    header: { annotation: { content: 'Phase' } }
            }
            ],
            phaseSize: 20,
        },
       offsetX: 300, offsetY: 200,
        height: 200,
        width: 350
    },
  ]
@ViewChild("diagram")
public diagram: DiagramComponent;
 public created(args: Object): void {
     let lane = [{id:"lane1",height:100,canMove: false}];
    this.diagram.addLanes(this.diagram.nodes[0],lane,1);
    this.diagram.dataBind();
}
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Resize helper

The special resize helper will be used to resize the lanes.
The resize cursor will be available on the left and bottom direction alone.
Once resize the lane the swimlane will be resized automatically.

Children interaction in lanes

You can resize the child node within swimlanes.
You can drag the child nodes within lane.
Interchange the child nodes from one lane to another lane.
Drag and drop the child nodes from lane to diagram.
Drag and drop the child nodes from diagram to lane.
Based on the child node interactions,the lane size should be updated.

The following image illustrates children interaction in lane. Lane Children Interaction

Lane header editing

Diagram provides the support to edit Lane headers at runtime. We achieve the header editing by double click event. Double clicking the header label will enables the editing of that. The following image illustrates how to edit the lane header. Lane Header Editing

Phase

Phase are the subprocess which will split each lanes as horizontally or vertically based on the swimlane orientation. The multiple number of Phase can be added to swimlane.

The following code example illustrates how to add phase at swimlane.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes">
</ejs-diagram>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
  public nodes: NodeModel[] = [
    {
        id: 'swimlane',
        shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: 'pink' } },
                height: 50, style: { fontSize: 11 },
            },
           lanes: [
                {
                    id: 'stackCanvas1',
                    height: 100,
                    header: {
                        annotation: { content: 'CUSTOMER' }, width: 50,
                        style: { fontSize: 11 }
                    },
                      children: [
                        {
                            id: 'Order',
                            margin: { left: 60, top: 20 },
                            height: 40, width: 100
                        }
                    ],
                },

            ],
           // Set phase to swimlane
         phases: [
             {
                 id: 'phase1', offset: 120,
                 header: { annotation: { content: 'Phase' } }
             },{
                id: 'phase2', offset: 200,
                header: { annotation: { content: 'Phase' } }
            },
             ],
            phaseSize: 20,
        },
        offsetX: 420, offsetY: 270,
        height: 100,
        width: 650
    },
  ]
@ViewChild("diagram")
public diagram: DiagramComponent;
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Dynamically add phase to lane

You can add the a phase at runtime by using client side API method called addPhases. The following code example illustrates how to add phase at run time.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes" (created)='created($event)'>
</ejs-diagram>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
  public nodes: NodeModel[] = [
    {
        id: 'swimlane',
        shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: 'pink' } },
                height: 50, style: { fontSize: 11 },
            },
           lanes: [
                {
                    id: 'stackCanvas1',
                    height: 100,
                    header: {
                        annotation: { content: 'CUSTOMER' }, width: 50,
                        style: { fontSize: 11 }
                    },
                      children: [
                        {
                            id: 'Order',
                            margin: { left: 60, top: 20 },
                            height: 40, width: 100
                        }
                    ],
                },

            ],
           // Set phase to swimlane
         phases: [
             {
                 id: 'phase1', offset: 120,
                 header: { annotation: { content: 'Phase' } }
             },{
                id: 'phase2', offset: 200,
                header: { annotation: { content: 'Phase' } }
            },
             ],
            phaseSize: 20,
        },
        offsetX: 420, offsetY: 270,
        height: 100,
        width: 650
    },
  ]
@ViewChild("diagram")
public diagram: DiagramComponent;
public created(args: Object): void {
     let phase = [{
   id: 'phase3', offset: 220,
   header: { annotation: { content: 'Phase' } }
     }]
    this.diagram.addPhases(this.diagram.nodes[0],phase);
    this.diagram.dataBind();
}
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Customizing phase

The length of region can be set by using the offset property of the phase.
Every phase region can be textually described with the header property of the phase.
You can increase the width of phase by using phaseSize property of swimlane.
We can provide additional information to the phase by using the addInfo property of the phase.

The following code example illustrates how to customize the phase in swimlane.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, ViewEncapsulation, ViewChild } from '@angular/core';
import { DiagramComponent, SwimLaneModel,Diagram, NodeModel,Node, LaneModel,HeaderModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-diagram #diagram id="diagram" width="100%" height="580px" [nodes]="nodes">
</ejs-diagram>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
  public nodes: NodeModel[] = [
    {
        id: 'swimlane',
        shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS', style: { fill: 'pink' } },
                height: 50, style: { fontSize: 11 },
            },
           lanes: [
                {
                    id: 'stackCanvas1',
                    height: 100,
                    header: {
                        annotation: { content: 'CUSTOMER' }, width: 50,
                        style: { fontSize: 11 }
                    },
                      children: [
                        {
                            id: 'Order',
                            margin: { left: 60, top: 20 },
                            height: 40, width: 100
                        }
                    ],
                },

            ],
            phases: [
             {
                 id: 'phase1', offset: 120,
                 // set the phase info
                 addInfo:{name:'phase1'},
                 header: { annotation: { content: 'Phase' } },style:{fill:'red'}
             },{
                id: 'phase2', offset: 200,
                header: { annotation: { content: 'Phase' } }
            },
             ],
            phaseSize: 20,
        },
        offsetX: 420, offsetY: 270,
        height: 100,
        width: 650
    },
  ]
@ViewChild("diagram")
public diagram: DiagramComponent;
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Phase interaction

Resizing

The phase can be resized by using its helper.
You must select the phase header to enable the phase selection.
Once the phase can be resized, the lane size will be updated automatically.

Resizing helper

The special resize helper will be used to resize the phase.
The resize cursor will be available on the left and bottom direction for horizontal, and the top and bottom direction for vertical swimlane.

Phase header editing

Diagram provides the support to edit phase headers at runtime. We achieve the header editing by double click event. Double clicking the header label will enables the editing of that. The following image illustrates how to edit the swimlane header. Phase Header Editing

Add swimlane to palette

Diagram provides the support to add swimlane and phases to symbol palette. The following code sample illustrate how to add swimlane and phases to palette.

Source

Preview

app.component.ts

app.module.ts

main.ts

import { Component, OnInit, ViewEncapsulation, ViewChild } from '@angular/core';
 import { SymbolPaletteComponent, SymbolPalette, SymbolPreviewModel, NodeModel, ConnectorModel, ExpandMode, PaletteModel, SwimLaneModel, LaneModel, HeaderModel, MarginModel } from '@syncfusion/ej2-angular-diagrams';

@Component({
selector: "app-container",
template: `<ejs-symbolpalette id="symbolpalette"width="100%" height="700px" [symbolHeight]=80 [symbolWidth]=80 [expandMode]="expandMode" [palettes]="palettes" [getSymbolInfo]="getSymbolInfo" [symbolMargin]="symbolMargin" [symbolPreview]="symbolPreview" [getNodeDefaults]="">
</ejs-symbolpalette>`,
encapsulation: ViewEncapsulation.None
})
export class AppComponent {
public expandMode: ExpandMode;
public palettes: PaletteModel[];
public symbolMargin: MarginModel;
public symbolPreview: SymbolPreviewModel;
public getswimlaneShapes(): NodeModel[] {
   let swimlaneShapes : NodeModel[]= [
        {
            id: 'stackCanvas1',
            shape: {
                type: 'SwimLane', lanes: [
                    {
                        id: 'lane1',
                        style: { strokeColor: 'black' }, height: 60, width: 150,
                        header: { width: 50, height: 50, style: { strokeColor: 'black', fontSize: 11 } },
                    }
                ],
                orientation: 'Horizontal', isLane: true
            },
            height: 60,
            width: 140,
            offsetX: 70,
            offsetY: 30,
        }, {
            id: 'stackCanvas2',
            shape: {
                type: 'SwimLane',
                lanes: [
                    {
                        id: 'lane1',
                        style: { strokeColor: 'black' }, height: 150, width: 60,
                        header: { width: 50, height: 50, style: { strokeColor: 'black', fontSize: 11 } },
                    }
                ],
                orientation: 'Vertical', isLane: true
            },
            height: 140,
            width: 60,
            // style: { fill: '#f5f5f5' },
            offsetX: 70,
            offsetY: 30,
        }, {
            id: 'verticalPhase',
            shape: {
                type: 'SwimLane',
                phases: [{ style: { strokeWidth: 1, strokeDashArray: '3,3', strokeColor: '#A9A9A9' }, }],
                annotations: [{ text: '' }],
                orientation: 'Vertical', isPhase: true
            },
            height: 60,
            width: 140
        }, {
            id: 'horizontalPhase',
            shape: {
                type: 'SwimLane',
                phases: [{ style: { strokeWidth: 1, strokeDashArray: '3,3', strokeColor: '#A9A9A9' }, }],
                annotations: [{ text: '' }],
                orientation: 'Horizontal', isPhase: true
            },
            height: 60,
            width: 140
        }
];

return swimlaneShapes;
};
public getPaletteNodeDefaults(node: NodeModel): void {
    node.width = 100;
    node.height = 100;
    node.style.strokeColor = '#3A3A3A';
}
public getSymbolInfo(symbol) {
    // Enables to fit the content into the specified palette item size
    return {
        fit: true
    };
    // When it is set as false, the element is rendered with actual node size
},
ngOnInit(): void {
    this.expandMode = 'Multiple'
    this.palettes = [{
        id: 'swimlane',
        expanded: true,
        symbols: this.getswimlaneShapes(),
        title: 'Swimlane Shapes',
        iconCss: 'e-ddb-icons e-basic'
    }],
    this.symbolMargin = {
        left: 15,
        right: 15,
        top: 15,
        bottom: 15
    },
    //Specifies the preview size and position to symbol palette items.
    this.symbolPreview = {
        height: 100,
        width: 100,
        offset: {
            x: 0.5,
            y: 0.5
            }
        }
    }
}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { DiagramModule, SymbolPaletteModule } from '@syncfusion/ej2-angular-diagrams';

/**
 * Module
 */
@NgModule({
    imports: [
        BrowserModule, DiagramModule, SymbolPaletteModule
    ],
    declarations: [AppComponent],
    bootstrap: [AppComponent],
    providers: [ ]
})
export class AppModule { }

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { enableProdMode } from '@angular/core';
import { AppModule } from './app.module';

enableProdMode();
platformBrowserDynamic().bootstrapModule(AppModule);

Drag and drop swimlane to palette

The drag and drop support for swimlane shapes has been provided.
When you drag and drop the lane shape,if the diagram already contains swimlane with the same orientation, the lane will be added and stacked inside a swimlane based on the order. Otherwise, it will be added a new swimlane.
The phase will only drop on swimlane shape with same orientation.

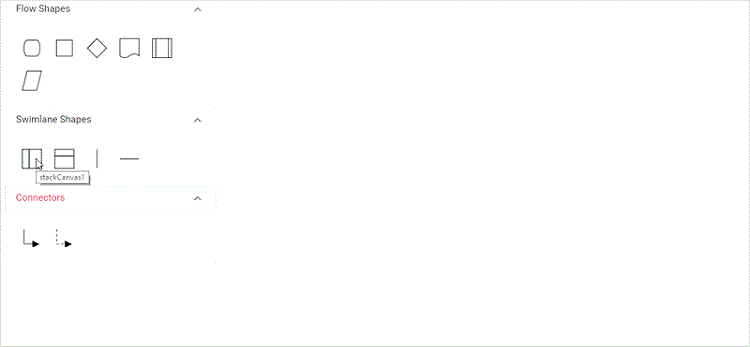

The following image illustrates how to drag symbol from palette.

Limitations

Connectors cannot be canceled when added directly to swimlane. we must initialize the connector through connector collection.
We cannot edit the phase line style.

Please provide additional information

Thank you for your feedback and comments.We will rectify this as soon as possible!
